Dahua WizSense 3 · 8MP 4K Vandal Dome · Motorised Vari-Focal

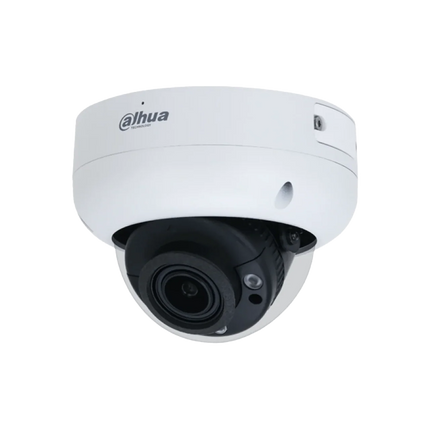

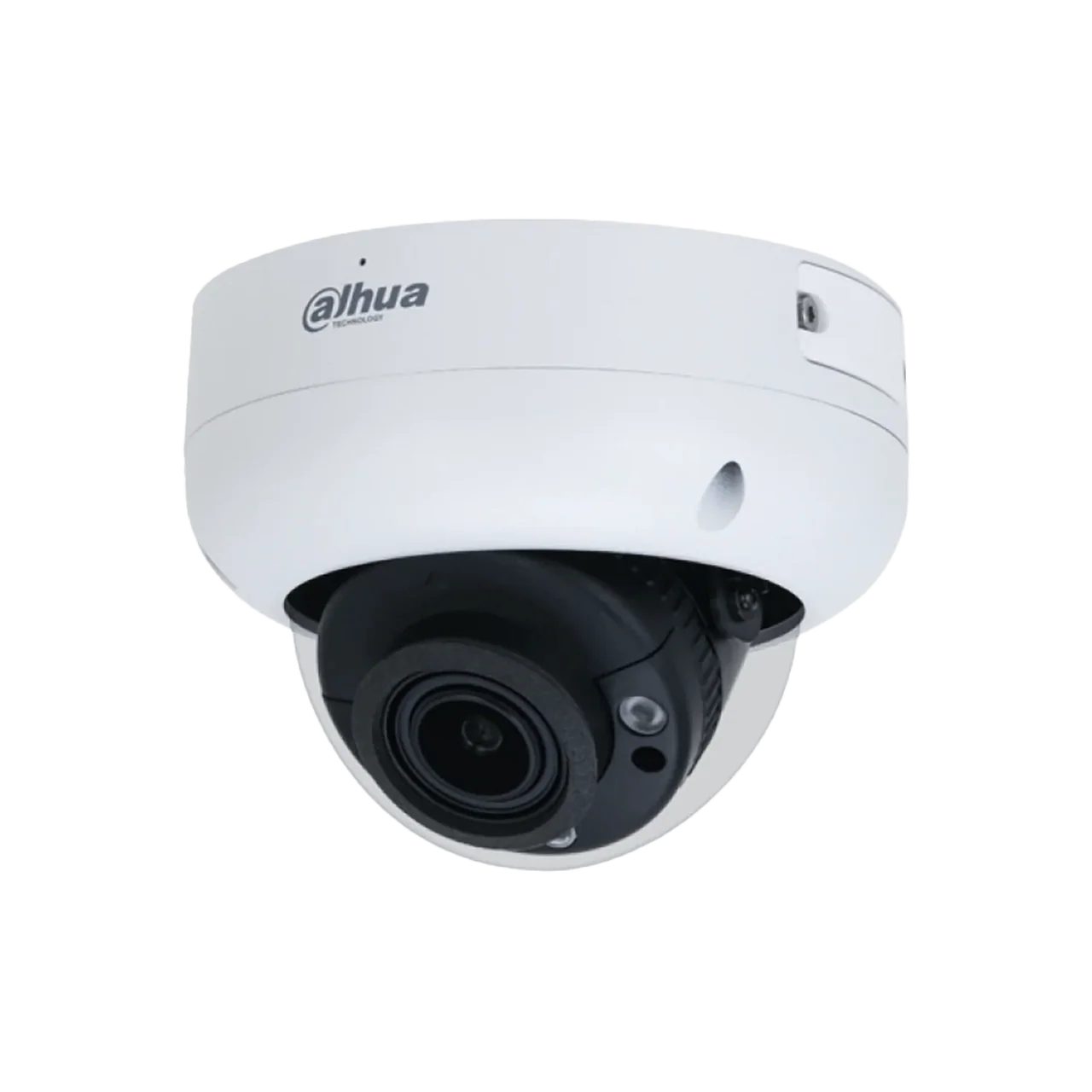

Dahua DH-IPC-HDBW3866RP-ZAS-AUS — 8MP 4K IR Motorised Vari-Focal Vandal Dome
The Dahua DH-IPC-HDBW3866RP-ZAS-AUS is an 8MP IR vari-focal vandal dome in Dahua's WizSense 3 Series — a compact 4K surveillance camera built around a 1/2.8" CMOS sensor, a 2.7–13.5 mm motorised zoom lens with F1.5 aperture, and three IR LEDs delivering up to 40 m of night vision. The dome form factor wall-flushes neatly into ceilings, soffits and undercover walkways, and the housing is rated IK10 vandal-resistant as standard — built to take a hammer strike without breaking the lens cover.
This is a focused IR surveillance camera. There are no strobe lights, no siren, no warm-light LED and no active deterrence chain. It's purpose-built for sites that need silent, vandal-tolerant 4K monitoring in a discreet dome — schools, healthcare, aged-care, carparks, loading docks, retail interiors and corridors. Powered by Dahua's WizSense AI with SMD 4.0 human/vehicle classification, IVS perimeter protection, AI Coding, EIS image stabilisation, and 120 dB true WDR. Australian stock, 3-year Australian warranty.
Resolution
8MP · 4K · 3840 × 2160
Motorised Zoom
2.7–13.5 mm · F1.5
Night Vision
40 m IR (3 LEDs)
AI Engine
WizSense · SMD 4.0 · IVS
Protection
IP67 · IK10 Vandal-Rated
Power
PoE 802.3af · Max 10.5 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the 8MP Vandal Dome
The vandal-dome form factor solves a specific Australian install problem: how to put a 4K motorised camera in a public space — a school corridor, a hospital ward, an undercover carpark, a retail back-of-house — without it being torn off the ceiling or smashed at first opportunity. The IK10-rated housing takes a hammer strike without breaking. The compact dome shape sits flush against the ceiling or soffit. And because there's no strobe, no siren and no warm-light LED, the camera watches quietly without alerting anyone to its presence.
IK10 Vandal Resistance — Built In
The dome housing is rated IK10: it withstands more than 5 strikes from a 5 kg hammer falling 40 cm (20 J impact energy). The lens cover stays intact and the camera keeps recording — critical for public spaces, schools and corridors where bullets and turrets get torn down.
Compact Discreet Dome Form Factor
At just 94 mm tall × Φ 122 mm and 713 g, the dome sits flush against ceilings, soffits and undercover surfaces. Less visible than a bullet, harder to grab, and aesthetically suited to architectural interiors.
2.7–13.5 mm Motorised Vari-Focal
Five-times optical zoom with remote focus and zoom via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone whenever the scene changes — no ladder, no re-aiming.
WizSense AI — SMD 4.0 + IVS
On-camera Smart Motion Detection 4.0 classifies humans and vehicles while filtering out animals, foliage and weather. IVS tripwire and intrusion detection trigger smart alerts — no nuisance alarms.
4K Detail With 109° Wide-Angle Coverage
At the 2.7 mm wide end, the dome covers a 109° horizontal field of view at full 4K — a whole carpark, corridor or open-plan space from a single mounting point. At telephoto, the same camera identifies a face at 29 m.
120 dB WDR + AI SSA
120 dB true WDR balances harsh contrast — undercover carparks at noon, glass-walled receptions at sunset, mixed indoor/outdoor lighting. AI Scene Self-Adaptation tunes exposure for rain, fog, backlight, low light and flicker automatically.
Smart Features for Real-World Australian Sites
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
IVS Tripwire & Intrusion Zones
Define a virtual line across a corridor or a no-go zone around a service door — get a notification only when a human or vehicle actually crosses it. No false alarms from cleaners or moving shadows.
EIS Image Stabilisation
Electronic Image Stabilisation corrects subtle vibration on long-zoom shots from a ceiling, gantry or pole-mounted dome — keeping the image steady at 13.5 mm telephoto.
AI Coding — Lower Bandwidth & Storage
Dahua's AI Coding (AI H.265 / AI H.264) analyses the scene and dedicates bitrate only to objects of interest, reducing storage and transmission cost over standard Smart H.265+.
External Audio & Alarm I/O
The ZAS variant supports 1 audio in / 1 audio out (RCA) plus 1 alarm in / 1 alarm out — connect an external speaker, PIR or door contact. Built-in microphone included on-camera.
Edge Recording — MicroSD up to 256 GB
On-camera MicroSD records 4K footage independently of the NVR — a redundancy layer if the network drops or the recorder is offline.
Pair with a Dahua WizSense AI NVR
The 3866RP-ZAS-AUS is a WizSense 3 Series camera. SMD 4.0, IVS rules and human/vehicle classification all run on-camera and work with any Dahua AI NVR — including the value 4-Series WizSense NVRs. With a compatible AI NVR you also unlock Quick Pick — fast human/vehicle target extraction from SMD events. (Note: this camera does not support AcuPick attribute search; if that workflow matters to your site, look at the Smart Dual Light + AcuPick HDBW3867 or HFW3867T line instead.)
DHI-NVR4108HS-8P-AI/ANZ — 8 Channel · 8 PoE
Value 4-Series WizSense AI NVR — 8 channels, 8 built-in PoE ports, perfect partner for a small-to-mid 3866 dome deployment. View NVR4108HS-8P →
DHI-NVR4216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 4-Series WizSense AI NVR — room to grow into 16 cameras at full PoE, with AI smart search and human/vehicle filtering on every channel. View NVR4216-16P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · Premium Performance
Step up to the 5-Series for higher bandwidth, faster playback search and more advanced AI features — ideal if you're building a larger or higher-spec system around the 3866. Fully backward-compatible with this camera. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 4 HDD Bays
32-channel 1.5U NVR with 16 PoE and 4 HDD bays — for larger commercial sites, retail chains and multi-building campuses needing more channels and longer retention. View NVR5432-16P →
Need help sizing? Browse the complete Dahua NVR range → or contact our Australian team for a tailored recommendation based on your camera count and retention requirements.
Technical Specifications
DH-IPC-HDBW3866RP-ZAS-AUS · Full Specifications
| SKU |
DH-IPC-HDBW3866RP-ZAS-AUS |
| Camera Type |
8MP IR Vari-focal Vandal Dome · WizSense 3 Series |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max Resolution |
3840 × 2160 (8MP / 4K) @ 25/30 fps |
| Lens Type |
Motorised vari-focal · 2.7–13.5 mm · φ14 mount |
| Maximum Aperture |
F1.5 |
| Field of View |
H: 109°–30° · V: 56°–17° · D: 131°–35° |
| Close Focus Distance |
0.8 m |
| DORI — Wide (2.7 mm) |
Detect 88.3 m · Observe 35.3 m · Recognise 17.7 m · Identify 8.8 m |
| DORI — Tele (13.5 mm) |
Detect 289.7 m · Observe 115.7 m · Recognise 57.9 m · Identify 29.0 m |
| Min. Illumination |
Colour: 0.007 lux @ F1.5 · B/W: 0.0007 lux · 0 lux (Illuminator on) |
| S/N Ratio |
> 56 dB |
| Dynamic Range |
120 dB True WDR |
| Day & Night |
Auto (ICR) / Colour / B&W |
| Illuminators |
3 × IR LED · Up to 40 m (no warm light · no active deterrence) |
| Image Enhancement |
WDR · 3D NR · HLC · BLC · Defog · AFSA · AI SSA · Smart Illumination · EIS · Image Rotation · Privacy masking (4 areas) · Digital watermarking |
| Intelligent Video |
WizSense AI · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick (with AI NVR) · Smart Search · AI SSA |
| Active Deterrence |
Not included — silent IR surveillance camera |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / H.264+ · AI H.265 / AI H.264 |
| Streaming |
3 streams — Main 3840×2160 · Sub 1 704×576 · Sub 2 1920×1080 (Full HD) |
| Video Bitrate |
H.264 / H.265: 3 kbps – 8,192 kbps |
| Audio |
Built-in microphone · G.711a / G.711Mu / G.726 / G.723 / PCM compression |
| Audio I/O (ZAS only) |
1 audio in (RCA) · 1 audio out (RCA) |
| Alarm I/O (ZAS only) |
1 alarm in (5 mA, 3–5 V DC) · 1 alarm out (300 mA, 12 V DC) |
| IP Camera Protocol |
ONVIF Profile S/G/T · CGI · P2P · Milestone · Genetec |
| Network Protocols |
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP |
| Cyber Security |
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Edge Storage |
MicroSD up to 256 GB · NAS · FTP / SFTP |
| Weatherproof Rating |
IP67 |
| Vandal Resistance |
IK10 (20 J impact energy) |
| Operating Temperature |
−30 °C to +60 °C · < 95% RH |
| Storage Temperature |
−40 °C to +60 °C |
| Power Source |
12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage |
| Power Consumption |
Basic 4 W (12 V DC) / 4.9 W (PoE) · Max 9.2 W (12 V DC) / 10.5 W (PoE) |
| Memory |
ROM 128 MB · RAM 1 GB |
| Pan / Tilt / Rotation |
Pan 0°–355° · Tilt 0°–80° · Rotation 0°–355° (manual aim at install) |
| Mobile App |
DMSS · Smart PSS · DSS (iOS & Android) |
| Approvals |
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1 |
| Housing |
Metal · White |
| Dimensions |
94 mm × Φ 122 mm |
| Weight |
713 g (net) · 986 g (gross) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
HDBW3866RP-ZAS-AUS (Dome) vs HFW3866TP-ZAS-AUS (Bullet) — Which Form Factor?
Both cameras share the same 1/2.8" sensor, same 8MP 4K resolution, same 2.7–13.5 mm motorised lens, same F1.5 aperture, same WizSense 3 AI engine and the same DORI distances. The deciding question is install footprint and IR reach: do you want a compact vandal-rated dome with 40 m IR, or a long-range bullet with a 60 m IR and integrated sun shield?
HDBW3866RP-ZAS-AUS (Vandal Dome) vs HFW3866TP-ZAS-AUS (Bullet)
Compatible Mounts & Accessories
Dahua PFA137 Junction Box Bracket
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Mounts the dome cleanly without surface cable runs. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3866RP dome onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount Bracket
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →
Dahua PFB203W Wall Mount
Wall-mount bracket specifically for vandal dome cameras — projects the dome out from the wall to widen field of view past the building line. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with the PFA109 adapter for dome mounting. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. Maxes out the 3866RP's 256 GB MicroSD ceiling. View WD Purple 256 GB →
Frequently Asked Questions
What does IK10 vandal resistance mean in practice?
IK10 is the highest IK rating in the IEC 62262 impact-resistance standard. The dome housing can withstand more than 5 strikes from a 5 kg hammer falling 40 cm — 20 J of impact energy — without cracking or losing function. Translation: a teenager swinging a brick won't take the camera offline.
Does this camera have active deterrence (strobe / siren)?
No. The HDBW3866RP-ZAS-AUS is a silent 4K IR surveillance camera — no red/blue strobe, no built-in siren, no voice broadcast, no warm-light LED. If you need active deterrence, look at the Dahua TiOC line (HDW3849H-AS-PV-ANZ-S2 turret is the closest in form factor).
Does it support AcuPick AI search?
No. AcuPick is reserved for the Smart Dual Light AcuPick line-up (e.g. HFW3867T-ZAS-IL-ANZ bullet). This dome supports SMD 4.0 human/vehicle classification, IVS tripwire/intrusion, and Quick Pick (with an AI NVR) — sufficient for most surveillance workflows without the AcuPick attribute search overhead.
Why pick the dome over the bullet form factor?
Two reasons. First, vandal resistance — the IK10 dome housing is built to take physical abuse, where a bullet can be grabbed and ripped off. Second, discreet flush mounting — the compact 94 mm dome sits neatly into a ceiling, soffit or undercover surface, while a 244 mm bullet sticks out visibly. Trade-off: shorter 40 m IR range vs the bullet's 60 m, and no integrated sun shield.
Can the camera pan and tilt remotely?
No. The HDBW3866RP-ZAS is a motorised vari-focal vandal dome, not a PTZ. The lens supports remote zoom and auto-focus, but the camera's three-axis gimbal is for manual aim at install time only (Pan 0–355°, Tilt 0–80°, Rotation 0–355°). For a fully remote PTZ, look at a Dahua PTZ dome.
How does the 5× motorised zoom work?
At wide-angle (2.7 mm) the camera covers a 109° horizontal field of view — enough for a full corridor or open-plan space from a single mounting point. At telephoto (13.5 mm) you can pull tight on a specific zone — an entry door, a service counter, a checkout aisle. Remote zoom from the DMSS app means you can re-tune the field of view as the site changes.
Does it have a built-in microphone?
Yes — the camera has a built-in microphone for capturing scene audio. The ZAS variant also adds external audio in / out (RCA) for connecting an external mic or speaker, plus alarm in / out for PIRs or door contacts.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 256 GB and records 4K footage independently of the NVR.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67, IK10 vandal-resistant and −30 °C to +60 °C. The all-metal housing and ±30% wide-voltage tolerance handle coastal salt, undercover carpark grime and unstable rural mains. Note: for the widest operating temperature range (−40 °C to +60 °C), the HFW3866TP-ZAS-AUS bullet has a wider rated spec.
Does it work with Hikvision NVRs or third-party VMS?
Yes — recording, streaming, motion and the WizSense AI metadata work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). For the smartest integration (Quick Pick, push notifications, remote zoom from the app), pair it with a Dahua AI NVR.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
