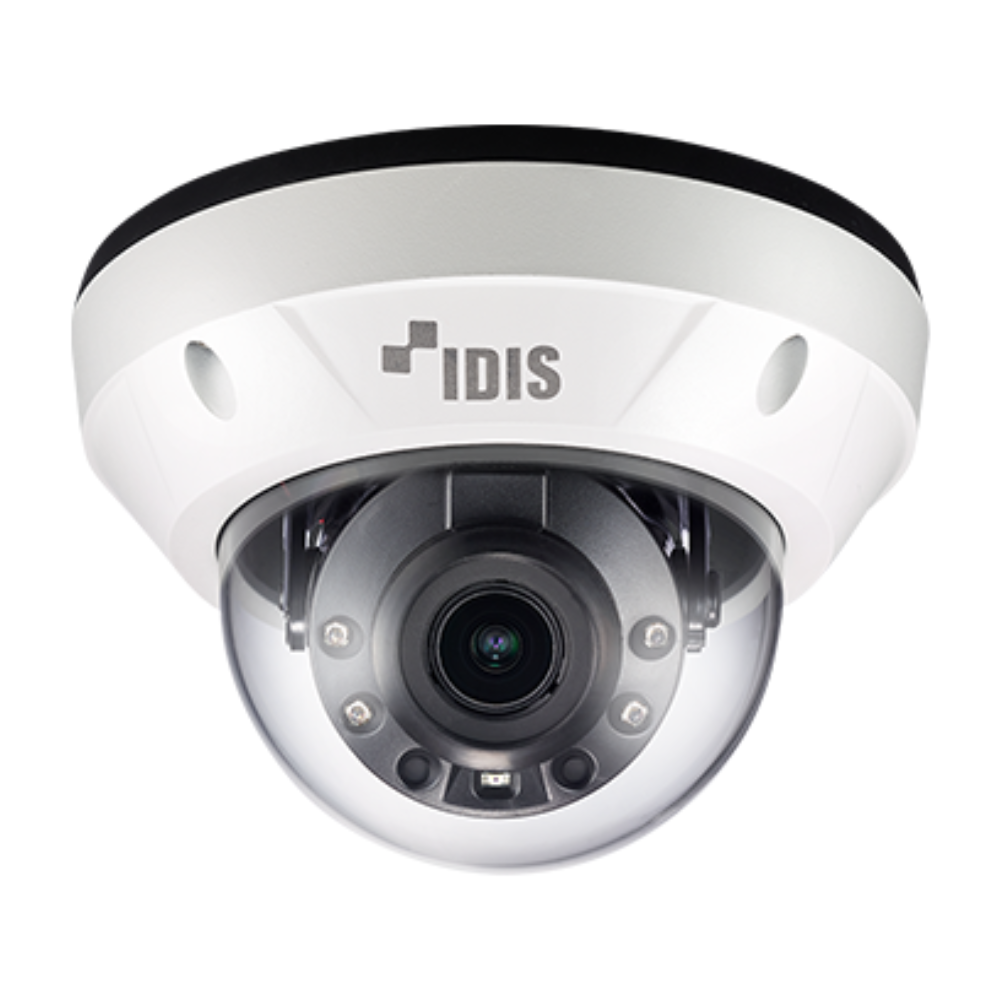

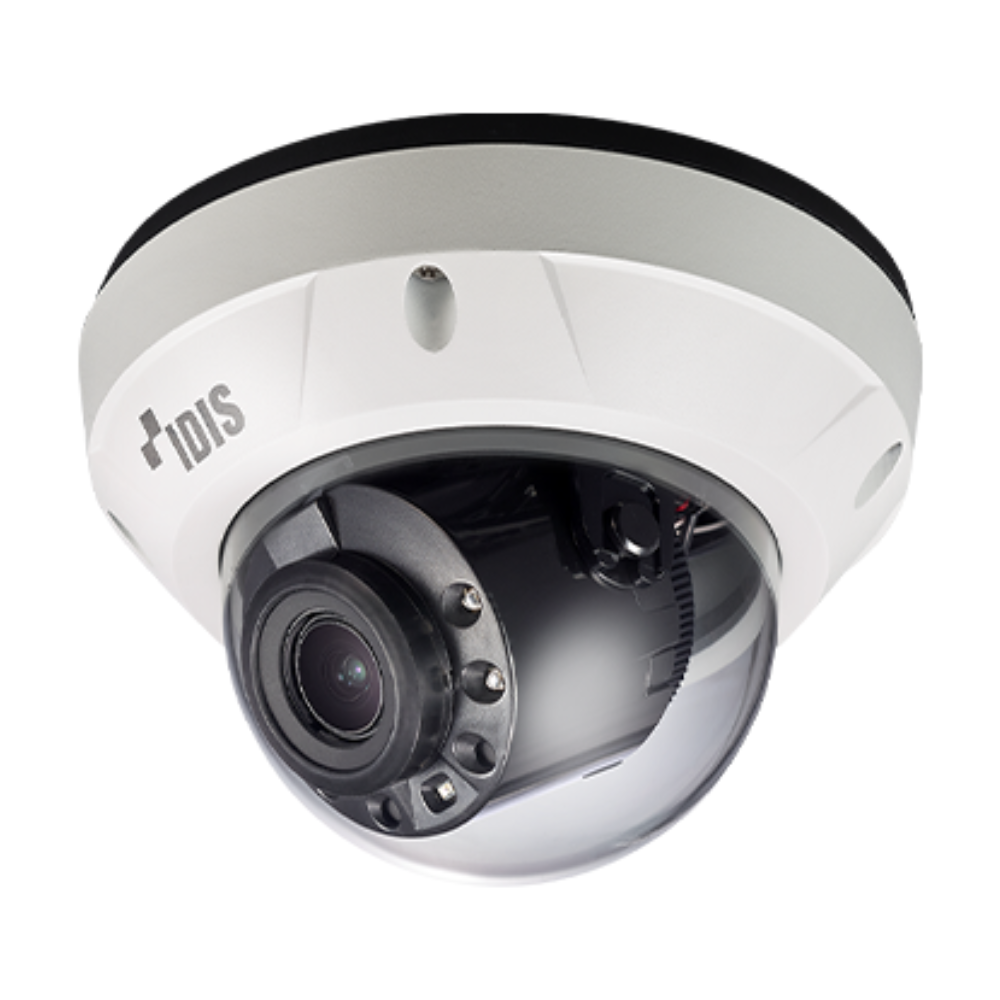

IDIS TC-D5532WRX 5MP Vandal-Resistant IR Dome Camera

Description

IDIS DIRECTCX · NDAA & TAA COMPLIANT

High-Density 5MP Commercial Intelligence & Coaxial Performance

The IDIS TC-D5532WRX is a high-performance DirectCX 5MP Vandal-Resistant IR Dome Camera engineered to deliver high-resolution overhead intelligence without the complexity of an IP overhaul. Providing crystal-clear 2592 x 1944 resolution over coaxial architecture, this rugged surveillance asset is purpose-built for demanding commercial applications such as loading bays, retail perimeters, schools, and high-traffic corporate corridors. Its high-density structural integrity and seamless backward compatibility offer enterprise-tier monitoring while optimizing infrastructure budgets.

Resolution
5MP (2592 x 1944)
Optics
3.0mm - 13.5mm Motorized
Night Vision
30m Smart IR (4 LEDs)
Protection
IP67 Weather / IK10 Vandal

Advanced DirectCX Coaxial Signal Optimization

Equipped with an advanced 1/2.8" CMOS sensor, the IDIS TC-D5532WRX handles complex lighting conditions effortlessly by utilizing 120dB True Wide Dynamic Range (WDR). This ensures detail retention in both deeply shadowed corridors and bright entryways. Facility operators can fine-tune operational parameters remotely using precise Coaxial OSD control over traditional multi-signal analog wiring. Integrated engineering features like Highlight Compensation (HLC), digital De-fog, and adaptive Smart-IR optimization completely prevent overexposure, delivering reliable evidentiary video retention in any weather or environmental scenario.

Motorized Lens & Simple Remote Calibration

Eliminate manual physical focus tuning at the top of a ladder. The integrated 3.0mm to 13.5mm motorized vari-focal lens allows operators to alter fields of view remotely from a master console, capturing anything from a wide 91-degree situational view to a targeted 31-degree telephoto shot for maximum operational adaptability.

Enterprise Defenses Against Vandalism & Climate

Housed in a ruggedized, die-cast enclosure, this optical asset features an IK10 impact classification rating designed to withstand direct mechanical kinetic force. Combined with an IP67 waterproof certification, the hardware remains impervious to intense weather conditions and severe dust ingress.

Technical Specification Matrix
Camera Model TC-D5532WRX
Image Sensor 1/2.8" Progressive Scan CMOS Sensor
Max. Resolution 2592 x 1944 (5 Megapixel)
Supported Frame Rates TVI/AHD: 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP; CVBS Support
Focal Length & Aperture 3.0mm ~ 13.5mm Motorized Vari-focal Lens | F1.4 ~ F3.2
Dynamic Range 120dB True WDR (Wide Dynamic Range)
Minimum Illumination Color: 0.13 Lux @ F1.4 | B/W: 0 Lux (IR LED Distance 30m Active)
3-Axis Adjustment Range Pan: -175° ~ 175° | Tilt: 0° ~ 67° | Rotate: -177° ~ 177°
Environmental & Mechanical IP67 Weatherproof, IK10 Vandal-Proof Casing | Ø155mm x 105mm (0.815kg)
Power Input & Draw DC 12V (8W) / AC 24V (8.3W) Dual Voltage Input
Is the IDIS TC-D5532WRX compliant with US federal procurement standards?

Yes, this dome camera is fully NDAA and TAA compliant. It contains no prohibited silicon components or tech architecture from blacklisted entities, making it completely approved for use in high-security federal contracts, government agencies, and defense-related facilities.

Does this camera operate over standard coaxial cable networks?

Yes. The TC-D5532WRX is a core asset within the IDIS DirectCX lineup, delivering high-definition 5MP composite video signals over BNC coaxial infrastructure. It supports TVI, AHD, and legacy CVBS modes, bypassing the need to deploy structural Cat6 Ethernet drops.

How do I change the camera's configuration if it does not have a local network interface?

All configurations are handled via Coaxial OSD (On-Screen Display) telemetry control. Setup commands, image optimizations, and signal conversions are sent directly through the BNC connection via an IDIS DirectCX-compatible DVR system, ensuring completely centralized configuration.

Can this camera withstand continuous exposure to freezing temperatures?

Absolutely. The weather-sealed IP67 and IK10 impact-rated housing is designed to withstand a comprehensive operating range from -10°C up to +55°C (14°F to 131°F), performing reliably in harsh cold storage facilities or exposed external perimeters.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
