Genuine IDIS Accessory · Made in Korea

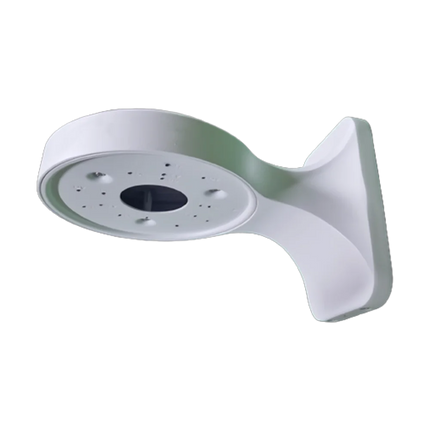

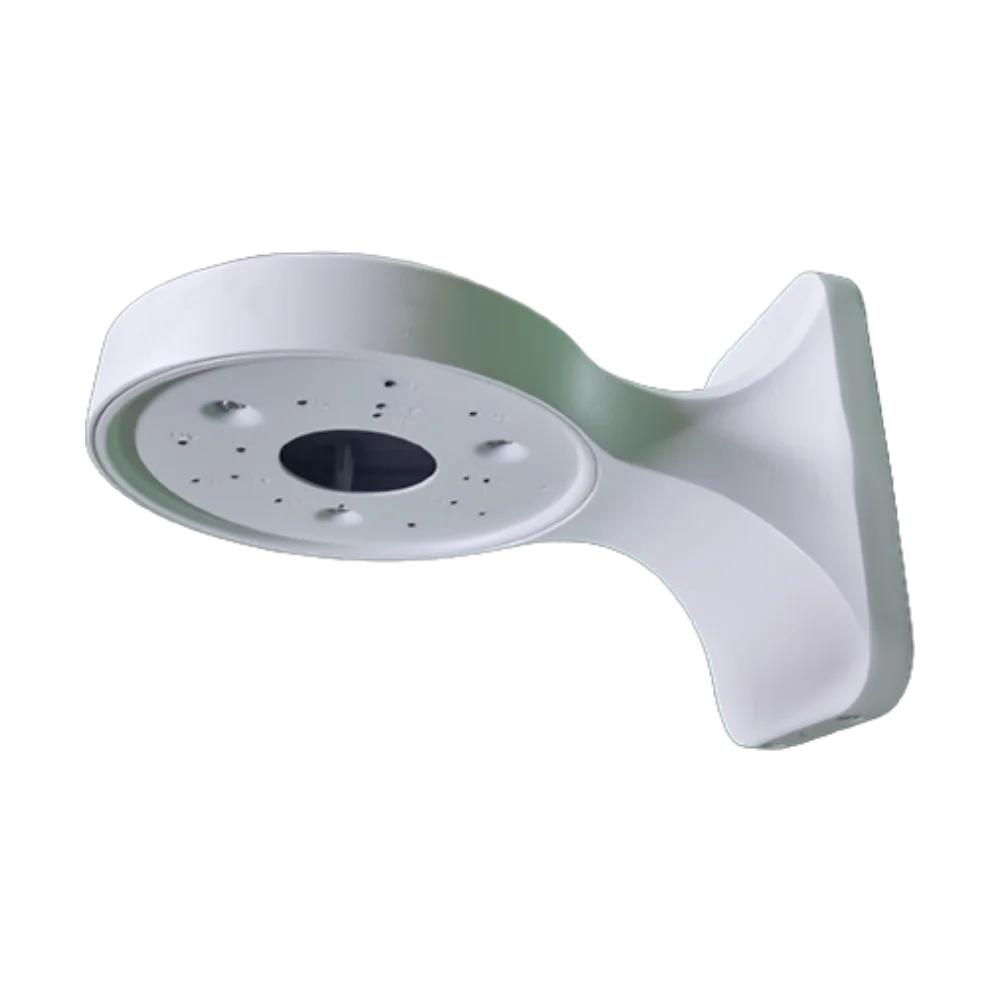

IDIS DA-WM2500 — Camera Wall Mount Bracket
The IDIS DA-WM2500 is the purpose-designed wall mount bracket for IDIS Lite Series dome and turret cameras. Engineered in Korea by IDIS specifically to match the housing profile, screw pattern and cable-management requirements of the matching camera range, it delivers a clean, structural-grade installation with no third-party adapters, no bracket-to-housing gaps and no compatibility guess-work.
Manufactured from SPCC cold-rolled steel in a powder-coated white finish to match IDIS camera bodies, the DA-WM2500 is rated for both indoor and outdoor wall installations across Australian commercial, retail, education and government sites.
Material
SPCC Steel · White
Dimensions
158 × 242 × 164 mm
Compatibility
7+ IDIS Cameras
Why Use the Genuine IDIS Wall Mount
Third-party "universal" brackets are tempting on price — but they introduce gaps, awkward cable exits, and almost always void the IDIS Ultimate Warranty on the camera itself. The DA-WM2500 is the official mount engineered to match the IDIS housing profile, hole pattern and cable management exactly. Cleaner finish, faster install, fully supported by IDIS Korea and CCTV Guru's Australian technical team.
Perfect Fit, Every Time
Hole patterns, gasket recess and cable exit are matched 1:1 to the supported IDIS cameras — no shims, no adapter plates, no field modifications.
SPCC Cold-Rolled Steel
Structural-grade steel core means the bracket holds its line over years of UV exposure and thermal cycling — no flex, no creep.
Internal Cable Management
Routed cable path keeps the Cat6/PoE run hidden inside the bracket arm — clean aesthetic, weather-protected joint, and no visible cabling.
Powder-Coated White Finish
Matches the standard IDIS camera body colour for a discreet, professional install on brick, render, weatherboard or concrete walls.
Easy Installation
Standard wall-fixing pattern with pre-cut cable cutout and surface-mounting flange. One person, one ladder, under 10 minutes for an experienced installer.
Warranty Preserved
Using a genuine IDIS mount keeps your camera covered under the full IDIS Ultimate Warranty terms — third-party brackets can void support.
Compatible IDIS Cameras
The DA-WM2500 is the official wall mount for the following IDIS cameras:
DC-D2511WER & DC-D2511WER-V2
5MP IR Dome Camera · 2.8 mm fixed lens · IDIS Lite Series · NDAA & TAA compliant.
DC-D2531WER & DC-D2531WER-V2
5MP Motorised Varifocal IR Turret · 2.7-13.5 mm · audio & alarm I/O.
DC-D2531WR-V2
5MP Motorised Varifocal IR Vandal Dome · IR-pass black bubble · 4 × IR LEDs.
DC-D2511R & DC-D2214R
Earlier-generation 5MP & 2MP IDIS dome cameras (legacy compatibility).
DC-D2234WR
2MP motorised varifocal IR dome — full DirectIP support.
TC-D4232WR
HD analog 2MP motorised varifocal IR dome (DirectCX® range).
Not sure if the DA-WM2500 fits your camera? Contact our Australian IDIS team and we'll confirm compatibility before you order — we keep the full IDIS mount range in stock (DA-WM1500, DA-WM2500, DA-FM2100, DA-JB2500, DA-BH1100 and more).
Technical Specifications
| SKU |
DA-WM2500 |
| Accessory Type |
Camera Wall Mount Bracket |
| Material |
SPCC Cold-Rolled Steel |
| Colour |
White (Powder-Coated) |
| Dimensions |
158.0(L) × 242.0(W) × 164.0(H) mm |
| Weight |
0.97 kg (2.14 lb) |
| Compatible Cameras |
DC-D2214R · DC-D2234WR · DC-D2511R · DC-D2511WER (+V2) · DC-D2531WER (+V2) · DC-D2531WR (+V2) · TC-D4232WR |
| Installation Surface |
Wall (brick · render · concrete · weatherboard · plasterboard with appropriate fixings) |
| Cable Management |
Internal (cable run concealed inside bracket arm) |
| Origin |
Made in Korea |
| Warranty |
IDIS Ultimate Warranty (Australia) |
Frequently Asked Questions
Will it fit my IDIS camera?
The DA-WM2500 fits the IDIS Lite Series 2-Series domes and turrets including the popular DC-D2511WER-V2, DC-D2531WER-V2 and DC-D2531WR-V2. See the full compatibility list above.
Can I use it for indoor installs too?
Yes. The bracket is suitable for both indoor and outdoor wall installs. For exposed outdoor sites, pair it with the DA-JB2500 junction box for extra weather protection.
Does it support cable management?
Yes. The cable run is concealed inside the bracket arm and exits at the wall plate — protecting the Cat6 from UV and tampering.
What surface can I mount it to?
Brick, render, concrete, weatherboard or plasterboard. Use appropriate masonry, timber or hollow-wall anchors rated for the camera's weight plus a safety factor.
Why not use a generic universal bracket?
Third-party brackets often have gaps at the housing interface and can void the IDIS Ultimate Warranty. The DA-WM2500 keeps the warranty intact and the finish clean.
Do you ship Australia-wide?
Yes — fast dispatch from Australian stock. Project pricing is available for multi-unit orders alongside camera and NVR bundles.
Order the IDIS DA-WM2500 from CCTV Guru
CCTV Guru is an authorised Australian distributor of IDIS surveillance products and accessories. Order the DA-WM2500 alongside your IDIS Lite Series cameras for a clean, warranty-preserving install. Need it as part of a multi-camera rollout or government tender? Contact our Australian team for project pricing and bulk stock availability.
