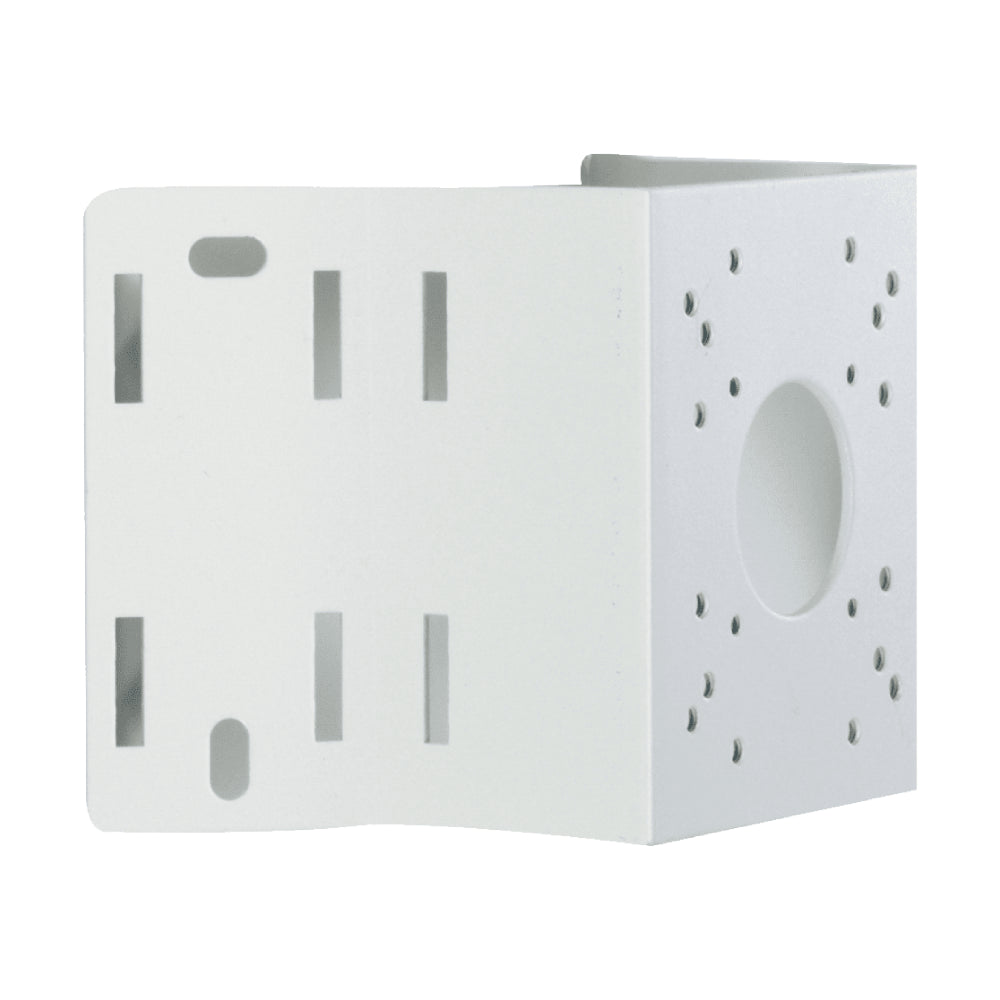

IDIS DA-RM2000 External Corner Mount Bracket

Description

IDIS VIDEO SURVEILLANCE · PREMIUM INTERIOR & EXTERIOR ACCESSORIES · NDAA & TAA COMPLIANT

Heavy-Duty Commercial 90-Degree Corner Mounting Adapter Bracket

The IDIS DA-RM2000 is an industrial-grade external corner mount adapter bracket meticulously engineered to maximize camera blind-spot coverage across exterior building structural points and internal hallway corners. Rather than restricting cameras to flat wall planes that limit a system's side visibility, this heavy-duty adapter wraps cleanly around 90-degree architectural edges to provide unhindered 270-degree viewing perspectives. Crafted from premium Electro-Galvanized Iron (EGI) steel and finished in an weather-resistant white protective coat, it bridges the gap between rugged field infrastructure and standard IDIS camera assemblies.

Mount Angle
90° Structural Corner
Core Metal
Electro-Galvanized Steel
Unit Mass
0.47 kg Ultra-Rigid Profile
Sourcing Class
NDAA & TAA Certified

Vandal-Resistant Housing Protection with Integrated Cable Management

Outdoor perimeter surveillance deployments require physical security hardware that can withstand extreme wind forces, structural vibration, and potential manual tampering. The IDIS DA-RM2000 features a reinforced design that eliminates bracket flex, keeping high-resolution PTZ domes and long-range bullet cameras perfectly steady to prevent video stabilization errors. Its layout includes hollow pass-through ports that let technicians run power and network cabling straight out of the wall and inside the bracket body. This layout completely conceals raw wiring harnesses from the elements and shields them from malicious cutting or vandalism attempts.

Multi-Mount Bracket Compatibility

The adapter face plate is engineered with factory-threaded hole arrays to support a broad selection of primary IDIS accessories. It mates seamlessly with wall brackets (DA-WM2050) and weatherized junction boxes (DA-JB2000 series).

All-Weather Outdoor Powder Coating

The EGI steel structure is treated with an anti-corrosive, industrial-grade white powder finish. This specialized barrier stops rust creeping around mounting points and withstands baking UV rays, freezing frost, and driving rain.

Technical Specification Matrix
Accessory Model Identifier DA-RM2000
Mounting Function Class External 90° Corner Mount Adapter Plate
Structural Metal Composition EGI (Electro-Galvanized Iron / Zinc-Coated High-Strength Steel)
Protective Surface Finish Commercial Matte White Powder Finish (UV-Stabilized & Rust-Resistant)
Physical Width Dimension 110.0 mm (4.33")
Physical Height Dimension 89.3 mm (3.52")
Physical Length Dimension 165.7 mm (6.52")
Net Structural Weight 0.47 kg (1.04 lbs)
Compatible IDIS Wall Brackets DA-WM2050
Compatible IDIS Junction Boxes DA-JB2000, DA-JB2300, DA-JB2400, DA-JB4150, DA-JB4600, DA-JB4700
Compatible Pendant Mounts DA-TM4200
Cabling Protection Pathway Center Void Rear Port Entry with Sub-Surface Seal Protection
Federal Benchmark Sourcing Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
Can I mount a camera directly to the DA-RM2000 without an extra bracket?

The DA-RM2000 functions as a corner adapter plate. Certain bullet camera series (like the DC-T3C33HRX or DC-T6831WRA) can mount directly to its faceplate patterns. For dome cameras, it is designed to hold a companion wall mount arm (like the DA-WM2050) or an IDIS junction box, which then carries the camera body.

Are the heavy wall anchors and corner bolts included in this kit?

The package includes the machine screws needed to attach compatible IDIS wall mounts, junction boxes, or cameras to the front face of the adapter. The structural bolts or concrete masonry sleeve anchors used to secure the back plates into your building's corner walls are sold separately to match your specific building material (brick, concrete, or wood timber studs).

Is this plate suitable for coastal high-salinity outdoor conditions?

Yes. Because the plate is constructed from Electro-Galvanized Iron (EGI) steel and sealed under a thick industrial white powder finish, it provides excellent resistance to corrosion, moisture, and salt-heavy marine air profiles without degrading or staining walls.

Dimension Drawing Installation Guide
Official IDIS Partner Stock
NDAA & TAA Certified
Fast Shipping Australia-Wide

IDIS DA-RM2000 External Corner Mount Bracket

Product form

SKU: DA-RM2000

IDIS VIDEO SURVEILLANCE · PREMIUM INTERIOR & EXTERIOR ACCESSORIES · NDAA & TAA COMPLIANT Heavy-Duty Commercial 90-Degree Corner Mounting Adapter... Read more

$49.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
