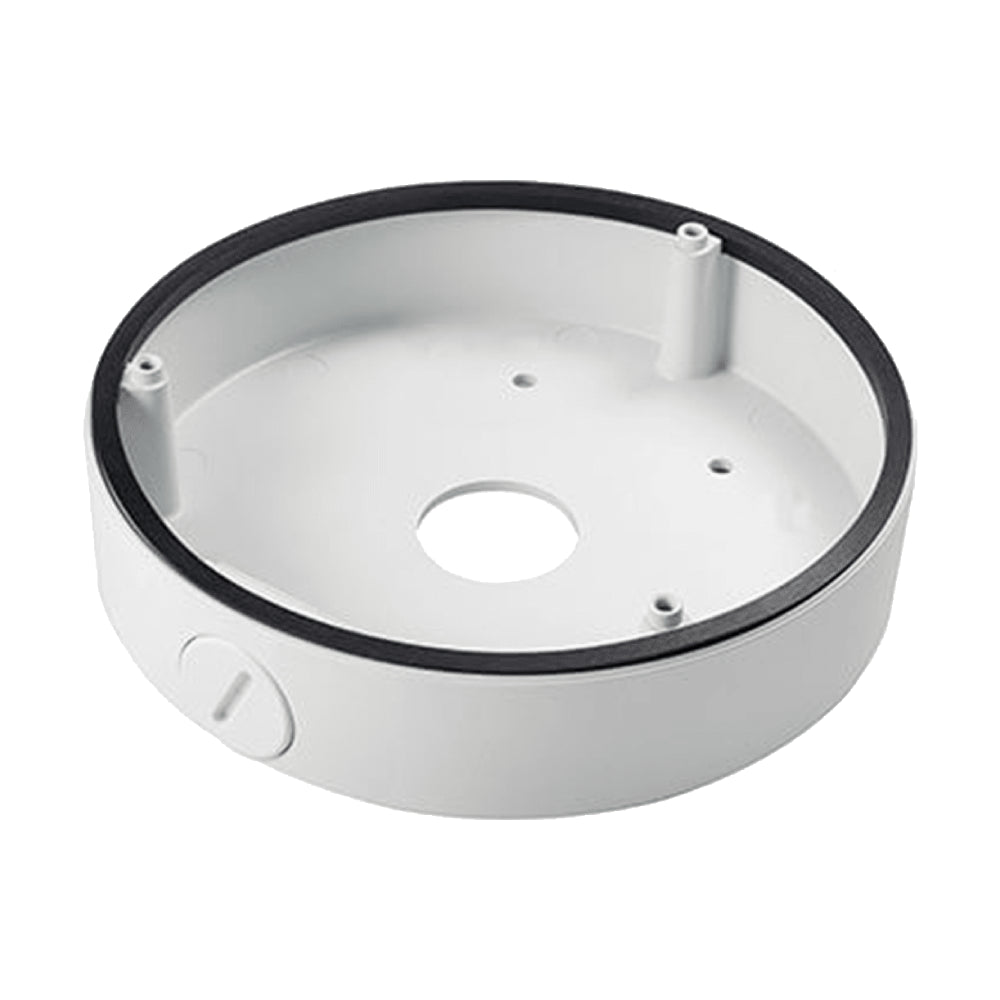

IDIS DA-JB2200 Waterproof Surveillance Camera Junction Box

Description

IDIS VIDEO SURVEILLANCE · IP66 WEATHERPROOF MOUNTING ACCESSORIES · NDAA & TAA COMPLIANT

Heavy-Duty Weatherproof Aluminum Camera Junction Box Base

The IDIS DA-JB2200 is a commercial-grade, weather-sealed surveillance junction box designed to isolate, protect, and cleanly conceal sensitive network camera electrical connections. Exposed RJ45 network terminators, pigtail connectors, and power lines are highly susceptible to oxidation, moisture short-circuits, and physical tampering when left unprotected on exterior walls. This heavy-duty terminal enclosure serves as a structural shield, providing an interior vault that isolates data lines from harsh environments while acting as a rigid, load-bearing anchor surface for compatible IDIS dome and bullet security cameras.

Weather Rating
Waterproof Seal Design
Core Metal
Heavy Aluminum Alloy
Conduit Entry
Standard NPT Thread Ports
Sourcing Class
NDAA & TAA Certified

Advanced Ingress Protection & Streamlined Commercial Installation

Engineered to handle harsh architectural applications, the IDIS DA-JB2200 features a precision-molded aluminum alloy frame that naturally resists corrosion and mechanical impacts. The interior chamber is fully lined with high-elasticity rubber gaskets that lock out driving rain, melting ice, humidity, and micro-dust particles. Built-in conduit ports allow technicians to link up threaded EMT or flexible liquid-tight piping directly to the box, ensuring a completely sealed wiring run from the backbone network straight to the camera sensor. This structural layout cuts down on installation labor and eliminates unsightly exposed wires that vandals could exploit.

Precision Universal Face Plate Templates

The layout features factory-machined, threaded hole circles that fit perfectly with specific IDIS outdoor dome and bullet camera brackets. This ensures clean balance and tight alignment without drilling random holes on site.

Anti-Corrosive Industrial Powder Barrier

The thick aluminum body is covered in a specialized, UV-cured matte white powder finish. This durable shell prevents peeling, chalking, and salt-air oxidation, keeping the assembly looking clean for years.

Technical Specification Matrix
Accessory Model Identifier DA-JB2200
Enclosure Accessory Type Weatherproof Surveillance Camera Junction Box / Mounting Base
Structural Shell Material Premium Die-Cast Aluminum Alloy Composition
Surface Protective Shield UV-Stabilized Industrial Exterior-Grade White Powder Coating
Physical Face Diameter Ø 141.0 mm (5.55")
Physical Depth Profile 47.5 mm (1.87")
Net Assembly Weight 0.54 kg (1.19 lbs)
Ingress Protection Ceiling Waterproof Gasket Seals for High-Exposure Weather Deployments
Conduit Interface Ports Threaded NPT Connection Points with Removable Seal Plugs
Compatible IDIS Camera Series Designed for IDIS Fixed Dome & Select Outdoor Bullet Cameras
Wall Anchorage Design Multi-Slot Rear Mounting Base for Heavy Surface Anchors
Inclusions Within Kit Weather-Sealing Gaskets, Interior Grounding Lug, Camera Mounting Screws
Federal Sourcing Certification Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
Does the DA-JB2200 include pipe adapters for liquid-tight conduit?

The junction box features standard threaded NPT port paths and comes with weather-tight metal blanking plugs installed. Standard trade conduit fittings or liquid-tight adapters screw straight into these ports, but the specific conduit fittings themselves are sold separately to match your plumbing plan.

Is this junction box compatible with the DA-RM2000 corner adapter?

Yes. The hole configurations on the back base plate of the DA-JB2200 match the threaded front patterns of the DA-RM2000 corner plate and the companion pole mount structures, creating an integrated mounting system for complex commercial spaces.

Can I use this bracket base in coastal marine environments?

Yes. The combination of high-grade die-cast aluminum alloy and a thick, UV-stabilized industrial powder-coated layer provides exceptional resistance to moisture, oxidation, and salt air without corroding or staining the wall below.

How do I ensure the IP weatherproof seal stays tight during installation?

To preserve the waterproof seal, make sure the interior rubber gaskets are seated flat in their tracks before tightening the faceplate screws. For high-exposure outdoor walls, running a thin bead of industrial silicone sealant along the top edge where the box meets rough masonry surfaces provides excellent extra protection.

Dimension Profile Installation Sheet
Genuine IDIS Stock
NDAA & TAA Certified
Aust-Wide Express

IDIS DA-JB2200 Waterproof Surveillance Camera Junction Box

Product form

SKU: DA-JB2200

IDIS VIDEO SURVEILLANCE · IP66 WEATHERPROOF MOUNTING ACCESSORIES · NDAA & TAA COMPLIANT Heavy-Duty Weatherproof Aluminum Camera Junction Box Base... Read more

$89.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    IDIS VIDEO SURVEILLANCE · IP66 WEATHERPROOF MOUNTING ACCESSORIES · NDAA & TAA COMPLIANT

    Heavy-Duty Weatherproof Aluminum Camera Junction Box Base

    The IDIS DA-JB2200 is a commercial-grade, weather-sealed surveillance junction box designed to isolate, protect, and cleanly conceal sensitive network camera electrical connections. Exposed RJ45 network terminators, pigtail connectors, and power lines are highly susceptible to oxidation, moisture short-circuits, and physical tampering when left unprotected on exterior walls. This heavy-duty terminal enclosure serves as a structural shield, providing an interior vault that isolates data lines from harsh environments while acting as a rigid, load-bearing anchor surface for compatible IDIS dome and bullet security cameras.

    Weather Rating
    Waterproof Seal Design
    Core Metal
    Heavy Aluminum Alloy
    Conduit Entry
    Standard NPT Thread Ports
    Sourcing Class
    NDAA & TAA Certified

    Advanced Ingress Protection & Streamlined Commercial Installation

    Engineered to handle harsh architectural applications, the IDIS DA-JB2200 features a precision-molded aluminum alloy frame that naturally resists corrosion and mechanical impacts. The interior chamber is fully lined with high-elasticity rubber gaskets that lock out driving rain, melting ice, humidity, and micro-dust particles. Built-in conduit ports allow technicians to link up threaded EMT or flexible liquid-tight piping directly to the box, ensuring a completely sealed wiring run from the backbone network straight to the camera sensor. This structural layout cuts down on installation labor and eliminates unsightly exposed wires that vandals could exploit.

    Precision Universal Face Plate Templates

    The layout features factory-machined, threaded hole circles that fit perfectly with specific IDIS outdoor dome and bullet camera brackets. This ensures clean balance and tight alignment without drilling random holes on site.

    Anti-Corrosive Industrial Powder Barrier

    The thick aluminum body is covered in a specialized, UV-cured matte white powder finish. This durable shell prevents peeling, chalking, and salt-air oxidation, keeping the assembly looking clean for years.

    Technical Specification Matrix
    Accessory Model Identifier DA-JB2200
    Enclosure Accessory Type Weatherproof Surveillance Camera Junction Box / Mounting Base
    Structural Shell Material Premium Die-Cast Aluminum Alloy Composition
    Surface Protective Shield UV-Stabilized Industrial Exterior-Grade White Powder Coating
    Physical Face Diameter Ø 141.0 mm (5.55")
    Physical Depth Profile 47.5 mm (1.87")
    Net Assembly Weight 0.54 kg (1.19 lbs)
    Ingress Protection Ceiling Waterproof Gasket Seals for High-Exposure Weather Deployments
    Conduit Interface Ports Threaded NPT Connection Points with Removable Seal Plugs
    Compatible IDIS Camera Series Designed for IDIS Fixed Dome & Select Outdoor Bullet Cameras
    Wall Anchorage Design Multi-Slot Rear Mounting Base for Heavy Surface Anchors
    Inclusions Within Kit Weather-Sealing Gaskets, Interior Grounding Lug, Camera Mounting Screws
    Federal Sourcing Certification Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
    Does the DA-JB2200 include pipe adapters for liquid-tight conduit?

    The junction box features standard threaded NPT port paths and comes with weather-tight metal blanking plugs installed. Standard trade conduit fittings or liquid-tight adapters screw straight into these ports, but the specific conduit fittings themselves are sold separately to match your plumbing plan.

    Is this junction box compatible with the DA-RM2000 corner adapter?

    Yes. The hole configurations on the back base plate of the DA-JB2200 match the threaded front patterns of the DA-RM2000 corner plate and the companion pole mount structures, creating an integrated mounting system for complex commercial spaces.

    Can I use this bracket base in coastal marine environments?

    Yes. The combination of high-grade die-cast aluminum alloy and a thick, UV-stabilized industrial powder-coated layer provides exceptional resistance to moisture, oxidation, and salt air without corroding or staining the wall below.

    How do I ensure the IP weatherproof seal stays tight during installation?

    To preserve the waterproof seal, make sure the interior rubber gaskets are seated flat in their tracks before tightening the faceplate screws. For high-exposure outdoor walls, running a thin bead of industrial silicone sealant along the top edge where the box meets rough masonry surfaces provides excellent extra protection.

    Dimension Profile Installation Sheet
    Genuine IDIS Stock
    NDAA & TAA Certified
    Aust-Wide Express
