TAPO · SECURITY CAMERAS

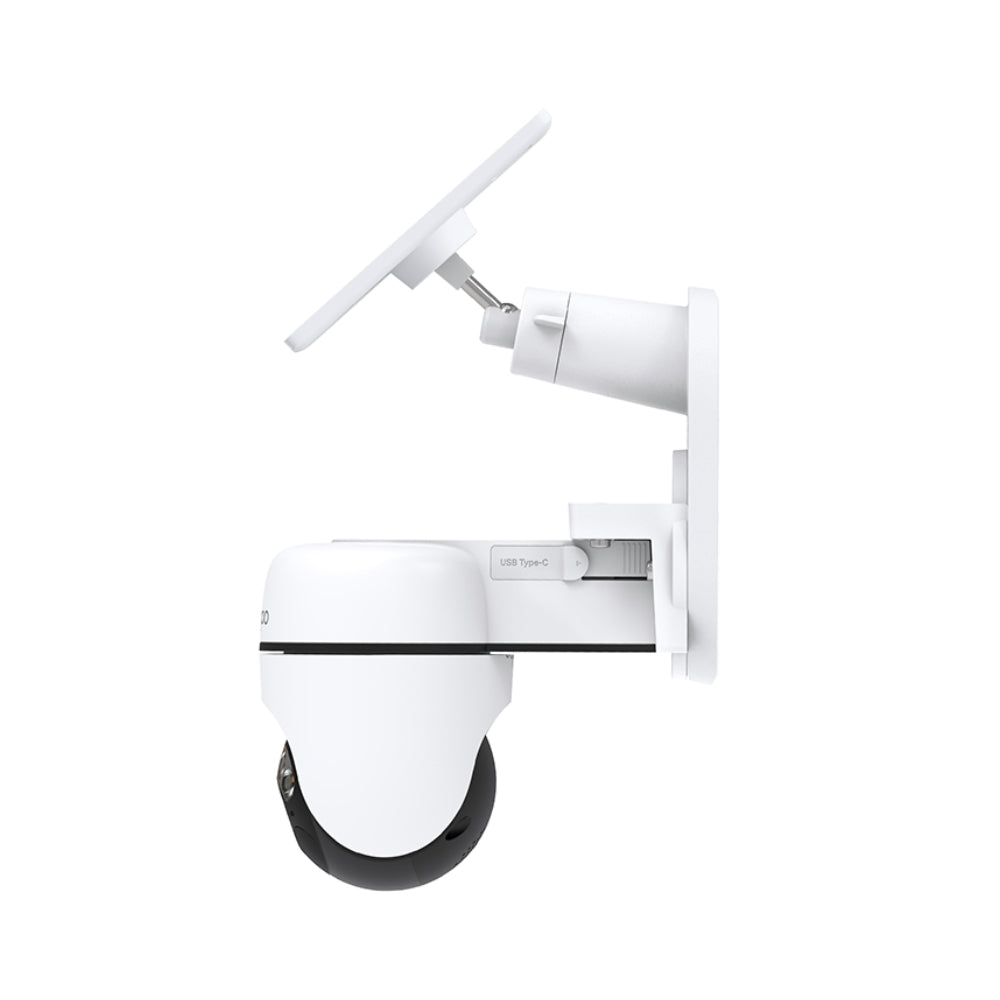

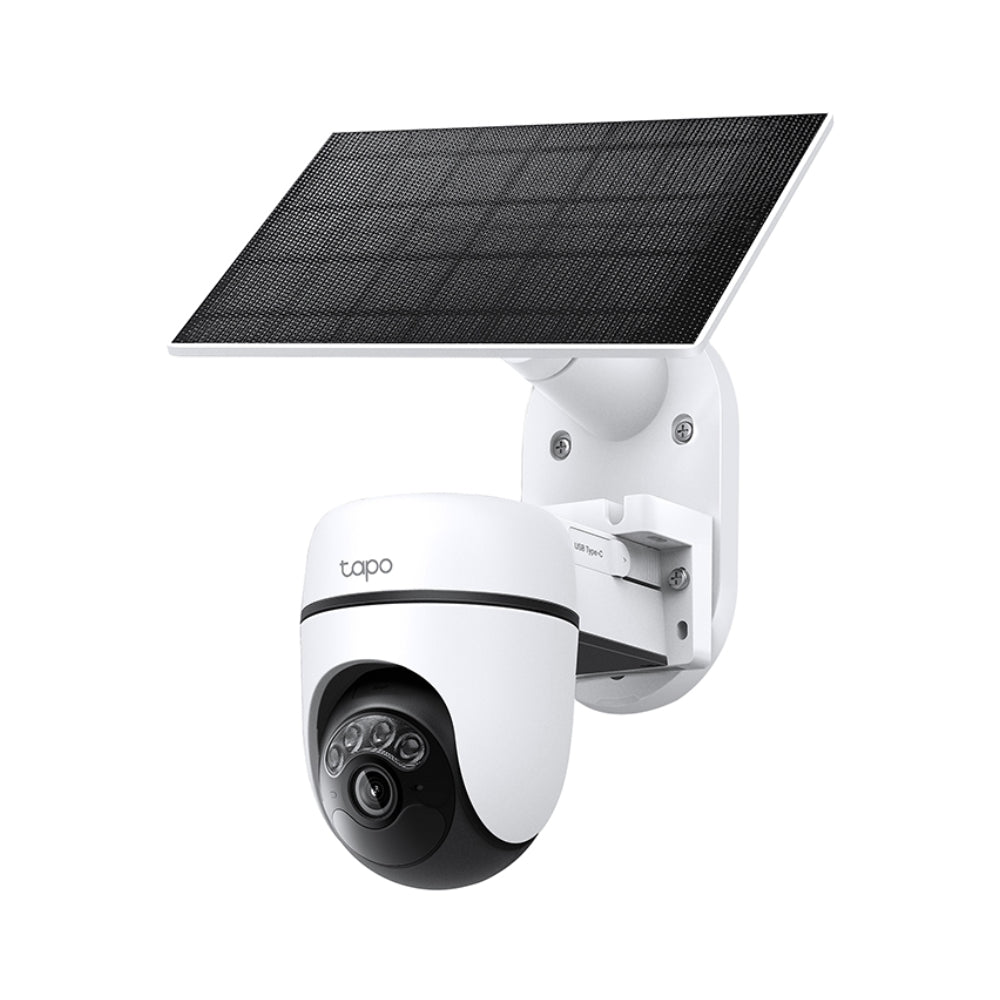

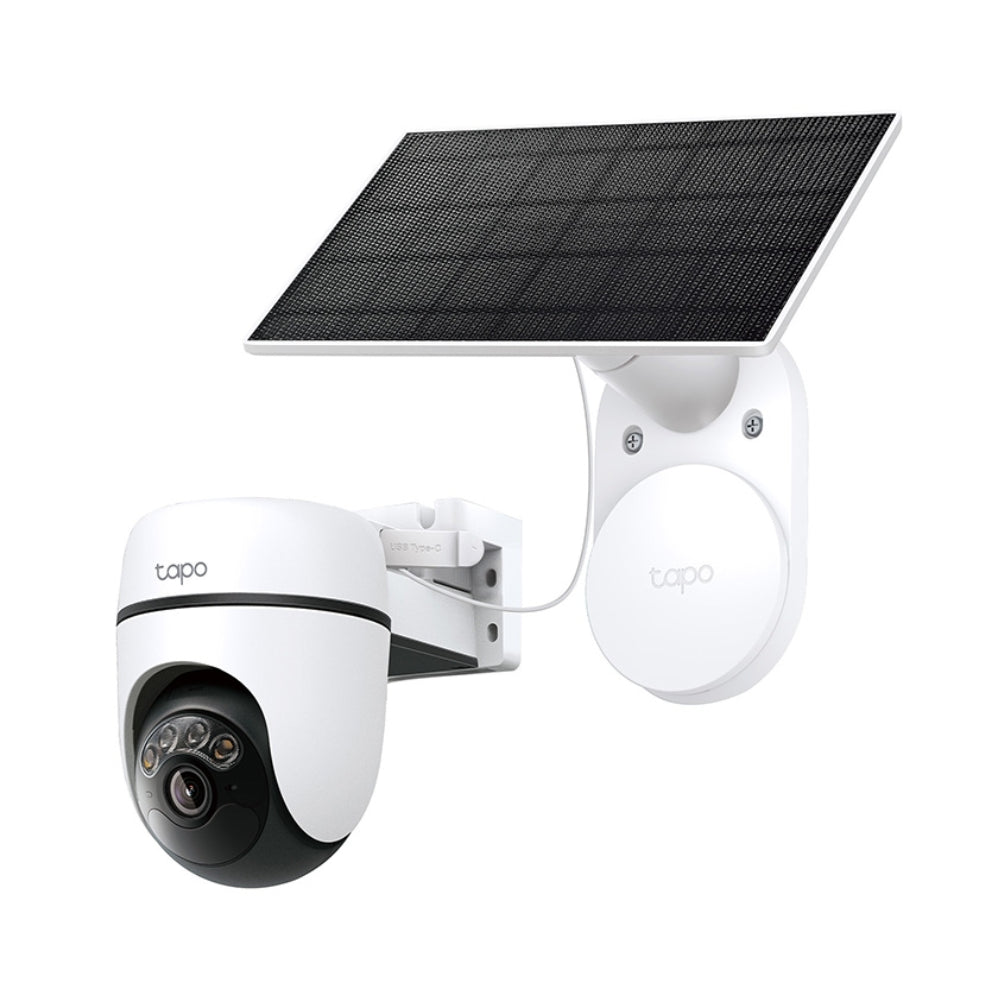

TP-Link Tapo TC90 KIT — Solar-Powered Pan/Tilt Security Camera Kit
Keep an eye on the places that matter with the Tapo TC90 KIT. Check the viewing detail, connection and power requirements below, then use the official setup resources to plan its position and recording.
2K 3MP(2304×1296 px)Frame the important area carefully. Resolution helps show detail, while distance, lighting and subject movement affect what you can identify.
Type-CCheck compatibility and signal at the intended position before permanent installation. The connection type does not determine the power supply.
IP65 for both camera and solar panelUse this specification to compare the TC90 KIT with the requirements of your intended location.
Built-in Rechargeable Lithium-ion Battery Solar Panel: Tapo A201(included)Plan around this power requirement. Check the installation guide and keep charging or power connections accessible for maintenance.
Designed for everyday use
Place the view where it counts
Test the live view at the intended mounting height before drilling. Check daytime and night-time visibility, keeping nearby reflective surfaces and strong glare out of the foreground. Set the camera angle around an entrance or activity area where useful detail matters most.
Plan charging around your location
Battery runtime changes with activity, live viewing, signal strength and temperature. Leave access for recharging and check battery status after installation. The included solar panel needs a suitable sunlit position; shade, weather and camera use affect how much charge it supplies.
Make recordings easy to find
Choose the supported local recording option and test playback after setup. Memory cards are separate unless explicitly included in your selected pack. Tapo Care cloud recording is an optional paid service where supported. Adjust notifications around useful activity so important events are easier to review.
Technical details
Specifications below follow TP-Link’s linked model page. Hardware revisions can differ; select the version printed on your device for firmware, capacity and compatibility details.
Night Vision2× 850 nm IR LEDs (33 ft / 10 m) Full-Color Night Vision
Maximum Resolution2K 3MP(2304×1296 px)
Audio CommunicationTwo-Way Audio with Noise Cancellation
Local StorageMicroSD Card Slot on Camera (Up to 512 GB, microSD card not included)
Network ConnectivityConnect via Wi-Fi
Wireless ConnectivityIEEE 802.11a/b/g/n, 2.4 GHz
Power SourceBuilt-in Rechargeable Lithium-ion Battery Solar Panel: Tapo A201(included)
Output VoltageAdapter Output: 5.0 V, 1.0 A (Not include) Solar Panel Max Charging Voltage: 5.2 V Solar Panel Max Charging Power: 2.5 W
Weather ResistanceIP65 for both camera and solar panel
Before you order
Which version should I check?
Match the model, pack size and hardware version to your installation. Use the official model page and downloads below to check accessories, regional compatibility and any version-specific requirements. Contact CCTV Guru if you need help confirming the right combination.
