Dahua Camera Mount · White Aluminium · 3 kg Maximum LoadDH-PFB206W Wall Mount Bracket for Compatible Dahua Cameras

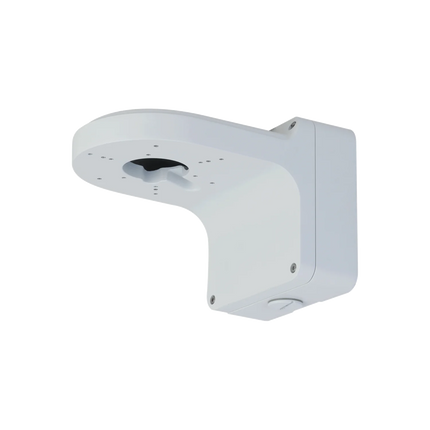

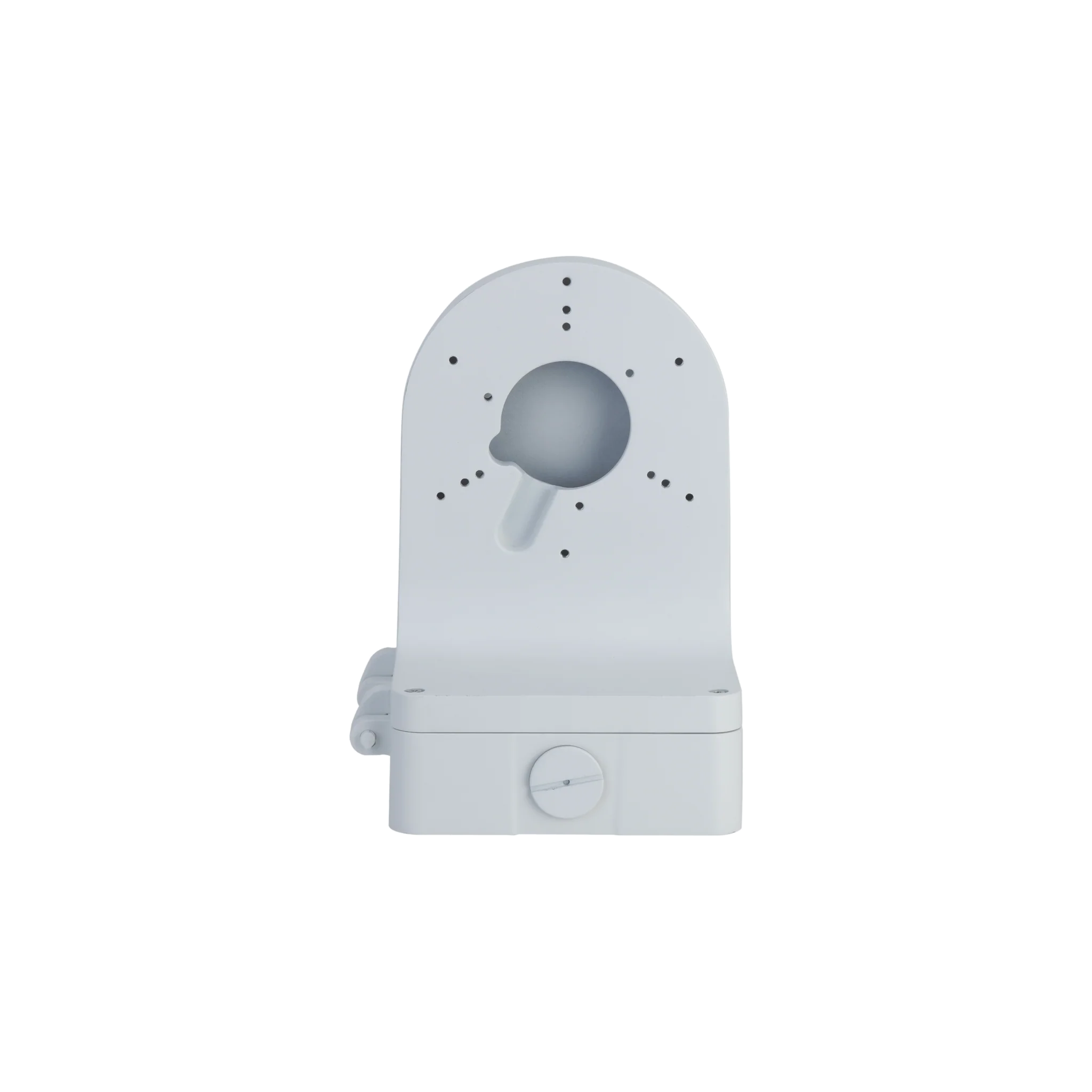

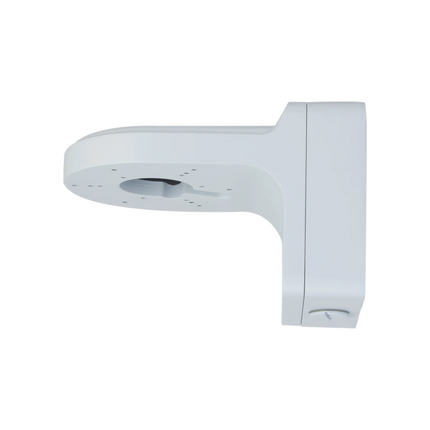

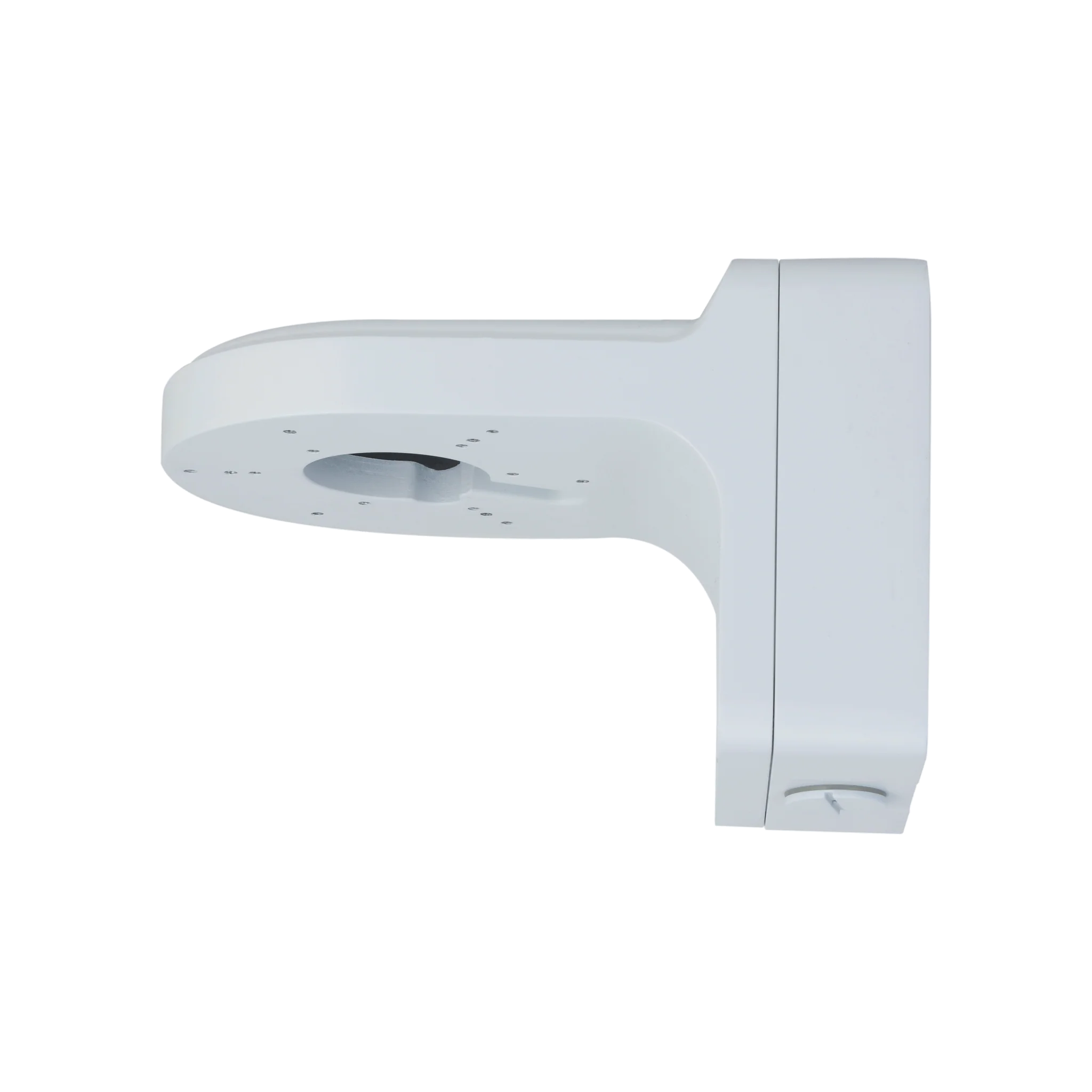

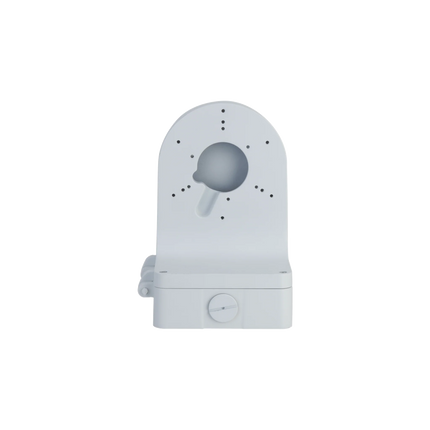

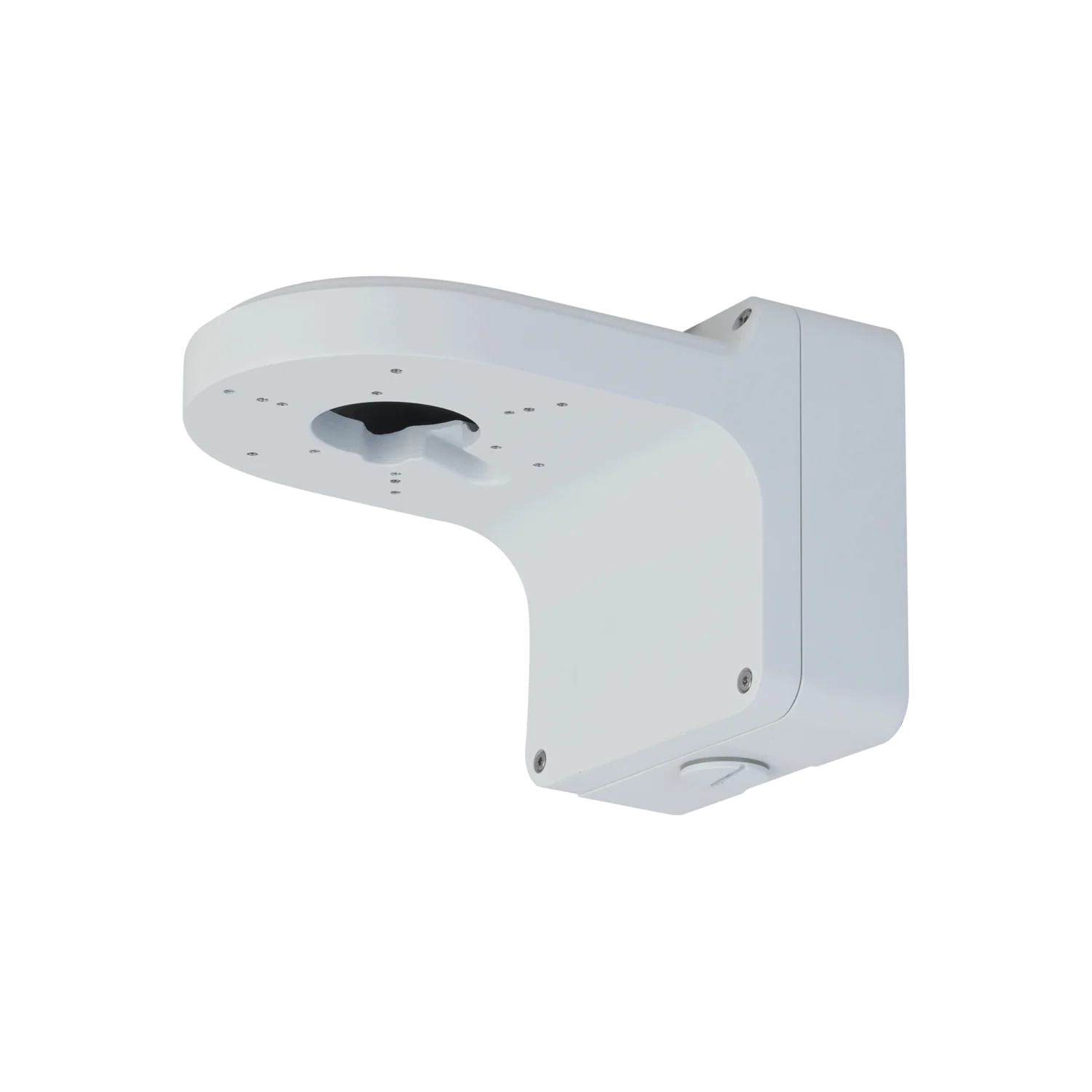

The DH-PFB206W provides a wall-mounted support for selected Dahua cameras. Its white aluminium-alloy construction offers a neat mounting arrangement with a G 3/4 cable-entry thread and a rated load of up to 3 kg. It is useful when the camera needs to sit away from a vertical wall rather than attach directly to a ceiling or soffit.
Check the camera model before ordering. This is not a universal bracket. Match your camera’s official accessory selection and mounting pattern to the drawings below. The bracket is supplied without a camera.
Key Features
Aluminium-alloy construction
A rigid metal bracket with a white finish, designed for compatible Dahua camera installations.
Up to 3 kg supported load
Choose an assembly within the rated capacity and secure it to a surface and fixings suitable for the installation.
Defined mounting dimensions
The product measures 222 × 160.7 × 144.4 mm. Use the downloadable drawing to check screw positions and clearance before drilling.
G 3/4 thread
The specified cable-entry thread helps you plan the cable route and appropriate connection fittings. Outdoor cable entries must be sealed correctly.
Installation Guidance
- Confirm the complete camera SKU against Dahua’s accessory selection and compare the fixing pattern with the dimension drawing.
- Check the supporting wall, fasteners, total mounted load and cable-entry route. Use suitable anchors for the actual wall material.
- Fit the bracket and compatible camera following the installation drawing and general Dahua camera-mount manual.
- Protect cable connections from weather and strain, then check the viewing angle and all fasteners before handover.
The published anti-corrosion level is basic protection. Do not treat this as a marine-grade mount or assume the bracket carries the IP rating of the camera attached to it.
Technical Specifications
| Model |
DH-PFB206W (also listed as DH-AC-PFB206W) |
| Accessory type |
Wall mount bracket |
| Material |
Aluminium alloy |
| Finish |
White |
| Maximum load |
3.0 kg |
| Product dimensions (L × W × H) |
222.0 × 160.7 × 144.4 mm |
| Net / gross weight |
1.1 kg / 1.5 kg |
| Thread |
G 3/4 |
| Operating temperature |
−40°C to +60°C |
| Operating humidity |
Less than 90% RH |
| Anti-corrosion level |
Basic protection |
| Compatibility |
Selected Dahua cameras; verify the exact camera accessory list |
| Package dimensions |
219 × 218 × 275 mm — packaging, not bracket dimensions |
| Warranty |
3-year Australian warranty |
Package Contents
1 × wall mount bracket; 3 × M4×10 screws; 4 × ST4×25 screws; 4 × plastic expansion bolts; 1 × S3.0 wrench; 1 × water joint; 1 × mounting sticker. Installation fasteners must still be assessed for the wall material and load.
Frequently Asked Questions
Will the PFB206W fit every Dahua turret or dome camera?
No. Compatibility depends on the exact camera and mounting pattern. Check the camera’s official accessory list and the PFB206W dimensions before ordering, or send CCTV Guru the full camera SKU.
Is 1.5 kg the maximum load?
No. Dahua specifies a maximum load of 3 kg. The bracket weighs 1.1 kg net, while 1.5 kg is the published gross weight.
Can it be used outdoors?
Dahua specifies an operating range of −40°C to +60°C and basic anti-corrosion protection. Use a suitable installation location and weatherproof the cable entry. The datasheet does not give this bracket an IP rating.
What is included?
The listed package includes one bracket, three M4×10 screws, four ST4×25 screws, four plastic expansion bolts, an S3.0 wrench, a water joint and a mounting sticker. The camera is sold separately.
Downloads
The datasheet and drawings are model-specific. The camera-mount manual is Dahua’s general installation and safety guide.
