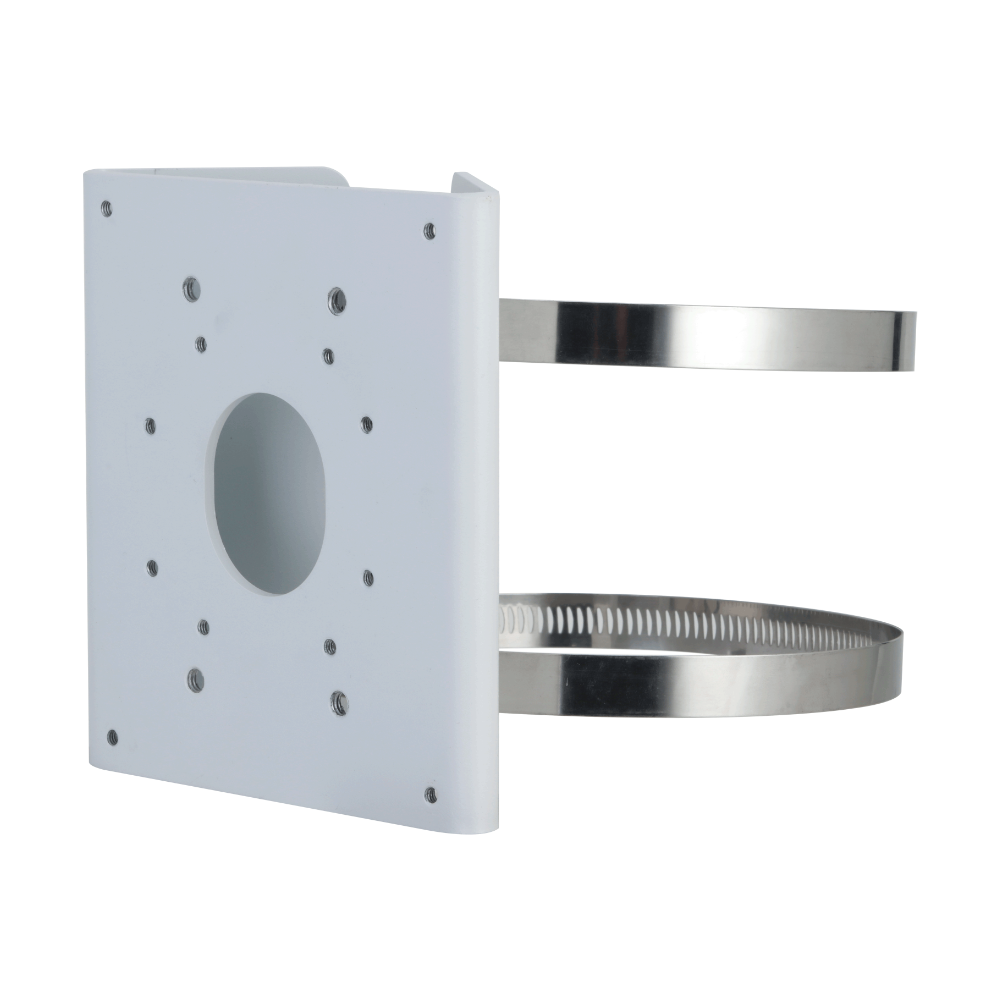

The Dahua DH-PFA156 is a professional-grade, heavy-duty pole mount bracket designed for the secure installation of security cameras and outdoor intercom stations. Constructed from high-quality SECC steel, this bracket provides a stable mounting platform for devices in both residential and commercial environments, ensuring long-lasting performance in outdoor conditions.
Key Features
-
Heavy-Duty Construction: Manufactured from SECC (Steel Electro-galvanized Cold-rolled Coil) for superior strength and corrosion resistance.
-
High Load Capacity: Engineered to support a structural load of up to 10.0 kg (22.05 lb), making it suitable for larger cameras and heavy outdoor stations.
-
Versatile Pole Compatibility: Designed to fit a wide range of pole diameters, from 80mm to 150mm (3.15" to 5.91"), using adjustable stainless steel hoops.
-
All-Weather Reliability: Built to operate in extreme temperature ranges from -40 °C to +60 °C (-40 °F to +140 °F) with up to 90% relative humidity.
-
Seamless Integration: Features a clean, aesthetic design in Dahua White that matches professional security hardware.
Technical Specifications
| Material |
SECC Steel |
| Dimensions |
130.4 mm x 170.0 mm x 45.0 mm |
| Pole Diameter |
Φ80 mm to Φ150 mm |
| Load Bearing |
10.0 kg (22.05 lb) |
| Color |
Dahua White |
| Operating Temp |
-40 °C to +60 °C |
More Information
For detailed dimensions and compatibility charts for Dahua cameras and brackets, please refer to the official documentation:
