Dahua DH-PFB301C — Aluminium Ceiling Mount Bracket for PTZ Cameras

Description

Genuine Dahua Accessory

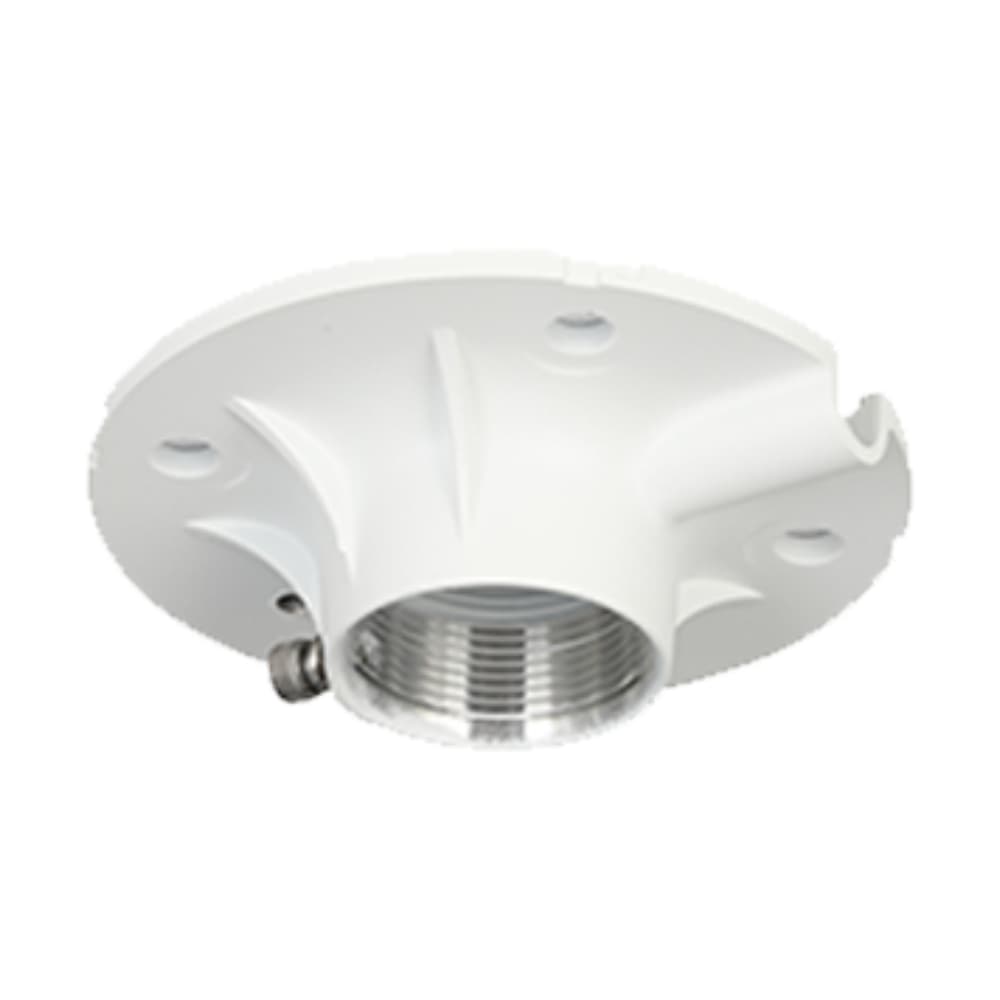

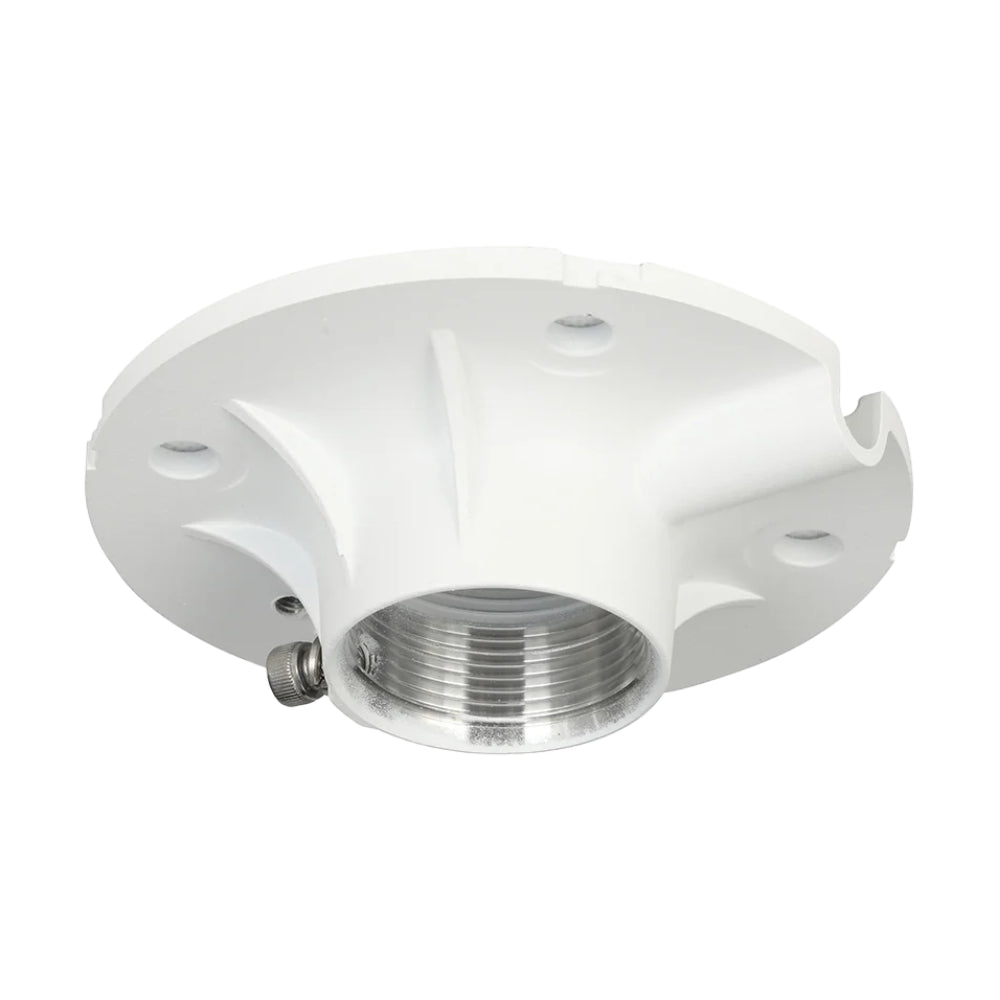

The Dahua DH-PFB301C is a genuine aluminium-alloy ceiling mount bracket with a simple, elegant design and concealed cable routing through the bracket body. Built for Dahua PTZ domes (SD8A and below) via an 8-inch ball and mount adapter, it carries a 10 kg load and is rated from –40 °C to +60 °C for reliable indoor and outdoor installs across Australia.

Genuine Dahua Part
Fast AU-Wide Shipping
AU Tech Support
Specifications
Type Ceiling Mount Bracket
Material Aluminium Alloy
Installation Ceiling Mount
Ball Size 8-inch (requires mount adapter)
Applicable Camera Dahua SD8A and below
Load Bearing 10.0 kg (22.04 lb)
Dimensions φ128.8 × 35.5 mm (5.07" × 1.40") (D × H)
Net Weight 0.21 kg (0.46 lb)
Colour White
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity < 90% RH
In the Box Ceiling mount bracket × 1, S5.0 wrench × 1
DH-PFB301C Datasheet
Which cameras does the PFB301C fit?

It's designed for Dahua PTZ domes in the SD8A series and below, using an 8-inch ball connection together with a compatible mount adapter.

Do I need a separate mount adapter?

Yes. The 8-inch ball requires a Dahua mount adapter to connect the camera. Contact our Australian support team with your camera model and we'll confirm the right adapter.

How much weight can it hold?

The aluminium-alloy bracket carries a load of up to 10 kg (22 lb), comfortably supporting Dahua PTZ camera housings.

Is it suitable for outdoor use?

Yes. It's rated from –40 °C to +60 °C with up to 90% humidity, making it suitable for sheltered outdoor installs.

Dahua DH-PFB301C — Aluminium Ceiling Mount Bracket for PTZ Cameras

Product form

SKU: DH-PFB301C

Genuine Dahua Accessory The Dahua DH-PFB301C is a genuine aluminium-alloy ceiling mount bracket with a simple, elegant design and concealed... Read more

$19.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    Genuine Dahua Accessory

    The Dahua DH-PFB301C is a genuine aluminium-alloy ceiling mount bracket with a simple, elegant design and concealed cable routing through the bracket body. Built for Dahua PTZ domes (SD8A and below) via an 8-inch ball and mount adapter, it carries a 10 kg load and is rated from –40 °C to +60 °C for reliable indoor and outdoor installs across Australia.

    Genuine Dahua Part
    Fast AU-Wide Shipping
    AU Tech Support
    Specifications
    Type Ceiling Mount Bracket
    Material Aluminium Alloy
    Installation Ceiling Mount
    Ball Size 8-inch (requires mount adapter)
    Applicable Camera Dahua SD8A and below
    Load Bearing 10.0 kg (22.04 lb)
    Dimensions φ128.8 × 35.5 mm (5.07" × 1.40") (D × H)
    Net Weight 0.21 kg (0.46 lb)
    Colour White
    Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Operating Humidity < 90% RH
    In the Box Ceiling mount bracket × 1, S5.0 wrench × 1
    DH-PFB301C Datasheet
    Which cameras does the PFB301C fit?

    It's designed for Dahua PTZ domes in the SD8A series and below, using an 8-inch ball connection together with a compatible mount adapter.

    Do I need a separate mount adapter?

    Yes. The 8-inch ball requires a Dahua mount adapter to connect the camera. Contact our Australian support team with your camera model and we'll confirm the right adapter.

    How much weight can it hold?

    The aluminium-alloy bracket carries a load of up to 10 kg (22 lb), comfortably supporting Dahua PTZ camera housings.

    Is it suitable for outdoor use?

    Yes. It's rated from –40 °C to +60 °C with up to 90% humidity, making it suitable for sheltered outdoor installs.
