Hikvision HeatPro · Thermal + Optical Bi-Spectrum
Early Fire Warning with Thermal and 5MP Optical Imaging

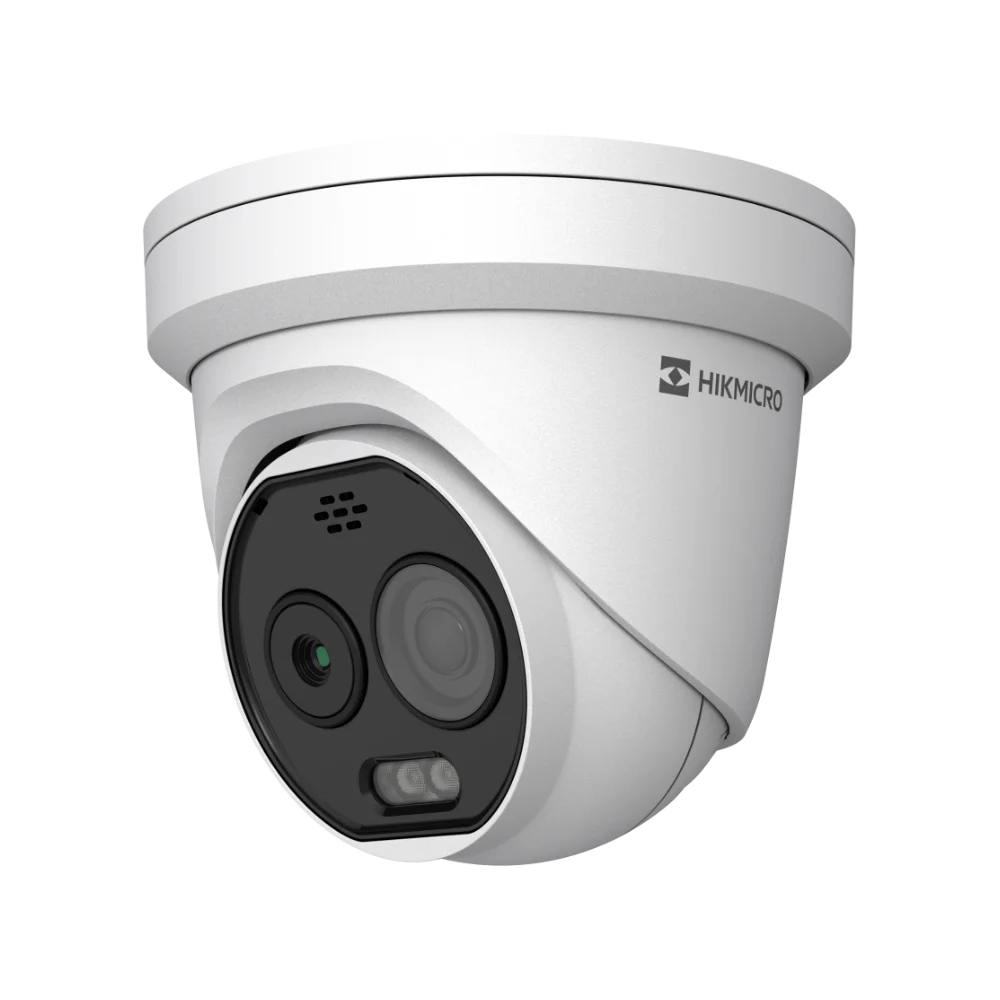

The Hikvision HM-TD1218-2/G0/T1A combines a 160 × 120 thermal sensor with a 5MP optical camera for temperature-exception alarms, fire-point detection, smoking detection and visual verification. It suits warehouses, workshops, waste facilities, electrical rooms and other sites where early intervention matters.
Thermal Channel
160 × 120 · 1.8 mm
Optical Channel
5MP · 2 mm
Heat Monitoring
−20 °C to 150 °C
Protection
IP67 · PoE or 12 VDC
Designed for Practical Risk Reduction
Temperature Exception AlarmsMonitor points, lines and areas across the official −20 °C to 150 °C range, with stated accuracy of ±8 °C.
Fire and Smoking DetectionOn-camera algorithms identify fire points and smoking events for earlier investigation.
Hybrid Night LightingIR, white-light and Smart modes provide up to 30 m illumination for the optical channel.
Human and Vehicle ClassificationVCA 3.0 supports line crossing, intrusion, region entry and region exit rules.
Official Specifications
| Model |
HM-TD1218-2/G0/T1A |
| Type |
Thermal and optical bi-spectrum network turret |
| Thermal Channel |
160 × 120, 12 μm VOx detector, 1.8 mm lens |
| Optical Channel |
5MP, 2688 × 1944, 2 mm lens |
| Temperature Measurement |
−20 °C to 150 °C; stated accuracy ±8 °C |
| Supplementary Light |
IR and white light up to 30 m |
| Storage |
microSD/SDHC/SDXC up to 512 GB |
| Interfaces |
Audio I/O, 1 alarm input, 2 alarm outputs, RS-485 |
| Power |
12 VDC or PoE (802.3af, Class 3) |
| Protection / Warranty |
IP67 / 36 months |
Frequently Asked Questions
Is this a 256 × 192 thermal camera?No. It has a 160 × 120 thermal channel and a separate 5MP optical channel.
What temperature range can it measure?The official specification states −20 °C to 150 °C with ±8 °C accuracy. It is intended for exception monitoring, not laboratory measurement.
Can it work in darkness?Yes. The thermal channel detects heat, while the optical channel supports IR and white light to 30 m.
Does it need an NVR?It can record to microSD up to 512 GB, but an NVR or platform is recommended for central recording and event review.
