Hikvision DeepinView · 4MP ANPR Bullet · DarkFighter 2.0 · 150 dB WDR

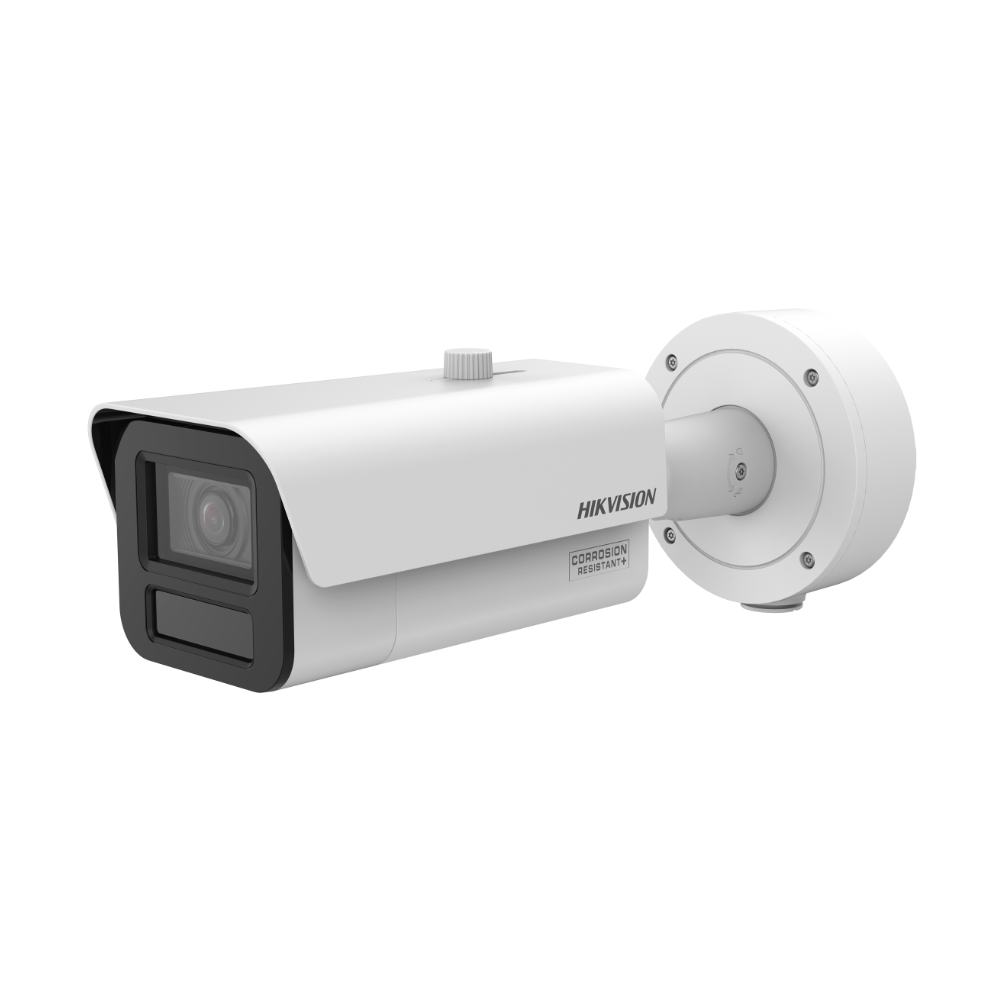

Hikvision iDS-2CD7A46G2/P-IZHSY — 4MP DeepinView ANPR Moto Varifocal Bullet (2.8–12 mm / 8–32 mm)
The Hikvision iDS-2CD7A46G2/P-IZHSY is Hikvision's flagship 4MP DeepinView ANPR bullet — purpose-built for on-camera licence plate recognition, vehicle attribute capture and high-accuracy perimeter protection. It pairs a 1/1.8" progressive-scan CMOS sensor with DarkFighter 2.0 ultra-low-light technology, 150 dB AWDR, a built-in heater for rain and condensation, NEMA 4X anti-corrosion housing (the -Y suffix) and 5 simultaneous video streams. Choose between two motorised varifocal lens variants — 2.8–12 mm for wide-area carpark, driveway and access-gate scenes, or 8–32 mm for long-range boomgate, freeway off-ramp and side-of-road number-plate capture out to 40 m identification distance.
Powered by Hikvision's DeepinView deep-learning engine, the camera runs licence plate recognition with ≥98% accuracy across 124+ countries and regions, captures vehicle type / colour / brand / direction, classifies humans and vehicles for line-crossing, intrusion, region entry and region exit events, and supports up to 10,000-record blocklist/allowlist ANPR rules — all entirely on the camera, with no separate analytics server required. The metal-alloy bullet body is rated IP67, IK10 and NEMA 4X, and ships with TPM 2.0 (FIPS 140-2 Level 2) hardware-rooted cyber security. Australian stock, 3-year Australian warranty.
Resolution
4MP · 2688 × 1520 · up to 120 fps
ANPR Engine
On-camera LPR · ≥98% accuracy
Low Light
DarkFighter 2.0 · 0.0005 lux
Dynamic Range
150 dB AWDR
Protection
IP67 · IK10 · NEMA 4X (-Y)
Power
PoE+ 802.3at · 12 VDC · 24 VAC
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the iDS-2CD7A46G2/P-IZHSY for Australian ANPR
On-camera number-plate recognition is the highest-value piece of analytics any commercial site can deploy — replacing manual gate watching, paid carpark attendants, dispute footage searches and after-the-fact incident review with a real-time event stream that names every vehicle entering or leaving. The G2 generation of Hikvision's DeepinView ANPR bullet is the camera built specifically for this job in Australia: full on-camera LPR, vehicle attribute capture, 4MP DarkFighter 2.0 for clear plates even at midnight, and a choice of two motorised varifocal lenses to suit anything from a single-gate carpark to a four-lane freeway off-ramp.
On-Camera ANPR — No Separate Server
The licence plate recognition algorithm runs entirely on the camera's deep-learning processor. No external ANPR analytics box, no per-channel software licence, no recurring cloud fee — just a Hikvision NVR, this camera, and a copy of the iVMS-4200 / HikCentral plate database.
≥98% LPR Accuracy · 124+ Countries
Hikvision's G2 LPR engine recognises plates from four global regions and more than 124 countries, including the standard, custom, motorcycle and stacked-character plate formats used across every Australian state and territory.
4MP DarkFighter 2.0 — Plates at Midnight
The 1/1.8" sensor captures plates at 0.0005 lux in colour and 0 lux with IR — meaning legible plates on un-lit driveways, late-night service roads and rural farm gates without needing supplementary white light.
150 dB AWDR — Sun Glare Won't Blind It
The class-leading 150 dB true wide dynamic range handles the worst Australian lighting scenarios — sun in the lens at 5 pm, headlights at a boomgate, shadow lines across a covered carpark entrance — without losing the plate detail.
Vehicle Capture up to 120 km/h
Front-installation checkpoint mode captures vehicles travelling at up to 120 km/h; side installation captures up to 80 km/h. Detection rate ≥99%, driving-direction accuracy ≥98%.
Blocklist · Allowlist · 10,000 Records
Maintain on-camera plate databases of up to 10,000 records — automatically open the boomgate for tenants, alert security on a stolen vehicle, log every visitor by plate, all entirely at the edge with no NVR-side dependency.
Hikvision Deep-Learning ANPR — Official Overview
Hikvision Deep Learning ANPR Camera — Official Overview
Perimeter Protection — Human/Vehicle Filtering
Line crossing, intrusion, region entrance and region exiting — each rule can be restricted to humans only, vehicles only or both. Filters out leaves, possums, birds, flags and headlights so security only gets the alarms that matter.
Vehicle Attribute Capture
Beyond just the plate, the camera captures vehicle type, colour, brand and driving direction — feeding searchable metadata into HikCentral for post-incident vehicle search ("show me every red ute that entered after 6 pm").
Built-in Heater + Demist
Onboard heater + demist function keeps the dome glass clear in rain, heavy dew and cold-morning condensation — important for Tasmanian, alpine and coastal sites where overnight humidity rolls in.
NEMA 4X Anti-Corrosion (-Y Variant)
The -Y suffix indicates Hikvision's moderate anti-corrosion housing — rated NEMA 4X for coastal areas within ~2 km of the shoreline and sites exposed to acid rain. Ideal for Australian coastal carparks, marinas and dockyards.
TPM 2.0 + FIPS 140-2 Cyber Security
Hardware-rooted Trusted Platform Module 2.0 at FIPS 140-2 Level 2, plus TLS 1.3, 802.1X authentication, watermarking, video/firmware/config encryption and complete audit logging — meeting enterprise and government cyber baselines.
Five Simultaneous Streams
Stream main 4MP for the NVR, sub-stream for mobile, third-stream for an integrated VMS, fourth for an LPR sub-system and fifth for archival — all from a single network port, with H.265+ compression keeping bandwidth in check.
Technical Specifications
iDS-2CD7A46G2/P-IZHSY · Full Specifications
| SKU |
iDS-2CD7A46G2/P-IZHSY(2.8-12mm) / iDS-2CD7A46G2/P-IZHSY(8-32mm) |
| Camera Type |
4MP DeepinView ANPR Moto Varifocal Bullet Network Camera (-Y NEMA 4X anti-corrosion) |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max Resolution |
2688 × 1520 (4MP) |
| Lens Options |
2.8–12 mm motorised varifocal · 8–32 mm motorised varifocal (auto / semi-auto / manual focus, P-iris) |
| Aperture |
2.8–12 mm: F1.38 to F2.53 · 8–32 mm: F1.7 to F1.73 |
| Field of View |
2.8–12 mm: H 106° → 41.8° · 8–32 mm: H 42.5° → 15.2° |
| Min. Illumination |
Colour 0.0005 lux @ F1.2 (AGC ON) · B/W 0.0001 lux · 0 lux with IR |
| IR Range |
2.8–12 mm: up to 60 m · 8–32 mm: up to 100 m · smart supplement light · 850 nm |
| Day & Night |
IR cut filter · Blue-glass module (reduces ghosting) |
| Wide Dynamic Range |
150 dB AWDR · BLC · HLC · 3D DNR · Defog · Distortion Correction · EIS |
| Frame Rate (Main) |
4MP @ 60 fps · 2MP @ 120 fps (monitoring mode) · 4MP @ 25/30 fps (smart mode) |
| Video Compression |
H.265+ · H.265 · H.264+ · H.264 · MJPEG (substream) |
| Streams |
5 simultaneous streams (main / sub / third / fourth / fifth) |
| Video Bit Rate |
32 Kbps – 8 Mbps · CBR / VBR · SVC · ROI (4 per stream) |
| Deep-Learning AI |
DeepinView · Perimeter Protection (line crossing / intrusion / region entry / region exit · human + vehicle classification) · combined-event triggering |
| ANPR / LPR |
≥98% recognition accuracy · ≥99% capture rate · ≥98% driving-direction accuracy · 4 areas / 124+ countries · vehicle & motorcycle plates · blocklist/allowlist up to 10,000 records |
| Vehicle Capture Speed |
Front (checkpoint): up to 120 km/h · Side: up to 80 km/h
|
| Vehicle Attributes |
Type · colour · brand · driving direction · vehicle / non-vehicle counting |
| Smart Events |
Scene change · audio exception · defocus · vibration (G-sensor) · video quality diagnosis |
| Audio |
1 in / 1 out (line) · G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC · environment noise filtering |
| Alarm I/O |
2 inputs / 2 outputs (max 24 VDC/24 VAC, 1 A) |
| Wiegand (-Y) |
1 Wiegand interface — CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit |
| RS-485 (-Y) |
1 × RS-485 (Half duplex; Hikvision / Pelco-P / Pelco-D) |
| Power Output (-Y) |
12 VDC, max 100 mA |
| Ethernet |
1 × RJ-45 10/100/1000 Mbps self-adaptive |
| Edge Storage |
microSD / SDHC / SDXC up to 1 TB · ANR · encryption-capable card supported |
| API & Protocols |
ISAPI · SDK · ISUP · OTAP · ONVIF (Profile S / G / T / M) · 20 concurrent live-view sessions |
| Cyber Security |
TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.2 / 1.3 · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · AES128/256 · IP filter · security audit log · watermark |
| Client Software |
iVMS-4200 · Hik-Connect · HikCentral |
| Power Source |
12 VDC ±20% · 24 VAC ±20% · PoE IEEE 802.3at Type 2 Class 4 · max 22.6 W |
| Weatherproof Rating |
IP67 (IEC 60529-2013) |
| Vandal Resistance |
IK10 (IEC 62262:2002) |
| Anti-Corrosion |
NEMA 4X (NEMA 250-2018) — Y variant · moderate protection |
| Approvals |
CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · CB · BIS · LOA · EN50121-4 (railway) · RoHS · WEEE · REACH · PVC-FREE |
| Operating Temp. |
−40 °C to +65 °C · ≤95% humidity (non-condensing) |
| Dimensions |
Ø 140 mm × 377.4 mm (Y variant) |
| Weight |
Approx. 2,170 g |
| Housing |
Aluminium alloy · PVC-free |
| Warranty |
3-Year Australian Warranty (back-to-base) |
2.8–12 mm vs 8–32 mm — Which Lens Should I Choose?
Both variants share the same body, sensor, DeepinView engine, LPR algorithm, 150 dB WDR and 4MP @ 60 fps capability. The only differences are the motorised lens range, the maximum IR distance and — most importantly — how far away from the plate the camera can be mounted. Use the 2.8–12 mm lens for wide-coverage scenes where the camera also needs to see context (the whole driveway, the entire carpark entrance), and the 8–32 mm lens for narrow, long-range plate-capture lanes (boomgates, freeway off-ramps, multi-lane checkpoints) where the camera mounts well back from the vehicle.
iDS-2CD7A46G2/P-IZHSY(2.8-12mm) vs iDS-2CD7A46G2/P-IZHSY(8-32mm)
Not sure which lens to pick? Contact our Australian team with your camera-to-plate distance and lane width — we'll size the right variant for your site.
Pair with a Hikvision AcuSense / DeepinMind AI NVR
To get the full value out of on-camera ANPR — plate-search across recorded footage, blocklist alerts pushed to security, vehicle attribute filtering — pair the iDS-2CD7A46G2/P-IZHSY with a Hikvision AcuSense or DeepinMind NVR. The camera's LPR metadata, vehicle attributes and DeepinView events are all carried over the existing Hikvision NVR protocol — no additional licence required.
DS-7608NXI-I2/8P/Vpro — 8CH · AcuSense Pro
Eight-channel AcuSense Pro NVR with 8 built-in PoE ports — perfect for a single-site ANPR deployment with mixed perimeter cameras. View DS-7608NXI-I2/8P/Vpro →
DS-7616NXI-I2/16P/Vpro — 16CH · AcuSense Pro
Sixteen channels at full PoE — room for the ANPR camera plus a fleet of perimeter and overview cameras across the whole site. View DS-7616NXI-I2/16P/Vpro →
DS-7732NXI-I4/16P/Vpro — 32CH · AcuSense Pro
Thirty-two channels with 16 PoE and 4 HDD bays — the typical platform for council carparks, multi-building campuses and shopping-centre ANPR rollouts. View DS-7732NXI-I4/16P/Vpro →
iDS-7716NXI-M4/16P/X — 16CH · DeepinMind
Hikvision DeepinMind X-Series — the most powerful 16-channel AI NVR for sites running multiple ANPR cameras and AcuSeek natural-language vehicle search. View iDS-7716NXI-M4/16P/X →
Browse the full Hikvision NVR range here: Hikvision Network Video Recorders → or the complete Hikvision AcuSeek & DeepinView camera collection →.
Compatible Mounts & Accessories
Hikvision DS-1275ZJ-S-SUS Pendant Wall Mount
Stainless-steel pendant wall mount for the iDS-2CD7A46G2/P-IZHSY bullet — designed for coastal Australian sites where corrosion is a serious concern.
Hikvision DS-1475ZJ-SUS Vertical Pole Mount
Stainless-steel vertical pole bracket — the typical install partner when the camera goes on a fence post, light pole or gate column.
Hikvision DS-1476ZJ-SUS Corner Mount
Stainless-steel corner-mount bracket for situating the bullet at the corner of a building, looking down a perimeter line or carpark approach.
Hikvision DS-1475ZJ-Y / DS-1476ZJ-Y
Anti-corrosion-coated alternatives to the SUS series — matched to the -Y NEMA 4X bullet body for full anti-corrosion-rated installations.
Hikvision DS-FM2466 Alarm Expansion Box
LAN-attached alarm box that extends the iDS-2CD7A46G2/P-IZHSY's I/O by an additional 6 alarm inputs and 6 alarm outputs — useful when interlocking ANPR triggers with boomgates, intercoms or shed-door contactors.
WD Purple 256 GB Surveillance microSD
WD Purple — built for 24/7 surveillance write cycles, with far longer endurance than consumer microSD cards. The recommended edge-recording card for Hikvision G2 ANPR bullets. View WD Purple 256 GB →
Frequently Asked Questions
Does the iDS-2CD7A46G2/P-IZHSY need a separate ANPR licence or server?
No. The licence-plate recognition algorithm runs entirely on the camera. You don't need a dedicated ANPR analytics box, a per-channel software licence or a recurring cloud subscription — just a Hikvision NVR (or HikCentral) to receive the LPR metadata and store the captured plates.
Does it recognise Australian plates?
Yes. Hikvision's G2 LPR engine covers 124+ countries and regions across four areas, including all standard Australian state and territory plate formats — NSW, VIC, QLD, WA, SA, TAS, ACT, NT — plus custom plates, motorcycle plates and stacked-character plates.
What's the difference between the 2.8–12 mm and 8–32 mm variants?
Same camera body, same DeepinView AI, same ANPR engine — only the motorised lens range, IR range and plate-capture distance change. Use 2.8–12 mm for sites where the camera mounts 3–10 m from the plate line (residential gates, small carpark entries) and 8–32 mm for sites where the camera mounts 10–40 m back (boomgates, multi-lane checkpoints, freeway off-ramps).
What's the maximum vehicle speed it can capture?
Front-installation checkpoint mode captures up to 120 km/h. Side-mounted installations capture up to 80 km/h. Both numbers assume Hikvision's recommended install geometry and illumination — see the datasheet for full guidance.
What does the "P" in the model name mean? What about the "Y"?
The P indicates the camera is a dedicated plate-recognition (ANPR) DeepinView model. The Y indicates the moderate anti-corrosion housing — NEMA 4X-rated stainless body suitable for coastal Australian sites within 2 km of the shoreline and areas affected by acid rain.
Is this camera NDAA Section 889 compliant?
No. Hikvision is subject to NDAA Section 889 restrictions in the United States. For NDAA-compliant ANPR projects (typically US federal-funded), we stock alternative brands — please contact our team for a recommendation. For Australian commercial, council and private projects without an NDAA contractual requirement, this camera is freely usable.
Does it support Wiegand output for boomgate / access control?
Yes — the -Y variant includes a Wiegand interface (CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit) and an RS-485 port, letting you wire the camera directly into a boomgate controller, access-control panel or third-party gate-management system.
How many plates can I store in the blocklist / allowlist?
Up to 10,000 records combined, stored on-camera. The camera matches every captured plate against the list in real time and triggers the appropriate alarm output or NVR event — automatically open the boomgate for tenants, push an alert on stolen plates, log every visitor by plate.
What's DarkFighter 2.0 and why does it matter for ANPR?
DarkFighter 2.0 is Hikvision's second-generation ultra-low-light sensor + image-processing pipeline. For ANPR it matters because the camera needs to read a tiny, fast-moving plate at night — with DarkFighter 2.0, the camera can pull a clean colour plate at 0.0005 lux ambient and a clean monochrome plate at 0 lux using only the built-in IR.
Will it record to the camera if the NVR goes offline?
Yes. The onboard microSD slot accepts up to 1 TB and supports ANR (Auto Network Replenishment) — when the camera reconnects to the NVR, any footage missed during the outage automatically backfills from the SD card to the NVR drive.
Does it run on standard PoE?
It needs PoE+ (IEEE 802.3at Type 2) — not standard 802.3af — because of the built-in heater and the motorised lens. Most modern Hikvision and Dahua PoE NVRs and switches support PoE+ on every port. It can also run on 12 VDC or 24 VAC if a separate supply is preferred.
What's the warranty and where is it serviced?
This camera ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia. CCTV Guru manages the entire RA process from our Sydney office and provides Australian-based pre-sales and technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Hikvision Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
Order the Hikvision iDS-2CD7A46G2/P-IZHSY from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision DeepinView ANPR cameras. Order the iDS-2CD7A46G2/P-IZHSY in your choice of 2.8–12 mm or 8–32 mm motorised varifocal lens for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera rollouts and full local warranty support. Designing a multi-gate carpark, boomgate or council ANPR project? Request a free quote or contact our Australian team for tailored camera-and-NVR sizing.
