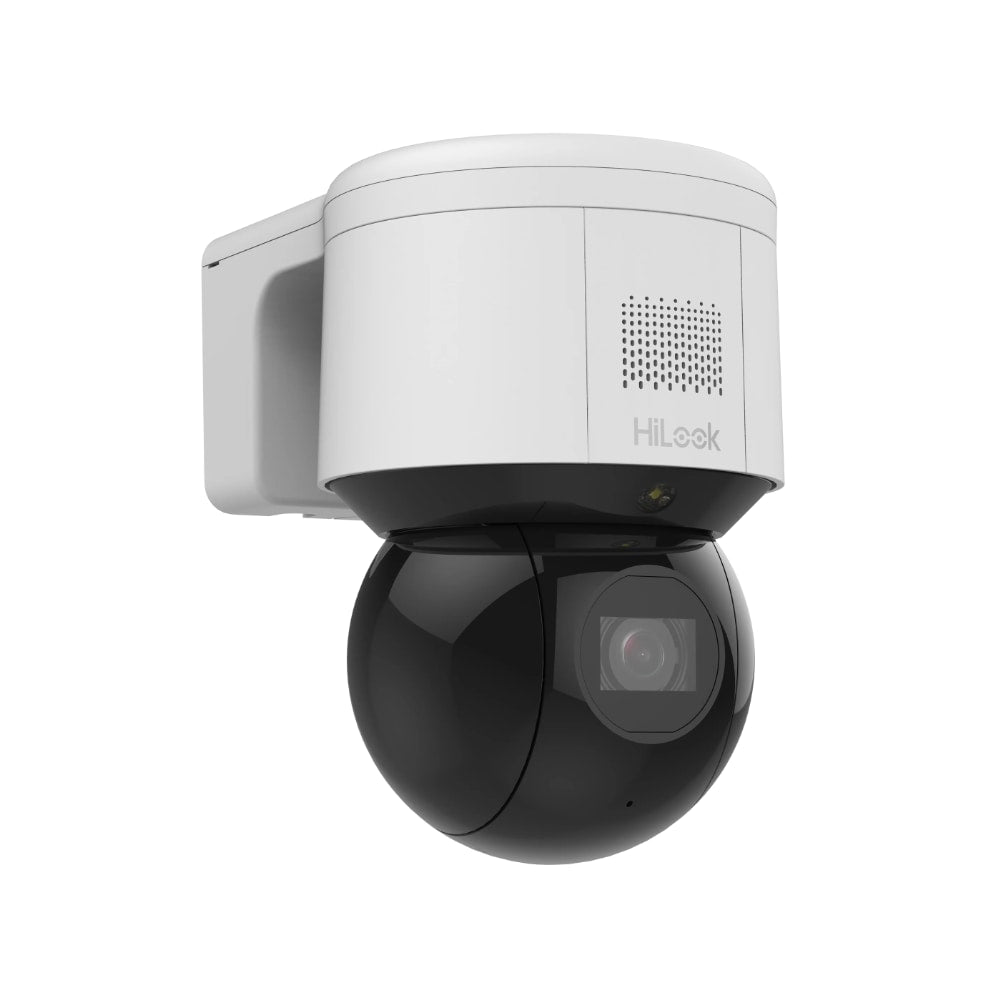

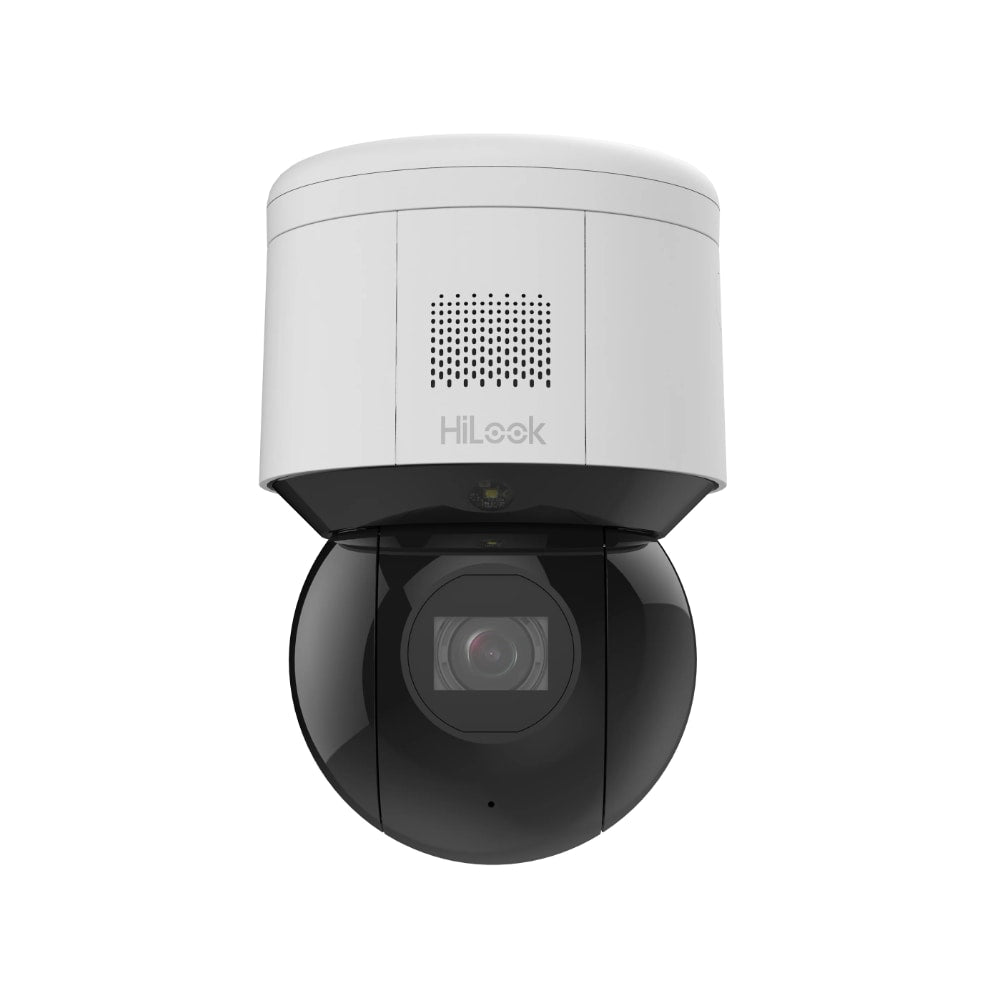

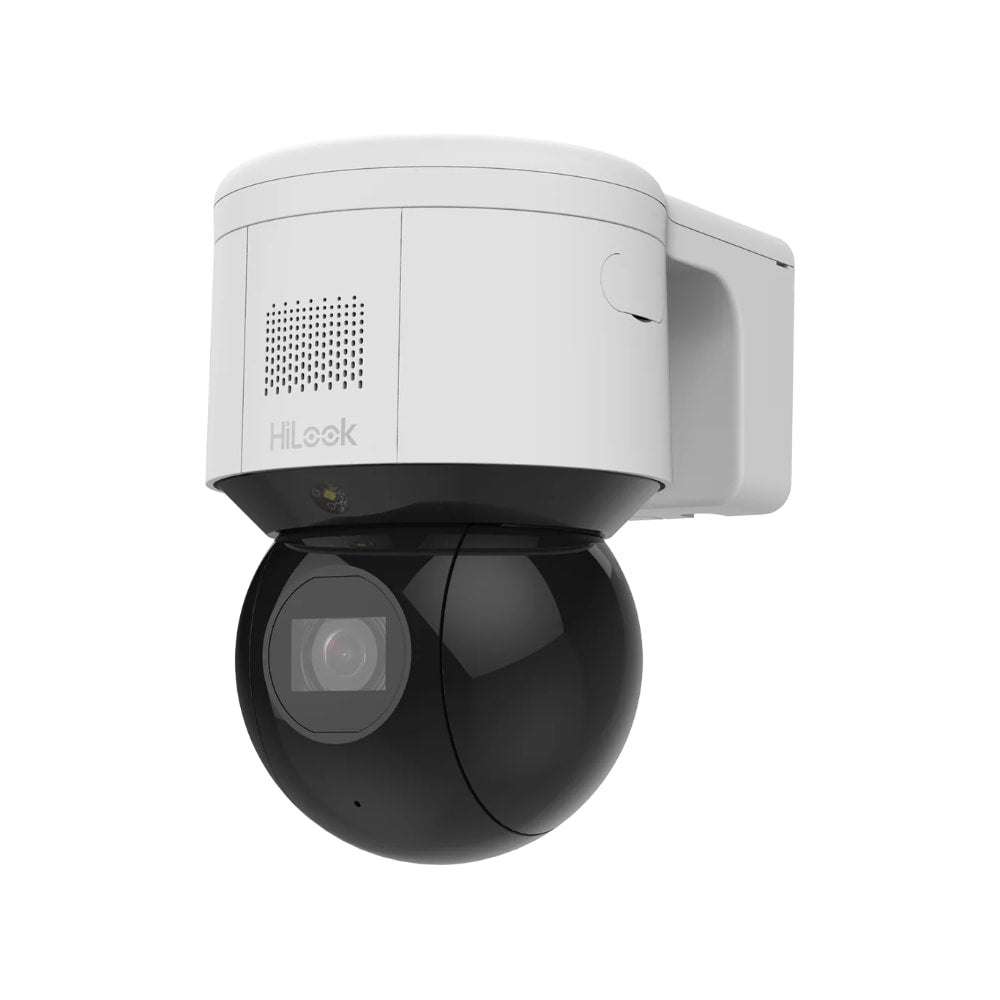

HiLook PTZ-N3404LIU-SL — 4MP 4X Zoom Auto-Tracking IR PTZ Camera

Description

4MP · 4X Zoom · Auto-Tracking · IR 50 m · Person & Vehicle AI 4MP 4X Auto-Track PTZ

HiLook PTZ-N3404LIU-SL 4MP 4X Auto-Tracking PTZ — Australian Stock & 3-Year Warranty

The HiLook PTZ-N3404LIU-SL is a compact 4 MP (2560 × 1440) network PTZ that packs serious smarts into a small dome. A 4× optical zoom with a bright F1.5, 2.8–12 mm lens gives wide situational awareness and the ability to close in, while deep-learning auto-tracking automatically locks onto and follows people or vehicles the moment they enter the scene — no operator needed.

Built-in person & vehicle detection and perimeter analytics (line-crossing, intrusion, region entrance/exit) cut false alarms from animals and weather, and a red & blue flashing strobe plus two-way audio let you actively warn off and speak to intruders in real time. IR reaches up to 50 m, 120 dB true WDR handles tricky light, and the IP66 housing with 6000 V surge protection runs from −30 °C to 65 °C. Powered over a single PoE+ cable. Backed by genuine Australian stock and a 3-year warranty.

Smart PTZ
Deep-Learning Auto-Tracking
Night Vision
IR up to 50 m

It Follows the Action For You

Deep-Learning Auto-Tracking

When a person or vehicle enters the scene, the camera automatically pans, tilts and zooms to keep them centred — capturing a continuous, detailed record without anyone driving the joystick.

Person & Vehicle AI

Target-based detection alarms only on people and vehicles, while line-crossing, intrusion and region analytics keep nuisance alerts from animals, rain and shadows to a minimum.

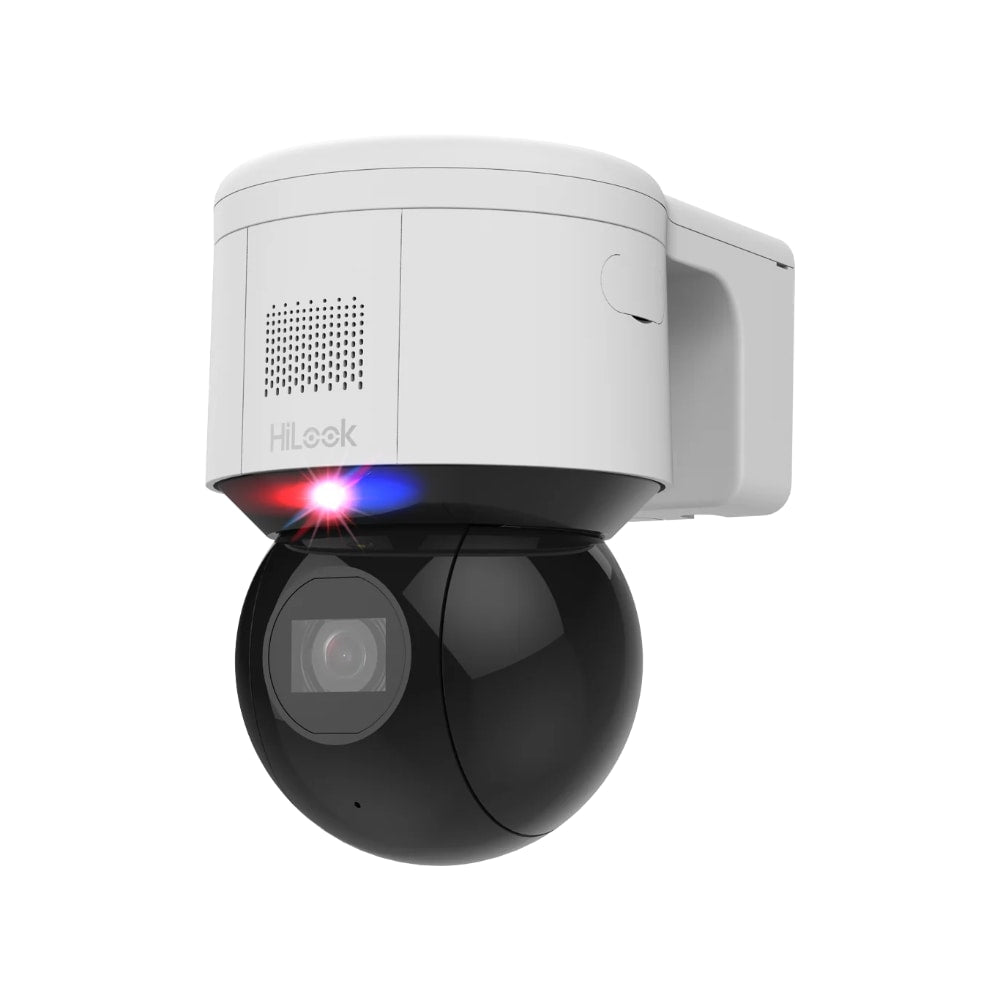

Active Deterrence & Audio

A red & blue flashing strobe plus a built-in mic and speaker let you challenge intruders live and flash a visible warning — turning passive recording into real-time deterrence.

4MP With a Bright F1.5 Lens

A 4 MP sensor and fast F1.5 2.8–12 mm 4× zoom hold full colour to 0.005 Lux, with 120 dB WDR and IR to 50 m for clear images day and night.

Technical Specifications

Camera & Lens
Model / SKU PTZ-N3404LIU-SL
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 4 MP — 2560 × 1440 @ 25/30 fps
Optical Zoom 4× — 2.8–12 mm, max F1.5
Digital Zoom 16×
Field of View Horizontal 96.7° (wide) to 31.6° (tele)
Min. Illumination Colour 0.005 Lux · B/W 0.001 Lux @ F1.5; 0 Lux with IR
WDR 120 dB true WDR
Day/Night IR-cut filter (ICR)
DORI (Tele) Detect 180 m · Observe 71 m · Recognise 36 m · Identify 18 m
PTZ, Lights & Smart Features
Pan Range / Speed 0°–350° · 0.1–60°/s (preset 60°/s)
Tilt Range / Speed 0°–90° · 0.1–50°/s
Presets / Patrols 300 presets · 8 patrols (up to 32 presets each)
Auto-Tracking Yes — deep-learning auto-tracking of people & vehicles
IR Range Up to 50 m
Deterrence Light Red & blue flashing alarm strobe
Smart Detection Person & vehicle detection, line crossing, intrusion, region entrance/exit, face detection, object removal, audio exception
Two-Way Audio Built-in microphone + speaker
Compression H.265+/H.265/H.264+/H.264
Network, Power & Build
On-Board Storage microSD/SDHC/SDXC up to 256 GB
API / Integration ONVIF, ISAPI, SDK
Client / App Hik-Connect, iVMS-4200
Power PoE+ IEEE 802.3at or 12 VDC; max 14 W
Surge Protection 6000 V TVS lightning, surge & transient protection
Weather Rating IP66 dust & water resistant
Operating Temp. −30 °C to 65 °C, humidity ≤90%
Dimensions / Weight 179.3 × 120.5 × 182 mm · approx. 1.13 kg
Warranty 3-Year Australian Warranty

Downloads & Documentation

Frequently Asked Questions

How does auto-tracking work?
Using deep-learning analysis, the camera automatically detects a person or vehicle entering the scene and pans, tilts and zooms to keep them in frame — recording a continuous record without manual control. A setup guide is included in the downloads above.
What smart detection does it support?
Person & vehicle detection, line crossing, intrusion, region entrance/exit, face detection, object removal and audio-exception detection, so alarms focus on real threats.
Can it actively deter intruders?
Yes. A red & blue flashing strobe and built-in two-way audio let you flash a visible warning and speak to people on site in real time through the app.
Does it have a white light / ColorVu for colour at night?
No — this model uses infrared up to 50 m for night imaging plus a red & blue strobe for deterrence. It is not a ColorVu full-colour-at-night camera.
How much can it zoom?
The bright F1.5, 2.8–12 mm lens gives 4× optical zoom (plus 16× digital) — wide enough for broad coverage and tight enough to pick out detail at range.
How far can it pan and tilt?
0°–350° pan and 0°–90° tilt, with pan up to 60°/s and tilt up to 50°/s for smooth tracking and quick repositioning.
How is it powered?
Over a single network cable using PoE+ (IEEE 802.3at) or by 12 VDC, drawing a maximum of 14 W.
Does it record to a memory card?
Yes — a microSD/SDHC/SDXC slot supports cards up to 256 GB for edge recording.
What NVRs and software work with it?
It speaks ONVIF and pairs with HiLook and Hikvision NVRs, plus the Hik-Connect app and iVMS-4200 desktop client.
Is it tough enough for outdoors in Australia?
Yes — IP66 weatherproofing, 6000 V surge protection and a −30 °C to 65 °C operating range handle harsh sun, dust and storms.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

HiLook PTZ-N3404LIU-SL — 4MP 4X Zoom Auto-Tracking IR PTZ Camera

Product form
5.0
Rated 5.0 out of 5 stars
1 Review

SKU: PTZ-N3404LIU/SL

$273.00  $220.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
    5.0
    Rated 5.0 out of 5 stars
    Based on 1 review
    Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
    100%would recommend this product
    Rating
    Ratings
    1 review
    • Rated 5 out of 5 stars
      8 months ago
      Great PTZ camera

      Hi

      I have purchased 4 x of these PTZ cameras and they work very well.

      Ray

      RM
      Ray M.
      Verified Buyer

    Description

    4MP · 4X Zoom · Auto-Tracking · IR 50 m · Person & Vehicle AI 4MP 4X Auto-Track PTZ

    HiLook PTZ-N3404LIU-SL 4MP 4X Auto-Tracking PTZ — Australian Stock & 3-Year Warranty

    The HiLook PTZ-N3404LIU-SL is a compact 4 MP (2560 × 1440) network PTZ that packs serious smarts into a small dome. A 4× optical zoom with a bright F1.5, 2.8–12 mm lens gives wide situational awareness and the ability to close in, while deep-learning auto-tracking automatically locks onto and follows people or vehicles the moment they enter the scene — no operator needed.

    Built-in person & vehicle detection and perimeter analytics (line-crossing, intrusion, region entrance/exit) cut false alarms from animals and weather, and a red & blue flashing strobe plus two-way audio let you actively warn off and speak to intruders in real time. IR reaches up to 50 m, 120 dB true WDR handles tricky light, and the IP66 housing with 6000 V surge protection runs from −30 °C to 65 °C. Powered over a single PoE+ cable. Backed by genuine Australian stock and a 3-year warranty.

    Smart PTZ
    Deep-Learning Auto-Tracking
    Night Vision
    IR up to 50 m

    It Follows the Action For You

    Deep-Learning Auto-Tracking

    When a person or vehicle enters the scene, the camera automatically pans, tilts and zooms to keep them centred — capturing a continuous, detailed record without anyone driving the joystick.

    Person & Vehicle AI

    Target-based detection alarms only on people and vehicles, while line-crossing, intrusion and region analytics keep nuisance alerts from animals, rain and shadows to a minimum.

    Active Deterrence & Audio

    A red & blue flashing strobe plus a built-in mic and speaker let you challenge intruders live and flash a visible warning — turning passive recording into real-time deterrence.

    4MP With a Bright F1.5 Lens

    A 4 MP sensor and fast F1.5 2.8–12 mm 4× zoom hold full colour to 0.005 Lux, with 120 dB WDR and IR to 50 m for clear images day and night.

    Technical Specifications

    Camera & Lens
    Model / SKU PTZ-N3404LIU-SL
    Image Sensor 1/2.8" Progressive Scan CMOS
    Max. Resolution 4 MP — 2560 × 1440 @ 25/30 fps
    Optical Zoom 4× — 2.8–12 mm, max F1.5
    Digital Zoom 16×
    Field of View Horizontal 96.7° (wide) to 31.6° (tele)
    Min. Illumination Colour 0.005 Lux · B/W 0.001 Lux @ F1.5; 0 Lux with IR
    WDR 120 dB true WDR
    Day/Night IR-cut filter (ICR)
    DORI (Tele) Detect 180 m · Observe 71 m · Recognise 36 m · Identify 18 m
    PTZ, Lights & Smart Features
    Pan Range / Speed 0°–350° · 0.1–60°/s (preset 60°/s)
    Tilt Range / Speed 0°–90° · 0.1–50°/s
    Presets / Patrols 300 presets · 8 patrols (up to 32 presets each)
    Auto-Tracking Yes — deep-learning auto-tracking of people & vehicles
    IR Range Up to 50 m
    Deterrence Light Red & blue flashing alarm strobe
    Smart Detection Person & vehicle detection, line crossing, intrusion, region entrance/exit, face detection, object removal, audio exception
    Two-Way Audio Built-in microphone + speaker
    Compression H.265+/H.265/H.264+/H.264
    Network, Power & Build
    On-Board Storage microSD/SDHC/SDXC up to 256 GB
    API / Integration ONVIF, ISAPI, SDK
    Client / App Hik-Connect, iVMS-4200
    Power PoE+ IEEE 802.3at or 12 VDC; max 14 W
    Surge Protection 6000 V TVS lightning, surge & transient protection
    Weather Rating IP66 dust & water resistant
    Operating Temp. −30 °C to 65 °C, humidity ≤90%
    Dimensions / Weight 179.3 × 120.5 × 182 mm · approx. 1.13 kg
    Warranty 3-Year Australian Warranty

    Downloads & Documentation

    Frequently Asked Questions

    How does auto-tracking work?
    Using deep-learning analysis, the camera automatically detects a person or vehicle entering the scene and pans, tilts and zooms to keep them in frame — recording a continuous record without manual control. A setup guide is included in the downloads above.
    What smart detection does it support?
    Person & vehicle detection, line crossing, intrusion, region entrance/exit, face detection, object removal and audio-exception detection, so alarms focus on real threats.
    Can it actively deter intruders?
    Yes. A red & blue flashing strobe and built-in two-way audio let you flash a visible warning and speak to people on site in real time through the app.
    Does it have a white light / ColorVu for colour at night?
    No — this model uses infrared up to 50 m for night imaging plus a red & blue strobe for deterrence. It is not a ColorVu full-colour-at-night camera.
    How much can it zoom?
    The bright F1.5, 2.8–12 mm lens gives 4× optical zoom (plus 16× digital) — wide enough for broad coverage and tight enough to pick out detail at range.
    How far can it pan and tilt?
    0°–350° pan and 0°–90° tilt, with pan up to 60°/s and tilt up to 50°/s for smooth tracking and quick repositioning.
    How is it powered?
    Over a single network cable using PoE+ (IEEE 802.3at) or by 12 VDC, drawing a maximum of 14 W.
    Does it record to a memory card?
    Yes — a microSD/SDHC/SDXC slot supports cards up to 256 GB for edge recording.
    What NVRs and software work with it?
    It speaks ONVIF and pairs with HiLook and Hikvision NVRs, plus the Hik-Connect app and iVMS-4200 desktop client.
    Is it tough enough for outdoors in Australia?
    Yes — IP66 weatherproofing, 6000 V surge protection and a −30 °C to 65 °C operating range handle harsh sun, dust and storms.
