Dahua WizSense 3 · 8MP 4K Bullet · Smart Dual Light · AcuPick

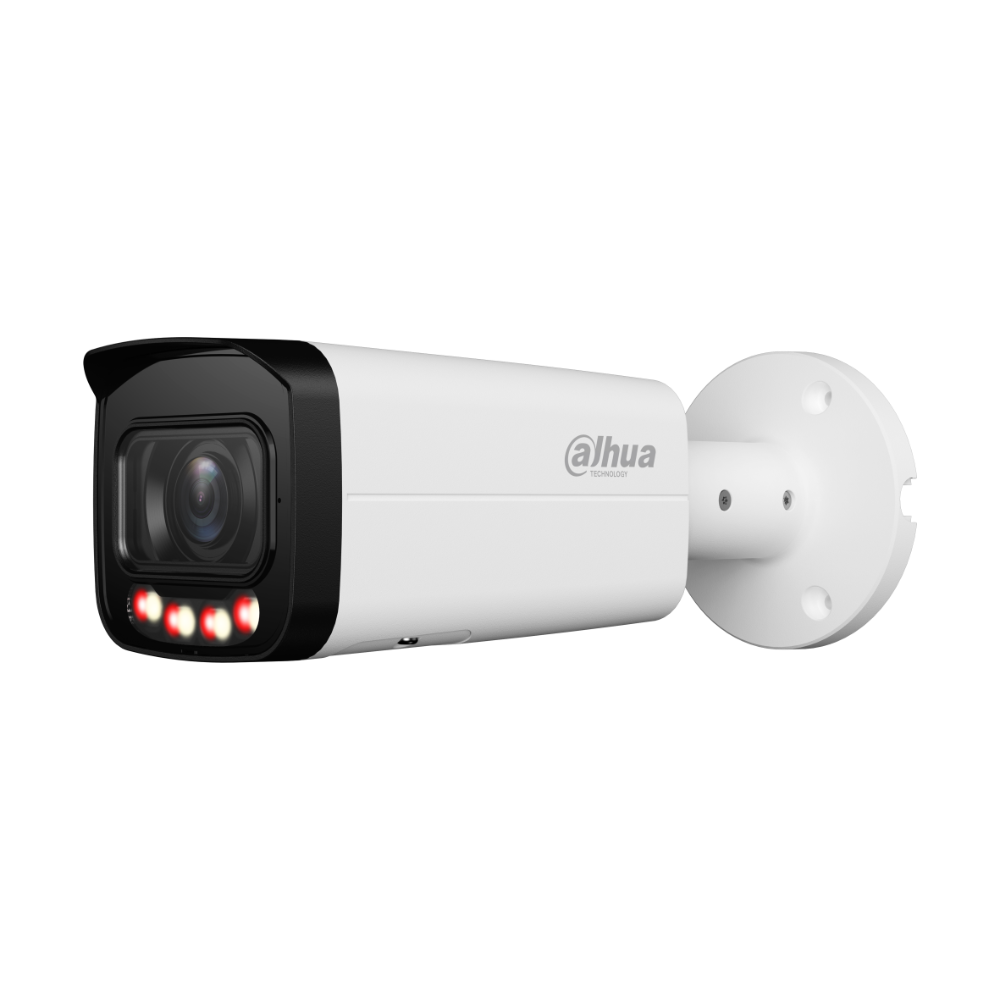

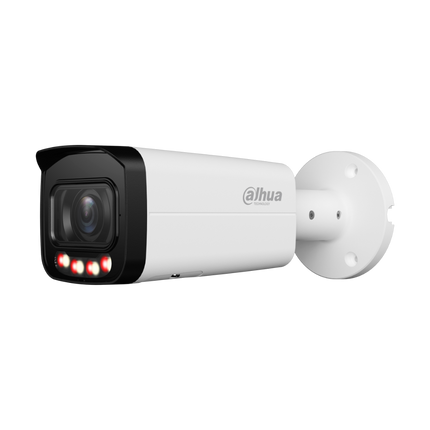

Dahua DH-IPC-HFW3867T-ZAS-IL-ANZ — 8MP 4K Smart Dual Light Motorised Vari-Focal AcuPick Bullet
The Dahua DH-IPC-HFW3867T-ZAS-IL-ANZ is an 8MP 4K motorised vari-focal bullet in the WizSense 3 Series · Smart Dual Light line — built around a 1/2.7" CMOS sensor, a 2.7–13.5 mm motorised zoom lens with F1.4 aperture, and four multi-core LEDs delivering both 60 m IR and 60 m warm-light illumination. The Smart Dual Light system runs invisible IR by default and switches to warm-light LED for full-colour image the moment a person or vehicle is detected — giving you clean colour evidence at the event, without the constant light spill of a full-time warm-light camera.
Unlike the TiOC bullets, the 3867T-ZAS-IL has no red/blue strobe, no on-board siren and no voice broadcast — it's a focused silent surveillance camera. What it does add over the IR-only 3866TP is the warm-light LED for full-colour night image, AcuPick AI attribute search, 16 Mbps bitrate ceiling, 512 GB MicroSD support, ONVIF Profile M and dual-power backup. Combined with SMD 4.0, EIS image stabilisation, AI Coding and AI SSA, it's the mid-tier sweet spot of Dahua's 8MP bullet line. Available in White and Black. Australian stock, 3-year Australian warranty.
Resolution
8MP · 4K · 3840 × 2160
Motorised Zoom
2.7–13.5 mm · F1.4
Smart Dual Light
60 m IR · 60 m Warm
AI Engine
WizSense · AcuPick · SMD 4.0
Protection
IP67 · All-Metal Body
Power
PoE 802.3af · Max 12.5 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the Smart Dual Light AcuPick Bullet
The 3867T-ZAS-IL is the mid-tier 8MP bullet — between the silent IR-only 3866TP and the TiOC-deterrence 3849T1-ZAS-PV. It's the camera Australian installers reach for when they want colour evidence at night without the visible deterrent of red/blue strobe lights, plus the AcuPick AI workflow for fast post-incident search. Long perimeters, rural driveways, schools, healthcare, retail interiors and any site where colour identification matters more than active deterrence — this is the right tool.
Smart Dual Light — Colour Evidence on Detection
By default the camera uses invisible IR illumination out to 60 m for silent monitoring. The instant SMD 4.0 detects a human or vehicle, it switches to 60 m warm-light LED and records full-colour video — capturing clothing colour, vehicle paint and facial detail that IR alone cannot deliver.
2.7–13.5 mm Motorised Vari-Focal
Five-times optical zoom with remote focus and zoom via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone — no ladder, no re-aiming. Close focus down to 0.1 m for tight near-field shots.
AcuPick AI Target Search
Paired with a Dahua 5-Series AcuPick NVR, AcuPick indexes every human and vehicle event by attribute — clothing colour, vehicle type, direction — so you find any face or plate across a week of footage in seconds rather than scrubbing timelines.
F1.4 Large Aperture + 1/2.7" Sensor
An F1.4 maximum aperture across the entire zoom range pulls in significantly more light than a typical F1.6 lens, producing clean colour image at low light and reducing how often the warm-light LED needs to fire.
Massive DORI Reach at Tele
At maximum zoom the 3867T will detect motion at 280 m, recognise a person at 56 m, and identify a face at 28 m. One camera secures a typical Australian residential block end-to-end.
Built Tough for Australia
All-metal IP67 chassis with EIS stabilisation, ±30% wide-voltage tolerance, dual-power backup (PoE + 12 V DC simultaneously) and a −30 °C to +60 °C operating range — engineered for coastal salt, outback heat and unstable rural mains.
Smart Features for Real-World Australian Sites
Dahua Smart Dual Illuminators — Official English Overview
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
SMD 4.0 + IVS Perimeter Protection
On-camera Smart Motion Detection 4.0 classifies humans and vehicles while filtering out animals, foliage and weather. IVS tripwire and intrusion detection trigger smart alerts — no false alarms from leaves in the wind.
EIS Image Stabilisation
Electronic Image Stabilisation corrects subtle vibration on long-zoom shots from a pole, gable or fence — keeping the image steady at 13.5 mm telephoto where small movements are most visible.
AI Coding — Lower Bandwidth & Storage
Dahua's AI Coding (AI H.265 / AI H.264) analyses the scene and dedicates bitrate only to objects of interest, reducing storage and transmission cost over standard Smart H.265+.
Dual Sub-Streams at Full HD
Three streams simultaneously — Main 4K, plus a 1920 × 1080 sub-stream and a 1920 × 1080 third stream — gives flexibility for live view, mobile streaming and NVR recording at sharper resolution than typical D1 sub-streams.
Dual-Power Backup
Connect both 12 V DC and PoE simultaneously — if one source fails, the camera keeps running on the other. Useful for critical-uptime sites and rural installs with unreliable mains.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules and Smart Dual Light auto-switching all run on-camera and work with any Dahua AI NVR. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. For any new installation we strongly recommend pairing the 3867T-ZAS-IL with one of the recorders below.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 WizSense cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua fleets. Plug-and-play with the 3867T. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, retention and AcuPick search workload.
Technical Specifications
DH-IPC-HFW3867T-ZAS-IL-ANZ · Full Specifications
| SKU |
DH-IPC-HFW3867T-ZAS-IL-ANZ (available in White and Black) |
| Camera Type |
8MP 4K Smart Dual Light Motorised Vari-Focal Bullet · WizSense 3 Series · AcuPick |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max Resolution |
3840 × 2160 (8MP / 4K) @ 25/30 fps |
| Lens Type |
Motorised vari-focal · 2.7–13.5 mm · φ14 mount |
| Maximum Aperture |
F1.4 |
| Field of View |
H: 114°–32° · V: 58°–17° · D: 138°–36° |
| Close Focus Distance |
0.1 m |
| DORI — Wide (2.7 mm) |
Detect 85.3 m · Observe 34.0 m · Recognise 17.1 m · Identify 8.5 m |
| DORI — Tele (13.5 mm) |
Detect 280 m · Observe 112 m · Recognise 56 m · Identify 28 m |
| Min. Illumination |
Colour: 0.007 lux @ F1.4 · B/W: 0.0007 lux · 0 lux (Illuminator on) |
| S/N Ratio |
> 56 dB |
| Dynamic Range |
120 dB True WDR |
| Day & Night |
Auto (ICR) / Colour / B&W |
| Illuminators |
4 × Multi-core (IR + warm) LED · IR up to 60 m · Warm light up to 60 m · Smart Dual Light auto switching |
| Image Enhancement |
WDR · 3D NR · HLC · BLC · Defog · AFSA · AI SSA · Smart Illumination · Smart Dual Light · EIS · Image Rotation · Privacy masking (8 areas) · Digital watermarking |
| Active Deterrence |
Not included — silent Smart Dual Light surveillance camera |
| Intelligent Video |
WizSense AI · AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick (with AI NVR) · Smart Search · AI SSA |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / H.264+ · AI H.265 / AI H.264
|
| Streaming |
3 streams — Main 3840×2160 · Sub 1920×1080 · Third 1920×1080 (both sub-streams Full HD) |
| Video Bitrate |
H.264 / H.265: 3 kbps – 16,384 kbps |
| Audio |
Built-in microphone · G.711a / G.711Mu / G.726 / G.723 / PCM compression |
| Audio I/O |
1 audio in (RCA) · 1 audio out (RCA) |
| Alarm I/O |
1 alarm in (wet contact, 5 mA, 3–5 V DC) · 1 alarm out (wet contact, 300 mA, 12 V DC) |
| IP Camera Protocol |
ONVIF Profile S / G / T / M · CGI · P2P |
| Network Protocols |
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP |
| Cyber Security |
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Edge Storage |
MicroSD up to 512 GB · NAS · FTP / SFTP |
| Weatherproof Rating |
IP67 |
| Operating Temperature |
−30 °C to +60 °C · ≤ 95% RH (non-condensing) |
| Storage Temperature |
−40 °C to +60 °C |
| Power Source |
12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage · Dual Power Backup
|
| Power Consumption |
Basic 3.8 W (12 V DC) / 5.3 W (PoE) · Max 9.9 W (12 V DC) / 12.5 W (PoE) |
| Memory |
ROM 256 MB · RAM 1 GB |
| Pan / Tilt / Rotation |
Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360° |
| Mobile App |
DMSS · Smart PSS Lite · DSS (iOS & Android) |
| Approvals |
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU |
| Housing |
Metal · White or Black |
| Dimensions |
238.5 × 90.7 × 90.7 mm (L × W × H) |
| Weight |
835 g (net) · 1090 g (gross) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
3867T-ZAS-IL vs 3866TP-ZAS-AUS — Smart Dual Light or IR-Only?
Both cameras are 8MP 4K motorised vari-focal bullets sharing the same WizSense 3 architecture, SMD 4.0, IVS perimeter protection, EIS stabilisation and AI Coding. Neither has TiOC active deterrence. The deciding question is the illuminator and AI tier: do you want Smart Dual Light with full-colour evidence on detection and AcuPick AI search, or pure IR-only silent monitoring? The 3867T-ZAS-IL adds a 60 m warm-light LED for colour image, AcuPick attribute search, double the bitrate ceiling and double the MicroSD capacity. The 3866TP-ZAS-AUS is the simpler, cheaper IR-only option.
3867T-ZAS-IL (Smart Dual Light + AcuPick) vs 3866TP-ZAS-AUS (IR-Only)
Compatible Mounts & Accessories
Dahua PFA135 Junction Box
Bullet-specific junction box for clean cable concealment behind the camera mount. Indoor / sheltered installs. View Dahua accessories →
Dahua PFA130-E Waterproof Junction Box
Waterproof junction box for exposed outdoor bullet mounting on render, brick or weatherboard. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket — the typical install partner for long-range bullet cameras on fence posts, light poles and gate columns. View product →
Dahua PFA151 Corner Mount Bracket
Purpose-built corner bracket for mounting the bullet at building corners — typical install pattern on commercial perimeters and warehouse exteriors. View Dahua accessories →
Dahua PFM900-E Integrated Mount Tester
On-site display + power-test tool for commissioning bullet cameras from the ladder. Especially useful when setting the zoom and focus on the vari-focal lens. View Dahua accessories →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The 3867T accepts cards up to 512 GB. View WD Purple 256 GB →
Frequently Asked Questions
Does this camera have active deterrence (strobe / siren)?
No. The 3867T-ZAS-IL is a silent Smart Dual Light surveillance camera — no red/blue strobe, no built-in siren, no voice broadcast. If you need active deterrence, look at the Dahua TiOC line-up (HFW3849T1-ZAS-PV-ANZ-S2 is the closest equivalent in the same form factor).
How is Smart Dual Light different from full-colour cameras?
Full-colour cameras run the warm-light LED constantly at night — clearly visible from outside, with light spill that can disturb neighbours. Smart Dual Light defaults to invisible IR for normal monitoring; the warm-light LED only fires when SMD 4.0 detects a real human or vehicle, then auto-switches back to IR. Less light pollution, less wear on the LED, full-colour evidence only when it matters.
Does it support AcuPick AI search?
Yes — AcuPick is supported on this camera when paired with a compatible Dahua 5-Series AcuPick NVR. AcuPick indexes attribute metadata (clothing colour, vehicle type, direction) so you can search hours of footage in seconds. Shop AcuPick NVRs here →
How does this compare to the IR-only 3866TP bullet?
Same 8MP / 4K sensor, same 2.7–13.5 mm motorised lens, same WizSense AI core. The 3867T-ZAS-IL adds a 60 m warm-light LED for colour image, AcuPick AI search, 16 Mbps bitrate (vs 8 Mbps), 512 GB MicroSD support (vs 256 GB), dual-power backup, and Full HD on both sub-streams. The 3866TP is the cheaper IR-only option for sites where colour at night isn't required.
Can the camera pan and tilt remotely?
No. The 3867T-ZAS-IL is a motorised vari-focal bullet, not a PTZ. The lens supports remote zoom and auto-focus, but the camera body itself does not pan or tilt remotely — the housing is aimed manually at install time. For a fully remote pan/tilt/zoom camera, look at a Dahua PTZ.
What does the camera see at night?
By default it uses 60 m IR illumination for invisible monitoring. When SMD 4.0 detects a person or vehicle, the warm-light LED switches on (also 60 m) and the camera captures full-colour 4K — clothing colour, vehicle paint, facial detail. Once the target leaves, it switches back to IR.
Does it have a built-in microphone?
Yes — the camera has a built-in microphone for capturing scene audio. There is also 1 audio in / 1 audio out (RCA) for connecting an external mic or speaker, plus 1 alarm in / 1 alarm out for PIRs or door contacts. (No built-in speaker.)
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Combined with dual-power backup (PoE + 12 V DC simultaneously), the camera has multiple layers of redundancy.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −30 °C to +60 °C — covering every Australian climate from a Hobart winter to a Karratha summer. The all-metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Yes — recording, streaming, motion and the WizSense AI metadata work over ONVIF Profile S/G/T/M on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, AcuPick attribute search requires a Dahua 5-Series AcuPick NVR.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
Order the Dahua DH-IPC-HFW3867T-ZAS-IL-ANZ from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua WizSense network cameras. Order the 8MP 4K Smart Dual Light motorised vari-focal AcuPick bullet today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
