Hikvision 6MP · AcuSense · Bullet · 60m Smart IR
Hikvision 6MP AcuSense Bullet
Hikvision DS-2CD2T66G2-2I — 6MP AcuSense Outdoor Bullet Camera with 2.8mm Lens & 60m Smart IR
The Hikvision DS-2CD2T66G2-2I is a 6 MP AcuSense fixed bullet IP camera built for outdoor surveillance with smart detection and long-range night vision. A 1/2.4" progressive-scan CMOS sensor with a 2.8 mm wide-angle lens (106° HFOV) delivers detailed 3072 × 2048 imaging, while Smart IR up to 60 m gives clear long-distance night coverage. AcuSense deep-learning provides accurate human and vehicle classification with line-crossing and intrusion detection, cutting false alarms. 120 dB true WDR handles high-contrast backlight, efficient H.265+ compression saves storage and bandwidth, and the rugged IP67 metal housing withstands extreme weather — ideal for perimeters, driveways, parking lots, warehouses and industrial sites. Australian stock, 3-year Australian warranty.
Resolution
6 MP · 3072 × 2048
Lens
2.8 mm Fixed · 106° FOV
IR Range
Smart IR up to 60 m
AI Engine
AcuSense · Human + Vehicle
WDR / Codec
120 dB WDR · H.265+
Protection
IP67 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Long-Range Outdoor Bullet with Smart AI
60 m Smart IR Night Vision
Smart IR up to 60 m delivers clear long-distance night coverage, with intensity that adjusts automatically to prevent over-exposing close subjects — ideal for driveways, perimeters and large parking areas.
AcuSense Human & Vehicle AI
AcuSense deep-learning classifies motion as a human or vehicle, dramatically reducing false alarms, and powers line-crossing and intrusion detection for active perimeter protection.
6 MP Detail + 120 dB WDR
Crisp 6 MP imaging across a wide 106° view, with 120 dB true WDR keeping high-contrast scenes — gateways, loading bays and backlit entries — clear and usable.
Rugged IP67 Build
The IP67-rated metal housing withstands dust, rain and extreme temperatures from -30 °C to +60 °C, making it reliable for demanding outdoor industrial and commercial sites.
Technical Specifications
DS-2CD2T66G2-2I · Specifications
SKU
DS-2CD2T66G2-2I (2.8 mm)
Camera Type
Hikvision AcuSense Series · 6 MP Fixed Bullet
Image Sensor
1/2.4" Progressive Scan CMOS
Max Resolution
6 MP · 3072 × 2048 @ 20 fps
Lens
2.8 mm fixed · 106° horizontal FOV
IR Distance
Smart IR up to 60 m
Wide Dynamic Range
120 dB true WDR
AI / Smart Functions
AcuSense human + vehicle classification · line crossing · intrusion detection
Video Compression
H.265+ · H.265 · H.264+ · H.264
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Power Source
12 VDC ±25% · PoE (802.3af)
Operating Temperature
-30 °C to +60 °C
Weatherproof Rating
IP67
Remote Access
Hik-Connect · iVMS-4200 · web client
Warranty
3-Year Australian Warranty
Frequently Asked Questions
How far does the night vision reach?Smart IR reaches up to 60 m, making this bullet well suited to long driveways, perimeters and parking lots that need clear long-distance night coverage.
What does AcuSense do?AcuSense classifies motion as a human or vehicle using on-camera deep learning, cutting false alarms, and powers line-crossing and intrusion detection.
Is it suitable for harsh outdoor sites?Yes. The IP67-rated metal housing is dustproof and waterproof, with a -30 °C to +60 °C operating range — reliable for industrial yards, warehouses and exposed perimeters.
How is it powered?It supports PoE (802.3af) over a single Cat 6 cable from a Hikvision PoE NVR or switch, or 12 VDC for standalone installs.
Downloads & Resources
DS-2CD2T66G2-2I Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision DS-2CD2T66G2-2I from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision AcuSense cameras. The DS-2CD2T66G2-2I is an excellent long-range 6 MP bullet for perimeters, driveways, parking lots, warehouses and industrial sites. Order with fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision Pro Series EasyIP · 4mm Lens
Hikvision 8MP Panoramic Bullet
Hikvision 8MP Panoramic ColorVu Smart Bullet Camera 4mm – DS-2CD2T87G2P-LSU/SL
Cover wide areas with one premium panoramic bullet camera. The Hikvision DS-2CD2T87G2P-LSU/SL combines 8MP panoramic imaging, 180° coverage, 24/7 full-colour ColorVu night vision, human and vehicle detection, and active strobe light and audio warning in one smart bullet design. This listing is for the 4mm dual-lens version.
Coverage
180° View
Resolution
8MP
Night Vision
ColorVu
Smart AI
Human + Vehicle
Deterrence
Strobe + Audio
Protection
IP67
Why this camera stands out
The DS-2CD2T87G2P-LSU/SL is designed for customers who want broader coverage in a more traditional bullet-style housing. It creates one stitched panoramic image across the scene, helping cover driveways, perimeter fences, side access paths, long walls, loading areas, front boundaries, and commercial exteriors with fewer cameras.
Hikvision lists this model with 8MP panoramic imaging, 24/7 colourful imaging, 130 dB WDR, human and vehicle classification based on deep learning, active strobe light and audio alarm, and IP67 weather resistance. That makes it a strong choice when you want wide coverage, colour at night, and visible deterrence in one unit.
Key Features
8MP panoramic imageHigh-detail wide-area monitoring with one stitched 180° scene.
Bullet housing designIdeal for walls, perimeters, driveways, and external directional mounting.
ColorVu full-colour night visionCapture vivid colour footage 24/7 instead of standard black-and-white night video.
Human & vehicle detectionSmarter event filtering helps reduce false alarms and improve usable alerts.
Active deterrenceBuilt-in strobe and audio warning help discourage unwanted activity.
IP67 weatherproof buildSuitable for demanding outdoor installations in Australian conditions.
Best For
Ideal for open driveways, long side paths, front boundaries, car parks, loading docks, warehouse exteriors, building perimeters, and commercial walls where a bullet form factor is preferred over a turret.
Official Hikvision Videos
Hikvision 8MP 180° Panoramic Camera with ColorVu
The ColorVu-enabled Panoramic Camera in Action
ColorVu + Panoramic Performance Demo
Hikvision | 1 Minute Introduction to ColorVu
Technical Specifications
Model
DS-2CD2T87G2P-LSU/SL
Camera Type
8 MP Panoramic ColorVu Fixed Bullet Network Camera
Image Sensor
2 × 1/1.8" Progressive Scan CMOS
Maximum Resolution
5120 × 1440
Lens Type
Fixed focal dual lens
Night Imaging
24/7 full-colour ColorVu
WDR
130 dB
Compression
H.265+, H.265, H.264+, H.264
Smart Detection
Human and vehicle classification based on deep learning
Deterrence
Active strobe light and audio alarm
Weather Rating
IP67
Power
12V DC / PoE
Frequently Asked Questions
Is this a 180° panoramic bullet camera?Yes. This model is designed to present one wide stitched panoramic image across the scene.
Does it record in colour at night?Yes. Hikvision ColorVu is designed for 24/7 colourful imaging.
Can it filter people and vehicles?Yes. It uses deep-learning-based human and vehicle classification to improve alert relevance.
Does it have active deterrence?Yes. It includes a built-in strobe light and audio alarm.
Is bullet style better for some installs?Bullet cameras are often preferred for walls, boundaries, driveways, and perimeter-facing positions where a more directional housing is useful.
Is it suitable for outdoor use?Yes. It is rated IP67 for water and dust resistance.
More information
Download official Hikvision documents for setup, specifications, and installation.
Datasheet PDF Quick Start Guide PDF User Manual PDF
3 Year Australian Warranty
Fast Australia-wide Delivery
Genuine Hikvision Firmware
Dahua · DH-SD1A404XB-GNR · 4MP WizSense Mini PTZ · 4x Optical Zoom · Full-Colour · PoE
4MP Mini PTZ
Dahua DH-SD1A404XB-GNR 4MP 4x Starlight WizSense Mini PTZ Camera
The Dahua DH-SD1A404XB-GNR is a compact 4MP WizSense mini PTZ with a 4x optical zoom, 355° pan and tilt for active coverage from a small, discreet housing. Starlight imaging plus a warm white light deliver full-colour night vision, while WizSense AI adds auto-tracking and human/vehicle detection. With PoE power and ONVIF support, it pairs with any Dahua NVR.
Resolution
4MP
Zoom
4x optical
Night Vision
Starlight full-colour
AI Engine
WizSense + Auto-track
Pan / Tilt
355° pan · tilt
Weatherproof
IP66
Compact Active PTZ
A small, discreet dome delivers 4x optical zoom with 355° pan and tilt, letting one camera actively scan, zoom and follow activity across driveways, shopfronts and small yards.
Full-Colour Night Vision
Starlight sensitivity plus a warm white light produce full-colour images after dark, capturing clothing and vehicle colour that mono IR footage loses.
WizSense AI Auto-Tracking
WizSense detects humans and vehicles, ignores nuisance motion and can auto-track a target — panning, tilting and zooming to keep it in frame without operator input.
Easy PoE Install
IP66 weatherproofing and single-cable PoE make installation simple. ONVIF support records to any compatible Dahua NVR with full WizSense smart events.
Specifications — DH-SD1A404XB-GNR
Resolution
4MP
Sensor
1/2.8" Starlight progressive-scan CMOS
Optical Zoom
4x motorised
Pan / Tilt
355° pan · tilt with auto-flip
Night Vision
Starlight full-colour with warm white light
AI
WizSense · auto-tracking, human/vehicle detection
Protection
IP66
Power
PoE 802.3af / 12V DC
Interoperability
ONVIF · pairs with a Dahua NVR
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DH-SD1A404XB-GNR DatasheetDahua PTZ Camera Quick Start GuideDahua Network Speed Dome User Manual
What is a mini PTZ good for?Its compact size and 4x zoom with 355° pan suit smaller sites — driveways, shopfronts, courtyards and entries — where you want pan/tilt/zoom coverage without a large speed dome.
Does it see in colour at night?Yes. Starlight sensitivity plus a warm white light deliver full-colour images in low light, instead of the black-and-white you get from IR-only cameras.
Can it follow movement automatically?Yes. WizSense AI auto-tracking detects a person or vehicle and pans, tilts and zooms to keep the target in frame.
How is it powered?A single Cat6 cable provides PoE power and data, or you can use a 12V DC supply.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision 12MP · DeepinView · 360° Panoramic Fisheye
Hikvision 12MP Fisheye
Hikvision DS-2CD63C5G1-IVS — 12MP DeepinView Panoramic Fisheye Camera with Two-Way Audio, Heatmap & 15m IR
The Hikvision DS-2CD63C5G1-IVS is a 12 MP DeepinView panoramic fisheye network camera that captures a complete 360° overhead view from a single device — ideal for retail floors, open-plan offices, warehouses, reception areas and any space where one camera should see everything. A 1.29 mm panoramic lens with multiple dewarping modes straightens the fisheye image into normal, panoramic or 4-image PTZ views, all from the high-resolution 12 MP sensor so every region stays clear and detailed. Deep-learning heatmap analytics count people and present an intuitive activity map for business intelligence, while a built-in mic and speaker provide two-way audio. A built-in 15 m IR illuminator gives visibility in low or zero light, and the rugged IP67 / IK10 housing handles demanding environments. Australian stock, 3-year Australian warranty.
Resolution
12 MP · 360° Panoramic
Lens
1.29 mm Panoramic Fisheye
Dewarping
Multi-Mode · 4-Image PTZ
Analytics
Heatmap · People Counting
Audio
Two-Way · Mic + Speaker
Protection
IP67 · IK10 · 15 m IR
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
One Camera, Total Coverage
360° Panoramic, 12 MP Detail
The 1.29 mm panoramic lens on a 12 MP sensor captures a complete overhead view of a room or floor from a single device — replacing several fixed cameras and keeping every region clear and detailed, even when dewarped.
Multiple Dewarping Modes
The fisheye image can be dewarped into normal, panoramic or 4-image PTZ views for intuitive monitoring, letting operators digitally pan and zoom into any area of the captured scene.
Heatmap & People Counting
Deep-learning heatmap analytics count people and present an intuitive activity map — valuable business intelligence for retail layout, staffing and dwell-time analysis.
Two-Way Audio + 15 m IR
A built-in mic and speaker enable real-time two-way audio communication, while the built-in 15 m IR illuminator provides clear visibility in low or zero-light conditions. IP67 / IK10 rated for demanding environments.
Technical Specifications
DS-2CD63C5G1-IVS · Specifications
SKU
DS-2CD63C5G1-IVS
Camera Type
Hikvision DeepinView Series · 12 MP Panoramic Fisheye Network Camera
Max Resolution
12 MP · 360° panoramic
Lens
1.29 mm panoramic fisheye (Panomorph RPL: 89VVT)
Dewarping
Multiple modes · normal / panoramic / 4-image PTZ
Smart Analytics
Deep-learning heatmap · people counting
Audio
Built-in mic + speaker · two-way audio
IR Distance
Up to 15 m
Weatherproof / Vandal Rating
IP67 · IK10
Warranty
3-Year Australian Warranty
Frequently Asked Questions
What is a fisheye camera best for?A fisheye camera captures a complete 360° overhead view from a single device — ideal for retail floors, offices, warehouses and reception areas where one camera should cover an entire room, replacing several fixed cameras.
What does dewarping do?The curved fisheye image can be dewarped into flat, easy-to-view formats — normal, panoramic or 4-image PTZ — so operators can view and digitally pan/zoom into any area naturally.
What is the heatmap feature?Deep-learning heatmap analytics count people and map activity across the scene over time — useful business intelligence for retail layout, staffing decisions and dwell-time analysis.
Does it support audio?Yes — it has a built-in mic and speaker for real-time two-way audio communication and monitoring.
Downloads & Resources
DS-2CD63C5G1-IVS Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision DS-2CD63C5G1-IVS from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision DeepinView cameras. The DS-2CD63C5G1-IVS is an ideal 12 MP panoramic fisheye for retail, offices, warehouses and reception areas where one camera should see the whole space — with heatmap business analytics built in. Order with fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision Pro Series · EasyIP 4.0 AcuSense
Ultra HD Perimeter Protection Powered by DarkFighter & AcuSense AI

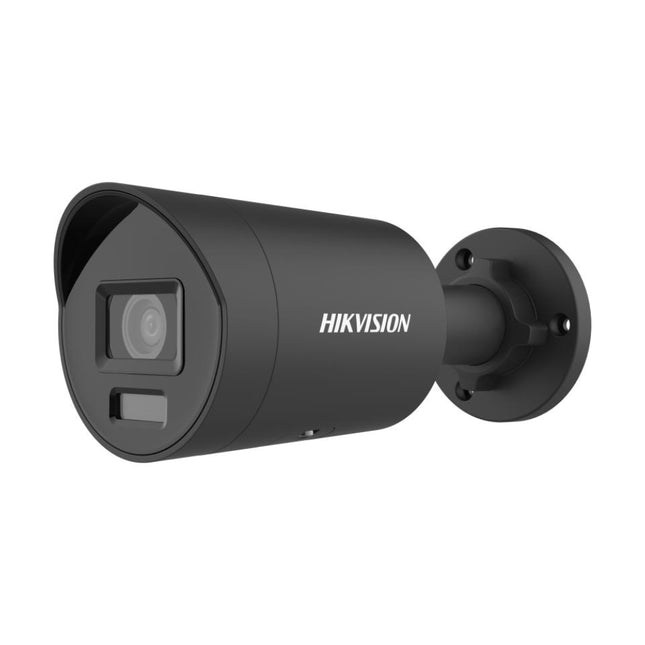

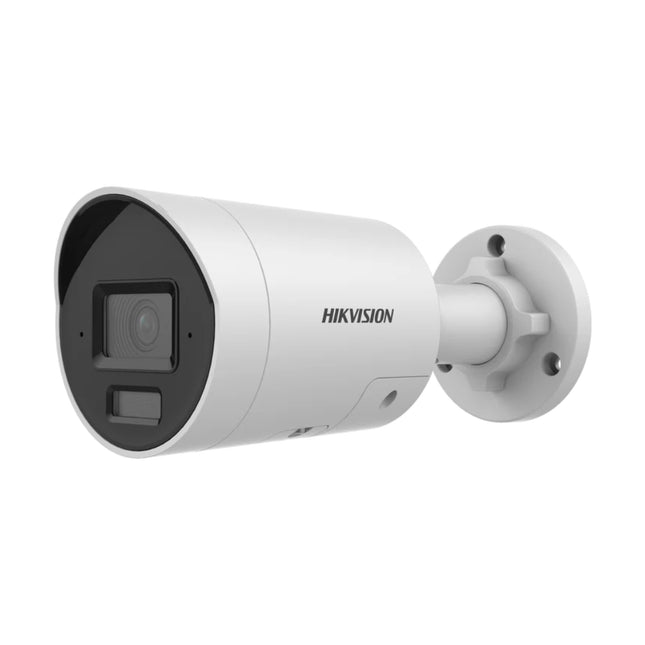

The Hikvision DS-2CD2066G2H-IU is a compact, ultra-high-definition 6 MP fixed mini bullet network camera engineered for precision surveillance across commercial facilities, retail perimeters, and high-security residential grounds. Driven by Hikvision's acclaimed AcuSense deep learning analytics, it filters out routine environmental distractions like swaying trees or weather changes to trigger accurate alarms only on genuine human and vehicle targets. Paired with Powered-by-DarkFighter low-light sensor technology and a built-in microphone, it captures crisp visual clarity and real-time environment audio around the clock.
Resolution
6MP (3200 × 1800)
Optics / Analytics
DarkFighter & AcuSense AI
Night Vision / Audio
40m IR & Built-In Mic
Protection Rating
IP67 Weatherproof Metal
Advanced Low-Light Sensitivity & Efficient Bandwidth Utilization
The Hikvision DS-2CD2066G2H-IU pairs an ultra-wide F1.0 aperture lens with a 1/2.4" Progressive Scan CMOS sensor to deliver exceptional full-color imaging in near-total darkness down to 0.001 Lux. Integrated 120 dB True Wide Dynamic Range (WDR) compensates effortlessly for intense backlit scenes like glass storefronts or loading bay entrances. To minimize ongoing operational overhead, native H.265+ smart video encoding significantly reduces storage space and bandwidth consumption while preserving fine details for post-event forensic reviews.
AcuSense Deep Learning Analytics
Using advanced target classification models, Hikvision AcuSense isolates human and vehicle movements across intrusion, line-crossing, and region-entrance tripwires, dramatically reducing false notifications.
Powered-by-DarkFighter Low-Light Imaging
Retains accurate color information longer into the evening before seamlessly activating Smart IR illumination up to 40 meters, ensuring consistent facial and license plate recognizability.
Technical Specification Matrix
Camera Model
DS-2CD2066G2H-IU
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800 (6 Megapixel)
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Lens Options
2.8 mm (FOV 114.8°) / 4 mm (FOV 94°)
Night Vision Range
Smart IR up to 40 m
Wide Dynamic Range
120 dB True WDR
Audio Security
Built-in microphone with environmental noise filtering (-U)
Edge Storage
Built-in microSD/SDHC/SDXC slot, up to 512 GB
Ingress Rating & Power
IP67 Weatherproof / PoE (802.3af) or 12 VDC
What is the difference between the 2.8mm and 4mm lens options?
The 2.8mm lens offers a wider 114.8° horizontal field of view ideal for wide entrances and yards, whereas the 4mm lens provides a 94° angle focused on longer distances like driveways and walkways.
Does the DS-2CD2066G2H-IU include audio recording?
Yes, the "-U" designation indicates a built-in microphone that captures real-time ambient audio alongside high-resolution video without extra wiring.
How does AcuSense help prevent false alerts?
AcuSense uses onboard AI to analyze motion frames, ignoring non-threatening objects like wind-blown foliage, animals, or rain, alerting you only when humans or vehicles are detected.
Can this camera be deployed in exposed outdoor environments?
Yes, featuring an all-metal IP67-rated weatherproof housing, it is designed to operate reliably against heavy rain, dust, and temperature extremes ranging from -30 °C to +60 °C.
Technical Datasheet User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery
Uniarch 6MP Starlight Fixed Turret Network Camera Black, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN- BLACK, Wall mount TR-WM03-D-IN- BLACK
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E6-AF28K-B 6MP HD Fixed Turret Network Camera Datasheet V1.1
Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01
Uniarch Network Camera User Manual-V1.00
TP-Link VIGI · InSight S485 · 8MP 4K Full-Colour Turret · Active Defense
8MP 4K Full-Colour Turret
VIGI InSight S485 8MP 4K Full-Colour Turret Network Camera — Australian Stock & 3-Year Warranty
The TP-Link VIGI InSight S485 is an 8MP (4K) full-colour turret network camera built for sharp, round-the-clock business protection. A fast F1.6 lens with quad white LEDs delivers 24/7 full colour down to 0 lux, while on-board Human & Vehicle Classification and People & Vehicle Analytics make alerts accurate and post-event search fast. Built-in Active Defense (flashing white light + audible warning) and two-way audio let you warn off intruders in real time, and the IP67 metal housing handles tough Australian conditions. Available in 2.8 mm and 4 mm lens options, powered by PoE or 12V DC, and backed by a local 3-year warranty.
Resolution
8MP · 4K Ultra HD
Night Vision
24/7 Full Colour
Deterrence
Active Defense
Smart AI
Human & Vehicle
Audio
Two-Way Talk
Weatherproof
IP67 Rated
4K Detail, Full Colour 24/7
An 8MP 1/2.7" sensor with an F1.6 lens and four white LEDs captures vivid 4K colour even in complete darkness (0 lux), so you record faces, clothing colour and number plates clearly day and night — not grainy black-and-white IR.
Accurate AI Alerts
Human & Vehicle Classification filters out animals, rain and moving foliage to cut false alarms, while People & Vehicle Analytics let you search footage by attributes — finding the person or car of interest in seconds.
Active Defense + Two-Way Audio
When the AI detects a person or vehicle, the camera flashes its white light and sounds an audible warning, while a built-in mic and speaker let you talk live through the VIGI app to challenge trespassers or greet visitors.
Smart Video Enhancement
120 dB True WDR balances harsh backlight, while Smart IR, 3D DNR and auto white balance keep images clean and natural. Efficient H.265+ cuts storage and bandwidth without sacrificing image quality.
VIGI full-colour night vision technology — official TP-Link overview
Specifications — TP-Link VIGI InSight S485
Camera Type
8MP 4K Full-Colour Fixed Turret (Active Defense)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160 @ 25 fps
Lens Options
Fixed 2.8 mm or 4 mm @ F1.6 (choose at checkout)
Field of View
2.8 mm: 111.4° H · 4 mm: 91.5° H
DORI (Detect)
2.8 mm: 85 m · 4 mm: 107 m
Min. Illumination
0.005 Lux colour · 0 Lux with IR / white light
Illuminators
4 × white LED (30 m) + 4 × IR LED 850 nm (30 m)
Night Vision
24/7 full colour · Smart IR · auto/scheduled control
Wide Dynamic Range
120 dB True WDR · 3D DNR · BLC / HLC
Smart Analytics
Human & Vehicle Classification · People & Vehicle Analytics
Smart Events
Intrusion, line-crossing, region entering/exiting, loitering, object left/removed, abnormal sound, scene change
Active Deterrence
White-light flashing + audible warning (AI-triggered)
Audio
Two-way audio · built-in mic (5 m) & speaker
Compression
H.265+ / H.265 / H.264+ / H.264
Network / API
ONVIF Profile S/T/G · RTSP · VIGI app, VMS & Cloud VMS
On-board Storage
microSD up to 512 GB (card not included)
Interface
1 × RJ45 10/100M · DC power port
Power
PoE 802.3af/at (max 12.5 W) or 12V DC (max 11.5 W)
Weather Rating
IP67 · metal housing · −30°C to 60°C
Dimensions / Weight
111 × 111 × 83.7 mm · 0.48 kg
In the Box
Camera · quick start guide · waterproof cable attachment · mounting accessories
Warranty (Australia)
3 years · CCTV Guru Australia
Best For
Shopfronts & retail
4K colour ID at entries and tills, with active light-and-sound deterrence after hours.
Driveways & entries
Choose the 2.8 mm for a wide entry view or the 4 mm for longer driveways and number plates.
Warehouses & yards
High-resolution colour coverage of loading docks, gates and open yards with two-way talk.
Offices & reception
Greet visitors over two-way audio and keep clear 4K records of corridors and exits.
Downloads & Resources
InSight-S485 Datasheet
TP-Link VIGI Quick Start Guide
TP-Link VIGI User Manual
TP-Link VIGI Installation Guide
What's the difference between the 2.8 mm and 4 mm lens?The 2.8 mm gives a wider 111° view for entries and rooms; the 4 mm gives a narrower 91° view that reaches further (107 m detect) — better for driveways, car parks and number plates.
Does it record in colour at night?Yes. The F1.6 lens and four white LEDs deliver true 24/7 full-colour 4K video down to 0 lux, rather than grainy black-and-white IR.
How does Active Defense work?When the AI detects a person or vehicle, the camera flashes its white light and sounds an audible warning, and you can speak live through two-way audio to deter intruders.
Is a microSD card or NVR included?No — the camera records to a microSD card (up to 512 GB, sold separately) or to any VIGI/ONVIF NVR. It is sold as a standalone camera.
How is it powered?By PoE (802.3af/at, max 12.5 W) over a single network cable, or by a 12V DC supply — whichever suits your install.
Will it work with my existing recorder?Yes. It's ONVIF Profile S/T/G compliant, so it integrates with VIGI NVRs and most third-party ONVIF recorders and VMS platforms.
Is it weatherproof?Yes — IP67-rated with a metal housing and a −30°C to 60°C operating range, suited to exposed Australian outdoor installations.
Is it covered by warranty in Australia?Yes — 3-year Australian warranty with local CCTV Guru tech support.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
UniFi Protect — NDAA CompliantUbiquiti 4K Turret
UniFi Protect G6 Turret — 4K 8MP PoE AI Camera (UVC-G6-Turret)
The UniFi Protect G6 Turret is the flagship turret camera in the UniFi Protect ecosystem — delivering true 4K 8MP resolution from a large 1/1.8″ sensor, an on-device Multi-TOPS AI engine, and seamless UniFi Protect integration over a single PoE cable. Whether you're securing a home, office, retail space, warehouse, or commercial site anywhere in Australia, the G6 Turret gives you enterprise-grade surveillance with no monthly fees and no cloud lock-in. Available in White (UVC-G6-Turret-W) and Black (UVC-G6-Turret-B), with genuine Ubiquiti stock and fast Australia-wide shipping.
Resolution
4K / 8MP
Night Vision
IR 30 m
Protection
IP66 / IK04
Power
Single-Cable PoE
Why Choose the UniFi Protect G6 Turret?
True 4K 8MP ClarityA large 1/1.8″ 8MP CMOS sensor captures 4K UHD footage (3864 × 2160) at 30 FPS with HDR — enough detail to identify faces, read number plates, and review incidents with confidence.
Multi-TOPS AI EngineOn-camera AI detects people, vehicles, animals, faces, and number plates in real time — dramatically reducing false alerts and letting you act on what actually matters.
Wide 109.9° Field of ViewCover more ground with fewer cameras. The 109.9° horizontal FOV is ideal for open areas, car parks, retail floors, and building entries where wide coverage is critical.
30 m IR Night VisionBuilt-in IR LEDs illuminate up to 30 metres in complete darkness, ensuring clear, detailed footage 24/7 without any additional lighting infrastructure.
IP66 Weatherproof + IK04 Tamper-ResistantAn aluminium-alloy body sealed to IP66 shrugs off rain, dust, and moisture, while IK04 impact resistance and a wide −30°C to 50°C operating range keep it reliable through tough Australian conditions.
Single-Cable PoE InstallationOne Ethernet cable delivers both power and data (max 12.5 W) — no separate power run, no electrician required. Works with any 802.3af PoE switch or UniFi PoE switch, plus easy 3-axis manual aiming.
UniFi Protect — No SubscriptionManage live views, recordings, AI alerts, and camera settings through the UniFi Protect app or web interface — no monthly fees, no cloud dependency, full local control.
NDAA CompliantFully NDAA Section 889 compliant for government, defence, and security-sensitive installations where supply-chain integrity is a requirement.
See It in Action
Official Ubiquiti walkthrough — UniFi Protect G6 camera range
Technical Specifications
Model
UVC-G6-Turret (White: UVC-G6-Turret-W / Black: UVC-G6-Turret-B)
Resolution
4K UHD — 8 MP, 3864 × 2160 (16:9) @ 30 FPS
Image Sensor
1/1.8″ 8 MP CMOS, HDR
Lens
Fixed focal length
Field of View
H: 109.9° • V: 56.7° • D: 134.1°
Night Vision
Built-in IR LED illumination + IR cut filter, up to 30 m
AI / Smart Detection
People, vehicles, animals, face recognition, number-plate recognition (Multi-TOPS AI Engine)
Audio
Built-in microphone
Weatherproof Rating
IP66
Impact / Tamper Resistance
IK04
Network Interface
10/100 MbE RJ45
Power Method
PoE (802.3af), 37–57 V DC • max 12.5 W
Processor
Quad-core Arm® Cortex®-A53
Mounting
Ceiling & wall (included); arm, pendant, junction box (optional) • 3-axis adjustment
Enclosure
Aluminium alloy & polycarbonate
Dimensions / Weight
⌀100 × 95 mm • 550 g
Operating Temperature
−30°C to 50°C, 0–90% non-condensing
Certifications
CE, FCC, IC
Compliance
NDAA compliant
Colours Available
White (UVC-G6-Turret-W) / Black (UVC-G6-Turret-B)
Downloads & Resources
UVC-G6-Turret Datasheet
Ubiquiti Turret Quick Start Guide
What's in the Box
UniFi Protect G6 Turret CameraYour choice of White (UVC-G6-Turret-W) or Black (UVC-G6-Turret-B) finish.
Mounting KitCeiling & wall mounting bracket, screws, and anchors included.
DocumentationQuick-start guide and installation instructions.
Not IncludedA PoE switch/injector and network cable are required and sold separately.
Best For
Homes & Driveways
Wide 4K coverage of entries, driveways, and backyards with accurate person and vehicle alerts.
Retail & Hospitality
Identify faces at the till and entrance while AI filtering cuts nuisance notifications.
Offices & Warehouses
Local UniFi Protect recording with no subscription — ideal for multi-camera commercial sites.
Car Parks & Gates
Number-plate recognition and 30 m IR keep entry points covered around the clock.
Requires a UniFi Protect host (UNVR, UNVR Pro, Cloud Key+, Dream Machine Pro/SE/Wall) running UniFi Protect.
Powered by any 802.3af PoE switch — pair with a UniFi PoE switch for single-pane management.
Mounts to ceiling or wall out of the box; arm, pendant, and junction-box adapters available separately.
3-axis manual adjustment lets you fine-tune the field of view after mounting.
Frequently Asked Questions
Does the G6 Turret require a UniFi Protect subscription?No. UniFi Protect runs locally on a UniFi NVR or Dream Machine. There are no monthly fees or cloud subscriptions required.
What do I need to run the G6 Turret?A UniFi Protect host — such as a UNVR, Cloud Key Gen2 Plus, or a UniFi Dream Machine Pro/SE/Wall — plus an 802.3af PoE switch to power the camera.
Is it suitable for outdoor use in Australia?Yes. IP66 weatherproofing, IK04 impact resistance, and a −30°C to 50°C range suit Australian outdoor environments including coastal, high-humidity, and high-UV areas.
What's the difference between the White and Black versions?Identical specs and performance — only the colour differs. White (UVC-G6-Turret-W) suits light soffits and walls; Black (UVC-G6-Turret-B) suits dark surfaces and discreet installs.
Can it read number plates and recognise faces?Yes. The Multi-TOPS AI engine includes number-plate recognition and face recognition alongside people, vehicle, and animal detection.
Is the G6 Turret NDAA compliant?Yes. Ubiquiti is a US-based manufacturer and the G6 Turret is NDAA Section 889 compliant — suitable for government and security-sensitive sites.
Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support
Dahua TiOC 3.0 · 4K Bullet · Motorised Vari-Focal · AcuPick
4K TiOC Bullet
Dahua DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 — 8MP 4K TiOC 3.0 Motorised Vari-Focal AcuPick Bullet
The Dahua DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 is Dahua's flagship long-range 4K TiOC bullet — the same red/blue strobe, siren and voice deterrence chain and same AcuPick AI as the fixed-lens 3849T1, but with a remotely-adjustable 2.7–13.5 mm zoom lens and extended 50 m IR + 40 m warm-light illumination. The integrated bullet sun shield protects the lens from glare and rain on exposed installs; the long zoom and longer illuminators turn a single camera into both a wide-angle perimeter shot and a high-zoom evidence camera. At telephoto it will detect motion at 257 m, recognise a person at 51.5 m, and identify a face at 25.7 m — three times the identification range of the fixed-lens 3849T1.
Combined with AcuPick attribute target search, SMD 4.0, 120 dB WDR, EIS image stabilisation, AI Coding (≥25% extra compression), two-way audio and full TiOC 3.0 active deterrence, this is the camera Australian installers reach for on long rural driveways, large commercial yards, mining sites, carparks and any pole-mount scenario where remote zoom flexibility and identification at distance matter. Available in White (DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2) and Black (DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2-BLK). Australian stock with 3-year warranty.
Resolution
8MP · 4K · 3840 × 2160
Motorised Zoom
2.7–13.5 mm · F1.2
Night Vision
50 m IR · 40 m Warm
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −30 °C to +60 °C
Power
PoE 802.3af · Max 9.8 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the Motorised Vari-Focal 8MP Bullet
The vari-focal upgrade matters when one camera needs to do two jobs — cover a wide approach and pull tight on a number plate or face at the end of a long driveway. Where the fixed-lens 3849T1 bullet commits to a single 106° field of view forever, the ZAS lets you dial the zoom remotely after install. Combined with the bullet's integrated sun shield, longer chassis and pole-mount-friendly silhouette, this is the camera Australian installers reach for on rural driveways, large commercial yards, mining sites, carparks and any site where field-of-view requirements change over time.
2.7–13.5 mm Motorised Vari-Focal
Five times optical zoom with remote focus and zoom control via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone whenever the scene changes — no ladder, no scaffolding, no re-aiming.
Massive DORI Reach at Tele
At maximum zoom the 3849T1 ZAS will detect motion at 257 m, recognise a person at 51.5 m, and identify a face at 25.7 m — nearly three times the identification range of the fixed-lens 3849T1 bullet. One camera secures a footy-field-sized property.
50 m IR + 40 m Warm Light
Extended Smart Dual-Light reach matches the longer optical range — IR illumination out to 50 m, warm-light LED to 40 m. Enough to fully illuminate a long driveway or a typical carpark in pitch darkness.
Integrated Sun Shield & Bullet Body
The bullet sun visor cuts harsh Australian glare from the lens, reduces ghosting on backlit scenes, and keeps rain off the front element — critical for the unsheltered pole and gable mounts where long-range bullets typically end up.
TiOC 3.0 — Three-in-One Active Deterrence
Same active deterrence chain as the fixed-lens 3849T1: red/blue strobe, on-board siren and custom voice broadcast fire automatically the moment SMD 4.0 confirms a human or vehicle.
EIS + AI Coding
Electronic Image Stabilisation (EIS) corrects subtle vibration on long-zoom shots from a pole or gable. AI Coding delivers ≥25% extra compression efficiency over Smart H.265+ — longer retention on the same NVR drive.
Smart Features for Real-World Australian Sites
Dahua TiOC 3 & PRO Webinar 2024 — Official English Walkthrough
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
Two-Way Audio & Custom Voice
Dual built-in MICs and a 1-channel speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice.
Edge Recording — MicroSD
On-camera MicroSD records days of 4K footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut.
One-Press Arming / Disarming
A single tap in the DMSS app arms or disarms the full TiOC chain. Disarm for parties and deliveries; rearm with one button for overnight and holidays.
Plug & Play + Third-Party VMS
Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, two-way audio and the full TiOC 3.0 deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. With a long-zoom 4K bullet, the AcuPick payoff is even bigger: the long-tele footage carries enough pixel density for clean facial-attribute search at distance.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3849T1 ZAS bullet. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload.
Technical Specifications
DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 · Full Specifications
SKU
DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 (White) · DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2-BLK (Black)
Camera Type
8MP 4K TiOC 3.0 WizSense IP Network Bullet · Motorised Vari-Focal · Active Deterrence
Image Sensor
1/2.8" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8MP / 4K) @ 25/30 fps
Lens Type
Motorised vari-focal · 2.7–13.5 mm (5× optical zoom) · Auto-focus · M16 mount
Maximum Aperture
F1.2
Angular Field of View
Wide (2.7 mm): H 108° / V 56° / D 130° · Tele (13.5 mm): H 34° / V 19° / D 39°
DORI — Wide Angle (2.7 mm)
Detect 89.9 m · Observe 36.0 m · Recognise 18.0 m · Identify 9.0 m
DORI — Telephoto (13.5 mm)
Detect 257.4 m · Observe 103.0 m · Recognise 51.5 m · Identify 25.7 m
Min. Illumination
Colour: 0.004 lux @ F1.2 · B/W: 0.0004 lux · 0 lux (Illuminator on)
S/N Ratio
> 56 dB
Dynamic Range
120 dB True WDR
Day & Night
Auto (ICR) / Colour / B&W
Illuminators
2 × IR LED up to 50 m · 2 × Warm-light LED up to 40 m · Smart Dual-Light auto switching
Image Enhancement
3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · EIS (Electronic Image Stabilisation) · Image Rotation
Active Deterrence
Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported)
Intelligent Video
AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · AI SSA · Smart Search
Video Compression
AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream)
AI Coding
≥25% additional compression efficiency
Streaming
3 streams — Main 3840×2160 · Sub 704×576 · Third 1920×1080 (Full HD)
Audio Compression
G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio)
IP Camera Protocol
ONVIF Profile S/G/T · CGI · Milestone · P2P · RTMP
Network Protocols
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · 802.1x
Cyber Security
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout
Ethernet
RJ-45 (10/100BASE-T)
Alarm I/O
1 alarm in (wet contact) · 1 alarm out (wet contact)
Audio I/O
Dual built-in MIC · 1-channel built-in speaker · 1 × 3.5 mm jack in / 1 × 3.5 mm jack out
Edge Storage
MicroSD up to 512 GB · NAS · FTP / SFTP
Weatherproof Rating
IP67
Operating Temperature
−30 °C to +60 °C · ≤ 95% RH
Power Source
12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage
Power Consumption
Basic 4.3 W (12 V DC) / 5.5 W (PoE) · Max 7.9 W (12 V DC) / 9.8 W (PoE)
Mobile App
DMSS · Smart PSS · DSS (iOS & Android)
Approvals
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1
Housing
Metal + Plastic · White or Black
Dimensions
288.4 mm × 94.4 mm × 84.7 mm (L × W × H)
Weight
1.05 kg (net) · 1.35 kg (gross)
Warranty
3-Year Australian Warranty (back-to-base)
3849T1-ZAS (Motorised) vs 3849T1-AS (Fixed) — Which 8MP Bullet Should You Choose?
Both cameras run the same TiOC 3.0 active deterrence chain, the same AcuPick AI, the same Smart Dual-Light system and the same 4K image quality in the same bullet chassis. The deciding question is the lens: do you need a single fixed field of view, or the flexibility to zoom in remotely? If the site has long sightlines, changing conditions, or you want one camera to cover both wide approach and high-zoom evidence, choose the ZAS. If you only need a fixed 106° wide view and the budget is tight, the fixed-lens 3849T1 is the cheaper pick.
Dahua 3849T1-ZAS-PV-ANZ-S2 vs 3849T1-AS-PV-ANZ-S2 (both 8MP bullets)
Feature
DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 (this motorised bullet)
DH-IPC-HFW3849T1-AS-PV-ANZ-S2 (fixed-lens bullet)
Lens
Motorised vari-focal · 2.7–13.5 mm (5× zoom)
Fixed-focal · 2.8 mm
Maximum Aperture
F1.2
F1.0
Remote Zoom & Focus
Yes — via DMSS or NVR
No — fixed at install
FOV — Wide
108° H
106° H (fixed)
FOV — Tele
34° H
n/a
DORI Detect (max reach)
257.4 m (at tele)
91 m (fixed)
DORI Identify (max reach)
25.7 m (at tele)
9.1 m (fixed)
IR Distance
50 m
30 m
Warm Light Distance
40 m
30 m
Image Sensor
1/2.8" CMOS
1/2.8" CMOS
Max Resolution
8MP · 3840 × 2160 (4K)
8MP · 3840 × 2160 (4K)
Image Stabilisation (EIS)
Yes
No
AI Coding
Yes — ≥25% extra efficiency
Yes — ≥25% extra efficiency
Red/Blue Strobe · Siren · Voice
Yes
Yes
AcuPick AI Search
Yes — with 5-Series NVR
Yes — with 5-Series NVR
SMD Version
SMD 4.0
SMD 4.0
Two-Way Audio
Yes — dual MIC + speaker
Yes — dual MIC + speaker
WDR
120 dB True WDR
120 dB True WDR
MicroSD
Up to 512 GB
Up to 512 GB
Power (Max PoE)
9.8 W
9.1 W
Ingress Protection
IP67
IP67
Operating Temperature
−30 °C to +60 °C
−40 °C to +60 °C
Dimensions
288.4 × 94.4 × 84.7 mm
288.4 × 94.4 × 84.7 mm
Net Weight
1.05 kg
1.0 kg
Colour Options
White & Black
White & Black
Australian Warranty
3 years back-to-base
3 years back-to-base
Best For
Long rural driveways, large commercial yards, mining sites, carparks, pole mounts, sites where field-of-view requirements change over time and long-range identification matters.
Fixed wide-coverage perimeter work, residential and SMB sites where a 106° fixed view is enough and budget is tighter.
Compatible Mounts & Accessories
Dahua PFA135 Junction Box
Bullet-specific junction box for clean cable concealment behind the camera mount. Indoor / sheltered installs. View Dahua accessories →
Dahua PFA130-E Waterproof Junction Box
IP66-rated waterproof junction box for exposed outdoor bullet mounting on render, brick or weatherboard. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket — the typical install partner for long-range bullet cameras on fence posts, light poles and gate columns. View product →
Dahua PFM900-E Integrated Mount Tester
On-site display + power-test tool for commissioning bullet cameras from the ladder. Especially useful when setting the zoom and focus on the vari-focal lens. View Dahua accessories →
Dahua PFM321D 12 V DC Power Adapter
1A power adapter for sites where you're not using PoE — bench testing, retrofit installs into existing 12 V coax-with-power runs. View Dahua accessories →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC motorised vari-focal bullets. View WD Purple 256 GB →
Frequently Asked Questions
What does the "ZAS" in 3849T1-ZAS mean?
"Z" stands for motorised zoom — this is the motorised vari-focal lens bullet version. "AS" = audio + alarm I/O (built-in MIC, speaker, alarm in/out). The fixed-lens equivalent is the 3849T1-AS-PV-ANZ-S2. Both share the same chassis, AcuPick AI, TiOC 3.0 deterrence and Smart Dual-Light; the ZAS adds a 2.7–13.5 mm zoom lens with auto-focus you can drive remotely.
Is the motorised vari-focal bullet worth the extra cost?
If the site has long sightlines (driveways, perimeters, carparks) or if field-of-view requirements are likely to change (new fences, vegetation, signage), yes — the ability to remotely re-zoom from the app saves a service call every time. For a fixed shopfront or a narrow doorway, the fixed-lens 3849T1 bullet is the cheaper choice.
Can the camera pan and tilt remotely too, or just zoom?
The 3849T1-ZAS is a motorised vari-focal bullet, not a PTZ. The lens supports remote zoom and auto-focus, but the camera body itself does not pan or tilt remotely — the housing is aimed manually at install time. For a fully remote pan/tilt/zoom camera, look at a Dahua PTZ.
How does the ZAS bullet compare to the ZAS turret?
Same internals, different form factor. The bullet has an integrated sun shield, longer chassis and more visible silhouette — better for poles, gables and exposed eaves. The turret is more compact and discreet for wall-flush installs. Both share the same 5× motorised zoom, 50 m IR, AcuPick AI and TiOC 3.0 deterrence.
Do I need a special NVR for AcuPick?
Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC 3.0 deterrence chain, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR. Shop AcuPick NVRs here →
How much PoE budget does this camera need?
The ZAS bullet draws a maximum of 9.8 W on PoE when the motor, strobe, siren and warm light are simultaneously active — well within the 802.3af PoE budget of 15.4 W. Most installs sit at 5–6 W in normal operation. Make sure your PoE switch budgets for the peak, especially on multi-camera switches.
Will the camera deter intruders automatically?
Yes. The TiOC 3.0 deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What is the difference between the White and Black versions?
Specifications are identical. DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 is white; DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2-BLK is black. Choose black for dark eaves, charcoal fascia and modern industrial aesthetics; white for traditional cream/render walls.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Combined with DMSS cloud push notifications, you have three redundant recording paths: NVR, MicroSD and event clips to your phone.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −30 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal + reinforced-plastic housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Downloads & Resources
DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 Datasheet
Dahua Bullet Quick Start Guide
Order the Dahua DH-IPC-HFW3849T1-ZAS-PV-ANZ-S2 from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua TiOC 3.0 cameras. Order the 8MP 4K TiOC 3.0 motorised vari-focal AcuPick bullet today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
Clearance. Limited supplier stock, available while stocks last.
WizMind 5 · 4 MP · Motorised 2.7–12 mm · ePoE 800 mDahua WizMind 5 · 4 MP Pro AI BulletDahua DH-IPC-HFW5442EP-ZE — 4 MP Pro AI Motorised Vari-Focal Starlight+ IR Bullet WizMind 5 Network Camera (2.7–12 mm)
The Dahua DH-IPC-HFW5442EP-ZE is the 5442 series 4 MP WizMind 5 Pro AI motorised bullet — Dahua's flagship 4 MP bullet for high-stakes Australian surveillance projects. Built around a 1/1.8" Starlight+ CMOS — physically larger and roughly twice the light-gathering area of WizSense's 1/2.7" — capturing 2688 × 1520 at 25/30 fps with Smart H.265+ encoding. The motorised 2.7–12 mm vari-focal lens delivers a wide 100° field at 2.7 mm down to a tight 33° pull at 12 mm with auto-focus, remote-controllable via DMSS. Built-in IR reaches up to 60 m; WDR is 140 dB (vs WizSense's 120 dB); the metal bullet housing is IP67 sealed across −40 °C to +60 °C. WizMind 5 deep-learning AI delivers the full Pro feature set — face recognition with database, full perimeter protection, people counting, heat map, stereo analysis, vehicle ANPR-style metadata, and full SMD Plus. ePoE extends PoE to 800 m over Cat6 (vs the standard 100 m limit) — ideal for long perimeter runs without a network closet at the edge. Built for project-grade Australian installs — commercial frontages, transport corridors, depot perimeters, parking structures and council CCTV programs. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5442 series.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW5442EP-ZE WizMind 5 Pro AI Bullet
1/1.8" Starlight+ Sensor — Pro-Grade Low Light
1/1.8" CMOS sensor — physically larger and roughly twice the light-gathering area of WizSense's 1/2.7" sensor. Usable colour video in moonlight conditions, with minimal noise.
WizMind 5 Full Pro AI Suite
WizMind 5 is Dahua's flagship AI tier. On top of perimeter protection and SMD Plus, you get face recognition (with on-camera database), people counting, heat map, queue management, stereo analysis and vehicle metadata capture.
ePoE — 800 m PoE Distance
Standard PoE caps at 100 m. ePoE extends data & power to 800 m on Cat6 (300 m at full 100 Mbps) — long perimeter runs without an edge network closet. Compatible with ePoE switches and NVRs.
Motorised 2.7–12 mm Vari-Focal
4.4× motorised vari-focal with auto-focus. Install wide for general coverage, then pull tight at 12 mm on the area of interest — remote-controllable via DMSS, no ladder visits.
140 dB WDR for High-Contrast Scenes
140 dB true WDR (vs WizSense's 120 dB). Holds detail in both bright sky and dark interior in a single frame — critical for awning-shaded entries and glass shopfronts in harsh Australian sun.
60 m IR + Alpine-Rated Build
Built-in IR array reaches up to 60 m. Metal IP67 housing rated −40 °C to +60 °C — tropical Top End or alpine NSW.
Important Install Note
The motorised vari-focal lens is remote-controllable via DMSS for one-time install framing or ongoing re-alignment. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR with ePoE ports — on a standard 802.3af/at PoE switch the camera works at the standard 100 m limit.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. Real-time recognition with similarity scoring and alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps — ideal for retail and transport analytics.
SMD Plus Smart Motion
SMD Plus — motion alerts triggered only by humans and vehicles.
Stereo Analysis
Stereo-vision behaviour analysis — fall detection, fight detection, person stationary, person walking.
Vehicle Metadata Capture
Vehicle classification with attribute capture — type, colour and direction metadata sent with each event.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HFW5442EP-ZE-2712
Form Factor
Bullet (HFW chassis)
Image Sensor
1/1.8" CMOS Starlight+
Maximum Resolution
2688 × 1520 (4 MP)
Frame Rate
4 MP @ 25/30 fps
WDR
140 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Motorised vari-focal with auto-focus
Focal Length
2.7 mm – 12 mm
Maximum Aperture
F1.5 — F2.7
Field of View
H: 100° – 33°
IR Illumination
Up to 60 m
Pro AI, Audio & Network
AI Engine
WizMind 5 Series (Pro AI)
Face Recognition
Yes · on-camera database
IVS
Tripwire · intrusion (with human/vehicle classification)
SMD
SMD Plus
People Counting
Yes
Heat Map
Yes
Stereo Analysis
Yes
Vehicle Metadata
Yes
Audio I/O
1 in / 1 out
Alarm I/O
2 in / 1 out
Network Port
RJ-45 (10/100 Base-T) · ePoE
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 256 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af) / ePoE
ePoE Distance
Up to 800 m (10 Mbps) on Cat6
Operating Temperature
−40 °C to +60 °C
Protection
IP67
Casing
Metal
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
5 Years (via CCTV Guru)
How It Compares — WizMind 5 (Pro) vs WizSense 3 (Mid)
The WizSense 3 sibling is the Dahua DH-IPC-HFW3466TP-ZAS-AUS — same 4 MP resolution and similar motorised lens, but on the lighter WizSense 3 AI tier with smaller sensor. Choose WizMind 5 for face recognition, ePoE 800 m, and the larger 1/1.8" Starlight+ sensor. Choose WizSense 3 for general motion alarms at a lower price.
Feature
HFW5442EP-ZE-2712 (this — WizMind 5)
HFW3466TP-ZAS-AUS (WizSense 3)
AI Tier
WizMind 5 (Pro AI)
WizSense 3 (mid AI)
Sensor Size
1/1.8" Starlight+
1/2.7"
WDR
140 dB
120 dB
Face Recognition
Yes (database)
No
People Counting
Yes
No
Heat Map
Yes
No
ePoE 800 m
Yes
No (standard PoE only)
Warranty
5 Years
3 Years
Best For
Project-grade, long-run, analytics-driven sites
SMB and residential motion-alarm use
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 ePoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 ePoE+ ports.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What is "WizMind 5"?
WizMind 5 is Dahua's flagship Pro AI tier — the same chipset used in their face-recognition and traffic-analytics cameras. Full feature suite: face recognition, people counting, heat map, stereo analysis, vehicle metadata, perimeter protection.
What does "ePoE" actually do?
ePoE extends PoE distance from 100 m up to 800 m on Cat6 (300 m at 100 Mbps). For long perimeter runs and remote sheds, you can ditch the edge network closet. Pair with a Dahua ePoE switch or NVR.
Can I run it on standard PoE?
Yes — 802.3af/at-compliant. ePoE only activates when paired with a Dahua ePoE-compatible PoE source; otherwise standard 100 m limit applies.
How does face recognition work?
On-camera face database with up to 10,000 entries. Add photos and names, then receive real-time recognition push notifications with similarity score via DMSS.
How far can it see at night?
Up to 60 m built-in IR. The 1/1.8" Starlight+ sensor also produces usable colour video in moonlight without IR.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T. AI features (face recognition, people counting, heat map) only work end-to-end on Dahua AI NVRs.
What is the warranty?
5-year Australian warranty via CCTV Guru — WizMind 5 tier carries Dahua's longest AU warranty.
What temperature range?
−40 °C to +60 °C. Alpine and tropical Australia rated.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android.
Downloads
DH-IPC-HFW5442EP-ZE DatasheetDahua IP Bullet Camera Quick Start GuideDahua IP Bullet Camera Installation GuideDahua IP Bullet Camera Operational Manual
Order Your Dahua HFW5442EP-ZE from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing, multi-camera fleet deployments and NVR sizing advice. We are authorised Australian Dahua resellers, hold stock locally, and back every WizMind 5 camera with a 5-year Australian warranty. Phone, email or live chat us through cctvguru.com.au/pages/contact.
Uniarch Tri-guard 8MP Turret 2.8 lens Black, Min. illumination 0.003lux, Smart Intrusion Prevention (SIP) , ColorHunter and Active Deterrence into one IP camera, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in- Mic & Speaker, IP67
Optional: Junction box TR-JB03-G-IN- BLACK, Wall mount TR-WM03-D-IN- BLACK
High quality image with 8MP, 1/2.8''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic and Speaker
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protectionIP67 protection67
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
Uniarch TRI-Guard
POE
POE
Downloads
Uniarch IPC-T1P8-AF28KC-B 8MP HD Intelligent Light and Audible Warning Fixed_ Eyeball Network Camera V1.0Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Hikvision 8MP 4K · ColorVu · Live-Guard · 60m Hybrid Light
Hikvision 4K ColorVu Bullet
Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP 4K ColorVu Live-Guard Bullet — Strobe + Siren, 60m Smart Hybrid Light, AcuSense
The Hikvision DS-2CD2T87G3-LIS2UY/SL is the flagship long-range bullet of the G3 series, delivering crystal-clear 8 MP / 4K UHD resolution for large perimeters and open spaces. An F1.0 super-aperture lens drives true 24/7 ColorVu full-colour night vision down to 0.0005 lux, while Smart Hybrid Light reaches an exceptional 60 m with IR and white light. AcuSense AI classifies human and vehicle targets — the camera stays in stealthy IR until detection, then switches to full-colour ColorVu and fires the Live-Guard strobe and siren to stop intruders before they reach the door. A built-in array dual microphone and speaker add two-way audio, and an all-metal IP67 housing withstands harsh Australian weather. Available in 2.8 mm and 4 mm lens. Australian stock, 3-Year Australian warranty.
Resolution
8 MP · 3840 × 2160 (4K)
Lens
F1.0 · 2.8 mm or 4 mm
Smart Hybrid Light
IR + White · up to 60 m
AI Engine
AcuSense · Human + Vehicle
Deterrence
Strobe + Siren · 2-Way Audio
Protection
IP67 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
4K UHD Resolution
8 MP / 4K provides about 33% more detail than 6 MP — digitally zoom into a recording and still identify a face or read a number plate after the fact.
24/7 ColorVu Full-Colour Night
An F1.0 super-aperture delivers vivid colour in near-total darkness — down to 0.0005 lux — capturing clothing and vehicle colour at night.
60 m Smart Hybrid Light
Stays in discreet IR by default and switches to white-light ColorVu on AcuSense detection, with an exceptional 60 m reach for large yards and long perimeters.
Live-Guard Active Deterrence
A built-in strobe light and adjustable siren trigger automatically on detection to stop intruders at the perimeter.
Why Choose the DS-2CD2T87G3-LIS2UY/SL
AcuSense AI
Deep-learning classification focuses strictly on human and vehicle targets, ignoring pets and leaves to cut false alarms.
Two-Way Audio Talk-Down
A built-in array dual microphone and speaker let you talk through the camera live via Hik-Connect.
Efficient H.265+ Storage
Advanced compression cuts storage use substantially without sacrificing 4K image quality.
Built Tough
All-metal IP67 construction withstands harsh Australian sun, dust and heavy rain.
Recommended For
Large Perimeters & Yards
60 m night reach and 4K detail across big open sites.
Commercial & Industrial
Visible bullet body plus strobe and siren deter intruders at the boundary.
Car Parks & Driveways
Wide 2.8 mm coverage with active deterrence for exposed areas.
Post-Incident Review
4K headroom to digitally zoom into recordings for faces and plates.
Technical Specifications
DS-2CD2T87G3-LIS2UY/SL · Full Specifications
SKU
DS-2CD2T87G3-LIS2UY/SL
Camera Type
Hikvision G3 8 MP / 4K ColorVu Smart Hybrid Light AcuSense Live-Guard Bullet
Max Resolution
3840 × 2160 (8 MP / 4K UHD)
Lens
2.8 mm (108.8° HFOV) or 4 mm (93.3° HFOV) · F1.0
Min. Illumination
0.0005 lux @ F1.0 (AGC ON) · 0 lux with white light
Supplement Light
Smart Hybrid Light — IR + white light · up to 60 m
AI Engine
AcuSense — human + vehicle classification · perimeter protection
Deterrence
Active strobe light + siren
Audio
Built-in array dual microphone & speaker · two-way audio
Video Compression
H.265+ / H.265 / H.264+ / H.264
On-Board Storage
microSD card slot
Power
PoE · 12 VDC
Housing
Metal · integrated sunshield
Weatherproof Rating
IP67
Warranty
3-Year Australian Warranty
Frequently Asked Questions
Why choose 8 MP / 4K over 6 MP?8 MP / 4K provides about 33% more resolution than 6 MP, allowing much clearer digital zoom when you need to identify plates or faces in a recording.
Does this require a subscription?No. It records directly to your NVR — you own your footage with no ongoing monthly cloud fees.
How loud is the siren?The siren is fully adjustable and can be scheduled to trigger only during specific nighttime hours via the Hik-Connect app.
Can I talk through the camera?Yes — the built-in array dual microphone and speaker support real-time two-way audio via Hik-Connect.
Downloads & Resources
DS-2CD2T87G3-LIS2UY/SL Datasheet
Hikvision Network Camera Quick Start Guide
CCTV Guru is an authorised Australian reseller of Hikvision ColorVu Live-Guard cameras. Order the DS-2CD2T87G3-LIS2UY/SL 8 MP / 4K long-range deterrence bullet in 2.8 mm or 4 mm for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision 8MP 4K · AcuSense · DarkFighter · 60m IR
Hikvision 4K DarkFighter Bullet
Hikvision DS-2CD2T86G2H-2I — 8MP 4K AcuSense Bullet Camera with DarkFighter Low-Light & 60m IR
The Hikvision DS-2CD2T86G2H-2I is a flagship 8 MP / 4K Ultra-HD bullet camera in the Hikvision Pro-Series, built for high-end Australian residential and commercial perimeters. A large 1/1.8" progressive-scan CMOS sensor with DarkFighter ultra-low-light technology delivers clean colour imaging down to 0.0008 lux, holding a higher shutter speed at night so you capture clear, identifiable faces instead of blurred silhouettes. Smart IR reaches up to 60 m for long-distance night coverage, AcuSense deep-learning classifies humans and vehicles to cut false alarms, and 120 dB true WDR handles high-contrast scenes. The rugged IP67 housing is available with a choice of 2.8 mm or 4 mm lens. Australian stock, 3-year Australian warranty.
Resolution
8 MP · 3840 × 2160 · 4K
Lens
2.8 mm or 4 mm Fixed
Low Light
DarkFighter · 0.0008 lux
IR Range
Smart IR up to 60 m
AI Engine
AcuSense · Human + Vehicle
Protection
IP67 · 120 dB WDR · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Pro-Grade 4K Perimeter Surveillance
DarkFighter Low-Light Imaging
DarkFighter ultra-low-light technology delivers clean colour down to 0.0008 lux and holds a higher shutter speed at night — so a moving subject is captured as a clear, identifiable face rather than a blurred silhouette.
60 m Smart IR Night Vision
Smart IR up to 60 m delivers long-distance night coverage, with intensity that adjusts automatically to avoid over-exposing close targets — ideal for driveways, perimeters and large yards.
AcuSense Human & Vehicle AI
AcuSense deep-learning classifies motion as a human or vehicle, dramatically reducing false alarms from animals, foliage and weather for smarter, more reliable alerts.
8 MP 4K Detail, IP67 Build
Crisp 8 MP / 4K imaging with 120 dB true WDR for high-contrast scenes, in a rugged IP67 housing built for exposed Australian outdoor sites. Choose 2.8 mm or 4 mm lens to match your scene.
Technical Specifications
DS-2CD2T86G2H-2I · Specifications
SKU
DS-2CD2T86G2H-2I (2.8 mm or 4 mm)
Camera Type
Hikvision Pro-Series AcuSense · 8 MP / 4K Fixed Bullet
Image Sensor
1/1.8" Progressive Scan CMOS · DarkFighter
Max Resolution
8 MP · 3840 × 2160
Min. Illumination
Colour 0.0008 lux @ F1.0 (AGC ON) · 0 lux with IR
Lens
2.8 mm (105° FOV) or 4 mm (90° FOV) fixed
IR Distance
Smart IR up to 60 m
Wide Dynamic Range
120 dB true WDR
AI / Smart Functions
AcuSense human + vehicle classification
Video Compression
H.265+ · H.265 · H.264+ · H.264
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Power Source
12 VDC · PoE
Weatherproof Rating
IP67
Warranty
3-Year Australian Warranty
Frequently Asked Questions
Does this camera record audio?No — the -2I model is a visual specialist with high-power 60 m IR and no built-in microphone. If you need audio, choose a Hikvision -IU variant instead.
What is the difference between 2.8 mm and 4 mm?The 2.8 mm lens gives a wider 105° field of view (best for yards and broad areas). The 4 mm lens is more zoomed in at 90° (best for gates and facial identification at a distance).
How do I power this camera?This is a PoE (Power over Ethernet) camera. Power it from a PoE NVR, a PoE switch, or a standard 12 VDC supply.
Is this a genuine Hikvision Australian model?Yes — all our Hikvision stock is genuine Australian stock, allowing official firmware updates and a full 3-year local warranty.
Downloads & Resources
DS-2CD2T86G2H-2I Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision DS-2CD2T86G2H-2I from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision Pro-Series cameras. The DS-2CD2T86G2H-2I is a flagship 4K bullet for high-end residential and commercial perimeters where low-light face capture and long-range night vision matter. Order in 2.8 mm or 4 mm lens for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
WizSense 3 TiOC · 8 MP (2×4 MP) · 180° Panoramic · Active Deterrence
TiOC 2.0 180° Bullet
Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ — 8 MP (2× 4 MP) 180° Panoramic Dual-Sensor TiOC 2.0 Active Deterrence Bullet WizSense 3 Network Camera
The Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ is a dual-sensor TiOC 2.0 bullet that splices two 4 MP sensors into a seamless 8 MP (4096 × 1800) 180° panoramic image — perfect for long driveways, school perimeters, carparks, marina jetties and warehouse loading bays where a single conventional bullet would leave blind spots. WizSense 3 deep learning classifies humans and vehicles, runs AcuPick-style metadata search, and feeds a Smart Dual Light system that combines warm-light to 20 m with IR to 25 m for full-colour or low-glow night surveillance. When a person or vehicle crosses a tripwire or enters a zone, the camera activates its red/blue strobe siren and plays one of 13 customisable voice warnings through the dual speakers — true TiOC 2.0 active deterrence that turns the bullet into a deterrent perimeter device. Dual built-in microphones, audio I/O, alarm I/O, microSD storage and ePoE round out the feature set. Backed by a 3-year Australian warranty through CCTV Guru, an authorised Dahua reseller.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ Panoramic Bullet
True 180° Panoramic
Two 4 MP sensors splice into a seamless 4096 × 1800 panoramic image — replaces 2–3 bullets across long driveways, carparks and perimeters.
TiOC 2.0 Active Deterrence
Red/blue strobe siren plus 13 customisable voice warnings via dual speakers actively deter intruders — not just record them.
Smart Dual Light
Warm-light to 20 m for full-colour deterrent imaging plus IR to 25 m for covert low-glow night surveillance — auto or manual switching.
WizSense 3 + AcuPick
Human/vehicle classification reduces false alarms; AcuPick-style metadata search lets you find suspects fast across hours of footage.
Dual Mic + Speaker
Built-in dual microphones and dual speakers enable two-way audio intercom and high-volume voice deterrence simultaneously.
IP67 ePoE Bullet
Sealed bullet body with ePoE extends cable runs up to 800 m on Cat6 — ideal for boundary fences and long site perimeters.
Important Install Note
Mount the PFW3849S at 3–6 m height for optimal 180° coverage of driveways, carparks or backyard perimeters — the sensors are factory-stitched, so no field calibration is required. Use Cat6 to keep PoE+ headroom for the dual sensors, IR array, warm light and active speakers, and pair with a Dahua AI/ANZ NVR running V5 firmware to unlock AcuPick metadata search and TiOC 2.0 push-to-talk deterrence directly from the NVR or DMSS app.
AI & Smart Detection
Human / Vehicle Filter
WizSense 3 deep learning classifies humans and vehicles to suppress wildlife, weather and shadow false alarms.
Tripwire & Intrusion
Define multiple panoramic perimeters with directional rules — the AI fires only on classified human or vehicle events.
Active Deterrence (TiOC 2.0)
Red/blue strobe + voice warning auto-triggers on AI events, with 13 pre-loaded messages and the option to upload your own.
AcuPick Metadata Search
Search by clothing colour, vehicle colour, body type and direction across hours of footage on supported Dahua NVRs.
Two-Way Audio
Push-to-talk from DMSS app or NVR through built-in dual speakers — warn intruders or guide deliveries in real time.
SMD & Perimeter
Smart Motion Detection plus perimeter zones reduce nuisance alerts and keep storage focused on real events.
Technical Specifications
Camera, Lens & Illumination
Image Sensor
2 × 1/2.7″ 4 MP progressive-scan CMOS (stitched)
Effective Pixels
4096 (H) × 1800 (V)
Max Resolution
4096 × 1800 @ 25/30 fps (panoramic stitched)
Lens
2 × 2.8 mm fixed (factory stitched)
Field of View
180° horizontal panoramic
IR Distance
Smart IR up to 25 m · warm white light up to 20 m
Min. Illumination
0.005 lx (colour) · 0 lx (warm light or IR on)
WDR / SNR
120 dB true WDR · SNR > 56 dB
Day/Night
ICR auto switching · Smart Dual Light
Intelligence, Audio & Network
AI Series
WizSense 3 with AcuPick · TiOC 2.0
Smart Analytics
Human/vehicle classification · tripwire · intrusion · SMD · AcuPick metadata search
Active Deterrence
Red/blue strobe + 13 customisable voice warnings · dual speakers
Video Compression
H.265 / H.264 / MJPEG (sub stream) · smart codec
Audio
2 built-in mics · 2 built-in speakers · 1 audio in · 1 audio out · G.711a/u, AAC
Alarm I/O
2 in · 2 out
Storage
microSD up to 256 GB · NAS · FTP
Network
RJ45 10/100 ePoE · ONVIF (Profile S/G/T) · CGI, RTSP, SDK
Power, Environment & Build
Power Supply
12 V DC · PoE+ (802.3at)
Power Consumption
< 15 W (max with warm light + speaker)
Operating Temp.
−40 °C to +60 °C · < 95% RH
Ingress Protection
IP67
Material
Metal housing
Dimensions
295 mm × 110 mm × 110 mm
Weight
≈ 1.7 kg
Certifications
CE · FCC · RCM
Recommended NVR Pairings
DHI-NVR5208-8P-AI/ANZ
8-channel WizMind AI NVR with full TiOC 2.0 deterrence and AcuPick metadata search support. View →
DHI-NVR5216-16P-AI/ANZ
16-channel WizMind AI NVR with AcuPick search and 16 PoE ports — ideal for multi-perimeter sites. View →
DHI-NVR4216-16P-AI/ANZ
16-channel 4K Smart AI NVR — budget-friendly with TiOC 2.0 push-to-talk and active deterrence. View →
DHI-NVR5432-AI/ANZ
32-channel WizSense AI NVR for sprawling sites needing multiple panoramic deterrence cameras. View →
Frequently Asked Questions
How is the 180° image created?Two factory-stitched 4 MP sensors blend in real time into a single 4096 × 1800 panoramic stream — no dewarping or field calibration required.
Is it a bullet or turret?Bullet form factor — mounted on a sealed metal arm with IP67 protection, designed for wall and eaves mounting at 3–6 m.
What does TiOC 2.0 add over standard cameras?Active deterrence: red/blue strobe siren plus 13 customisable voice warnings via dual built-in speakers, triggered automatically by WizSense 3 AI events.
How far does the IR reach?Smart IR to 25 m, plus warm white light to 20 m for full-colour deterrent imaging — selectable per scene.
Does it support two-way audio?Yes — dual built-in microphones and dual built-in speakers support DMSS and NVR push-to-talk for live deterrence and intercom.
Will my Dahua NVR show the AcuPick metadata?Yes — Dahua AI/ANZ NVRs on V5 firmware support AcuPick metadata search (clothing colour, vehicle colour, body type, direction).
Can I upload my own voice warnings?Yes. The PFW3849S ships with 13 pre-loaded messages plus the ability to upload custom audio clips via the web interface.
What warranty applies in Australia?CCTV Guru provides a 3-year Australian warranty on WizSense 3 / TiOC 2.0 cameras including the PFW3849S, with local technical support.
Does CCTV Guru offer installation?Yes — we have a network of certified installers across Australia. Contact our team for a project quote.
Downloads
Datasheet (PDF)
Quick Start Guide
Installation Guide
Order Your Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ from CCTV Guru
Buy the Dahua DH-IPC-PFW3849S-A180-AS-PV-ANZ 180° TiOC 2.0 panoramic bullet direct from CCTV Guru, an authorised Australian Dahua reseller. Fast AU-wide shipping, 3-year warranty and local technical support. Need help speccing a panoramic deterrence perimeter or integrating with your existing Dahua NVR? Contact our team →
TP-Link VIGI C540-W 4MP Full-Colour Wi-Fi Pan Tilt Outdoor Network Camera (4mm)
The TP-Link VIGI C540-W is a 4MP full-colour Wi-Fi pan tilt outdoor IP camera that combines wide-area motorised coverage with 24-hour colour night vision — all without the need for an Ethernet cable at the mounting point. With 360° horizontal pan, customisable patrol routes, and AI-powered auto-tracking, it actively follows moving subjects across your property rather than relying on a fixed field of view. Built-in spotlight LEDs maintain true full-colour footage in complete darkness, IP66 weatherproofing handles all Australian outdoor conditions, and smart detection with instant VIGI app alerts keeps you informed of activity around the clock.
Pan Tilt vs Fixed Camera — Which Do I Need?
Feature
VIGI C540-W Pan Tilt (This Model)
Fixed Bullet/Dome (e.g. C340, C240)
Coverage
360° pan, motorised — covers entire area
Fixed field of view — one direction only
Auto-Tracking
Yes — follows moving subjects automatically
No — stationary coverage only
Patrol Routes
Yes — customisable preset positions
No
Best For
Large open areas, yards, car parks, single-camera coverage
Specific entry points, perimeters, corridors
Key Features
4MP Full-Colour 24h Surveillance — 2560×1440 resolution with true full-colour footage day and night via a high-sensitivity sensor and built-in spotlight LEDs — maintains colour even in complete darkness.
360° Pan & Tilt — Motorised pan and tilt covers the full horizontal range and a wide vertical range — a single camera can monitor an entire yard, car park, or open area.
AI Auto-Tracking — Automatically detects and follows moving people or vehicles across the scene — keeping subjects in frame without manual control.
Customisable Patrol Routes — Set preset positions and patrol sequences so the camera automatically cycles through key monitoring points on a schedule.
Wi-Fi Connectivity — Connects to your Wi-Fi network wirelessly — no Ethernet cable required at the mounting point for flexible outdoor placement.
4mm Fixed Lens — Medium field of view with good effective range — well-suited to yards, driveways, and open outdoor spaces at medium distance.
Smart Detection — Motion detection, area intrusion, line-crossing, and video tampering detection with instant push notifications to the VIGI app.
IP66 Weatherproof — Fully protected against dust ingress and powerful water jets — suitable for all Australian outdoor environments including heavy rain and coastal conditions.
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
Built-In Microphone — Records one-way audio for enhanced situational awareness and evidence capture.
MicroSD Card Slot — Supports local on-camera recording without an NVR (microSD card sold separately).
VIGI App Management — Manage, monitor, control pan/tilt remotely, and receive alerts from the VIGI app (iOS & Android) from anywhere.
Use Cases
Residential backyards and large yards — a single pan tilt camera with auto-tracking covers the entire area that would otherwise require multiple fixed cameras
Driveways and front yards — Wi-Fi installation without running Ethernet cable to the mounting point, with auto-tracking following vehicles and people
Small commercial car parks and outdoor areas — 360° motorised coverage with patrol routes cycling through key monitoring positions
Retail outdoor areas and alfresco dining — full-colour night vision with smart detection for after-hours monitoring
Rental properties and holiday homes — Wi-Fi camera with remote pan/tilt control and VIGI app management from anywhere in Australia
Construction sites and temporary installations — Wi-Fi connectivity avoids the need for permanent cabling at temporary mounting points
Technical Specifications
Specification
Detail
Model
VIGI C540-W (4mm)
Resolution
4MP (2560 × 1440)
Lens
4mm Fixed
Form Factor
Outdoor Pan Tilt
Pan Range
360° horizontal
Tilt Range
See datasheet for vertical range
Night Vision
24/7 Full-Colour (spotlight LEDs)
Auto-Tracking
Yes (AI-powered)
Patrol Routes
Yes (customisable preset positions)
Connectivity
Wi-Fi (wireless) + RJ45 (wired optional)
Smart Detection
Motion Detection, Area Intrusion, Line-Crossing, Video Tampering
Audio
Built-in microphone (one-way audio)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Power Supply
12V DC (power adapter) or PoE (check datasheet)
Local Storage
MicroSD card slot (capacity — see datasheet)
Weather Rating
IP66
Management
VIGI App, VIGI NVR, VIGI Security Manager, Web UI
Weight
Approx. 1.14 kg
Warranty
2 Years
Recommended Accessories
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management of the C540-W alongside other VIGI cameras.
TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Smart Switch — Powers the C540-W via PoE (if supported) and provides Gigabit connectivity for the rest of the network.
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR.
TP-Link VIGI C340 4MP Full-Colour Outdoor Bullet Camera — Pair with the C540-W for fixed coverage of specific entry points while the pan tilt camera covers the broader area.
Frequently Asked Questions
What is the difference between the VIGI C540-W and the VIGI C540?
The VIGI C540-W adds Wi-Fi connectivity, allowing it to connect to your network wirelessly without an Ethernet cable at the mounting point. The VIGI C540 is the wired-only version requiring an Ethernet (PoE) cable for both data and power. The C540-W also supports 12V DC power via an adapter. Choose the C540-W for flexible wireless outdoor placement; choose the C540 for permanent wired PoE installations where cable infrastructure is already in place.
Does the C540-W require a Wi-Fi connection, or can it also use Ethernet?
The VIGI C540-W supports both Wi-Fi and wired Ethernet connectivity. Wi-Fi allows cable-free placement at the mounting point. If an Ethernet cable is available at the mounting point, it can also be connected via RJ45 for a more stable wired connection. Check the datasheet for PoE support details on the wired port.
How does auto-tracking work?
When auto-tracking is enabled, the camera’s AI detects a moving person or vehicle in the scene and automatically pans and tilts to keep the subject centred in the frame as they move. This is particularly useful for monitoring large open areas such as yards and car parks where a fixed camera would lose the subject as they move out of the field of view. Auto-tracking can be enabled or disabled via the VIGI app or web UI.
Can I control the pan and tilt remotely from my phone?
Yes. The VIGI app (iOS & Android) allows you to manually control the pan and tilt direction of the C540-W remotely from anywhere with an internet connection. You can also set preset positions and patrol routes via the app for automated monitoring without manual control.
Does the VIGI C540-W record audio?
Yes. The C540-W has a built-in microphone for one-way audio recording. Audio surveillance in Australia may require compliance with state and federal privacy legislation, including signage requirements in workplaces and public areas. Consult your legal obligations before enabling audio recording.
Clearance. Limited supplier stock, available while stocks last.
WizMind 5 · 4 MP · Full-Colour Warm LED · Fixed 2.8 mmDahua WizMind 5 · 4 MP Full-Colour BulletDahua DH-IPC-HFW5442TP-AS-LED-0280B — 4 MP Pro AI Full-Colour Warm-LED Fixed-Focal Starlight+ Bullet WizMind 5 Network Camera (2.8 mm)
The Dahua DH-IPC-HFW5442TP-AS-LED-0280B is the WizMind 5 Pro AI 4 MP full-colour warm-LED fixed bullet — the LED version of the HFW5442TP-ASE platform. Built around a 1/1.8" Starlight+ CMOS capturing 2688 × 1520 at 25/30 fps with Smart H.265+ encoding. The 2.8 mm fixed lens delivers a wide 102° field; built-in warm white LEDs reach up to 20 m for true 24/7 full-colour night vision (no black-and-white IR mode required); WDR is 140 dB; the metal bullet housing is IP67 sealed across −30 °C to +60 °C. WizMind 5 deep-learning Pro AI runs face recognition with database, full perimeter protection, people counting, heat map, stereo analysis, vehicle metadata and SMD Plus. Built for Australian project-grade installs where colour identification at night matters — shopfront entries, retail loading docks, council facilities, restaurant strips and high-detail forensic positions where the suspect's clothing colour is the difference between a positive ID and an unsolved case. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5442 series.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW5442TP-AS-LED WizMind 5 Full-Colour Bullet
Full-Colour Night Vision — Warm LED
Built-in warm white LEDs replace IR for 24/7 colour video. See suspect clothing colour, vehicle paint and licence-plate colours at night — not the black-and-white blur traditional IR cameras give you.
1/1.8" Starlight+ Sensor
Physically larger sensor with roughly twice the light-gathering area of WizSense's 1/2.7". Combined with warm LEDs, this is one of the best-performing colour-at-night cameras in its price band.
WizMind 5 Full Pro AI
Face recognition with database, perimeter protection, people counting, heat map, stereo analysis, vehicle metadata, SMD Plus.
140 dB True WDR
Holds detail in both bright sky and dark interior in a single frame — critical for awning-shaded entries and harsh Australian sun.
20 m Warm LED Range
Built-in warm LED array reaches up to 20 m — ideal for shopfronts, entries, courtyards, loading docks and forensic-detail positions.
Forensic-Detail Bullet for Identification
The colour-at-night capability turns this from a deterrent camera into an identification camera — clothing colour and vehicle paint are recorded, not lost.
Important Install Note
The warm LED is brighter than infrared and will illuminate the area around the camera (similar to a security light). Plan mounting position with neighbours and tenant lighting policies in mind — the warm LED activates automatically in low light. The LED operates in a warm-white tone (around 3000 K) to look more natural to the human eye than cool-white security LEDs.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. The full-colour image dramatically improves face-recognition accuracy at night.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps.
SMD Plus Smart Motion
Motion alerts triggered only by humans and vehicles.
Vehicle Metadata Capture
Vehicle classification with attribute capture — type, colour and direction.
Stereo Analysis
Stereo-vision behaviour analysis — fall, fight, person stationary detection.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HFW5442TP-AS-LED-0280B
Form Factor
Bullet (HFW chassis)
Image Sensor
1/1.8" CMOS Starlight+
Maximum Resolution
2688 × 1520 (4 MP)
Frame Rate
4 MP @ 25/30 fps · 1080p @ 50/60 fps
WDR
140 dB
Day / Night
Electronic ICR (no mechanical switch — 24/7 colour)
Lens Type
Fixed-focal 2.8 mm
Field of View
H: ~102°
Illumination
Warm white LED (no IR mode)
LED Distance
Up to 20 m
Pro AI, Audio & Network
AI Engine
WizMind 5 Series (Pro AI)
Face Recognition
Yes · on-camera database
IVS
Tripwire · intrusion (with human/vehicle classification)
SMD
SMD Plus
People Counting
Yes
Heat Map
Yes
Stereo Analysis
Yes
Vehicle Metadata
Yes
Audio I/O
1 in / 1 out
Alarm I/O
1 in / 1 out
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 256 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af)
Operating Temperature
−30 °C to +60 °C
Protection
IP67 · IK10
Casing
Metal
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
5 Years (via CCTV Guru)
How It Compares — Warm LED vs IR Sibling
The IR sibling is the Dahua DH-IPC-HFW5442TP-ASE-0280B. Choose the warm-LED variant (this product) for colour-at-night identification scenes — shopfronts, entries, retail. Choose the IR sibling for long-range night surveillance where lighting up the scene is not appropriate.
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 ePoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What does the "LED" in the SKU mean?
Full-colour warm-white LED illumination — built-in white LEDs replace the IR mode so the camera stays in colour 24/7. Suspect clothing colour and vehicle paint are recorded, not blurred.
Does the LED stay on all night?
Yes — the warm LED activates automatically in low light. The LED operates in a warm-white tone (around 3000 K) to look more natural to the eye than cool-white security LEDs.
How far can the LED illuminate?
Up to 20 m — designed for shopfronts, entries, courtyards and forensic-detail positions.
What is "WizMind 5"?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map, perimeter protection, vehicle metadata.
Can I run it on standard PoE?
Yes — 802.3af-compliant.
Does it have audio?
Yes — 1/1 audio I/O.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T.
What temperature range?
−30 °C to +60 °C.
Can I view it on my phone?
Yes — Dahua's free DMSS app.
Downloads
DH-IPC-HFW5442TP-AS-LED-0280B DatasheetDahua IP Bullet Camera Quick Start GuideDahua IP Bullet Camera User Manual
Order Your Dahua HFW5442TP-AS-LED from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing. 5-year Australian warranty. Phone, email or live chat through cctvguru.com.au/pages/contact.
Clearance. Limited supplier stock, available while stocks last.
Dahua TiOC 2.0 · Full-Colour · 5MP Active Deterrence BulletTiOC Deterrence Bullet
Dahua DH-IPC-HFW3549T1P-AS-PV-S3 — 5MP TiOC 2.0 Full-Colour Active Deterrence Bullet
The Dahua DH-IPC-HFW3549T1P-AS-PV-S3 is a 5MP full-colour active deterrence bullet from Dahua's WizSense 3 Series TiOC 2.0 line-up. Built around a 1/2.7" CMOS sensor and an F1.0 large-aperture lens, it produces colour image at very low light (down to 0.003 lux), with two on-board warm-light LEDs reaching 40 m for clear full-colour video around the clock — no monochrome IR fallback. Paired with the active deterrence chain — red/blue strobe lights, on-board siren, 11 built-in voice alarms plus custom voice import — it's a complete watch-and-warn camera in one weatherproof unit.
Powered by Dahua's WizSense AI with SMD Plus human/vehicle classification and IVS perimeter protection (tripwire + intrusion), the 3549T1P fires its deterrence chain only when a genuine human or vehicle is detected — no false alarms from animals or weather. Two-way audio via the built-in mic and speaker, MicroSD edge recording, IP67 weatherproofing and a wide −40 °C to +60 °C operating range round it out. Available in White (DH-IPC-HFW3549T1P-AS-PV-S3) and Black. Australian stock, 3-year Australian warranty.
Resolution
5MP · 2592 × 1944
Aperture & FOV
F1.0 · 98° H · 2.8 mm
Night Vision
40 m Warm Light · Full-Colour
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −40 °C to +60 °C
Power
PoE 802.3af · Max 8.8 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the 5MP Full-Colour Active Deterrence Bullet
This is the camera Australian installers reach for when the customer wants colour evidence around the clock — not monochrome IR — combined with the visible deterrence of red/blue strobe and audible warnings. The F1.0 large-aperture lens and 40 m warm-light LED illuminator together deliver true full-colour image even at very low ambient light, while the TiOC 2.0 active deterrence chain proactively warns intruders the moment AI confirms a person or vehicle inside the rule zone.
Full-Colour 24/7 — No Monochrome IR Fallback
Two warm-light LEDs reaching 40 m combine with a 1/2.7" Starlight CMOS sensor and an F1.0 large aperture to deliver clear colour image even at 0.003 lux. You see clothing colour, vehicle paint and hair colour at night — not just a grey IR silhouette.
F1.0 Large Aperture
The F1.0 aperture gathers significantly more light than a typical F1.6 lens — the single biggest factor behind the camera's true full-colour low-light performance.
Active Deterrence — Strobe + Siren + Voice
When SMD Plus confirms a human or vehicle, the camera flashes its red/blue strobe lights and sounds an alarm from the built-in speaker — choose from 11 pre-loaded voice alarms or upload custom audio for a site-specific message.
SMD Plus + IVS Perimeter Protection
WizSense AI classifies humans and vehicles on-camera and filters out animals, foliage and weather. IVS adds virtual tripwires and intrusion zones — only genuine threats trigger the deterrence chain.
120 dB True WDR
Real Wide Dynamic Range balances harsh contrast — sunset doorways, undercover carparks, mixed indoor/outdoor lighting. Highlights stay readable, shadows stay detailed.
Built Tough for Australia
IP67 ingress protection, metal-and-reinforced-plastic chassis, ±30% wide-voltage tolerance and a −40 °C to +60 °C operating range shrug off coastal salt, outback heat, Tasmanian frost and unstable rural mains.
Smart Features for Real-World Australian Sites
Two-Way Audio & Custom Voice
Built-in microphone and speaker support live two-way audio via DMSS or a Dahua NVR. The 11 pre-loaded voice messages plus uploadable custom audio let you record a site-specific warning in your own voice.
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
One-Tap Disarming
A single tap in the DMSS app disarms the deterrence chain — useful for parties, deliveries and after-hours visitors. Rearm with one button.
Smart H.265+ Compression
Dahua's Smart H.265+ scene-adaptive encoding reduces bandwidth and storage demand significantly versus standard H.264 — longer retention on the same NVR drive.
Triple Streaming · Full HD Sub-Stream
Three streams simultaneously — Main 5MP @ 20 fps (or 4MP @ 25/30 fps), Sub 704 × 576 and a Full HD 1920 × 1080 third stream — give flexibility for live view, mobile streaming and NVR recording.
External Audio & Alarm I/O
1 audio in / 1 audio out (RCA) plus 1 alarm in / 1 alarm out for connecting external mic, speaker, PIR or door contacts — extend the camera's role beyond stand-alone.
Pair with a Dahua WizSense AI NVR
The 3549T1P-AS-PV is a WizSense 3 Series TiOC 2.0 camera. SMD Plus, IVS rules, the active deterrence chain and human/vehicle classification all run on-camera and work with any Dahua AI NVR. This camera does not support AcuPick attribute search — that's reserved for the newer TiOC 3.0 line — but pairing with a Dahua AI NVR still unlocks smart event search and human/vehicle filtering across recorded footage.
DHI-NVR4108HS-8P-AI/ANZ — 8 Channel · 8 PoE
Value 4-Series WizSense AI NVR — 8 channels, 8 built-in PoE ports, perfect partner for a small-to-mid 3549 deployment. View NVR4108HS-8P →
DHI-NVR4216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 4-Series WizSense AI NVR — room to grow into 16 cameras at full PoE, with AI smart search and human/vehicle filtering on every channel. View NVR4216-16P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · Premium
Step up to the 5-Series for higher bandwidth, faster playback and the ability to add TiOC 3.0 AcuPick cameras to the system later. Fully backward-compatible with the 3549. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 4 HDD Bays
32-channel 1.5U NVR with 16 PoE and 4 HDD bays — for larger commercial sites, retail chains and multi-building campuses needing longer retention. View NVR5432-16P →
Need help sizing? Browse the complete Dahua NVR range → or contact our Australian team for a tailored recommendation.
Technical Specifications
DH-IPC-HFW3549T1P-AS-PV-S3 · Full Specifications
SKU
DH-IPC-HFW3549T1P-AS-PV-S3 (White) · DH-IPC-HFW3549T1P-AS-PV-S3 (Black variant available)
Camera Type
5MP Full-Colour Active Deterrence Fixed-Focal Bullet · WizSense 3 Series · TiOC 2.0
Image Sensor
1/2.7" Progressive Scan 5MP CMOS
Max Resolution
2592 × 1944 (5MP) @ 20 fps · 2688 × 1520 (4MP) @ 25/30 fps
Lens Type
Fixed-focal, 2.8 mm · M12 mount (3.6 mm and 6 mm options also available)
Maximum Aperture
F1.0
Field of View (2.8 mm)
H: 98° · V: 71° · D: 129°
DORI (2.8 mm)
Detect 67.4 m · Observe 27 m · Recognise 13.5 m · Identify 6.7 m
Min. Illumination
0.003 lux @ F1.0 · 0 lux (Illuminator on)
S/N Ratio
> 56 dB
Dynamic Range
120 dB True WDR
Day & Night
Colour / B&W
Illumination
2 × Warm-Light LED · Up to 40 m (no IR LED — full-colour camera)
Image Enhancement
WDR · 3D NR · HLC · BLC · Scene Self-Adaptation · Smart Illumination · Image Rotation · Digital watermarking
Active Deterrence
Red/blue strobe lights · Built-in siren · 11 pre-loaded voice alarms + custom voice import
Intelligent Video
SMD Plus · IVS (Tripwire, Intrusion · human/vehicle classification) · Intelligent Search
Video Compression
H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / Smart H.264+
Streaming
3 streams — Main 2592×1944 @ 20 fps · Sub 704×576 · Third 1920×1080
Video Bitrate
H.264: 32 kbps – 8,192 kbps · H.265: 12 kbps – 8,192 kbps
Audio
Built-in microphone + speaker · PCM / G.711a / G.711Mu / G.726 / AAC / G.723 compression
Audio I/O
1 audio in (RCA) · 1 audio out (RCA)
Alarm I/O
1 alarm in (5 mA, 3–5 V DC) · 1 alarm out (300 mA, 12 V DC)
IP Camera Protocol
ONVIF Profile S/G/T · CGI · Milestone · Genetec · P2P
Network Protocols
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · 802.1x
Ethernet
RJ-45 (10/100BASE-T)
Edge Storage
MicroSD up to 256 GB · NAS · FTP / SFTP · Dahua Cloud
Weatherproof Rating
IP67
Operating Temperature
−40 °C to +60 °C · < 95% RH
Power Source
12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage
Power Consumption
Basic 2 W (12 V DC) / 2.6 W (PoE) · Max 7.5 W (12 V DC) / 8.8 W (PoE)
Memory
ROM 128 MB · RAM 512 MB
Pan / Tilt / Rotation
Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360°
Mobile App
DMSS · Smart PSS · DSS (iOS & Android)
Approvals
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B
Housing
Metal + Plastic · White or Black
Dimensions
288.4 × 94.4 × 84.7 mm (L × W × H)
Weight
1.0 kg (net) · 1.23 kg (gross)
Warranty
3-Year Australian Warranty (back-to-base)
3549T1P (TiOC 2.0) vs 3849T1 (TiOC 3.0) — Which TiOC Bullet Should You Choose?
Both cameras are full-active-deterrence bullets in the same chassis with the same red/blue strobe, siren and voice-alarm chain. The deciding question is generation: do you need the latest AI engine and 4K resolution, or are 5MP, SMD Plus and full-colour night vision enough? The 3549T1P (TiOC 2.0) is the more affordable choice with full-colour warm-light illumination and proven WizSense AI. The 3849T1 (TiOC 3.0) adds 4K resolution, SMD 4.0, AcuPick AI compatibility, AI Coding, Smart Dual-Light (IR + warm) and a longer Identify range — at a higher price.
Dahua 3549T1P TiOC 2.0 (5MP) vs 3849T1 TiOC 3.0 (8MP) — Both Bullets
Feature
DH-IPC-HFW3549T1P-AS-PV-S3 (this 5MP TiOC 2.0)
DH-IPC-HFW3849T1-AS-PV-ANZ-S2 (8MP TiOC 3.0)
Series Position
TiOC 2.0 · WizSense 3 · Full-Colour
TiOC 3.0 · WizSense 3
Max Resolution
5MP · 2592 × 1944 @ 20 fps (4MP @ 25/30 fps)
8MP · 3840 × 2160 (4K) @ 25/30 fps
Image Sensor
1/2.7" CMOS
1/2.8" CMOS
Lens (fixed)
2.8 mm · M12
2.8 mm · M12
Maximum Aperture
F1.0
F1.0
FOV (2.8 mm)
98° H
106° H
DORI Identify
6.7 m
9.1 m
Night Vision
Warm light only · 40 m (full-colour, no IR)
IR 30 m + Warm light 30 m (Smart Dual-Light)
Active Deterrence
Yes — strobe + siren + 11 voice alarms + custom voice
Yes — strobe + siren + custom voice broadcast
Two-Way Audio
Yes — built-in MIC + speaker
Yes — dual MIC + speaker
SMD Version
SMD Plus
SMD 4.0 (improved accuracy, longer range)
AcuPick AI Search
No
Yes — with 5-Series NVR
AI Coding (AI H.265/H.264)
No — Smart H.265+ only
Yes — ≥25% extra efficiency
WDR
120 dB True WDR
120 dB True WDR
MicroSD
Up to 256 GB
Up to 256 GB
Power (Max PoE)
8.8 W
9.1 W
Ingress Protection
IP67
IP67
Operating Temperature
−40 °C to +60 °C
−40 °C to +60 °C
Dimensions
288.4 × 94.4 × 84.7 mm
288.4 × 94.4 × 84.7 mm
Net Weight
1.0 kg
1.0 kg
Colour Options
White & Black
White & Black
Australian Warranty
3 years back-to-base
3 years back-to-base
Best For
Value-focused TiOC installs where colour 24/7 matters more than 4K detail — residential frontages, shop entrances, tradie yards on a tighter budget.
Premium deterrence with 4K detail, longer DORI Identify range, AcuPick AI search and the latest WizSense AI features.
Compatible Mounts & Accessories
Dahua PFA130-E Waterproof Junction Box
Waterproof junction box for exposed outdoor bullet mounting on render, brick or weatherboard. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket — the typical install partner for bullet cameras on fence posts, light poles and gate columns. View product →
Dahua PFM900-E Integrated Mount Tester
On-site display + power-test tool for commissioning bullet cameras from the ladder. Saves the trip down to the laptop. View Dahua accessories →
Dahua PFM321D 12 V DC Power Adapter
1A power adapter for sites not running PoE — bench testing, retrofit installs into existing 12 V power runs. View Dahua accessories →
LR1002-1ET/1EC Ethernet-over-Coax Extender
Single-port long-reach EoC extender — repurpose existing coaxial cable runs to deliver Ethernet and PoE to this bullet camera. Useful in retrofit installs replacing analogue cameras. View Dahua accessories →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. Maxes out the 3549T1P's 256 GB MicroSD ceiling. View WD Purple 256 GB →
Frequently Asked Questions
What does "TiOC 2.0" mean and how is it different from TiOC 3.0?
TiOC = Three-in-One Camera: AI detection + visual deterrence (red/blue strobe) + audible deterrence (siren and voice) in a single unit. TiOC 2.0 uses SMD Plus AI and full-colour warm-light illumination. TiOC 3.0 (newer) upgrades to SMD 4.0, adds Smart Dual-Light (IR + warm), AI Coding and AcuPick compatibility. The 3549T1P is TiOC 2.0 — proven, full-colour, more affordable.
Why pick the 5MP full-colour camera over an IR camera?
Full-colour matters when you need to identify colour attributes at night — clothing, vehicle paint, hair colour, signage. IR cameras give you monochrome silhouettes; this full-colour camera gives you usable colour evidence around the clock. For situations where colour identification is critical (retail, forensic evidence, identifying intruders by their clothing), full-colour wins.
Does the camera have IR LEDs as backup?
No. The 3549T1P-AS-PV is a full-colour camera — its two on-board LEDs are warm-light only. At very low light, the camera relies on the F1.0 large aperture and Starlight sensor; when illumination is needed, the warm-light LED switches on. There's no IR fallback.
Will the warm-light LED disturb neighbours?
The warm-light LED switches on only when SMD Plus detects a real human or vehicle — not on every fox or possum. For residential sites near neighbours, this means the light only fires on genuine events. If you need pure silent IR monitoring, look at the 3866TP-ZAS-AUS IR bullet instead.
Does it support AcuPick AI search?
No. AcuPick is reserved for Dahua's newer TiOC 3.0 / AcuPick line-up. The 3549T1P uses SMD Plus and IVS, which work with any Dahua AI NVR for human/vehicle filtering and smart search.
Will the camera deter intruders automatically?
Yes. The TiOC active deterrence chain fires the instant SMD Plus confirms a human or vehicle inside the rule zone — strobe lights, siren and voice alarm all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What is the difference between the White and Black versions?
Specifications are identical. White and Black variants are available — choose Black for dark eaves, charcoal fascia and modern industrial aesthetics; White for traditional cream/render walls.
Why does it record at 20 fps and not 25/30 fps at full 5MP?
At full 5MP resolution (2592 × 1944), the camera records at 20 fps. If you need 25 or 30 fps, drop the resolution to 4MP (2688 × 1520) and the camera will deliver full motion. For surveillance applications, 20 fps at 5MP is more than sufficient — it's the typical trade-off across Dahua's 5MP line.
Can I speak through the camera?
Yes. The built-in microphone and speaker support two-way audio via the DMSS app or a compatible Dahua NVR — ideal for warning intruders, instructing couriers or speaking to family at the door.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 256 GB and records footage independently of the NVR.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −40 °C to +60 °C — covering every Australian climate from a Hobart winter to a Karratha summer. The metal-and-reinforced-plastic housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, SMD Plus AI and two-way audio require a Dahua NVR or DMSS to be configured and triggered correctly.
Downloads & Resources
DH-IPC-HFW3549T1P-AS-PV-S3 Datasheet
Dahua Bullet Quick Start Guide
Order the Dahua DH-IPC-HFW3549T1P-AS-PV-S3 from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua TiOC network cameras. Order the 5MP TiOC 2.0 full-colour active deterrence bullet today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
Uniarch 8MP Starlight Fixed Bullet Network Camera, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
DIRECT HDMI SPECIALIST MATRIX
Hikvision 8MP 4K Dome
Zero-Lag Visual Telemetry: 8MP 4K Autonomous Dome Camera with Hardware HDMI Output
The Hikvision DS-2CD2186G2-IMS HDMI Specialty Network Dome breaks completely away from traditional CCTV boundaries. Engineered with a dedicated, physical onboard HDMI output interface, this ultra-high-definition solution delivers an uncompressed, fluid 1080p live monitor stream at a blistering 60 frames per second directly to any digital panel, surgical display, or field monitor without an NVR. Designed for environments where visual lag is a critical failure point, this standalone powerhouse ensures absolute operational autonomy, zero network-induced latency, and critical visual precision exactly where milliseconds count.
Direct Live Interface
Type D HDMI Output Onboard
Live Monitoring Speed
Fluid 1080p @ 60fps High-Frame Rate
NVR Requirement
100% Standalone (Zero Network Needed)
Local Edge Archiving
MicroSD Slot Support up to 512GB
3-Year Local Warranty
Genuine Australian Stock
Dedicated HDMI Port Integration
Specialised Deployment Archetypes
Medical Operation Theatre Integration
In highly sensitive clinical environments, routing video streams through complex network switches can introduce data jitter, encoding lag, and catastrophic security vulnerabilities. The DS-2CD2186G2-IMS bypasses the network entirely. Surgeons and medical specialists can run a short HDMI connection from the camera base plate directly into surgical display monitors. This guarantees an uncompressed, zero-latency 60fps real-time visual grid of complex procedures, assisting remote teams and students with absolute optical precision in sterile conditions.
Precision Sport & Dirt Shooting Range Analysis
Standard IP network cameras frame and drop rapid motions like clay target impact vectors, bullet trajectories, or high-velocity action sports. By outputting raw, un-buffered 60Hz video data directly to an on-field panel via HDMI, range officers, coaches, and sports analysts get seamless, fluid frame-by-frame sports playback tracking. Spot dirt deviations, shooter posture micro-adjustments, and impact patterns instantly in real-time without logging into external networking devices.
Retail Loss Prevention & Public View Monitors
Major Australian supermarkets and high-theft retail spaces use this camera to mount straight to hanging monitors at the entry of high-value aisles (like cosmetics or liquor). Because it runs directly into the screen via HDMI without an intermediary NVR or PC client, shoplifters see themselves on screen with zero delay, acting as an immediate psychological deterrent that halts shrinkage in its tracks.
Industrial Automation & Assembly Line Inspections
In manufacturing and heavy processing facilities, plant supervisors rely on this camera to monitor high-speed automated machinery or robotic fabrication arms. When a mechanical jam or tool misalignment occurs, control room operators require an instant visual warning. Delayed standard security feeds fail here; the direct 60fps HDMI stream provides immediate, unbuffered mechanical oversight to prevent costly line stoppages.
Educational Casting & Trade Demonstration Workbenches
Perfect for TAFE colleges, culinary institutions, and specialized trade classrooms. Position the camera directly over a master workshop station (such as intricate electronic micro-soldering, culinary knife work, or precision mechanical fabrication). By piping the direct video feed straight into a lecture theater projector or interactive display panel via HDMI, hundreds of students can follow fine hand adjustments in real-time with flawless clarity.
Premium System Capabilities & Architecture
Autonomous MicroSD Edge RecordingEliminate the requirement for expensive central storage frames or server software. The camera features a built-in heavy-duty edge recording bay supporting up to a 512GB MicroSDXC card. Capture 8MP high-fidelity primary video logs onto the local media drive while concurrently pushing the unhindered 1080p zero-lag live feed out of the HDMI hardware port.
AcuSense 2.0 Precision Machine AnalyticsEven when running completely decoupled from an NVR ecosystem, the camera's internal deep-learning processor remains fully operational. Program automated boundary lines or intrusion definitions to trigger localized logic relays, capturing human and vehicle classifications while filtering away environmental noise anomalies seamlessly.
Acoustic Audio Integration BridgesThe interface deck features dedicated physical audio line-input and line-output blocks. This allows medical instructors to patch a professional lapel microphone system directly into the camera stream, or range officers to bridge field communications into standard recording tracks alongside the fluid live video pipeline.
IK10 Heavy-Duty Impact Shell ArmourPrecision sports fields and rapid medical rooms can be punishing environments. Outfitted with a professional-grade cast metal chassis paired with an impact-tested structural polycarbonate shell canopy shield, this unit carries a verified IK10 structural protection tier, absorbing up to 20 joules of direct physical impact without fracturing internal sensor alignments.
Crucial Architectural Implementation Parameters
Important Integration Parameters for System Engineers & InstallersBefore deploying the specialized DS-2CD2186G2-IMS camera matrix, please review the following technical realities to guarantee proper site design:
Dual-Resolution Pipeline: While the internal optics capture and process video in a rich 8MP 4K data layout for network recording and streaming, the physical HDMI hardware chip scales down the output to 1080p (Full HD) at 60fps/50fps or 720p. It does not output raw 4K over the HDMI port.
Interface Form Factor: The camera's direct video output terminal relies on a Micro-HDMI (Type D) female port nested on the camera tail connection bundle. We strongly recommend routing into a high-quality, strain-relieved Micro-HDMI to Standard HDMI patch cable adapter to protect structural ports during active installation arm movements.
Climate Capping: This unit is specialized for controlled medical sterile theaters and covered operational monitoring environments. It features a controlled operational temperature scale of -10 °C to 40 °C. It does not possess a full outdoor marine-grade liquid immersion seal and must be shielded from direct outdoor weather or rain exposure.
What's Included in This Specialty Standalone Pack
1 x Hikvision DS-2CD2186G2-IMS – 8MP Specialty HDMI Output Network Dome Camera
1 x Onboard Micro-HDMI (Type D Interface) Connection Assembly Tail
1 x Direct Two-Core Terminal Block Set for Audio & External Alarm Linkages
1 x Heavy Duty Surface Mounting Bracket Matrix & Structural Wall Anchor Kit
1 x Factory Installation Drill Geometry Target Template & System Configuration Manual
Specialty Camera Technical Specifications
Optical Matrix Sensor
8 Megapixel (3840 x 2160) 1/1.8" Progressive Scan CMOS Layout
Direct Physical Video Output
1 x Onboard HDMI Type D Female Port Interface | Support HDMI Version 1.4
HDMI Output Resolution Profiles
1080p @ 60fps/50fps/30fps/25fps | 720p @ 60fps/50fps
Network Stream Capacities
Triple-Stream Configuration Capable up to 8MP 4K Raw Network Data Pipes
Dynamic Range Management
True Hardware 120dB Wide Dynamic Range (WDR) Matrix Processor
Edge Storage Capacity
Built-In MicroSD/SDHC/SDXC Media Allocation Slot Supporting up to 512GB
Audio Interface Blocks
1 x Line In (Two-core terminal block) | 1 x Line Out (Two-core terminal block)
Power Supply Requirements
12 VDC ± 25% (Reverse polarity protected) OR PoE System Feed (IEEE 802.3af, Class 3)
Armor Classification Tiers
IK10 Structural Impact Shield Vandal Certification Profile
Frequently Asked Questions
Do I need a network switch, router, or NVR to view the live video feed?No. For basic live field monitoring, this camera can function completely disconnected from any data network. You simply plug a 12V power supply into the power lead and run an HDMI line from the camera's output port straight to your screen. The live feed will broadcast instantly, making it perfect for temporary field setups or isolated operational environments.
Why does the camera claim 8MP resolution but the HDMI output tops out at 1080p?The system split-processes its data pipelines. The high-end 8MP sensor captures high-density 4K images to save onto internal MicroSD storage cards or stream over network lines. However, to achieve a zero-lag, ultra-fluid 60Hz live broadcast speed that standard TV panels can read without delays, the video conversion chip converts the HDMI line signal to high-speed 1080p Full-HD.
How does zero-lag live monitoring benefit a medical operating room compared to a standard IP camera?Standard IP security cameras encode video and route it through a network to a PC or NVR, which decodes it onto a screen—introducing a lag of 0.5 to 2 seconds. In surgical procedures, that delay is unusable. The DS-2CD2186G2-IMS bypasses all digital encoding layers to display real-time physical video instantly, allowing medical professionals to monitor exact mechanical adjustments with zero tracking error.
Can I run a long HDMI cable from a sport clay shooting range trench back into a spectator booth?Standard HDMI signals suffer from severe signal degradation over long physical runs (usually losing stability after 5 to 10 metres). If you are deploying this camera at a distance, such as out on a sports shooting range trap house, we strongly recommend running the camera output into a high-quality HDMI-Over-Cat6 Extender kit or Active Optical HDMI Cable (AOC) to safely extend your zero-latency 60fps signal up to 50 metres away cleanly.
Does the camera require internet to manage configurations, adjust focus, or view playback?No internet connectivity is required. Initial setup parameters (such as fine-tuning image sharpness, brightness, or mapping local privacy blocks) can be adjusted by plugging a temporary laptop network patch cable into the camera's RJ45 Ethernet port and accessing the internal configuration dashboard via a standard web browser like Chrome or Safari. Once your image profiles are saved, the computer can be unplugged and the camera will run independently on its internal firmware forever.
Hikvision 8MP 4K · AcuSense · Mini Dome · IK08
Hikvision 8MP 4K AcuSense Dome
Hikvision DS-2CD2586G2-IS 8MP 4K AcuSense Mini Dome Camera — 30m IR, 120dB WDR, Audio/Alarm, IP67/IK08
The Hikvision DS-2CD2586G2-IS is an 8 MP / 4K AcuSense mini dome delivering high-resolution imaging with deep-learning AI in a discreet, vandal-resistant body. Powered-by-DarkFighter technology excels in low light, while 120 dB WDR keeps detail clear against strong backlight. AcuSense focuses on human and vehicle classification to cut false alarms, IR reaches up to 30 m, and efficient H.265+ compression saves storage. The -S suffix adds an audio and alarm interface, and the housing is IP67 water- and dust-resistant and IK08 vandal-resistant. Fixed 2.8 mm lens. Australian stock, 3-Year Australian warranty.
Resolution
8 MP · 3840 × 2160 (4K)
Low Light
Powered-by-DarkFighter
Night Vision
Up to 30 m IR
AI Engine
AcuSense · Human + Vehicle
Dynamic Range
120 dB WDR
Protection
IP67 · IK08 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
8 MP 4K Ultra HD
3840 × 2160 resolution captures fine detail with far more clarity than standard 1080p or 4 MP cameras.
AcuSense Human / Vehicle AI
Deep-learning classification focuses on people and vehicles, filtering out leaves, animals and rain to slash false alarms.
120 dB WDR
Wide dynamic range balances bright and dark areas in the same frame for clear images against strong backlight.
Powered-by-DarkFighter
Excellent low-light sensitivity produces usable images in dim conditions, backed by up to 30 m of IR for full darkness.
Why Choose the DS-2CD2586G2-IS
Audio & Alarm Interface
The -S suffix adds an audio and alarm interface for connecting external microphones, speakers and alarm devices.
Vandal-Resistant Dome
The IK08-rated dome housing resists tampering and impact for public-facing and lower-mounted positions.
Discreet Form Factor
The low-profile mini-dome shape blends into ceilings and eaves where a bullet would stand out.
Efficient H.265+ Storage
Advanced compression dramatically reduces storage and bandwidth without losing image quality.
Recommended For
Retail & Shopfronts
Discreet overhead coverage of entries, aisles and counters.
Offices & Reception
Low-profile dome for indoor 4K monitoring with AcuSense filtering.
Public-Facing Areas
IK08 vandal resistance for lobbies, corridors and entries.
Homes
Tidy ceiling- or eave-mounted 4K coverage for residential use.
Technical Specifications
DS-2CD2586G2-IS · Full Specifications
SKU
DS-2CD2586G2-IS
Camera Type
Hikvision 8 MP AcuSense Fixed Mini Dome Network Camera
Max Resolution
3840 × 2160 (8 MP / 4K)
Lens
2.8 mm fixed
Low Light
Powered-by-DarkFighter
IR Range
Up to 30 m
Wide Dynamic Range
120 dB WDR
AI Engine
AcuSense — human + vehicle classification
Audio / Alarm
Audio and alarm interface available (-S)
Video Compression
H.265+ / H.265 / H.264+ / H.264
On-Board Storage
microSD card slot
Power
PoE · 12 VDC
Weatherproof Rating
IP67
Impact Rating
IK08 vandal-resistant
Warranty
3-Year Australian Warranty
Frequently Asked Questions
Does it support audio?Yes — the "-S" version provides an audio and alarm interface for connecting external microphones, speakers and alarm devices.
How does AcuSense reduce false alarms?AcuSense uses deep learning to classify motion as human, vehicle or other — only human and vehicle events trigger alerts.
How far does it see at night?Up to 30 m of IR, backed by powered-by-DarkFighter low-light sensitivity.
How rugged is it?The housing is IP67 weatherproof and IK08 vandal-resistant, suiting both indoor and exposed outdoor positions.
Downloads & Resources
DS-2CD2586G2-IS Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
CCTV Guru is an authorised Australian reseller of Hikvision AcuSense cameras. Order the DS-2CD2586G2-IS 8 MP / 4K mini dome for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
8MP Panoramic · 180° View · ColorVu 3.0 · Live-Guard
Hikvision 8MP Panoramic Turret
See the full width of the scene from one camera position
The Hikvision DS-2CD2387G3P-LIS2UY/SL is an 8MP panoramic turret camera designed for wide areas where a normal fixed camera leaves blind spots. Its ultra-wide optical system produces a single 180°-class panoramic image, making it well suited to building fronts, broad driveways, loading docks, forecourts, shopfronts and open indoor spaces.
ColorVu 3.0, HikAI-ISP processing and Smart Hybrid Light provide flexible low-light imaging, while AcuSense person and vehicle classification, a white strobe, audible warnings and two-way audio add active deterrence. Choose white or black to suit the installation.
Resolution
8MP · 4256 × 1888
Panoramic View
Approx. 180° horizontal
Night Lighting
IR + white light · 30m
Audio
Arrayed dual mic + speaker
Local Storage
MicroSD up to 512GB
Protection
IP67 · NEMA 4X
Australian Stock
3-Year Australian Warranty
Local Technical Support
Why choose a panoramic camera?
One camera, much wider coverage
A conventional 2.8mm turret typically covers a little over 100° horizontally. This model covers approximately 180°, helping reduce blind spots across wide, shallow scenes.
Detailed panoramic video
The 4256 × 1888 image preserves 8MP of detail across the broad scene. It records at up to 20 fps at maximum resolution.
Flexible night-time operation
Choose discreet infrared, visible white light for colour imaging, or Smart mode that can switch lighting when a configured person or vehicle event occurs.
Active deterrence
A white strobe and configurable audible warning can respond to supported smart events, helping discourage an intruder before an incident develops.
Clear two-way audio
Arrayed dual microphones capture clearer sound, while the built-in speaker supports talk-down and live communication through compatible Hikvision software or recorder workflows.
Smarter alerts
Deep-learning classification can distinguish people and vehicles for supported events, helping reduce notifications caused by irrelevant movement.
White or black?
Option
Store SKU
Best suited to
White
DS-2CD2387G3P-LIS2UY/SL
Light soffits, ceilings and rendered façades
Black
DS-2CD2387G3P-LIS2UY/SL-BLK
Dark cladding, commercial interiors and discreet black installations
Both colour options use the same 180° panoramic optical system and core specifications.
Is 180° coverage right for your site?
Ideal: wide façades, loading docks, courtyards, shopfronts, forecourts and broad entrances.
Less suitable: long, narrow driveways or distant identification points where a narrower lens places more pixels on the target.
Published DORI planning figures: detect 62m, observe 24m, recognise 12m and identify 6m.
Panoramic edge detail and object shape naturally differ from a conventional narrow camera. Mounting position and height are especially important.
Smart Hybrid Light in action
This official Hikvision overview explains how ColorVu 3.0 and Smart Hybrid Light adapt to changing night-time conditions.
Hikvision ColorVu 3.0 technology overview
Key technical specifications
DS-2CD2387G3P-LIS2UY/SL
Camera type
8MP panoramic ColorVu fixed turret network camera
Image sensor
1/2.5-inch progressive-scan CMOS
Maximum resolution
4256 × 1888
Maximum frame rate
Up to 20 fps at maximum resolution
Lens
Fixed panoramic optical system · F1.0
Field of view
Horizontal 182.6° · vertical 74.6°
Minimum illumination
Colour: 0.0005 lux @ F1.0, AGC on · 0 lux with supplementary light
Supplementary light
850nm IR and white light · up to 30m · infrared, white-light and Smart Hybrid Light modes
Wide dynamic range
130 dB WDR
Video compression
H.265+, H.265, H.264+ and H.264
Analytics
Person and vehicle classification for supported smart events
Active deterrence
White strobe light and configurable audio alarm
Audio
Arrayed dual microphones, built-in speaker, audio input and output
Alarm I/O
1 input · 1 output
Local storage
MicroSD/microSDHC/microSDXC up to 512GB
Network
1 × RJ45 10/100Mbps Ethernet
Power
12V DC or IEEE 802.3at PoE+
Protection
IP67 weather resistance · NEMA 4X anti-corrosion design
Operating temperature
−30°C to 60°C
Dimensions
Approximately Ø138.6 × 125mm
Weight
Approximately 840g
Warranty
36-month Australian back-to-base warranty
Compatibility and installation notes
Confirm the recorder supports the camera’s 4256 × 1888 panoramic stream, required bandwidth, H.265/H.265+ and smart features.
Use an IEEE 802.3at PoE+ port with sufficient available budget, or a correctly rated 12V DC supply. A power supply is not included unless stated.
For best panoramic stitching, keep nearby walls, posts and roof edges from blocking either side of the view.
Two-way audio, smart-event linkage and active deterrence depend on compatible recorder/client software and correct configuration.
This listing is the /SL white-strobe version, not the separate /SRB red-and-blue-strobe variant.
Recommended add-ons
Compatible Hikvision NVR
Choose an NVR that accepts the panoramic resolution and has adequate incoming bandwidth, recording capacity and PoE+ power.
View the DS-7608NI-M2/8P
Smart PoE switch
The Hikvision DS-3E1105P-EI is a compact option for a small network deployment. Confirm its power budget against all connected devices.
View the DS-3E1105P-EI
CAT6 cabling
Use quality full-copper CAT6 cable and weather-protected terminations for reliable PoE and data.
Browse Ethernet cables
UPS protection
A correctly sized UPS can keep the NVR, PoE switch and network equipment operating through short power interruptions.
View Hikvision UPS options
Found It Cheaper?
We’ll beat an eligible Australian competitor’s advertised price by 5%.
Send us the current in-stock Australian listing for the same genuine model, colour and configuration. Price Beat is subject to verification and our standard terms.
Chat with us for a Price Beat
Frequently asked questions
Is this a true 180° panoramic camera?Yes. It produces a single 4256 × 1888 panoramic image with a published horizontal field of view of 182.6°.
Is it better than using two normal cameras?It can be more efficient for a wide, shallow scene because it reduces the gap between views and uses one network connection. Two conventional cameras may still be better when you need independent angles or more pixels on distant targets.
Does it show colour at night?It can use white light for colour imaging. Infrared mode produces monochrome video, while Smart mode can change lighting for a configured event.
Can I talk through the camera?Yes. It has arrayed dual microphones and a built-in speaker. Compatible software or recorder support and correct configuration are required.
Can it record without an NVR?Yes. It supports a microSD card up to 512GB. An NVR is recommended for longer retention, centralised playback and multi-camera systems.
Will any PoE NVR power it?No. Confirm an IEEE 802.3at PoE+ port, sufficient power budget and support for the panoramic resolution and features.
Is the black camera technically different?No. The black and white variants share the same main optical, imaging, audio and weather-protection specifications.
Is this the red-and-blue strobe version?No. This is the /SL model with white strobe lighting. The /SRB version is a separate model family.
Downloads & resources
Official Australian datasheet
Quick start guide
Current user manual
Dimensions diagram
Firmware V5.8.110 build 260605
The datasheet, quick start guide, user manual and dimensions diagram are copied from the official Hikvision Australia product page and hosted in Shopify Files. The firmware button opens Hikvision Australia’s protected download directly. Before updating firmware, confirm the camera label shows DS-2CD2387G3P-LIS2UY/SL, retain a configuration backup and keep power connected throughout the update. The /SL and /SRB deterrence-light variants are not interchangeable names.
WizSense PTZ · 4 MP · 4× Optical Zoom · Mini PTZ
WizSense PTZ
Dahua DH-SD1A404DB-GNY — 4 MP Mini PTZ Network Camera with 4× Optical Zoom WizSense (1-Series)
The Dahua DH-SD1A404DB-GNY is a compact 4 MP WizSense Mini PTZ network camera that brings true pan-tilt-zoom coverage to sites that previously made do with fixed-lens domes. A 1/2.8" Starlight progressive-scan CMOS sensor delivers crisp 2560 × 1440 footage at 25/30 fps, paired with a motorised 2.8–12 mm vari-focal lens offering 4× optical zoom and a flexible 105° wide to 31° tele field of view. Smart IR reaches up to 20 m for total-darkness scenes, while 120 dB true WDR balances headlight glare and shaded corners. The IP66 / IK08 housing is built for Australian conditions — coastal salt spray, inland heat and tropical humidity included — and the camera draws under 12 W over a single 802.3af PoE cable. PTZ smarts include 300 presets, 8 tours, auto-tracking, SMD 4.0 human/vehicle filtering and IVS tripwire/intrusion. ONVIF Profile S/G/T, H.265+, two-way audio, alarm I/O and a 256 GB microSD slot round out the spec. Built for Australian retail forecourts, council carparks, regional petrol stations, warehouse yards and body-corporate buildings, every unit ships with a 3-Year AU Warranty backed by CCTV Guru.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua SD1A404DB-GNY Mini PTZ
Compact PTZ Form Factor
Mini speed-dome footprint slips under eaves, awnings and low-soffit installs where a full-size PTZ won't fit — ideal for shopfronts, ATM bays and tight carpark corners.
4× Optical Zoom 2.8–12 mm
Motorised vari-focal lens pulls in number plates, faces and signage detail without the pixel-mush of digital zoom — 105° wide at 2.8 mm, 31° tele at 12 mm.
Starlight Low-Light Performance
1/2.8" Starlight CMOS keeps colour usable deep into dusk; smart IR fills the rest out to 20 m without bleaching nearby subjects.
IP66 / IK08 Rugged Build
Sealed metal-and-polycarbonate housing shrugs off rain, dust and impacts — rated for −30°C to +60°C ambient, suiting both alpine NSW and tropical FNQ sites.
802.3af PoE Single-Cable Install
Standard 802.3af PoE budget (~12 W) means it runs off any mainstream PoE switch or NVR PoE port — no PoE+ injectors or 24 V DC supplies required.
SMD 4.0 False-Alarm Filter
SMD 4.0 only triggers on humans and vehicles, slashing the wind-and-shadow alarms that plague basic motion detection on outdoor PTZs.
Important Install Note
The SD1A404DB-GNY draws around 12 W and runs on standard 802.3af PoE — any modern Dahua NVR PoE port, UniFi/TP-Link switch or stand-alone injector will power it. Keep Cat6 runs within the 100 m Ethernet limit; for longer hauls use a PoE extender or fibre media converter. Pendant and wall-bracket adapters are available for soffit, parapet or pole installs — specify the bracket at order time. For coastal AU installs (within ~5 km of saltwater), pair the camera with a rated surge protector on the Ethernet line and earth the bracket to the building's ground bus to maintain the 3-Year AU Warranty under storm conditions.
AI & Smart Detection
Auto-Tracking
When a tripwire or intrusion event triggers, the PTZ automatically pans, tilts and zooms to follow the target — then returns to its home preset once the subject leaves frame.
SMD 4.0 (Smart Motion Detection)
On-camera AI classifies humans vs vehicles before raising an event, eliminating the rubbish-bin, foliage and rain triggers that swamp basic VMD.
IVS Tripwire & Intrusion
Draw virtual lines or zones over the scene — the camera reports crossings or loitering with bounding boxes overlaid in DMSS and on the NVR timeline.
300 Presets & 8 Tours
Program up to 300 named preset positions and chain them into 8 patrol tours — ideal for cycling between a forecourt entry, pump bay, ATM and exit.
Privacy Masking
Up to 24 configurable privacy zones blank out neighbouring windows, public footpaths or staff-only areas to meet Australian Privacy Principle obligations.
ONVIF Integration
ONVIF Profile S/G/T compliance lets the camera record into Hikvision, UniFi Protect, Milestone, Blue Iris and other third-party VMS with PTZ control intact.
Technical Specifications
Camera, Lens & Illumination
Model
DH-SD1A404DB-GNY
Form Factor
Mini PTZ Dome
Image Sensor
1/2.8" Progressive Scan CMOS (Starlight)
Max Resolution
4 MP (2560 × 1440)
Frame Rate
25/30 fps @ 4 MP
WDR
120 dB True WDR
Day/Night
ICR Auto Switch
Lens Type
Motorised Vari-focal, 4× Optical Zoom
Focal Length
2.8 mm – 12 mm
Field of View
H: 105° (Wide) – 31° (Tele)
IR Distance
Up to 20 m
Intelligence, Audio & Network
AI Engine
WizSense
IVS
Tripwire, Intrusion
SMD
SMD 4.0 (Human & Vehicle)
Auto Tracking
Yes
Presets / Tours
300 Presets / 8 Tours
Audio I/O
1/1 (Line In/Out)
Alarm I/O
1/1
Network
RJ-45 10/100 Mbps
ONVIF
Profile S/G/T
Storage
microSD up to 256 GB
App
DMSS (iOS & Android)
Power, Environment & Build
Power
PoE (802.3af) / 12 V DC, ~12 W
Operating Temp
−30°C to +60°C
Protection
IP66 / IK08
Casing
Metal + Polycarbonate Dome
Warranty
3-Year AU Warranty (CCTV Guru)
Recommended NVR Pairings
Dahua DHI-NVR5208-8P-AI/ANZ
8-channel WizSense AI NVR with 8 PoE ports — ideal for a single SD1A404DB-GNY plus fixed cameras across one site.
View DHI-NVR5208-8P-AI/ANZ →
Dahua DHI-NVR5216-16P-AI/ANZ
16-channel 16-PoE WizSense AI NVR for mid-size yards or multi-PTZ deployments.
View DHI-NVR5216-16P-AI/ANZ →
Dahua DHI-NVR4216-16P-AI/ANZ
4K 16-channel 16-PoE smart AI NVR — cost-effective recorder for SMB sites.
View DHI-NVR4216-16P-AI/ANZ →
Dahua DHI-NVR5432-AI/ANZ
32-channel WizSense AI NVR (no built-in PoE) for large campuses with separate PoE switches.
View DHI-NVR5432-AI/ANZ →
Frequently Asked Questions
What's the difference between the 4× optical zoom and digital zoom?
Optical zoom physically moves lens elements (2.8–12 mm) so every pixel of the 4 MP sensor is used at any focal length — detail stays sharp. Digital zoom just crops and upscales the existing image, so the picture softens. Always use the 4× optical first and reserve digital zoom for emergencies.
What PoE budget does it need?
Around 12 W — well within the 15.4 W of standard 802.3af. Any Dahua NVR PoE port, UniFi/TP-Link/Cisco switch or 802.3af injector will run it. PoE+ (802.3at) is not required.
How does auto-tracking behave?
When an IVS tripwire or intrusion event fires, the camera pans/tilts/zooms to keep the subject in frame. Once the subject leaves the scene or the tracking timeout expires, the PTZ automatically returns to its home preset and resumes any active tour.
Can it record to a microSD card?
Yes — the camera takes a single microSD up to 256 GB for edge recording. Use a high-endurance surveillance-rated card (e.g. Dahua S100, WD Purple, Samsung PRO Endurance) for 24/7 reliability.
Can it run stand-alone without an NVR?
Yes. With a microSD card fitted and DMSS configured for P2P, you can view live, get push alerts and review event clips entirely from the app. For 24/7 continuous recording across multiple cameras, an NVR is strongly recommended.
Will it work with non-Dahua NVRs?
Yes — ONVIF Profile S/G/T compliance covers video streaming, PTZ control and edge storage playback in Hikvision, UniFi Protect, Milestone, Blue Iris and most other VMS platforms. WizSense AI events are only forwarded natively to Dahua recorders, however.
Indoor or outdoor?
Both. IP66 / IK08 ratings cover outdoor exposure (rain, dust, vandalism) and the −30°C to +60°C operating range comfortably handles AU climates from Hobart to Darwin.
What's in the box?
Camera, mounting screws/anchors, waterproof RJ-45 boot, hex key, quick start guide. Pendant, wall and pole bracket adapters are sold separately — let our team know your install type at order time.
What are the warranty terms?
3-Year AU Warranty through CCTV Guru, covering manufacturing defects on locally-stocked product. Storm, surge, lightning and physical-damage events are excluded — pair coastal installs with surge protection to keep coverage intact.
Downloads
Datasheet (PDF)
Quick Start Guide
Installation Guide
Install Manual
Order Your Dahua SD1A404DB-GNY from CCTV Guru
Ready to deploy a compact WizSense PTZ on your forecourt, carpark or yard? The Dahua DH-SD1A404DB-GNY ships from Australian stock with a 3-Year AU Warranty, free local tech support and same-business-day dispatch on orders placed before 2 pm AEST. Need bracket advice, an NVR-and-camera quote or trade pricing? Talk to the CCTV Guru team and we'll spec the right combination for your site.
NDAA Compliant • 2MP AI BulletAXIS 2MP IR BulletAXIS P1465-LE 02339-001 9mm Wide-Angle Bullet — Australian Stock & 5-Year Warranty
The AXIS P1465-LE 9mm (02339-001) is a fully featured, all-around 2MP outdoor bullet camera built on the ARTPEC-8 system-on-chip with a dedicated deep learning processing unit (DLPU). Its 3–9mm wide varifocal lens delivers a broad 117° field of view, making it ideal for wide-area surveillance of car parks, yards, forecourts and building perimeters. With Lightfinder 2.0, Forensic WDR and OptimizedIR to 40m, it captures sharp, usable images day or night, while edge-based AXIS Object Analytics classifies humans and vehicles on the camera for fewer false alarms. NDAA 889 and TAA compliant.
Resolution
1080p @ 60fps
Lens
3–9mm Wide
Night Vision
OptimizedIR 40m
Intelligence
DLPU AI Edge
Why Choose the P1465-LE 9mm
The wide 3–9mm lens and on-board deep learning make this Axis bullet a dependable choice where you need broad coverage plus accurate, actionable detection.
Lightfinder 2.0 & Forensic WDR
Captures full-colour detail in near darkness and balances harsh backlight with Forensic WDR up to 120 dB, keeping faces and number plates usable in difficult light.
Edge Deep Learning Analytics
The ARTPEC-8 DLPU runs AXIS Object Analytics on the camera, detecting and classifying humans and vehicle types (cars, buses, trucks, bikes) for reliable, low-false-alarm alerts.
OptimizedIR to 40m
Power-efficient 850nm IR LEDs with adaptive illumination provide even, glare-free night vision reaching 40m or more, at 0 lux with IR on.
Rugged All-Weather Build
IP66/IP67, NEMA 4X and IK10-rated casing operates from -40°C to 60°C and withstands winds up to 50 m/s for demanding outdoor sites.
Technical Specifications
Imaging
Part Number
02339-001
Resolution
1920 x 1080 (2MP)
Image Sensor
1/2.8″ progressive scan RGB CMOS, 2.9 µm pixel
Frame Rate
Up to 50/60 fps (No WDR); up to 25/30 fps (Forensic WDR)
WDR
Forensic WDR up to 120 dB
Low Light
Lightfinder 2.0; 0.06 lux colour, 0.01 lux B/W; 0 lux with IR
Lens & Night Vision
Lens
Varifocal 3–9mm, F1.6–3.3, remote focus & zoom, P-Iris, IR corrected
Field of View
Horizontal 117°–37°, Vertical 59°–20°
IR Illumination
OptimizedIR, 850nm, range 40m (131 ft) or more
Intelligence & Video
SoC
ARTPEC-8 with deep learning processing unit (DLPU)
Analytics
AXIS Object Analytics, AXIS Scene Metadata, AXIS Image Health Analytics, AXIS Video Motion Detection
Compression
H.264, H.265 (Axis Zipstream), Motion JPEG
Connectivity & Power
Network
Shielded RJ45 10/100/1000BASE-T
Audio
3.5mm mic/line in
I/O
1 alarm input, 1 output (terminal block)
Power
PoE IEEE 802.3af/at Type 1 Class 3; typ. 7.9 W, max 12.95 W; or 10–28 V DC
Storage
microSD/microSDHC/microSDXC; NAS recording
ONVIF
Profile G, M, S, T
Build & Environment
Ratings
IP66/IP67, NEMA 4X, IK10
Operating Temp
-40 °C to 60 °C
Dimensions
Ø132 x 132 x 280 mm
Weight
1.2 kg (with weather shield)
Compliance
NDAA 889 & TAA compliant
Downloads
AXIS P1465-LE DatasheetAxis Bullet Camera Quick Start GuideAxis Bullet Camera User Manual
Frequently Asked Questions
What is the difference between the 9mm and 29mm P1465-LE?The 9mm (02339-001) uses a wide 3–9mm lens with a 117° field of view for broad area coverage. The 29mm (02340-001) uses a 10.9–29mm tele lens for long-range surveillance of distant subjects.
What resolution and frame rate does it deliver?It records 1920 x 1080 (2MP) at up to 50/60 fps without WDR, or up to 25/30 fps with Forensic WDR engaged.
How far does the night vision reach?OptimizedIR with 850nm LEDs reaches 40m (131 ft) or more depending on the scene, and the camera sees at 0 lux with IR illumination on.
Does it have onboard AI analytics?Yes. The ARTPEC-8 DLPU runs AXIS Object Analytics on the edge, detecting and classifying humans and vehicle types for accurate, low-false-alarm alerts.
Is the P1465-LE NDAA compliant?Yes. Axis cameras are NDAA Section 889 compliant, and the P1465-LE is also TAA compliant per the Axis datasheet.
What power does it need?It runs on PoE IEEE 802.3af/at Type 1 Class 3 (typ. 7.9 W, max 12.95 W) or 10–28 V DC input.
Is it weatherproof enough for harsh sites?Yes. It is IP66/IP67, NEMA 4X and IK10-rated, operates from -40°C to 60°C and withstands winds up to 50 m/s.
Does it support audio and external storage?It has a 3.5mm mic/line input, one alarm input and output, plus microSD/SDHC/SDXC card recording and NAS support.
Is it ONVIF compatible?Yes. It supports ONVIF Profile G, M, S and T for integration with most major VMS platforms.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
COLORVU 3.0 PRO SERIES
Hikvision 8MP ColorVu Dome
Vandals Don't Stand a Chance: Elite 4K Night Imaging in a Ruggedized Canopy
The Hikvision DS-2CD2187G3-LIS2UY Pro Series EasyIP represents the absolute flagship tier of standalone 4K structural surveillance, meticulously engineered for high-exposure Australian commercial fronts, luxury residences, and public spaces requiring architectural subtlety. Combining an ultra-clear, true 8MP resolution matrix with an IK10 vandal-resistant mechanical canopy, this low-profile dome architecture utilizes an oversized 1/1.8" progressive scan sensor and advanced HikAI-ISP processing. This unique ecosystem extracts vivid, courtroom-ready colour data across complex lighting frames, uses deep-learning AcuSense AI analytics to filter false motions, and encapsulates a heavy-duty physical barrier where security threats are most immediate.
Resolution Matrix
8MP 4K Ultra-HD (3840×2160)
Night Vision Engine
24/7 Vivid ColorVu 3.0
Audio Array
Dual-Mic Two-Way Audio
Impact Structural Armor
IK10 Vandal-Proof Base
3-Year Local Warranty
Genuine Australian Stock
Plugin-Free Web Access
See It In Action
Flagship 4K Engineering: High Resolution Meets Vandal Armour
True 130dB WDR Forensic Overhaul
Standard security cameras quickly become blindingly useless when tasked with processing strong backlighting, such as floor-to-ceiling glass entrance doors, reflective concrete pathways, or intense afternoon Australian sun glare. The Hikvision DS-2CD2187G3-LIS2UY answers this with an onboard hardware-driven 130dB Wide Dynamic Range system. By firing multiple specialized digital short and long-exposure frames at identical times, its core chip stitches light arrays cleanly together. This provides crisp, recognizable human faces and readable number plates even when aiming straight into harsh ambient glare environments.
Advanced Core Capabilities
IK10 Vandal-Proof Armor Canopy
Built for sites prone to tampering or physical interference. Encased in a ruggedized all-metal configuration paired with a specialized impact-absorbing polycarbonate dome, this setup carries a strict IK10 rating—capable of absorbing a direct 20-joule kinetic impact weapon blow without losing structural feed integrity.
AcuSense 3.0 Deep Learning Analytics
Stop wasting precious emergency response windows chasing false movement triggers. The integrated AcuSense deep-learning layer extracts distinct structural data nodes directly from moving vectors, categorizing human silhouettes and vehicle profiles while automatically throwing out false alerts from heavy wind, rain, shadows, or animals.
Smart Hybrid Adaptive Light Path
Tailor your lighting profile with three intelligent choices: covert zero-glow Infrared (IR) Mode, fixed continuous Warm Colour Light Mode, or automated Smart Hybrid Light Mode. In Hybrid Mode, the camera captures scenes via invisible IR until a verified human target breaks a boundary box, dropping a targeted light beam to secure colour face captures.
High-Fidelity Bidirectional Voice Intercept
Features built-in dual acoustics and advanced environmental noise cancelation. Capture clear spatial sound patterns up to 8 metres away or utilize the bidirectional audio stream to talk back to couriers, property visitors, or actively warn off trespassers right from the intuitive Hik-Connect smart app interface.
Strategic Network Integration
H.265+ Compression Optimization
Streaming true 8MP 4K resolution can choke standard networks and exhaust hard disk storage instantly. Hikvision's optimized H.265+ algorithm resolves this by evaluating static scene elements against moving target profiles, stripping back background metadata bloat to lower network drive footprints by up to 75%.
Plugin-Free Multi-Browser Architecture
No old-world desktop browser add-on patches required. The modernized hardware firmware profile includes full HTML5 structure coding natively out of the box. This provides clean, instantaneous, lag-free control streams over local networks inside Google Chrome, Safari, Edge, Firefox, and major operating systems.
What's Included in the Box
1 x Hikvision DS-2CD2187G3-LIS2UY – 8MP ColorVu 3.0 Smart Hybrid Light Vandal Dome Camera
1 x Weatherproof RJ45 Network Cable Interface Gland Set
1 x Structural Surface Screws, Wall Anchors & Drill Target Sheet
1 x Local Factory Quick Start Operational Configuration Guide
Technical Specifications
Max Resolution Architecture
8MP (3840 × 2160) Ultra-HD 4K | 1/1.8" Progressive Scan CMOS Core
Optics & Horizontal View
2.8mm Fixed Focal Array | Sweeping 108° Ultra-Wide Horizon Field
Ultra Low-Light Performance
ColorVu 3.0 Platform | 0.0005 Lux @ (F1.0, AGC ON) Forensic Colour Sensitivity
Dynamic Illumination Range
Smart Hybrid Illumination Modes (IR + Warm Light) | Extended Reach Up to 40m
Structural Impact Rating
IK10 Vandal-Proof Protection | IP67 Dust & Submersion Weather Shield
Audio Interface Controls
Dual Built-in Microphones | Bi-directional Full Duplex Audio Channels
Local Memory Interface
Integrated Slot Array Supporting microSD / SDHC / SDXC cards up to 512GB
Frequently Asked Questions
What is the benefit of an IK10 vandal-proof dome design compared to a standard turret?
A turret design features an exposed camera lens ball that can be manually knocked away, covered with clothing, or forcefully pushed down using simple tools. An IK10 vandal-proof dome encapsulates the entire lens tracking mechanism under a high-tensile metal ring and a shatter-resistant polycarbonate dome shield. This configuration easily handles direct physical weapon attacks, throwing bricks, or blunt object hits, making it ideal for low-height installations or accessible perimeters.
Does the dome glass bubble cause halo effects or infrared night fogging over time?
Older generation dome cameras suffered from IR bounce-back, where internal night illumination leaked into the glass cover, resulting in foggy circles. The DS-2CD2187G3-LIS2UY eliminates this issue completely through its ColorVu 3.0 component engineering. The optical sensors and internal hybrid lighting diodes are isolated by an anti-reflective structural gasket seal that contains all internal scatter, guaranteeing consistent video clarity.
Can this standalone 4K camera connect directly to my smart home assistant platform?
Yes. Because this model supports global native ONVIF protocols alongside modern RTSP streaming profiles, you can smoothly link your security feeds directly into secondary automation ecosystems, customised network interfaces, third-party home management applications, and professional multi-room displays over local networks.
Is a dedicated network power point necessary to run this camera?
No. This model is engineered with full PoE (Power over Ethernet - 802.3af) compatibility. This design lets you transmit both high-resolution 4K video feeds and stable operating power over a single, standard Cat6 network cable run back to a PoE network switch or NVR recorder, cutting deployment steps and wiring overhead in half.
Will the smart vehicle AI alerts differentiate between a vehicle parked out front and an actual intruder vehicle driving in?
Yes. The AcuSense 3.0 firmware analytics layer handles movement parameters intelligently. Instead of throwing out generic alerts on everything within frame, you can map specific intrusion boxes or crossing boundaries. If a vehicle stays parked outside on the street, it remains ignored; the automated alert nodes will only activate the absolute second a target vector path passes over your property threshold lines.
Hikvision 6MP · DarkFighter · AcuSense · 60 m IRHikvision 6MP AcuSense Bullet
Hikvision DS-2CD2T66G2H-2I — 6MP AcuSense DarkFighter Bullet Camera (2.8 mm, 60 m IR, IP67)
The Hikvision DS-2CD2T66G2H-2I is a 6 MP (3200 × 1800) outdoor bullet camera built on a 1/2.4" Progressive Scan CMOS with Powered-by-DarkFighter ultra-low-light imaging — colour down to 0.001 lux @ F1.0. On-camera AcuSense deep-learning classifies humans and vehicles to cut false alarms, 120 dB WDR handles harsh Australian backlight, and a fixed 2.8 mm lens gives a wide 114.8° field of view. EXIR smart IR reaches up to 60 m, the metal housing is rated IP67, and microSD storage to 512 GB keeps footage local. Australian stock, 3-year Australian warranty.
Resolution
6 MP · 3200 × 1800
Lens
2.8 mm Fixed · 114.8° HFOV
Night Vision
DarkFighter · 60 m EXIR
AI Engine
AcuSense · Human + Vehicle
WDR
120 dB · BLC · HLC
Protection
IP67 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the DS-2CD2T66G2H-2I
6 MP DarkFighter Imaging
1/2.4" sensor with Powered-by-DarkFighter holds clean colour to 0.001 lux and switches to 60 m EXIR in full darkness — sharp footage day and night.
AcuSense — Fewer False Alarms
On-camera deep learning classifies every motion event as human, vehicle or other, so you're only alerted on what matters — not possums, rain or moving foliage.
Wide 2.8 mm Coverage
The fixed 2.8 mm lens delivers a 114.8° horizontal field of view — ideal for driveways, yards, shop entries and side paths from a single camera.
Built Tough · IP67
Weatherproof metal housing rated IP67 and rated −30 °C to +60 °C — engineered for exposed Australian outdoor installs.
Technical Specifications
DS-2CD2T66G2H-2I · Full Specifications
SKU
DS-2CD2T66G2H-2I (2.8 mm — 4 mm also available)
Camera Type
Hikvision 6 MP AcuSense DarkFighter Fixed Bullet Network Camera
Image Sensor
1/2.4" Progressive Scan CMOS · Powered-by-DarkFighter
Max Resolution
3200 × 1800 (6 MP)
Lens
Fixed 2.8 mm (optional 4 mm)
Field of View
2.8 mm: 114.8° horizontal
Min. Illumination
Colour 0.001 lux @ F1.0 · 0 lux with IR
Wide Dynamic Range
120 dB · BLC · HLC · 3D DNR
IR Illumination
EXIR smart IR up to 60 m
Day & Night
ICR (IR cut filter)
Deep-Learning AI
AcuSense — human + vehicle classification
Smart Events
Line crossing · intrusion · region entrance / exit
Video Compression
H.265+ · H.265 · H.264+ · H.264
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Network & Protocols
RJ-45 10/100 Mbps · ONVIF · ISAPI · Hik-Connect
Operating Temperature
−30 °C to +60 °C
Weatherproof Rating
IP67
Warranty
3-Year Australian Warranty
Frequently Asked Questions
How far does the IR reach at night?The 2I version provides EXIR smart IR up to 60 m, with Smart IR adjusting intensity to prevent over-exposure of close subjects.
What does AcuSense do?AcuSense runs deep-learning classification on the camera itself, identifying whether motion is a human or vehicle and filtering out false triggers — typically ~90% fewer false alerts than motion-only cameras.
Will it work with my Hikvision NVR?Yes — it's a standard PoE IP camera with ONVIF and ISAPI support, plugging straight into any Hikvision PoE NVR port for live view, recording and playback.
Downloads & Resources
DS-2CD2T66G2H-2I Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision DS-2CD2T66G2H-2I from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision IP cameras. The DS-2CD2T66G2H-2I pairs 6 MP DarkFighter low-light imaging with AcuSense AI and 60 m IR in a tough IP67 bullet — an excellent all-round outdoor camera for homes, retail and commercial sites. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Request a free quote or contact our Australian team.
Hikvision 8MP 4K · ColorVu · Motorised Varifocal · AcuSenseHikvision 4K ColorVu Dome
Hikvision DS-2CD3787G3T-LIZSUY 8MP 4K ColorVu Motorised Varifocal Dome — 2.7-13.5mm, AcuSense, Smart Hybrid Light, IK10
The Hikvision DS-2CD3787G3T-LIZSUY is a professional-grade 8 MP / 4K ColorVu dome with a 2.7-13.5 mm motorised varifocal lens for precise, remote framing. ColorVu imaging and Smart Hybrid Light (IR + white) deliver clear footage day and night, while AcuSense classifies human and vehicle targets to reduce false alarms and sharpen alerts. A built-in microphone adds audio context, and the rugged dome housing is IP67 weatherproof and IK10 vandal-resistant. Simple PoE installation. Australian stock, 3-Year Australian warranty.
Resolution
8 MP · 3840 × 2160 (4K)
Lens
2.7-13.5 mm Motorised
Imaging
ColorVu · Smart Hybrid Light
AI Engine
AcuSense · Human + Vehicle
Audio
Built-in Microphone
Protection
IP67 · IK10 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
Motorised Varifocal Lens
The 2.7-13.5 mm motorised lens lets you remotely dial in the exact field of view — wide for area coverage or zoomed for distant detail — simplifying installation.
4K ColorVu Imaging
ColorVu delivers vivid full-colour images in low light at full 8 MP / 4K resolution.
Smart Hybrid Light
Combines IR and white light, switching automatically to suit the scene for clear night visibility.
AcuSense Human / Vehicle AI
Deep-learning classification focuses on people and vehicles, reducing nuisance alerts from foliage and animals.
Why Choose the DS-2CD3787G3T-LIZSUY
On-Site Flexibility
Remote zoom adjustment means one camera model covers a wide range of scenes — fine-tune coverage after mounting.
Vandal-Resistant Dome
The IK10-rated housing resists tampering and impact — ideal for public-facing and lower-mounted positions.
Built-in Audio
A built-in microphone adds audio context to footage at entrances and key areas.
Simple PoE Install
Single-cable PoE power and data for straightforward installation, plus IP67 weatherproofing for exposed sites.
Recommended For
Retail & Commercial
Adjustable 4K coverage for shopfronts, aisles and entries.
Offices & Reception
Discreet dome for indoor monitoring with AcuSense filtering.
Public-Facing Areas
IK10 vandal resistance for lobbies, corridors and entries.
Homes & Driveways
Full-colour night detail for residential approaches.
Technical Specifications
DS-2CD3787G3T-LIZSUY · Full Specifications
SKU
DS-2CD3787G3T-LIZSUY
Camera Type
Hikvision G3 8 MP / 4K ColorVu Smart Hybrid Light AcuSense Motorised Varifocal Dome
Max Resolution
3840 × 2160 (8 MP / 4K)
Lens
2.7-13.5 mm motorised varifocal
Imaging
ColorVu full-colour night vision
Supplement Light
Smart Hybrid Light — IR + white light
AI Engine
AcuSense — human + vehicle classification
Audio
Built-in microphone
Video Compression
H.265+ / H.265 / H.264+ / H.264
On-Board Storage
microSD card slot
Power
PoE · 12 VDC
Weatherproof Rating
IP67
Impact Rating
IK10 vandal-resistant
Warranty
3-Year Australian Warranty
Frequently Asked Questions
What is the benefit of a varifocal lens?The 2.7-13.5 mm motorised lens lets you zoom in and out remotely, adjusting the field of view without physically moving the camera.
Does it record in colour at night?Yes — ColorVu and Smart Hybrid Light provide full-colour night images using white light when needed, while still supporting IR.
Does it have audio?Yes — a built-in microphone records audio alongside video.
How rugged is it?The dome is IP67 weatherproof and IK10 vandal-resistant, suiting exposed and public-facing positions.
Downloads & Resources
DS-2CD3787G3T-LIZSUY Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
CCTV Guru is an authorised Australian reseller of Hikvision ColorVu cameras. Order the DS-2CD3787G3T-LIZSUY 8 MP / 4K motorised varifocal dome for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision 8MP 4K · ColorVu 3.0 · Smart Hybrid Light · AcuSenseHikvision 4K ColorVu Bullet
Hikvision DS-2CD2087G3-LI2UY/SL 8MP 4K ColorVu 3.0 Smart Hybrid Light Bullet — AcuSense, Two-Way Audio, NEMA 4X
The Hikvision DS-2CD2087G3-LI2UY/SL is a compact 8 MP / 4K ColorVu 3.0 fixed bullet built for sharp surveillance and strong real-world night performance. A 1/1.8" CMOS sensor with F1.0 aperture delivers bright, vivid 24/7 colour down to 0.0005 lux, while HikAI-ISP noise reduction and scene-adaptive WDR handle difficult lighting. Smart Hybrid Light offers three supplemental lighting modes (IR, white, smart blend), AcuSense deep-learning person and vehicle classification cuts false alarms, and built-in arrayed dual microphones with two-way audio add live communication and deterrence. The housing is IP67 weatherproof with NEMA 4X anti-corrosion protection. Available in 2.8 mm and 4 mm lens. Australian stock, 3-Year Australian warranty.
Resolution
8 MP · 3840 × 2160 (4K)
Imaging
ColorVu 3.0 · F1.0 · 1/1.8" CMOS
Smart Hybrid Light
3 Modes · IR + White
AI Engine
AcuSense · Person + Vehicle
Audio
Dual Mic · 2-Way Audio
Protection
IP67 · NEMA 4X · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
4K ColorVu 3.0 Full-Colour Night
An F1.0 super-aperture and ColorVu 3.0 imaging deliver bright, vivid colour around the clock — down to 0.0005 lux — at full 8 MP / 4K resolution.
Smart Hybrid Light — 3 Modes
Choose covert IR, 24/7 white light, or a smart auto-blend — set per camera, per zone or per schedule.
AcuSense Person / Vehicle AI
Deep-learning classification focuses on people and vehicles, reducing false alarms from leaves, animals and rain.
HikAI-ISP + Scene-Adaptive WDR
Advanced noise reduction and dynamic range balancing keep images clean and detailed in challenging light.
Why Choose the DS-2CD2087G3-LI2UY/SL
Two-Way Audio
Built-in arrayed dual microphones and a speaker support two-way audio for live talk-down and visitor communication via Hik-Connect.
NEMA 4X Anti-Corrosion
IP67 plus NEMA 4X protection suits coastal and harsh Australian outdoor sites prone to corrosion.
Choice of Lens
2.8 mm (108.8°) for wide coverage or 4 mm (93.3°) for tighter, longer-reach framing.
Simple PoE Install
Single-cable PoE power and data for straightforward installation.
Recommended For
Homes & Driveways
Full-colour 4K night coverage for residential perimeters.
Retail Entries & Warehouses
Two-way audio and 4K detail for commercial entrances.
Side Access & Gates
4 mm framing for walkways and tighter approaches.
Coastal Sites
NEMA 4X anti-corrosion housing for salt-air locations.
Technical Specifications
DS-2CD2087G3-LI2UY/SL · Full Specifications
SKU
DS-2CD2087G3-LI2UY/SL
Camera Type
Hikvision G3 8 MP / 4K ColorVu 3.0 Smart Hybrid Light AcuSense Bullet
Image Sensor
1/1.8" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8 MP / 4K)
Min. Illumination
0.0005 lux @ F1.0 (colour) · 0 lux with white light
Lens Options
2.8 mm (108.8° HFOV) or 4 mm (93.3° HFOV) fixed
Supplement Light
Smart Hybrid Light — 3 modes (IR / white / smart blend)
Wide Dynamic Range
Scene-adaptive WDR
AI Engine
AcuSense — deep-learning person + vehicle classification
Audio
Built-in arrayed dual microphone · two-way audio
Video Compression
H.265+ / H.265 / H.264+ / H.264
On-Board Storage
microSD card slot
Power
PoE · 12 VDC
Weatherproof Rating
IP67
Anti-Corrosion
NEMA 4X
Warranty
3-Year Australian Warranty
Frequently Asked Questions
What is ColorVu 3.0?ColorVu 3.0 is Hikvision's latest full-colour night-vision imaging — an F1.0 lens and sensitive sensor capture vivid colour in very low light instead of black-and-white IR.
What are the three light modes?Smart Hybrid Light offers covert IR, 24/7 white light, and a smart auto-blend — selectable per camera, zone or schedule.
Does it have two-way audio?Yes — built-in arrayed dual microphones and a speaker support two-way audio via Hik-Connect.
Which lens should I choose?2.8 mm (108.8°) suits driveways and wide areas; 4 mm (93.3°) suits gates, side paths and tighter zones.
Downloads & Resources
DS-2CD2087G3-LI2UY/SL Datasheet
Hikvision Network Camera Quick Start Guide
CCTV Guru is an authorised Australian reseller of Hikvision ColorVu cameras. Order the DS-2CD2087G3-LI2UY/SL 8 MP / 4K ColorVu 3.0 bullet in 2.8 mm or 4 mm for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
NDAA Compliant · 5MP Mini Fixed BulletUNV 5MP Bullet
IPC2125LR3-PF40M-D 5MP Mini Fixed Bullet — Australian Stock & 3-Year Warranty
The Uniview UNV IPC2125LR3-PF40M-D is a compact 5 MP mini fixed bullet IP camera that balances clarity, reliability and value for Australian homes and businesses. It pairs a 4 mm fixed lens with Smart IR night vision, WDR and 2D/3D DNR for clean images day and night, plus efficient Ultra 265 / H.265 compression, single-cable PoE power and a weatherproof IP67 housing — backed locally with a 3-year Australian warranty.
Why the IPC2125LR3-PF40M-D stands out
Resolution
5MP / 2592×1944
Low-Light
WDR + 2D/3D DNR
Night Vision
Smart IR
Lens / View
4mm fixed
Built for Australian conditions
Clear day-and-night images
Smart IR balances illumination to avoid washed-out foregrounds, while WDR and 2D/3D DNR keep bright doorways and shaded yards clean and detailed.
Efficient storage
Ultra 265 and H.265 compression slash bandwidth and recording space without sacrificing 5 MP detail — longer retention on the same drive.
One-cable install
PoE (IEEE 802.3af) carries power and data over a single Cat6 run to your NVR or PoE switch — no separate power supply at the camera.
Weatherproof & compact
The IP67-rated, outdoor-rated housing handles Australian sun, dust and downpours in a discreet mini-bullet form factor.
Technical specifications
Uniview UNV IPC2125LR3-PF40M-D — Full Specifications
Brand
Uniview UNV
Model
IPC2125LR3-PF40M-D
Resolution
5 MP — 2592×1944
Lens
4 mm fixed
Night Vision
Smart IR
Wide Dynamic Range
WDR
Noise Reduction
2D/3D DNR
Compression
Ultra 265 / H.265 / H.264
Network
RJ45 · ONVIF · RTSP / HTTPS
Power
PoE (IEEE 802.3af)
Protection
IP67 weatherproof
Operating Conditions
Outdoor-rated · wide temperature range
Form Factor
Mini fixed bullet
Use Cases
Entrances, driveways, shopfronts, carparks
Compliance
NDAA / Section 889 compliant
Warranty
3-Year Australian warranty
Frequently asked questions
Does it record in colour at night?No — this model uses Smart IR for crisp black-and-white night vision. For true full-colour night footage, see Uniview UNV's ColorHunter or warm-light (WP/KMC) models.
Is the IPC2125LR3-PF40M-D NDAA compliant?Yes. Uniview UNV cameras are NDAA Section 889 compliant, making them suitable for government, commercial and security-sensitive sites in Australia.
What lens and coverage does it have?A fixed 4 mm lens gives a balanced field of view suited to driveways, entries, shopfronts and carparks where you want detail at a moderate distance.
How is it powered?Single-cable PoE (IEEE 802.3af) over Cat6 to a PoE NVR or switch — no separate power supply at the camera.
What resolution does it capture?5 MP, approximately 2592×1944 — noticeably sharper than 1080p for reading detail across a wider scene.
Which NVRs work with it?It works with Uniview UNV NVRs via plug-and-play and with most ONVIF-compatible recorders.
Does it save storage space?Yes — Ultra 265 and H.265 compression dramatically reduce bandwidth and disk use versus H.264, extending recording retention.
Is it suitable outdoors?Yes. The IP67-rated, outdoor-rated housing is built for permanent outdoor installation in Australian conditions.
What warranty applies?This camera ships with a 3-year Australian warranty and local CCTV Guru tech support.
Documentation & downloads
IPC2125LR3-PF40M-D Datasheet
Uniview UNV Bullet Quick Start Guide
Uniview UNV Bullet User Manual
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinView · 4MP · ANPR · DarkFighter · 100 m IR
Hikvision 4MP ANPR Bullet
Hikvision iDS-2CD7A46G0/P-IZHSY — 4MP DeepinView ANPR Bullet with DarkFighter & 100 m IR (2.8-12 mm Motorised, IP67/IK10)
The Hikvision iDS-2CD7A46G0/P-IZHSY is an advanced DeepinView Series 4 MP AI bullet camera built for ANPR, perimeter and critical-area surveillance. A 1/1.8" Progressive Scan CMOS delivers 2688 × 1520 at 30 fps with DarkFighter low-light imaging and 140 dB WDR, while a motorised 2.8-12 mm varifocal lens and IR up to 100 m cover wide entrances, car parks and approach roads. Embedded deep-learning algorithms drive licence-plate capture & recognition (ANPR) with block/allow lists, face capture, vehicle detection, perimeter protection and parking management. Rugged IP67 / IK10 housing, flexible PoE 802.3af or 12 VDC power (solar-capable). Australian stock, 3-year Australian warranty.
Resolution
4 MP · 2688 × 1520
Lens
Motorised 2.8-12 mm
Night Vision
DarkFighter · 100 m IR
ANPR
Plate Capture · Block/Allow Lists
DeepinView AI
Face + Vehicle · Perimeter
Protection
IP67 · IK10 · 140 dB WDR
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the iDS-2CD7A46G0/P-IZHSY
ANPR · Licence-Plate Recognition
Embedded deep-learning algorithms capture and recognise number plates with block-list / allow-list alarm triggering — ideal for gates, car parks and access control.
DeepinView AI Analytics
Face capture, vehicle detection, perimeter protection (line crossing, intrusion, region entry/exit) and parking management, all with AI false-alarm filtering.
DarkFighter · 100 m IR
Clean low-light colour plus 100 m smart IR keeps plates and faces readable at long range after dark.
Flexible Power · Solar-Capable
Runs on PoE 802.3af or 12 VDC, and can operate independently on a solar panel for remote sites without mains power.
Technical Specifications
iDS-2CD7A46G0/P-IZHSY · Full Specifications
SKU
iDS-2CD7A46G0/P-IZHSY
Camera Type
Hikvision DeepinView 4 MP AI ANPR Motorised Bullet Network Camera
Image Sensor
1/1.8" Progressive Scan CMOS · DarkFighter
Max Resolution
2688 × 1520 (4 MP) @ 30 fps
Lens
Motorised varifocal 2.8-12 mm · auto-focus
Field of View
112.1°-30.8° horizontal
IR Range
Up to 100 m (smart IR)
Wide Dynamic Range
140 dB
AI Analytics
ANPR / licence-plate recognition · face capture · vehicle detection · perimeter protection · parking management
Audio
Built-in microphone (one-way audio)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · up to 5 streams
On-Board Storage
microSD / SDHC / SDXC up to 256 GB
Power Supply
12 VDC ± 25% / PoE (IEEE 802.3af) · solar-capable
Weatherproof / Vandal
IP67 · IK10
Operating Temperature
−30 °C to +60 °C
Warranty
3-Year Australian Warranty
Frequently Asked Questions
Does it read number plates?Yes — embedded deep-learning ANPR captures and recognises licence plates, with block-list and allow-list configurations for customised alarm triggering at gates, car parks and access points.
What AI analytics does it support?DeepinView analytics include face capture, vehicle detection, perimeter protection (line crossing / intrusion / region entry / exit) and parking-space management, all with false-alarm filtering.
How is it powered?It runs on PoE (IEEE 802.3af) or 12 VDC, and can operate independently on a solar panel — useful for remote gates and car parks without mains power.
Downloads & Resources
iDS-2CD7A46G0/P-IZHSY Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision iDS-2CD7A46G0/P-IZHSY from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision DeepinView AI cameras. The iDS-2CD7A46G0/P-IZHSY combines 4 MP DarkFighter imaging, 100 m IR and deep-learning ANPR, face and vehicle analytics in a tough IP67/IK10 bullet — built for car parks, gates, perimeters and access control. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Request a free quote or contact our Australian team.
Hikvision Pro Series · Panoramic AcuSense
4MP Panoramic DarkFighter Turret with Live Guard
The Hikvision DS-2CD2346G2P-ISU/SL combines a dual-lens panoramic view with 4MP output, DarkFighter low-light imaging and AcuSense human and vehicle classification. It is designed for wide areas such as shopfronts, driveways, entrances and loading zones where one camera can reduce blind spots.
Panoramic Image
4MP Wide-Area View
Low-Light Imaging
Powered by DarkFighter
AcuSense
Human & Vehicle Classification
Outdoor Protection
IP67
Wide Coverage with Smarter Event Verification
This is a DarkFighter infrared model, not a ColorVu camera. It is engineered to retain useful detail in low light and switches to infrared in darkness. True 120 dB WDR helps balance strongly backlit scenes, while the built-in strobe light, speaker and microphone support active warning and two-way audio when configured with a compatible Hikvision system.
Panoramic Scene CoverageDual imaging channels produce one wide panoramic view, helping reduce the number of cameras required across broad entry and perimeter areas.
Live Guard DeterrenceUse the built-in white strobe and audible warning to respond to configured events, with a microphone and speaker for two-way communication.
AcuSense FilteringHuman and vehicle classification helps reduce alerts caused by rain, leaves and other non-target movement.
Flexible RecordingSupports H.265+ compression, PoE installation and onboard microSD recording for a practical network-camera deployment.
Technical Specifications
Model / SKU
DS-2CD2346G2P-ISU/SL
Resolution
4MP panoramic output
Lens
Dual fixed 2.8mm lenses
Low-light technology
Powered by DarkFighter with infrared night vision
Wide dynamic range
120 dB true WDR
Analytics
AcuSense human and vehicle classification
Audio / deterrence
Built-in microphone, speaker, audible warning and strobe light
Power
PoE or 12 VDC
Protection
IP67 weather resistant
Downloads & Resources
Official Datasheet
Quick Start Guide
User Manual
Is this a ColorVu camera?No. This model uses DarkFighter low-light technology and infrared illumination. It does not provide ColorVu full-colour imaging in complete darkness.
What resolution does it record?It produces a 4MP panoramic image from its dual-lens imaging system.
Can it identify people and vehicles?It uses AcuSense classification to distinguish human and vehicle targets from many common sources of false alarms.
Does it support two-way audio?Yes. A built-in microphone and speaker support two-way audio when correctly configured.
Official Australian Stock
3-Year Warranty
Australia-Wide Delivery
Hikvision Pro PTZ · TandemVu · 25× Zoom
Hikvision 4MP TandemVu PTZ
Hikvision TandemVu 6+4MP 25x Panoramic PTZ Camera – DS-2SE4C425MWG-E/26(F0)
Get the big picture and the fine detail at the same time. The Hikvision DS-2SE4C425MWG-E/26(F0)
combines a 6MP panoramic overview camera with a 4MP PTZ module,
giving you 25× optical zoom, ColorVu and DarkFighter low-light performance,
AI human and vehicle classification, and long-range night visibility
in one advanced TandemVu PTZ solution.
Overview
6MP Panoramic
PTZ Detail
4MP PTZ
Zoom
25× Optical
Night Vision
ColorVu + DarkFighter
Smart AI
Human + Vehicle
Illumination
100m IR + 30m Light
Why this camera stands out
Unlike a standard PTZ camera that loses the full scene while zooming, Hikvision TandemVu cameras keep a
panoramic overview visible while the PTZ module captures close-up detail. Hikvision describes the family as
providing the "big picture and small details in tandem," which makes this model ideal for monitoring large
spaces without losing situational awareness.
The DS-2SE4C425MWG-E/26(F0) is well suited to sites that need one camera to watch a broad area while also
tracking or zooming in on subjects such as people or vehicles. Hikvision's official AU page lists
6MP panoramic imaging, 4MP PTZ imaging, 25× optical zoom,
ColorVu + DarkFighter low-light performance, 100m IR,
30m white light, PoE+, and deep-learning target classification.
Key Features
Two cameras in one
A 6MP panoramic lens gives you the overview while the 4MP PTZ captures details.
25× optical zoom
Zoom in on distant targets without sacrificing clarity.
TandemVu technology
Keep the broad view visible even while the PTZ is moving or zooming.
ColorVu + DarkFighter
Strong low-light performance with both colour and IR support.
AI human & vehicle classification
Better event filtering and smarter alerts for large sites.
Long-range night view
Up to 100m IR distance and up to 30m white light coverage.
Best For
Ideal for warehouses, logistics yards, school campuses, commercial sites, factories, car parks,
perimeter fencing, transport depots, and other large outdoor areas where operators need both a fixed
overview and zoomed detail from the same camera. Hikvision's TandemVu PTZ range is specifically positioned
for this "overview + detail" use case.
Official Hikvision Videos
Hikvision | 1 Minute Introduction to ColorVu
Panoramic Coverage in Action
Technical Specifications
Model
DS-2SE4C425MWG-E/26(F0)
Camera Type
TandemVu Panoramic + PTZ Network Camera
Panoramic Resolution
6 MP
PTZ Resolution
4 MP
Optical Zoom
25× optical zoom, 16× digital zoom
Low Light
ColorVu + DarkFighter technology
IR Distance
Up to 100 m
White Light
Up to 30 m
Smart Detection
Human and vehicle classification based on deep learning
Power
12V DC & PoE+
PTZ Function
Pan / Tilt / Zoom with linked overview + detail monitoring
Frequently Asked Questions
What makes TandemVu different from a normal PTZ?
TandemVu keeps a panoramic overview visible while the PTZ module zooms into detail.
Does this camera have both a panoramic and PTZ lens?
Yes. This model combines a 6MP panoramic camera and a 4MP PTZ module in one unit.
How much zoom does it have?
It supports 25× optical zoom and 16× digital zoom.
Is it good at night?
Yes. Hikvision lists ColorVu and DarkFighter technology, plus up to 100m IR and 30m white light.
Can it detect people and vehicles?
Yes. It supports deep-learning-based human and vehicle target classification.
What sites is it best for?
It is best for large outdoor sites where you need both scene overview and zoomed detail from one camera.
More information
Download official Hikvision documents for setup, specifications, and product details.
Datasheet
PDF
Quick Start Guide
PDF
User Manual
PDF / Docs
3 Year Australian Warranty
Fast Australia-wide Delivery
Genuine Australian Stock
Hikvision 6MP · AcuSense · Motorised 2.8-12mm · 60m IR
Hikvision 6MP Motorised Dome
Hikvision DS-2CD2766G2T-IZS — 6MP AcuSense Motorised Varifocal Dome with 60m IR & BNC Pigtail
The Hikvision DS-2CD2766G2T-IZS is a professional-grade 6 MP AcuSense dome network camera with a motorised 2.8–12 mm varifocal lens — giving you remote zoom and auto-focus to dial in the exact field of view for each install without changing hardware. A 1/2.4" progressive-scan CMOS sensor delivers detailed 3072 × 2048 imaging, Smart IR reaches up to 60 m for long-distance night coverage, and AcuSense deep-learning classifies humans and vehicles with line-crossing and intrusion detection. A BNC pigtail provides analogue test video output for fast on-site aiming and commissioning. A built-in microphone captures audio, 120 dB true WDR handles backlight, and the rugged IP67 / IK10 dome suits car parks, entryways, building perimeters and commercial sites. Australian stock, 3-year Australian warranty.
Resolution
6 MP · 3072 × 2048
Motorised Lens
2.8-12 mm · Auto-Focus
IR Range
Smart IR up to 60 m
AI Engine
AcuSense · Human + Vehicle
Test Output
BNC Pigtail · Built-in Mic
Protection
IP67 · IK10 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Flexible Zoom for Demanding Sites
Motorised 2.8-12 mm Varifocal
Remote-controlled motorised zoom with auto-focus lets you dial in the precise field of view — from wide-area coverage at 2.8 mm to tight long-range detail at 12 mm — without touching the camera after install.
60 m Smart IR Night Coverage
Smart IR up to 60 m delivers long-distance night vision, with intensity that adjusts automatically to avoid over-exposing close subjects — ideal for car parks, perimeters and large open areas.
AcuSense + BNC Commissioning
AcuSense classifies humans and vehicles with line-crossing and intrusion detection, while the BNC pigtail provides analogue test video output for fast on-site aiming and commissioning.
Rugged IP67 / IK10 Build
The IP67 weatherproof, IK10 vandal-resistant dome handles harsh outdoor and high-tamper environments, with a built-in microphone and a wide -30 °C to +60 °C operating range.
Technical Specifications
DS-2CD2766G2T-IZS · Specifications
SKU
DS-2CD2766G2T-IZS (BNC)
Camera Type
Hikvision AcuSense Series · 6 MP Motorised Varifocal Network Dome
Image Sensor
1/2.4" Progressive Scan CMOS
Max Resolution
6 MP · 3072 × 2048 @ 20 fps
Lens
2.8–12 mm motorised varifocal · auto-focus
IR Distance
Smart IR up to 60 m
Wide Dynamic Range
120 dB true WDR
AI / Smart Functions
AcuSense human + vehicle classification · line crossing · intrusion detection
Audio
Built-in microphone (one-way)
Test Output
BNC analogue video test output (pigtail)
Video Compression
H.265+ · H.265 · H.264+ · H.264
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Power Source
12 VDC ±25% · PoE (802.3af)
Operating Temperature
-30 °C to +60 °C
Weatherproof / Vandal Rating
IP67 · IK10
Warranty
3-Year Australian Warranty
Frequently Asked Questions
What is a motorised varifocal lens?The 2.8–12 mm motorised lens lets you remotely adjust zoom and focus from software — so you can set the exact field of view for each site, from wide overview to tight long-range detail, without physically touching the camera.
What is the BNC pigtail for?The BNC pigtail provides an analogue test video output, letting an installer quickly aim and commission the camera on-site with a portable test monitor before final network configuration.
How far does the night vision reach?Smart IR reaches up to 60 m, making this camera well suited to car parks, building perimeters and large open areas that need long-distance night coverage.
Is it suitable for high-tamper sites?Yes. The dome is IK10 vandal-resistant and IP67 weatherproof, making it ideal for accessible perimeters, car parks and exposed commercial installations.
Downloads & Resources
DS-2CD2766G2T-IZS Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
Order the Hikvision DS-2CD2766G2T-IZS from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision AcuSense cameras. The DS-2CD2766G2T-IZS is an ideal motorised-zoom dome for car parks, entryways, building perimeters and commercial security where flexible field-of-view and long-range night vision matter. Order with fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision 8MP 4K · AcuSense · Live-Guard · 60m IR
Hikvision 8MP 4K Live-Guard
Hikvision DS-2CD2T86G2-ISU/SL 8MP 4K AcuSense Live-Guard Bullet — Strobe + Audio Alarm, 60m IR, Two-Way Audio
The Hikvision DS-2CD2T86G2-ISU/SL is a robust 8 MP / 4K AcuSense bullet for advanced outdoor surveillance. A 2.8 mm wide-angle lens captures ultra-HD detail, while AcuSense deep-learning AI classifies human and vehicle targets to cut false alarms. Powered-by-DarkFighter low-light performance and 120 dB true WDR handle dim and high-contrast scenes, and IR night vision reaches an exceptional 60 m. The built-in microphone, speaker and strobe light with audible alarm deliver Live-Guard active deterrence and two-way audio, scaring off intruders before incidents occur. Efficient H.265+ compression and an IP67 housing complete the package. Australian stock, 3-Year Australian warranty.
Resolution
8 MP · 3840 × 2160 (4K)
Low Light
Powered-by-DarkFighter
Night Vision
Up to 60 m IR
AI Engine
AcuSense · Human + Vehicle
Deterrence
Strobe + Audio Alarm · 2-Way Audio
Protection
IP67 · 120 dB WDR · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
8 MP 4K Ultra HD
3840 × 2160 resolution captures fine detail — faces, plates and activity — with far more clarity than 1080p or 4 MP cameras.
AcuSense Human / Vehicle AI
Deep-learning classification focuses on people and vehicles, filtering out leaves, animals and rain to slash false alarms.
Live-Guard Active Deterrence
A built-in strobe light and audible alarm trigger on detection to warn intruders off before an incident.
60 m IR Night Vision
Long-range infrared reaches up to 60 m — ideal for large yards, driveways and perimeters.
Why Choose the DS-2CD2T86G2-ISU/SL
Two-Way Audio
A built-in microphone and speaker let you hear and speak through the camera live via Hik-Connect for talk-down or visitor communication.
120 dB True WDR
Wide dynamic range balances bright and dark areas in the same frame for clear images against strong backlight.
Powered-by-DarkFighter
Excellent low-light sensitivity produces usable images in dim conditions, backed by 60 m IR for full darkness.
Efficient H.265+ Storage
Advanced compression dramatically reduces storage and bandwidth without losing 4K image quality, with microSD up to 256 GB on board.
Recommended For
Long Driveways & Large Yards
60 m IR covers ground a standard 30 m camera can't.
Commercial Perimeters
Visible bullet body plus strobe and alarm deter intruders at the boundary.
Shopfronts & Garages
Two-way audio and 4K detail for entries and approaches.
Front Door & Side Paths
AcuSense filtering keeps alerts relevant around residential access points.
Technical Specifications
DS-2CD2T86G2-ISU/SL · Full Specifications
SKU
DS-2CD2T86G2-ISU/SL
Camera Type
Hikvision 8 MP AcuSense Live-Guard Fixed Bullet Network Camera
Image Sensor
1/2" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8 MP / 4K)
Lens
2.8 mm fixed (111° HFOV)
IR Range
Up to 60 m
Low Light
Powered-by-DarkFighter
Wide Dynamic Range
120 dB true WDR
AI Engine
AcuSense — human + vehicle classification
Deterrence
Active strobe light + audio alarm
Audio
Built-in microphone & speaker · two-way audio
Video Compression
H.265+ / H.265 / H.264+ / H.264
On-Board Storage
microSD up to 256 GB
Power
12 VDC ±25% or PoE 802.3af · max 10 W
Operating Temperature
−30 °C to +60 °C
Weatherproof Rating
IP67
Warranty
3-Year Australian Warranty
Frequently Asked Questions
How far does it see at night?Up to 60 m of IR — well beyond a standard 30 m camera — making it ideal for large yards, driveways and perimeters.
Does it have two-way audio?Yes — a built-in microphone and speaker support two-way audio for live talk-down via Hik-Connect.
How does Live-Guard deter intruders?When AcuSense detects a human or vehicle, the camera flashes its strobe light and plays an audible alarm to warn the intruder off.
Is it suitable for outdoor use?Yes — the IP67 housing and −30 °C to +60 °C operating range handle exposed Australian installs.
Downloads & Resources
DS-2CD2T86G2-ISU/SL Datasheet
Hikvision Network Camera Quick Start Guide
Hikvision Network Camera User Manual
CCTV Guru is an authorised Australian reseller of Hikvision AcuSense Live-Guard cameras. Order the DS-2CD2T86G2-ISU/SL 8 MP / 4K bullet for fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
Hikvision 6MP · AcuSense · Mini Dome · Built-in Mic
Hikvision 6MP AcuSense Dome
Hikvision DS-2CD2566G2-IS — 6MP AcuSense Mini Dome Camera with Built-in Mic, 30m IR & 120dB WDR
The Hikvision DS-2CD2566G2-IS is a 6 MP AcuSense mini dome network camera combining a compact, low-profile form factor with intelligent detection and strong performance. A 1/2.4" progressive-scan CMOS sensor with a 2.8 mm fixed lens delivers detailed 3072 × 2048 imaging across a wide 102° field of view, while Smart IR up to 30 m gives clear night coverage. AcuSense deep-learning provides accurate human and vehicle classification with line-crossing and intrusion detection, cutting false alarms. A built-in microphone captures audio, 120 dB true WDR handles backlight, and efficient H.265+ compression saves storage. The compact IP67 weatherproof, IK08 vandal-resistant housing suits small businesses, lifts, corridors and entrances. Australian stock, 3-year Australian warranty.
Resolution
6 MP · 3072 × 2048
Lens
2.8 mm Fixed · 102° FOV
IR Range
Smart IR up to 30 m
AI Engine
AcuSense · Human + Vehicle
Audio
Built-in Microphone
Protection
IP67 · IK08 · 3-Year AU
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Compact Form, Smart Detection
Low-Profile Mini Dome
The compact 110 mm × 92 mm dome blends discreetly into ceilings and walls — ideal for lifts, corridors, entrances and small businesses where a low-profile, tamper-resistant camera is needed.
AcuSense Human & Vehicle AI
AcuSense deep-learning classifies motion as a human or vehicle, filtering out false alarms, and powers line-crossing and intrusion detection for active protection.
6 MP Detail + 30 m Smart IR
Crisp 6 MP imaging across a wide 102° view, with Smart IR up to 30 m for clear night coverage and 120 dB true WDR to handle strong backlight.
Built-in Mic, IP67 / IK08
A built-in microphone adds audio context, while the IP67 weatherproof and IK08 vandal-resistant housing handles indoor and outdoor installation across a -30 °C to +60 °C range.
Technical Specifications
DS-2CD2566G2-IS · Specifications
SKU
DS-2CD2566G2-IS (2.8 mm)
Camera Type
Hikvision AcuSense Series · 6 MP Fixed Mini Dome
Image Sensor
1/2.4" Progressive Scan CMOS
Max Resolution
6 MP · 3072 × 2048 @ 20 fps
Lens
2.8 mm fixed · 102.2° (H) / 55.6° (V) / 120.5° (D)
IR Distance
Smart IR up to 30 m
Wide Dynamic Range
120 dB true WDR
AI / Smart Functions
AcuSense human + vehicle classification · line crossing · intrusion detection
Audio
Built-in microphone
Video Compression
H.265+ · H.265 · H.264+ · H.264
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Power Source
12 VDC ±25% · PoE (802.3af)
Operating Temperature
-30 °C to +60 °C
Weatherproof / Vandal Rating
IP67 · IK08
Dimensions
110 mm × 92 mm
Warranty
3-Year Australian Warranty
Frequently Asked Questions
Where is a mini dome best used?Its compact, low-profile form is ideal for lifts, corridors, entrances and small businesses — anywhere a discreet, tamper-resistant camera is preferred. The IP67/IK08 rating also allows exposed outdoor use.
What does AcuSense do?AcuSense classifies motion as a human or vehicle using on-camera deep learning, cutting false alarms, and powers line-crossing and intrusion detection.
Does it record audio?Yes — it has a built-in microphone for real-time audio capture alongside video.
How is it powered?It supports PoE (802.3af) over a single Cat 6 cable from a Hikvision PoE NVR or switch, or 12 VDC for standalone installs.
Downloads & Resources
DS-2CD2566G2-IS Datasheet
Hikvision Network Camera Quick Start Guide
Order the Hikvision DS-2CD2566G2-IS from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision AcuSense cameras. The DS-2CD2566G2-IS is an excellent compact mini dome for small businesses, lifts, corridors and entrances where a discreet smart camera with audio is required. Order with fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
4MP Outdoor Bullet Camera with Smart Detection and IP67 Weatherproofing
The TP-Link VIGI C340I is a 4MP Super-HD outdoor IR bullet network camera designed for professional CCTV installations. With a 4mm fixed lens, IP67 weatherproofing, H.265+ compression, and smart detection features including human and vehicle classification, line crossing, and intrusion detection, it delivers sharp, reliable surveillance footage in all weather conditions — day and night. Powered via PoE or 12V DC, it integrates seamlessly with TP-Link VIGI NVRs, the VIGI app, and VIGI Security Manager for flexible, scalable management.
Key Features
4MP Super-High Definition: Captures detailed 4MP (2560×1440) footage — significantly sharper than 1080p — for reliable identification of faces, licence plates, and fine details.
4mm Fixed Lens: Provides a balanced field of view suitable for monitoring driveways, car parks, building entrances, and medium-distance outdoor areas. Also available in 2.8mm and 6mm variants.
Human & Vehicle Classification: AI-powered detection distinguishes humans and vehicles from other motion sources (animals, foliage), reducing false alerts and improving notification accuracy.
Smart Detection: Configurable smart events including Line Crossing, Intrusion Detection, Object Removal, Object Abandonment, and Camera Tamper Detection — with instant push notifications.
IR Night Vision: Built-in infrared LEDs provide clear black-and-white night vision in complete darkness — Smart IR automatically adjusts IR intensity to prevent overexposure at close range.
H.265+ Compression: Reduces storage consumption and network bandwidth by up to 50% compared to H.264 without sacrificing image quality — lowering NVR storage and running costs.
IP67 Weatherproof: Fully dust-tight and protected against water jets — suitable for permanent outdoor installation in Australian conditions including rain, dust, and humidity.
PoE or 12V DC Power: Flexible dual power options — connect via a single PoE Ethernet cable for clean, simple installation, or use a 12V DC power adapter where PoE is unavailable.
WDR, 3D DNR & Smart IR: Advanced video enhancement technologies improve image quality in challenging lighting conditions including backlit scenes, bright sunlight, and low-light environments.
Flexible Management: Manage via the VIGI NVR UI, web browser, VIGI app (iOS & Android), or VIGI Security Manager desktop software — supporting both local and remote monitoring.
Common Use Cases
Driveway and car park surveillance for homes and small businesses
Building entrance and perimeter monitoring for commercial properties
Retail store exterior and loading dock surveillance
School and childcare centre outdoor security
Warehouse and industrial site perimeter monitoring
Residential property security with PoE switch and VIGI NVR
Technical Specifications
Model
VIGI C340I (4mm)
Resolution
4MP (2560×1440)
Lens
4mm fixed (also available in 2.8mm & 6mm)
Camera Type
Outdoor IR Bullet
Night Vision
Infrared (Smart IR)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Smart Detection
Line Crossing, Intrusion, Object Removal/Abandonment, Tamper
AI Classification
Human & Vehicle
Video Enhancement
WDR, 3D DNR, Smart IR
Weatherproofing
IP67
Power Supply
PoE (IEEE 802.3af) or 12V DC
Network Interface
RJ45 10/100Mbps
Management
VIGI NVR, Web UI, VIGI App, VIGI Security Manager
ONVIF
Yes
Warranty
2 Years (Australia)
Weight
380g
Frequently Asked Questions
What is the difference between the C340I and the C340?
The VIGI C340I is the indoor/outdoor IR bullet variant with a traditional bullet-style housing, while the VIGI C340 is a dome camera. Both share the same 4MP resolution and smart detection features. Choose the C340I bullet for directional mounting on walls and eaves where a visible deterrent is preferred; choose the C340 dome for ceiling mounting or vandal-resistant installations.
Which lens size should I choose — 2.8mm, 4mm, or 6mm?
The 2.8mm lens provides a wider field of view, ideal for covering large areas at close range such as small rooms or building entrances. The 4mm lens (this model) offers a balanced view suitable for driveways, car parks, and medium-distance monitoring. The 6mm lens provides a narrower, longer-range view for monitoring specific points such as gates, doorways, or distant areas.
Does it work with non-TP-Link NVRs?
Yes. The VIGI C340I is ONVIF-compliant, allowing it to work with most third-party ONVIF-compatible NVRs and VMS software. For full smart detection features, human/vehicle classification, and seamless integration, use with a TP-Link VIGI NVR (e.g. NVR1008H-8P).
Is it suitable for Australian outdoor conditions?
Yes. The IP67 rating means the camera is fully dust-tight and protected against powerful water jets — suitable for permanent outdoor installation in Australian conditions including rain, coastal humidity, and dust. It is not rated for submersion.
Does it require a PoE switch or can I use a power adapter?
Both options are supported. Connect via a PoE switch (802.3af) for a single-cable installation with no separate power adapter, or use a 12V DC power adapter where PoE infrastructure is not available. PoE is recommended for professional installations for cleaner cabling.
What NVR is recommended for this camera?
The TP-Link VIGI NVR1008H-8P is an ideal pairing — it provides 8 PoE+ ports to power and connect up to 8 VIGI cameras, with 4K HDMI output, 16MP decoding, and Plug & Play auto-detection of VIGI cameras. For larger installations, the VIGI NVR2016H or NVR2032H support up to 16 or 32 channels respectively.
6MP Resolution · AcuSense AI · IP67 Bullet · Smart IR
6MP AcuSense Bullet
HiLook IPC-B261H-MU Fixed Bullet — Australian Stock & 3-Year Warranty
The HiLook IPC-B261H-MU is a 6 MP AcuSense fixed bullet built for long, clear lines of sight along fences, driveways and building perimeters. Its 1/2.8" sensor captures 3200 × 1800 detail, while 120 dB true WDR keeps faces and number plates readable against glare from sky, headlights and open doorways. AcuSense human & vehicle classification filters out animals, rain and moving foliage so you only get alerts that matter.
Smart-controlled infrared lights the scene at night for confident after-dark coverage, and the weatherproof IP67 bullet housing handles dust, sun and storms across the full Australian climate. A built-in microphone adds audio to your footage, power runs over a single Cat cable via PoE, and the camera integrates with any HiLook or Hikvision NVR over ONVIF. Backed by genuine Australian stock and a 3-year warranty.
Resolution
6 MP · 3200 × 1800
Night Vision
Smart IR
Sharp Detail, Smart Alerts, All-Weather Build
6 MP High-Resolution Imaging
A 1/2.8" progressive-scan sensor delivers 3200 × 1800 footage with far more pixels on target than 1080p or 4 MP cameras — letting you zoom into faces, vehicles and plates after the event.
AcuSense Human & Vehicle AI
Deep-learning classification distinguishes people and vehicles from harmless movement, slashing false alerts from animals, headlights and weather so notifications stay meaningful.
Long-Range Bullet Coverage
The bullet form factor and 2.8 mm lens suit driveways, fence lines, side passages and building frontages, with a fixed view that stays locked on the area you care about.
120 dB True WDR & Smart IR
True wide dynamic range keeps bright and shadowed parts of the frame legible, while smart-controlled infrared lights the scene at night without over-exposing nearby subjects.
Technical Specifications
Camera & Lens
Model / SKU
IPC-B261H-MU
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
6 MP — 3200 × 1800
Lens
Fixed 2.8 mm, F1.6, M12 mount
Field of View
Horizontal 107°, Vertical 57°, Diagonal 128°
DORI
Detect 73 m · Observe 29 m · Recognise 15 m · Identify 7 m
Min. Illumination
Colour 0.005 Lux @ F1.6; 0 Lux with IR
WDR
120 dB true WDR
Illumination, Audio & Smart Features
Supplement Light
Smart-controlled IR, 850 nm
Audio
Built-in microphone
AcuSense AI
Human & vehicle classification (motion), line crossing, intrusion
Compression
H.265+/H.265/H.264+/H.264
Network, Power & Build
On-Board Storage
microSD/SDHC/SDXC up to 256 GB
API / Integration
ONVIF (Profile S/G), ISAPI, SDK
Client / App
Hik-Connect, iVMS-4200
Power
PoE IEEE 802.3af (Class 3, max 7.2 W) or 12 VDC
Weather Rating
IP67 dust & water resistant
Operating Temp.
−30 °C to 60 °C
Dimensions / Weight
Ø 70 × 161.7 mm · approx. 485 g
Warranty
3-Year Australian Warranty
Downloads & Documentation
IPC-B261H-MU Datasheet
Frequently Asked Questions
What does the 6 MP resolution give me over 1080p?Around three times the pixels on target, so 3200 × 1800 footage keeps faces, plates and detail legible when you zoom into a recording.
What is AcuSense?HiLook's deep-learning engine that classifies people and vehicles, so motion from animals, rain and headlights no longer triggers nuisance alerts.
Where does a bullet camera work best?Along driveways, fence lines, side passages and building frontages — anywhere you want an obvious, directional camera covering a long, defined line of sight.
How does the night vision work?Smart-controlled infrared lights the scene after dark and adjusts intensity automatically to avoid washing out close subjects.
Does it record audio?Yes — a built-in microphone captures audio alongside the video where local laws permit.
What smart detection does it support?Human & vehicle classification on motion, plus line-crossing and intrusion detection for early warning when someone enters a defined zone.
How is it powered?Over a single network cable using PoE (IEEE 802.3af, Class 3, max 7.2 W), or 12 VDC if you prefer a separate supply.
Will it survive Australian weather?Yes — IP67 sealing and a −30 °C to 60 °C operating range handle full sun, dust and heavy rain.
What NVRs and software work with it?It speaks ONVIF (Profile S/G) and pairs with any HiLook or Hikvision NVR, plus the Hik-Connect app and iVMS-4200 desktop client.
What is the field of view?The 2.8 mm lens gives a wide 107° horizontal view — broad situational coverage with a DORI identify range of 7 m.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
WizSense 3 · 4 MP · 4G LTE Cellular · Telstra/Optus/VodafoneDahua WizSense 3 · 4 MP 4G LTE BulletDahua DH-IPC-HFW3441DG-AS-4G-EAU-B — 4 MP 4G LTE Fixed-Focal IR Bullet WizSense 3 Network Camera (3441 Series)
The Dahua DH-IPC-HFW3441DG-AS-4G-EAU-B is the 3441 series 4 MP WizSense 3 4G LTE cellular bullet — a network camera that operates entirely over the 4G LTE network instead of Ethernet/PoE. Built around a 1/3" CMOS sensor capturing 2688 × 1520 at 25/30 fps. The 2.8 mm fixed lens delivers a wide 100° field of view; built-in IR reaches up to 50 m; WDR is 120 dB; the metal bullet housing is IP67 sealed. Australian-band support across Telstra, Optus and Vodafone networks (B1/B3/B5/B7/B8/B20/B28) covers the major AU carrier bands. Powered via 12 VDC; supports cloud backup and DMSS mobile management. WizSense 3 deep-learning Pro AI runs perimeter protection (tripwire, intrusion) with human and vehicle classification, plus SMD 4.0 and AcuPick. Built-in microphone, 1/1 RCA audio I/O. Built for off-grid and remote Australian deployments — rural property gates, construction sites, mine site portables, farms, marina docks, council remote reserves and worksites where running Cat6 is impractical. Backed by a 3-year Australian warranty through CCTV Guru. SKU 3441 series.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW3441DG-AS-4G WizSense 3 4G LTE Bullet
4G LTE — No Ethernet Required
Pop in a Telstra, Optus or Vodafone SIM card — the camera operates entirely over the cellular network. No Cat6 cabling, no PoE switch, no fixed line internet required at the site.
Australian Band Support
B1/B3/B5/B7/B8/B20/B28 LTE bands cover the major Australian carrier networks — Telstra Blue Tick zones, Optus regional and Vodafone metro.
WizSense 3 + AcuPick AI
Perimeter protection, SMD 4.0 and AcuPick attribute search.
True 4 MP Detail
Native 2688 × 1520 at 25/30 fps — more than double the pixel density of 1080p.
50 m IR Range
Built-in IR array reaches up to 50 m for off-grid night surveillance.
Edge Storage & Cloud Backup
Micro SD up to 256 GB onboard plus DMSS cloud backup of alarm clips — survives cellular outages.
Important Install Note
This camera requires a 4G LTE SIM card with active data plan (Telstra, Optus or Vodafone). A monthly data plan with 10–30 GB is typically sufficient for continuous alarm-only recording with 24/7 motion-triggered cloud uploads. For 24/7 continuous high-resolution streaming, plan for 100+ GB/month. The camera is fixed-focal (2.8 mm) — frame at install time.
AI & Smart Detection
AcuPick Attribute Search
Search recorded video by colour, clothing, vehicle type — with a Dahua AcuPick NVR.
SMD 4.0 Smart Motion
Motion alerts triggered only by humans and vehicles — critical for cellular data conservation.
Perimeter Protection
Tripwire and intrusion zones with human/vehicle classification.
AI SSA
Scene self-adaptation for rain, fog, backlight.
Cloud Push to DMSS
Alarm clips pushed to Dahua's DMSS cloud and your mobile.
Two-Way Audio
Built-in mic + RCA audio I/O.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HFW3441DG-AS-4G-EAU-B
Form Factor
Bullet (HFW chassis)
Image Sensor
1/3" CMOS
Maximum Resolution
2688 × 1520 (4 MP)
Frame Rate
4 MP @ 25/30 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Fixed-focal 2.8 mm
Field of View
H: ~100°
IR Illumination
Up to 50 m
Cellular & Network
Cellular Standard
4G LTE Cat 4
LTE FDD Bands
B1, B3, B5, B7, B8, B20, B28
SIM Card
Nano SIM
AU Carrier Support
Telstra · Optus · Vodafone
AI Engine
WizSense 3 Series
IVS
Tripwire · intrusion (human/vehicle)
SMD
SMD 4.0
AcuPick
Yes (with Dahua AcuPick NVR or compatible cloud)
Built-in Mic
Yes
Audio I/O
1 in / 1 out (RCA)
Storage
Micro SD up to 256 GB
Mobile Client
DMSS
Power, Environment & Build
Power Supply
12 VDC (no PoE)
Operating Temperature
−30 °C to +60 °C
Protection
IP67
Casing
Metal
Australian Warranty
3 Years (via CCTV Guru)
Typical Applications
Rural Property Gates
Monitor the front gate of a rural property with no Cat6 to the road.
Construction & Site Sheds
Theft monitoring at construction sites without fixed-line internet.
Mine Site Portables & Camps
WHS and asset protection on FIFO portable buildings.
Farms, Marinas & Council Reserves
Remote monitoring of grain silos, marina pontoons, water tanks and council reserves.
Frequently Asked Questions
Does it include a SIM?
No — you supply your own data SIM from Telstra, Optus or Vodafone.
5G compatible?
No — 4G LTE only.
Data plan size?
10–30 GB/month for typical alarm-only operation; 100+ GB for 24/7 continuous high-resolution.
Power?
12 VDC only — no PoE. Use the supplied PSU or pair with solar + battery for off-grid.
IR range?
Up to 50 m.
Storage?
Micro SD up to 256 GB onboard.
Cloud backup?
Yes — DMSS cloud backup of alarm clips.
Audio?
Built-in mic + RCA audio I/O.
Mobile viewing?
Yes — DMSS app.
Downloads
DH-IPC-HFW3441DG-AS-4G-EAU-B DatasheetDahua IP Bullet Camera Quick Start GuideDahua IP Bullet Camera Installation Guide
Order Your Dahua HFW3441DG-AS-4G from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing including solar + battery off-grid kit options. 3-year Australian warranty. cctvguru.com.au/pages/contact.
24/7 Full-Colour 4MP Turret Camera — See in Colour Even in Complete Darkness
The TP-Link VIGI C440 is a 4MP full-colour turret network camera that delivers vivid, colour footage around the clock — including in complete darkness — using a high-sensitivity sensor and built-in spotlight LEDs. Unlike standard IR cameras that switch to black-and-white at night, the C440 maintains full colour at all times, making it significantly easier to identify clothing colours, vehicle colours, and other critical details in after-hours footage. With smart detection, active defence, H.265+ compression, and dual PoE/12V DC power, it's a professional-grade camera for commercial and residential CCTV installations across Australia.
Key Features
24/7 Full-Colour Night Vision: Built-in spotlight LEDs and a high-sensitivity large-aperture sensor deliver full-colour footage in complete darkness — no black-and-white switching at night, ever.
4MP Ultra-High Definition: Captures detailed 4MP (2560×1440) footage for reliable identification of faces, clothing colours, licence plates, and fine details at a distance.
2.8mm Wide-Angle Lens: Provides a wide field of view ideal for covering large indoor areas, open spaces, car parks, and building entrances where broad coverage is needed.
Smart Detection: Configurable smart events including Line Crossing, Area Intrusion, and Camera Tamper Detection — with instant push notifications to the VIGI app.
Active Defence: Automatically triggers sound and light alarms when abnormal events are detected — warning and deterring potential intruders in real time without requiring manual intervention.
Two-Way Audio: Built-in microphone and speaker allow real-time communication through the camera — useful for deterring intruders or communicating with visitors remotely.
H.265+ Compression: Reduces storage consumption and network bandwidth by up to 50% compared to H.264 without sacrificing image quality — lowering NVR storage and running costs.
WDR, 3D DNR & Smart IR: Advanced video enhancement technologies improve image quality in challenging lighting conditions including backlit scenes and high-contrast environments.
PoE or 12V DC Power: Flexible dual power options — connect via a single PoE Ethernet cable for clean, simple installation, or use a 12V DC power adapter where PoE is unavailable.
SD Card Local Storage: Onboard microSD card slot for local recording independent of an NVR — useful for standalone deployments or as a backup recording source.
Flexible Management: Manage via VIGI NVR, VIGI app (iOS & Android), or VIGI Security Manager desktop software — supporting both local and remote monitoring.
Common Use Cases
Car parks and driveways where colour identification of vehicles is critical
Retail store interiors and entrances requiring 24/7 colour footage for incident review
Building entrances and reception areas with mixed lighting conditions
Warehouses and commercial properties requiring active deterrence with sound and light alarms
Residential properties where colour night vision improves identification over standard IR cameras
Standalone deployments with local SD card recording (no NVR required)
Technical Specifications
Model
VIGI C440 (2.8mm)
Resolution
4MP (2560×1440)
Lens
2.8mm fixed (also available in 4mm)
Camera Type
Full-Colour Turret (indoor/outdoor)
Night Vision
Full-colour 24/7 (spotlight LEDs)
Active Defence
Yes (sound & light alarm)
Two-Way Audio
Yes (built-in mic & speaker)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Smart Detection
Line Crossing, Area Intrusion, Camera Tamper
Video Enhancement
WDR, 3D DNR, Smart IR
Local Storage
microSD card slot (capacity not specified)
Power Supply
PoE (IEEE 802.3af) or 12V DC
Network Interface
RJ45 10/100Mbps
Management
VIGI NVR, VIGI App, VIGI Security Manager
ONVIF
Yes
Weight
400g
Frequently Asked Questions
What is the difference between the VIGI C440 (full-colour) and the VIGI C440I (IR)?
The VIGI C440 uses built-in spotlight LEDs to produce full-colour footage 24 hours a day — including in complete darkness. The VIGI C440I uses infrared LEDs that produce black-and-white footage at night. The C440 is the better choice when colour identification is important (e.g. vehicle colours, clothing); the C440I is better for discreet installations where visible spotlight LEDs are undesirable, or where battery/power consumption is a concern.
What is Active Defence and how does it work?
Active Defence is TP-Link's term for the camera's built-in deterrence capability. When a smart detection event is triggered (such as line crossing or area intrusion), the camera can automatically activate its spotlight LEDs and built-in siren to warn and deter the intruder in real time — without requiring any manual action. This can be configured via the VIGI app or VIGI Security Manager.
Does the 2.8mm lens provide a wide or narrow field of view?
The 2.8mm lens provides a wide field of view — ideal for covering large areas at close to medium range such as car parks, open rooms, building entrances, and retail floors. For longer-distance monitoring of specific points (gates, driveways, corridors), the 4mm lens variant provides a narrower, more focused view.
Can it record without an NVR?
Yes. The VIGI C440 has an onboard microSD card slot for local recording, allowing it to operate as a standalone camera without an NVR. It can also be managed directly via the VIGI app or VIGI Security Manager. For multi-camera installations with centralised recording and playback, a VIGI NVR is recommended.
Is it suitable for outdoor installation?
Yes. The VIGI C440 is rated for outdoor use. Check the product's IP rating for specific weatherproofing details. For permanent outdoor installation in Australian conditions, mount in a sheltered position where possible to maximise longevity and protect the spotlight LEDs.
What NVR is recommended for this camera?
The TP-Link VIGI NVR1008H-8P is an ideal pairing for small installations — it provides 8 PoE+ ports to power and connect up to 8 VIGI cameras with Plug & Play auto-detection and 4K HDMI output. For larger installations, the VIGI NVR2016H (16 channels) or NVR2032H (32 channels) are recommended.
Dahua WizSense Series · SMD 4.0 AI · Australian Stock
Dahua 6MP WizSense Turret
Dahua DH-IPC-HDW3666TP-ZS-AUS — 6MP Motorised Varifocal Turret Camera
The Dahua DH-IPC-HDW3666TP-ZS-AUS is a high-performance 6MP WizSense AI turret camera purpose-built for Australian commercial, retail, education and government installations where detail, flexibility and intelligent detection are non-negotiable. Powered by a 1/2.7" CMOS sensor and a 2.7–13.5 mm motorised varifocal lens, it delivers crisp 3072 × 2048 resolution across a wide zoom range — all without climbing a ladder to adjust the lens. Dahua's Starlight low-light technology and 40 m Smart IR ensure clear, usable footage around the clock, while the IP67 weatherproof housing handles Australia's harshest outdoor conditions.
As part of the WizSense Series, the DH-IPC-HDW3666TP-ZS-AUS features SMD 4.0 (Smart Motion Detection) and Perimeter Protection — accurately classifying humans and vehicles to slash false alarms from animals, foliage and lighting changes. A built-in microphone, onboard microSD card slot (up to 256 GB) and standard PoE power make it a complete, cost-effective solution for any Australian site.
Resolution
6MP · 3072 × 2048
Lens
2.7–13.5 mm Motorised
Night Vision
40 m Smart IR · Starlight
AI Detection
SMD 4.0 · Perimeter
Protection
IP67 · WDR
Power
PoE 802.3af · 12V DC
Dahua WizSense AI
Australian Stock & Support
3-Year Dahua Warranty
Why Choose the Dahua DH-IPC-HDW3666TP-ZS-AUS in Australia
Australian integrators and security professionals choose the DH-IPC-HDW3666TP-ZS-AUS because it combines the flexibility of a motorised zoom lens with the intelligence of Dahua's WizSense AI platform — all in a robust, weatherproof turret housing. Whether you're covering a large retail car park, a school perimeter, a warehouse loading dock or a residential estate, the 5× optical zoom range means one camera model covers multiple scene types without compromise.
6MP Motorised Varifocal Flexibility
The 2.7–13.5 mm motorised lens lets installers dial in the exact field of view remotely — no physical lens adjustment required. One SKU covers wide-angle entry shots and long-range licence plate capture alike.
SMD 4.0 — Smarter Motion Detection
Smart Motion Detection 4.0 accurately distinguishes humans and vehicles from irrelevant motion (animals, trees, headlights), dramatically reducing false alarms and operator fatigue on Australian sites.
Perimeter Protection AI
Tripwire and intrusion detection with human/vehicle classification deliver actionable alerts — not noise. Ideal for after-hours perimeter monitoring at schools, warehouses and retail centres.
Starlight Low-Light Performance
Dahua's Starlight technology produces vivid colour images in near-darkness — critical for Australian dawn/dusk patrol shifts and poorly lit car parks where colour detail aids identification.
40 m Smart IR Night Vision
Adaptive IR intensity prevents overexposure at close range while maintaining reach to 40 m — delivering clean, usable night footage across driveways, yards and open perimeters.
Built-In Mic + Edge Storage
The integrated microphone captures audio evidence without extra cabling, while the microSD slot (up to 256 GB) provides failover edge recording if the network or NVR goes offline.
Technical Specifications
SKU / Model
DH-IPC-HDW3666TP-ZS-AUS
Camera Type
6MP WizSense Motorised Varifocal Turret Camera
Image Sensor
1/2.7" CMOS
Max Resolution
3072 × 2048 @ 25/30 fps
Lens Type
Motorised Varifocal, 2.7–13.5 mm
IR Distance
40 m Smart IR
Dynamic Range
WDR
Video Compression
H.265 / H.265+ / H.264 / H.264+ / MJPEG
AI Features
SMD 4.0 · Perimeter Protection (Tripwire, Intrusion) · Human & Vehicle Classification
Abnormality Detection
Motion Detection · Privacy Masking · Scene Change · Audio Detection · SD Card Alerts · Network Disconnection · IP Conflict · Illegal Access · Voltage Detection
Audio
Built-in Microphone
Edge Storage
microSD / microSDHC / microSDXC (up to 256 GB)
Weatherproof Rating
IP67
Power Source
12V DC · PoE (IEEE 802.3af)
Colour
White
Warranty
3-Year Dahua Warranty (Australia)
Downloads & Resources
DH-IPC-HDW3666TP-ZS-AUS Datasheet
Quick Start Guide (PDF)
Installation Guide (PDF)
Web 5.0 Operation Manual (PDF)
Order the Dahua DH-IPC-HDW3666TP-ZS-AUS from CCTV Guru
CCTV Guru is an authorised Australian distributor of Dahua security cameras. Order the DH-IPC-HDW3666TP-ZS-AUS today for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera rollouts, and full local warranty support. Contact our Australian team for tailored quotes on larger installations.
Clearance. Limited supplier stock, available while stocks last.
WizMind 5 · 5 MP · Fixed 2.8 mm · 80 m IRDahua WizMind 5 · 5 MP Long-Range IR BulletDahua DH-IPC-HFW5541TP-SE-0280B — 5 MP Pro AI Fixed-Focal IR Bullet WizMind 5 Network Camera (2.8 mm, 80 m IR)
The Dahua DH-IPC-HFW5541TP-SE-0280B is the WizMind 5 Pro AI 5 MP fixed-focal IR bullet — built around a 1/2.7" CMOS sensor capturing 2592 × 1944 at 20 fps and 1080p at full 50/60 fps with triple-stream H.265 + H.264 encoding. The 2.8 mm fixed lens delivers a wide 102° field of view; built-in IR reaches up to 80 m — one of the longest IR ranges of any 5 MP fixed bullet on the market; WDR is 120 dB; the metal bullet housing is IP67 sealed. WizMind 5 Pro AI runs face recognition with on-camera database, perimeter protection, people counting, heat map and SMD Plus. ePoE supports 800 m PoE runs on Cat6. Built for project-grade Australian deployments where 80 m of IR throw matters — long driveways, freight yards, sports fields, depot perimeters, transport corridors and council reserves. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5541 series.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW5541TP-SE WizMind 5 Long-Range IR Bullet
80 m Long-Range IR
Built-in IR array reaches up to 80 m — one of the longest in its class. Designed for long driveways, freight yards, sports fields and council reserves.
True 5 MP Detail
Native 2592 × 1944 at 20 fps — nearly 2.5× the pixel density of 1080p. Smooth 50/60 fps available at 1080p.
WizMind 5 Full Pro AI
Face recognition with database, perimeter protection, people counting, heat map and SMD Plus.
ePoE — 800 m PoE
Extends PoE distance to 800 m on Cat6 — ideal for long perimeter runs without an edge network closet.
120 dB WDR + IP67
True 120 dB WDR for harsh Australian sun. IP67 metal housing for Australian outdoor conditions.
Triple-Stream H.265 + H.264
Triple-stream encoding for simultaneous full-quality recording, mobile streaming and analytics.
AI & Smart Detection
Face Recognition (Database)
On-camera face database with up to 10,000 entries. Real-time recognition with similarity scoring and DMSS alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Entry/exit counts, queue length and dwell-time heat maps.
SMD Plus
Motion alerts triggered only by humans and vehicles.
Abnormality Detection
SD card, network, IP conflict, tampering events — pushed to DMSS.
Vehicle Metadata
Vehicle classification with attribute capture — type, colour, direction.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HFW5541TP-SE-0280B
Form Factor
Bullet (HFW chassis)
Image Sensor
1/2.7" CMOS
Maximum Resolution
2592 × 1944 (5 MP)
Frame Rate
5 MP @ 20 fps · 1080p @ 50/60 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Fixed-focal 2.8 mm
Field of View
H: ~102°
IR Illumination
Up to 80 m
Pro AI & Network
AI Engine
WizMind 5 Series (Pro AI)
Face Recognition
Yes · on-camera database
IVS
Tripwire · intrusion (human/vehicle)
SMD
SMD Plus
People Counting
Yes
Heat Map
Yes
Encoding
Triple-stream H.265 + H.264
Network
RJ-45 (10/100) · ePoE
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 256 GB
Mobile Client
DMSS
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af) / ePoE
ePoE Distance
Up to 800 m on Cat6
Operating Temperature
−40 °C to +60 °C
Protection
IP67
Casing
Metal
Australian Warranty
5 Years (via CCTV Guru)
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
View NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
View NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
View NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
View NVR4216-16P-AI →
Frequently Asked Questions
How is the IR 80 m?
High-power IR array tuned for long-throw illumination — one of the longest IR ranges in any 5 MP fixed bullet on the market.
WizMind 5?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map.
ePoE?
Extends PoE to 800 m on Cat6. Pair with Dahua ePoE switch/NVR.
Standard PoE?
Yes — 802.3af-compliant.
Field of view?
Wide 102° at 2.8 mm fixed lens.
Audio?
This SKU variant is the SE (no AS audio variant). For audio I/O, choose the AS or ASE variant.
Third-party NVRs?
Yes — ONVIF Profile S, G, T.
Temperature range?
−40 °C to +60 °C. Alpine-rated.
Mobile viewing?
Yes — Dahua's DMSS app.
Downloads
DH-IPC-HFW5541TP-SE-0280B DatasheetDahua IP Bullet Camera Quick Start GuideDahua IP Bullet Camera Installation GuideDahua IP Bullet Camera Dimension Sheet
Order Your Dahua HFW5541TP-SE from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 5-year Australian warranty. cctvguru.com.au/pages/contact.
Clearance. Limited supplier stock, available while stocks last.
WizMind 5 · 4 MP · Fixed 2.8 mm · ePoE 800 mDahua WizMind 5 · 4 MP Pro AI BulletDahua DH-IPC-HFW5442TP-ASE-0280B — 4 MP Pro AI Fixed-Focal Starlight+ IR Bullet WizMind 5 Network Camera (2.8 mm)
The Dahua DH-IPC-HFW5442TP-ASE-0280B is the WizMind 5 Pro AI 4 MP fixed-focal bullet — built around a 1/1.8" Starlight+ CMOS sensor (physically larger and roughly twice the light-gathering area of WizSense's 1/2.7") capturing 2688 × 1520 at 25/30 fps and 1080p at full 50/60 fps. The 2.8 mm fixed lens delivers a wide 102° field of view; built-in IR reaches up to 50 m for long-range night surveillance; WDR is 140 dB; the metal bullet housing is IP67 sealed across −40 °C to +60 °C. WizMind 5 deep-learning Pro AI runs the full feature suite — face recognition with on-camera database, perimeter protection, people counting, heat map, stereo analysis, vehicle metadata and SMD Plus. ePoE extends PoE to 800 m on Cat6. Built for project-grade Australian outdoor installs — commercial frontages, depot perimeters, freight yards, council CCTV and transport corridors. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5442 series.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW5442TP-ASE WizMind 5 Pro AI Fixed Bullet
1/1.8" Starlight+ Sensor
Physically larger sensor with roughly twice the light-gathering area of WizSense's 1/2.7". Usable colour video in moonlight conditions.
WizMind 5 Full Pro AI
Face recognition with on-camera database, perimeter protection, people counting, heat map, stereo analysis, vehicle metadata.
ePoE — 800 m PoE Distance
Extends data + power to 800 m on Cat6 (vs the standard 100 m limit) — long perimeter runs without an edge network closet.
140 dB True WDR
Holds detail in both bright sky and dark interior in a single frame — critical for harsh Australian sun.
50 m IR + Alpine Build
Built-in IR array reaches up to 50 m. Metal IP67 housing rated −40 °C to +60 °C.
Predictable Fixed Framing
2.8 mm fixed lens (102° field of view) — predictable install framing at lower cost than the motorised HFW5442EP-ZE sibling.
Important Install Note
This camera is fixed-focal (2.8 mm) — frame at install time. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR with ePoE ports. For coastal or humid Australian installs, pair with a Dahua water-proof junction box to protect the RJ-45 termination.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. Real-time recognition with similarity scoring and DMSS alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps.
SMD Plus Smart Motion
Motion alerts triggered only by humans and vehicles. Filters out branches, animals, shadows.
Stereo Analysis
Stereo-vision behaviour analysis — fall, fight, person stationary detection.
Vehicle Metadata Capture
Vehicle classification with attribute capture — type, colour, direction.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HFW5442TP-ASE-0280B
Form Factor
Bullet (HFW chassis)
Image Sensor
1/1.8" CMOS Starlight+
Maximum Resolution
2688 × 1520 (4 MP)
Frame Rate
4 MP @ 25/30 fps · 1080p @ 50/60 fps
WDR
140 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Fixed-focal 2.8 mm
Field of View
H: ~102°
IR Illumination
Up to 50 m
Pro AI, Audio & Network
AI Engine
WizMind 5 Series (Pro AI)
Face Recognition
Yes · on-camera database
IVS
Tripwire · intrusion (with human/vehicle classification)
SMD
SMD Plus
People Counting
Yes
Heat Map
Yes
Stereo Analysis
Yes
Vehicle Metadata
Yes
Audio I/O
1 in / 1 out
Alarm I/O
1 in / 1 out
Network Port
RJ-45 (10/100 Base-T) · ePoE
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 256 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af) / ePoE
ePoE Distance
Up to 800 m (10 Mbps) on Cat6
Operating Temperature
−40 °C to +60 °C
Protection
IP67
Casing
Metal
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
5 Years (via CCTV Guru)
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 ePoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 ePoE+ ports.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What is "WizMind 5"?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map, stereo analysis, vehicle metadata, perimeter protection.
What does "ePoE" do?
Extends PoE distance from 100 m up to 800 m on Cat6. Pair with a Dahua ePoE switch or NVR.
Can I run it on standard PoE?
Yes — 802.3af-compliant.
What is the difference vs the motorised HFW5442EP-ZE?
Same WizMind 5 Pro AI platform and 1/1.8" Starlight+ sensor. This fixed version uses a 2.8 mm fixed lens (lower cost); the motorised version has a 2.7–12 mm motorised vari-focal.
How far can it see at night?
Up to 50 m built-in IR.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T. AI features only on Dahua AI NVRs.
What is the warranty?
5-year Australian warranty via CCTV Guru.
What temperature range?
−40 °C to +60 °C. Alpine and tropical rated.
Can I view it on my phone?
Yes — Dahua's free DMSS app.
Downloads
DH-IPC-HFW5442TP-ASE-0280B DatasheetDahua IP Bullet Camera Quick Start GuideDahua IP Bullet Camera Installation Guide
Order Your Dahua HFW5442TP-ASE from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing. 5-year Australian warranty. Phone, email or live chat us through cctvguru.com.au/pages/contact.
Clearance. Limited supplier stock, available while stocks last.
WizMind 5 · 5 MP · Fixed 2.8 mm · IK10 Vandal DomeDahua WizMind 5 · 5 MP Pro AI Vandal DomeDahua DH-IPC-HDBW5541RP-ASE-0280B — 5 MP Pro AI Fixed-Focal IR Vandal Dome WizMind 5 Network Camera (2.8 mm)
The Dahua DH-IPC-HDBW5541RP-ASE-0280B is the WizMind 5 Pro AI 5 MP fixed-focal vandal dome — built around a 1/2.7" CMOS capturing 2592 × 1944 at 20 fps and 1080p at full 50/60 fps. The wide 2.8 mm F1.6 fixed lens delivers a 113° field of view; built-in IR reaches up to 50 m for long-range night surveillance; WDR is 120 dB; the IK10 vandal-rated metal dome housing is IP67 sealed across −30 °C to +60 °C. WizMind 5 deep-learning Pro AI runs face recognition with on-camera database, full perimeter protection, people counting, heat map and SMD Plus. Built-in microphone, 1/1 RCA audio I/O, 1/1 alarm wet-contact pair, and ePoE for 800 m PoE runs on Cat6 round out the spec. Built for project-grade Australian deployments where a fixed-lens Pro AI dome is preferred — shopping centres, transport platforms, schools, council facilities and hospitals. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5541 series.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HDBW5541RP-ASE WizMind 5 Pro AI Fixed Vandal Dome
IK10 Vandal Dome with Pro AI
Full metal IK10-rated dome chassis — built for shopping centres, transport platforms, schools and high-vandalism positions. Pro AI features baked in.
True 5 MP Detail
Native 2592 × 1944 at 20 fps — 5 MP delivers nearly 2.5× the pixel density of 1080p. Smooth full-motion 50/60 fps available at 1080p when bandwidth is tight.
WizMind 5 Full Pro AI
Face recognition with on-camera database, perimeter protection, people counting, heat map and SMD Plus — the flagship Pro AI feature set.
50 m Long-Range IR
Built-in IR array reaches up to 50 m — long-range night surveillance for large open spaces.
ePoE — 800 m PoE Distance
Extends data + power to 800 m on Cat6 (vs the standard 100 m limit) — long perimeter runs without an edge network closet.
120 dB WDR + Wide 113° FoV
True 120 dB WDR for harsh Australian sun. Wide 113° field of view covers more area per camera, reducing total camera count for a given site.
Important Install Note
This camera is fixed-focal (2.8 mm) — frame at install time. The dome gimbal allows three-axis adjustment for flexible install alignment. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR with ePoE ports.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. Real-time recognition with similarity scoring and DMSS alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps.
SMD Plus Smart Motion
Motion alerts triggered only by humans and vehicles. Filters out branches, animals and shadows.
Abnormality Detection
SD card, network, IP conflict, tampering, audio, voltage events — pushed to DMSS.
Built-in Mic + Two-Way Audio
Built-in microphone plus 1/1 RCA audio I/O for external mic/speaker. ONVIF Profile S, G, T.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HDBW5541RP-ASE-0280B
Form Factor
Vandal dome (HDBW chassis)
Image Sensor
1/2.7" CMOS
Maximum Resolution
2592 × 1944 (5 MP)
Frame Rate
5 MP @ 20 fps · 1080p @ 50/60 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Fixed-focal 2.8 mm F1.6
Field of View
H: ~113°
IR Illumination
Up to 50 m
Pro AI, Audio & Network
AI Engine
WizMind 5 Series (Pro AI)
Face Recognition
Yes · on-camera database (up to 10,000)
IVS
Tripwire · intrusion (with human/vehicle classification)
SMD
SMD Plus
People Counting
Yes
Heat Map
Yes
Built-in Microphone
Yes
Audio I/O
1 in / 1 out (RCA)
Alarm I/O
1 in / 1 out
Network Port
RJ-45 (10/100 Base-T) · ePoE
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 256 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af) / ePoE
ePoE Distance
Up to 800 m (10 Mbps) on Cat6
Operating Temperature
−30 °C to +60 °C
Protection
IP67 · IK10 vandal
Casing
Metal
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
5 Years (via CCTV Guru)
How It Compares — WizMind 5 (Pro) vs WizSense 3 (Mid)
The WizSense 3 sibling is the Dahua DH-IPC-HDBW3466FP-AS-AUS — same vandal dome form factor at 4 MP but on the lighter WizSense 3 AI tier. Choose WizMind 5 for face recognition, people counting and ePoE 800 m. Choose WizSense 3 for general motion alarms at a lower price.
Feature
HDBW5541RP-ASE-0280B (this — WizMind 5)
HDBW3466FP-AS-AUS (WizSense 3)
AI Tier
WizMind 5 (Pro AI)
WizSense 3 (mid AI)
Resolution
5 MP (2592 × 1944)
4 MP (2688 × 1520)
WDR
120 dB
120 dB
Face Recognition
Yes (database)
No
People Counting / Heat Map
Yes
No
ePoE 800 m
Yes
No (standard PoE only)
Warranty
5 Years
3 Years
Best For
Project-grade analytics-driven sites
SMB and residential motion-alarm use
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 ePoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 ePoE+ ports.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What does "IK10" mean?
The highest impact rating in the IK standard — the dome can withstand a 5 kg impact dropped from 40 cm. Designed for high-vandalism positions.
What is "WizMind 5"?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map, perimeter protection, vehicle metadata.
What does "ePoE" do?
Extends PoE distance from 100 m up to 800 m on Cat6. Pair with a Dahua ePoE switch or NVR.
Can I run it on standard PoE?
Yes — 802.3af-compliant.
How far can it see at night?
Up to 50 m built-in IR.
Does it have audio?
Yes — built-in mic + RCA audio I/O.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T. AI features only on Dahua AI NVRs.
What temperature range?
−30 °C to +60 °C.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android.
Downloads
DH-IPC-HDBW5541R-ASE DatasheetDahua IP Dome Camera Quick Start GuideDahua IP Dome Camera Installation GuideDahua IP Dome Camera Dimension Sheet
Order Your Dahua HDBW5541RP-ASE from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing and NVR sizing. We back every WizMind 5 camera with a 5-year Australian warranty. Phone, email or live chat us through cctvguru.com.au/pages/contact.
Hikvision DeepinView · 4MP ANPR Bullet · DarkFighter 2.0 · 150 dB WDR
Hikvision 4MP ANPR Bullet
Hikvision iDS-2CD7A46G2/P-IZHSY — 4MP DeepinView ANPR Moto Varifocal Bullet (2.8–12 mm / 8–32 mm)
The Hikvision iDS-2CD7A46G2/P-IZHSY is Hikvision's flagship 4MP DeepinView ANPR bullet — purpose-built for on-camera licence plate recognition, vehicle attribute capture and high-accuracy perimeter protection. It pairs a 1/1.8" progressive-scan CMOS sensor with DarkFighter 2.0 ultra-low-light technology, 150 dB AWDR, a built-in heater for rain and condensation, NEMA 4X anti-corrosion housing (the -Y suffix) and 5 simultaneous video streams. Choose between two motorised varifocal lens variants — 2.8–12 mm for wide-area carpark, driveway and access-gate scenes, or 8–32 mm for long-range boomgate, freeway off-ramp and side-of-road number-plate capture out to 40 m identification distance.
Powered by Hikvision's DeepinView deep-learning engine, the camera runs licence plate recognition with ≥98% accuracy across 124+ countries and regions, captures vehicle type / colour / brand / direction, classifies humans and vehicles for line-crossing, intrusion, region entry and region exit events, and supports up to 10,000-record blocklist/allowlist ANPR rules — all entirely on the camera, with no separate analytics server required. The metal-alloy bullet body is rated IP67, IK10 and NEMA 4X, and ships with TPM 2.0 (FIPS 140-2 Level 2) hardware-rooted cyber security. Australian stock, 3-year Australian warranty.
Resolution
4MP · 2688 × 1520 · up to 120 fps
ANPR Engine
On-camera LPR · ≥98% accuracy
Low Light
DarkFighter 2.0 · 0.0005 lux
Dynamic Range
150 dB AWDR
Protection
IP67 · IK10 · NEMA 4X (-Y)
Power
PoE+ 802.3at · 12 VDC · 24 VAC
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the iDS-2CD7A46G2/P-IZHSY for Australian ANPR
On-camera number-plate recognition is the highest-value piece of analytics any commercial site can deploy — replacing manual gate watching, paid carpark attendants, dispute footage searches and after-the-fact incident review with a real-time event stream that names every vehicle entering or leaving. The G2 generation of Hikvision's DeepinView ANPR bullet is the camera built specifically for this job in Australia: full on-camera LPR, vehicle attribute capture, 4MP DarkFighter 2.0 for clear plates even at midnight, and a choice of two motorised varifocal lenses to suit anything from a single-gate carpark to a four-lane freeway off-ramp.
On-Camera ANPR — No Separate Server
The licence plate recognition algorithm runs entirely on the camera's deep-learning processor. No external ANPR analytics box, no per-channel software licence, no recurring cloud fee — just a Hikvision NVR, this camera, and a copy of the iVMS-4200 / HikCentral plate database.
≥98% LPR Accuracy · 124+ Countries
Hikvision's G2 LPR engine recognises plates from four global regions and more than 124 countries, including the standard, custom, motorcycle and stacked-character plate formats used across every Australian state and territory.
4MP DarkFighter 2.0 — Plates at Midnight
The 1/1.8" sensor captures plates at 0.0005 lux in colour and 0 lux with IR — meaning legible plates on un-lit driveways, late-night service roads and rural farm gates without needing supplementary white light.
150 dB AWDR — Sun Glare Won't Blind It
The class-leading 150 dB true wide dynamic range handles the worst Australian lighting scenarios — sun in the lens at 5 pm, headlights at a boomgate, shadow lines across a covered carpark entrance — without losing the plate detail.
Vehicle Capture up to 120 km/h
Front-installation checkpoint mode captures vehicles travelling at up to 120 km/h; side installation captures up to 80 km/h. Detection rate ≥99%, driving-direction accuracy ≥98%.
Blocklist · Allowlist · 10,000 Records
Maintain on-camera plate databases of up to 10,000 records — automatically open the boomgate for tenants, alert security on a stolen vehicle, log every visitor by plate, all entirely at the edge with no NVR-side dependency.
Hikvision Deep-Learning ANPR — Official Overview
Perimeter Protection — Human/Vehicle Filtering
Line crossing, intrusion, region entrance and region exiting — each rule can be restricted to humans only, vehicles only or both. Filters out leaves, possums, birds, flags and headlights so security only gets the alarms that matter.
Vehicle Attribute Capture
Beyond just the plate, the camera captures vehicle type, colour, brand and driving direction — feeding searchable metadata into HikCentral for post-incident vehicle search ("show me every red ute that entered after 6 pm").
Built-in Heater + Demist
Onboard heater + demist function keeps the dome glass clear in rain, heavy dew and cold-morning condensation — important for Tasmanian, alpine and coastal sites where overnight humidity rolls in.
NEMA 4X Anti-Corrosion (-Y Variant)
The -Y suffix indicates Hikvision's moderate anti-corrosion housing — rated NEMA 4X for coastal areas within ~2 km of the shoreline and sites exposed to acid rain. Ideal for Australian coastal carparks, marinas and dockyards.
TPM 2.0 + FIPS 140-2 Cyber Security
Hardware-rooted Trusted Platform Module 2.0 at FIPS 140-2 Level 2, plus TLS 1.3, 802.1X authentication, watermarking, video/firmware/config encryption and complete audit logging — meeting enterprise and government cyber baselines.
Five Simultaneous Streams
Stream main 4MP for the NVR, sub-stream for mobile, third-stream for an integrated VMS, fourth for an LPR sub-system and fifth for archival — all from a single network port, with H.265+ compression keeping bandwidth in check.
Technical Specifications
iDS-2CD7A46G2/P-IZHSY · Full Specifications
SKU
iDS-2CD7A46G2/P-IZHSY(2.8-12mm) / iDS-2CD7A46G2/P-IZHSY(8-32mm)
Camera Type
4MP DeepinView ANPR Moto Varifocal Bullet Network Camera (-Y NEMA 4X anti-corrosion)
Image Sensor
1/1.8" Progressive Scan CMOS
Max Resolution
2688 × 1520 (4MP)
Lens Options
2.8–12 mm motorised varifocal · 8–32 mm motorised varifocal (auto / semi-auto / manual focus, P-iris)
Aperture
2.8–12 mm: F1.38 to F2.53 · 8–32 mm: F1.7 to F1.73
Field of View
2.8–12 mm: H 106° → 41.8° · 8–32 mm: H 42.5° → 15.2°
Min. Illumination
Colour 0.0005 lux @ F1.2 (AGC ON) · B/W 0.0001 lux · 0 lux with IR
IR Range
2.8–12 mm: up to 60 m · 8–32 mm: up to 100 m · smart supplement light · 850 nm
Day & Night
IR cut filter · Blue-glass module (reduces ghosting)
Wide Dynamic Range
150 dB AWDR · BLC · HLC · 3D DNR · Defog · Distortion Correction · EIS
Frame Rate (Main)
4MP @ 60 fps · 2MP @ 120 fps (monitoring mode) · 4MP @ 25/30 fps (smart mode)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG (substream)
Streams
5 simultaneous streams (main / sub / third / fourth / fifth)
Video Bit Rate
32 Kbps – 8 Mbps · CBR / VBR · SVC · ROI (4 per stream)
Deep-Learning AI
DeepinView · Perimeter Protection (line crossing / intrusion / region entry / region exit · human + vehicle classification) · combined-event triggering
ANPR / LPR
≥98% recognition accuracy · ≥99% capture rate · ≥98% driving-direction accuracy · 4 areas / 124+ countries · vehicle & motorcycle plates · blocklist/allowlist up to 10,000 records
Vehicle Capture Speed
Front (checkpoint): up to 120 km/h · Side: up to 80 km/h
Vehicle Attributes
Type · colour · brand · driving direction · vehicle / non-vehicle counting
Smart Events
Scene change · audio exception · defocus · vibration (G-sensor) · video quality diagnosis
Audio
1 in / 1 out (line) · G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC · environment noise filtering
Alarm I/O
2 inputs / 2 outputs (max 24 VDC/24 VAC, 1 A)
Wiegand (-Y)
1 Wiegand interface — CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit
RS-485 (-Y)
1 × RS-485 (Half duplex; Hikvision / Pelco-P / Pelco-D)
Power Output (-Y)
12 VDC, max 100 mA
Ethernet
1 × RJ-45 10/100/1000 Mbps self-adaptive
Edge Storage
microSD / SDHC / SDXC up to 1 TB · ANR · encryption-capable card supported
API & Protocols
ISAPI · SDK · ISUP · OTAP · ONVIF (Profile S / G / T / M) · 20 concurrent live-view sessions
Cyber Security
TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.2 / 1.3 · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · AES128/256 · IP filter · security audit log · watermark
Client Software
iVMS-4200 · Hik-Connect · HikCentral
Power Source
12 VDC ±20% · 24 VAC ±20% · PoE IEEE 802.3at Type 2 Class 4 · max 22.6 W
Weatherproof Rating
IP67 (IEC 60529-2013)
Vandal Resistance
IK10 (IEC 62262:2002)
Anti-Corrosion
NEMA 4X (NEMA 250-2018) — Y variant · moderate protection
Approvals
CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · CB · BIS · LOA · EN50121-4 (railway) · RoHS · WEEE · REACH · PVC-FREE
Operating Temp.
−40 °C to +65 °C · ≤95% humidity (non-condensing)
Dimensions
Ø 140 mm × 377.4 mm (Y variant)
Weight
Approx. 2,170 g
Housing
Aluminium alloy · PVC-free
Warranty
3-Year Australian Warranty (back-to-base)
2.8–12 mm vs 8–32 mm — Which Lens Should I Choose?
Both variants share the same body, sensor, DeepinView engine, LPR algorithm, 150 dB WDR and 4MP @ 60 fps capability. The only differences are the motorised lens range, the maximum IR distance and — most importantly — how far away from the plate the camera can be mounted. Use the 2.8–12 mm lens for wide-coverage scenes where the camera also needs to see context (the whole driveway, the entire carpark entrance), and the 8–32 mm lens for narrow, long-range plate-capture lanes (boomgates, freeway off-ramps, multi-lane checkpoints) where the camera mounts well back from the vehicle.
iDS-2CD7A46G2/P-IZHSY(2.8-12mm) vs iDS-2CD7A46G2/P-IZHSY(8-32mm)
Feature
iDS-2CD7A46G2/P-IZHSY (2.8–12 mm — wide)
iDS-2CD7A46G2/P-IZHSY (8–32 mm — long range)
Lens Range
Motorised varifocal · 2.8–12 mm
Motorised varifocal · 8–32 mm
Optical Zoom Ratio
4.3× motorised
4× motorised
Aperture
F1.38 → F2.53
F1.7 → F1.73
Horizontal FOV
106° → 41.8°
42.5° → 15.2°
Vertical FOV
55.4° → 23.6°
23.4° → 8.7°
Diagonal FOV
130° → 48.1°
49.7° → 17.3°
IR Range
Up to 60 m
Up to 100 m
DORI · Detect (Tele)
151.7 m
400 m
DORI · Recognise (Tele)
30.3 m
80 m
DORI · Identify (Tele)
15.2 m
40 m
DORI · Identify (Wide)
6 m
15 m
Image Sensor
1/1.8" Progressive Scan CMOS
1/1.8" Progressive Scan CMOS
Resolution / Max FPS
4MP @ 60 fps · 2MP @ 120 fps
4MP @ 60 fps · 2MP @ 120 fps
WDR · Min. Illumination
150 dB AWDR · 0.0005 lux
150 dB AWDR · 0.0005 lux
ANPR / LPR Engine
DeepinView G2 · ≥98% accuracy · 124+ countries
DeepinView G2 · ≥98% accuracy · 124+ countries
Vehicle Capture Speed
Front 120 km/h · Side 80 km/h
Front 120 km/h · Side 80 km/h
Protection
IP67 · IK10 · NEMA 4X (-Y)
IP67 · IK10 · NEMA 4X (-Y)
Cyber Security
TPM 2.0 · FIPS 140-2 L2 · TLS 1.3
TPM 2.0 · FIPS 140-2 L2 · TLS 1.3
Power
PoE+ 802.3at · 12 VDC · 24 VAC · 22.6 W
PoE+ 802.3at · 12 VDC · 24 VAC · 22.6 W
Best For
Single-gate carparks, residential driveways, boutique-retail loading docks, small-business entrances, mixed plate-and-overview duty where the camera mounts 3–10 m from the plate line.
Boomgate entries, multi-lane checkpoints, freeway off-ramps, large industrial sites, council car-pound entries — anywhere the camera mounts 10–40 m back from the plate line.
Not sure which lens to pick? Contact our Australian team with your camera-to-plate distance and lane width — we'll size the right variant for your site.
Pair with a Hikvision AcuSense / DeepinMind AI NVR
To get the full value out of on-camera ANPR — plate-search across recorded footage, blocklist alerts pushed to security, vehicle attribute filtering — pair the iDS-2CD7A46G2/P-IZHSY with a Hikvision AcuSense or DeepinMind NVR. The camera's LPR metadata, vehicle attributes and DeepinView events are all carried over the existing Hikvision NVR protocol — no additional licence required.
DS-7608NXI-I2/8P/Vpro — 8CH · AcuSense Pro
Eight-channel AcuSense Pro NVR with 8 built-in PoE ports — perfect for a single-site ANPR deployment with mixed perimeter cameras. View DS-7608NXI-I2/8P/Vpro →
DS-7616NXI-I2/16P/Vpro — 16CH · AcuSense Pro
Sixteen channels at full PoE — room for the ANPR camera plus a fleet of perimeter and overview cameras across the whole site. View DS-7616NXI-I2/16P/Vpro →
DS-7732NXI-I4/16P/Vpro — 32CH · AcuSense Pro
Thirty-two channels with 16 PoE and 4 HDD bays — the typical platform for council carparks, multi-building campuses and shopping-centre ANPR rollouts. View DS-7732NXI-I4/16P/Vpro →
iDS-7716NXI-M4/16P/X — 16CH · DeepinMind
Hikvision DeepinMind X-Series — the most powerful 16-channel AI NVR for sites running multiple ANPR cameras and AcuSeek natural-language vehicle search. View iDS-7716NXI-M4/16P/X →
Browse the full Hikvision NVR range here: Hikvision Network Video Recorders → or the complete Hikvision AcuSeek & DeepinView camera collection →.
Compatible Mounts & Accessories
Hikvision DS-1275ZJ-S-SUS Pendant Wall Mount
Stainless-steel pendant wall mount for the iDS-2CD7A46G2/P-IZHSY bullet — designed for coastal Australian sites where corrosion is a serious concern.
Hikvision DS-1475ZJ-SUS Vertical Pole Mount
Stainless-steel vertical pole bracket — the typical install partner when the camera goes on a fence post, light pole or gate column.
Hikvision DS-1476ZJ-SUS Corner Mount
Stainless-steel corner-mount bracket for situating the bullet at the corner of a building, looking down a perimeter line or carpark approach.
Hikvision DS-1475ZJ-Y / DS-1476ZJ-Y
Anti-corrosion-coated alternatives to the SUS series — matched to the -Y NEMA 4X bullet body for full anti-corrosion-rated installations.
Hikvision DS-FM2466 Alarm Expansion Box
LAN-attached alarm box that extends the iDS-2CD7A46G2/P-IZHSY's I/O by an additional 6 alarm inputs and 6 alarm outputs — useful when interlocking ANPR triggers with boomgates, intercoms or shed-door contactors.
WD Purple 256 GB Surveillance microSD
WD Purple — built for 24/7 surveillance write cycles, with far longer endurance than consumer microSD cards. The recommended edge-recording card for Hikvision G2 ANPR bullets. View WD Purple 256 GB →
Frequently Asked Questions
Does the iDS-2CD7A46G2/P-IZHSY need a separate ANPR licence or server?
No. The licence-plate recognition algorithm runs entirely on the camera. You don't need a dedicated ANPR analytics box, a per-channel software licence or a recurring cloud subscription — just a Hikvision NVR (or HikCentral) to receive the LPR metadata and store the captured plates.
Does it recognise Australian plates?
Yes. Hikvision's G2 LPR engine covers 124+ countries and regions across four areas, including all standard Australian state and territory plate formats — NSW, VIC, QLD, WA, SA, TAS, ACT, NT — plus custom plates, motorcycle plates and stacked-character plates.
What's the difference between the 2.8–12 mm and 8–32 mm variants?
Same camera body, same DeepinView AI, same ANPR engine — only the motorised lens range, IR range and plate-capture distance change. Use 2.8–12 mm for sites where the camera mounts 3–10 m from the plate line (residential gates, small carpark entries) and 8–32 mm for sites where the camera mounts 10–40 m back (boomgates, multi-lane checkpoints, freeway off-ramps).
What's the maximum vehicle speed it can capture?
Front-installation checkpoint mode captures up to 120 km/h. Side-mounted installations capture up to 80 km/h. Both numbers assume Hikvision's recommended install geometry and illumination — see the datasheet for full guidance.
What does the "P" in the model name mean? What about the "Y"?
The P indicates the camera is a dedicated plate-recognition (ANPR) DeepinView model. The Y indicates the moderate anti-corrosion housing — NEMA 4X-rated stainless body suitable for coastal Australian sites within 2 km of the shoreline and areas affected by acid rain.
Does it support Wiegand output for boomgate / access control?
Yes — the -Y variant includes a Wiegand interface (CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit) and an RS-485 port, letting you wire the camera directly into a boomgate controller, access-control panel or third-party gate-management system.
How many plates can I store in the blocklist / allowlist?
Up to 10,000 records combined, stored on-camera. The camera matches every captured plate against the list in real time and triggers the appropriate alarm output or NVR event — automatically open the boomgate for tenants, push an alert on stolen plates, log every visitor by plate.
What's DarkFighter 2.0 and why does it matter for ANPR?
DarkFighter 2.0 is Hikvision's second-generation ultra-low-light sensor + image-processing pipeline. For ANPR it matters because the camera needs to read a tiny, fast-moving plate at night — with DarkFighter 2.0, the camera can pull a clean colour plate at 0.0005 lux ambient and a clean monochrome plate at 0 lux using only the built-in IR.
Will it record to the camera if the NVR goes offline?
Yes. The onboard microSD slot accepts up to 1 TB and supports ANR (Auto Network Replenishment) — when the camera reconnects to the NVR, any footage missed during the outage automatically backfills from the SD card to the NVR drive.
Does it run on standard PoE?
It needs PoE+ (IEEE 802.3at Type 2) — not standard 802.3af — because of the built-in heater and the motorised lens. Most modern Hikvision and Dahua PoE NVRs and switches support PoE+ on every port. It can also run on 12 VDC or 24 VAC if a separate supply is preferred.
What's the warranty and where is it serviced?
This camera ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia. CCTV Guru manages the entire RA process from our Sydney office and provides Australian-based pre-sales and technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Hikvision Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
iDS-2CD7A46G2/P-IZHSY Datasheet Hikvision DeepinView Quick Start Guide Hikvision DeepinView User Manual
Order the Hikvision iDS-2CD7A46G2/P-IZHSY from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision DeepinView ANPR cameras. Order the iDS-2CD7A46G2/P-IZHSY in your choice of 2.8–12 mm or 8–32 mm motorised varifocal lens for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera rollouts and full local warranty support. Designing a multi-gate carpark, boomgate or council ANPR project? Request a free quote or contact our Australian team for tailored camera-and-NVR sizing.
WizMind 5 · 4 MP · Motorised + HDMI Output · IK10 Vandal
WizMind 5 + HDMI
Dahua DH-IPC-HDBW5441E-ZE-HDMI — 4 MP Pro AI Motorised Vandal Dome with HDMI Output WizMind 5 Network Camera (5441 Series)
The Dahua DH-IPC-HDBW5441E-ZE-HDMI is a 4 MP WizMind 5 Pro AI vandal dome built around a 1/2.7" Starlight+ CMOS, delivering crisp 2688 × 1520 video at 25/30 fps with 120 dB true WDR and Smart IR to 40 m. The 2.7–13.5 mm motorised vari-focal lens (~5× optical zoom) means you frame the scene from the app, not the ladder, and the IP67 / IK10 aluminium housing shrugs off Australian weather and vandal attempts. What sets the 5441E-ZE-HDMI apart is its rare HDMI 1.4a output at 2560 × 1440 @ 30 fps — the camera can drive a local monitor directly with no NVR or PC in line, making it ideal for "you-are-on-camera" kiosk and lobby displays. WizMind 5 Pro AI runs face recognition with an on-device database, people counting, heat map, IVS and SMD Plus, with dual built-in mics for clear audio capture. Perfect for shopping-centre kiosks, hotel lobbies, government check-in desks, club gaming-room entries, hospital reception and court greeter screens across Australia. Backed by CCTV Guru's 5-Year AU Warranty.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HDBW5441E-ZE-HDMI Vandal Dome
HDMI 1.4a Direct Monitor Output
Drive a 1080p or 1440p monitor straight from the camera at 2560 × 1440 @ 30 fps — no NVR, no PC. Perfect for kiosk "you-are-being-recorded" displays, reception desks and retail loss-prevention deterrent screens.
WizMind 5 Pro AI
Dahua's flagship Pro AI engine handles face recognition with an on-device database, people counting, heat map, IVS analytics and SMD Plus — pushing serious analytics to the edge.
2.7–13.5 mm Motorised Lens
~5× optical zoom with remote focus and zoom via DMSS or web UI. Frame the scene from your phone instead of the ladder — ideal during commissioning and seasonal layout changes.
Smart IR up to 40 m
Smart IR adapts intensity by distance to avoid over-exposing close subjects, holding clean detail right out to 40 m in pitch dark.
IP67 / IK10 Vandal Build
Aluminium and polycarbonate housing sealed against dust and rain (IP67) and rated against impact (IK10) — suitable for exposed entries, pub gaming rooms and high-traffic public areas.
ePoE / EoC Long Range
ePoE supports stable transmission up to 800 m over Cat6 and works over existing coax (EoC) for retrofits — cuts re-cabling cost when upgrading legacy analogue sites.
Important Install Note
HDMI 1.4a passive cable runs are practical to about 5 m — for longer pulls to a customer-facing screen, use a powered HDMI extender or HDMI-over-Cat6 balun. The output is fixed at 2560 × 1440 @ 30 fps, which any modern 1080p, 1440p or 4K monitor will accept and downscale natively. Plan conduit for both a Cat6 (PoE + data) run and the HDMI run to the display; for ceiling installs, the camera mounts directly — for wall pendant or pole, use the matching Dahua bracket. Add an inline PoE surge protector at the IDF for any outdoor or partially exposed install across Australia, and earth the bracket where possible.
AI & Smart Detection
Face Recognition
On-device face database with similarity scoring, real-time matching and snapshot capture — ideal for VIP, watch-list and staff-clock workflows at receptions and entries.
People Counting
Bidirectional counting with daily/weekly reports — track footfall through doorways, kiosks and retail entries with no external sensor required.
Heat Map
Visualises dwell density across the scene over time — great for retail layout, queue analysis and gaming-room hotspot review.
IVS Analytics
Tripwire, intrusion, abandoned/missing object, loitering, fast move and parking detection — all running on-camera with low false-alarm rates.
SMD Plus
Smart Motion Detection Plus only triggers on humans and vehicles, eliminating wind, rain and animal false alarms across long-recording AU sites.
Privacy Masking
Up to four configurable privacy zones — useful for blocking neighbouring property, cash-handling areas and protected workstations.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HDBW5441E-ZE-HDMI
Form Factor
Vandal Dome (IK10)
Image Sensor
1/2.7" Progressive CMOS (Starlight+)
Max Resolution
4 MP (2688 × 1520)
Frame Rate
25/30 fps @ 4 MP
HDMI Output
HDMI 1.4a, 2560 × 1440 @ 30 fps
WDR
120 dB True WDR
Day/Night
ICR Auto
Lens Type
Motorised Vari-focal, ~5× Optical Zoom
Focal Length
2.7 mm – 13.5 mm
Field of View
H: ~106° (Wide) – 30° (Tele)
IR Distance
Smart IR up to 40 m
Intelligence, Audio & Network
AI Engine
WizMind 5 (Pro AI)
Face Recognition
Yes (with on-device database)
People Counting
Yes
Heat Map
Yes
IVS
Tripwire, Intrusion, Abandoned/Missing, Loitering, Fast Move, Parking
SMD
SMD Plus
Mic
Built-in (Dual)
Audio I/O
1/1
Alarm I/O
2/1
Network
RJ-45 100 Mbps, ePoE (up to 800 m)
ONVIF
Profile S/G/T
Storage
microSD up to 512 GB
App
DMSS (iOS & Android)
Power, Environment & Build
Power
PoE (802.3af) / 12 V DC, ~10 W
Operating Temp
−40°C to +60°C
Protection
IP67 / IK10
Casing
Aluminium + Polycarbonate
Warranty
5-Year AU Warranty (CCTV Guru)
Recommended NVR Pairings
DHI-NVR5208-8P-AI/ANZ
8-channel WizMind AI NVR with 8 built-in PoE ports — ideal for small kiosk/lobby deployments running 1–8 HDBW5441E cameras with full Pro AI metadata.
DHI-NVR5216-16P-AI/ANZ
16-channel WizMind AI NVR, 16 PoE ports, 2 HDD bays — the standard pick for retail, hotel and club sites running mixed WizMind 5 + WizSense camera fleets.
DHI-NVR4216-16P-AI/ANZ
16-channel 4K Smart AI NVR with 16 PoE — cost-effective WizSense recorder when you only need a subset of the camera AI features at the NVR level.
DHI-NVR5432-AI/ANZ
32-channel WizMind AI NVR — the scale-up option for shopping centres, hospital campuses and government buildings running large 5441-series fleets.
Frequently Asked Questions
What does the HDMI output actually do?
It lets the camera drive a connected monitor directly with its live video feed — no NVR, no PC, no decoder in between. You plug an HDMI cable from the camera to a screen and the screen shows the live image at 2560 × 1440 @ 30 fps.
Can I run camera and HDMI display from one cable?
No. The Cat6/PoE run carries power and data to the network/NVR; the HDMI run is a separate cable to the local monitor. Plan conduit for both.
What resolution can the HDMI output?
HDMI 1.4a at 2560 × 1440 @ 30 fps. Most modern 1080p, 1440p and 4K monitors will accept and downscale this signal natively.
Will face recognition still work while the HDMI screen is showing?
Yes. AI processing and the network stream run independently of the HDMI output — you get the live "you-are-on-camera" display and the full Pro AI metadata to your NVR/VMS at the same time.
Do I need a special monitor?
No. Any standard HDMI monitor works. For long cable runs beyond ~5 m, use a powered HDMI extender or HDMI-over-Cat6 balun.
Can I use it in standard NVR setups without HDMI?
Yes. The HDMI port is optional — you can ignore it and use the camera as a standard ePoE / ONVIF stream into any Dahua NVR or third-party VMS.
How big is the face recognition database?
The on-device database supports several thousand face entries with snapshot, similarity score and watch-list grouping — suitable for medium reception, VIP and staff-clock workflows.
Indoor or outdoor?
Both. IP67 / IK10 with a −40 to +60 °C operating range covers exposed entries, undercover walkways and indoor lobbies across Australia.
What warranty applies?
5-Year AU Warranty handled locally by CCTV Guru — standard across the Dahua WizMind 5 / 6 Series in Australia.
Downloads
Datasheet (PDF)
Quick Start Guide
Installation Guide
User Manual
Order Your Dahua HDBW5441E-ZE-HDMI from CCTV Guru
Ready to deploy a vandal dome that doubles as a kiosk display? Contact CCTV Guru for AU stock, bulk pricing and project quotes. Every Dahua WizMind 5 camera ships with our 5-Year AU Warranty and AU-based tech support.
Uniarch Tri-guard 5MP Turret, Min. illumination 0.003lux, Smart intrusion prevention, powered by ColorHunter technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic & Speaker, IP67
High quality image with 5MP, 1/2.7''CMOS sensor
5MP(2880*1620)@30/25fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic and Speaker
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch TRI-Guard
POE
POE
Downloads
Uniarch IPC-T1P5-AF28KC 5MP HD Intelligent Light and Audible Warning Fixed_ Eyeball Network CameraV1.0Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Uniarch 6MP Starlight Fixed Bullet Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High-quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048)@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E6-AF28K 6MP HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
Uniarch Active deterrence camera, 5MP with 4X optical zoom, Smart Intrusion Prevention (SIP), ColorHunter and Active Deterrence into one IP camera, Min. illumination 0.003Lux, Built-in-Mic & Speaker, support 256 GB Micro SD card, Smart IR, up to 50M IR distance and 10M warm light distance, IP66 and 2KV surge prevention
Optional: Junction box TR-JB07-D-IN, Pole mount TR-UP06-C-IN
High quality image with 5MP, 1/2.7"CMOS sensor
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
LightHunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Built-in Mic & Speaker
Smart IR, Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance
Supports 256 G Micro SD card
IP66 protection
DC12V or PoE (IEEE 802.3af) power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
Uniarch PTZ
POE
POE
Downloads
Uniarch IPC-P1E5-AX4PKC 5MP LightHunter Active Deterrence Mini PTZ Camera_ V1.2.pdfUniarch-Network PTZ Dome Cameras Quick Guide-V1.02-ENUniarch-Outdoor Network PTZ Dome Cameras_ Quick Guide-V1.02-ENUniarch Network Camera User Manual-V1.00
8 MP 4K · 4 mm lens · 80 m IR · AcuSense Hikvision 8MP 4K Bullet
Long-range 4K detail with a choice of white or black
The Hikvision DS-2CD2T86G2H-4I is an 8 MP fixed bullet network camera for customers who need clearer identification detail across driveways, property boundaries, car parks and open commercial areas. Its large 1/1.8-inch sensor, bright F1.0 aperture and Powered-by-DarkFighter processing deliver strong low-light performance, while four infrared illuminators provide coverage up to 80 metres in complete darkness.
This listing includes the 4 mm lens only in two colour options. Both models have the same camera specification; select the finish that best suits the building and installation.
Resolution
8 MP · 3840 × 2160
Lens
4 mm · 90° horizontal
Night vision
Smart IR · up to 80 m
Low light
0.0008 lux · F1.0
Smart detection
Human & vehicle filtering
Local storage
microSD up to 512 GB
Official Hikvision specifications
White and black models
Australian product support
Choose your colour
Colour
Store SKU
Official model basis
White
DS-2CD2T86G2H-4I-4MM
DS-2CD2T86G2H-4I(4mm)(eF)
Black
DS-2CD2T86G2H-4I-4MM-BLK
DS-2CD2T86G2H-4I(4mm)(eF)(BLACK)
Why choose the 4 mm lens?
The 4 mm lens provides a 90° horizontal field of view. Compared with a wider 2.8 mm lens, it gives more useful subject detail at distance while still covering a broad scene. It is a practical choice for driveways, gates, loading areas, fence lines and side access where the important activity is usually further from the camera.
Detect
DORI guidance: up to 109 m for detecting that an object is present.
Observe
Up to 43 m for observing characteristic details such as clothing or movement.
Recognise
Up to 21 m for recognising a known person under suitable conditions.
Identify
Up to 10 m for identification-level detail under suitable conditions.
DORI distances are planning guidance, not a guarantee. Lighting, mounting height, subject movement, compression and scene conditions all affect usable detail.
Best suited to
Driveways and vehicle approaches
The 4 mm view preserves more distant detail while AcuSense filtering helps prioritise people and vehicles.
Warehouses and loading areas
8 MP resolution, 80 m infrared and 120 dB WDR suit large areas with mixed lighting.
Property boundaries
The metal IP67 body and long-range IR make it suitable for exposed outdoor perimeter coverage.
Standalone or NVR recording
Record to a compatible Hikvision NVR, NAS or an onboard microSD card up to 512 GB.
Smarter alerts without unnecessary noise
Human and vehicle classification
Deep-learning analysis can filter motion and perimeter events by human or vehicle target type, reducing alerts from animals, foliage and weather.
Perimeter protection
Supports line crossing, intrusion, region entrance and region exiting rules with human and vehicle filtering.
Face capture
Face capture is listed as supported. Performance depends on camera position, subject angle, distance and lighting.
Useful event actions
Events can trigger recording or capture, notify a surveillance centre, send email, or upload to FTP, NAS or memory card.
Important compatibility notes
Power the camera using IEEE 802.3af PoE or a suitable 12 VDC supply.
The official interface list for this 4I model does not include a built-in microphone, speaker or separate alarm/audio connections.
For Australian 50 Hz systems, the main stream supports up to 25 fps at 8 MP.
Use a surveillance-grade microSD card if edge recording is required; card capacity is supported up to 512 GB.
For secure remote access, use current firmware, a strong unique password and supported encrypted protocols.
Technical specifications
Camera and lens
Image sensor
1/1.8-inch Progressive Scan CMOS
Maximum resolution
3840 × 2160 (8 MP / 4K UHD)
Minimum illumination
Colour: 0.0008 lux at F1.0, AGC on; black and white: 0 lux with IR
Lens
4 mm fixed focal, M16 mount, F1.0 aperture
Field of view
Horizontal 90.0° · vertical 45.8° · diagonal 109.4°
Depth of field
3.8 m to infinity
Shutter
1/3 s to 1/100,000 s
Adjustment
Pan 0° to 360° · tilt 0° to 90° · rotate 0° to 360°
Illumination and image processing
Supplement light
850 nm infrared, up to 80 m for the 4I model
Smart supplement light
Supported
Wide dynamic range
120 dB true WDR
Enhancement
BLC, HLC and 3D digital noise reduction
Signal-to-noise ratio
52 dB or greater
Privacy masks
Four programmable polygon privacy masks
Day/night
IR cut filter; day, night, auto and scheduled modes
Video and compression
Main stream, 50 Hz
Up to 25 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080 or 1280 × 720
Sub-stream, 50 Hz
Up to 25 fps at 1280 × 720, 640 × 480 or 640 × 360
Third stream
Up to 10 fps under supported settings
Main-stream compression
H.265, H.264, H.264+ and H.265+
Video bitrate
32 Kbps to 16 Mbps; CBR or VBR
Region of interest
One fixed region for the main stream and sub-stream
Network, storage and integration
Network interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet
PoE
IEEE 802.3af, Class 3; up to 12.5 W
Onboard storage
microSD, microSDHC or microSDXC up to 512 GB
Network storage
NAS via NFS or SMB/CIFS; Auto Network Replenishment supported
Integration
ONVIF Profiles S, G and T; ISAPI, SDK and ISUP
Clients
Hik-Connect, iVMS-4200 and HikCentral
Simultaneous live view
Up to six channels
Users
Up to 32 users with administrator, operator and user permission levels
Body, power and environment
Alternative power
12 VDC ±25%, up to 11.5 W; reverse polarity protection
Construction
Metal front cover, body and bracket
Ingress protection
IP67
Operating conditions
-30°C to +60°C; humidity 95% or less, non-condensing
Dimensions
286.7 × 93.3 × 91.2 mm
Weight
Approximately 1.18 kg
Australian compliance reference
RCM: AS/NZS CISPR 32:2015 listed by Hikvision
Compatible mounting accessories
Hikvision lists the following accessories for this camera family. Confirm the final bracket combination and mounting surface before ordering.
DS-1260ZJ junction box
Provides a tidy weather-protected space for cable joins behind the bullet camera.
DS-1280ZJ-S junction box
Alternative official junction-box option listed for the camera family.
DS-1275ZJ-S-SUS pole mount
Stainless-steel vertical pole mounting option for suitable accessory combinations.
DS-1276ZJ-SUS corner mount
Corner-mount adapter for projects that require outward coverage from a building corner.
Frequently asked questions
What is the difference between the two variants?
Colour only. Both variants use the same 4 mm lens and camera specification. Choose White or Black from the dropdown.
Is this the 2I or 4I version?
It is the 4I version, which Hikvision specifies with infrared illumination up to 80 metres. The shorter 2I body is not included in this listing.
Is the lens adjustable or motorised?
No. This listing uses a fixed 4 mm lens. The viewing angle is set by physically aiming the camera during installation.
Does the camera have a microphone or speaker?
The official interface specification for this 4I model does not list a built-in microphone, speaker or separate audio connection.
Can it record without an NVR?
Yes. It can record to a compatible microSD card up to 512 GB or supported NAS storage. An NVR is still recommended for centralised recording, playback and longer retention.
Does it support PoE?
Yes. It supports IEEE 802.3af PoE, allowing power and network data over one Ethernet cable from a compatible PoE switch or injector.
Is the black model officially available?
Yes. Hikvision lists the DS-2CD2T86G2H-4I(4mm)(eF)(BLACK). The store SKU for that variant is DS-2CD2T86G2H-4I-4MM-BLK.
Will AcuSense remove every false alarm?
No. Human and vehicle filtering greatly improves alert relevance, but accuracy still depends on camera position, rule setup, lighting, weather and target size.
Downloads & resources
Current official Hikvision documents, hosted in Shopify Files for stable access.
Official datasheet Quick start guide Network camera user manual
Need help confirming the view?
Send us the intended mounting location, target area and approximate distance. We can help confirm whether the 4 mm view is suitable before you order.
