WizMind 5 · 5 MP · Fixed 2.8 mm · IK10 Vandal DomeDahua WizMind 5 · 5 MP Pro AI Vandal DomeDahua DH-IPC-HDBW5541RP-ASE-0280B — 5 MP Pro AI Fixed-Focal IR Vandal Dome WizMind 5 Network Camera (2.8 mm)

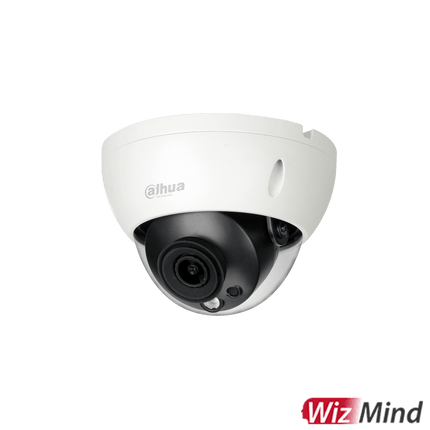

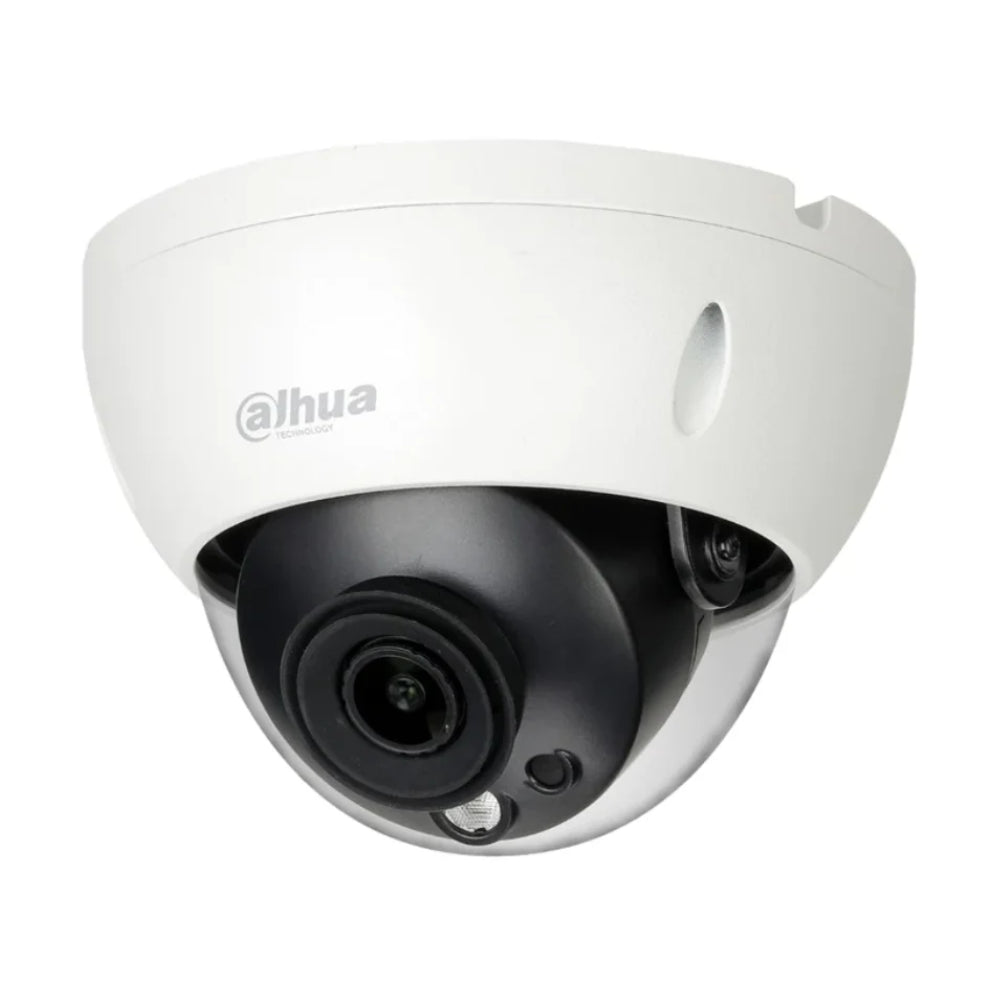

The Dahua DH-IPC-HDBW5541RP-ASE-0280B is the WizMind 5 Pro AI 5 MP fixed-focal vandal dome — built around a 1/2.7" CMOS capturing 2592 × 1944 at 20 fps and 1080p at full 50/60 fps. The wide 2.8 mm F1.6 fixed lens delivers a 113° field of view; built-in IR reaches up to 50 m for long-range night surveillance; WDR is 120 dB; the IK10 vandal-rated metal dome housing is IP67 sealed across −30 °C to +60 °C. WizMind 5 deep-learning Pro AI runs face recognition with on-camera database, full perimeter protection, people counting, heat map and SMD Plus. Built-in microphone, 1/1 RCA audio I/O, 1/1 alarm wet-contact pair, and ePoE for 800 m PoE runs on Cat6 round out the spec. Built for project-grade Australian deployments where a fixed-lens Pro AI dome is preferred — shopping centres, transport platforms, schools, council facilities and hospitals. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5541 series.
Why Choose the Dahua HDBW5541RP-ASE WizMind 5 Pro AI Fixed Vandal Dome
IK10 Vandal Dome with Pro AI
Full metal IK10-rated dome chassis — built for shopping centres, transport platforms, schools and high-vandalism positions. Pro AI features baked in.
True 5 MP Detail
Native 2592 × 1944 at 20 fps — 5 MP delivers nearly 2.5× the pixel density of 1080p. Smooth full-motion 50/60 fps available at 1080p when bandwidth is tight.
WizMind 5 Full Pro AI
Face recognition with on-camera database, perimeter protection, people counting, heat map and SMD Plus — the flagship Pro AI feature set.
50 m Long-Range IR
Built-in IR array reaches up to 50 m — long-range night surveillance for large open spaces.
ePoE — 800 m PoE Distance
Extends data + power to 800 m on Cat6 (vs the standard 100 m limit) — long perimeter runs without an edge network closet.
120 dB WDR + Wide 113° FoV
True 120 dB WDR for harsh Australian sun. Wide 113° field of view covers more area per camera, reducing total camera count for a given site.
Important Install Note
This camera is fixed-focal (2.8 mm) — frame at install time. The dome gimbal allows three-axis adjustment for flexible install alignment. To use ePoE's 800 m range, pair with a Dahua ePoE switch or NVR with ePoE ports.
AI & Smart Detection Capabilities
Face Recognition (Database)
On-camera face database with up to 10,000 face entries. Real-time recognition with similarity scoring and DMSS alarm push.
Perimeter Protection (IVS)
Tripwire and intrusion zones with human and vehicle classification.
People Counting + Heat Map
Statistics for entry/exit counts, queue length and dwell-time heat maps.
SMD Plus Smart Motion
Motion alerts triggered only by humans and vehicles. Filters out branches, animals and shadows.
Abnormality Detection
SD card, network, IP conflict, tampering, audio, voltage events — pushed to DMSS.
Built-in Mic + Two-Way Audio
Built-in microphone plus 1/1 RCA audio I/O for external mic/speaker. ONVIF Profile S, G, T.
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HDBW5541RP-ASE-0280B |
| Form Factor |
Vandal dome (HDBW chassis) |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
2592 × 1944 (5 MP) |
| Frame Rate |
5 MP @ 20 fps · 1080p @ 50/60 fps |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Lens Type |
Fixed-focal 2.8 mm F1.6 |
| Field of View |
H: ~113° |
| IR Illumination |
Up to 50 m |
Pro AI, Audio & Network
| AI Engine |
WizMind 5 Series (Pro AI) |
| Face Recognition |
Yes · on-camera database (up to 10,000) |
| IVS |
Tripwire · intrusion (with human/vehicle classification) |
| SMD |
SMD Plus |
| People Counting |
Yes |
| Heat Map |
Yes |
| Built-in Microphone |
Yes |
| Audio I/O |
1 in / 1 out (RCA) |
| Alarm I/O |
1 in / 1 out |
| Network Port |
RJ-45 (10/100 Base-T) · ePoE |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS (iOS / Android) |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) / ePoE |
| ePoE Distance |
Up to 800 m (10 Mbps) on Cat6 |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 · IK10 vandal |
| Casing |
Metal |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
5 Years (via CCTV Guru) |
How It Compares — WizMind 5 (Pro) vs WizSense 3 (Mid)
The WizSense 3 sibling is the Dahua DH-IPC-HDBW3466FP-AS-AUS — same vandal dome form factor at 4 MP but on the lighter WizSense 3 AI tier. Choose WizMind 5 for face recognition, people counting and ePoE 800 m. Choose WizSense 3 for general motion alarms at a lower price.
| Feature |
HDBW5541RP-ASE-0280B (this — WizMind 5)
|
HDBW3466FP-AS-AUS (WizSense 3)
|
| AI Tier |
WizMind 5 (Pro AI) |
WizSense 3 (mid AI) |
| Resolution |
5 MP (2592 × 1944) |
4 MP (2688 × 1520) |
| WDR |
120 dB |
120 dB |
| Face Recognition |
Yes (database) |
No |
| People Counting / Heat Map |
Yes |
No |
| ePoE 800 m |
Yes |
No (standard PoE only) |
| Warranty |
5 Years |
3 Years |
| Best For |
Project-grade analytics-driven sites |
SMB and residential motion-alarm use |
Recommended NVR Pairings
Frequently Asked Questions
What does "IK10" mean?
The highest impact rating in the IK standard — the dome can withstand a 5 kg impact dropped from 40 cm. Designed for high-vandalism positions.
What is "WizMind 5"?
Dahua's flagship Pro AI tier — face recognition, people counting, heat map, perimeter protection, vehicle metadata.
What does "ePoE" do?
Extends PoE distance from 100 m up to 800 m on Cat6. Pair with a Dahua ePoE switch or NVR.
Can I run it on standard PoE?
Yes — 802.3af-compliant.
How far can it see at night?
Up to 50 m built-in IR.
Does it have audio?
Yes — built-in mic + RCA audio I/O.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G, T. AI features only on Dahua AI NVRs.
What temperature range?
−30 °C to +60 °C.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android.
