Dahua LR1002 — Single-Port Ethernet-over-Coax (ePoC) Extender Kit (1000m)

Description

Dahua · LR1002-1ET/1EC · Ethernet-over-Coax (ePoC) Kit · 1000m ePoC Extender Kit

Dahua LR1002 Single-Port Ethernet-over-Coax (ePoC) Extender Kit

The Dahua LR1002-1ET & LR1002-1EC kit transmits IP data and PoE power over existing coaxial cable, reaching up to 1000m at 10Mbps (400m at 100Mbps). It powers Dahua and standard IP PoE cameras, letting you upgrade legacy analog systems to HD IP over old RG59/RG6 runs — no costly recabling.

Function
Ethernet over Coax
Ports
1 × RJ45 + 1 × BNC
Max Reach
1000m (10Mbps)
PoE
Power over coax
Setup
Plug & play
Kit
TX + RX pair

Reuse Existing Coax

Run HD IP cameras over your old RG59/RG6 coax — no need to pull new Cat6 through walls, conduits or underground runs.

Up to 1000m Reach

Transmits IP up to 1000m at 10Mbps or 400m at 100Mbps over quality coax, far beyond standard Ethernet's 100m limit.

Power Over Coax

Carries PoE alongside data so you can power the remote IP camera directly through the existing coax line.

Plug & Play Pair

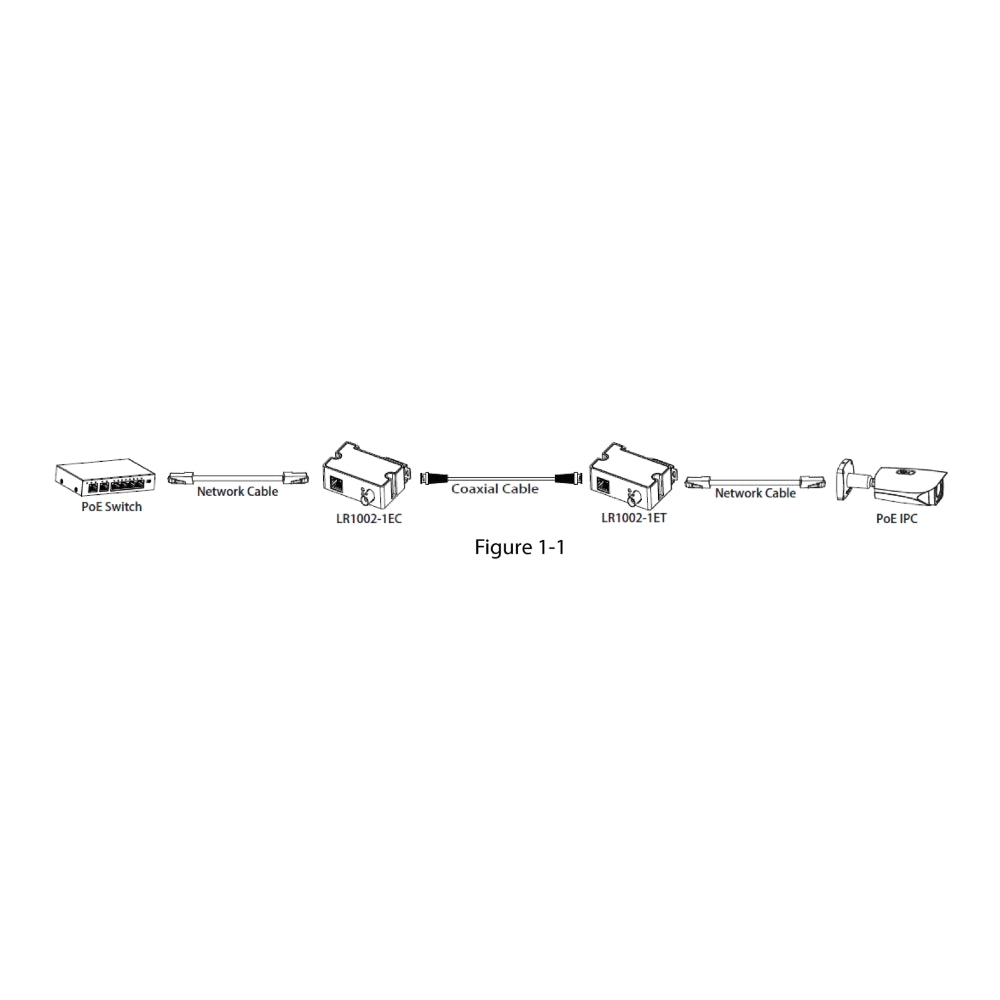

No software setup — fit the transmitter (ET) at the camera end and the receiver (EC) at the switch/NVR end and you're done.

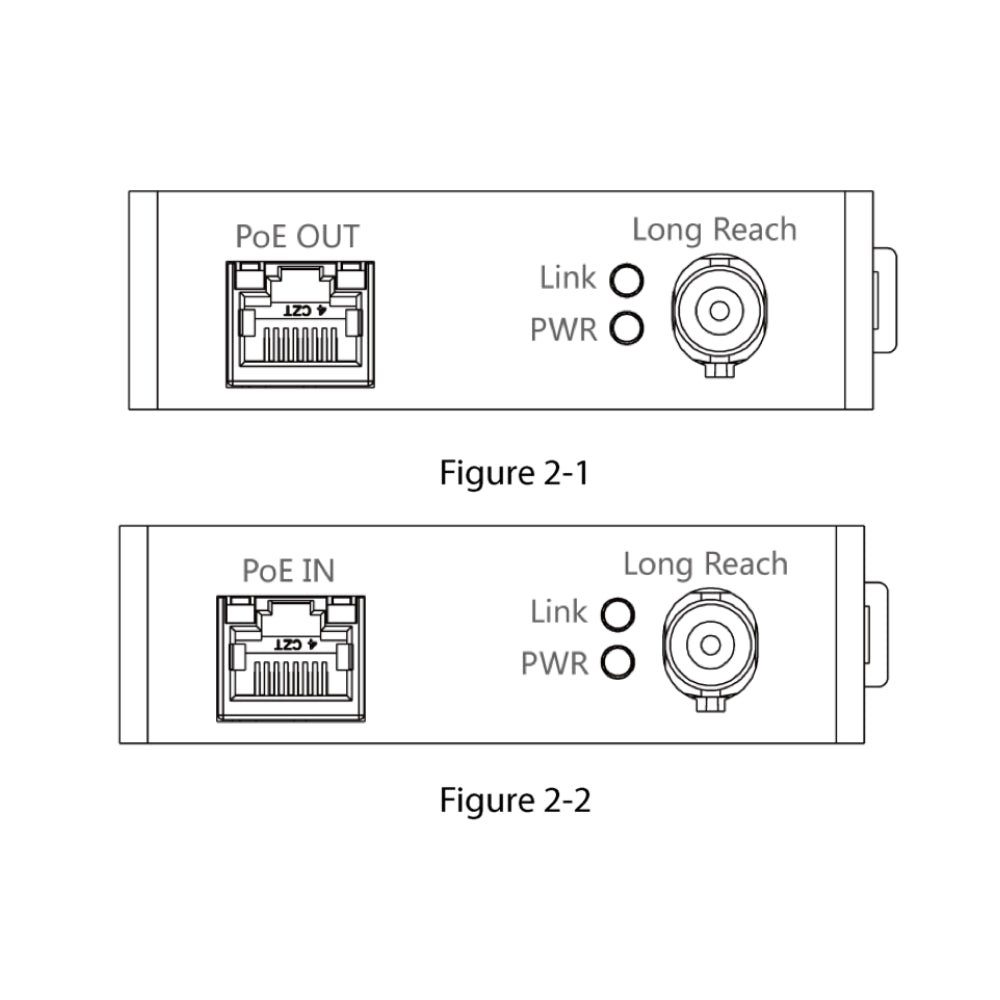

Specifications — LR1002-1ET / LR1002-1EC
Model / SKU KIT-DH-LR1002-1ET/LR1002-1EC
Function Ethernet over Coax (Transmitter + Receiver kit)
Ports 1 × 10/100 Mbps Base-TX (RJ45), 1 × BNC
Transmission Distance 100Mbps: 400m | 10Mbps: 1000m
Power Consumption < 2W per unit
Lightning Protection Common mode 4kV / differential mode 2kV
Operating Temperature −30°C to +65°C
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads & Resources

LR1002 ePoC Extender Datasheet
Can I run an IP camera over my old analog coax?
Yes — that's exactly what this kit does. It converts your existing RG59/RG6 coax into an IP link, so you can deploy modern IP cameras without recabling.
How far will it reach?
Up to 1000m at 10Mbps, or 400m at 100Mbps. Beyond 400m the bandwidth automatically throttles to 10Mbps for a stable connection.
Does it power the camera too?
Yes — it carries PoE over the coax, so the remote IP camera is powered through the same line that carries the data.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Dahua LR1002 — Single-Port Ethernet-over-Coax (ePoC) Extender Kit (1000m)

Product form

SKU: KIT-DH-LR1002-1ET/LR1002-1EC

$125.00  $99.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 06, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
    5.0
    Rated 5.0 out of 5 stars
    Based on 1 review
    Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
    100%would recommend this product
    Write a Review (Opens in a new window)
    1 review
    • Rated 5 out of 5 stars
      5 months ago
      Dahua Single-Port Long Reach Ethernet Over Coax Extender Transmitter & Receiver KIT-DH-LR1002-1ET/LR1002-1EC

      These devices are easy to install and they just work. If you're looking for POE ethernet over a long distance using the old telephone lines, these are what you have been looking for.

      MM
      Maurice M.
      Verified Buyer
      Was this helpful?

    Description

    Dahua · LR1002-1ET/1EC · Ethernet-over-Coax (ePoC) Kit · 1000m ePoC Extender Kit

    Dahua LR1002 Single-Port Ethernet-over-Coax (ePoC) Extender Kit

    The Dahua LR1002-1ET & LR1002-1EC kit transmits IP data and PoE power over existing coaxial cable, reaching up to 1000m at 10Mbps (400m at 100Mbps). It powers Dahua and standard IP PoE cameras, letting you upgrade legacy analog systems to HD IP over old RG59/RG6 runs — no costly recabling.

    Function
    Ethernet over Coax
    Ports
    1 × RJ45 + 1 × BNC
    Max Reach
    1000m (10Mbps)
    PoE
    Power over coax
    Setup
    Plug & play
    Kit
    TX + RX pair

    Reuse Existing Coax

    Run HD IP cameras over your old RG59/RG6 coax — no need to pull new Cat6 through walls, conduits or underground runs.

    Up to 1000m Reach

    Transmits IP up to 1000m at 10Mbps or 400m at 100Mbps over quality coax, far beyond standard Ethernet's 100m limit.

    Power Over Coax

    Carries PoE alongside data so you can power the remote IP camera directly through the existing coax line.

    Plug & Play Pair

    No software setup — fit the transmitter (ET) at the camera end and the receiver (EC) at the switch/NVR end and you're done.

    Specifications — LR1002-1ET / LR1002-1EC
    Model / SKU KIT-DH-LR1002-1ET/LR1002-1EC
    Function Ethernet over Coax (Transmitter + Receiver kit)
    Ports 1 × 10/100 Mbps Base-TX (RJ45), 1 × BNC
    Transmission Distance 100Mbps: 400m | 10Mbps: 1000m
    Power Consumption < 2W per unit
    Lightning Protection Common mode 4kV / differential mode 2kV
    Operating Temperature −30°C to +65°C
    Warranty (Australia) 3 years · CCTV Guru Australia

    Downloads & Resources

    LR1002 ePoC Extender Datasheet
    Can I run an IP camera over my old analog coax?
    Yes — that's exactly what this kit does. It converts your existing RG59/RG6 coax into an IP link, so you can deploy modern IP cameras without recabling.
    How far will it reach?
    Up to 1000m at 10Mbps, or 400m at 100Mbps. Beyond 400m the bandwidth automatically throttles to 10Mbps for a stable connection.
    Does it power the camera too?
    Yes — it carries PoE over the coax, so the remote IP camera is powered through the same line that carries the data.
    3-Year AU Warranty
    Fast AU-Wide Shipping
    AU Tech Support
