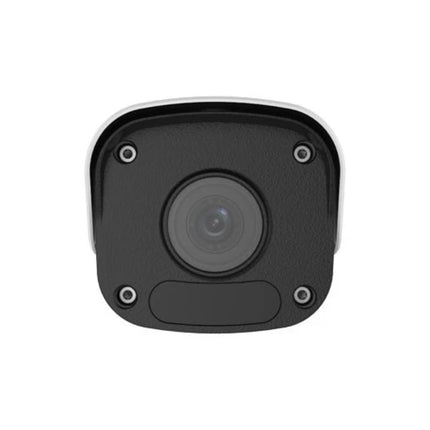

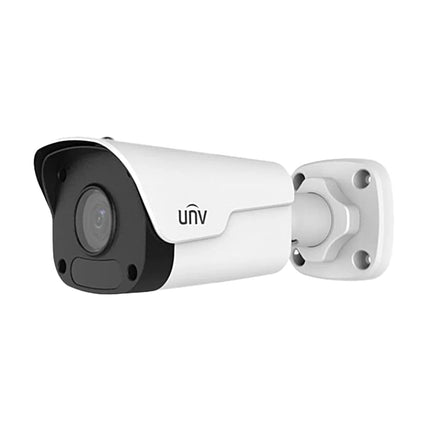

Uniview UNV IPC2125LR3-PF40M-D 5MP Mini Fixed Bullet IP Camera
The IPC2125LR3-PF40M-D is a compact 5 MP mini fixed bullet camera that
balances clarity, reliability, and value. Equipped with a 4 mm fixed lens,
Smart IR for clean night images, efficient H.265 compression, and simple
PoE installation in a rugged IP67 housing.
Key Features
- 5 MP class imaging (approx. 2592×1944)
- Fixed 4 mm lens
- Smart IR for even illumination at night
- Wide Dynamic Range (WDR), 2D/3D DNR
- Ultra 265 / H.265 / H.264 compression
- PoE (IEEE 802.3af) for one-cable install
- Weatherproof IP67 construction
Technical Specifications
| Specification |
Details |
| Brand |
Uniview UNV |
| Model (SKU) |
IPC2125LR3-PF40M-D |
| Resolution |
5 MP class (2592×1944) |
| Lens |
Fixed 4 mm |
| Night Vision |
Smart IR (range per datasheet) |
| Dynamic Range |
WDR |
| Compression |
Ultra 265 / H.265 / H.264 |
| Power |
PoE (IEEE 802.3af) |
| Ingress Protection |
IP67 |
| Operating Conditions |
Outdoor rated; wide temp range |
| Use Cases |
Entrances, driveways, shopfronts, carparks |
What’s Included
- Uniview UNV IPC2125LR3-PF40M-D camera
- Mounting hardware & quick guide
Customer Requirements
- RJ45 Cat6 cable & PoE switch/NVR
- Surveillance-grade HDD in NVR (if recording to NVR)
- Optional junction/wall bracket depending on surface
More Information
Uniview UNV IPC2125LR3-PF40M-D Datasheet
