Description

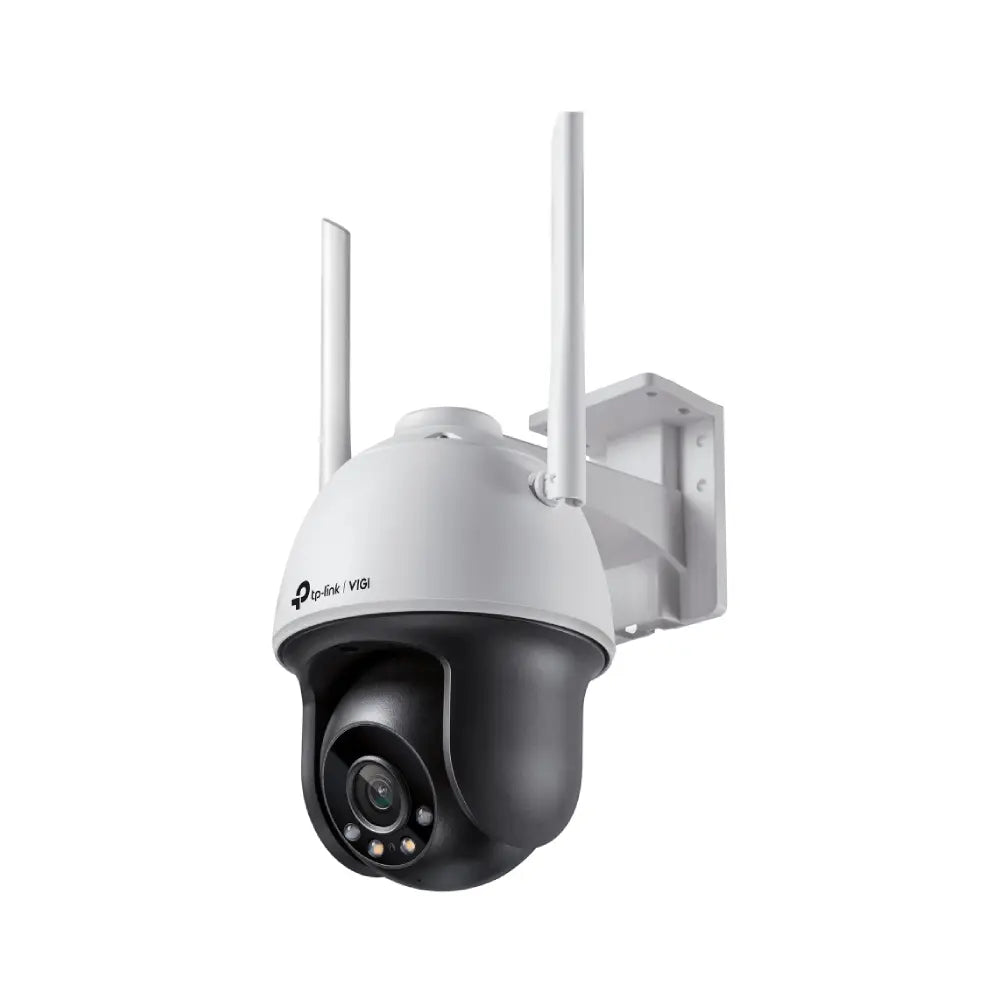

TP-Link VIGI C540-W 4MP Full-Colour Wi-Fi Pan Tilt Outdoor Network Camera (4mm)

The TP-Link VIGI C540-W is a 4MP full-colour Wi-Fi pan tilt outdoor IP camera that combines wide-area motorised coverage with 24-hour colour night vision — all without the need for an Ethernet cable at the mounting point. With 360° horizontal pan, customisable patrol routes, and AI-powered auto-tracking, it actively follows moving subjects across your property rather than relying on a fixed field of view. Built-in spotlight LEDs maintain true full-colour footage in complete darkness, IP66 weatherproofing handles all Australian outdoor conditions, and smart detection with instant VIGI app alerts keeps you informed of activity around the clock.

Pan Tilt vs Fixed Camera — Which Do I Need?

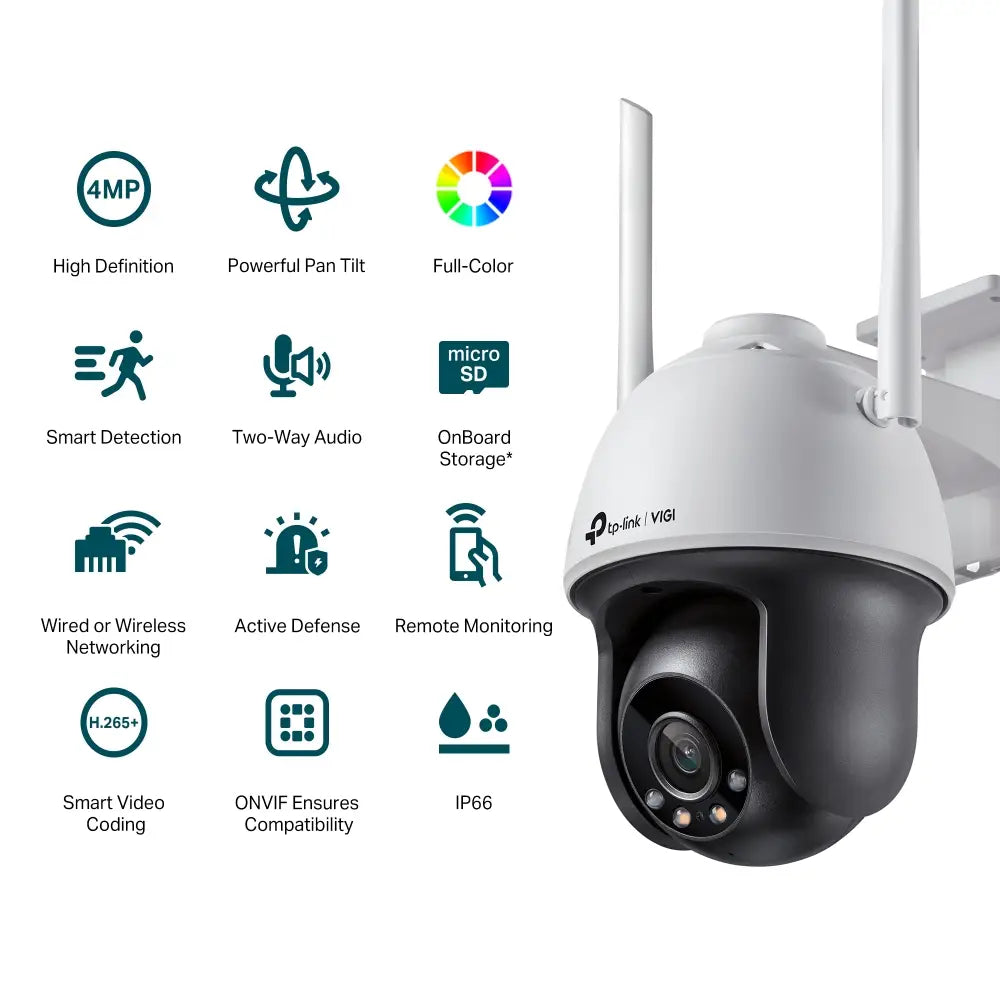

Key Features

• 4MP Full-Colour 24h Surveillance — 2560×1440 resolution with true full-colour footage day and night via a high-sensitivity sensor and built-in spotlight LEDs — maintains colour even in complete darkness.

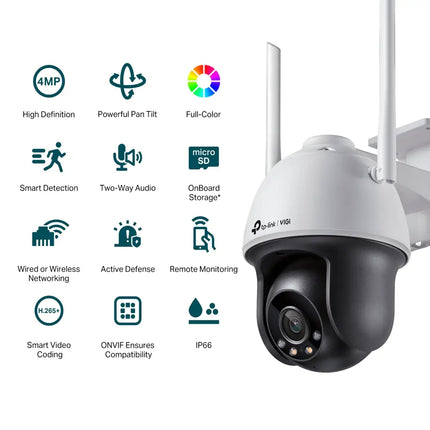

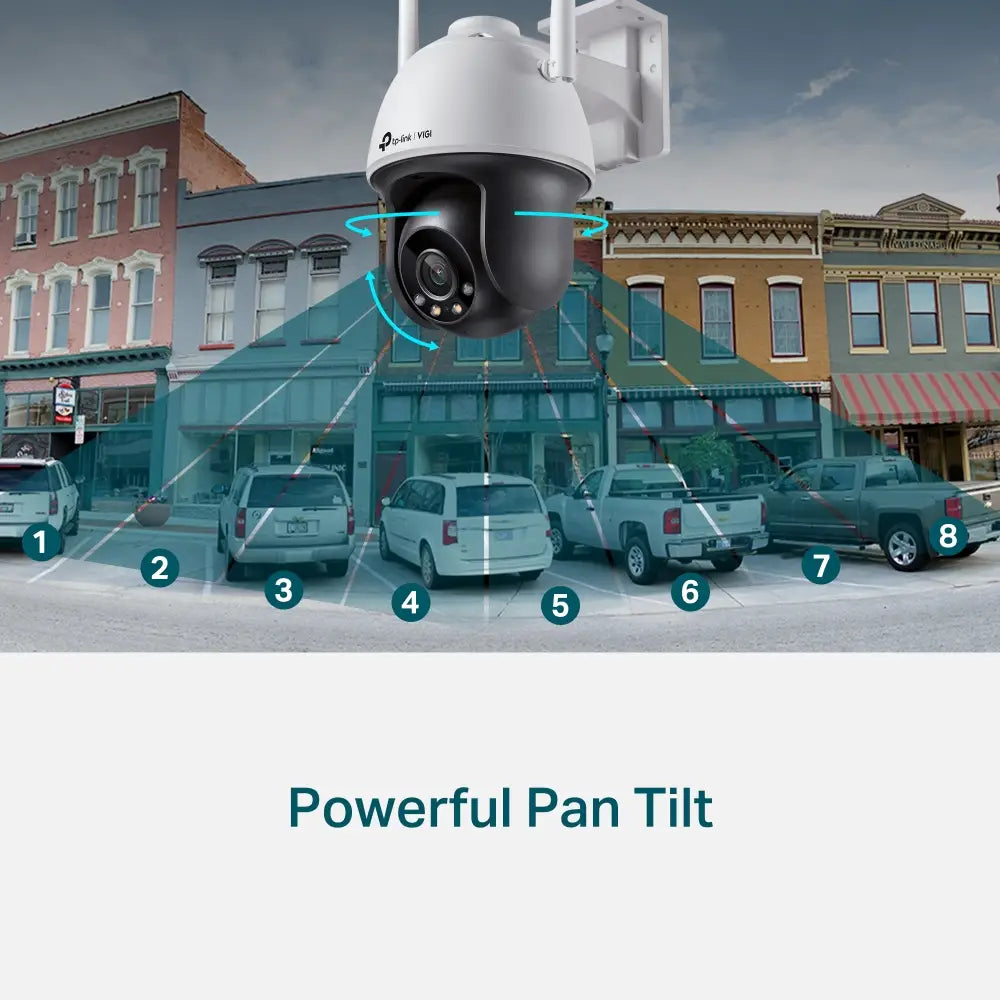

• 360° Pan & Tilt — Motorised pan and tilt covers the full horizontal range and a wide vertical range — a single camera can monitor an entire yard, car park, or open area.
• AI Auto-Tracking — Automatically detects and follows moving people or vehicles across the scene — keeping subjects in frame without manual control.
• Customisable Patrol Routes — Set preset positions and patrol sequences so the camera automatically cycles through key monitoring points on a schedule.
• Wi-Fi Connectivity — Connects to your Wi-Fi network wirelessly — no Ethernet cable required at the mounting point for flexible outdoor placement.
• 4mm Fixed Lens — Medium field of view with good effective range — well-suited to yards, driveways, and open outdoor spaces at medium distance.
• Smart Detection — Motion detection, area intrusion, line-crossing, and video tampering detection with instant push notifications to the VIGI app.
• IP66 Weatherproof — Fully protected against dust ingress and powerful water jets — suitable for all Australian outdoor environments including heavy rain and coastal conditions.
• H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
• Built-In Microphone — Records one-way audio for enhanced situational awareness and evidence capture.
• MicroSD Card Slot — Supports local on-camera recording without an NVR (microSD card sold separately).
• VIGI App Management — Manage, monitor, control pan/tilt remotely, and receive alerts from the VIGI app (iOS & Android) from anywhere.

Use Cases

• Residential backyards and large yards — a single pan tilt camera with auto-tracking covers the entire area that would otherwise require multiple fixed cameras
• Driveways and front yards — Wi-Fi installation without running Ethernet cable to the mounting point, with auto-tracking following vehicles and people
• Small commercial car parks and outdoor areas — 360° motorised coverage with patrol routes cycling through key monitoring positions
• Retail outdoor areas and alfresco dining — full-colour night vision with smart detection for after-hours monitoring
• Rental properties and holiday homes — Wi-Fi camera with remote pan/tilt control and VIGI app management from anywhere in Australia
• Construction sites and temporary installations — Wi-Fi connectivity avoids the need for permanent cabling at temporary mounting points

Technical Specifications

Recommended Accessories

• TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management of the C540-W alongside other VIGI cameras.
• TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Smart Switch — Powers the C540-W via PoE (if supported) and provides Gigabit connectivity for the rest of the network.
• MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR.
• TP-Link VIGI C340 4MP Full-Colour Outdoor Bullet Camera — Pair with the C540-W for fixed coverage of specific entry points while the pan tilt camera covers the broader area.

Frequently Asked Questions

What is the difference between the VIGI C540-W and the VIGI C540?

The VIGI C540-W adds Wi-Fi connectivity, allowing it to connect to your network wirelessly without an Ethernet cable at the mounting point. The VIGI C540 is the wired-only version requiring an Ethernet (PoE) cable for both data and power. The C540-W also supports 12V DC power via an adapter. Choose the C540-W for flexible wireless outdoor placement; choose the C540 for permanent wired PoE installations where cable infrastructure is already in place.

Does the C540-W require a Wi-Fi connection, or can it also use Ethernet?

The VIGI C540-W supports both Wi-Fi and wired Ethernet connectivity. Wi-Fi allows cable-free placement at the mounting point. If an Ethernet cable is available at the mounting point, it can also be connected via RJ45 for a more stable wired connection. Check the datasheet for PoE support details on the wired port.

How does auto-tracking work?

When auto-tracking is enabled, the camera’s AI detects a moving person or vehicle in the scene and automatically pans and tilts to keep the subject centred in the frame as they move. This is particularly useful for monitoring large open areas such as yards and car parks where a fixed camera would lose the subject as they move out of the field of view. Auto-tracking can be enabled or disabled via the VIGI app or web UI.

Can I control the pan and tilt remotely from my phone?

Yes. The VIGI app (iOS & Android) allows you to manually control the pan and tilt direction of the C540-W remotely from anywhere with an internet connection. You can also set preset positions and patrol routes via the app for automated monitoring without manual control.

Does the VIGI C540-W record audio?

Yes. The C540-W has a built-in microphone for one-way audio recording. Audio surveillance in Australia may require compliance with state and federal privacy legislation, including signage requirements in workplaces and public areas. Consult your legal obligations before enabling audio recording.
