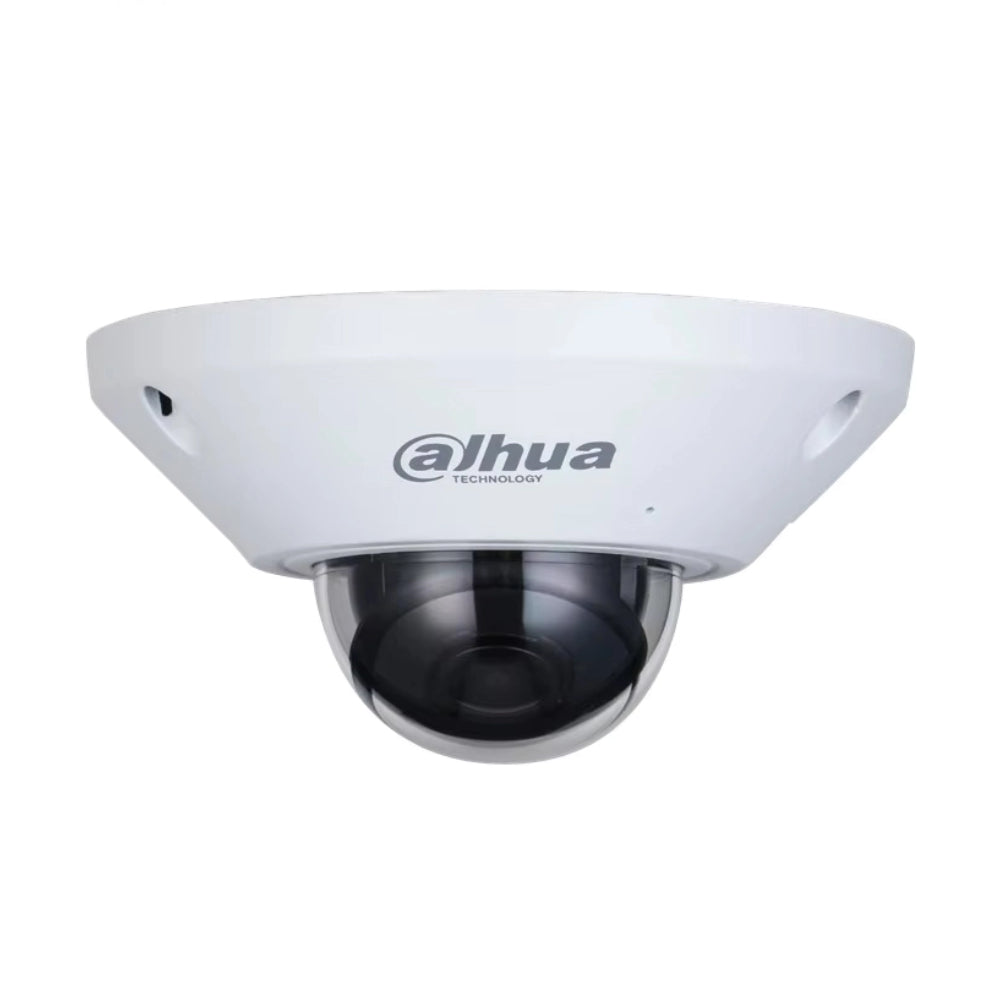

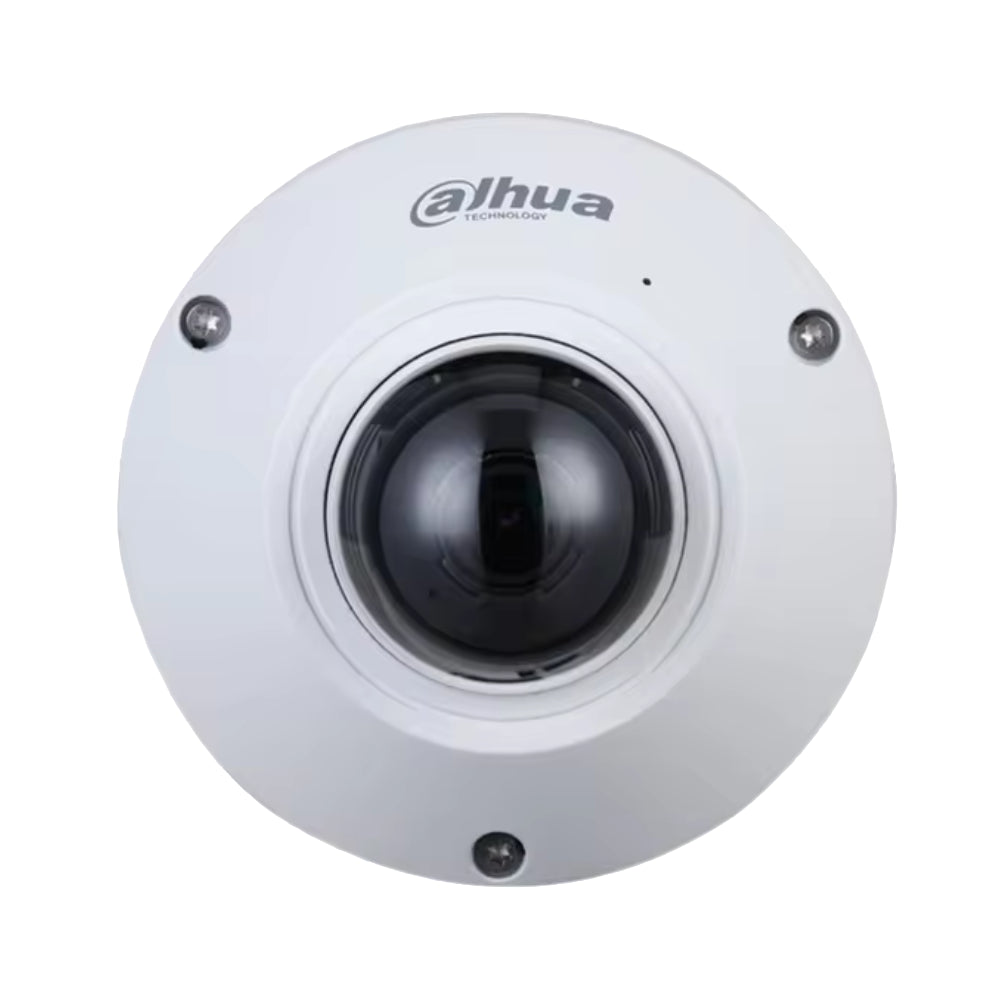

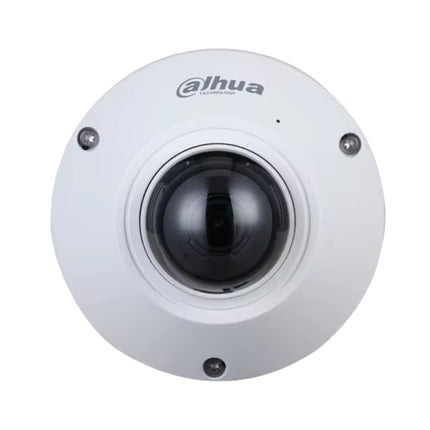

Dahua DH-IPC-EB5541P-AS 5MP WizMind Fisheye Panoramic Network Camera

Description

Dahua · DH-IPC-EB5541P-AS · 5MP WizMind Fisheye · 360° Panoramic · PoE 5MP 360° Fisheye

Dahua DH-IPC-EB5541P-AS 5MP WizMind Fisheye Panoramic Network Camera

The Dahua DH-IPC-EB5541P-AS is a 5MP WizMind fisheye camera that covers an entire room or forecourt with a single 360° panoramic view. Its 1.4mm panomorph lens captures everything below it, and on-board de-warping turns the circular image into usable panorama, quad and corridor views. With a built-in microphone, IP67/IK10 housing, PoE power and ONVIF support, it pairs with any Dahua NVR.

Resolution
5MP (2592×1944)
Lens
1.4mm fisheye 360°
Night Vision
IR up to 10m
AI Engine
WizMind
Audio
Built-in mic
Weatherproof
IP67 · IK10

One Camera, Full Coverage

A single ceiling-mounted fisheye replaces several fixed cameras, capturing a complete 360° view of a room, lobby or forecourt with no blind spots.

Smart De-Warping

On-board de-warp converts the circular fisheye image into natural panorama, quad-screen and corridor views — both live and on recorded playback — so footage is easy to review.

WizMind AI Analytics

Dahua's WizMind engine adds perimeter protection and people-counting tripwire/intrusion analytics tuned for the panoramic field of view.

Tamper-Resistant & PoE

IP67 and IK10 rated for dust, water and impact, it runs on a single PoE cable and records to any compatible Dahua NVR over ONVIF.

Specifications — DH-IPC-EB5541P-AS
Resolution 5MP · 2592×1944
Sensor 1/2.7" progressive-scan CMOS
Lens 1.4mm panomorph fisheye · 360°
Night Vision IR up to 10m
AI WizMind · de-warp, perimeter & people analytics
Audio Built-in microphone
Protection IP67 · IK10
Power PoE 802.3af / 12V DC
Interoperability ONVIF · pairs with a Dahua NVR
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads & Resources

DH-IPC-EB5541P-AS DatasheetDahua Dome Network Camera Quick Start GuideDahua Network Camera User Manual
How much area does a fisheye camera cover?
Mounted on the ceiling it captures a full 360° view of the space below — typically an entire room, lobby or forecourt — letting one camera replace several fixed lenses.
What is de-warping?
The circular fisheye image is digitally corrected into natural-looking panorama, quad and corridor views, live and on playback, so reviewing footage feels like watching standard cameras.
Can it be used outdoors?
Yes. It is IP67 weatherproof and IK10 impact-rated, suitable for covered outdoor areas as well as indoor ceilings.
How is it powered?
A single Cat6 cable provides PoE (802.3af) power and data, or you can use a 12V DC supply.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Dahua DH-IPC-EB5541P-AS 5MP WizMind Fisheye Panoramic Network Camera

Product form

SKU: DH-IPC-EB5541P-AS

$439.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 60 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
