Description

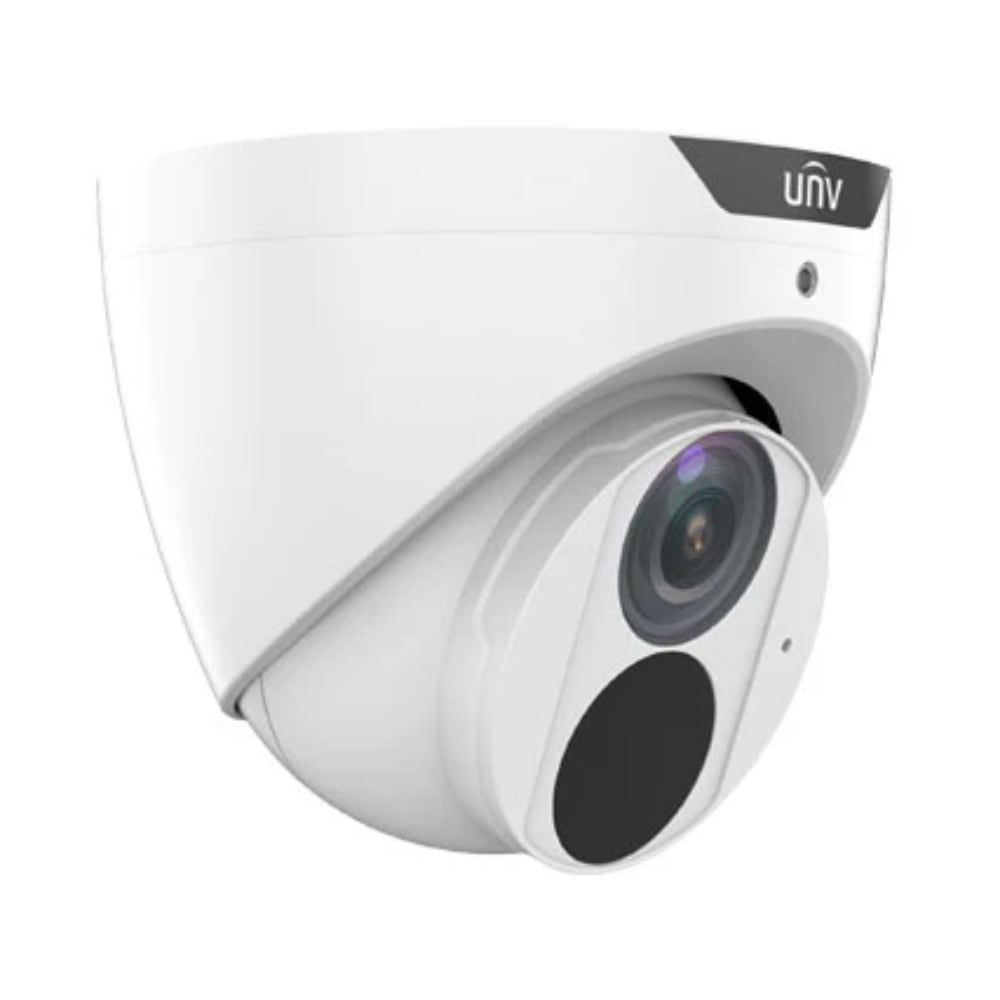

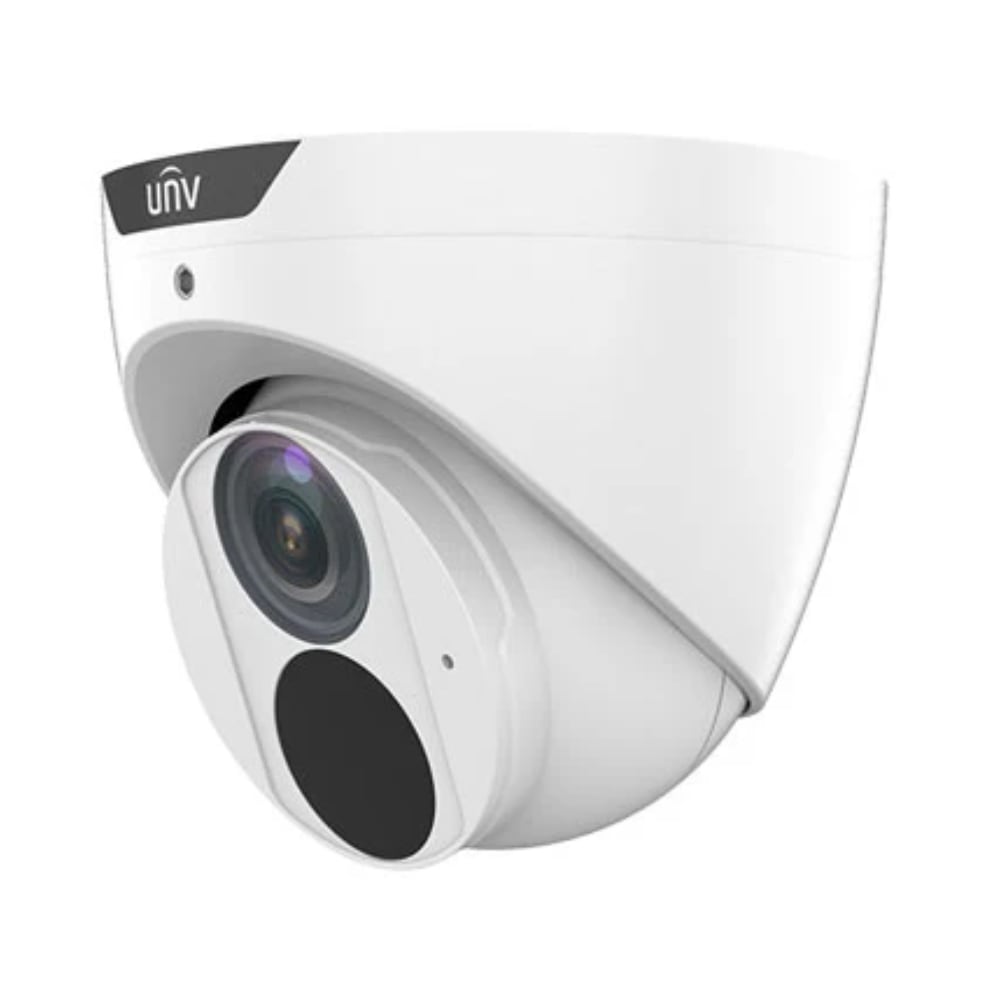

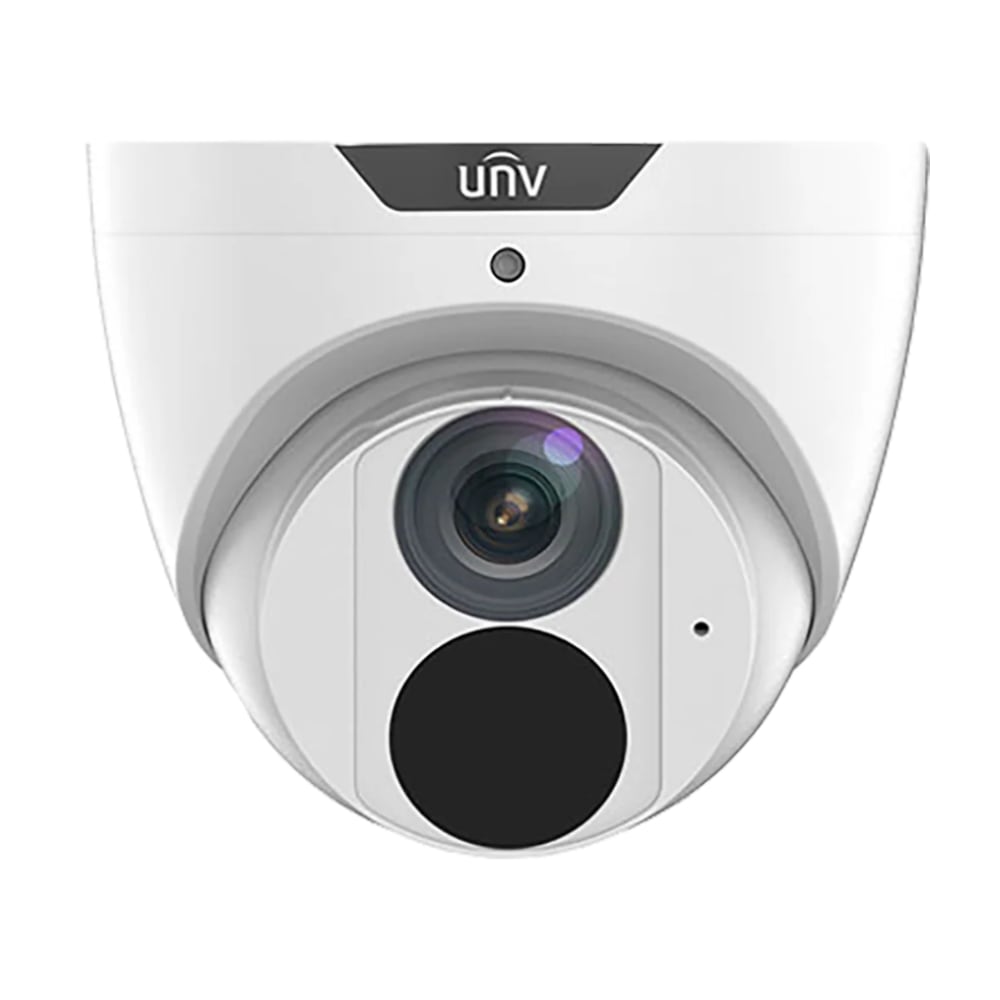

Uniview UNV 8 MP Easy Series Fixed Easystar Turret IP Camera
The Uniview UNV 8 MP Easy Series Turret Camera (model IPC3618LE-ADF28K-GM) delivers ultra-clear 4K surveillance with Easystar low-light imaging, true 120 dB WDR, Smart IR up to 30 m, and a rugged IP67 build. It includes a built-in microphone, PoE for single-cable installs, and a micro-SD slot (up to 256 GB) — ideal for homes, offices, and small business security.
Key Features
-
Resolution & Sensor: 8 MP (3840 × 2160) @ 20 fps; 1/2.7″ CMOS
-
Low-Light Imaging: Easystar technology for vivid colour in dim scenes
-
Dynamic Range: True 120 dB WDR for high-contrast environments
-
Night Vision: Smart IR illumination up to 30 m
-
Audio: Built-in microphone
-
Storage: micro-SD card support up to 256 GB
-
Protection: IP67 weatherproof rating
-
Power: PoE (IEEE 802.3af) for single-cable power & data
-
Mounting: 3-axis turret housing for easy alignment
-
Compression: Ultra 265 / H.265 / H.264 / MJPEG
-
Integration: ONVIF Profiles S/G/T, RTSP
Highlights
-
Ultra HD Clarity: 8 MP resolution captures rich detail across wide scenes
-
Superior Low-Light: Easystar delivers colour and clarity without extra lighting
-
Balanced Exposure: 120 dB WDR keeps bright and dark areas visible
-
Smart Night Vision: Adaptive IR prevents over-exposure at close range
-
Fast Install: PoE and compact turret design simplify setup
-
Built to Last: IP67 housing for dependable outdoor use
Technical Specifications
| Specification |
Details |
| Model |
IPC3618LE-ADF28K-GM (Easy Series Turret) |
| Image Sensor |
8 MP, 1/2.7″ CMOS |
| Max Resolution / Frame Rate |
3840 × 2160 @ 20 fps (plus 5 MP / 4 MP / 2 MP options) |
| Low-Light Technology |
Easystar |
| WDR |
120 dB True WDR |
| Night Vision |
Smart IR up to 30 m |
| Audio |
Built-in microphone |
| Storage |
micro-SD up to 256 GB |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Ingress Protection |
IP67 |
| Power |
PoE (IEEE 802.3af) |
| Mounting |
3-axis turret housing; easy alignment |
| Optional Accessories |
TR-JB03-G-IN junction box; TR-WM03-D-IN wall mount |
What’s Included
- Camera unit (IPC3618LE-ADF28K-GM)
- Mounting hardware & documentation
-
Note: Network (RJ45) cable, PoE switch/injector, and storage (NVR or micro-SD) sold separately.
More Information
Uniview UNV IPC3618LE-ADF28K-GM Datasheet
Uniview UNV Camera User Manual
