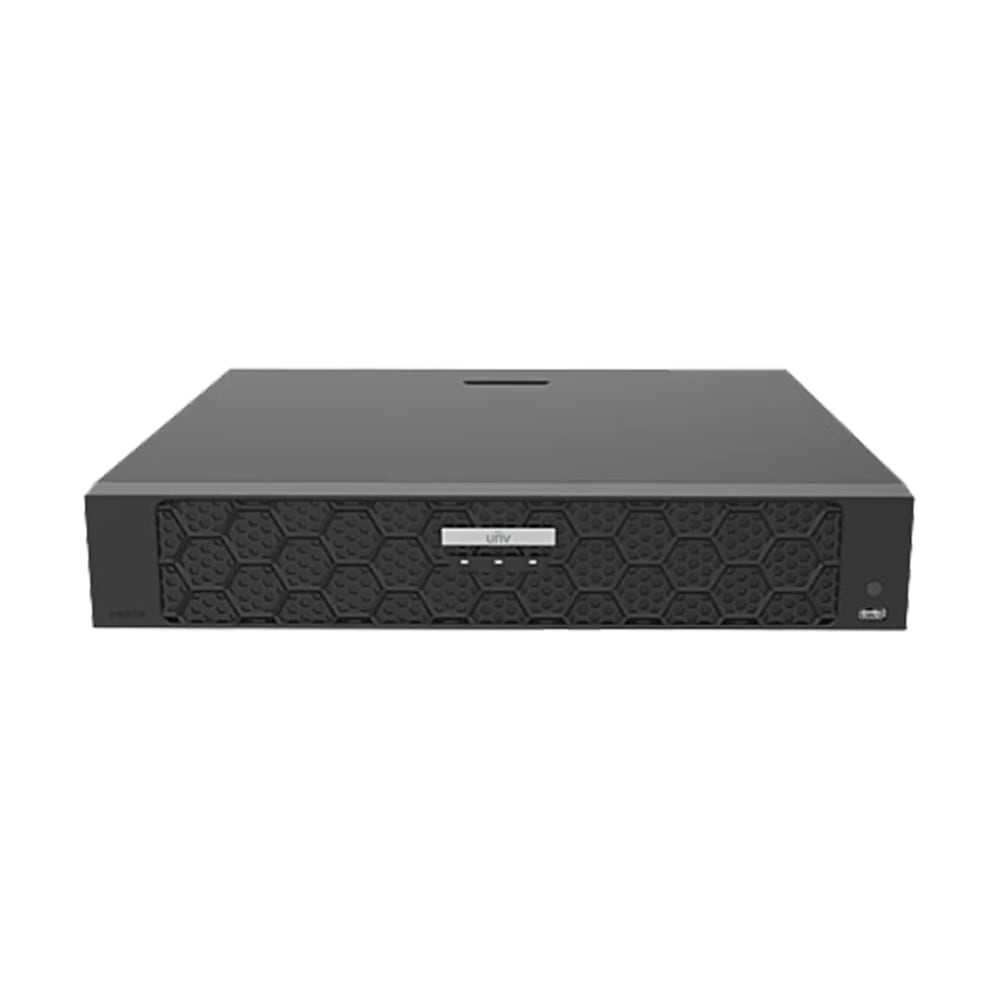

Uniview UNV NVR504-32B-P16-IQ 32-Channel PoE NVR
The NVR504-32B-P16-IQ delivers plug-and-play recording for up to 32 IP cameras, with 16 independent PoE ports (IEEE 802.3af/at, max 30 W/port, 150 W total). It supports Ultra 265/H.265/H.264, 4K (3840×2160) HDMI, 320 Mbps incoming / 160 Mbps outgoing bandwidth, and powerful smart search/analytics—backed by 4×SATA bays, RAID 1/5, and ANR for resilience.
Key Features
-
Channels / PoE: 32-ch IP input; 16× PoE ports (independent)
-
Codecs: Ultra 265 / H.265 / H.264
-
Video Outputs: 1× HDMI up to 4K; 1× VGA (independent)
-
Throughput: 320 Mbps incoming (Smart Off), 160 Mbps outgoing
-
Recording: Up to 16 MP resolution; rich layouts up to 32-view
-
AI / Smart: Face/SIP/UMD by NVR; VCA search & reports (IPC features supported)
-
Storage: 4×SATA (up to 16 TB each); RAID 1/5; ANR; snapshot DB
-
I/O & Ports: 1×GbE, USB2.0 (front) + USB3.0 (rear), Alarm 16-in/4-out, RS-485
-
Build: 1.5U chassis; ≤12 W (w/o HDD); −10~50 °C; CE/FCC/UL/RoHS/WEEE
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / NVR504-32B-P16-IQ |
| Decoding Formats |
Ultra 265, H.265, H.264 |
| Max Recording |
Up to 16 MP per channel |
| Display Outputs |
HDMI up to 4K; VGA; independent output |
| Live View Layouts |
1/4/6/8/9/16/25/32 |
| Bandwidth |
Incoming 320 Mbps (Smart Off); Outgoing 160 Mbps |
| Remote Users |
Up to 128 users |
| PoE Ports / Budget |
16× RJ45 PoE; max 30 W per port; 150 W total |
| Audio / Alarm I/O |
Audio 1-in/1-out (RCA, two-way); Alarm 16-in/4-out; RS-485 |
| Storage / RAID |
4×SATA; up to 16 TB/HDD; RAID 1/5; redundant storage |
| USB |
Front 1× USB2.0; Rear 1× USB3.0 |
| Network / Protocols |
TCP/IP, HTTPS, RTSP, IPv4/IPv6, ONVIF S/G/T, etc. |
| Power |
AC 100–240 V; ≤12 W (w/o HDD) |
| Chassis / Size |
1.5U; 400 × 368 × 74 mm; ≤4 kg (w/o HDD) |
| Environment |
−10~50 °C; ≤90% RH (non-cond.) |
| Certifications |
CE; FCC; UL; RoHS; WEEE |
What’s Included
- Uniview UNV NVR504-32B-P16-IQ (32-ch PoE NVR)
- Power cord, mouse, rack ears (where supplied), quick guide
Customer Requirements
- Surveillance-grade HDDs (up to 4×16 TB) for recording
- RJ45 Cat6 cabling to cameras; PoE budget planning (30 W/port, 150 W total)
