Description

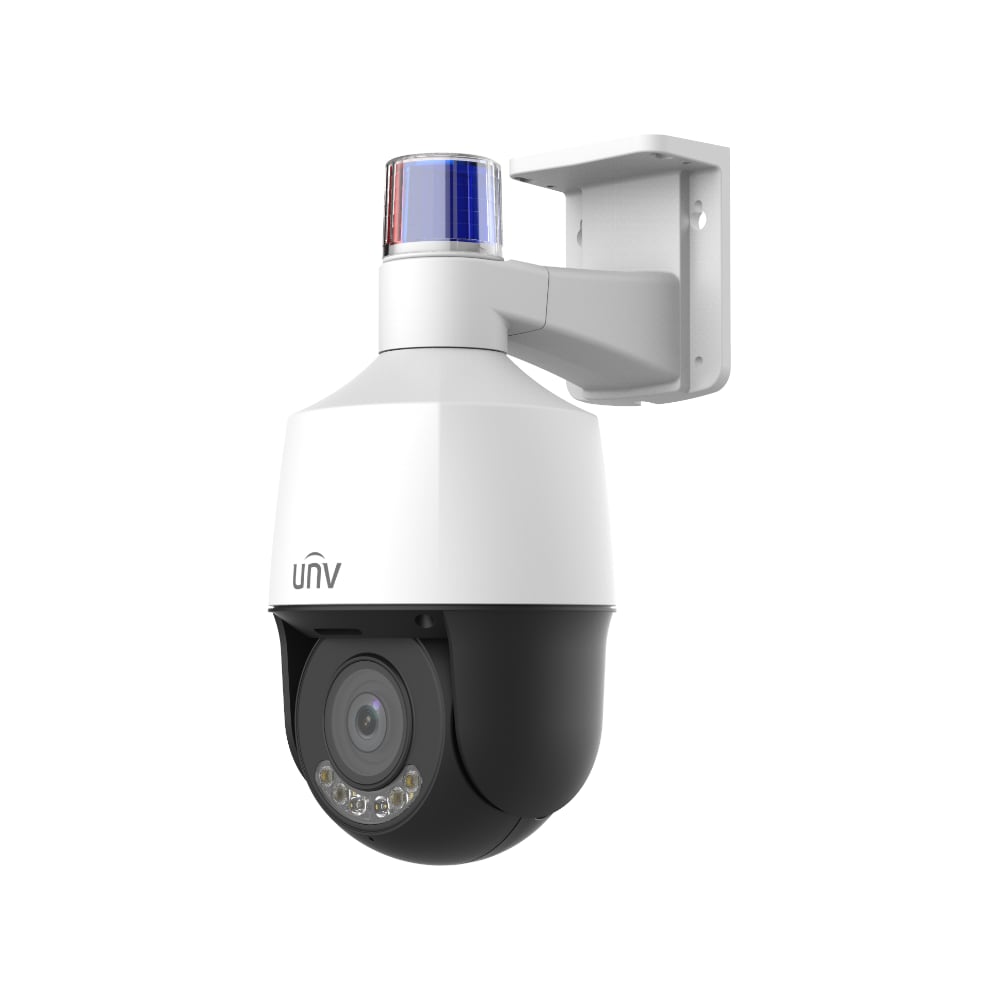

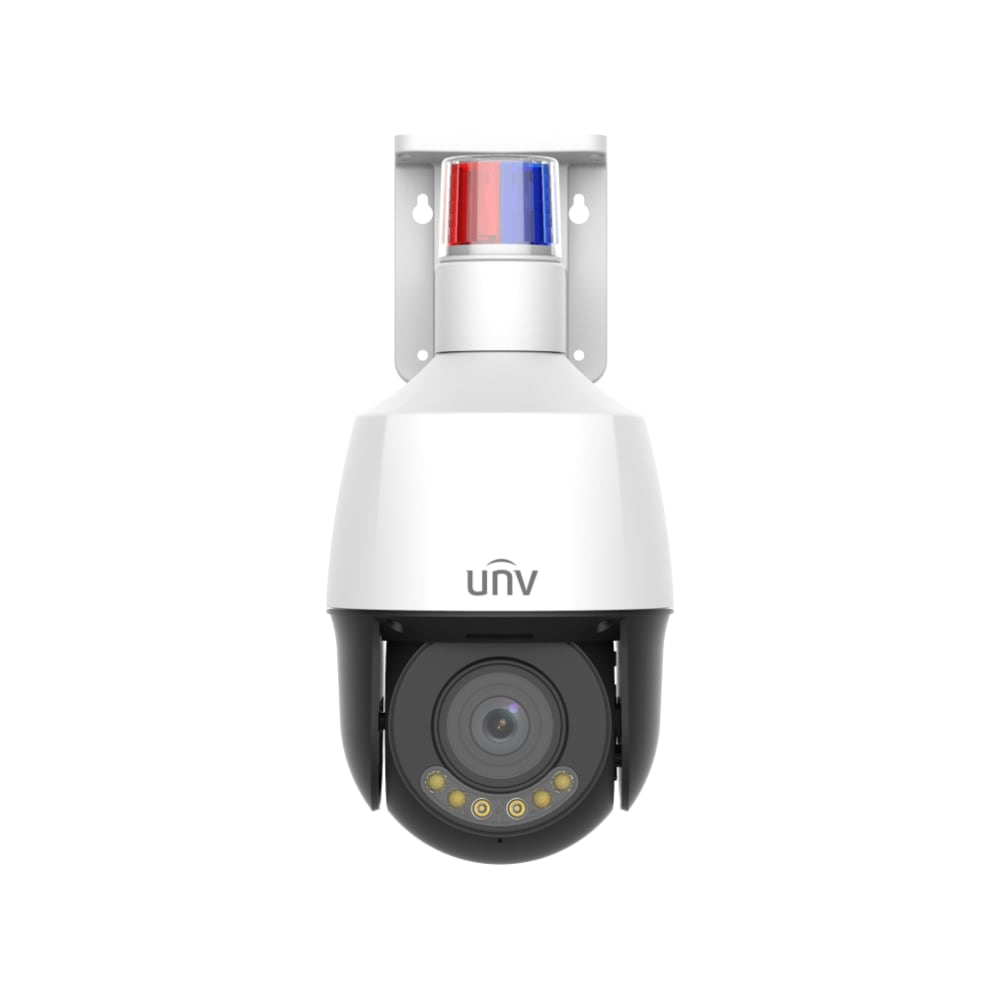

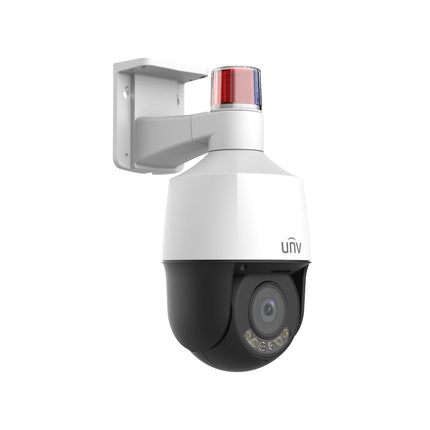

Uniview UNV IPC6324LWH-AX5C-VG2 4MP 5X OwlView Tri-Guard PTZ
The IPC6324LWH-AX5C-VG2 is a compact 4 MP OwlView PTZ with 5× optical zoom (2.7–13.5 mm), ColorHunter + Wise-ISP for vivid low-light colour, and Tri-Guard active deterrence (warm-light to 40 m). It features 120 dB True WDR, auto-tracking, and built-in mic & speaker for two-way audio. Powered via PoE (802.3at) with IP66 weather protection and microSD up to 512 GB, it’s ideal for carparks, yards and building entrances.
Key Features
• 4 MP, 1/1.8″ CMOS, up to 2688×1520@30 fps
• 5× optical zoom (2.7–13.5 mm); auto-tracking (human target)
• ColorHunter + Wise-ISP, Tri-Guard with warm-light to 40 m
• 120 dB True WDR, 2D/3D DNR, digital defog
• Smart Intrusion Prevention: cross-line & intrusion (human/vehicle)
• Built-in mic & speaker; two-way audio; 1/1 alarm I/O; 1/1 audio I/O
• Ultra 265 / H.265 / H.264 / MJPEG; triple streams, U-Code
• microSD up to 512 GB; IP66; DC 12 V or PoE (802.3at)
Technical Specifications
| Brand / Series |
Uniview UNV / OwlView PTZ |
| Model (SKU) |
IPC6324LWH-AX5C-VG2 |
| Sensor / Resolution |
1/1.8″ CMOS / 4 MP (2688×1520 up to 30 fps) |
| Lens / Zoom |
2.7–13.5 mm motorized / 5× optical |
| Field of View (H/V/D) |
113.69°–50.29° / 59.46°–28.45° / 156.23°–59.34° |
| Low-light / Deterrence |
ColorHunter + Wise-ISP; warm-light up to 40 m |
| WDR / Image |
120 dB True WDR; 2D/3D DNR; digital defog |
| Analytics |
Auto-tracking (human); SIP cross-line & intrusion |
| Audio |
Built-in mic & speaker; 1/1 audio I/O; two-way audio |
| Interfaces |
1/1 alarm I/O; 1× RJ45 10/100 M |
| Video Encoding |
Ultra 265 / H.265 / H.264 / MJPEG; triple streams; U-Code |
| Storage |
MicroSD up to 512 GB; ANR/NAS |
| Network / Security |
ONVIF S/G/T; HTTPS/TLS 1.3; multiple protocols |
| Power |
DC 12 V ±25% or PoE (IEEE 802.3at) |
| Protection / Environment |
IP66; −30 °C ~ 60 °C; ≤95% RH |
| Material |
Metal housing |
