Description

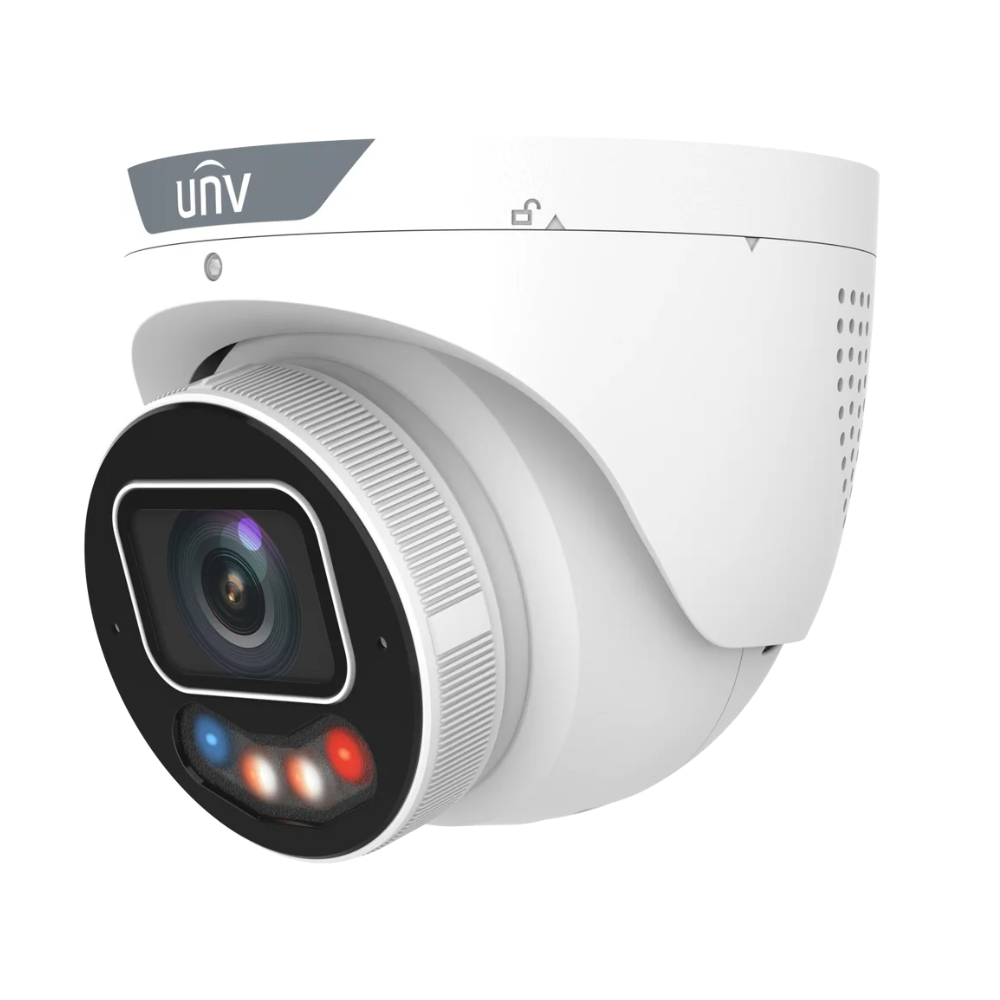

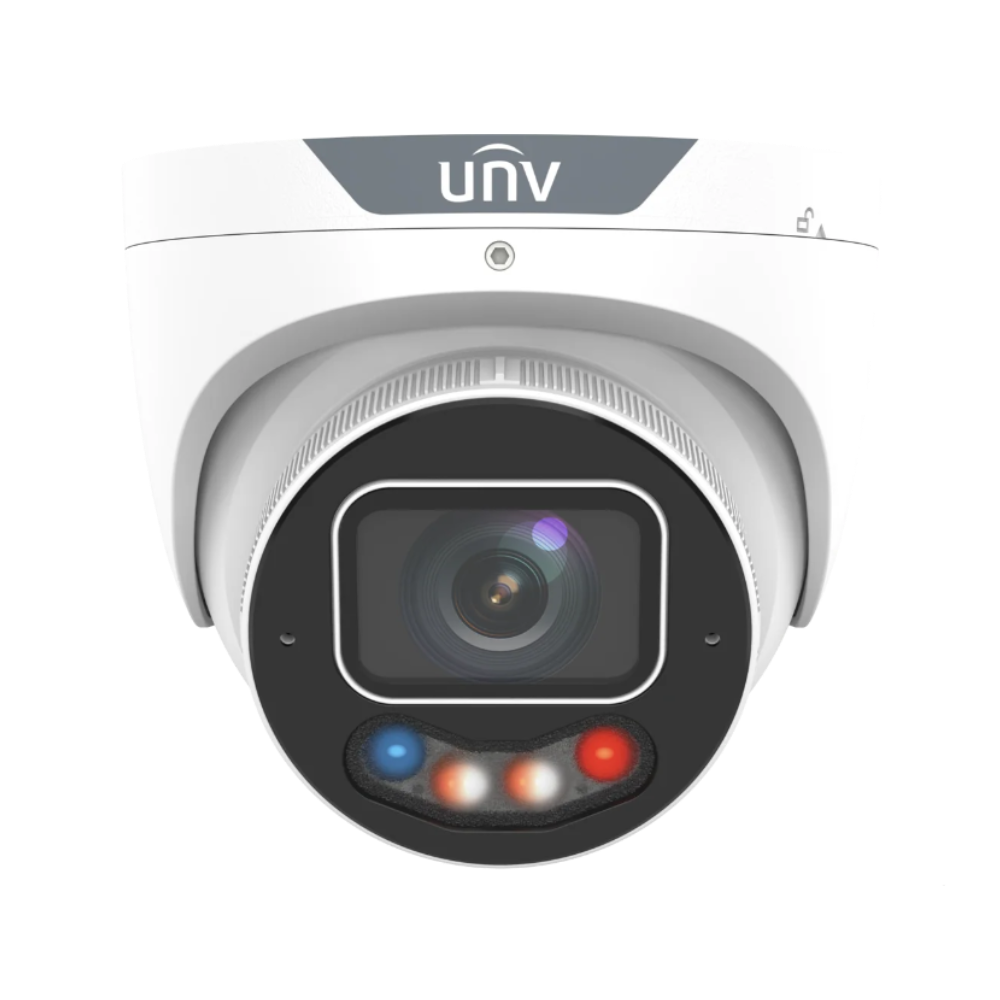

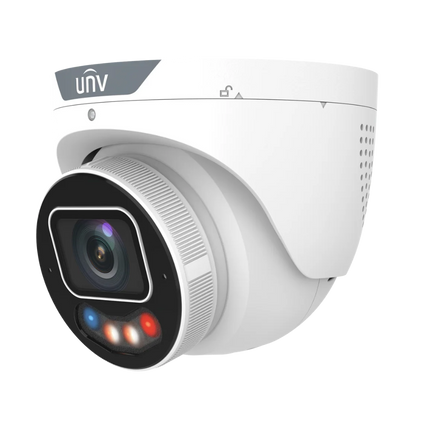

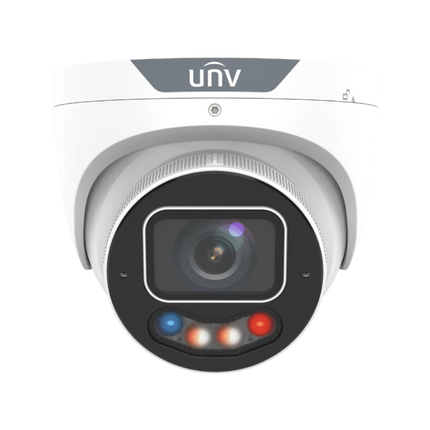

The Uniview UNV IPC3638SE-ADZKMC-WP-I1 is a high-performance 8MP Tri-Guard varifocal turret IP cameradesigned for advanced perimeter protection, people analytics, and 24/7 colour surveillance. Featuring ColorHunter with Wise-ISP technology and an F1.2 large-aperture motorised lens, it delivers bright, detailed images even in extremely low-light environments.
This camera combines dual-light illumination (IR + warm white light) with intelligent AI intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, and NEMA 4X protection, it is ideal for demanding outdoor and commercial installations.
Key Features & Highlights
-
8MP Ultra-HD Resolution – Up to 3840 × 2160 @ 30 fps
-
1/1.8″ Progressive CMOS Sensor – Superior image quality
-
Motorised Varifocal Lens – 2.8–12 mm, F1.2
-
ColorHunter + Wise-ISP – 24/7 full-colour imaging
-
Tri-Guard Dual-Light System – Smart IR + warm light up to 30 m
-
130 dB True WDR – Clear images in strong backlight scenes
-
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
-
People Flow Counting & Crowd Density Monitoring
-
Built-in Dual Microphones & Speaker – Two-way audio
-
Alarm I/O 1/1, Audio I/O 1/1
-
MicroSD Edge Storage up to 512 GB
-
IK10, IP67 & NEMA 4X Rated – Vandal-resistant & outdoor-ready
-
Ultra 265 / H.265 / H.264 / MJPEG Compression
- ONVIF Profile S / G / T / M Compatible
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC3638SE-ADZKMC-WP-I1 |
| Camera Type |
8MP Tri-Guard Varifocal Dual-Light Turret IP Camera |
| Image Sensor |
1/1.8" Progressive CMOS |
| Maximum Resolution |
8MP (3840 × 2160) @ 30 fps |
| Lens |
Motorised varifocal 2.8–12 mm, F1.2 |
| Field of View (H) |
111.5° – 54.1° |
| Minimum Illumination |
0.0005 Lux (Colour, F1.2, AGC ON) |
| Illumination |
Dual-light: IR + Warm Light (30 m) |
| WDR |
130 dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Analytics |
Line crossing, intrusion, enter/leave area, people counting, crowd density |
| Audio |
Built-in dual mic & speaker, Audio I/O 1/1 |
| Alarm I/O |
1 / 1 |
| Edge Storage |
MicroSD up to 512 GB |
| Network |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
PoE (IEEE 802.3af) / DC 12 V |
| Power Consumption |
Max. 7 W |
| Protection Rating |
IP67, IK10, NEMA 4X |
| Housing |
Metal |
| Operating Temperature |
-30 °C to 60 °C |
Recommended Applications
- Retail stores & shopping centres
- Commercial buildings & offices
- Warehouses & logistics facilities
- Schools & campuses
- Car parks & perimeter security
- High-risk vandal-prone locations
More Information
Uniview UNV IPC3638SE-ADZKMC-WP-I1 Datasheet
Uniview UNV IPC3638SE Series User Manual
IPC3638SE-ADZKMC-WP-I1 Dimension
