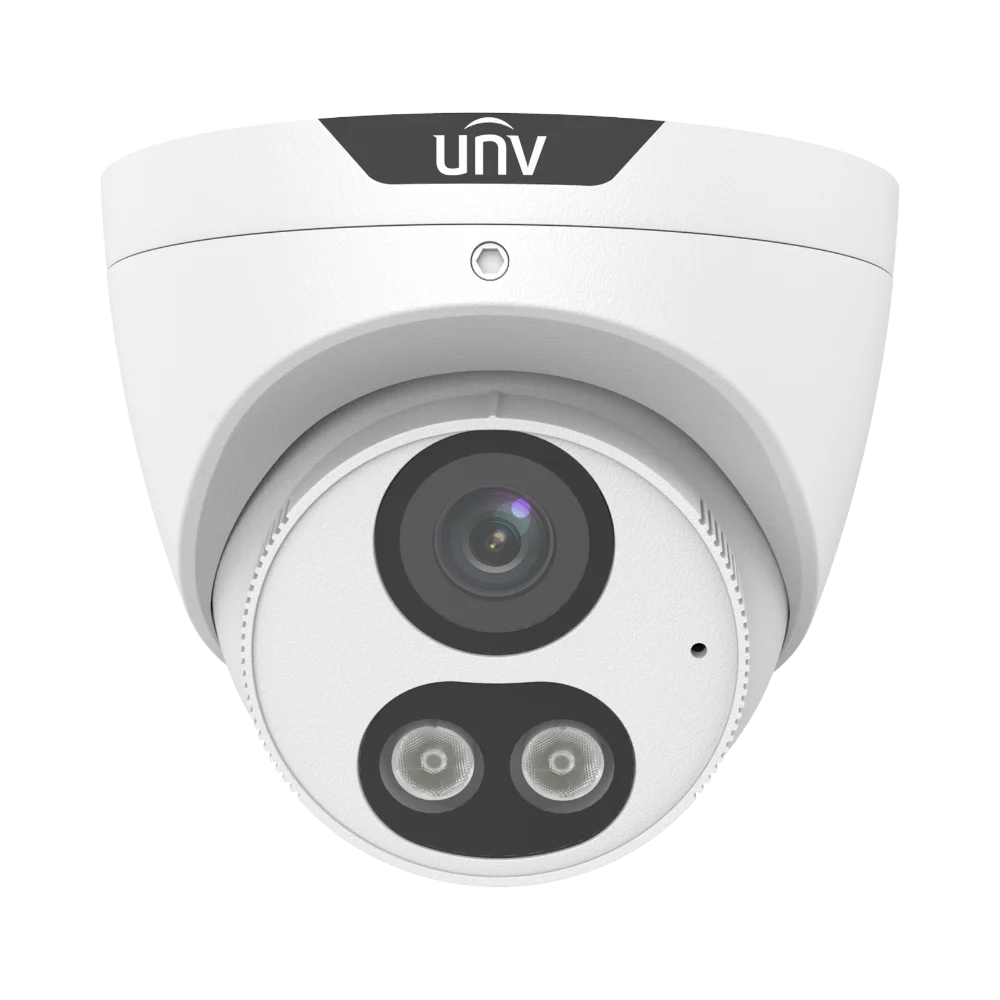

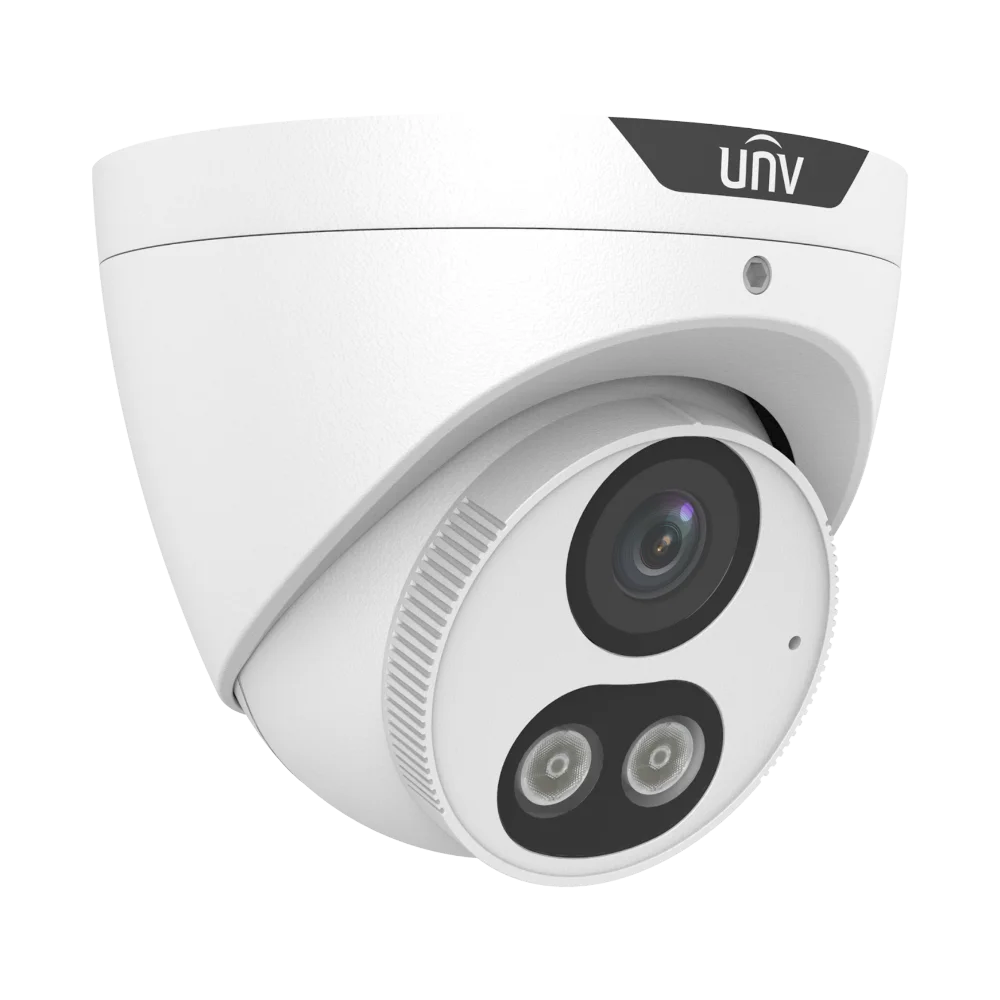

Uniview UNV IPC3616LE-ADF28KM-DL 6MP Dual-Light ColorHunter Turret IP Camera | 2.8mm | PoE | Built-in Mic | IP67

Description

NDAA Compliant · Dual Light · 6MP ColorHunter

Uniview UNV IPC3616LE-ADF28KM-DL — 6MP Smart Dual-Light Turret IP Camera with 2.8mm Lens, Built-in Mic & PoE

The Uniview UNV IPC3616LE-ADF28KM-DL is a 6 Megapixel Smart Dual-Light ColorHunter turret IP camera engineered for Australian homes, retail stores, warehouses and commercial sites that need full-colour night vision, sharper AI accuracy and a true wide-angle view in one fixed-lens unit. A 1/2.4″ CMOS sensor pushes 3200 × 1800 detail, while 120 dB Wide Dynamic Range tames glare from driveways, doorways and shopfronts. When darkness falls, the camera intelligently chooses between 30 m Smart IR for discreet black-and-white surveillance or 30 m warm light for vivid full-colour footage — and switches to active warm-light deterrence the moment people or vehicles enter your scene.

Powered by Uniview UNV's deep-learning engine, the IPC3616LE-ADF28KM-DL filters out wind, leaves and animals with human and vehicle classification on cross-line, intrusion and ultra motion detection. A built-in microphone, F1.6 aperture, Ultra 265 compression, and 512 GB microSD edge recording round out a fixed turret that's genuinely ready for 24/7 operation — backed by IP67 sealing, 4 kV surge protection, ONVIF Profile S/G/T compatibility and a wide -30 °C to +60 °C operating range built for Australian conditions.

Resolution
6 MP · 3200×1800
Smart Dual Light
Warm + IR · 30 m
Wide Lens
2.8 mm · 102.7° FOV
AI Analytics
Human + Vehicle
Protection
IP67 · 4 kV Surge
WDR
True 120 dB

See Uniview UNV Smart Dual Light & ColorHunter Technology in Action

UNV ColorHunter with Smart Dual Light Technology

Why Choose the Uniview UNV IPC3616LE-ADF28KM-DL?

True 6 MP Detail on a 1/2.4″ Sensor

3200 × 1800 resolution on a generous 1/2.4″ CMOS captures number plates, faces and product labels with the clarity 1080p cameras simply can't deliver.

Smart Dual-Light ColorHunter

Switches intelligently between 30 m Smart IR (covert) and 30 m warm light (full colour), and triggers active warm-light deterrence on human/vehicle events.

AI Human & Vehicle Filtering

Cross line, intrusion and ultra motion detection are powered by deep-learning classification — fewer false alarms from leaves, possums or shifting shadows.

Built for Australian Conditions

IP67 sealed housing, metal-and-polymer construction, 4 kV surge protection and -30 °C to +60 °C operating range handle Aussie summers and winters alike.

Bandwidth-Smart Ultra 265

Uniview UNV Ultra 265 compression cuts storage and bandwidth use vs H.265 — perfect for multi-camera sites and remote-site streaming over 4G/5G uplinks.

Audio + Edge Recording

Built-in microphone records synchronised audio (where legal), and a microSD slot supports up to 512 GB of local edge backup for fail-over recording.

Designed for Real Australian Properties

Homes & Apartments

Mount under eaves at front doors, garages, side gates or carports. The 102.7° lens covers driveways and porches end-to-end on a single camera.

Retail & Hospitality

Cover counters, aisles and back-of-house with full-colour night footage of identifiable faces — vital for incident review and insurance claims.

Warehouses & Yards

Use the active warm-light deterrent to ping intruders entering loading bays, fenced compounds and outdoor storage zones the moment they're detected.

Schools, Clinics & Offices

NDAA-compliant, ONVIF-friendly and IP67-rated — a quiet, professional turret that integrates cleanly with Uniview UNV, Hikvision-spec or Milestone-driven sites.

Key Features at a Glance

6 MP Ultra HD Imaging 6 MP (3200 × 1800) at up to 25 fps on a 1/2.4″ CMOS with F1.6 aperture for vivid, detailed footage day and night.
Smart Dual-Light Illumination Up to 30 m of Smart IR or warm light, auto-switching to suit the scene — plus active warm-light flash on AI events.
120 dB True WDR Real Wide Dynamic Range handles backlit doorways, bright shopfronts and glare from headlights without crushing shadows.
Deep-Learning Analytics Human-body classified cross-line and intrusion detection, plus ultra motion detection for both humans and vehicles.
Built-in Microphone Integrated mic with G.711U/A audio compression for synchronised audio playback alongside video evidence.
Edge Storage to 512 GB MicroSD slot supports up to 512 GB local recording with ANR (Auto Network Replenishment) for fail-over coverage.
PoE & DC 12 V Power Single-cable installation via IEEE 802.3af PoE, with DC 12 V backup option. Just 5.1 W max consumption.
ONVIF Profile S/G/T Plug-and-play with major VMS platforms, Uniview UNV NVRs, EZStation, UNV-Link/UNV-Link Pro and third-party recorders.

Full Technical Specifications

Model IPC3616LE-ADF28KM-DL
Camera Type 6 MP Smart Dual-Light Fixed Turret / Eyeball Network Camera
Image Sensor 1/2.4″ CMOS
Max Resolution 6 MP (3200 × 1800)
Min. Illumination Colour: 0.003 Lux @ F1.6, AGC ON · 0 Lux with light on
Shutter Auto / Manual, 1s ~ 1/100,000s
Wide Dynamic Range 120 dB True WDR
Signal-to-Noise Ratio > 52 dB
Focal Length 2.8 mm Fixed
Aperture F1.6
Field of View H: 102.73° · V: 53.95° · D: 106.97°
DORI Distance Detect 63.1 m · Observe 25.2 m · Recognise 12.6 m · Identify 6.3 m
Supplemental Light Smart Dual Light — Warm Light + IR (850 nm)
Illumination Distance Warm Light up to 30 m · IR up to 30 m
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate (Main Stream) 6 MP @ 25 fps · 4 MP @ 30 fps · 3 MP @ 30 fps · 1080p @ 30 fps · 720p @ 30 fps
Video Bit Rate 128 Kbps – 16 Mbps
U-Code (Smart Encoding) Supported
OSD / Privacy Mask Up to 4 OSDs · Up to 4 privacy mask areas
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction 2D / 3D DNR
BLC / HLC / Defog Supported · Digital Defog
AI / Smart Detection Cross line (human), Intrusion (human), Motion, Ultra Motion (human + vehicle), Tampering, Audio detection
Audio Input Built-in Microphone
Audio Compression G.711U / G.711A · 64 Kbps · 8 kHz
Edge Storage MicroSD up to 512 GB · ANR · NAS (NFS)
Network Interface 1 × RJ45 10 / 100 Mbps Ethernet
Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
ONVIF Compatibility Profile S, Profile G, Profile T · API, SDK
Client / Apps UNV-Link, UNV-Link Pro, EZStation
Security HTTPS, TLS 1.2, RTSP/HTTP digest auth, ONVIF WSSE, strong password, log export
Adjustment Angle Pan 0°–360° · Tilt 0°–80° · Rotate 0°–360° (3-axis)
Power Supply DC 12 V ±25% · PoE (IEEE 802.3af)
Power Consumption Max. 5.1 W
Surge Protection 4 kV
Ingress Protection IP67 (IEC 60529)
Operating Environment -30 °C to +60 °C · ≤95% RH (non-condensing)
Dimensions Ø110.5 mm × 98.0 mm (Ø4.4″ × 3.9″)
Weight 0.46 kg (1.01 lb)
Material Metal + Plastic
Certifications CE-EMC, CE-LVD, CE-RoHS, WEEE, IP67
Compliance NDAA Compliant

Frequently Asked Questions

What does "Smart Dual Light" actually do?

The camera intelligently switches between Smart IR for discreet black-and-white night vision and a warm white light for full-colour night video. When AI detects a person or vehicle, the warm light can flash on as an active visual deterrent.

Is the IPC3616LE-ADF28KM-DL NDAA compliant?

Yes. Uniview UNV is an NDAA Section 889-compliant manufacturer, making this camera suitable for government, education, healthcare and enterprise tenders across Australia.

How wide is the 2.8 mm lens in real life?

The 2.8 mm lens delivers a 102.73° horizontal field of view — wide enough to cover a typical Australian double driveway, a small shop floor or a full residential side passage from a single mounting point.

Will it work with my existing Uniview UNV / ONVIF NVR?

Yes. It plugs straight into any Uniview UNV NVR via UNV protocol, and works with third-party recorders and VMS platforms via ONVIF Profile S, G and T.

Does it record audio?

Yes, the camera features a built-in microphone with G.711 audio compression. Australian users must comply with state-based audio recording laws (notably the Surveillance Devices Act) before enabling audio.

Can I power it with PoE?

Absolutely. The IPC3616LE-ADF28KM-DL is IEEE 802.3af PoE-powered with just 5.1 W max draw — perfect for single-cable installation from your PoE NVR or switch. A DC 12 V option is also available.

What storage options does it support?

The onboard microSD slot supports cards up to 512 GB for edge recording, plus ANR fail-over to your NVR, and NAS (NFS) network storage.

Is it suitable for outdoor installation?

Yes. The housing is IP67-rated against dust and water ingress, with 4 kV surge protection and a -30 °C to +60 °C operating range — built for Aussie eaves, carports and external walls.

Datasheets & Documentation

Download Datasheet (PDF) Quick Start Guide (PDF)
Genuine Australian Stock
3-Year Uniview UNV Warranty
NDAA Compliant

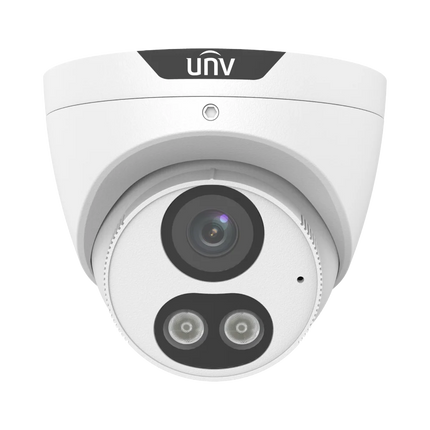

Uniview UNV IPC3616LE-ADF28KM-DL 6MP Dual-Light ColorHunter Turret IP Camera | 2.8mm | PoE | Built-in Mic | IP67

Product form

SKU: IPC3616LE-ADF28KM-DL

NDAA Compliant · Dual Light · 6MP ColorHunter Uniview UNV IPC3616LE-ADF28KM-DL — 6MP Smart Dual-Light Turret IP Camera with 2.8mm... Read more

$153.00  $110.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty:  months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    NDAA Compliant · Dual Light · 6MP ColorHunter

    Uniview UNV IPC3616LE-ADF28KM-DL — 6MP Smart Dual-Light Turret IP Camera with 2.8mm Lens, Built-in Mic & PoE

    The Uniview UNV IPC3616LE-ADF28KM-DL is a 6 Megapixel Smart Dual-Light ColorHunter turret IP camera engineered for Australian homes, retail stores, warehouses and commercial sites that need full-colour night vision, sharper AI accuracy and a true wide-angle view in one fixed-lens unit. A 1/2.4″ CMOS sensor pushes 3200 × 1800 detail, while 120 dB Wide Dynamic Range tames glare from driveways, doorways and shopfronts. When darkness falls, the camera intelligently chooses between 30 m Smart IR for discreet black-and-white surveillance or 30 m warm light for vivid full-colour footage — and switches to active warm-light deterrence the moment people or vehicles enter your scene.

    Powered by Uniview UNV's deep-learning engine, the IPC3616LE-ADF28KM-DL filters out wind, leaves and animals with human and vehicle classification on cross-line, intrusion and ultra motion detection. A built-in microphone, F1.6 aperture, Ultra 265 compression, and 512 GB microSD edge recording round out a fixed turret that's genuinely ready for 24/7 operation — backed by IP67 sealing, 4 kV surge protection, ONVIF Profile S/G/T compatibility and a wide -30 °C to +60 °C operating range built for Australian conditions.

    Resolution
    6 MP · 3200×1800
    Smart Dual Light
    Warm + IR · 30 m
    Wide Lens
    2.8 mm · 102.7° FOV
    AI Analytics
    Human + Vehicle
    Protection
    IP67 · 4 kV Surge
    WDR
    True 120 dB

    See Uniview UNV Smart Dual Light & ColorHunter Technology in Action

    UNV ColorHunter with Smart Dual Light Technology

    Why Choose the Uniview UNV IPC3616LE-ADF28KM-DL?

    True 6 MP Detail on a 1/2.4″ Sensor

    3200 × 1800 resolution on a generous 1/2.4″ CMOS captures number plates, faces and product labels with the clarity 1080p cameras simply can't deliver.

    Smart Dual-Light ColorHunter

    Switches intelligently between 30 m Smart IR (covert) and 30 m warm light (full colour), and triggers active warm-light deterrence on human/vehicle events.

    AI Human & Vehicle Filtering

    Cross line, intrusion and ultra motion detection are powered by deep-learning classification — fewer false alarms from leaves, possums or shifting shadows.

    Built for Australian Conditions

    IP67 sealed housing, metal-and-polymer construction, 4 kV surge protection and -30 °C to +60 °C operating range handle Aussie summers and winters alike.

    Bandwidth-Smart Ultra 265

    Uniview UNV Ultra 265 compression cuts storage and bandwidth use vs H.265 — perfect for multi-camera sites and remote-site streaming over 4G/5G uplinks.

    Audio + Edge Recording

    Built-in microphone records synchronised audio (where legal), and a microSD slot supports up to 512 GB of local edge backup for fail-over recording.

    Designed for Real Australian Properties

    Homes & Apartments

    Mount under eaves at front doors, garages, side gates or carports. The 102.7° lens covers driveways and porches end-to-end on a single camera.

    Retail & Hospitality

    Cover counters, aisles and back-of-house with full-colour night footage of identifiable faces — vital for incident review and insurance claims.

    Warehouses & Yards

    Use the active warm-light deterrent to ping intruders entering loading bays, fenced compounds and outdoor storage zones the moment they're detected.

    Schools, Clinics & Offices

    NDAA-compliant, ONVIF-friendly and IP67-rated — a quiet, professional turret that integrates cleanly with Uniview UNV, Hikvision-spec or Milestone-driven sites.

    Key Features at a Glance

    6 MP Ultra HD Imaging 6 MP (3200 × 1800) at up to 25 fps on a 1/2.4″ CMOS with F1.6 aperture for vivid, detailed footage day and night.
    Smart Dual-Light Illumination Up to 30 m of Smart IR or warm light, auto-switching to suit the scene — plus active warm-light flash on AI events.
    120 dB True WDR Real Wide Dynamic Range handles backlit doorways, bright shopfronts and glare from headlights without crushing shadows.
    Deep-Learning Analytics Human-body classified cross-line and intrusion detection, plus ultra motion detection for both humans and vehicles.
    Built-in Microphone Integrated mic with G.711U/A audio compression for synchronised audio playback alongside video evidence.
    Edge Storage to 512 GB MicroSD slot supports up to 512 GB local recording with ANR (Auto Network Replenishment) for fail-over coverage.
    PoE & DC 12 V Power Single-cable installation via IEEE 802.3af PoE, with DC 12 V backup option. Just 5.1 W max consumption.
    ONVIF Profile S/G/T Plug-and-play with major VMS platforms, Uniview UNV NVRs, EZStation, UNV-Link/UNV-Link Pro and third-party recorders.

    Full Technical Specifications

    Model IPC3616LE-ADF28KM-DL
    Camera Type 6 MP Smart Dual-Light Fixed Turret / Eyeball Network Camera
    Image Sensor 1/2.4″ CMOS
    Max Resolution 6 MP (3200 × 1800)
    Min. Illumination Colour: 0.003 Lux @ F1.6, AGC ON · 0 Lux with light on
    Shutter Auto / Manual, 1s ~ 1/100,000s
    Wide Dynamic Range 120 dB True WDR
    Signal-to-Noise Ratio > 52 dB
    Focal Length 2.8 mm Fixed
    Aperture F1.6
    Field of View H: 102.73° · V: 53.95° · D: 106.97°
    DORI Distance Detect 63.1 m · Observe 25.2 m · Recognise 12.6 m · Identify 6.3 m
    Supplemental Light Smart Dual Light — Warm Light + IR (850 nm)
    Illumination Distance Warm Light up to 30 m · IR up to 30 m
    Video Compression Ultra 265, H.265, H.264, MJPEG
    Frame Rate (Main Stream) 6 MP @ 25 fps · 4 MP @ 30 fps · 3 MP @ 30 fps · 1080p @ 30 fps · 720p @ 30 fps
    Video Bit Rate 128 Kbps – 16 Mbps
    U-Code (Smart Encoding) Supported
    OSD / Privacy Mask Up to 4 OSDs · Up to 4 privacy mask areas
    White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
    Digital Noise Reduction 2D / 3D DNR
    BLC / HLC / Defog Supported · Digital Defog
    AI / Smart Detection Cross line (human), Intrusion (human), Motion, Ultra Motion (human + vehicle), Tampering, Audio detection
    Audio Input Built-in Microphone
    Audio Compression G.711U / G.711A · 64 Kbps · 8 kHz
    Edge Storage MicroSD up to 512 GB · ANR · NAS (NFS)
    Network Interface 1 × RJ45 10 / 100 Mbps Ethernet
    Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
    ONVIF Compatibility Profile S, Profile G, Profile T · API, SDK
    Client / Apps UNV-Link, UNV-Link Pro, EZStation
    Security HTTPS, TLS 1.2, RTSP/HTTP digest auth, ONVIF WSSE, strong password, log export
    Adjustment Angle Pan 0°–360° · Tilt 0°–80° · Rotate 0°–360° (3-axis)
    Power Supply DC 12 V ±25% · PoE (IEEE 802.3af)
    Power Consumption Max. 5.1 W
    Surge Protection 4 kV
    Ingress Protection IP67 (IEC 60529)
    Operating Environment -30 °C to +60 °C · ≤95% RH (non-condensing)
    Dimensions Ø110.5 mm × 98.0 mm (Ø4.4″ × 3.9″)
    Weight 0.46 kg (1.01 lb)
    Material Metal + Plastic
    Certifications CE-EMC, CE-LVD, CE-RoHS, WEEE, IP67
    Compliance NDAA Compliant

    Frequently Asked Questions

    What does "Smart Dual Light" actually do?

    The camera intelligently switches between Smart IR for discreet black-and-white night vision and a warm white light for full-colour night video. When AI detects a person or vehicle, the warm light can flash on as an active visual deterrent.

    Is the IPC3616LE-ADF28KM-DL NDAA compliant?

    Yes. Uniview UNV is an NDAA Section 889-compliant manufacturer, making this camera suitable for government, education, healthcare and enterprise tenders across Australia.

    How wide is the 2.8 mm lens in real life?

    The 2.8 mm lens delivers a 102.73° horizontal field of view — wide enough to cover a typical Australian double driveway, a small shop floor or a full residential side passage from a single mounting point.

    Will it work with my existing Uniview UNV / ONVIF NVR?

    Yes. It plugs straight into any Uniview UNV NVR via UNV protocol, and works with third-party recorders and VMS platforms via ONVIF Profile S, G and T.

    Does it record audio?

    Yes, the camera features a built-in microphone with G.711 audio compression. Australian users must comply with state-based audio recording laws (notably the Surveillance Devices Act) before enabling audio.

    Can I power it with PoE?

    Absolutely. The IPC3616LE-ADF28KM-DL is IEEE 802.3af PoE-powered with just 5.1 W max draw — perfect for single-cable installation from your PoE NVR or switch. A DC 12 V option is also available.

    What storage options does it support?

    The onboard microSD slot supports cards up to 512 GB for edge recording, plus ANR fail-over to your NVR, and NAS (NFS) network storage.

    Is it suitable for outdoor installation?

    Yes. The housing is IP67-rated against dust and water ingress, with 4 kV surge protection and a -30 °C to +60 °C operating range — built for Aussie eaves, carports and external walls.

    Datasheets & Documentation

    Download Datasheet (PDF) Quick Start Guide (PDF)
    Genuine Australian Stock
    3-Year Uniview UNV Warranty
    NDAA Compliant

    Recently viewed products

      © 2026 CCTV Guru ACN 658 678 525

        • PayPal
        • Apple Pay
        • Visa
        • Mastercard
        • American Express
        • Zip
        • Afterpay
        • Klarna
        • Google Pay
        • Shop Pay
          Download CCT Guru iPhone iOS Mobile App on Apple StoreDownload CCTV Guru Android Mobile App on Google Play Store

        Login

        Forgot your password?

        Don't have an account yet?
        Create account
