TP-Link VIGI Solar Power System

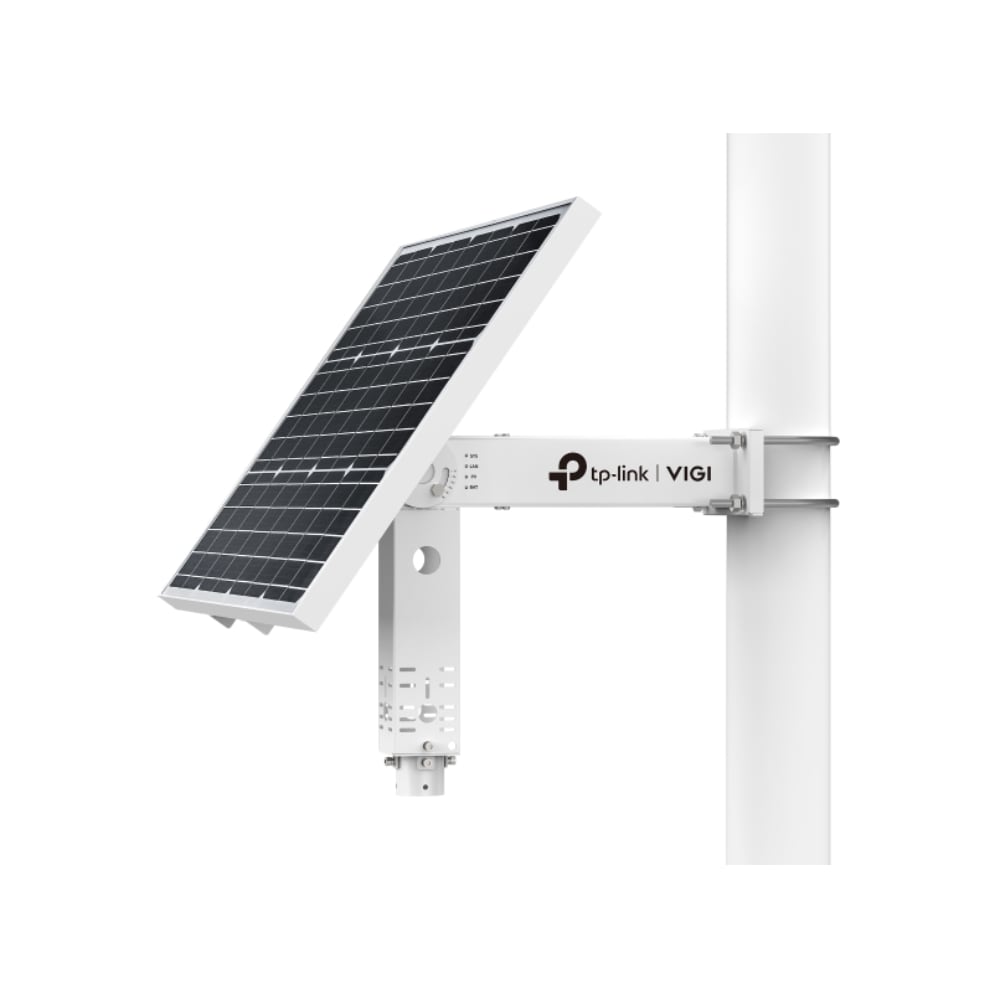

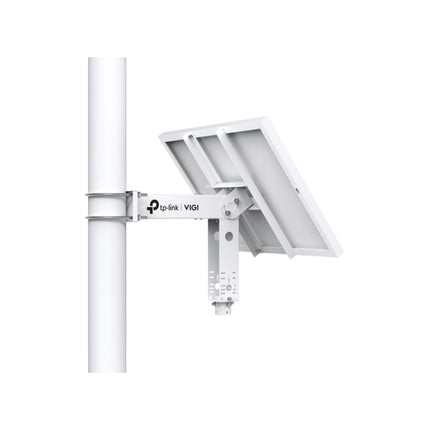

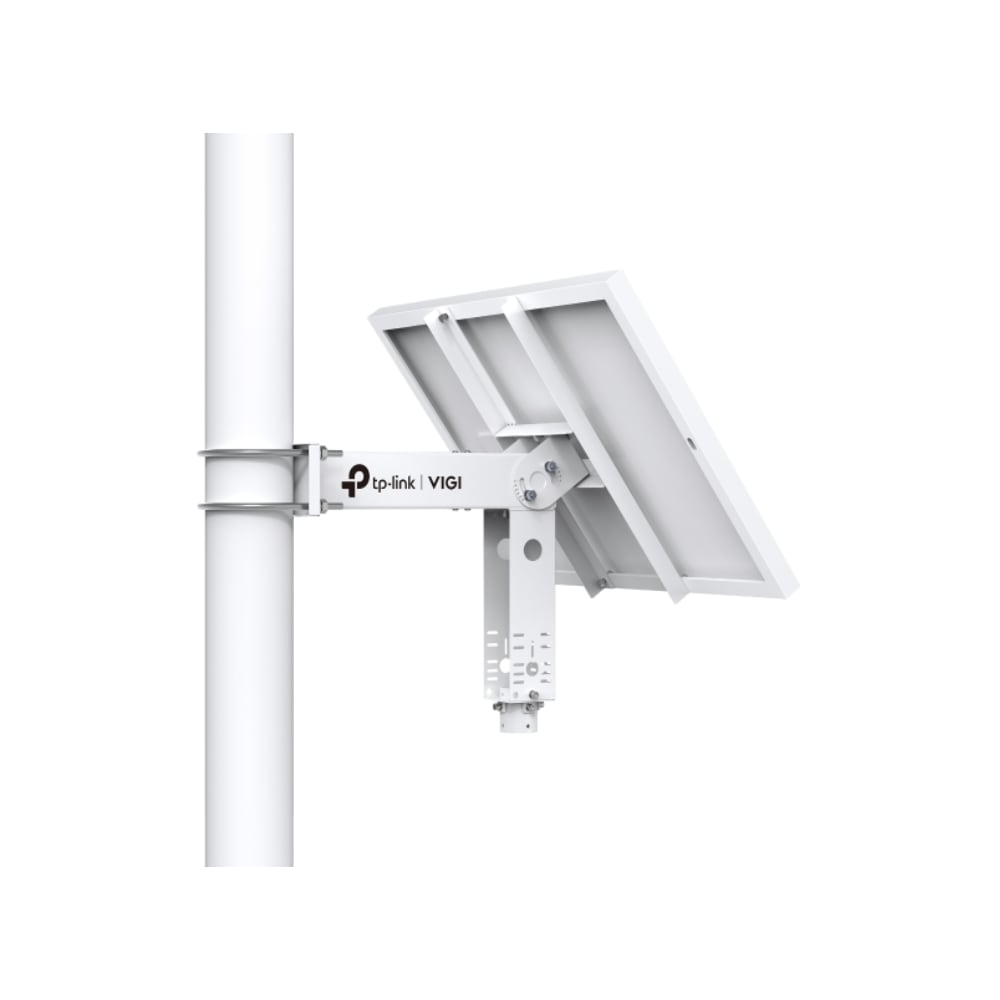

VIGI SP6020 — Intelligent Solar Power Supply System
Off-grid, all-weather power for outdoor surveillance and networking. A high-efficiency 60 W monocrystalline panel, smart lithium battery with auxiliary heating, and MPPT controller keep VIGI cameras and wireless devices running reliably — even in harsh Australian conditions.
60 W Grade-A solar panel
20.8 Ah / 10.8 V smart lithium battery
IP66 weatherproof housing
5°–55° adjustable tilt (6 presets)
MPPT charging (+20% vs PWM)
3× DC outputs + RJ45
Remote management (VIGI App) Auxiliary battery heating 500+ charge cycles -30 °C to 60 °C operating
Key Features
-
High-efficiency solar
60 W Grade-A monocrystalline panel for dependable energy harvest.
-
Smart battery with heating
20.8 Ah lithium pack charges/discharges safely in low temperatures.
-
MPPT charge controller
Optimises panel output and improves charging efficiency.
-
All-weather build
IP66 enclosure, SGCC steel mount, 3.2 mm tempered glass.
-
Flexible outputs
Three 5.5 mm DC ports for 12 V loads (two 9–12.6 V/2 A, one 12 V/2 A).
-
App-based control
View power stats, get low-battery alerts, update firmware & reboot remotely.
Technical Specifications
| Category |
Details |
| Solar Panel |
| Power / Voltage |
60 W / 18 V |
| Dimensions |
690 × 516 × 30 mm |
| Tilt Adjustment |
Manual presets: 5°, 15°, 25°, 35°, 45°, 55° |
| Battery |
| Type / Capacity |
Lithium, 20.8 Ah @ 10.8 V (500+ cycles) |
| Max Output Voltage |
12.6 V |
| Charging Temperature |
0 °C to 45 °C (down to −30 °C with auxiliary heating) |
| Discharging Temperature |
−20 °C to 60 °C (down to −30 °C with auxiliary heating) |
| Battery Module Size |
242 × 70 × 55 mm |
| Interfaces & Indicators |
| Data/Power I/O |
1× 10/100 Mb RJ45; 1× PV connector |
| DC Outputs |
#1 & #2: 9–12.6 V DC / 2 A each; #3: 12 V DC / 2 A; 3× 5.5 mm DC plugs |
| LEDs |
SYS, LAN, PV, BAT (blue) |
| Software & Protection |
| Controls |
Load control, smart charging (−30 °C to 5 °C), schedule saving |
| Protections |
High/low temperature, over-discharge |
| Management |
VIGI App (remote stats/alerts, firmware update, reboot), local LAN & web |
| Environmental & General |
| Ingress Rating |
IP66 |
| Operating Range |
−30 °C to 60 °C; 10–90% RH (non-condensing) |
| Certifications |
CB, PSE (battery), CE, FCC, VCCI, IC, IP66 |
| Box / Weight |
800 × 615 × 225 mm; Product 13 kg (Package 14.5 kg) |
What’s in the Box
- VIGI SP6020 controller + battery module
- 60 W solar panel with mount
- Waterproof cable attachments
- 3× 5.5 mm DC plugs
- Mounting accessories
- Quick Start Guide
Note: Camera / EAP devices shown in marketing images are not included.
Typical Applications

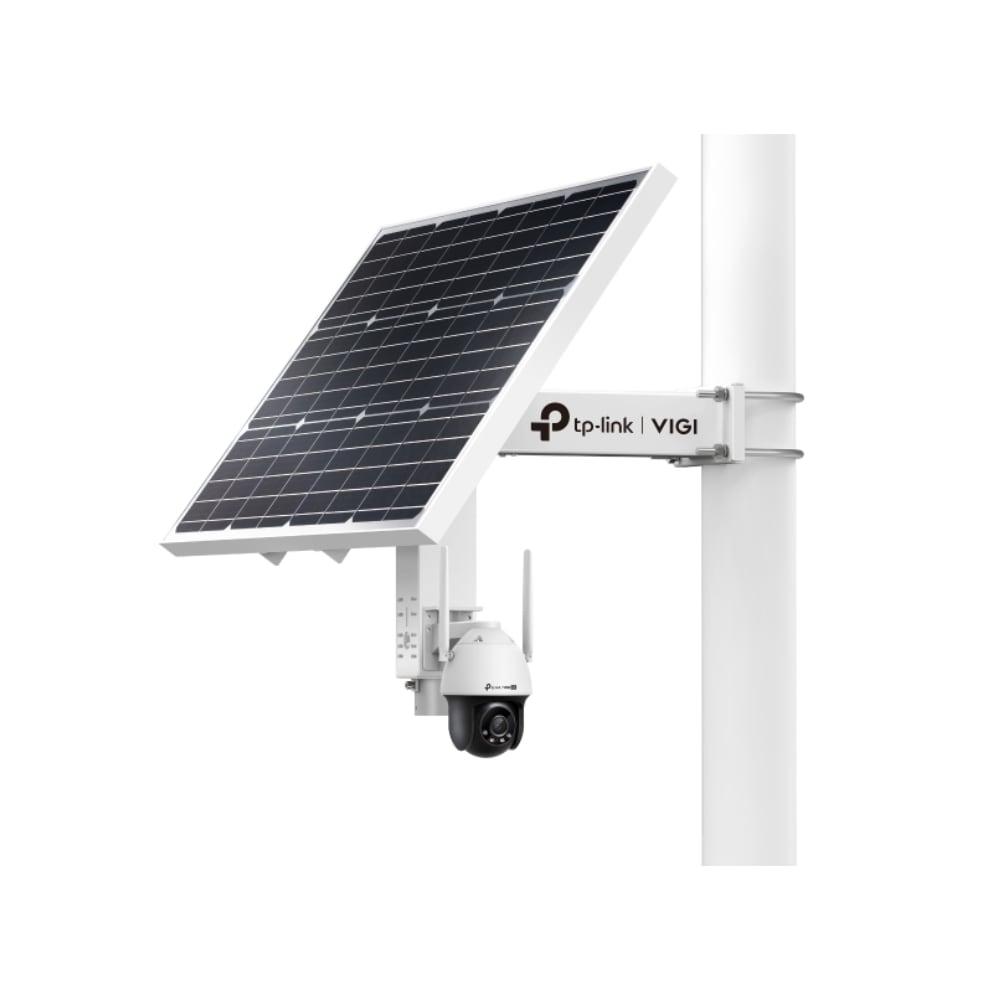

4G Solar Camera Site
VIGI C540-4G + SP6020 for remote properties, farms, or construction sites.
Wireless Bridge + IP Camera
SP6020 powering a bridge and a bullet/dome for off-grid perimeter coverage.
FAQs
Can the SP6020 power more than one device?
Yes — it has three DC outputs (two 9–12.6 V/2 A and one 12 V/2 A) to power cameras or wireless gear within budgeted load.
How do I manage the system remotely?
Use the TP-Link VIGI App to view power statistics, get alerts, update firmware, and reboot remotely. Local web/LAN management is also supported.
What is the weather rating?
IP66 — dust-tight and protected against powerful water jets; designed for outdoor installations.
Add to Cart
Need a matching VIGI 4G camera or wireless bridge? Pair it with VIGI C540-4G or a TP-Link bridge for complete off-grid setups.
