Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I, 30m IR (2066) security comes with 2.8mm, 4mm and 6mm
Enhance your security with Hikvision 6MP AcuSense Mini Fixed Bullet DS-2CD2066G2-I. Its 6 MP resolution provides high quality imaging, while the powered-by-DarkFighter technology ensures excellent low-light performance. With efficient H.265+ compression technology and 120 dB true WDR technology, this camera delivers clear imaging against strong back light. It also features built-in microphone for real-time audio security, and is water and dust resistant (IP67). Choose from 2.8mm, 4mm, and 6mm lens options to focus on human and vehicle targets classification based on deep learning.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
No Audio
Water and dust resistant (IP67)
Downloads
DS-2CD2066G2-I DatasheetDS-2CD2066G2-I Quick Start GuideDS-2CD2066G2-I User Manual
Hikvision DS-2CD2686G2T-IZS – 8MP AcuSense Varifocal Bullet IP Camera with IR 60m, Audio & BNC Pigtail
The Hikvision DS-2CD2686G2T-IZS is a robust 8MP AcuSense bullet camera designed for high-performance outdoor surveillance. It features a 2.8–12mm motorised varifocal lens with auto focus, giving you remote zoom flexibility without sacrificing image clarity.
Equipped with Smart IR up to 60 metres, AcuSense technology for human and vehicle classification, and a built-in microphone, this camera ensures accurate detection and audio capture. It also includes a BNC test output (pigtail) for professional setup and diagnostics.
With IP67 weatherproofing and IK10 vandal resistance, it’s a reliable solution for commercial, industrial, or perimeter security applications.
Features
Resolution: 8MP (3840 × 2160) @ 20fps
Lens: 2.8–12mm motorised varifocal with autofocus
IR Night Vision: Up to 60m with Smart IR
AcuSense Technology: Human/vehicle classification, line crossing & intrusion detection
Audio: Built-in microphone
Compression: H.265+, H.265, H.264+, H.264
Storage: Supports microSD/SDHC/SDXC card (up to 512GB)
BNC Pigtail Output: Yes, for test monitoring
Weather Protection: IP67
Vandal Resistance: IK10
Power: 12V DC ±25% or PoE (802.3af)
Operating Temp: -30°C to +60°C
Specifications
Specifications – Hikvision DS-2CD2686G2T-IZS
Bullet Network Camera
Motorised Varifocal, AcuSense Series
1/2.8″ Progressive Scan CMOS
8MP High-Resolution Sensor
3840 × 2160 (8MP)
20fps
2.8–12mm Motorised Zoom
Auto focus, Remote Zoom
Horizontal: 102°–30.5°
Flexible zoom range
Up to 60m
Smart IR Night Vision
AcuSense
Human & vehicle detection
Built-in Microphone
One-way audio
H.265+, H.265, H.264+, H.264
High-efficiency video encoding
microSD/SDHC/SDXC (up to 512GB)
Onboard recording supported
IP67
Weatherproof for outdoor use
IK10
Vandal-resistant casing
Yes (via pigtail)
For test monitoring
12V DC ±25% / PoE (802.3af)
Dual power options
-30°C to +60°C
Reliable in harsh environments
More Information
DS-2CD2686G2T-IZS DatasheetHikvision Bullet Camera Quick Start GuideHikvision Bullet Camera User Manual
Hikvision 8MP AcuSense Live-Guard Bullet DS-2CD2T86G2-ISU/SL with IP67 rating, IR range of 60m, 2.8mm lens, built-in microphone, speaker, and strobe light
The Hikvision DS-2CD2T86G2-ISU/SL is a robust 8MP (4K) AcuSense bullet network camera designed for advanced outdoor surveillance. Featuring a 2.8mm wide-angle lens, it captures ultra-high-definition video while offering intelligent AI-powered motion detection through human and vehicle classification.
Equipped with a built-in microphone, speaker, and strobe light with audible alarm, this camera provides Live-Guard active deterrence, scaring off potential intruders before incidents occur. With infrared night vision up to 60 metres, IP67-rated weatherproofing, and H.265+ compression, it is ideal for residential, commercial, and perimeter monitoring.
Features
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Specifications
Technical Specifications
DS-2CD2T86G2-ISU/SL
8MP AcuSense Bullet Camera
1/2" Progressive Scan CMOS
High-sensitivity CMOS for ultra-HD video
3840 × 2160 (8MP)
4K Ultra HD
2.8mm Fixed
Wide-angle view
111° (H), 60° (V), 132° (D)
Excellent coverage
Up to 60 metres
Long-range infrared illumination
120 dB
True Wide Dynamic Range
Yes
Human/Vehicle classification
Built-in Mic & Speaker
Two-way communication
Yes
Active deterrence (Live-Guard)
H.265+/H.265/H.264+/H.264
Bandwidth-efficient recording
MicroSD up to 256GB
Edge recording support
IP67
Dust & weather resistant
12V DC ±25% or PoE (802.3af)
Flexible power options
Max. 10W
Efficient performance
-30°C to 60°C
All-season durability
105 × 290 mm
Standard bullet format
Approx. 900g
Solid outdoor build
Downloads
DS-2CD2T86G2-ISU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
Hikvision 8MP ColorVu Bullet DS-2CD2T87G2-L-2, White Light, AcuSense, 4mm (2T87)
DS-2CD2T87G2-L(4mm)
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
24/7 colorful imaging
Downloads
Datasheet Quick Start Guide User Manual FAQ
Hikvision 8MP ColorVu Bullet DS-2CD2T87G2-L-2, White Light, AcuSense, 2.8mm (2T87)
DS-2CD2T87G2-L(2.8mm)
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
24/7 colorful imaging
Downloads
Datasheet Quick Start Guide User Manual FAQ
Dahua AI Access ANPR Short Range 8M 2 Megapixel Full HD WDR ANPR Motorised Network Camera, IR, 2.7 mm –13.5 mm motorised lens, max 8 meter distance.
The Dahua AI Access ANPR Short Range Camera delivers precise vehicle recognition up to 8 meters with its 2MP Full HD sensor and advanced WDR technology. Equipped with a motorised 2.7–13.5 mm vari-focal lens and built-in IR illumination, it ensures clear imaging day and night. Its deep learning algorithm accurately identifies license plates, vehicle models, logos, series, and colors. Featuring multiple communication interfaces for seamless integration with external devices like barriers, this IP67-rated camera offers reliable, low-power performance ideal for access control and parking management applications.
Features
Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7
Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more
Various signal, data and communication interfaces; supports connecting to extra devices, such as barrier
Built-in LED illuminator for simplified installation
Motorised vari-focal lens, easy for installation and commissioning
Integrated design with low power consumption, and IP67 protection grade
Specifications
NETWORK CAMERA
MEGAPIXELS
2MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
License Number Plate Series
PoE
PoE+
Downloads
DHI-ITC215-PW6M-IRLZF-B DatasheetDahua Access ANPR Camera User Manual V2.0.04
Dahua 4MP AI Starlight + IP Bullet Fixed 3.6mm, Mic, ICR+White Light, WDR (120dB), Micro SD, IP67, POE, SMD Plus
4MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688x1520) @ 30 fps
H.265 codec, high compression rate, low bit rate
Built-in Warm LED, max. LED distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3449EP-AS-LED-0360B DatasjeetQuick Start Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Example of DH-IPC-HFW3449EP-AS-LED-0360BLeaflet_Dahua-Full-Color-Camera_V1.0_EN_202002-(6P)
Uniarch 6MP Starlight Fixed Bullet Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High-quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048)@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E6-AF28K 6MP HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
Uniarch 8MP Starlight Fixed Bullet Network Camera, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB05-B-IN, Pole mount TR-UP06-C-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network Camera Datasheet V1.1Uniarch Network Camera User Manual-V1.00
The AXIS P1518-LE (02757-001) is an advanced, outdoor-ready bullet camera that delivers outstanding 4K image quality even in the most challenging lighting conditions. Equipped with a dedicated Deep Learning Processing Unit (DLPU), it enables sophisticated on-device analytics for improved object classification, making it an ideal choice for high-security perimeters, traffic monitoring, and critical infrastructure.
Key Features
Ultra-HD 4K Resolution: Captures high-detail video at 30 fps, providing four times the resolution of 1080p for superior identification of distant objects.
Deep Learning Processing Unit (DLPU): Supports advanced AI-based analytics like AXIS Object Analytics, allowing for the precise classification of humans and vehicles.
Lightfinder 2.0 & Forensic WDR: Axis proprietary technologies ensure natural colors in low light and clear details in scenes with extreme lighting contrasts.
OptimizedIR Technology: Integrated IR LEDs provide powerful night vision in total darkness up to 40 meters (130 ft) or more, depending on the scene.
Robust Outdoor Performance: Rated IP66, IP67, and NEMA 4X for protection against weather, and IK10 for impact resistance against vandalism.
Axis Edge Vault: A hardware-based cybersecurity platform that protects the camera’s identity and simplifies the secure authorization of Axis products on your network.
Technical Specifications
SKU / Part Number
02757-001
Resolution
3840x2160 (4K Ultra HD)
Image Sensor
1/1.8" Progressive Scan CMOS
Lens
Varifocal, 4.3–13.7 mm, F1.4
Power
Power over Ethernet (PoE) IEEE 802.3af/at Type 1 Class 3
Operating Temp
-40 °C to 60 °C (-40 °F to 140 °F)
More Information
For full technical details, mounting templates, and accessories, please refer to the official Axis resources:
Download AXIS P1518-LE Datasheet (PDF)

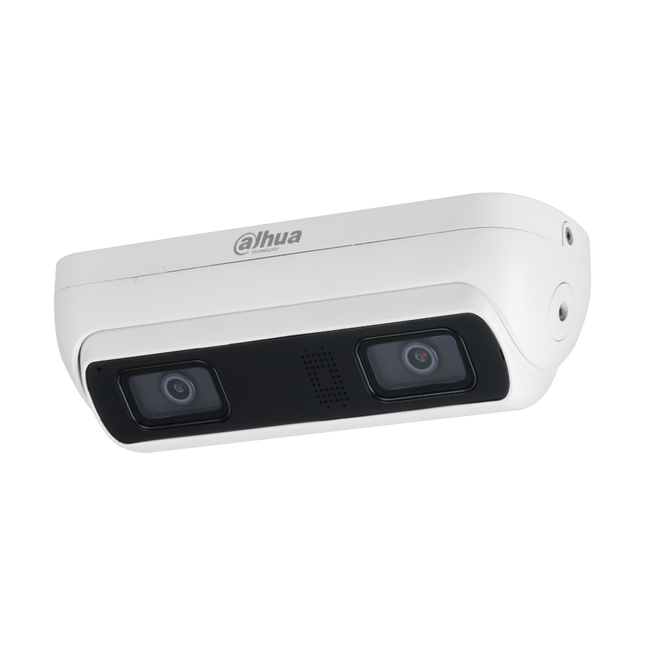

Dahua DH-IPC-HDW8341XP-BV-3D 3MP WizMind Dual-Lens Stereo AI Camera
The Dahua DH-IPC-HDW8341XP-BV-3D is an advanced WizMind dual-lens network camera designed for intelligent behaviour analysis in high-risk and high-value environments. Using stereo vision and deep-learning AI, this camera accurately detects human behaviour events such as fall detection, violence detection, people approaching, loitering and stay detection.
With a 3MP dual-lens design, Starlight low-light performance, built-in microphone, speaker and siren, the camera provides both visual monitoring and active deterrence. Its rugged IP67 weatherproof and IK10 vandal-resistant metal housing makes it ideal for hospitals, aged-care facilities, correctional centres, public buildings, transport hubs and factories.
Key Features
3MP (2048 × 1536) dual-lens stereo camera

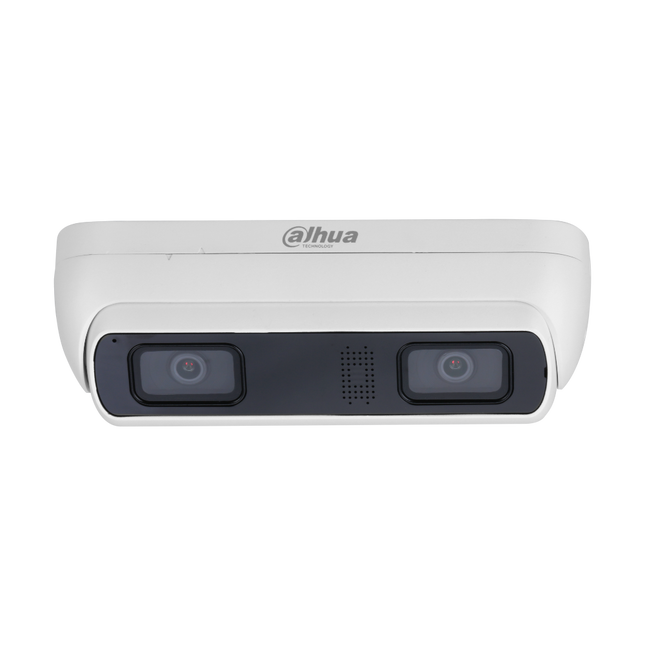

Stereo AI analytics: fall detection, violence detection, people approaching & stay detection
Advanced WizMind AI with deep-learning algorithms
Built-in microphone, speaker and siren with custom voice support
Smart H.265+/H.264+ compression for efficient storage
Starlight low-light performance for night monitoring
Perimeter protection and face detection support
IP67 weatherproof and IK10 vandal-proof metal housing
PoE and 12V DC power support
Ideal Applications
Hospitals, aged-care facilities, correctional facilities, schools, public buildings, transport stations, factories and any environment requiring real-time behavioural risk detection.
Technical Specifications
Specification
Details
Model / SKU
DH-IPC-HDW8341XP-BV-3D
Image Sensor
1/2.8″ 3MP Progressive CMOS (Dual-Lens)
Maximum Resolution
2048 × 1536 @ 30 fps
Minimum Illumination
0.005 lux (colour), 0.0005 lux (B/W), 0 lux (IR on)
Lens Options
2.8 mm or 3.6 mm fixed lens
Field of View
2.8mm: H 96° / V 70° / D 128° • 3.6mm: H 79° / V 57° / D 104°
IR Distance
Up to 20 m
Stereo AI Functions
Fall detection, people approaching, stay detection, violence detection
AI Features
Perimeter protection, face detection, people counting, intelligent search
Video Compression
H.265 / H.264 / Smart H.265+ / Smart H.264+
Audio
Built-in mic & speaker, 2 audio in / 1 audio out
Alarm I/O
2 alarm in / 2 alarm out
Local Storage
MicroSD up to 256GB
Network
RJ-45 (10/100 Mbps), ONVIF, RTSP, HTTP, HTTPS
Power Supply
12V DC / PoE / ePoE
Power Consumption
Max 10.6 W (PoE)
Protection Rating
IP67 weatherproof, IK10 vandal resistant
Operating Temperature
-40 °C to +60 °C
Dimensions
204 × 78 × 61.5 mm
Net Weight
0.81 kg
More Information
DH-IPC-HDW8341XP-BV-3D Datasheet
The Uniview UNV IPC2B18SE-ADF28KMC-WP-I1 is a high-performance 8MP OwlView Plus Tri-Guard fixed bullet IP camera engineered for demanding perimeter and long-range surveillance. Powered by a 1/1.8″ CMOS sensorand F1.0 large-aperture 2.8 mm lens, it delivers sharp 4K (3840×2160) images with outstanding low-light colour performance.
With ColorHunter + Wise-ISP, intelligent Tri-Guard dual-light illumination (IR + warm light), and advanced AI target classification, this camera provides accurate intrusion detection while dramatically reducing false alarms. Built-in people flow counting and crowd density monitoring make it ideal for retail, logistics, and commercial environments. Its IK10 vandal resistance, IP67 / NEMA 4X weatherproofing, and NDAA compliance ensure reliability for professional and government-grade deployments.
Key Features & Highlights
8MP 4K Resolution – up to 3840 × 2160 @ 30 fps
2.8 mm Fixed Lens, F1.0 large aperture (wide-angle)
ColorHunter + Wise-ISP for 24/7 full-colour imaging
Tri-Guard Dual-Light – IR + warm light, up to 40 m
130 dB True WDR for strong backlight scenes
AI Smart Intrusion Prevention – human / vehicle / non-motor vehicle classification
People Flow Counting & Crowd Density Monitoring
Built-in dual microphone & speaker (two-way audio)
Alarm I/O 1/1, Audio I/O 1/1
microSD edge storage up to 512 GB
Ultra 265 / H.265 / H.264 / MJPEG compression
IK10, IP67, NEMA 4X, metal + plastic housing
NDAA Section 889 compliant
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC2B18SE-ADF28KMC-WP-I1
Camera Type
8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet IP Camera
Image Sensor
1/1.8" Progressive CMOS
Max Resolution
8MP (3840 × 2160) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H 108.1° / V 59.5° / D 130.2°
Minimum Illumination
0.0005 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light (IR + Warm Light), up to 40 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, two-way audio
Alarm I/O
1 / 1
Edge Storage
microSD up to 512 GB
Network
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 6.2 W
Protection
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Compliance
NDAA Section 889 compliant
Recommended Applications
Perimeter & fence-line protection
Retail stores (people counting & analytics)
Warehouses & logistics hubs
Commercial car parks
NDAA-compliant government projects
More Information
Uniview UNV IPC2B18SE-ADF28KMC-WP-I1 Datasheet Uniview UNV IPC2B18SE Series User Manual
The Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 is a professional 6MP OwlView Plus Tri-Guard fixed bullet IP camera designed for long-range, full-colour surveillance and intelligent analytics. Featuring a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP, it delivers clear, vibrant images even in extremely low-light environments.
This model combines dual-light illumination (IR + warm white light) with advanced AI-based intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, NEMA 4X protection, and NDAA compliance, it is ideal for demanding commercial, industrial, and government installations.
Key Features & Highlights
6MP High Resolution – 3072 × 2048 @ up to 30 fps
2.8 mm Fixed Wide-Angle Lens, F1.0 aperture
ColorHunter + Wise-ISP – 24/7 full-colour images
Tri-Guard Dual-Light – Smart IR + warm light, up to 40 m
130 dB True WDR – Excellent backlight handling
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
People Flow Counting & Crowd Density Monitoring
Built-in Dual Microphones & Speaker – Two-way audio
Alarm I/O 1/1, Audio I/O 1/1
microSD Edge Storage up to 512 GB
IK10, IP67, NEMA 4X – Vandal-resistant & outdoor-ready
Ultra 265 / H.265 / H.264 / MJPEG compression
PoE (IEEE 802.3af) or 12 V DC power
NDAA Section 889 compliant
Technical Specifications
Brand
Uniview UNV
Model / SKU
IPC2B16SE-ADF28KMC-WP-I1
Camera Type
6MP OwlView Plus Tri-Guard Fixed Bullet IP Camera
Image Sensor
1/1.8" Progressive CMOS
Maximum Resolution
6MP (3072 × 2048) @ 30 fps
Lens
2.8 mm Fixed Lens, F1.0
Field of View
H: 111.0° / V: 61.4° / D: 133.0°
Minimum Illumination
0.0003 Lux (Colour, F1.0, AGC ON)
Illumination
Dual-light: IR + Warm Light, up to 40 m
WDR
130 dB True WDR
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
AI Analytics
Line crossing, intrusion, enter/leave area, people counting, crowd density
Audio
Built-in dual mic & speaker, Audio I/O 1/1
Alarm I/O
1 / 1
Edge Storage
microSD up to 512 GB
Network Interface
1 × RJ45 10/100 Mbps Ethernet
Power
PoE (IEEE 802.3af) / DC 12 V
Power Consumption
Max. 5.0 W
Protection Rating
IP67, IK10, NEMA 4X
Operating Temperature
-40 °C to 60 °C
Compliance
NDAA Section 889 compliant
Recommended Applications
Retail & shopping centres (people counting)
Warehouses & logistics facilities
Car parks & perimeter security
Commercial & industrial sites
Government & NDAA-required projects
More Information
Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 Datasheet Uniview UNV IPC2B16SE Series User Manual
The Uniview UNV PKC2641-Z28 / Z80 / Z100 is a professional 4MP Licence Plate Recognition (LPR) POE bullet camera designed for accurate plate capture and vehicle identification. Featuring advanced imaging with warm light illumination, efficient H.265 compression, and flexible motorized zoom options (Z28 / Z80 / Z100), this camera delivers reliable performance in challenging lighting and high-speed traffic scenarios.
Ideal for parking lots, gated communities, entrances/exits, tollways and drive-throughs, the PKC2641 family combines rugged durability with enhanced analytics, strong night performance, and smooth network integration via POE.
Key Features
Multiple Optical Zoom Options: Z28 / Z80 / Z100 configurations suited for short to long-range LPR
4MP High Resolution: Sharp 2688×1520@25/30 fps for detailed vehicle and plate capture
Warm Light Illumination: Helps consistent colour images at night, ideal for plate reading
H.265 / H.264 / MJPEG: Efficient compression saves storage and bandwidth
Smart IR: Automatic IR control with superior low-light imaging
ANPR Ready: Works with NVR ANPR/analytics for automatic plate detection/recording
Weatherproof IP67 Housing: Built for rugged outdoor environments
PoE (802.3af): Single-cable power + data simplifies installation
ROI & Multi Streams: Region of interest and triple streams support
VCA Analytics Support: Optional perimeter controls, motion detection, tampering warning
Z28 = 2.8–8 mmZ80 = 8–80 mmZ100 = 10–100 mm Motorized Zoom Lens (select based on site distance)
Technical Specifications
Brand / Model (SKU)
Uniview UNV / PKC2641-Z28 / Z80 / Z100
Camera Type
4MP LPR POE Bullet Camera (Warm Light)
Image Sensor
1/1.8″ Progressive CMOS
Max Resolution
4MP (2688 × 1520)
Frame Rate
Up to 25/30 fps
Lens Options
Z28 (2.8–8 mm), Z80 (8–80 mm), Z100 (10–100 mm)
Warm Light Range
Up to ~30 m (model & distance dependent)
Compression
Ultra 265 / H.265 / H.264 / MJPEG
IR / Night
Smart IR
Streams
Triple Streams; ROI support
Network
1 × RJ45 10/100M PoE (802.3af)
Analytics Ready
ANPR/Smart VCA support (with NVR or software)
Weather Rating
IP67 (Outdoor Ready)
Operating Temp
–30 °C to 60 °C
Power Supply
PoE (802.3af) / 12 V DC
Recommended Use & Benefits
Automatic Licence Plate Recognition (ANPR) — Integrates with Uniview UNV AOI or AI NVRs for accurate plate capture & search.
Parking & Access Control — Reliable long-distance recognition with warm light support for night visibility.
Drive-through and Lane Monitoring — Motorized zoom (Z80 / Z100) gives flexible field of view choices.
Enterprise & Commercial Sites — Weatherproof design with POE simplifies installation.
More Information
UNV PKC2641-Z28-IR-P DatasheetUNV PKC2641-Z28-IR-P Quick Start Guide
The Ubiquiti UVC-AI-Pro is a premium 4K AI-powered security camera for UniFi Protect, featuring an 8MP sensor, advanced night vision, dual-band WiFi, smart human/vehicle detection and a weather-resistant IP65 housing. Ideal for professional CCTV installations across Australian homes and businesses.
Key Features
4K Ultra HD (8MP) professional-grade video
Advanced AI detection: human, vehicle, package & motion
Dual-band WiFi connectivity + Ethernet option
Full-duplex microphone and speaker for two-way audio
IP65 weather resistance — ideal for indoor & outdoor
Wide-angle lens with AI image optimisation
Optimised for UniFi Protect — simple setup & management
Technical Specifications
Image Sensor
8MP (3840 × 2160) 4K UHD
Lens
Wide-angle lens with AI-optimised correction
Night Vision
Enhanced IR night vision
AI Detection
Person, vehicle, package, motion
Connectivity
Dual-band WiFi (2.4 GHz / 5 GHz) + Ethernet
Audio
Full duplex microphone + speaker
Ingress Protection
IP65 weather resistant
Operating Temperature
-20°C to 50°C
Power
PoE or USB-C (depending on installation)
Dimensions
Based on official product sheet
Management
UniFi Protect
Compliance
NDAA compliant, CE/FCC/IC certified
More Information
UniFi AI Pro Camera Installation Guide
Hikvision iDS-2CD8A86G2-XZHSY 8MP DeepinView Dual-Sensor AI Bullet Camera
The Hikvision iDS-2CD8A86G2-XZHSY is a high-performance DeepinView dual-sensor IP bullet camera featuring 8MP main sensor and 4MP panoramic channel. It is ideal for advanced security applications, including license plate recognition (LPR), face capture, vehicle and human detection, and smart perimeter protection.
Key Features:
Dual-Channel Imaging: 8MP detail channel + 4MP wide-angle channel
Face Capture: Supports up to 120 faces simultaneously, face modeling & encrypted library
License Plate Recognition: Built-in deep learning LPR, block/allow list, 98%+ accuracy
Vehicle Detection: Identifies vehicle type, brand, colour and supports motorcycles
DarkFighter 2.0: Excellent low-light imaging with 0.0005 Lux sensitivity
Smart Hybrid Light: IR + White LED with 120m range
IP67 and IK10 Rated: Weatherproof and vandal-resistant for outdoor use
Audio Support: Built-in mic & speaker, 2-way audio, audio exception detection
Multiple Smart Events: Motion, tamper, audio, unattended object, scene change, etc.
Technical Highlights:
Resolution: 3840 × 2160 (Ch1), 2688 × 1520 (Ch2)
Lens: 10-50mm motorised (Ch1), 4mm fixed (Ch2)
Smart Events: Line crossing, intrusion, region entrance/exit by target type
WDR: 140 dB for clear images in backlit environments
Audio Compression: G.711, G.722.1, MP2L2, MP3, AAC-LC
Power: 12VDC, 24VAC or PoE (802.3at)
Ideal For:
Smart cities
Perimeter security
Car parks & traffic monitoring
Critical infrastructure
Commercial and industrial sites
Includes built-in heater, anti-corrosion NEMA 4X protection (-Y model), multilingual support, and advanced video analytics.
The Hikvision iDS-2CD7A45G2/P-IZHS(Y) is a professional-grade 4MP DeepinView ANPR bullet camera ideal for advanced vehicle monitoring, parking management, and perimeter protection. It offers exceptional image quality, smart AI features, and robust environmental durability.
Key Features
4MP resolution (2688 × 1520) with DarkFighter 2.0 for excellent low-light imaging
Motorized varifocal lens (4.7–118 mm) with up to 200m IR range
ANPR & vehicle attribute recognition, including plate capture, vehicle type, brand, and direction
150 dB Wide Dynamic Range (WDR) and advanced H.265+ compression
Up to 5 video streams, up to 60fps recording
IP67, IK10, and optional NEMA 4X corrosion-resistant housing
Built-in heater and G-sensor, with vibration detection
Supports vehicle blocklist/allowlist (up to 10,000 records)
Onboard microSD card support up to 1TB, alarm/audio IO, RS-485, and Wiegand
Compatible with Hik-Connect, iVMS-4200, and HikCentral
Applications
Smart traffic systems
Vehicle access management
Toll booths & entrances
Parking lot surveillance
Perimeter security with vehicle alerts
Technical Specifications
Resolution
2688 × 1520 (4MP)
Lens
Motorized 4.7–118mm (Varifocal)
IR Range
Up to 200 metres
WDR
150 dB Advanced Wide Dynamic Range
Compression
H.265+/H.265/H.264+/H.264
Weather & Vandal Rating
IP67, IK10, Optional NEMA 4X
Smart Features
ANPR, Vehicle Recognition, Perimeter Protection
Operating Temperature
-40°C to 65°C, Built-in Heater
Onboard Storage
microSD/SDHC/SDXC up to 1TB
PoE
IEEE 802.3at, Class 4
More Information
iDS-2CD7A45G2/P-IZHSY(4.7-118mm) Datasheet
Hikvision Camera Quick Start Guide
Hikvision Camera User Manual
Uniview UNV IPC2B18SS-ADF28KMC-I1 8MP Bullet IP Camera
The IPC2B18SS-ADF28KMC-I1 delivers sharp 8 MP (4K) video with AI-enabled events, Smart IR night vision and 120 dB true WDR for balanced images in challenging lighting. A built-in microphone, PoE power and IP67 weather protection make it a reliable, easy-to-install choice for homes and businesses.
Key Features
8 MP (3840×2160) 4K resolution
2.8 mm fixed lens (wide FoV)
Smart IR illumination for clear night footage
120 dB true WDR; 2D/3D DNR
AI events: human/vehicle detection; perimeter filters (series dependent)
Built-in microphone for scene audio
Ultra 265 / H.265 / H.264 compression
PoE (802.3af); IP67 weatherproof housing
Technical Specifications
Specification
Details
Brand / Series
Uniview UNV / Prime II
Model (SKU)
IPC2B18SS-ADF28KMC-I1
Image Sensor / Resolution
8 MP up to 3840×2160
Lens
2.8 mm fixed (wide view)
Low-light / IR
Smart IR night vision
Wide Dynamic Range
120 dB true WDR
Compression
Ultra 265 / H.265 / H.264
Audio
Built-in microphone
Intelligent Functions
Human/vehicle detection; perimeter filters
Network
RJ45 10/100M; ONVIF-friendly; HTTPS/RTSP
Power
PoE (IEEE 802.3af)
Ingress Protection
IP67 weatherproof
Operating Conditions
Outdoor-rated; wide temperature range
Form Factor
Bullet camera
What’s Included
Uniview UNV IPC2B18SS-ADF28KMC-I1 camera
Mounting hardware & quick guide
Customer Requirements
RJ45 Cat6 cable and PoE switch/NVR
Optional micro-SD/NAS/NVR storage based on your retention needs
Appropriate wall/ceiling fasteners for your surface
More Information
Uniview UNV IPC2B18SS-ADF28KMC-I1 Datasheet
Uniview UNV Camera Quick Start Guide
Hikvision iDS-2CD7A45G0/P-IZHSY – 4MP DeepinView ANPR Bullet Camera with AI, Motorised Zoom, Smart Detection, IR 100m & LPR Support
The Hikvision iDS-2CD7A45G0/P-IZHSY is a high-performance 4MP DeepinView ANPR bullet camera engineered for advanced license plate recognition (LPR) and smart vehicle surveillance. It features a motorised varifocal 2.8–12mm lens, powerful IR illumination up to 100m, and deep learning-based AI algorithms to ensure accurate plate metadata extraction and vehicle categorization.
This model supports multiple video streams with H.265+ compression for efficient storage, and its IP67/IK10-rated housing ensures durability in outdoor environments. Ideal for parking lots, toll booths, business entrances, and secure access points.
Notes: Compatible with 12VDC power and capable of functioning independently with the use of a solar panel.
Features
Image Quality: 4MP (2688 × 1520) resolution
Lens: 2.8–12mm motorised varifocal with autofocus
AI Capabilities: License Plate Recognition (LPR), vehicle detection, metadata tagging
Night Vision: Smart IR up to 100m
Audio: Built-in microphone
Deep Learning Analytics: Face detection, line crossing, intrusion detection
Storage: microSD card slot (up to 256GB)
Compression: H.265+/H.265/H.264+/H.264
Protection: IP67 waterproof, IK10 vandal-resistant
Power: 12V DC or PoE (802.3af)
Operating Temp: -30°C to +60°C
Technical Specifications
Specifications – Hikvision iDS-2CD7A45G0/P-IZHSY
Bullet IP Camera
DeepinView ANPR Series
1/1.8″ Progressive Scan CMOS
4MP resolution
2688 × 1520 @30fps
Clear 4MP video output
Motorised Varifocal 2.8–12mm
Remote zoom and focus
Approx. 113°–33° horizontal
Wide to narrow views
Up to 100m
Smart IR for long-range night vision
License Plate Recognition, Vehicle Detection
Deep learning analytics
H.265+/H.265/H.264+/H.264
Bandwidth and storage efficient
Built-in Microphone
One-way audio recording
microSD/SDHC/SDXC up to 256GB
Local backup support
IP67
Dust and waterproof
IK10
Vandal-resistant housing
12V DC ±25% or PoE (802.3af)
Flexible power options
-30°C to +60°C
Outdoor ready
Downloads
iDS-2CD7A45G0/P-IZHSY DatasheetANPR Installation Configuration GuideHikvision ANPR Quick Start GuideHikvision ANPR User ManualHikvision FAQs
Hikvision 6MP AcuSense Bullet Camera 2CD2T66G2-ISU-SL Strobe, Audible Warning, Mic & Speaker, Fixed 2.8mm
The Hikvision DS-2CD2T66G2-ISU/SL is a high-performance 6MP bullet camera designed to provide advanced security solutions for both residential and commercial properties. Equipped with AcuSense technology, it intelligently distinguishes between human and vehicle targets, significantly reducing false alarms caused by non-threatening movements such as animals or foliage.
This camera features an integrated strobe light and audible alarm, serving as active deterrents to potential intruders. The built-in microphone and speaker facilitate real-time two-way audio communication, allowing for immediate response to security events.
With DarkFighter technology, the DS-2CD2T66G2-ISU/SL delivers exceptional low-light performance, ensuring clear and detailed images even in challenging lighting conditions. Its IP67-rated weatherproof housing guarantees reliable operation in various environmental conditions.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Hikvision DS-2CD2T66G2-ISU/SL — Technical Specifications
Image Sensor
1/2.4" Progressive Scan CMOS
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON); 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Lens Options
2.8 mm, 4 mm, 6 mm fixed
Field of View
2.8 mm: 105.1° (H), 53.4° (V), 128.6° (D)4 mm: 83.9° (H), 44.5° (V), 100.8° (D)6 mm: 55.8° (H), 31.2° (V), 63.0° (D)
Day/Night Mode
IR Cut Filter with Auto Switch
IR Range
Up to 60 meters
Video Compression
H.265+/H.265/H.264+/H.264
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Features
Built-in microphone and speaker (two-way audio)
Alarm I/O
1 input, 1 output
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Onboard Storage
microSD/SDHC/SDXC card slot (up to 256 GB)
Power Supply
12 VDC ±25%, PoE (802.3af, class 3)
Power Consumption
Maximum 10.5 W
Operating Conditions
-30°C to 60°C (-22°F to 140°F), humidity ≤95% (non-condensing)
Ingress Protection
IP67
Dimensions
105 mm × 287.6 mm
Weight
Approx. 1.65 kg
More Information
DS-2CD2T66G2-ISU/SL DatasheetHikvision Camera Quick Start GuideHikvision Camera User Manual
AXIS Q1972-E 10mm 30FPS Outdoor Thermal Camera, Wall & Ceiling Mount with Edge Vault
The AXIS Q1972-E 10mm 30fps Outdoor Thermal Camera delivers high-resolution thermal imaging (640×480) for reliable detection and verification around the clock, regardless of lighting or weather conditions. Equipped with a 10mm lens offering a 63° horizontal field of view, it’s ideal for short to mid-range surveillance applications.
This robust camera includes AXIS Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. It also supports AI-based analytics, including AXIS Motion Guard, Fence Guard, and Loitering Guard, enabling proactive surveillance and reducing false alarms.
Designed for challenging environments, the camera boasts an IP66/IP67 and IK10-rated housing, ensuring resistance to dust, water, and impact. Electronic Image Stabilization (EIS) ensures smooth video even in unstable conditions. With support for Power over Ethernet (PoE) and local storage via microSD card, installation is streamlined and flexible.
Features
Reliable high-resolution thermal detection 24/7
Four lens alternatives
Support for AXIS Perimeter Defender
Built-in cybersecurity with Axis Edge Vault
Compact, robust, and halogen-free;
Included Technology
For intrusion detection
AXIS Fence Guard
Line-crossing detection
Edge-based video analytics
Multiple profiles for extra flexibility
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Motion Guard
Smart motion detection
Video motion detection
Edge-based video analytics
Multiple profiles for extra flexibility
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Video Motion Detection
Edge-based video analytics
Multiple profiles for extra flexibility
Preinstalled at no extra cost
AXIS Loitering Guard
For detecting loiterers
Motion- and time-based triggers
Edge-based video analytics
Multiple conditions and profiles
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Speed Monitor
Visualize radar data and get actionable insights
Make roads safer by enabling informed decisions
Visualize vehicle speeds
Trigger alarms, video recording, and more
Export data as a CSV-file for further processing
Publishes data via MQTT protocol
More Information
AXIS Q1972-E Datasheet
Dahua DH-IPC-HFW71242H-Z-X 12MP IR 2.7-12mm Motorised Bullet ANPR WizMind Camera
The Dahua DH-IPC-HFW71242H-Z-X is a 12MP motorised bullet camera featuring a 1/1.7" CMOS sensor that delivers high-definition images at up to 4000 × 3000 resolution and 30 fps. Equipped with built-in IR LEDs, it provides clear night vision up to 60 meters. This WizMind camera supports advanced AI functions including face recognition, people counting, PPE detection, and ANPR, enabled simultaneously for enhanced security analytics. It uses smart H.264+/H.265+ compression for efficient bandwidth and storage management, and offers multiple alarm inputs/outputs, audio interfaces, and connectivity options for versatile integration.
Features
12-MP 1/1.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 12 MP (4000 × 3000)@25/30 fps.
Built-in IR LED, and the max. illumination distance is 60 m.\
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 1 TB Micro SD card.
12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
IP67 and IK10 protection, Anti-Corrosion coating (optional).
More Information
DH-IPC-HFW71242H-Z-X Datasheet
Quick Start Guide
Verkada CB62-TE Outdoor Motorised Bullet Camera, 4K, 8-20mm Telephoto Lens, 512GB or 2TB Storage, Up to 90 Days of Retention
Unleash the full potential of your surveillance system with this advanced 4K bullet camera. Equipped with a versatile telephoto zoom lens and intelligent edge-based analytics, this camera captures crystal-clear images and provides advanced security features. Plus, with a 4K image resolution and an exceptional focal length range of 8-20 mm, you can monitor every detail of your surroundings with ease. With an IP67 and IK10 rating, this camera is built to withstand tough outdoor conditions, and its 50 meter IR range ensures reliable coverage day and night. Trust in the power of Verkada CB62-TE for up to 90 days of continuous surveillance.
Camera features
Image Sensor
1 / 2.8” Progressive CMOS
Sensor Resolution1
4K (3840 x 2160)
Lens Type
Varifocal; motorized zoom
Focal Length
8mm – 20mm
Aperture
F1.5 – F2.8
Iris
P–Iris
Field of View (LDC ON2)
Horizontal: 42° - 17° (41° - 17°) Vertical: 23° - 9° (23° - 9°) Diagonal: 48° - 19° (46° - 19°)
Camera Movement
Tilt: 0° to 90° Pan: 360° Rotation: 360°
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
50m / 164ft
Minimum Illumination
0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage
Capacity: From 512GB to 2TB Card: MicroSD, SDXC
CPU
Ambarella CV22S66
Standard video settings
Compression
H.265, H.264
Frame Rate4
24fps
Live Streaming Settings
High quality (HQ): Up to 4,500 Kbps (default) Standard quality (SQ): Up to 600 Kbps
Historical Video Settings
Adaptive quality1
Standard audio settings
Audio
Not supported
Power and network
Power Input3
With IR: IEEE 802.3at Type 2 PoE+ Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: IEEE 802.3at Type 2 PoE+
Power Consumption
With IR: 37-57V, 0.4-0.26A, 14.88W Without IR: 37-57V, 0.11-0.08A, 4.34W Extended temperature range: 37-57V, 0.64-0.39A, 23.68W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP
RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: No
General
Operating Temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
For hardware certification information, please visit verkada.com/compliance
LED Indicator
System power and status indicator
Warranty
10 Years
Included Accessories
4x M4x8 screws, 4x TP4x30 mount screws, mount plate, junction box adapter, junction box cover, T25 hand tool
Mechanical
Weight
Camera: 1478g / 52.1oz Mount plate: 33g / 1.16oz
Dimensions
Ø: 85mm / 3.35in L: 254mm / 10in
Body
Aluminum
Software capabilities
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
License Plate Recognition
License Plate of Interest alerts, license plate indexing
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.4 Frame rate can be adjusted by support.5 AI-powered search is currently supported in English only.
Downloads
CB62-TE DatasheetCB62-TE Full Install GuideVerkada Accessory List
Verkada CB62-E Outdoor Motorised Bullet Camera, 4K, 2.8-8mm Zoom Lens, 512GB or 2TB Storage, Up to 90 Days of Retention
Experience the ultimate in surveillance with the Verkada CB62-E Outdoor Motorised Bullet Camera! With a powerful 4K image resolution, 3x optical zoom, and intelligent edge-based analytics, this camera has everything you need to keep your premises secure. Its 2.8-8mm focal length allows for versatile coverage, while its IP67 and IK10 ratings mean it can withstand even the harshest outdoor conditions. Plus, with a 30m IR range, you can trust that every detail will be captured, day or night. Upgrade your security system today with the Verkada CB62-E!
Camera features
Image Sensor
1 / 2.8” Progressive CMOS
Sensor Resolution1
4K (3840 x 2160)
Lens Type
Varifocal; motorized zoom
Focal Length
2.8mm – 8mm
Aperture
F1.3 – F2.4
Iris
P–Iris
Field of View (LDC ON2)
Horizontal: 107° - 43° (106° - 41°) Vertical: 62° - 24° (62° - 24°) Diagonal: 126° - 49° (119° - 48°)
Camera Movement
Tilt: 0° to 90° Pan: 360° Rotation: 360°
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
30m / 98ft
Minimum Illumination
0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage
Capacity: From 512GB to 2TB Card: MicroSD, SDXC
CPU
Ambarella CV22S66
Standard video settings
Compression
H.265, H.264
Frame Rate4
24fps
Live Streaming Settings
High quality (HQ): Up to 4,500 Kbps (default) Standard quality (SQ): Up to 600 Kbps
Historical Video Settings
Adaptive quality1
Standard audio settings
Audio
Not supported
Power and network
Power Input3
With IR: IEEE 802.3at Type 2 PoE+ Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: IEEE 802.3at Type 2 PoE+
Power Consumption
With IR: 37-57V, 0.4-0.26A, 14.88W Without IR: 37-57V, 0.11-0.08A, 4.34W Extended temperature range: 37-57V, 0.64-0.39A, 23.68W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP
RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: No
General
Operating Temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
For hardware certification information, please visit verkada.com/compliance
LED Indicator
System power and status indicator
Warranty
10 Years
Included Accessories
4x M4x8 screws, 4x TP4x30 mount screws, mount plate, junction box adapter, junction box cover, T25 hand tool
Mechanical
Weight
Camera: 1464g / 51.6oz Mount plate: 33g / 1.16oz
Dimensions
Ø: 85mm / 3.35in L: 254mm / 10in
Body
Aluminum
Software capabilities
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
License Plate Recognition
License Plate of Interest alerts, license plate indexing
1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.4 Frame rate can be adjusted by support.5 AI-powered search is currently supported in English only.
Downloads
CB62-E DatasheetCB62-E Full Install GuideVerkada Accessory List
Verkada CB52-TE Outdoor Motorised Bullet Camera, 5MP, 8-20mm Telephoto Lens, 256GB - 2TB of Storage, 30 - 365 Days of Retention
Get superior image quality and advanced features with this all-purpose bullet camera featuring intelligent edge-based analytics. Capture stunning 5 MP resolution and a wide focal length range of 8 - 20 mm, all in a durable IP67 and IK10 rated design. Plus, enjoy a powerful 50 M IR range for clear and detailed footage day and night. Elevate your security with the Verkada CB52-TE Outdoor Bullet Motorised Camera.
Camera features
Image Sensor
1 / 2.8” Progressive CMOS
Sensor Resolution1
5MP (2688 x 1944)
Lens Type
Varifocal; motorized zoom
Focal Length
8mm – 20mm
Aperture
F1.5 – F2.8
Iris
P–Iris
Field of View (LDC ON2)
Horizontal: 38° - 16° (37° - 16°) Vertical: 28° - 12° (27° - 12°) Diagonal: 48°- 19° (44° - 19°)
Camera Movement
Tilt: 0° to 90° Pan: 360° Rotation: 360°
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
50m / 164ft
Minimum Illumination
0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage
Capacity: From 256GB to 2TB Card: MicroSD, SDXC
CPU
Ambarella CV25S88
Standard video settings
Compression
H.265, H.264
Frame Rate4
24fps
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default) Standard quality (SQ): Up to 600 Kbps
Historical Video Settings
Adaptive quality1
Standard audio settings
Audio
Not supported
Power and network
Power Input3
With IR: IEEE 802.3at Type 2 PoE+ Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: IEEE 802.3at Type 2 PoE+
Power Consumption
With IR: 37-57V, 0.38-0.25A, 14W Without IR: 37-57V, 0.09-0.06A, 3.46W Extended temperature range: 37-57V, 0.61-0.37A, 22.57W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP
RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: No
General
Operating Temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
For hardware certification information, please visit verkada.com/compliance
LED Indicator
System power and status indicator
Warranty
10 Years
Included Accessories
4x M4x8 screws, 4x TP4x30 mount screws, mount plate, junction box adapter, junction box cover, T25 hand tool
Mechanical
Weight
Camera: 1478g / 52.1oz Mount plate: 33g / 1.16oz
Dimensions
Ø: 85mm / 3.35in L: 254mm / 10in
Body
Aluminum
Software capabilities
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
License Plate Recognition
License Plate of Interest alerts, license plate indexing
Downloads
CB52-TE DatasheetCB52-TE Full Install GuideVerkada Accessory List
Verkada CB52-E Outdoor Motorised Bullet Camera, 5MP, 2.8-8mm Zoom Lens, 256GB or 2TB Storage, Up to 365 Days of Retention
Get superior image quality and advanced features with this all-purpose bullet camera featuring 3x optical zoom and intelligent edge-based analytics. Capture stunning 5 MP resolution and a wide focal length range of 2.8 - 8 mm, all in a durable IP67 and IK10 rated design. Plus, enjoy a powerful 30 M IR range for clear and detailed footage day and night. Elevate your security with the Verkada CB52-E Outdoor Bullet Camera.
Camera features
Image Sensor
1 / 2.8” Progressive CMOS
Sensor Resolution1
5MP (2688 x 1944)
Lens Type
Varifocal; motorized zoom
Focal Length
2.8mm – 8mm
Aperture
F1.3 – F2.4
Iris
P–Iris
Field of View (LDC ON2)
Horizontal: 99° - 41° (95° - 39°) Vertical: 74° - 30° (74° - 30°) Diagonal: 125° - 50° (110° - 48°)
Camera Movement
Tilt: 0° to 90° Pan: 360° Rotation: 360°
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
30m / 98ft
Minimum Illumination
0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage
Capacity: From 256GB to 2TB Card: MicroSD, SDXC
CPU
Ambarella CV25S88
Standard video settings
Compression
H.265, H.264
Frame Rate4
24fps
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default) Standard quality (SQ): Up to 600 Kbps
Historical Video Settings
Adaptive quality1
Standard audio settings
Audio
Not supported
Power and network
Power Input3
With IR: IEEE 802.3at Type 2 PoE+ Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: IEEE 802.3at Type 2 PoE+
Power Consumption
With IR: 37-57V, 0.38-0.25A, 14W Without IR: 37-57V, 0.09-0.06A, 3.46W Extended temperature range: 37-57V, 0.61-0.37A, 22.57W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP
RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: No
General
Operating Temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
For hardware certification information, please visit verkada.com/compliance
LED Indicator
System power and status indicator
Warranty
10 Years
Included Accessories
4x M4x8 screws, 4x TP4x30 mount screws, mount plate, junction box adapter, junction box cover, T25 hand tool
Mechanical
Weight
Camera: 1464g / 51.6oz Mount plate: 33g / 1.16oz
Dimensions
Ø: 85mm / 3.35in L: 254mm / 10in
Body
Aluminum
Software capabilities
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
Streaming and storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
People analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
Sharing and privacy
Live Links, live face blur, privacy regions, audit log
Vehicle analytics
Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
License Plate Recognition
License Plate of Interest alerts, license plate indexing
Downloads
CB52-E DatasheetCB52-E Full Install GuideVerkada Accessory List
VIVOTEK 5MP Motorised Bullet Camera IB9383-HTV, 5MP@30 fps, Trend Micro IoT Security, Smart VCA, Vision Object Analytics, WDR Pro, IP66/IK10, 30M IR
Built with Magic, Priced for Value
The 9383 is your gateway to smarter security. As our first AI camera in the C-Series, it boasts an advanced Sony image sensor coupled with STARVIS 2 technology, delivering 2.5x greater dynamic range and light sensitivity. With Smart VCA, and vision object analytics, it's a powerhouse of AI intelligence, making your security solutions simpler, smarter, and safer.
Imaging Performance
Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.
Daylight Clarity
Stunning daytime imagery with vibrant colors and balanced exposure. The 83 series delivers crisp, clear visuals that capture every detail with vivid accuracy, ensuring optimal surveillance performance in any lighting condition.
Enhanced Visibility in Harsh Lighting
Superior image quality with WDR technology. Even in challenging scenarios like an office setting with sunlight streaming through the window, the 83 series maintains clear visibility, minimizing glare and shadowing for enhanced detail and accuracy in surveillance footage.
Nighttime Vision
Exceptional low-light color performance with sharper, non-overblown imagery around light sources. The 83 series ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance effectiveness.
AI Powerhouse
Class-leading AI features in our entry-tier series, providing you with advanced analytics and vision object analytics capabilities for unmatched security solutions.Enhance your investigative efficiency with potent data revealed by the 83 series, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.
Object Detection Performance
Class-leading AI Processor effortlessly manages over 25 detection objects for advanced AI analytics.
Smart VCA: AI-Powered Video Analytics on Edge
Empowers the 83 series to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.
Vision Object Analytics: AI-Driven Solution
While AI adoption has presented challenges in installation and configuration for many, the 83 series with VIVOTEK vision object analytics revolutionises the process, simplifying user judgment through automated investigation.
Design
The 83 series is a comprehensive package, meticulously designed with fundamental principles spanning from hardware to software.
Vari-Focal Model
Unlock versatility with 4.3x zoom capability for adaptive surveillance needs.
IP66 + IK10
Weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.
Features
30 fps @ 2560x1920
H.265 Compression Technology with Smart Stream III
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
30M Smart IR III
Signed Firmware and Secure Boot
Smart Motion Detection
Trend Micro IoT Security
Smart VCA and Vision Object Analytics
Specifications
VIVOTEK Security Camera
Megapixels
5MP
Camera Style
Bullet
Colour
White
Lens Type
Motorised
Technology
C Series
Connection
PoE
Download
IB9383-HTV DatasheetIB9383-HTV User ManualIB9383-HTV Quick Start Guide
High-Definition 5MP Outdoor Security with Supreme Night Visibility
The Vivotek IB9380-H is a professional-grade H.265 outdoor bullet network camera designed for 24/7 surveillance in demanding environments. Equipped with a 5-Megapixel sensor, it delivers a crisp resolution of 2560x1920 at 20 fps, ensuring you never miss a detail.
Superior Image Quality in Any Light
Featuring Vivotek’s SNV (Supreme Night Visibility) and WDR Pro technology, the IB9380-H excels in high-contrast and low-light conditions. Whether it's the glare of a bright sun or the darkness of a parking lot, this camera provides clear, balanced imagery. The built-in Smart IR illuminators provide up to 30 meters of visibility in total darkness while preventing overexposure.
Built to Endure
Housed in an IP66-rated weather-proof and IK10-rated vandal-proof enclosure, the IB9380-H is built to withstand harsh outdoor elements and physical tampering. Its operating temperature range of -30°C to 60°C makes it reliable for the Australian climate.
Advanced Efficiency and Security
Smart Stream III: Optimize your bandwidth and storage by up to 90% without sacrificing image quality.
Trend Micro IoT Security: Multi-layered protection against cyber attacks and unauthorized access.
PoE Convenience: Simplified installation with Power over Ethernet (802.3af).
Key Features
5-Megapixel CMOS Sensor (2560x1920)
H.265 Compression Technology for storage efficiency
3.6mm Fixed Lens with 76° Horizontal Field of View
WDR Pro for visibility in high-contrast environments
Smart IR effective up to 30 Meters
Weather-proof IP66 and Vandal-proof IK10-rated housing
Built-in MicroSD/SDHC/SDXC card slot for on-board storage
Trend Micro IoT Security integration
Technical Specifications
Resolution
5MP (2560x1920) @ 20fps
Lens Type
3.6mm Fixed-focal
Night Vision
Smart IR up to 30m
Compression
H.265, H.264, MJPEG
Power Input
IEEE 802.3af PoE Class 2
Protection
IP66, IK10
Storage
MicroSD/SDHC/SDXC & NAS Support
More Information
IB9380-H DatasheetIB9380-H Quick Start GuideIB9380-H Accessories
VIVOTEK 5MP Fixed Bullet Camera IB9389-EHT-v2, H.265, 2MP 60fps, 2.8 ~ 10mm, 30M IR, WDR Pro, SNV
VIVOTEK’s IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IB9389 series is encased in IP66 and IK10 housing.The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
Features
30 fps @ 2560x1920, 60 fps @ 1920x1080
WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
Built-in IR Illuminators, Effective up to 30 Meters
Smart IR Technology to Avoid Overexposure
Trend Micro IoT Security
Vandal-proof IK10-rated, Weather-proof IP66-rated Housing
2.8 - 10mm Motorized Lens
Specifications
VIVOTEK Security Camera
Megapixels
5MP
Camera Style
Bullet
Colour
White
Lens Type
Motorised
Technology
V series
Connection
PoE
Download
IB9389-EHT-V2 DatasheetIB9389-EHT-V2 Quick Start GuideIB9389-EHT-V2 Accessories
Vivotek IB9387-EHTV-V3 5MP Outdoor Motorised Bullet Camera
The Vivotek IB9387-EHTV-V3 is a professional-grade 5MP outdoor bullet camera that combines superior image quality with cutting-edge AI detection. As the latest "V3" evolution, it is specifically designed to provide high-definition surveillance for perimeters, driveways, and commercial sites, offering a robust deterrent against intruders.
Remote Focus & 5x Optical Zoom
Setup is faster and more precise thanks to the 2.7 ~ 13.5mm motorised varifocal lens. Users can adjust the zoom and focus remotely, ensuring the perfect field of view without needing to manually adjust the lens at the camera's mounting point. Whether you need a wide-angle overview or a narrow focus on a gate, the IB9387-EHTV-V3 delivers sharp 5MP clarity.
AI-Powered Perimeter Protection
Equipped with Vivotek's Smart VCA (Video Content Analysis), the IB9387-EHTV-V3 uses deep-learning AI to differentiate between human activity and environmental noise. This significantly reduces false alarms, providing reliable notifications for intrusion detection, loitering, and line crossing.
Key Features:
5MP Resolution: High-definition 2560x1920 video at 30fps.
Motorised Varifocal Lens: Remote zoom and focus (2.7mm to 13.5mm).
50M Smart IR III: Extended night vision with uniform illumination to prevent overexposure.
WDR Pro: 120dB Wide Dynamic Range for crystal clear images in backlit areas.
Extreme Weather Resistance: IP66 and IP67 weather-proof, plus IK10 vandal-proof ratings.
SNV (Supreme Night Visibility): Captures full-color video in ultra-low light conditions.
Cybersecurity Shield: Multi-layered protection with Trend Micro IoT Security.
Technical Specifications:
Image Sensor
1/2.7" Progressive CMOS
Max Resolution
2560x1920 (5 Megapixel)
Lens Type
Motorised Varifocal (Remote Focus)
IR Distance
Up to 50 Meters (Smart IR III)
Onboard Storage
MicroSD/SDHC/SDXC card slot
More Information
IB9387-EHTV-V3 DatasheetIB9387-EHTV-V3 Quick Start GuideIB9387-EHTV-V3 Accessories
VIVOTEK 8MP Motorised Bullet Camera IB9391-EHTV-V2, 4K 30fps, H.265, 50M IR, Smart IR III, SNV, WDR Pro, Attribute Search, -50°C ~ 60°C
VIVOTEK IB9391-EHTV-v2 is a newly revamped outdoor fixed bullet network camera that delivers 3840x2160 (4K/8MP) resolution at up to 30 fps. This well-designed, outdoor-ready camera features the most up to date VIVOTEK SNV, WDR Pro and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IK10, NEMA 4X and wide temperature range from -40°C to 60°C without heaters, making it ideal for wide-ranging outdoor surveillance scenarios.
Spend Less, Save More
The installation-friendly mechanical design has made installation easier and more hassle-free than ever. Installation of the camera now requires only 1 screw for 3-axis adjustment, saving both time and money, and allowing the user to focus attention on service and upgrades. With wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. Making the camera even more versatile, it can operate without the need for heaters at a range of temperatures between -50 °C to 60 °C (-58 °F
Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.
Lightning-fast search speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.
Features
30 fps @ 3840x2160
H.265 Compression Technology with Smart Stream III
Installation-friendly Design
Weather-proof IP66, IP67 and Vandal-proof IK10, NEMA 4X-rated Protection
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Built-in IR Illuminators up to 50M with Smart IR III
Signed Firmware and Secure Boot
AI-powered Smart Motion Detection and Smart VCA
Cyber Protection via Trend Micro IoT Security
Specifications
VIVOTEK Security Camera
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Motorised
Technology
S Series
Connection
PoE
Download
IB9391-EHTV-V2 DatasheetIB9391-EHTV-V2 Quick Start GuideIB9391-EHTV-V2 Accessories
Hikvision AcuSense 6MP Motorised Bullet Network Camera, DS-2CD2666G2T-IZS
Improve your security system with the Hikvision 6 MP AcuSense Motorised Varifocal Bullet Network Camera. Featuring 6 MP resolution, motorized varifocal lens, and DarkFighter technology, this camera provides clear imaging in low-light and backlit situations. It also uses deep learning to detect human and vehicle targets, while its resistance to water, dust, and vandalism ensures durability.
Features
High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Downloads
DS-2CD2666G2T-IZS DatasheetDS-2CD2666G2T-IZS Quick Start GuideDS-2CD2666G2T-IZS User Manual
Easy to install, waterproof IP camera compatible with ismartgate controllers. Includes 2MP (1080p) resolution, motion detection, SD card slot for local storage, Wi-Fi and Ethernet connectivity and night vision. 1 YEAR FREE VIDEO PLUGIN INCLUDED!
*1 Year free video plugin sent via email after product's purchase confirmation.
In the box
1 x Wireless Outdoor IP Camera
1 x Detachable Wi-Fi antenna
1 x Power adaptor
1 x Quick Start Guide
1 x Support CD
3 x Mounting screw
1 x Ethernet Cable
1 x Warranty Card
1 x Allen wrench
Specifications
Resolution: 1920x1080 pixels (1080p)
Image: HD Color CMOS sensor
Night Vision: Yes (20m)
Motion Sensor: Yes
Two-Way Audio: No. External RCA interface for two-way audio
Wi-Fi: 802.11 b/g/n (2.4Ghz)
Ethernet: RJ45 output
Storage: 1x micro SD card slot (max. 32GB)
View Angle: 105º D / 90º H
Operating Tempº: -20ºC / +60ºC (-4ºF / 104ºF)
Operating Humidity: 0%-90%
Power Supply: 100-240V to 12V1A
Waterproof: Yes (IP66 enclosure)
Dimensions: 98(L)x65(W)x62(H) mm
Weight: 350g
2MP resolution (1080p)
Watch video in High Definition (2MP) from the ismartgate Cam. Feature available with ismartgate controllers (PRO/LITE).
Night Vision
Watch your gate from your phone even in the dark. Night Vision for up to 20m. Feature available with ismartgate controllers (PRO/LITE)
Waterproof (IP66)
The iSmartgate Outdoor Cam has an IP66 enclsure ideal for outdoor use.
Motion Detection alerts
The iSmartgate Cam will sense motion and send real time alerts so you know what happens at your gate.
Wi-Fi (802.11 b/g/n)
This IP camera connects to your home network wirelessly. No cables to pull.
Easy Set Up
Scan a QR code with your phone and put your Wi-Fi password. That's it!
Free iSmartgate Cam app
Download the iSmartgate Cam to enjoy all the features from this great smart camera!
Ethernet input
Our IP camera comes with multiple inputs for audio and an Ethernet port for wired connection to local network.
Local storage
The NEW ismartgate outdoor cam includes an SD card slot for local storage of video recordings. Supports SD card with 128GB capacity.
TP-Link VIGI 5MP Full-Colour Bullet Network Camera - VIGI C350. Please choose lens options.
5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
H.265+△: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
24/7 Stunning Visual Experience 5MP Super-High DefinitionMonitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 5MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Comprehensive AI Detection with Pre-Set Rules SupportedBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.People & Vehicle AnalyticsQuickly find people and vehicles of interest using a series of attributes.People AnalyticsFilter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.Vehicle AnalyticsIdentify and search for vehicles of interest based on vehicle colour and type for targeting meaningful events in a short time.Active DefenseWarn potential intruders instantly with sound and light when abnormal events.Every Event is Under Your ControlVIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.Outdoor PoE Connection, IP67 ProtectionJust connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.One system. Full security. Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
DownloadDatasheet
Axis P1465-LE Bullet Camera, P1465-LE 29mm is a Compact Outdoor, NEMA 4x, IP66, IP67 and IK10-rated 2MP /1080P Resolution, Day/night, Fixed Bullet Camera With Deep Learning Processing Unit (DLPU), 02340-001
Fully featured, all-around 2 MP surveillance
Lightfinder 2.0, Forensic WDR, OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Two lens alternatives
DownloadP1465-LE Datasheet
Axis Q1700-LE License Plate Camera, Robust Outdoor, Color 2 MP/1080P HDTV License Plate Camera for Sharp License Plate Images Day and Night, 01782-001
Dedicated camera for sharp images at high speeds
Designed for third-party software
Sharp license plate images day and night
Handle speeds of up to 130 km/h (81 mph)
Capture range of up to 100 m (328 ft)
Robust design for rough weather
Download
Q1700-LE Datasheet
TP-Link VIGI 4MP C340I(6mm) Outdoor IR Bullet Network Camera,6mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
TP-Link VIGI 4MP C340I(2.8mm) Outdoor IR Bullet Network Camera, 2.8mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
TP-Link VIGI 4MP C340-W(4mm) Outdoor Full-Colour Wi-Fi Bullet Network Camera, 4mm Lens, Smart Detection, 2YW (LD)
4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
VIGI App: Manage your security from the palm of your hand with the VIGI app.
TP-Link VIGI 4MP C340(6mm) Outdoor Full-Colour Bullet Network Camera, 6mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor Full-Colour Bullet Network Camera
4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
VIGI App: Manage your security from the palm of your hand with the VIGI app.
TP-Link VIGI 4MP C340(2.8mm) Outdoor Full-Colour Bullet Network Camera, 2.8mm Lens, Smart Detection, 2YW (LD)
VIGI 4MP Outdoor Full-Colour Bullet Network Camera
4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enter an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
VIGI App: Manage your security from the palm of your hand with the VIGI app.
TP-Link VIGI 2MP Outdoor IR Bullet Network Camera - VIGI C320I(6MM)
2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Looking for a higher resolution? It's right here.2MP Full-High DefinitionThe VIGI C320I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notificationsWe keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.Never miss a detail.SmartVid-Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.IP67 for Better ProtectionCapable of withstanding temperatures from -30–60 °C, VIGI performs well even in harsh environments with rain and dust.Simplified Deployment with PoEEasily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.Choose the right lens for your security.2.8/4/6 mm lensWhether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open areas like parking lots, C320I comes with three different lens versions to better suit your security needs.Flexible Installation Gives You More Convenience.Find the perfect vantage point by simply securing your camera to the ceiling, wall, or pole.Flexible ManagementTake full control over your security via three management methods: NVR UI, VIGI app, and VIGI SecuriManagerger. One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI 3MP Outdoor Full-Color Bullet Network Camera - VIGI C330(2.8MM)
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Clarity and Colors, All in OneMonitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that iwhichtal to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.More compression. More savings. Same quality.Without extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security MangerManagerxible InstallationOne system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
