IDIS 5MP VARIFOCAL BULLET SERIES · NDAA & TAA COMPLIANT
High-Definition 5MP Precision with Remote Motorized Focal Customization

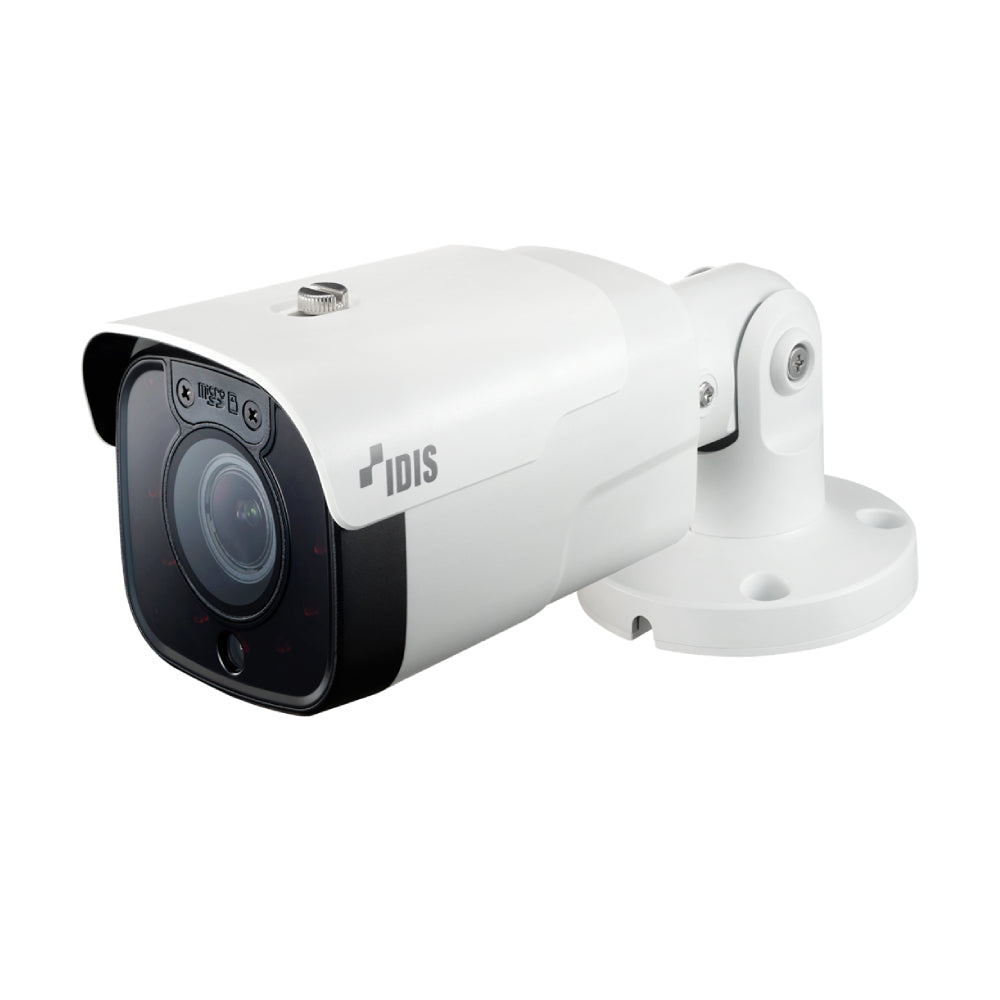

The IDIS DC-T4536HRX bridges high-density 5MP pixel resolution with remote optic flexibility, delivering a dynamic hardware solution for demanding outdoor surveillance environments. Outfitted with an integrated 3mm to 10mm motorized varifocal lens mechanism, this corporate-grade network bullet camera allows installers to adjust fields of view directly from the control room, discarding the need to physically open the housing to set focus. Built to strict global cybersecurity requirements, its fully NDAA and TAA compliant design provides a reliable, chip-hardened edge ecosystem perfectly cleared for critical infrastructure, logistical hubs, and expansive industrial footprints.
Resolution
5MP Ultra-HD Resolution
Lens Architecture
3-10mm Motorized Zoom
Night Vision
30m Smart Adaptive IR
Protection
IP67 Weatherproof Shield
Dynamic Backlight Suppression & High-Efficiency Bandwidth Optimization
The DC-T4536HRX implements an onboard 120dB True Wide Dynamic Range (WDR) processing engine to combat intense environmental backlighting, stabilizing high-contrast scenes like open garage doors or morning solar reflections into uniform forensic frames. Employing advanced H.265 compression alongside proprietary IDIS Intelligent Codec algorithms, network bandwidth and storage infrastructure loads fall by up to 90%, allowing operators to log high-resolution footage for longer periods without upgrading expensive network arrays. To configure a seamless, closed-loop network architecture with top cyber integrity, connect this endpoint with our compliant IDIS ecosystem networks.
True DirectIP Zero-Config Integration
Operating over the specialized IDIS DirectIP layout framework, this varifocal bullet camera facilitates rapid, zero-hassle network matching. Recording hubs automatically discover and lock communication pathways the second the Ethernet line hooks up, neutralizing traditional IP manual address mistakes and bolstering systemic cybersecurity protection.
Onboard Smart Failover Insurance
Harden your recording continuity timelines against sporadic network issues or unexpected upstream switch disruptions. If a data link drops out completely, the camera instantly routes compressed video storage data onto its internal MicroSD media slot, smoothly updating the centralized network matrix once communication pathways re-stabilize.
Technical Specification Matrix
| Camera Model |
DC-T4536HRX |
| Optics Core |
5MP Motorized Varifocal Performance Core |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips / 15ips with WDR Active) |
| Lens Configuration |
Motorized Varifocal f=3.0mm to 10.0mm / F1.3 to F2.5 |
| Angular Field of View |
96.8° ~ 31.6° (Horizontal) / 70.8° ~ 23.9° (Vertical) / 123.8° ~ 39.5° (Diagonal) |
| Smart IR Array |
Up to 30 Meters (98.4 Feet) with Adaptive Intensity Infrared LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Environmental Rating |
IP67 Weatherproof Shield / Heavy-Duty All-Weather Housing |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
Power over Ethernet (PoE) IEEE 802.3af (Class 3), Max. 8.4W / 12V DC |
What operational benefits does the 3-10mm motorized zoom lens provide?
The 3-10mm motorized varifocal configuration lets you remotely alter the zoom level and optical focus point directly through the software GUI. This means you can keep the lens wide at 3mm (96.8° horizontal) to survey an entire lot, or zoom into 10mm (31.6° horizontal) to closely track a distant bottleneck or entrance gate.
How does Smart IR adjust exposure as someone approaches the bullet housing?
Traditional fixed infrared lights frequently overexpose targets that walk directly toward the camera, blurring facial contours into a white glow. IDIS Smart IR analyzes reflection levels dynamically, tapering down the output of its integrated infrared arrays to maintain crystal-clear forensic facial markers at close range.
Is the DC-T4536HRX certified for government sites and high-compliance arrays?
Yes. The DC-T4536HRX is completely compliant with both the National Defense Authorization Act (NDAA) and the Trade Agreements Act (TAA). It does not employ any microchip sets or internal firmware components from restricted or blacklisted telecom brands, ensuring full clearance for defense or enterprise use.
Can this camera endure intense storm systems and sub-zero freeze cycles?
Absolutely. Backed by a verified IP67 weatherproof structural classification, this bullet camera is totally sealed against fine dust, intense downpours, and sweeping snow. The built-in mechanical sunshield also shades the lens glass from harsh midday reflections and heavy rain runoff.
