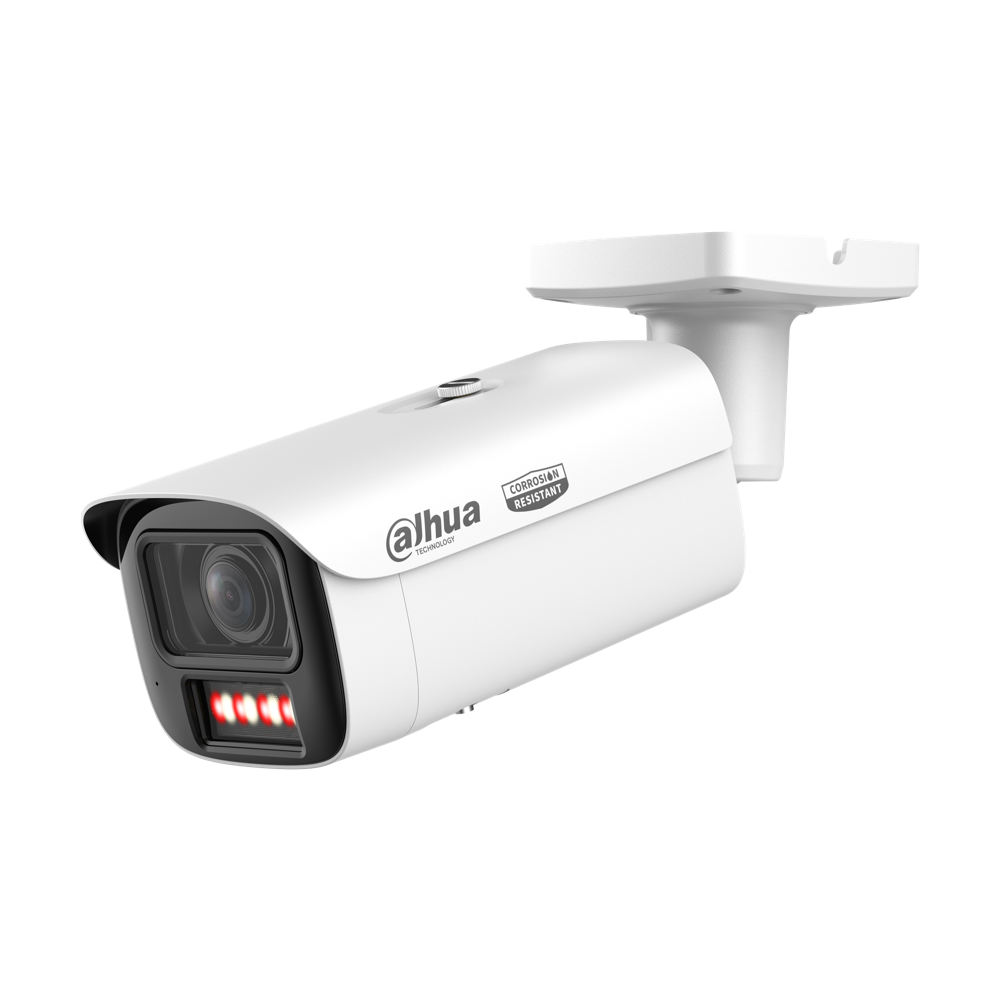

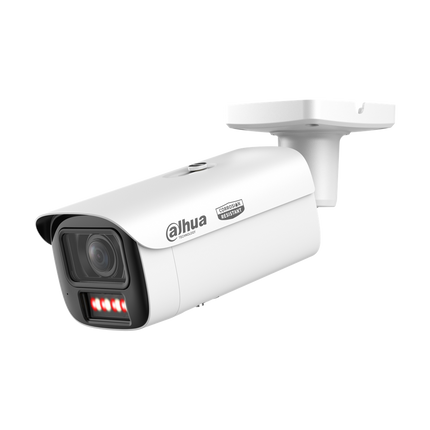

DAHUA · IP SECURITY CAMERASDahua DH-IPC-HFW5559E1-Z5E-IL 5MP 7–35mm Long-Range Dual Light Bullet Camera
Monitor a more distant target with a 7–35 mm motorised lens and up to 120 m of IR and warm-light illumination. The Dahua DH-IPC-HFW5559E1-Z5E-IL is a 5MP WizMind Smart Dual Light bullet designed for installations where a standard wide-angle camera does not provide the required framing.
Lens
7–35 mm motorised varifocal
Illumination
Up to 120 m IR and 120 m warm light
Lighting system
Smart Dual Light
Designed for your installation
Adjust the zoom to suit a gate, driveway approach or defined perimeter. AcuPick support and intelligent event analysis help an appropriate Dahua recording system narrow down relevant footage instead of relying only on a timeline search.
Analytics
WizMind intelligent perimeter analysis
AcuPick with compatible recorder
Built-in microphone, 1 audio input and 1 output
Technical Specifications
| Model |
DH-IPC-HFW5559E1-Z5E-IL |
| Resolution |
5MP |
| Lens |
7–35 mm motorised varifocal |
| Illumination |
Up to 120 m IR and 120 m warm light |
| Lighting system |
Smart Dual Light |
| Image processing |
120 dB WDR |
| Analytics |
WizMind intelligent perimeter analysis |
| Search |
AcuPick with compatible recorder |
| Audio |
Built-in microphone, 1 audio input and 1 output |
| Alarm |
2 inputs, 1 output |
| Storage |
microSD up to 1 TB, sold separately |
| Power |
12 VDC, PoE+, ePoE |
| Enclosure |
IP67 weather resistance, IK10 impact resistance |
Setup and compatibility
A longer illumination distance is not an identification-distance guarantee. Target size, zoom setting, shutter speed, scene light and installation height all affect useful detail. Confirm the camera power budget and mounting accessories before installation.
Downloads
DH-IPC-HFW5559E1-Z5E-IL Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HFW5559E1-Z5E-IL record to a microSD card?
Yes. microSD up to 1 TB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
A longer illumination distance is not an identification-distance guarantee. Target size, zoom setting, shutter speed, scene light and installation height all affect useful detail. Confirm the camera power budget and mounting accessories before installation.
Where can I download the DH-IPC-HFW5559E1-Z5E-IL datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
