Description

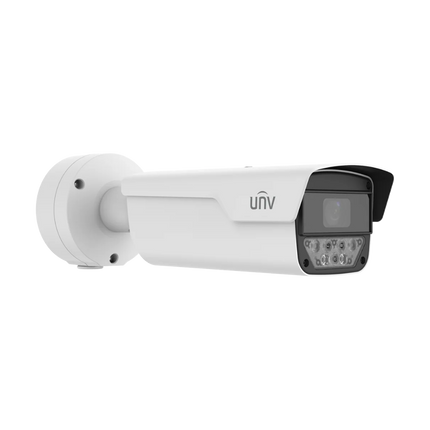

The Uniview UNV PKC2641-Z28 / Z80 / Z100 is a professional 4MP Licence Plate Recognition (LPR) POE bullet camera designed for accurate plate capture and vehicle identification. Featuring advanced imaging with warm light illumination, efficient H.265 compression, and flexible motorized zoom options (Z28 / Z80 / Z100), this camera delivers reliable performance in challenging lighting and high-speed traffic scenarios.
Ideal for parking lots, gated communities, entrances/exits, tollways and drive-throughs, the PKC2641 family combines rugged durability with enhanced analytics, strong night performance, and smooth network integration via POE.
Key Features
-

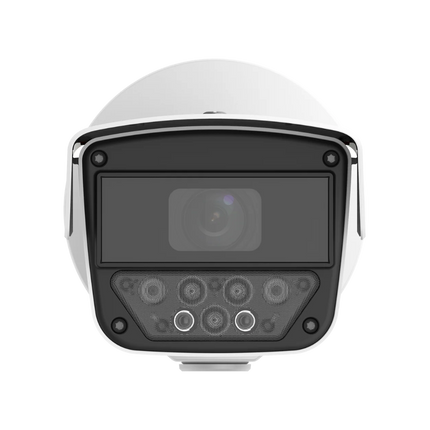

Multiple Optical Zoom Options: Z28 / Z80 / Z100 configurations suited for short to long-range LPR
-
4MP High Resolution: Sharp 2688×1520@25/30 fps for detailed vehicle and plate capture
-

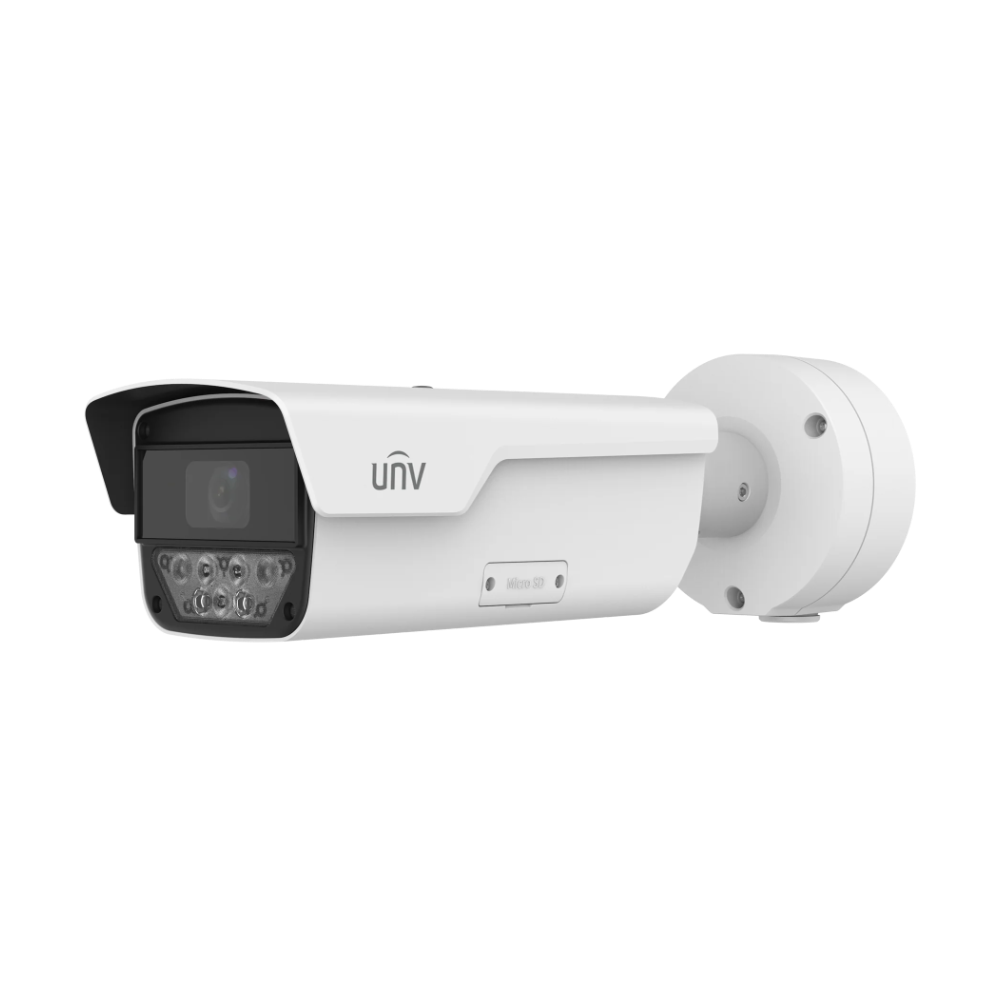

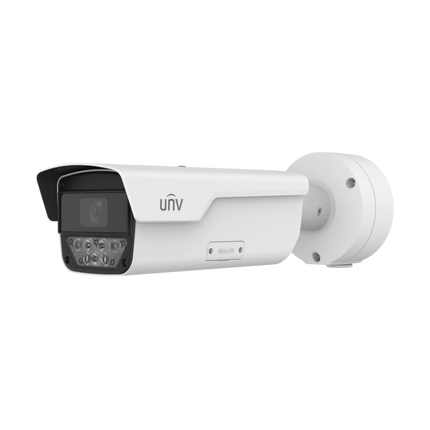

Warm Light Illumination: Helps consistent colour images at night, ideal for plate reading
-
H.265 / H.264 / MJPEG: Efficient compression saves storage and bandwidth
-
Smart IR: Automatic IR control with superior low-light imaging
-
ANPR Ready: Works with NVR ANPR/analytics for automatic plate detection/recording
-
Weatherproof IP67 Housing: Built for rugged outdoor environments
-
PoE (802.3af): Single-cable power + data simplifies installation
-
ROI & Multi Streams: Region of interest and triple streams support
-
VCA Analytics Support: Optional perimeter controls, motion detection, tampering warning
Z28 = 2.8–8 mm
Z80 = 8–80 mm
Z100 = 10–100 mm Motorized Zoom Lens (select based on site distance)
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / PKC2641-Z28 / Z80 / Z100 |
| Camera Type |
4MP LPR POE Bullet Camera (Warm Light) |
| Image Sensor |
1/1.8″ Progressive CMOS |
| Max Resolution |
4MP (2688 × 1520) |
| Frame Rate |
Up to 25/30 fps |
| Lens Options |
Z28 (2.8–8 mm), Z80 (8–80 mm), Z100 (10–100 mm) |
| Warm Light Range |
Up to ~30 m (model & distance dependent) |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| IR / Night |
Smart IR |
| Streams |
Triple Streams; ROI support |
| Network |
1 × RJ45 10/100M PoE (802.3af) |
| Analytics Ready |
ANPR/Smart VCA support (with NVR or software) |
| Weather Rating |
IP67 (Outdoor Ready) |
| Operating Temp |
–30 °C to 60 °C |
| Power Supply |
PoE (802.3af) / 12 V DC |
Recommended Use & Benefits
-
Automatic Licence Plate Recognition (ANPR) — Integrates with Uniview UNV AOI or AI NVRs for accurate plate capture & search.
-
Parking & Access Control — Reliable long-distance recognition with warm light support for night visibility.
-
Drive-through and Lane Monitoring — Motorized zoom (Z80 / Z100) gives flexible field of view choices.
-
Enterprise & Commercial Sites — Weatherproof design with POE simplifies installation.
More Information
UNV PKC2641-Z28-IR-P Datasheet
UNV PKC2641-Z28-IR-P Quick Start Guide
