IDIS AI LIGHTMASTER NIR SERIES · NDAA & TAA COMPLIANT
Deep-Learning Edge Intelligence Combined with Ultra-Low-Light Forensic Precision

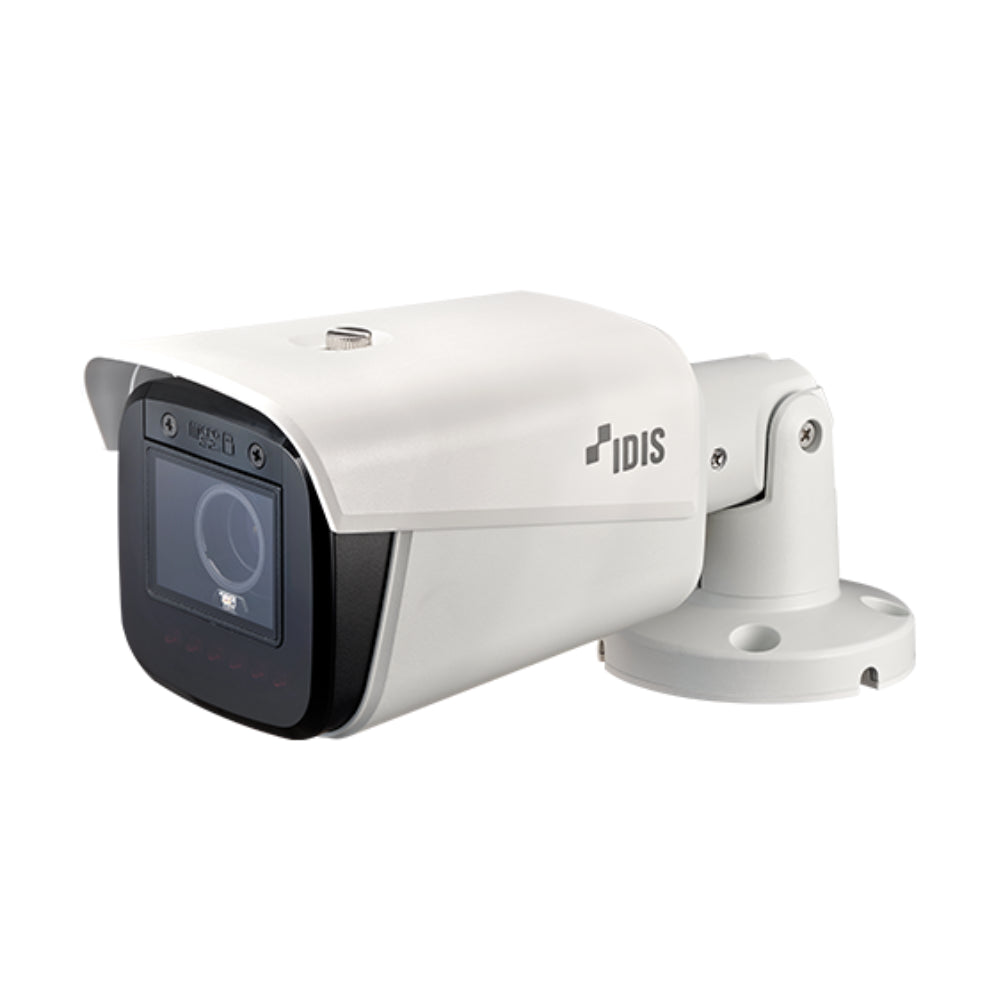

The IDIS DC-T4538WRA is a next-generation 5MP network bullet camera engineered to blend deep-learning edge analytics with flagship optical hardware. Driven by embedded IDIS Deep-Learning Analytics (IDLA), this advanced node automatically filters false alarms by accurately classifying humans, vehicles, and faces in real time. Bolstered by proprietary LightMaster NIR (Near-Infrared) low-light hardware, the sensor delivers unmatched clarity and color saturation in extreme darkness. Fully certified to fulfill strict NDAA and TAA compliance mandates, it provides a high-security, cyber-hardened tracking endpoint optimized for perimeters, critical infrastructure hubs, and industrial yards.
Analytics Engine
IDLA Deep-Learning AI
Optics Configuration
2.7-13.5mm Motorized
Long-Range IR
40m LightMaster NIR
Ruggedization
IP67 & IK10 Vandal Rated
Vandal-Resistant Defenses with Adaptive Smart Optimization
Outfitted with a heavy-duty, impact-resistant IK10 housing and an integrated internal heater, the DC-T4538WRA is explicitly built to withstand physical sabotage and sub-zero outdoor freeze cycles down to -40°C. The versatile 2.7mm to 13.5mm motorized varifocal lens grants a flexible 5x optical zoom range, allowing operators to capture wide clear perimeters or tightly zoom onto remote property choke points. Backed by 120dB True Wide Dynamic Range (WDR), the camera smoothly normalizes high-contrast light shifts, while H.265 compression protocols combined with Intelligent Codec logic mitigate network bandwidth loads by up to 90%. To seamlessly construct an intelligent, autonomous perimeter security network with maximum uptime, pair this camera with our compliant IDIS ecosystem networks .
Embedded IDIS Deep-Learning Analytics (IDLA)
Transform standard recordings into highly accurate intelligence streams. The integrated AI core manages localized, serverless edge analytics including Object Detection, Intrusion, Loitering, Line Crossing, and specialized Face Detection—eliminating false alarms triggered by animals, foliage, or weather variations.
DirectIP Plug-and-Play Configuration
Operating natively on the specialized IDIS DirectIP layout framework, this AI bullet camera enables instant, seamless network deployment. Upstream recorders auto-discover, calibrate, and bind the camera the moment the Ethernet cable is connected, maximizing physical installation velocity and strengthening cyber integrity.
Technical Specification Matrix
Camera Model
DC-T4538WRA
Intelligence Layer
IDIS Deep-Learning Analytics (IDLA) Onboard Edge AI Engine
Optics Core
5MP LightMaster NIR Ultra Low-Light Architecture
Image Sensor
1/2.8" Progressive Scan CMOS Sensor
Max. Resolution
2592 x 1944 (5MP @ 30ips)
Lens Configuration
Motorized Varifocal f=2.7mm to 13.5mm / F1.4 to F3.2 (DC Iris)
Angular Field of View (16:9)
101.7° ~ 30.2° (Horizontal) / 53.3° ~ 17.0° (Vertical) / 121.6° ~ 34.7° (Diagonal)
Night Vision Range
Up to 40 Meters (131.2 Feet) via LightMaster NIR Adaptive IR Arrays
Wide Dynamic Range
True WDR Processing Core (120dB)
Durability Ratings
IP67 Weatherproof Shield / IK10 Vandal Proof / Built-in Housing Heater
I/O Interfaces
Audio In/Out · Alarm In/Out · MicroSD Slot (Up to 512GB Edge Failover)
Power Architecture
Power over Ethernet (PoE) IEEE 802.3af (Class 3) / 12V DC (Max. 12W)
What specific advantages does IDIS Deep-Learning Analytics (IDLA) provide?
Unlike standard motion detection that flags every shifting shadow or heavy rain drop, IDLA uses a deep-learning model to categorize targets into humans, vehicles, or faces. This means your monitoring center only receives real alerts for actual intrusion, loitering, or line-crossing security violations.
How does LightMaster NIR technology change dark nighttime monitoring?
LightMaster NIR utilizes an ultra-sensitive 1/2.8" sensor paired with high-performance near-infrared illumination. This enables the camera to retain sharp contrast, clear forensic boundaries, and minimal image noise in pitch-black conditions up to 40 meters away, outperforming standard IR lenses.
What makes this camera durable enough for high-risk, freezing climates?
The camera features a dual defense classification: an IP67 rating ensures it remains totally impervious to heavy rain and dust storms, while an IK10 vandal-proof rating confirms protection against sudden physical impacts. Furthermore, an integrated internal heater prevents the lens cover from freezing or fogging over in severe sub-zero environments.
Is the DC-T4538WRA fully compliant with corporate and federal procurement rules?
Yes. The DC-T4538WRA is completely NDAA and TAA compliant. It avoids internal chipsets or software structures manufactured by blacklisted entities, allowing full authorization for high-compliance military, industrial, and enterprise installations.
