Description

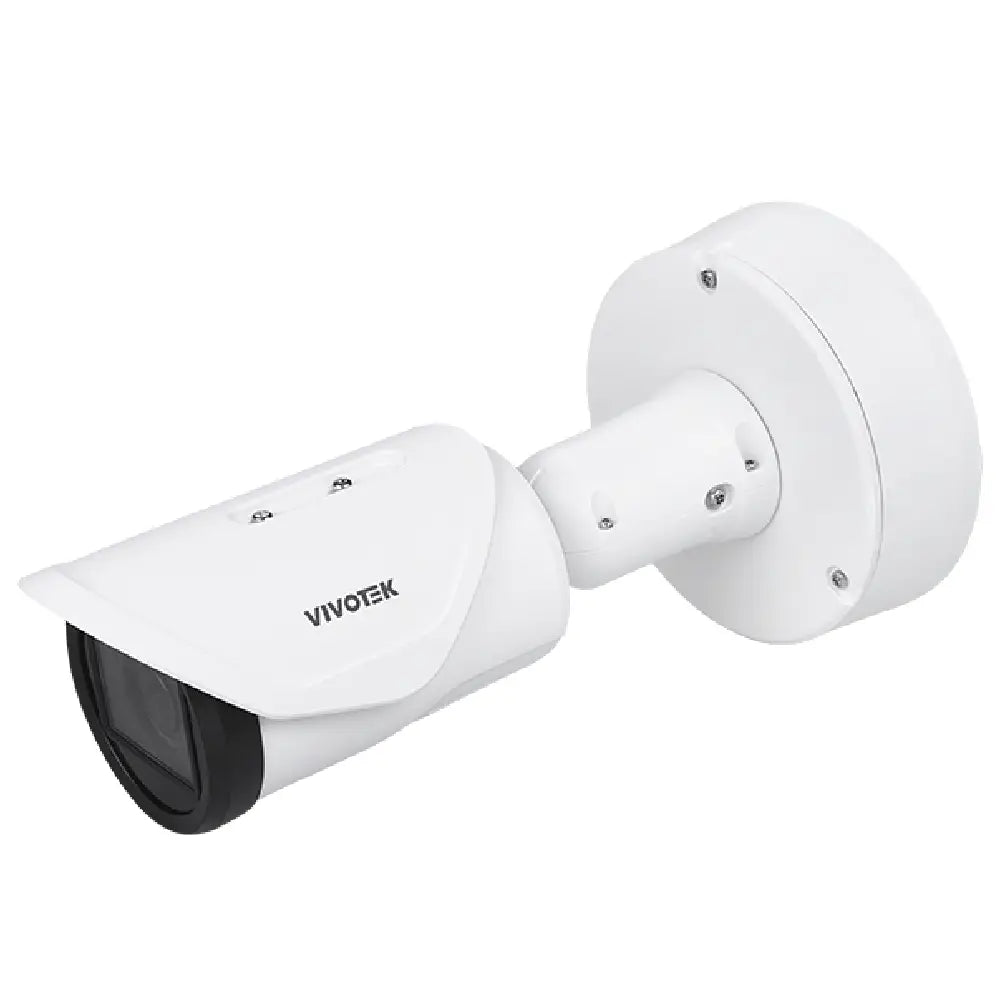

The Vivotek IB9387-LPR-V3 (2.7-13.5mm) is an all-in-one standalone License Plate Recognition (LPR) solution optimized for short-to-medium range capture. Featuring a wider motorized varifocal lens, this V3 model is the ideal choice for parking garage entrances, gated driveways, and any access point where vehicles are captured at close proximity.
Edge-Based ANPR Intelligence
Equipped with built-in LPR/ANPR software, the IB9387-LPR-V3 processes plate data directly on the camera. This eliminates the need for expensive external servers. The system can identify plates from over 70 countries and manage internal "Whitelist" and "Blacklist" groups for automated access control.
Seamless Gate & Barrier Integration
Turn your camera into a security guard. With integrated Digital Input/Output (DI/DO), this camera can be wired directly to a gate motor or barrier arm. When a whitelisted vehicle is identified, the camera triggers the relay to open the gate, providing a frictionless experience for authorized residents or employees.
Key Features:
-
5MP Resolution: High-pixel density ensures accurate Optical Character Recognition (OCR) for plate reading.
-
2.7-13.5mm Motorized Lens: Remote zoom and focus adjustment for wide-angle entryways or narrow lanes.
-
Headlight Suppression: Specialized IR and high-speed shutter settings prevent headlight glare from washing out plate details.
-
Real-Time Alerts: Receive instant notifications for "Blacklisted" vehicles or unauthorized entry attempts.
-
Rugged Reliability: IP66, IP67, and IK10 ratings ensure 24/7 operation in rain, snow, or high-risk areas.
-
Cybersecurity Management: Built-in Trend Micro IoT Security protects your network from unauthorized access.
Technical Specifications:
| Resolution |
5MP (2560 x 1920) @ 30fps |
| Lens Type |
2.7 ~ 13.5 mm Motorized Varifocal |
| Recommended Distance |
2 to 8 Meters (Short Range) |
| Capture Speed |
Up to 60 km/h (37 MPH) |
| Access Control |
Built-in Whitelist/Blacklist Management |
| Durability |
IP66, IP67, IK10, NEMA 4X |
