WizSense 3 · 6 MP · Smart Dual Light · AcuPick Ready
Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ — 6 MP Smart Dual Light Motorised Vari-focal Bullet WizSense Network Camera

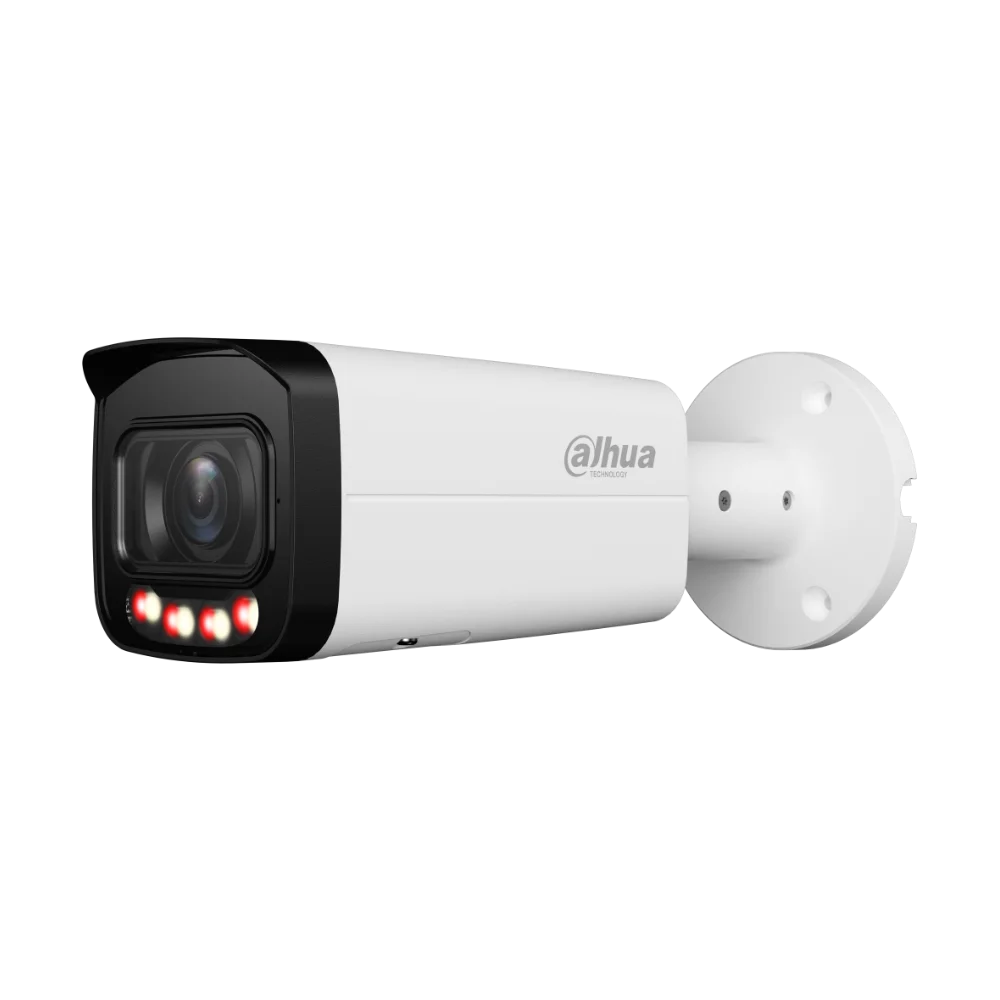

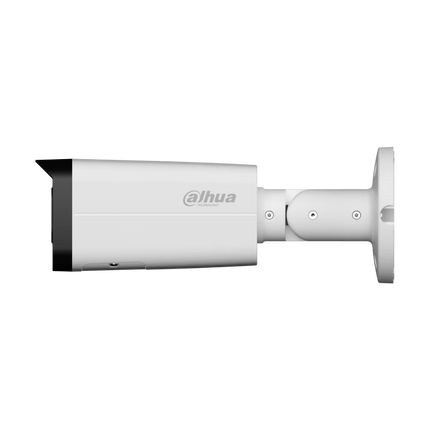

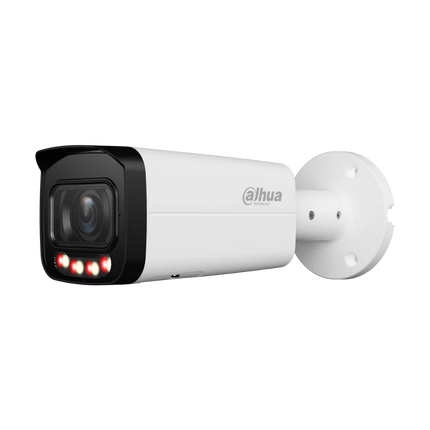

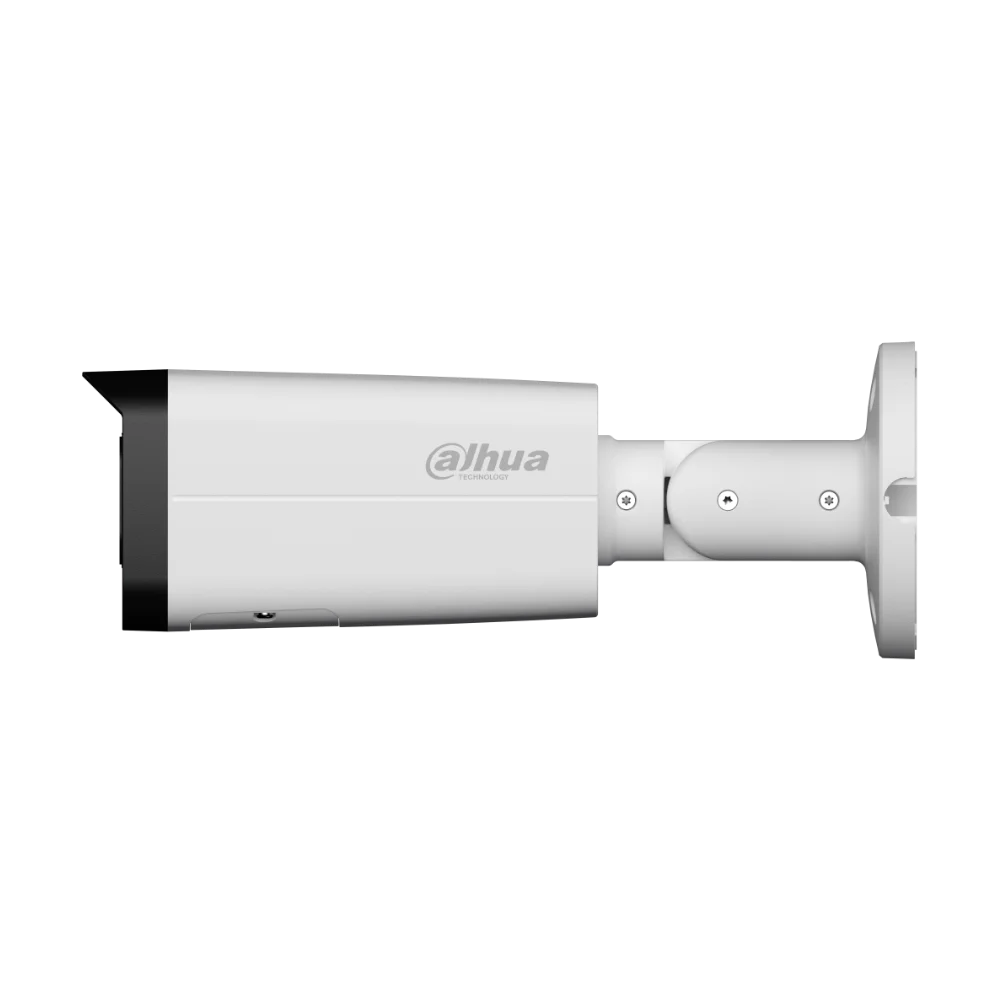

The Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ is a 6 MP WizSense 3 outdoor bullet IP camera built around a 1/2.7" CMOS sensor delivering 3288 × 1850 at 25/30 fps with Smart H.265+ encoding. A motorised vari-focal 2.7–13.5 mm F1.4 lens covers everything from a 114° wide overview to a tight 32° long-range pull, and Dahua's Smart Dual Light engine combines a 60 m IR illuminator with a 60 m warm-light array so the camera runs in covert IR until a person or vehicle is classified, then flips to full-colour with white light on the target. WDR is rated at a full 120 dB, IP67 sealed, with built-in microphone, 1/1 alarm I/O and 1/1 RCA audio I/O. The WizSense 3 deep-learning chip runs SMD 4.0, perimeter protection (tripwire + intrusion with human/vehicle classification) and edge AcuPick — working with compatible Dahua AcuPick NVRs to search recorded footage by colour, clothing and direction. Dual-power backup accepts 12 VDC or PoE (802.3af, 12.5 W max). Built for Australian properties that need one camera to handle general site surveillance and event-driven evidence capture — driveways, carparks, loading docks, rural sheds, depot perimeters and small business shopfronts. Backed by a 3-year Australian warranty through CCTV Guru.
Optical Zoom
2.7–13.5 mm Motorised
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 60 m + Warm 60 m
AI Engine
WizSense 3 + AcuPick
Protection
IP67 · –30 to +60 °C
Power
12 VDC / PoE 802.3af
Why Choose the Dahua HFW3667T-ZAS-IL-ANZ
This is the Dahua bullet most installers reach for when a site needs one camera that does the job of two — a wide-angle scene camera by day and an evidence-grade target camera at night. Below are the six reasons it consistently outperforms generic 6 MP bullets in Australian deployments.
True 6 MP Image, Not Upscaled
The 1/2.7" CMOS captures a native 3288 × 1850 raster — more than double the pixel density of 1080p — so digital zoom into faces, plates and signage stays usable instead of dissolving into a noise field.
One Camera, Two Lighting Modes
Smart Dual Light runs invisibly on 60 m IR until WizSense classifies a person or vehicle, then automatically switches the 60 m warm light on the target — full-colour evidence on demand without permanent light pollution to neighbours.
120 dB WDR for AU Sun
Driveways shaded by colourbond, north-facing entries, glass-fronted shops — the camera's 120 dB true wide dynamic range holds detail in both the bright sky and the dark interior in a single frame, where lesser cameras blow out one side.
Motorised Vari-focal — Adjust from the App
2.7–13.5 mm with motorised zoom and auto-focus means an installer (or you, via DMSS) can re-frame the scene without climbing a ladder again. Detect range: up to 280 m at the tele end.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, this camera lets you search hours of recorded video by attributes — "red top, blue trousers, walking east" — and pulls matching clips in seconds, not hours.
Built for Australian Power
Dual-power backup accepts 12 VDC or PoE simultaneously, and the wide-voltage tolerance shrugs off the unstable rural-grid sag that fries cheap cameras. RCM-marked, AS/NZS-compliant, supplied stock from our AU warehouse.
Important Install Note
This camera draws up to 12.5 W on PoE when WDR, warm light and AI are all active. On longer cable runs (over 90 m) and on PoE switches that share power across many ports, plan for an 802.3at-capable switch or a local 12 VDC supply at the camera. The body is metal and IP67-rated — for outdoor mounting in exposed positions we recommend pairing with the DH-PFA130-E water-proof junction box to protect the RJ-45 termination from condensation.
AI & Smart Detection Capabilities
AcuPick Target Search
Deep-learning attribute matching across people and vehicles. Find a target across hours of recorded video by colour, top/bottom clothing, vehicle type and direction — when paired with a compatible Dahua AcuPick NVR.
SMD 4.0 — Smart Motion Detection
Motion alerts triggered only by humans and vehicles. Wind-blown branches, small animals, possums on a fence and shadows are filtered out at the edge — slashing false-alarm volume.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert when the right type of target crosses it.
Smart Dual Light Deterrence
When WizSense classifies a person in the warm-light zone, the 60 m white light triggers automatically, leaving subjects in no doubt they have been captured in full colour — a passive deterrent that costs nothing extra in licensing or hardware.
AI SSA — Scene Self-Adaptation
The camera detects environmental conditions like rain, fog, backlight, low light and flicker, and automatically adjusts image parameters to keep the scene clear without an operator touching the settings.
Smart Search & Event Extraction
Pairs with a Smart NVR to refine intelligent search, extract and merge event video. Skip past hours of empty footage and jump straight to the moments where something the AI flagged as relevant happened.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HFW3667T-ZAS-IL-ANZ |
| Form Factor |
Bullet (metal casing) |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
3288 × 1850 (6 MP) |
| ROM / RAM |
256 MB / 1 GB |
| Scanning System |
Progressive |
| Electronic Shutter |
Auto / Manual, 1/3 s – 1/100,000 s |
| Minimum Illumination |
0.007 lux @ F1.4 (Colour) · 0.0007 lux @ F1.4 (B/W) · 0 lux (illuminator on) |
| S/N Ratio |
> 56 dB |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| BLC / HLC |
Yes / Yes |
| Noise Reduction |
3D NR |
| Image Stabilisation |
EIS |
| Region of Interest |
Yes (4 areas) |
| Privacy Masking |
8 areas |
Lens & Illumination
| Lens Type |
Motorised vari-focal, motorised zoom & focus |
| Focal Length |
2.7 mm – 13.5 mm |
| Maximum Aperture |
F1.4 |
| Field of View |
H: 114° – 32° · V: 58° – 17° · D: 138° – 36° |
| Close Focus Distance |
0.1 m |
| IR Illumination |
Up to 60 m |
| Warm Light Illumination |
Up to 60 m |
| Illuminator Configuration |
4 × multi-core LEDs (IR + warm light) |
| Smart Dual Light |
Yes (target-triggered IR / warm light hand-off) |
| DORI — Wide (2.7 mm) |
Detect 85.3 m · Observe 34.0 m · Recognise 17.1 m · Identify 8.5 m |
| DORI — Tele (13.5 mm) |
Detect 280 m · Observe 112 m · Recognise 56 m · Identify 28 m |
| Angle Adjustment |
Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360° |
Intelligence & Video
| AI Engine |
WizSense 3 Series |
| IVS — Perimeter Protection |
Tripwire, intrusion (with human + vehicle classification) |
| Smart Motion Detection |
SMD 4.0 |
| AcuPick |
Yes (with compatible Dahua AcuPick NVR) |
| AI SSA |
Yes (scene self-adaptation) |
| Smart Search |
Yes (paired with Smart NVR) |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub stream) |
| Smart Codec |
Smart H.265+ · Smart H.264+ |
| AI Coding |
AI H.265 · AI H.264 |
| Stream Capability |
3 streams |
| Main Stream |
3288 × 1850 @ 1–25/30 fps |
| Sub Stream |
1920 × 1080 @ 1–25/30 fps |
| Third Stream |
1920 × 1080 @ 1–25/30 fps |
| Bit Rate Control |
VBR · CBR · ABR |
| Video Bit Rate |
H.264 / H.265: 3 kbps – 16,384 kbps |
| Motion Detection |
4 rectangular areas |
Audio, Alarm & Network
| Built-in Microphone |
Yes |
| Audio Input |
1 channel (RCA) |
| Audio Output |
1 channel (RCA) |
| Audio Compression |
G.711a · G.711Mu · PCM · G.726 · G.723 |
| Alarm Input |
1 channel — wet contact, 5 mA, 3–5 VDC |
| Alarm Output |
1 channel — wet contact, 300 mA, 12 VDC |
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocols |
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · 802.1x |
| Interoperability |
ONVIF (Profile S, G, T, M) · CGI |
| Maximum Users |
20 (64 Mbps total bandwidth) |
| Storage |
FTP · SFTP · NAS · Micro SD card up to 512 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Management Software |
SmartPSS Lite · DSS · DMSS |
| Cyber Security |
Trusted boot · trusted execution · trusted upgrade · video encryption · firmware encryption · 802.1x · HTTPS · IP/MAC filtering · WSSE · X.509 |
| Recommended Firmware |
Dahua V5.x (enables AcuPick, ONVIF 23.12, iSCSI, N+M with compatible NVRs) |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) |
| Power Consumption (Basic) |
3.8 W (12 VDC) · 5.3 W (PoE) |
| Power Consumption (Max.) |
9.9 W (12 VDC) · 12.5 W (PoE) with H.265 + WDR + warm light + AI |
| Dual-Power Backup |
Yes (12 VDC and PoE simultaneously supported) |
| Operating Temperature |
–30 °C to +60 °C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Storage Temperature |
–40 °C to +60 °C |
| Protection Rating |
IP67 |
| Casing Material |
Metal |

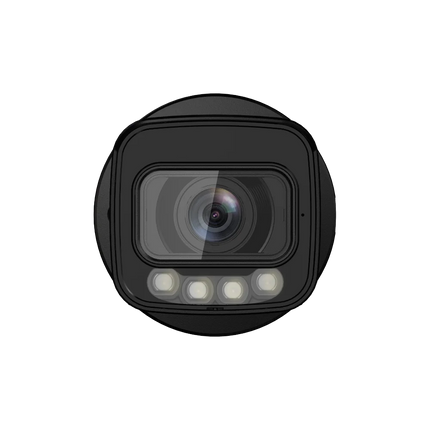

| Product Dimensions |
238.5 mm × 90.7 mm × 90.7 mm (L × W × H) |
| Net Weight |
835 g |
| Gross Weight |
1090 g |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
3 Years (via CCTV Guru) |
How It Compares — HFW3667T-ZAS-IL-ANZ vs HFW3867T-ZAS-IL-ANZ
The closest sibling is the Dahua DH-IPC-HFW3867T-ZAS-IL-ANZ — the 8 MP version of this exact camera. Same WizSense 3 chassis, same motorised-zoom Smart Dual Light approach, same install profile. The decision comes down to whether you want native 8 MP pixel density for plate-grade evidence and pixel-on-target at long range, or whether the 6 MP build's lighter storage footprint and brighter F1.4 aperture suit the site better.
| Feature |
DH-IPC-HFW3667T-ZAS-IL-ANZ (this camera)
|
DH-IPC-HFW3867T-ZAS-IL-ANZ (sibling)
|
| Resolution |
6 MP (3288 × 1850) |
8 MP (3840 × 2160) |
| Sensor |
1/2.7" CMOS |
1/1.8" CMOS (larger photo-site) |
| Lens |
2.7–13.5 mm motorised vari-focal · F1.4 |
2.7–13.5 mm motorised vari-focal · F1.5 |
| AI Engine |
WizSense 3 |
WizSense 3 |
| AcuPick |
Yes |
Yes |
| Lighting |
Smart Dual Light — IR 60 m + warm 60 m |
Smart Dual Light — IR 60 m + warm 50 m |
| Active Deterrence |
Passive — white-light pop-on + alarm relay |
Passive — white-light pop-on + alarm relay |
| WDR |
120 dB |
120 dB |
| Audio |
Built-in mic + 1/1 RCA audio I/O |
Built-in mic + 1/1 RCA audio I/O |
| Storage Footprint (24/7 H.265) |
Lighter — ~25% less than 8 MP at matched bitrate |
Heavier — full 4 K main stream |
| Low-Light Aperture |
F1.4 (slightly brighter) |
F1.5 |
| IP Rating |
IP67 |
IP67 |
| Best For |
Sites that want full-colour evidence on event with a lighter storage budget and the brightest aperture in class |
Sites that need maximum pixel-on-target — long driveways, carpark plate capture, large-frame retail and warehouse coverage |
Recommended NVR Pairings
For full AcuPick attribute search to work, this camera should be paired with a Dahua 5-Series AI NVR running V5 firmware. Below are four CCTV Guru-stocked recorders that match the most common Australian deployment sizes — from small business through to enterprise.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U · perimeter protection and SMD Plus. Ideal for residential and small-business sites running 4–8 cameras with full plug-and-play deployment.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (ports 1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. The most common pairing for medium commercial sites, multi-building yards and busy shopfronts.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. The value-pick 16-channel build for sites that don't need full AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — warehouses, schools, multi-tenant strata and large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA130-E
Water-proof junction box. The most popular accessory for this camera — protects the RJ-45 termination from condensation behind outdoor mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA135
Standard junction box for tidy in-wall cable management on rendered or brick walls. Use when no waterproofing of the termination is required.
DH-PFA151
Corner mount bracket — for mounting the camera onto external building corners. Matches the camera's white powder-coat finish.
DH-PFA152-E
Pole mount bracket — fits 60–110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
G3416GW
G3/4" water joint — protects the cable gland on outdoor installs with conduit termination. Use with surface-mounted PVC or metal conduit runs.
DH-PFM321D-EN / DH-PFM320D-EN
Genuine Dahua 12 VDC power adapters — 1 A and 2 A options. Use when running the camera on local DC instead of PoE, or as a backup supply alongside PoE.
Frequently Asked Questions
Is the Dahua HFW3667T-ZAS-IL-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
Does this camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR running V5 firmware.
Is this a TiOC camera?
No. TiOC SKUs carry the "PV" infix in the model number. This camera is a Smart Dual Light WizSense 3 model — it can illuminate a target on detection but does not have a red/blue strobe or built-in siren. For full TiOC active deterrence, see the HFW3849T1-ZAS-PV-ANZ sibling above.
How far can it see at night?
Smart Dual Light gives 60 m on IR and 60 m on warm light. Identification range (where a face is recognisable) reaches 28 m at the tele end of the zoom under standard conditions.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of 12.5 W when warm light, WDR and AI are all active. Any quality 802.3af switch with budget headroom will run it. For long cable runs over 90 m, plan for an 802.3at switch or a local 12 VDC supply.
Does it have a microphone?
Yes, the camera has a built-in microphone, plus 1 × RCA audio in and 1 × RCA audio out for connecting an external mic or speaker. NDIS, retail and bus-stop sites should check local audio-recording legislation before enabling sound recording.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G, T and M, so it will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR.
Is it certified for the Australian market?
Yes — the ANZ variant is supplied through Dahua's Australian channel with RCM marking, CE-LVD (EN62368-1) and CE-EMC (2014/30/EU) compliance. It is the correct SKU for AU/NZ projects.
Can the camera trigger an external strobe or siren?
Yes. It has a 1-channel alarm output (wet contact, 300 mA, 12 VDC) that can be wired to a 12 V external strobe or siren module. Use IVS perimeter protection or SMD 4.0 events as the trigger source.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts and recorded-footage playback from anywhere with internet. No subscription required.
