Uniview UNV IPC2328SB-ADZKM-DL-I1 8MP Dual-Light Motorised Bullet Camera — Full-Colour + IR, Perimeter AI

Description

Uniview UNV · IP Camera

Uniview UNV IPC2328SB-ADZKM-DL-I1 8MP Dual-Light Motorised Bullet Camera — Full-Colour + IR, Perimeter AI

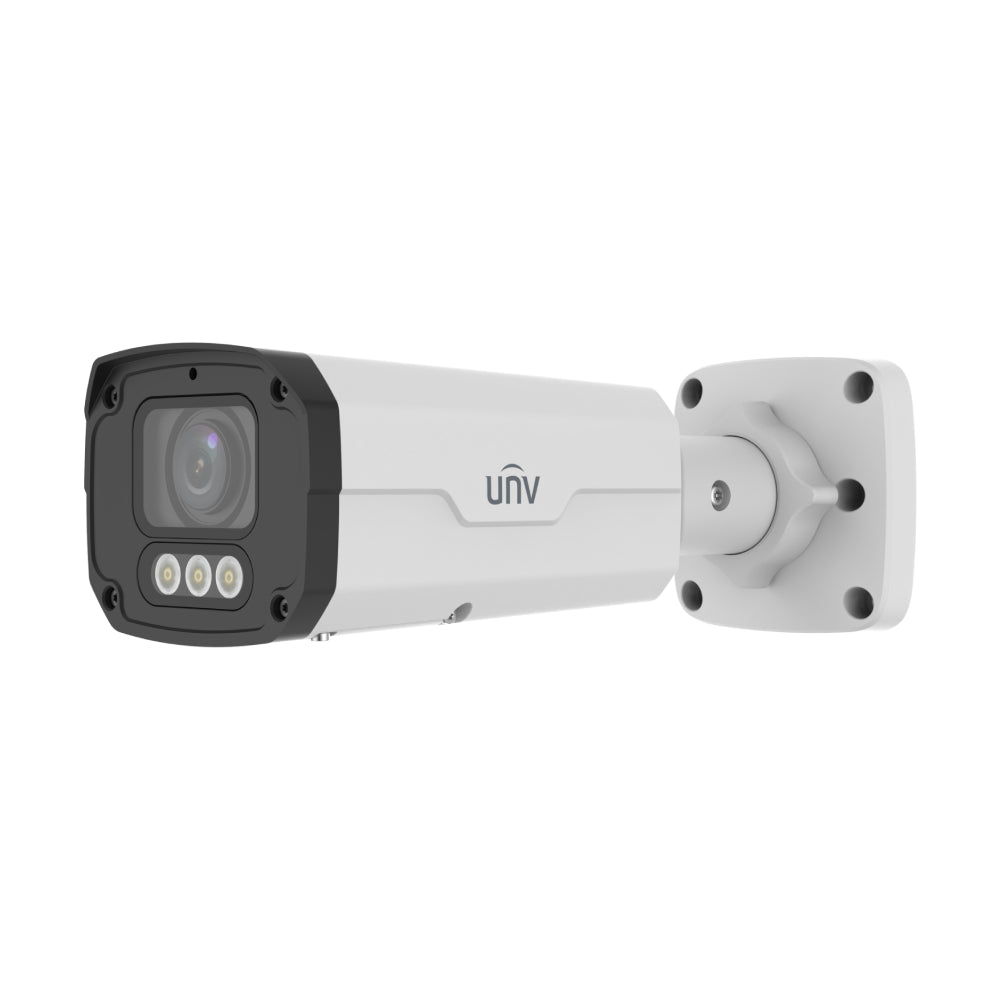

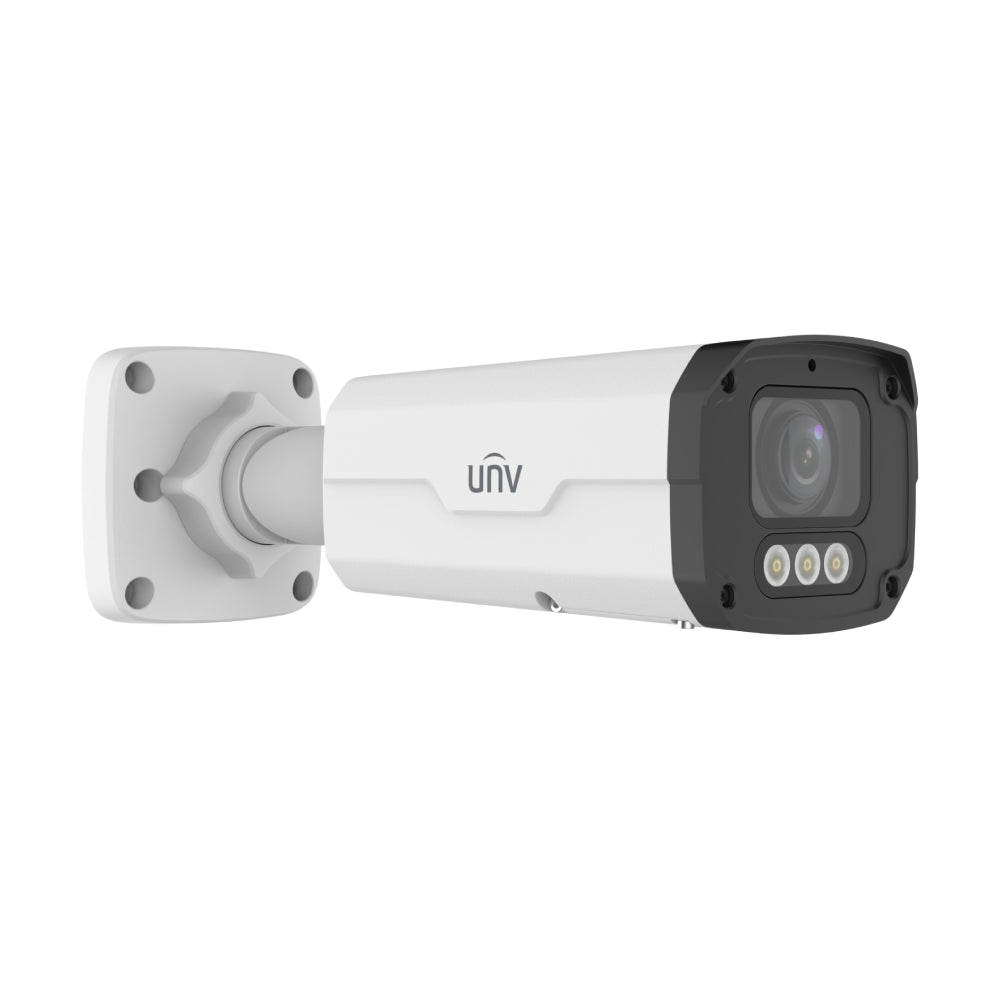

The Uniview IPC2328SB-ADZKM-DL-I1 is a 8MP Dual-Light bullet camera with a 2.8–12 mm motorised lens. It combines 120 dB WDR, smart ir up to 60 m; warm light up to 60 m for colour images, local microSD recording and smart perimeter detection. Its built-in microphone records on-scene audio, while the IP67/IK10 metal housing supports outdoor surveillance.

Specifications
Model IPC2328SB-ADZKM-DL-I1
Camera Type 8MP Dual-Light motorised varifocal bullet
Image Sensor 1/2.7″ CMOS
Maximum Resolution / Frame Rate 3840 × 2160, up to 25 fps
Lens 2.8–12 mm motorised varifocal, F1.4
Horizontal Field of View 111.5°–34.4°
Wide Dynamic Range 120 dB true WDR
Night Vision Smart IR up to 60 m; warm light up to 60 m for colour images
Smart Detection Smart Intrusion Prevention with human, motor-vehicle and non-motor-vehicle classification; people-flow counting and crowd-density monitoring
Compression Ultra 265, H.265, H.264, MJPEG
Local Storage MicroSD up to 512 GB
Audio Built-in microphone; no built-in speaker. Two-way audio via audio input/output with an external speaker
Network 1 × RJ45 10/100 Mbps
Integration ONVIF Profiles S/G/T/M, API, SDK
Power DC 12 V ±25% or IEEE 802.3af PoE; maximum 8.0 W
Protection IP67, IK10; 6 kV surge protection
Housing Metal
Dimensions 245 × 85 × 86 mm
Weight 0.93 kg
Audio I/O 1 input / 1 output
Alarm I/O 1 input / 1 output
Warranty (Australia) 3 years · CCTV Guru Australia

Downloads

Manufacturer specifications Datasheet User Manual User Manual Quick Guide

Frequently Asked Questions

What lens does it have?

2.8–12 mm motorised varifocal, F1.4. The motorised varifocal lens lets you adjust framing remotely.

How does it work at night?

Smart IR up to 60 m; warm light up to 60 m for colour images. Rated illumination distances are manufacturer maximums; scene conditions affect usable detail.

Does it support two-way audio?

Built-in microphone; no built-in speaker. Two-way audio via audio input/output with an external speaker.

Can it record locally?

It supports a microSD card up to 512 GB. A card must be fitted for local recording.

How is it powered?

DC 12 V ±25% or IEEE 802.3af PoE; maximum 8.0 W.

Is it suitable for outdoors?

Its metal housing is rated IP67 and IK10. Install and seal the connections according to the manufacturer guide.

What smart detection is available?

Smart Intrusion Prevention with human, motor-vehicle and non-motor-vehicle classification; people-flow counting and crowd-density monitoring.

Which recorder can it connect to?

It supports ONVIF Profiles S/G/T/M and Uniview integration. Supported analytics depend on the recorder and its firmware.
