IDIS 5MP FIXED BULLET SERIES · NDAA & TAA COMPLIANT
Expansive 5MP Wide-Angle Surveillance Encased in an All-Weather Environmental Shield

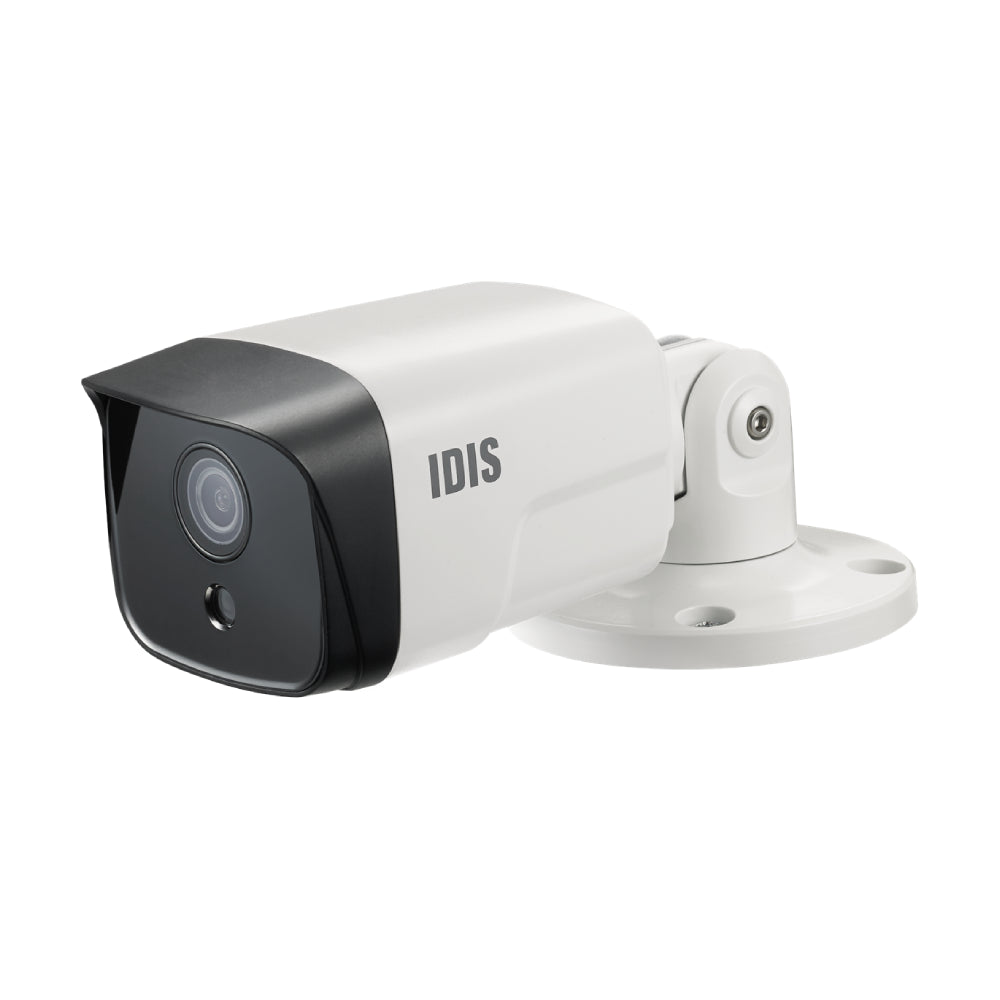

The IDIS DC-T4516WRX (2.8mm) brings high-density 5MP pixel resolution down to a streamlined, ultra-wide fixed footprint, creating a powerhouse choice for comprehensive perimeter protection. Equipped with a precision-ground 2.8mm fixed lens, this compact network bullet camera delivers an expansive horizontal perspective, maximizing situational awareness while eliminating blind spots along warehouse faces, retail rows, and compound fences. Built to satisfy strict global data protection protocols, its fully NDAA and TAA compliant pipeline ensures a cyber-hardened, defense-ready hardware endpoint approved for highly regulated sites.
Resolution
5MP High-Density Core
Optics Setup
2.8mm Wide Fixed Lens
Night Vision
30m Smart Adaptive IR
Protection
IP67 Weatherproof Shield
Dynamic Exposure Stabilization & High-Efficiency Stream Mapping
The DC-T4516WRX incorporates a rugged 3-axis mechanical bracket arm, allowing for smooth ceiling, wall, or soffit surface calibration with perfect physical locking security. Backed by a powerful 120dB True Wide Dynamic Range (WDR) processing engine, the camera continuously normalizes complex scenes marked by piercing sunlight and stark dark shadows, guaranteeing balanced forensic exposures at entryway glass lanes and shipping hubs. By pairing ultra-efficient H.265 compression streaming with proprietary IDIS Intelligent Codec logic, data pipeline overhead drops by up to 90%, yielding significant storage array relief while keeping pixel accuracy uncompromised. To construct a reliable, zero-leak corporate protection array, integrate this node into our broader IDIS security network.
True DirectIP Plug-and-Play Architecture
Running natively on the specialized IDIS DirectIP standard, this outdoor camera provides seamless, touchless network matching. Upstream recorders discover and bind the camera the moment the cable drops in, removing the administrative burden of manual port assignments and eliminating common security configuration errors.
Smart Edge Failover Architecture
Insulate crucial recording timelines against sudden network faults and core switch infrastructure dropouts. If a link breakage is encountered, the camera immediately re-routes high-definition frames onto its onboard MicroSD backup card slot. When connection pathways return, the data database smoothly reconciles back.
Technical Specification Matrix
| Camera Model |
DC-T4516WRX (2.8mm) |
| Optics Core |
5MP Wide-Angle Fixed Performance Core |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips / 15ips with WDR Active) |
| Lens Configuration |
Fixed-Focal f=2.8mm / F2.0 Fixed Iris |
| Angular Field of View |
96.0° (Horizontal) / 71.0° (Vertical) / 121.0° (Diagonal) |
| Smart IR Array |
Up to 30 Meters (98.4 Feet) with Adaptive Intensity Infrared LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Environmental Rating |
IP67 Weatherproof Shield / Heavy-Duty Bullet Chassis |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
Power over Ethernet (PoE) IEEE 802.3af (Class 3), Max. 7.5W |
What spatial advantages does the 2.8mm fixed lens configuration provide?
A 2.8mm fixed lens delivers a wide 96-degree horizontal field of view. This makes it optimized for monitoring wide geometric areas—such as building facades, storage lots, or property corners—capturing a broad area in a single frame without needing multiple overlapping camera placements.
How does Smart IR adjust exposure when targets approach the camera close up?
Standard infrared systems can overexpose targets moving near the lens, wiping out facial characteristics in a bright white blur. The camera's adaptive Smart IR balance measures reflection returns dynamically, automatically scaling back LED emission power to maintain crisp forensic contours at close range.
Is the DC-T4516WRX approved for government sites and secure supply chains?
Yes. The DC-T4516WRX is fully compliant with both the National Defense Authorization Act (NDAA) and Trade Agreements Act (TAA). It completely avoids internal chip components or software platforms sourced from restricted or banned telecom brands, making it fully authorized for federal use cases.
Can this bullet camera operate under direct rain exposure and harsh winters?
Absolutely. Boasting a robust IP67 structural environmental classification, this device is built completely dust-tight and is verified against intense downpours and blowing snow. Its integrated metal sunshield also shades the lens optics from direct noon glare and heavy vertical rainfall.
