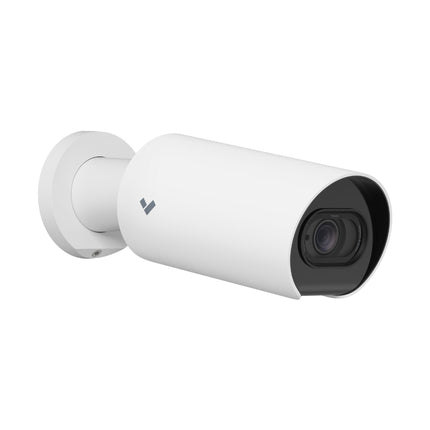

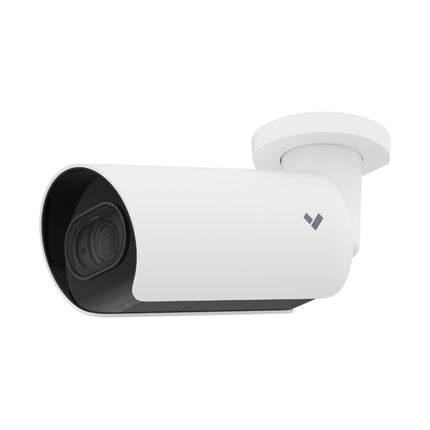

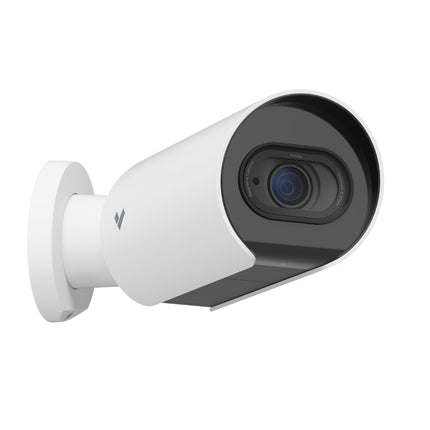

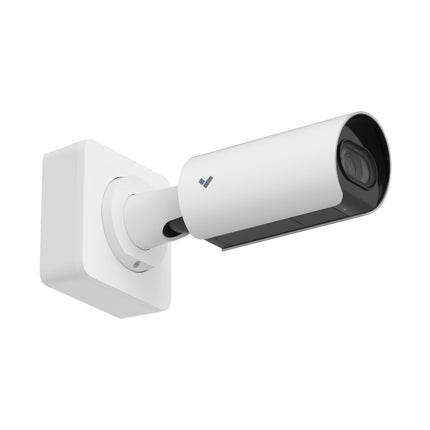

Verkada CB62-TE Outdoor Motorised Bullet Camera, 4K, 8-20mm Telephoto Lens, Up to 90 Days

Description

Verkada CB62-TE Outdoor Motorised Bullet Camera, 4K, 8-20mm Telephoto Lens, 512GB or 2TB Storage, Up to 90 Days of Retention

Unleash the full potential of your surveillance system with this advanced 4K bullet camera. Equipped with a versatile telephoto zoom lens and intelligent edge-based analytics, this camera captures crystal-clear images and provides advanced security features. Plus, with a 4K image resolution and an exceptional focal length range of 8-20 mm, you can monitor every detail of your surroundings with ease. With an IP67 and IK10 rating, this camera is built to withstand tough outdoor conditions, and its 50 meter IR range ensures reliable coverage day and night. Trust in the power of Verkada CB62-TE for up to 90 days of continuous surveillance.

Camera features

  • Image Sensor
    1 / 2.8” Progressive CMOS
  • Sensor Resolution1
    4K (3840 x 2160)
  • Lens Type
    Varifocal; motorized zoom
  • Focal Length
    8mm – 20mm
  • Aperture
    F1.5 – F2.8
  • Iris
    P–Iris
  • Field of View (LDC ON2)
    Horizontal: 42° - 17° (41° - 17°)
    Vertical: 23° - 9° (23° - 9°)
    Diagonal: 48° - 19° (46° - 19°)
  • Camera Movement
    Tilt: 0° to 90°
    Pan: 360°
    Rotation: 360°
  • Shutter Speed
    1 / 30 sec. to 1 / 10,000 sec.
  • Day/Night
    IR-cut filter for day and night function
  • IR Cut Filter
    Yes
  • IR Range
    50m / 164ft
  • Minimum Illumination
    0.009 lux @ F1.9 (Color)
    0 lux with IR Illuminators on
  • Onboard Storage
    Capacity: From 512GB to 2TB
    Card: MicroSD, SDXC
  • CPU
    Ambarella CV22S66

Standard video settings

  • Compression
    H.265, H.264
  • Frame Rate4
    24fps
  • Live Streaming Settings
    High quality (HQ): Up to 4,500 Kbps (default)
    Standard quality (SQ): Up to 600 Kbps
  • Historical Video Settings
    Adaptive quality1

Standard audio settings

  • Audio
    Not supported

Power and network

  • Power Input3
    With IR: IEEE 802.3at Type 2 PoE+
    Without IR: IEEE 802.3af Type 1 PoE
    Extended temperature range: IEEE 802.3at Type 2 PoE+
  • Power Consumption
    With IR: 37-57V, 0.4-0.26A, 14.88W
    Without IR: 37-57V, 0.11-0.08A, 4.34W
    Extended temperature range: 37-57V, 0.64-0.39A, 23.68W
  • Connectivity
    RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
  • RTSP
    RTSP 1.0
    RFC 2326
    Max concurrent streams: 2
    Audio support: No

General

  • Operating Temperature
    -40°C to 50°C / -40°F to 122°F
  • Humidity
    0 to 90%
  • Certifications
    For hardware certification information, please visit verkada.com/compliance
  • LED Indicator
    System power and status indicator
  • Warranty
    10 Years
  • Included Accessories
    4x M4x8 screws, 4x TP4x30 mount screws, mount plate, junction box adapter, junction box cover, T25 hand tool

Mechanical

  • Weight
    Camera: 1478g / 52.1oz
    Mount plate: 33g / 1.16oz
  • Dimensions
    Ø: 85mm / 3.35in L: 254mm / 10in
  • Body
    Aluminum

Software capabilities

  • Alerts
    Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
  • Streaming and storage
    Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
  • People analytics
    People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search5
  • Sharing and privacy
    Live Links, live face blur, privacy regions, audit log
  • Vehicle analytics
    Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search5
  • License Plate Recognition
    License Plate of Interest alerts, license plate indexing

1 All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2 Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3 Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4 Frame rate can be adjusted by support.
5 AI-powered search is currently supported in English only.

Downloads

CB62-TE Datasheet
CB62-TE Full Install Guide
Verkada Accessory List

Verkada CB62-TE Outdoor Motorised Bullet Camera, 4K, 8-20mm Telephoto Lens, Up to 90 Days

Product form

SKU: CB62-512TE-HW

$3,113.00 Incl. GST
