Description

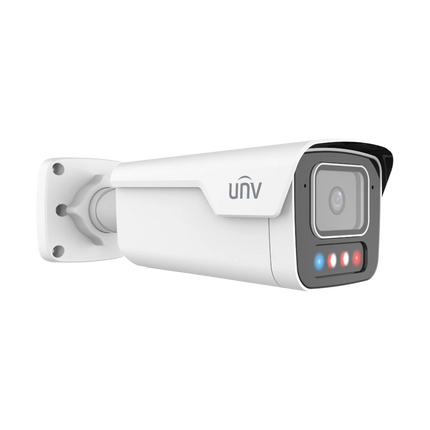

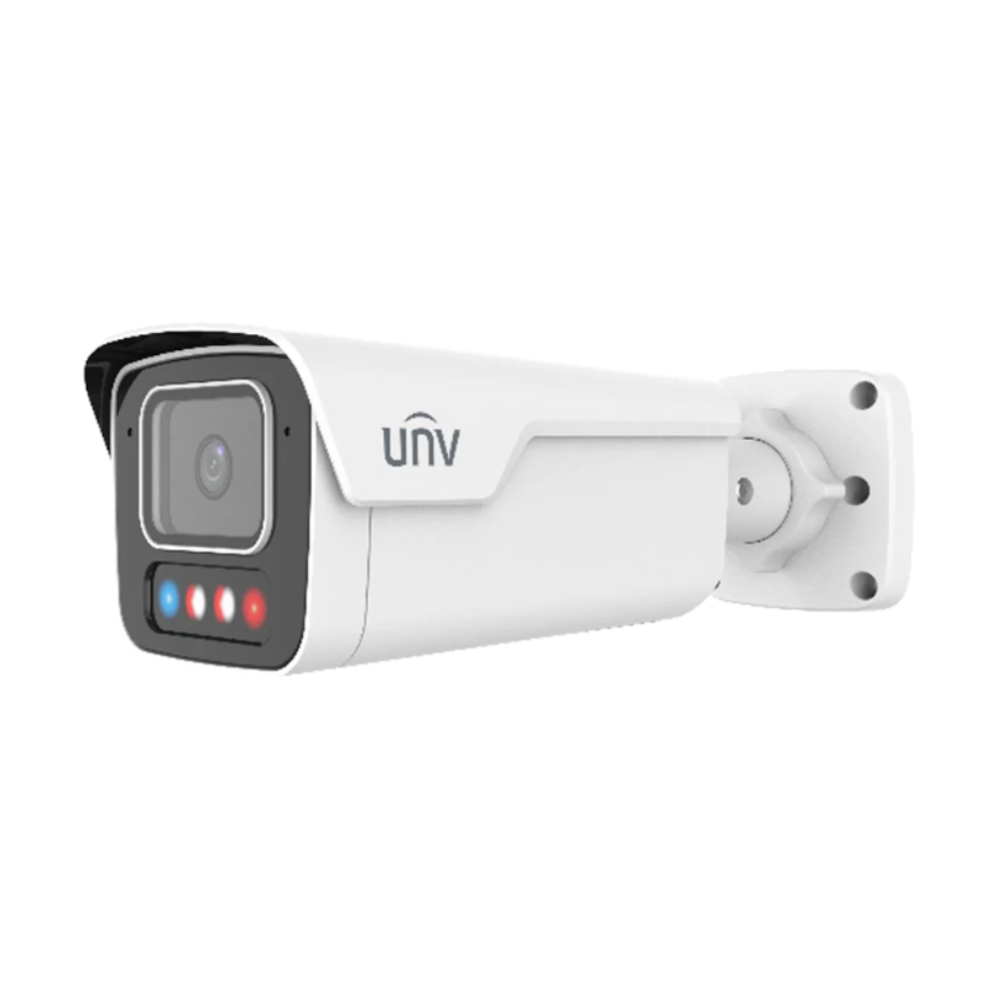

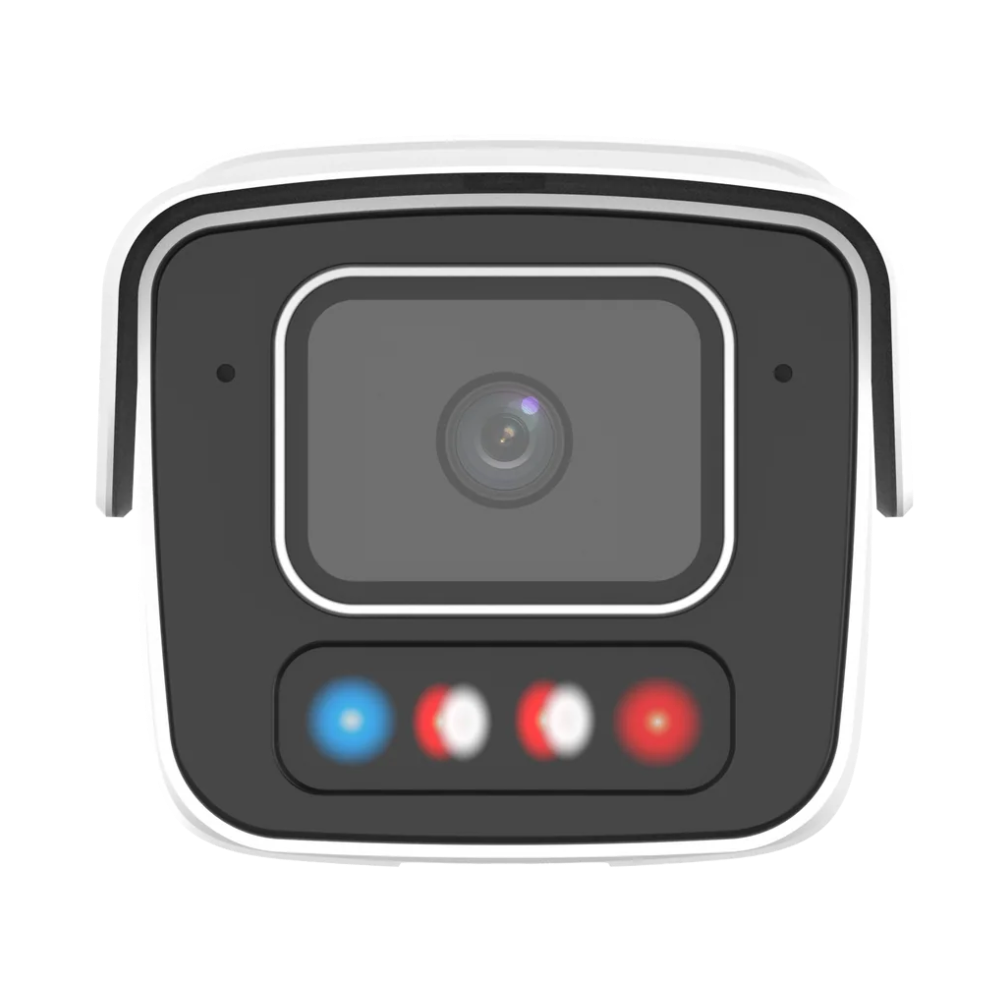

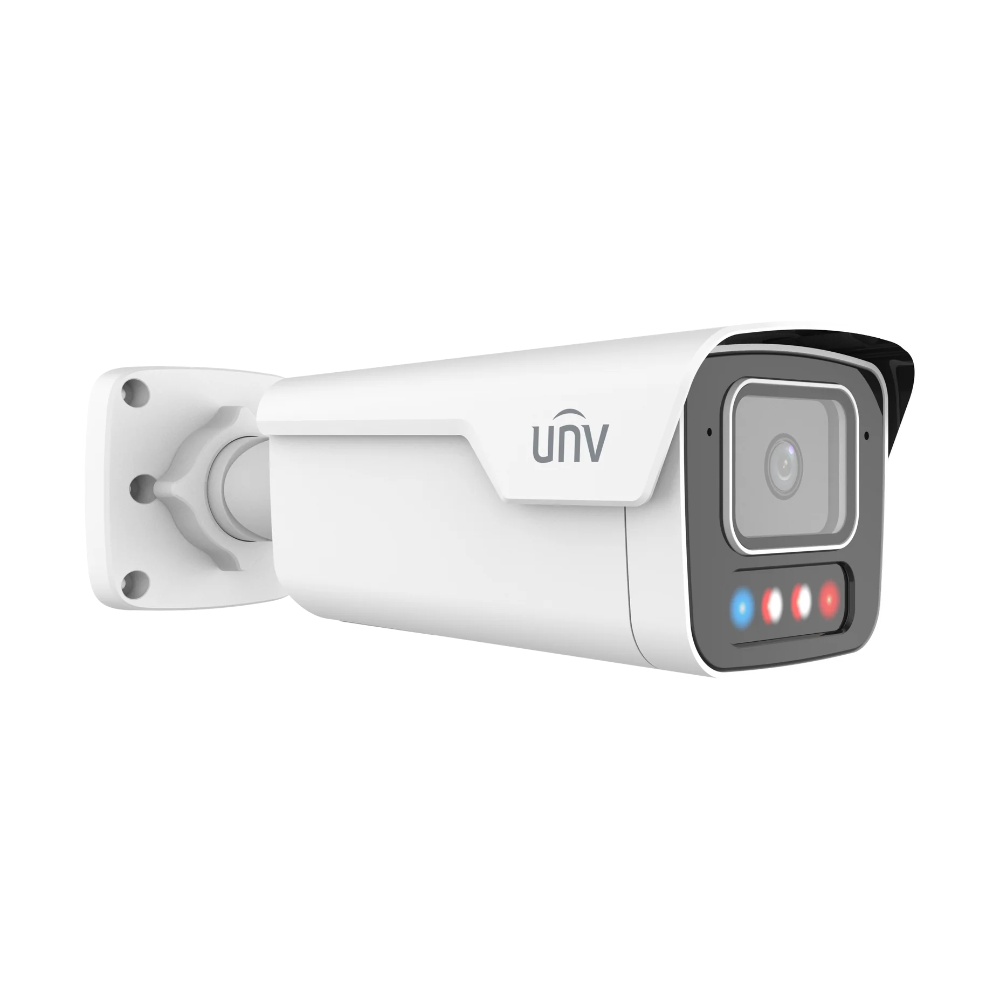

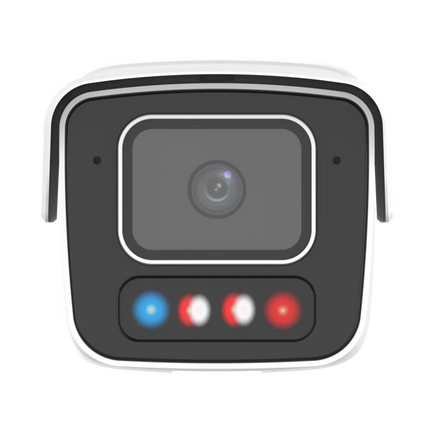

The Uniview UNV IPC2B16SE-ADF28KMC-WP-I1 is a professional 6MP OwlView Plus Tri-Guard fixed bullet IP camera designed for long-range, full-colour surveillance and intelligent analytics. Featuring a 1/1.8″ CMOS sensor, F1.0 large-aperture 2.8 mm lens, and ColorHunter with Wise-ISP, it delivers clear, vibrant images even in extremely low-light environments.
This model combines dual-light illumination (IR + warm white light) with advanced AI-based intrusion prevention, people flow counting, and crowd density monitoring, dramatically reducing false alarms by accurately classifying humans, vehicles, and non-motor vehicles. With IK10 vandal resistance, IP67 weatherproofing, NEMA 4X protection, and NDAA compliance, it is ideal for demanding commercial, industrial, and government installations.
Key Features & Highlights
-
6MP High Resolution – 3072 × 2048 @ up to 30 fps
-
2.8 mm Fixed Wide-Angle Lens, F1.0 aperture
-
ColorHunter + Wise-ISP – 24/7 full-colour images
-

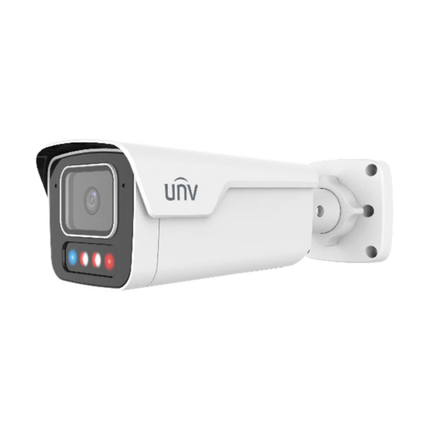

Tri-Guard Dual-Light – Smart IR + warm light, up to 40 m
-
130 dB True WDR – Excellent backlight handling
-
AI Smart Intrusion Prevention – Human / vehicle / non-motor classification
-
People Flow Counting & Crowd Density Monitoring
-
Built-in Dual Microphones & Speaker – Two-way audio
-
Alarm I/O 1/1, Audio I/O 1/1
-
microSD Edge Storage up to 512 GB
-
IK10, IP67, NEMA 4X – Vandal-resistant & outdoor-ready
-
Ultra 265 / H.265 / H.264 / MJPEG compression
-
PoE (IEEE 802.3af) or 12 V DC power
- NDAA Section 889 compliant
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC2B16SE-ADF28KMC-WP-I1 |
| Camera Type |
6MP OwlView Plus Tri-Guard Fixed Bullet IP Camera |
| Image Sensor |
1/1.8" Progressive CMOS |
| Maximum Resolution |
6MP (3072 × 2048) @ 30 fps |
| Lens |
2.8 mm Fixed Lens, F1.0 |
| Field of View |
H: 111.0° / V: 61.4° / D: 133.0° |
| Minimum Illumination |
0.0003 Lux (Colour, F1.0, AGC ON) |
| Illumination |
Dual-light: IR + Warm Light, up to 40 m |
| WDR |
130 dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Analytics |
Line crossing, intrusion, enter/leave area, people counting, crowd density |
| Audio |
Built-in dual mic & speaker, Audio I/O 1/1 |
| Alarm I/O |
1 / 1 |
| Edge Storage |
microSD up to 512 GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
PoE (IEEE 802.3af) / DC 12 V |
| Power Consumption |
Max. 5.0 W |
| Protection Rating |
IP67, IK10, NEMA 4X |
| Operating Temperature |
-40 °C to 60 °C |
| Compliance |
NDAA Section 889 compliant |
Recommended Applications
- Retail & shopping centres (people counting)
- Warehouses & logistics facilities
- Car parks & perimeter security
- Commercial & industrial sites
- Government & NDAA-required projects
