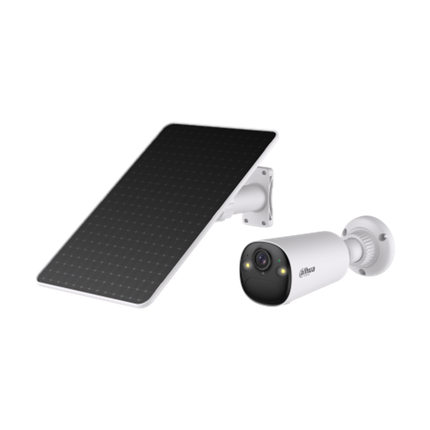

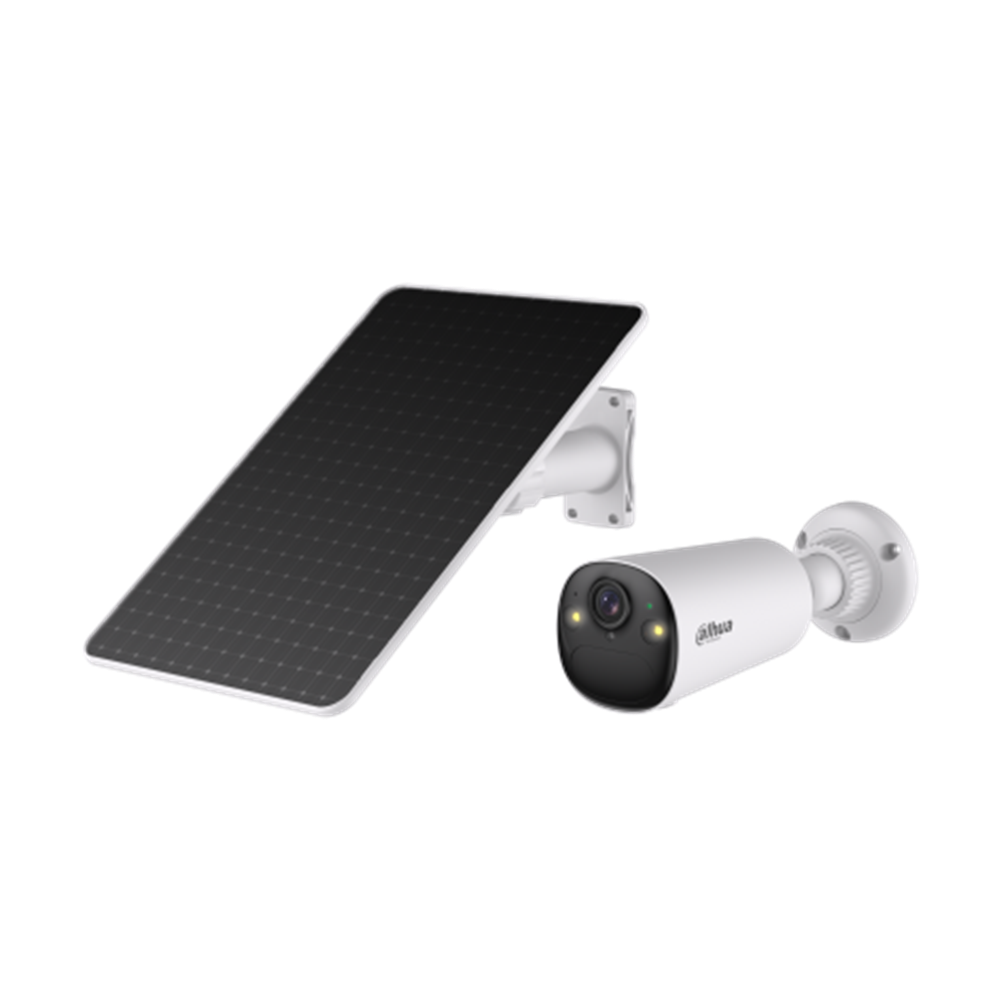

DAHUA · WIRELESS SECURITY CAMERASDahua DH-BF4CP-XL/M0508 4MP Battery & Solar Wi-Fi Security Camera Kit
Cover an entrance, shed or outbuilding without running a mains power cable to the camera. The Dahua DH-BF4CP-XL/M0508 combines a 4MP battery-powered Wi-Fi bullet camera with a supplied solar module, providing a compact solar security camera solution where a suitable Wi-Fi signal and sunlight are available.
System
DH-KIT/BF4CP-XL/M0508 solar monitoring kit
Resolution
4MP, 2560 × 1440 at up to 15 fps
Image sensor
1/3-inch CMOS
Designed for your installation
A wide 122.5° horizontal view suits general property monitoring. PIR-assisted detection, human and vehicle classification, a built-in microphone and speaker, and warm-light illumination help you assess visitors and respond through compatible Dahua software.
122.5° horizontal, 66° vertical
Night illumination
Up to 15 m IR and 20 m warm light
2.4 GHz / 5 GHz Wi-Fi, Bluetooth-assisted pairing
PIR, human and vehicle classification, low-power AOV modes
Technical Specifications
| Model |
DH-BF4CP-XL/M0508 |
| System |
DH-KIT/BF4CP-XL/M0508 solar monitoring kit |
| Resolution |
4MP, 2560 × 1440 at up to 15 fps |
| Image sensor |
1/3-inch CMOS |
| Lens |
2.1 mm fixed, F1.6 |
| Field of view |
122.5° horizontal, 66° vertical |
| Night illumination |
Up to 15 m IR and 20 m warm light |
| Wireless |
2.4 GHz / 5 GHz Wi-Fi, Bluetooth-assisted pairing |
| Detection |
PIR, human and vehicle classification, low-power AOV modes |
| Audio |
Built-in microphone and speaker, two-way talk |
| Local storage |
microSD up to 512 GB, card sold separately |
| Battery |
32.4 Wh |
| Charging input |
USB 5 VDC, 2 A |
| Weather protection |
IP66 |
| Operating temperature |
−20°C to +60°C |
| Package |
Camera, solar module, power cable, mounting hardware and quick guide |
Setup and compatibility
This is a Wi-Fi camera, not a 4G or PoE camera. Battery runtime and solar charging depend on sunlight, recording mode, activity and temperature. Position the solar panel for direct sun and check Wi-Fi coverage at the intended mounting point.
Downloads
DH-BF4CP-XL/M0508 Datasheet (PDF)
Frequently asked questions
Can DH-BF4CP-XL/M0508 record to a microSD card?
Yes. microSD up to 512 GB, card sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
This is a Wi-Fi camera, not a 4G or PoE camera. Battery runtime and solar charging depend on sunlight, recording mode, activity and temperature. Position the solar panel for direct sun and check Wi-Fi coverage at the intended mounting point.
Where can I download the DH-BF4CP-XL/M0508 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
