IDIS LIGHTMASTER LPR SERIES · NDAA & TAA COMPLIANT
Precision License Plate Capture Driven by Advanced LightMaster Low-Light Analytics

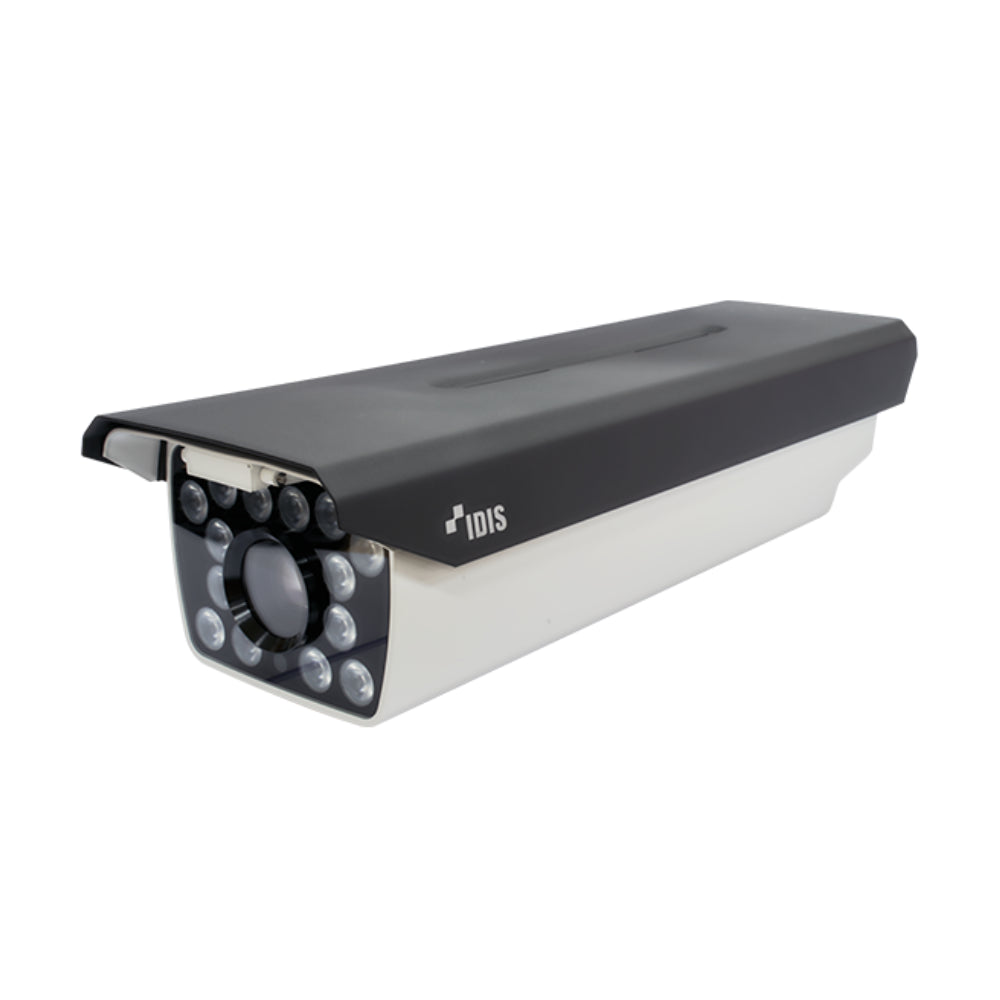

The IDIS DC-T6224HRXL is a specialized 2MP high-definition network bullet camera purposefully engineered for specialized vehicle tracking, gate access control, and dedicated License Plate Recognition (LPR/ANPR) lanes. Powered by premium IDIS LightMaster technology, this hardware endpoint retains vivid color and ultra-sharp contrast where traditional sensors scramble under headlight glare or dark highway environments. Fully certified to meet stringent NDAA and TAA compliance baselines, its cyber-hardened architecture is tailored for reliable performance along automated entrances, security perimeters, and municipal traffic choke points.
Application
License Plate Capture
Lens Framework
9-22mm Varifocal (Tele)
Plate IR Range
Up to 20m Smart IR
Protection
IP67 Weatherproof Shield
Remote Telephoto Adaptability & High-Velocity Forensic Capture
Outfitted with a specialized 9mm to 22mm motorized varifocal telephoto lens core, the DC-T6224HRXL lets system managers remotely zoom and lock focus onto target approach zones without manually fine-tuning hardware in the field. Integrated 120dB True Wide Dynamic Range (WDR) processing eliminates blinding tail-light blooms and morning solar flareovers, maintaining crisp retroreflective character separation across moving vehicle plates. Leveraging advanced H.265 compression protocols with proprietary IDIS Intelligent Codec logic, back-end network bandwidth demands drop by up to 90%, preserving system resources while maintaining maximum forensic viability. To secure a seamless, low-latency vehicle access infrastructure, pair this camera with our compliant IDIS hardware ecosystem.
True DirectIP Zero-Config Integration
Operating natively over the proprietary IDIS DirectIP framework, this plate capture camera enables painless plug-and-play network deployment. Centralized recording engines instantly identify, map, and secure the endpoint data pipeline upon connection, bypassing labor-intensive IP setups while hardening system security layers.
Onboard Smart Failover Safeguard
Protect vital forensic logging timelines against unstable network connections and unexpected switch power interruptions. If an upstream disconnection occurs, the camera diverts high-speed recording data directly onto its integrated internal MicroSD card slot. Once core connectivity recovers, the database smoothly backfills to the central array.
Technical Specification Matrix
| Camera Model |
DC-T6224HRXL |
| Optics Architecture |
IDIS LightMaster Ultra Low-Light Performance Architecture |
| Image Sensor |
1/2" Progressive Scan CMOS Sensor |
| Max. Resolution |
1920 x 1080 (2MP @ 30ips with WDR Active) |
| Lens Configuration |
Motorized Varifocal Telephoto (f=9.0mm to 22.0mm) / F1.6 to F2.14 |
| Angular Field of View |
34.4° ~ 15.5° (Horizontal) / 19.5° ~ 8.7° (Vertical) / 39.4° ~ 17.8° (Diagonal) |
| Plate Capture IR Distance |
Up to 20 Meters (65.6 Feet) with Optimized High-Output Adaptive IR LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Environmental Rating |
IP67 Weatherproof Shield / Heavy-Duty All-Weather Housing |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
Power over Ethernet (PoE) IEEE 802.3af (Class 3), Max 8.6W / 12V DC |
What specific advantages does the 9-22mm telephoto lens bring to plate capture?
Standard cameras use wide lenses that dilute pixel density over distance. The DC-T6224HRXL features an adjustable 9mm to 22mm telephoto lens range. This creates a narrower, highly concentrated field of view (down to 15.5 degrees horizontal), ensuring characters on license plates fill enough pixels to guarantee flawless forensic legibility from distance.
How does LightMaster technology counteract blinding vehicle headlights at night?
Traditional night-vision sensors easily wash out when directly exposed to high-beams, rendering plates unreadable. LightMaster merges a highly sensitive 1/2" sensor with fast shutter control and specialized adaptive IR filtering. This balance suppresses glare while brightly highlighting the retroreflective background of registration plates.
Is this LPR bullet camera fully certified for federal and enterprise security infrastructure?
Yes. The DC-T6224HRXL is completely NDAA and TAA compliant. It contains no microprocessors, software architectures, or code components from restricted or blacklisted telecom manufacturers, making it fully approved for high-compliance military, corporate, and municipal deployments.
Can the camera perform reliably in unprotected, extreme storm environments?
Absolutely. Boasting a robust IP67 weatherproof rating, this housing is completely sealed against blowing dust, downpours, and severe outdoor weather shifts. The integrated mechanical sunshield also protects the lens glass from heavy rain wash and midday solar overexposure.
