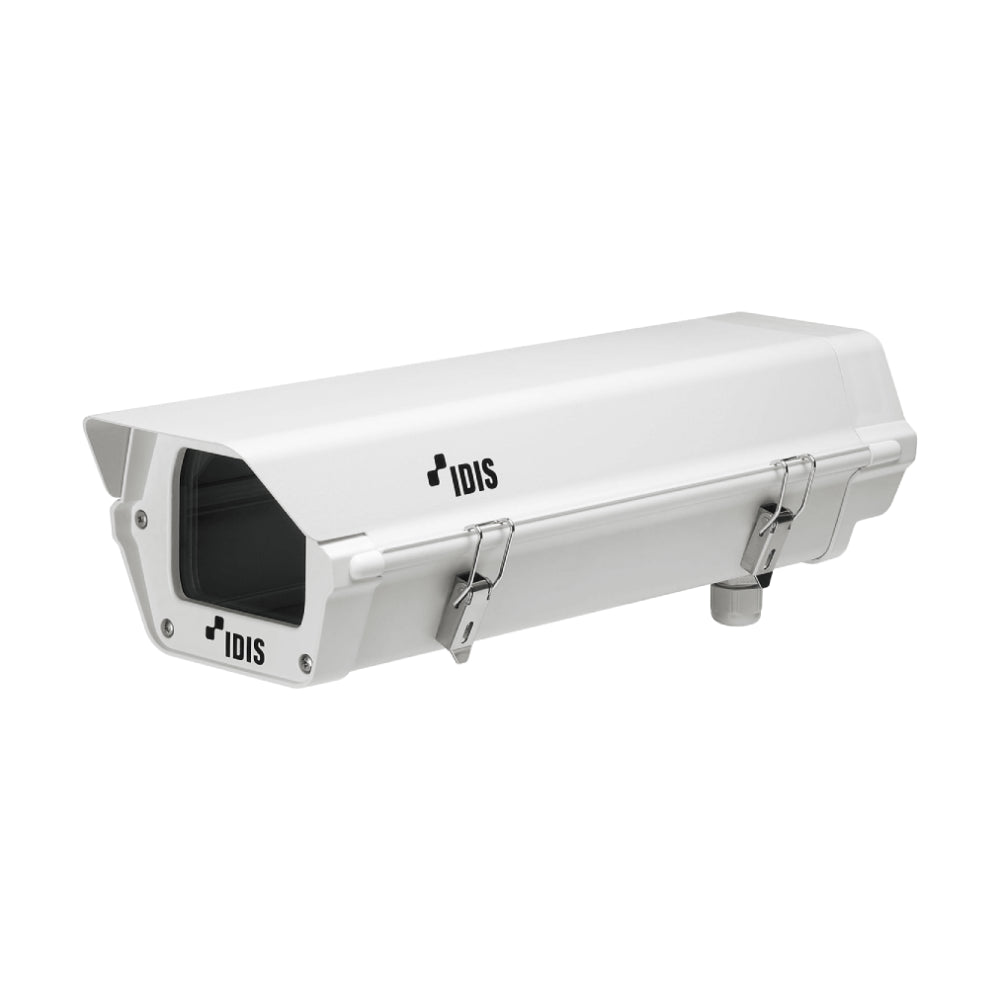

IDIS DA-BH1100 Outdoor Surveillance Box Camera Housing Enclosure

Description

IDIS VIDEO SURVEILLANCE · COMMERCIAL-GRADE CAMERA ENCLOSURES · NDAA & TAA COMPLIANT

Heavy-Duty Weatherproof Protective Box Housing for Fixed Surveillance Cameras

The IDIS DA-BH1100 is an enterprise-grade box housing enclosure engineered to safeguard professional fixed focal and varifocal surveillance cameras from challenging environmental hazards. Designed for both high-end commercial interiors and exposed outdoor perimeter configurations, this rugged enclosure protects sensitive camera bodies, optical lenses, and internal wiring infrastructure. By creating an insulated barrier against airborne dust, humidity, and accidental mechanical impacts, the DA-BH1100 guarantees consistent operational stability and maximizes the lifecycle of your high-definition box camera hardware.

Enclosure Type
Fixed Box Housing
Shell Footprint
438mm Length Profile
Native Mounting
Pairs with DA-WM1500
Compliance Class
NDAA & TAA Certified

Precision Structural Integration for Seamless Hardware Deployment

Engineered for seamless field deployment, the IDIS DA-BH1100 features a highly serviceable layout that simplifies ongoing camera adjustments and maintenance routines. Its spacious interior chamber comfortably accommodates a broad cross-section of professional security hardware, leaving sufficient space for clean cable positioning and optical focal adjustments. Designed to drop perfectly onto the dedicated IDIS DA-WM1500 heavy-duty wall mount bracket, this structural enclosure ensures a stable, vibration-resistant mount point—minimizing motion blur across high-resolution telephoto feeds or analytical streaming fields.

Integrated Top Protective Canopy

Features an extended overhead shield that deflects direct, harsh sunlight to reduce glare and heat soak, while keeping rainwater droplets off the main viewport glass for clearer, unobstructed daytime recordings.

Clean Sealed Pass-Through Ports

Equipped with isolated rear deployment ports that keep power and network connections safe from exposure, preventing moisture tracking along your critical infrastructure cables.

Technical Specification Matrix
Accessory Model Identifier DA-BH1100
Mechanical Component Type Protective Physical Box Housing Camera Enclosure Shield
Physical Dimensions (L x W x H) 438.1 mm x 147.2 mm x 107.3 mm (17.25" x 5.80" x 4.23")
Net Structural Weight 1.0 kg (2.20 lbs)
Dedicated Structural Mount Partner IDIS DA-WM1500 Heavy-Duty Wall Mount Bracket
Native Camera Adaptability Focus DC-B1303, DC-B1803, DC-Z1263, TC-B5501X, TC-B5501XP, TC-B4202X, TC-B4201XP
External Surface Paint Finish Powder-Coated Industrial Off-White Shield (Anti-Corrosion UV Protection)
Chamber Cable Access Path Rear-sealed moisture-isolated isolation grommets
Installation Environment Scope Adaptive Indoor Commercial & Weatherproof Outdoor System Layouts
Optical Viewport Element High-Transmittance Distortion-Free Ground Optical Glass Panel
Access Style Architecture Side-hinged clamshell flip top for unrestricted hardware servicing
Government Standards Alignment Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
Does the DA-BH1100 housing include an internal camera wall mount bracket inside the box?

No, the DA-BH1100 is the protective structural outer enclosure itself. To anchor this system securely to an exterior surface or facade, it should be paired with its native mounting accessory, the IDIS DA-WM1500 wall mount bracket.

Which IDIS surveillance box cameras are verified to fit natively inside this enclosure?

This housing is engineered to accommodate a variety of IDIS box cameras and zoom cameras, including the DC-B1303, DC-B1803, DC-Z1263 series, as well as the TC-B5501X, TC-B5501XP, TC-B5502X, TC-B4202X, and TC-B4201XP models.

Will this housing fit long, high-magnification varifocal security lenses?

Yes. Thanks to its generous 438mm (17.25-inch) external shell length, the interior chassis provides ample room to mount standard industrial box cameras outfitted with specialized, extended telephoto lenses or C/CS mount adapters.

Is the top sunshield canopy adjustable or removable for maintenance?

The integrated top canopy is fixed firmly to ensure maximum weather resistance and rigidity against strong winds. However, the housing itself features a wide-opening architectural flip-top design that makes swapping lenses or updating field wiring effortless.

Technical Specification Installation Manual
Genuine IDIS Component
NDAA & TAA Certified
Fast Shipping Australia-Wide

IDIS DA-BH1100 Outdoor Surveillance Box Camera Housing Enclosure

Product form

SKU: DA-BH1100

IDIS VIDEO SURVEILLANCE · COMMERCIAL-GRADE CAMERA ENCLOSURES · NDAA & TAA COMPLIANT Heavy-Duty Weatherproof Protective Box Housing for Fixed Surveillance... Read more

$90.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    IDIS VIDEO SURVEILLANCE · COMMERCIAL-GRADE CAMERA ENCLOSURES · NDAA & TAA COMPLIANT

    Heavy-Duty Weatherproof Protective Box Housing for Fixed Surveillance Cameras

    The IDIS DA-BH1100 is an enterprise-grade box housing enclosure engineered to safeguard professional fixed focal and varifocal surveillance cameras from challenging environmental hazards. Designed for both high-end commercial interiors and exposed outdoor perimeter configurations, this rugged enclosure protects sensitive camera bodies, optical lenses, and internal wiring infrastructure. By creating an insulated barrier against airborne dust, humidity, and accidental mechanical impacts, the DA-BH1100 guarantees consistent operational stability and maximizes the lifecycle of your high-definition box camera hardware.

    Enclosure Type
    Fixed Box Housing
    Shell Footprint
    438mm Length Profile
    Native Mounting
    Pairs with DA-WM1500
    Compliance Class
    NDAA & TAA Certified

    Precision Structural Integration for Seamless Hardware Deployment

    Engineered for seamless field deployment, the IDIS DA-BH1100 features a highly serviceable layout that simplifies ongoing camera adjustments and maintenance routines. Its spacious interior chamber comfortably accommodates a broad cross-section of professional security hardware, leaving sufficient space for clean cable positioning and optical focal adjustments. Designed to drop perfectly onto the dedicated IDIS DA-WM1500 heavy-duty wall mount bracket, this structural enclosure ensures a stable, vibration-resistant mount point—minimizing motion blur across high-resolution telephoto feeds or analytical streaming fields.

    Integrated Top Protective Canopy

    Features an extended overhead shield that deflects direct, harsh sunlight to reduce glare and heat soak, while keeping rainwater droplets off the main viewport glass for clearer, unobstructed daytime recordings.

    Clean Sealed Pass-Through Ports

    Equipped with isolated rear deployment ports that keep power and network connections safe from exposure, preventing moisture tracking along your critical infrastructure cables.

    Technical Specification Matrix
    Accessory Model Identifier DA-BH1100
    Mechanical Component Type Protective Physical Box Housing Camera Enclosure Shield
    Physical Dimensions (L x W x H) 438.1 mm x 147.2 mm x 107.3 mm (17.25" x 5.80" x 4.23")
    Net Structural Weight 1.0 kg (2.20 lbs)
    Dedicated Structural Mount Partner IDIS DA-WM1500 Heavy-Duty Wall Mount Bracket
    Native Camera Adaptability Focus DC-B1303, DC-B1803, DC-Z1263, TC-B5501X, TC-B5501XP, TC-B4202X, TC-B4201XP
    External Surface Paint Finish Powder-Coated Industrial Off-White Shield (Anti-Corrosion UV Protection)
    Chamber Cable Access Path Rear-sealed moisture-isolated isolation grommets
    Installation Environment Scope Adaptive Indoor Commercial & Weatherproof Outdoor System Layouts
    Optical Viewport Element High-Transmittance Distortion-Free Ground Optical Glass Panel
    Access Style Architecture Side-hinged clamshell flip top for unrestricted hardware servicing
    Government Standards Alignment Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
    Does the DA-BH1100 housing include an internal camera wall mount bracket inside the box?

    No, the DA-BH1100 is the protective structural outer enclosure itself. To anchor this system securely to an exterior surface or facade, it should be paired with its native mounting accessory, the IDIS DA-WM1500 wall mount bracket.

    Which IDIS surveillance box cameras are verified to fit natively inside this enclosure?

    This housing is engineered to accommodate a variety of IDIS box cameras and zoom cameras, including the DC-B1303, DC-B1803, DC-Z1263 series, as well as the TC-B5501X, TC-B5501XP, TC-B5502X, TC-B4202X, and TC-B4201XP models.

    Will this housing fit long, high-magnification varifocal security lenses?

    Yes. Thanks to its generous 438mm (17.25-inch) external shell length, the interior chassis provides ample room to mount standard industrial box cameras outfitted with specialized, extended telephoto lenses or C/CS mount adapters.

    Is the top sunshield canopy adjustable or removable for maintenance?

    The integrated top canopy is fixed firmly to ensure maximum weather resistance and rigidity against strong winds. However, the housing itself features a wide-opening architectural flip-top design that makes swapping lenses or updating field wiring effortless.

    Technical Specification Installation Manual
    Genuine IDIS Component
    NDAA & TAA Certified
    Fast Shipping Australia-Wide
