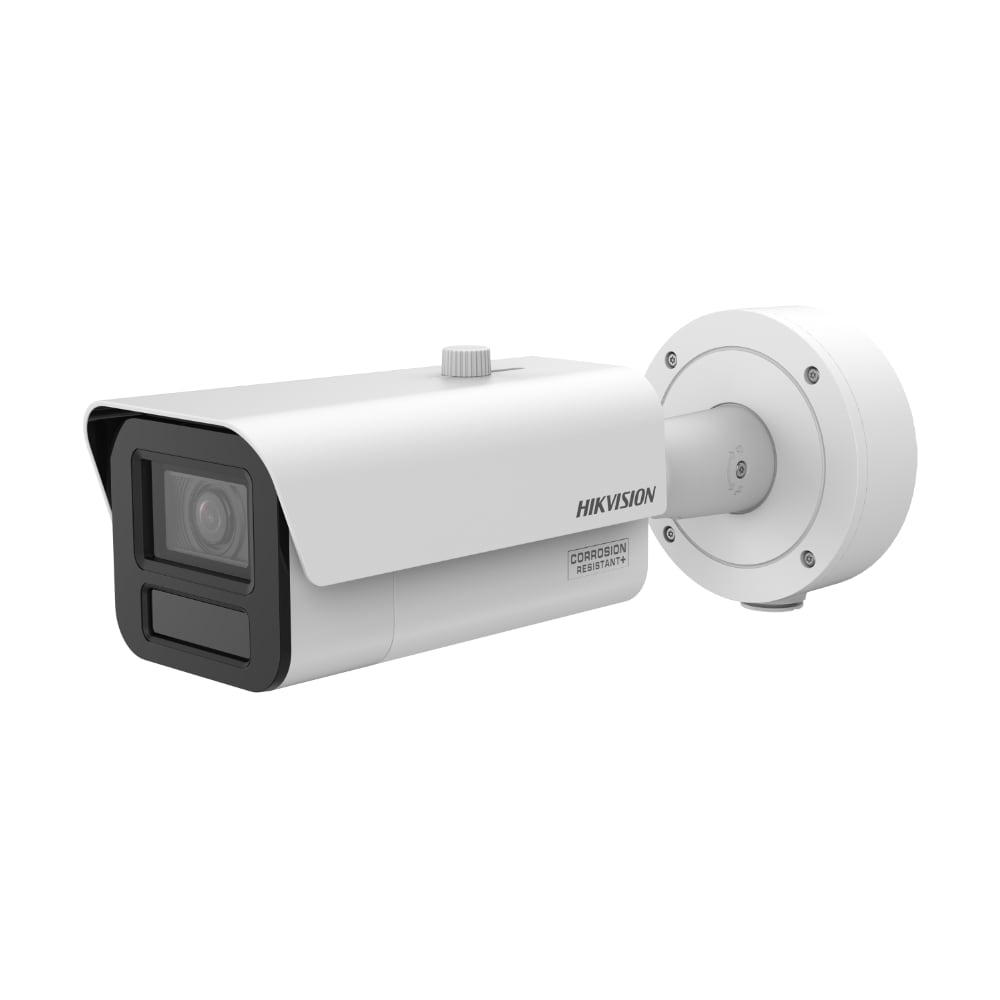

Hikvision iDS-2CD7A45G2/P-IZHSY — 4MP DeepinView ANPR Bullet · 4.7–118 mm Long-Range Motorised Zoom (25×)

Description

Hikvision DeepinView · 4MP ANPR Bullet · 25× Long-Range Zoom · AcuSeek Ready · 200 m IRHikvision 4MP ANPR Bullet

Hikvision iDS-2CD7A45G2/P-IZHSY — 4MP DeepinView ANPR Bullet · 4.7–118 mm Long-Range Motorised Zoom

The Hikvision iDS-2CD7A45G2/P-IZHSY is Hikvision's long-range ANPR specialist — a 4MP DeepinView bullet built for sites where the camera mounts well back from the plate. It pairs a 1/2.7" progressive-scan CMOS sensor with a 4.7–118 mm motorised varifocal lens (25× optical zoom), 200 m IR illumination, DarkFighter 2.0 ultra-low-light, 150 dB AWDR and a NEMA 4X anti-corrosion housing (the -Y suffix). Because it can read a number plate at telephoto from over 100 m away, it's the right camera for multi-lane boomgates, freeway off-ramps, council carparks, toll-points, freight yards, marina entries and large industrial gates — anywhere the install geometry makes Hikvision's shorter A46G2 lens options impractical.

The G2-generation DeepinView platform runs licence plate recognition with ≥98% accuracy across 124+ countries and regions, captures full vehicle attributes (type / colour / brand / direction), supports a 50,000-record blocklist/allowlist, and includes parking-space management — up to 40 spaces in far-view mode or 4 spaces in close-view mode — and reverse-plate secondary capture for paid carparks. Native AcuSeek support means every captured plate, vehicle, person and non-motorised vehicle feeds the natural-language video-search engine on a compatible Hikvision NVR. HEOP 2.0 opens the camera to third-party deep-learning models (Caffe / PyTorch / TensorFlow). Cyber-secure with TPM 2.0 (FIPS 140-2 Level 2). Australian stock, 3-year Australian warranty.

Resolution
4MP · 2688 × 1520 · up to 120 fps
Long-Range Zoom
4.7–118 mm · 25× Motorised
ANPR Engine
On-camera LPR · 50,000 records
Night Vision
DarkFighter 2.0 · 200 m IR
Protection
IP67 · IK10 · NEMA 4X
Power
PoE+ 802.3at · 12 VDC · 24 VAC
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support

Why Choose the iDS-2CD7A45G2/P-IZHSY for Long-Range Australian ANPR

This camera exists for one job: read the plate from a long way off. Where the shorter A46G2 lens options top out at around 40 m identification distance, the A45G2's 4.7–118 mm 25× motorised zoom can identify a number plate at 110 m at full tele and detect a vehicle at 687 m. That changes what's possible at install: the camera can be mounted high on a pole well back from the gate, well outside the boomgate vandal zone, well clear of the truck-strike line at a freight yard, and still pull a clean plate every time.

25× Motorised Zoom — Plates at 110 m

The 4.7–118 mm motorised varifocal pulls tight on a single plate from up to 110 m away at telephoto, while still backing out to 4.7 mm wide-angle for general overview. One lens, one cable run, two cameras' worth of jobs.

200 m IR Range — Sees in the Dark

Smart IR illumination out to 200 m means the camera reads plates at midnight on un-lit access roads, freeway off-ramps, freight yards and rural gates — without needing supplementary white light that washes out drivers' eyes.

50,000-Record Blocklist / Allowlist

Five times the on-camera plate database of the standard G2 ANPR bullet. Run an entire shopping-centre tenant register, council parking-permit register or council pound watchlist directly on the camera — no NVR dependency.

AcuSeek-Ready — Natural-Language Search

Pair the A45G2 with a Hikvision AcuSeek-capable NVR (V-Pro series or DeepinMind) and search every plate, vehicle, person and non-motorised vehicle using plain English — "red ute leaving at 6:14 pm Tuesday".

Parking Management — Up to 40 Spaces

Far-view mode monitors the occupancy of up to 40 parking bays; close-view mode reads plates and times occupancy of up to 4 bays. Vacancy / over-stay alerts come straight off the camera — no carpark-management server required.

Reverse-Plate Secondary Capture

Catch the rear plate as a vehicle reverses out — a critical capture for council carparks, ticketless ANPR billing and any site that needs to log both entry and exit plates from a single mount point.

AcuSeek — Type-to-Search Across Every Captured Plate

Hikvision AcuSeek NVR — AI Natural-Language Video Search Demonstration

HEOP 2.0 Open Platform — 2.5 TOPS

The HEOP 2.0 (Hikvision Embedded Open Platform) edge AI runtime lets you load custom deep-learning models built in Caffe / PyTorch / TensorFlow. 2.5 TOPS of on-camera compute, 2.2 GB smart RAM and 1.3 GB eMMC — enough headroom for a second analytic alongside the built-in ANPR.

Vehicle Attribute Capture

Beyond just the plate, the camera captures vehicle type, colour, brand and driving direction — feeding searchable metadata into HikCentral and AcuSeek for post-incident vehicle search across days or weeks of footage.

Perimeter Protection — Human/Vehicle Filtering

Line crossing, intrusion, region entrance and region exiting — each rule can be restricted to humans only, vehicles only or both. Combined-event triggering lets you chain rules ("vehicle crosses fence line and dwells > 30 s").

Audio Event Detection

Smart audio events include crying detection, gunshot & explosion detection, scream detection and glass-breaking detection — useful for unmanned freight yards, late-night carparks and councils' safer-cities applications.

NEMA 4X Anti-Corrosion + Built-in Heater

The -Y suffix indicates Hikvision's moderate anti-corrosion housing — NEMA 4X-rated stainless body for coastal areas within ~2 km of the shoreline and sites exposed to acid rain. Onboard heater + demist keeps the glass clear in rain, snow and overnight condensation.

TPM 2.0 + FIPS 140-2 L2 Cyber Security

Hardware-rooted Trusted Platform Module 2.0 at FIPS 140-2 Level 2, plus TLS 1.3, 802.1X authentication, watermarking, video/firmware/config encryption and complete audit logging — meets enterprise, council and government cyber baselines.

Technical Specifications

iDS-2CD7A45G2/P-IZHSY · Full Specifications
SKU iDS-2CD7A45G2/P-IZHSY(4.7-118mm)
Camera Type 4MP DeepinView ANPR Moto Varifocal Bullet Network Camera · -Y NEMA 4X anti-corrosion
Image Sensor 1/2.7" Progressive Scan CMOS
Max Resolution 2688 × 1520 (4MP)
Lens 4.7–118 mm motorised varifocal (25× zoom) · auto / semi-auto / manual focus · P-iris
Aperture F1.6 → F3.8
Field of View Horizontal 55.8° → 2.8° · Vertical 32.3° → 1.6° · Diagonal 63.3° → 3.2°
Min. Illumination Colour 0.005 lux @ F1.6 (AGC ON) · B/W 0.0018 lux · 0 lux with IR
IR Range Up to 200 m · Smart IR · 850 nm
DORI (Tele) Overview 2,750 m · Detect 1,375 m · Distinguish 687.5 m · Perceive 440 m · Recognise 220 m · Identify 110 m · Examine 36.7 m
DORI (Wide) Overview 133.3 m · Detect 66.6 m · Distinguish 33.3 m · Perceive 21.3 m · Recognise 10.7 m · Identify 5.3 m · Examine 1.8 m
Day & Night IR cut filter · Blue-glass module (reduces ghosting)
Wide Dynamic Range 150 dB AWDR · BLC · HLC · 3D DNR · Defog · Distortion Correction · EIS
Frame Rate (Main) 4MP @ 60 fps · 2MP @ 120 fps (monitoring mode) · 4MP @ 25/30 fps (smart mode)
Video Compression H.265+ · H.265 · H.264+ · H.264 · MJPEG (substream)
Streams 5 simultaneous streams (main / sub / third / fourth / fifth)
Video Bit Rate 32 Kbps – 8 Mbps · CBR / VBR · SVC · ROI (4 per stream)
HEOP 2.0 Open Platform 2.5 TOPS · 2.2 GB smart RAM · 1.3 GB eMMC · Caffe / PyTorch / TensorFlow · C / C++
Deep-Learning AI DeepinView · Perimeter Protection (line crossing / intrusion / region entry & exit · human + vehicle classification) · combined-event triggering
ANPR / LPR ≥98% recognition accuracy · 4 areas / 124+ countries · vehicle & motorcycle plates · blocklist/allowlist up to 50,000 records · reverse-plate secondary capture
Parking Management Far view: up to 40 spaces (occupancy, duration, vacancy alert) · Close view: up to 4 spaces (LPR, over-stay, vacancy)
AcuSeek Support Native — persons, plates, vehicles, non-motorised vehicles, animals (with AcuSeek NVR / server)
Vehicle Events Parking-space detection · traffic-congestion detection
Smart Events Scene change · audio exception · defocus · crying detection · gunshot/explosion detection · scream detection · glass-breaking · vibration (G-sensor)
Audio 1 in / 1 out (line) · G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC · environment noise filtering
Alarm I/O 2 inputs / 2 outputs (max 24 VDC/24 VAC, 1 A)
Wiegand (-Y) 1 Wiegand interface — CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit
RS-485 (-Y) 1 × RS-485 (Half duplex · Hikvision / Pelco-P / Pelco-D)
Power Output (-Y) 12 VDC, max 100 mA
Ethernet 1 × RJ-45 10/100/1000 Mbps self-adaptive
Edge Storage microSD / SDHC / SDXC up to 1 TB · ANR · encryption-capable card supported
API & Protocols ISAPI · SDK · ISUP · OTAP · ONVIF (Profile S / G / T / M) · MQTT / MQTTS · RTMP · 20 concurrent live-view sessions
Cyber Security TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.2 / 1.3 · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5 / EAP-GTC / MSCHAP V2) · AES128/256 · IP filter · X.509 · security audit log · watermark
Client Software iVMS-4200 · Hik-Connect · HikCentral
Power Source 12 VDC ±20% · 24 VAC ±20% · PoE IEEE 802.3at Type 2 Class 4 · max 24.2 W
Weatherproof Rating IP67 (IEC 60529-2013)
Vandal Resistance IK10 (IEC 62262:2002)
Anti-Corrosion NEMA 4X (NEMA 250-2018) — Y variant · moderate protection
Approvals CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · CB · BIS · LOA · EN50121-4 (railway) · RoHS · WEEE · REACH · PVC-FREE
Operating Temp. −40 °C to +65 °C · ≤95% humidity (non-condensing)
Dimensions Ø 140 mm × 377.4 mm (Y variant)
Weight Approx. 2,350 g
Housing Aluminium alloy · PVC-free
Warranty 3-Year Australian Warranty (back-to-base)

Frequently Asked Questions

What's the maximum distance I can read a plate from with this camera?

At full telephoto (118 mm) the camera achieves an EN 62676-4 "Identify" distance of 110 m — meaning the plate is legible enough to identify a specific vehicle. "Recognise" (plate confirms a known vehicle) extends to 220 m and "Detect" (vehicle present) extends to 1,375 m. Recommended ANPR mounting is 30–110 m from the plate line.

How is this different from the iDS-2CD7A46G2/P-IZHSY?

The A45G2 is the long-range, single-lens 25× zoom model with a 1/2.7" sensor; the A46G2 is the wider-coverage, larger-sensor 1/1.8" model with a choice of 2.8–12 / 8–32 / 6–132 mm lens options. The A45G2 also adds parking management, 50,000-record blocklist (vs 10,000), HEOP 2.0 open platform, reverse-plate capture, and a richer audio-event suite. Pick the A45G2 when the camera mounts well back from the plate; pick the A46G2 when you also need a wide overview of the scene.

Does it recognise Australian plates?

Yes. Hikvision's G2 LPR engine covers 124+ countries and regions across four areas, including all Australian state and territory plate formats — NSW, VIC, QLD, WA, SA, TAS, ACT, NT — plus custom plates, motorcycle plates and stacked-character plates.

What's HEOP 2.0 and why does it matter?

HEOP 2.0 is Hikvision's open edge-AI platform. It lets developers and integrators upload custom deep-learning models (Caffe / PyTorch / TensorFlow) onto the camera alongside the built-in ANPR — for example, a custom truck-type classifier, a fatigue-detection model, or a livestock-detection model at a rural gate. The camera ships with 2.5 TOPS of compute, 2.2 GB smart RAM and 1.3 GB eMMC.

What does the parking-management feature do?

In far-view mode, the camera monitors the occupancy of up to 40 parking spaces at once and pushes vacancy / over-stay / dwell-time alerts. In close-view mode, the camera reads plates and times occupancy on up to 4 spaces — useful for disabled bays, EV-charging bays, loading docks and short-stay tenant bays.

Does it need an AcuSeek NVR to use AcuSeek?

Yes — the camera is AcuSeek-ready, but the natural-language search engine itself runs on the NVR side. Pair it with a Hikvision VPro AcuSeek NVR (DS-7608/7616/7732-NXI-I*/VPro) or a DeepinMind X-series NVR (iDS-77*) to type plain-English queries like "white truck reversing at 9:14 pm Tuesday".

How many plates can I store in the blocklist / allowlist?

Up to 50,000 combined records, stored on-camera — five times the A46G2's 10,000. Large enough for an entire shopping-centre tenant register, a council parking-permit list, a stolen-vehicle hot-list or a freight-yard authorised-fleet roster.

Does it support Wiegand output to a boomgate / access-control panel?

Yes — the camera includes a Wiegand interface (CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit) plus an RS-485 port, letting you wire the camera directly into a boomgate controller, access-control panel or third-party gate-management system.

Does it record locally if the NVR goes offline?

Yes. The onboard microSD slot accepts up to 1 TB and supports ANR (Auto Network Replenishment) — when the camera reconnects to the NVR, any footage missed during the outage automatically backfills from the SD card to the NVR drive.

Does it run on standard PoE?

It needs PoE+ (IEEE 802.3at Type 2) — not standard 802.3af — because of the built-in heater, the long-range IR LEDs and the motorised zoom. Most modern Hikvision and Dahua PoE NVRs and switches support PoE+ on every port. It can also run on 12 VDC or 24 VAC if a separate supply is preferred. Max draw 24.2 W with -Y.

What's the warranty and where is it serviced?

This camera ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia. CCTV Guru manages the entire RA process from our Sydney office and provides Australian-based pre-sales and technical support for the life of the product.

Do you ship Australia-wide and is stock genuine?

Yes — Australian stock from authorised Hikvision Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.

Downloads & Resources

iDS-2CD7A45G2/P-IZHSY Datasheet Hikvision DeepinView Quick Start Guide Hikvision DeepinView User Manual

Order the Hikvision iDS-2CD7A45G2/P-IZHSY from CCTV Guru

CCTV Guru is an authorised Australian reseller of Hikvision DeepinView ANPR cameras. Order the iDS-2CD7A45G2/P-IZHSY long-range 4.7–118 mm ANPR bullet for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera rollouts and full local warranty support. Designing a long-range boomgate, council carpark, freeway off-ramp or toll-style ANPR project? Request a free quote or contact our Australian team for tailored camera-and-NVR sizing.
