WizSense 3 · 6 MP · Smart Dual Light · AcuPick Ready

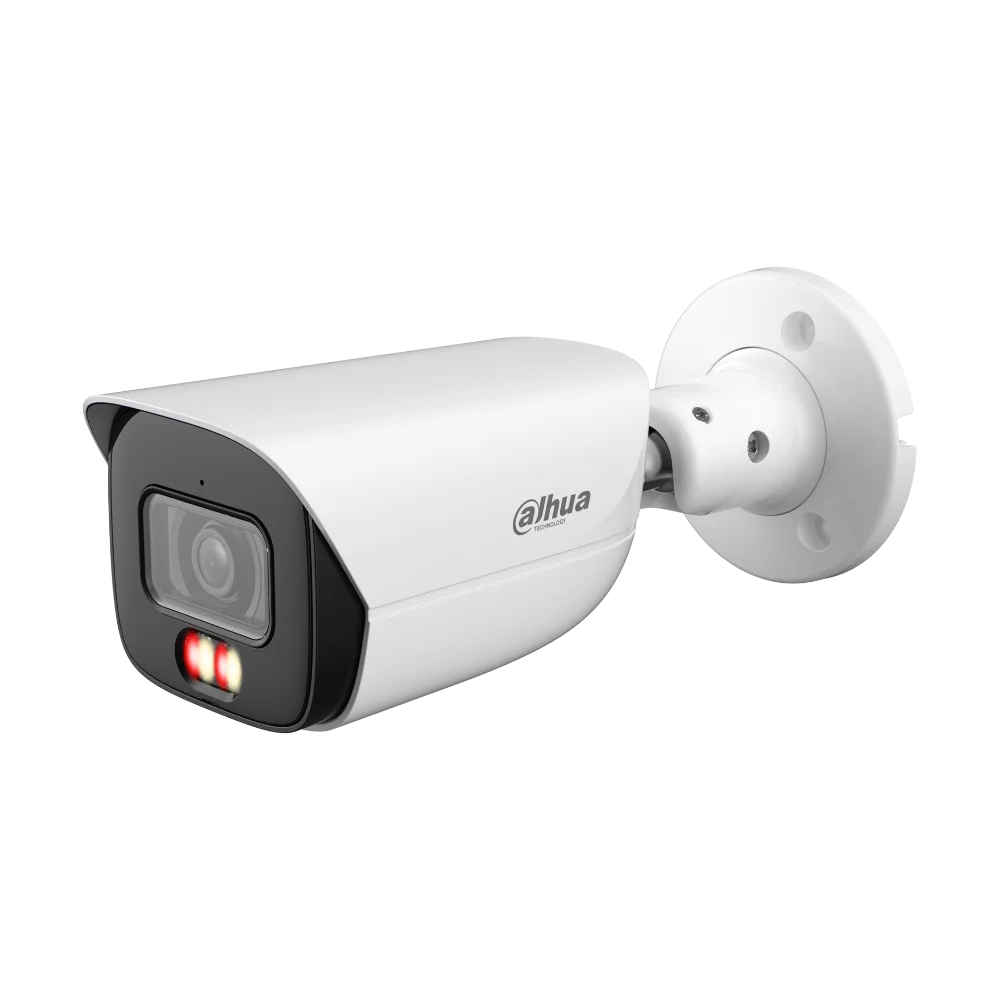

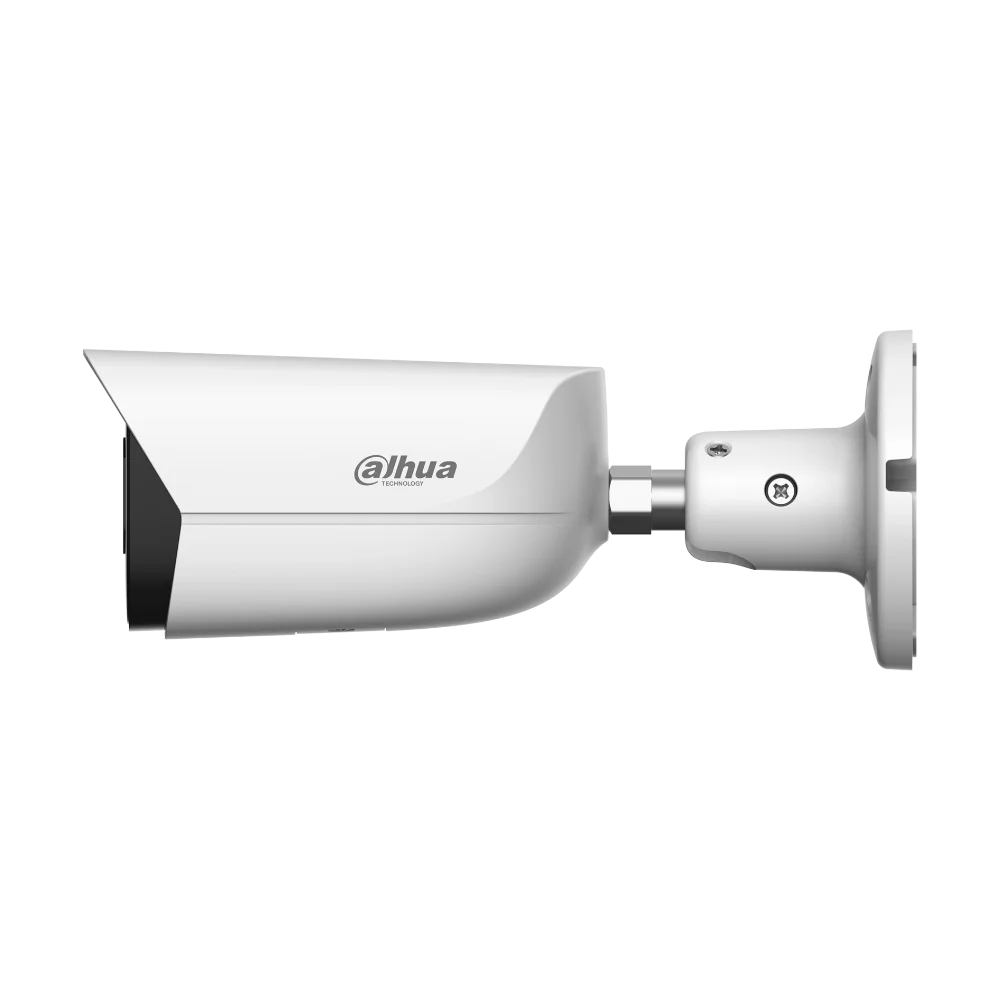

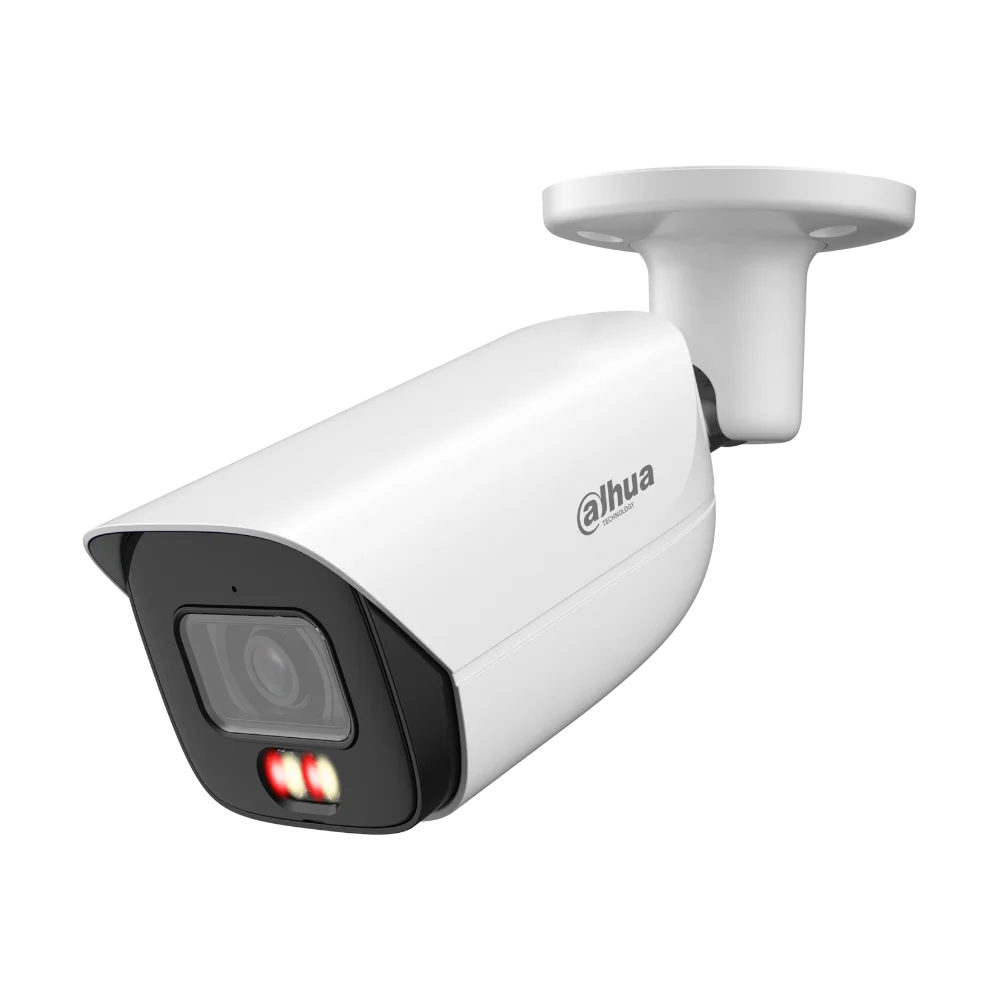

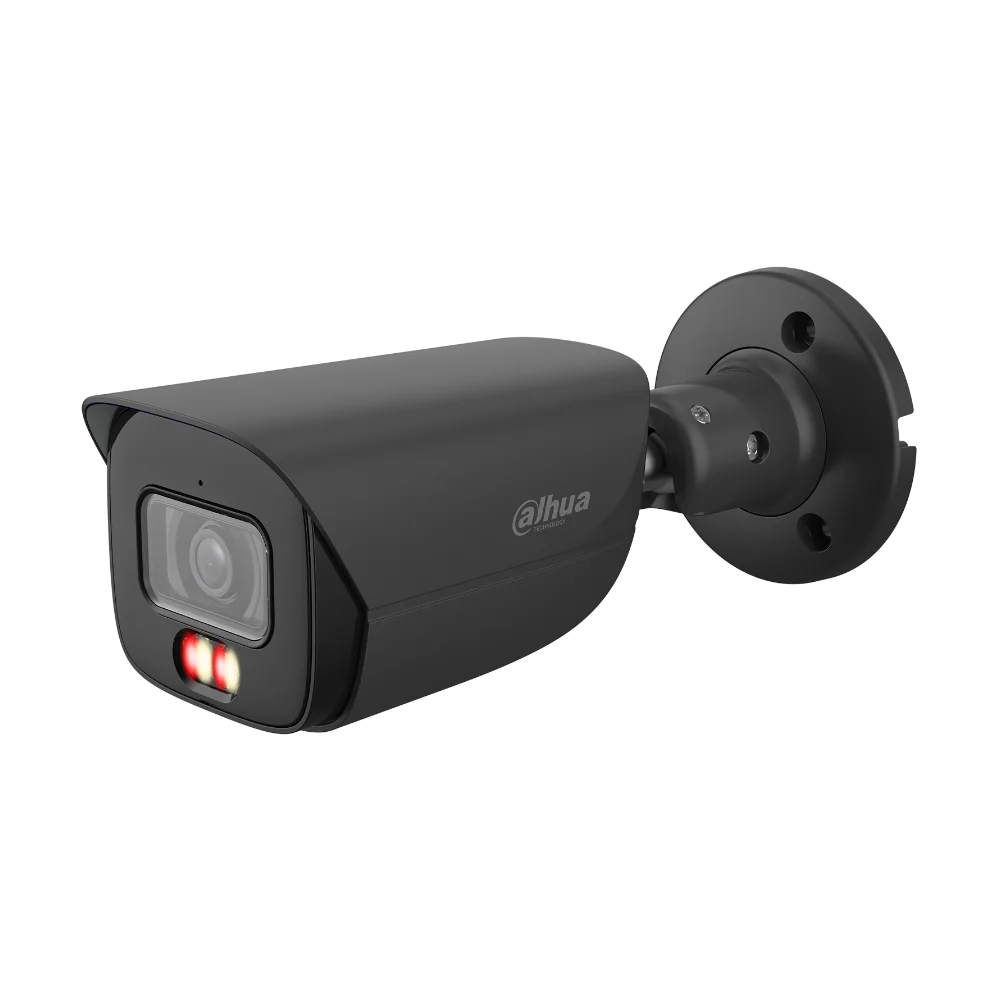

Dahua DH-IPC-HFW3667E-AS-IL-ANZ — 6 MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera
The Dahua DH-IPC-HFW3667E-AS-IL-ANZ is a 6 MP WizSense 3 outdoor bullet IP camera with a fixed-focal 2.8 mm F1.4 lens (3.6 mm option also available). The 1/2.7" CMOS sensor outputs 3288 × 1850 at 25/30 fps with Smart H.265+ encoding, and Dahua's Smart Dual Light engine pairs a 30 m IR illuminator with a 30 m warm-light array — the camera defaults to invisible IR after dark, then flips to full-colour white light the instant WizSense classifies a person or vehicle in the scene. WDR is rated at 120 dB, the housing is IP67 sealed across –40 °C to +60 °C (Alpine-rated), and the on-board electronics include a built-in microphone, 1/1 RCA audio I/O and a 1/1 alarm wet-contact pair. Edge AcuPick, SMD 4.0 and perimeter protection run on the WizSense 3 deep-learning chip; peak draw is 10 W on standard 802.3af PoE. Built for Australian residential and small-business installs with predictable framing — single-driveway homes, shopfronts, NDIS dwellings, small carparks and rural sheds. Backed by a 3-year Australian warranty through CCTV Guru.
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 30 m + Warm 30 m
AI Engine
WizSense 3 + AcuPick
Protection
IP67 · –40 to +60 °C
Power
12 VDC / PoE 802.3af · 10 W max
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the Dahua HFW3667E-AS-IL-ANZ
This is the WizSense 3 6 MP bullet for installs that have predictable framing and don't need a motorised lens. Below are the six reasons it outperforms generic fixed-lens 6 MP bullets in Australian deployments.
True 6 MP Image, Not Upscaled
The 1/2.7" CMOS captures a native 3288 × 1850 raster — more than double the pixel density of 1080p — so digital zoom into faces, plates and signage stays usable instead of dissolving into a noise field.
Smart Dual Light, No Light Pollution
30 m IR runs invisibly until WizSense classifies a person or vehicle, then the 30 m warm-light array switches on the target to capture full-colour evidence. No constant white-light wash for neighbours to complain about.
120 dB WDR for AU Sun
Strong WDR holds detail in both the bright sky and the dark interior in a single frame — important for north-facing entries, colourbond-shaded driveways and glass shopfronts where lesser cameras blow out one side.
110° Wide Coverage from a Single Mount
The 2.8 mm lens delivers a 110° horizontal field of view — wide enough to cover a typical Australian double driveway, a shopfront awning or an entire small carpark from one camera. DORI Identify range extends to 8.5 m.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, this camera lets you search hours of recorded video by attributes — "red top, blue trousers, walking east" — and pulls matching clips in seconds rather than scrubbing the timeline by hand.
Best-in-Class Cold-Weather Rating
Rated –40 °C to +60 °C — a 10 °C colder floor than the motorised-zoom HFW3667T variant. The right WizSense 3 bullet for Alpine NSW, Tasmanian highland, and any site that sees overnight frost.
Important Install Note
This camera draws a maximum of 10 W on PoE — comfortable on any 802.3af switch, including the integrated PoE ports on Dahua's compact NVRs. The lens is fixed-focal, so frame the camera carefully at install time — there's no remote re-framing later. For outdoor installs in exposed positions (coastal, humid, or where the RJ-45 termination sits behind the camera in still air), we strongly recommend pairing with the DH-PFA130-E water-proof junction box to keep condensation off the connector.
AI & Smart Detection Capabilities
AcuPick Target Search
Deep-learning attribute matching across people and vehicles. Find a target across hours of recorded video by colour, top/bottom clothing, vehicle type and direction — when paired with a compatible Dahua AcuPick NVR.
SMD 4.0 — Smart Motion Detection
Motion alerts triggered only by humans and vehicles. Wind-blown branches, small animals, possums on a fence and shadows are filtered out at the edge — slashing false-alarm volume on residential and small-business sites.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert when the right type of target crosses it.
Smart Dual Light Deterrence
When WizSense classifies a person in the warm-light zone, the white-light array triggers automatically — leaving subjects in no doubt they have been captured in full colour. A passive deterrent that costs nothing extra in licensing or hardware.
AI SSA — Scene Self-Adaptation
The camera detects environmental conditions like rain, fog, backlight, low light and flicker, and automatically adjusts image parameters to keep the scene clear — without an operator touching the settings.
Smart Search & Event Extraction
Pairs with a Smart NVR to refine intelligent search, extract and merge event video. Skip past hours of empty footage and jump straight to the moments where something the AI flagged as relevant happened.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HFW3667E-AS-IL-ANZ |
| Form Factor |
Bullet (metal casing) |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
3288 × 1850 (6 MP) |
| Scanning System |
Progressive |
| Minimum Illumination |
0.005 lux @ F1.4 (Colour) · 0.0005 lux @ F1.4 (B/W) · 0 lux (illuminator on) |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| BLC / HLC |
Yes / Yes |
| Noise Reduction |
3D NR |
| Smart Illumination |
Yes |
| Smart Dual Light |
Yes |
| Privacy Masking |
Multiple areas |
Lens & Illumination
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm (this listing) · 3.6 mm variant also available |
| Maximum Aperture |
F1.4 |
| Field of View (2.8 mm) |
H: 110° · V: 58° · D: 132° |
| Close Focus Distance |
1.4 m |
| IR Illumination |
Up to 30 m |
| Warm Light Illumination |
Up to 30 m |
| Illuminator Configuration |
2 × multi-core LEDs (IR + warm light) |
| Smart Dual Light |
Yes (target-triggered IR / warm light hand-off) |
| DORI (2.8 mm) |
Detect 84.8 m · Observe 33.9 m · Recognise 17.0 m · Identify 8.5 m |
Intelligence & Video
| AI Engine |
WizSense 3 Series |
| IVS — Perimeter Protection |
Tripwire, intrusion (with human + vehicle classification) |
| Smart Motion Detection |
SMD 4.0 |
| AcuPick |
Yes (with compatible Dahua AcuPick NVR) |
| AI SSA |
Yes (scene self-adaptation) |
| Smart Search |
Yes (paired with Smart NVR) |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub stream) |
| Smart Codec |
Smart H.265+ · Smart H.264+ |
| AI Coding |
AI H.265 · AI H.264 |
| Resolutions |
6 MP · 5 MP · 4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF |
| Main Stream |
3288 × 1850 @ 1–25/30 fps |
| Bit Rate Control |
VBR · CBR · ABR |
Audio, Alarm & Network
| Built-in Microphone |
Yes |
| Audio Input |
1 channel (RCA) |
| Audio Output |
1 channel (RCA) |
| Audio Compression |
PCM · G.711a · G.711Mu · G.726 · G.723 |
| Alarm Input |
1 channel — wet contact, 5 mA, 3–5 VDC |
| Alarm Output |
1 channel — wet contact, 300 mA, 12 VDC |
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocols |
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · 802.1x |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
FTP · SFTP · NAS · Micro SD card up to 512 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Management Software |
SmartPSS Lite · DSS · DMSS |
| Cyber Security |
Trusted boot · trusted execution · trusted upgrade · video encryption · firmware encryption · 802.1x · HTTPS · IP/MAC filtering · WSSE · X.509 |
| Recommended Firmware |
Dahua V5.x (enables AcuPick, ONVIF 23.12, iSCSI, N+M with compatible NVRs) |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) |
| Power Consumption (Basic) |
3.7 W (12 VDC) · 5.4 W (PoE) |
| Power Consumption (Max.) |
8 W (12 VDC) · 10 W (PoE) with H.265 + WDR + warm light + AI |
| Dual-Power Backup |
Yes (12 VDC and PoE simultaneously supported) |
| Operating Temperature |
–40 °C to +60 °C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Storage Temperature |
–40 °C to +60 °C |
| Protection Rating |
IP67 |
| Casing Material |
Metal |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
3 Years (via CCTV Guru) |
How It Compares — HFW3667E-AS-IL-ANZ vs HFW3667T-ZAS-IL-ANZ
The closest sibling is the Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ — the motorised-zoom 2.7–13.5 mm sibling. Same sensor, same WizSense 3 AI, same audio I/O, same IP67 build. The decision is whether you need a fixed lens (cheaper, lower power, simpler install) or motorised optics (re-frameable from the app, longer-range IR/warm light, better cold-tolerance for premium sites).
| Feature |
DH-IPC-HFW3667E-AS-IL-ANZ (this camera)
|
DH-IPC-HFW3667T-ZAS-IL-ANZ (sibling)
|
| Resolution |
6 MP (3288 × 1850) |
6 MP (3288 × 1850) |
| Sensor |
1/2.7" CMOS |
1/2.7" CMOS |
| Lens |
Fixed-focal 2.8 mm (3.6 mm option) · F1.4 |
Motorised vari-focal 2.7–13.5 mm · F1.4 |
| AI Engine |
WizSense 3 |
WizSense 3 |
| AcuPick |
Yes |
Yes |
| Smart Dual Light |
IR 30 m + warm 30 m |
IR 60 m + warm 60 m |
| Illuminators |
2 × multi-core LEDs |
4 × multi-core LEDs |
| DORI — Identify |
8.5 m (at 2.8 mm) |
8.5 m wide · 28 m tele
|
| WDR |
120 dB |
120 dB |
| Audio |
Built-in mic + 1/1 RCA audio I/O |
Built-in mic + 1/1 RCA audio I/O |
| Power Draw (PoE max) |
10 W (lighter — runs on any 802.3af) |
12.5 W |
| Operating Temperature |
–40 °C to +60 °C (better cold rating) |
–30 °C to +60 °C |
| IP Rating |
IP67 |
IP67 |
| Best For |
Predictable framing — single-driveway homes, shopfronts, NDIS dwellings, Alpine sites |
Variable framing — long driveways, carparks, sites where you may want to re-frame later |
Recommended NVR Pairings
For AcuPick attribute search on recorded footage, this camera should be paired with a Dahua 5-Series AI NVR running V5 firmware. Below are four CCTV Guru-stocked recorders sized for the most common Australian deployments — from single-home through to enterprise.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U · perimeter protection and SMD Plus. The most popular pairing for residential and small-business sites running 4–8 cameras.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. Sized for medium commercial sites and multi-building yards.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. The value-pick 16-channel build for sites that don't need full AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — warehouses, schools, multi-tenant strata and large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories

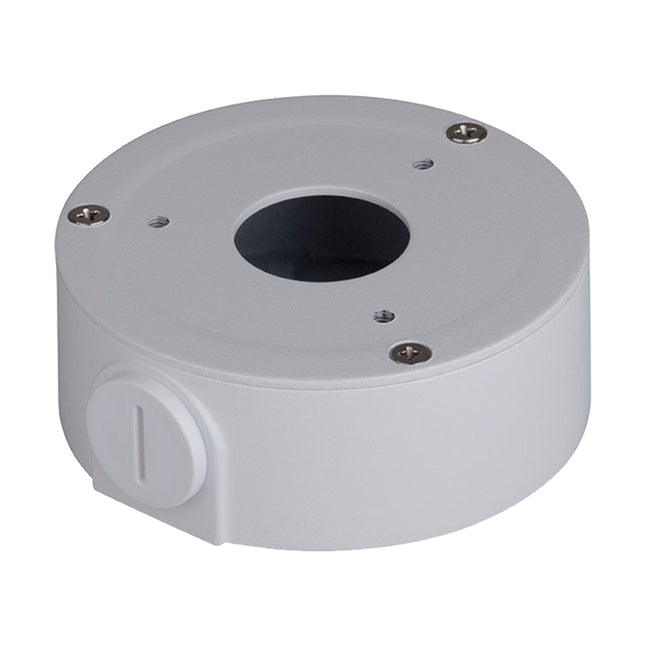

DH-PFA130-E
Water-proof junction box — the most popular accessory for this camera. Protects the RJ-45 termination from condensation behind outdoor mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA135
Standard junction box for tidy in-wall cable management on rendered or brick walls. Use when no waterproofing of the termination is required.
DH-PFA151
Corner mount bracket — for mounting the camera onto external building corners. Matches the camera's white powder-coat finish.
DH-PFA152-E
Pole mount bracket — fits 60–110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
G3416GW
G3/4" water joint — protects the cable gland on outdoor installs with conduit termination. Use with surface-mounted PVC or metal conduit runs.
DH-PFM321D-EN / DH-PFM320D-EN
Genuine Dahua 12 VDC power adapters — 1 A and 2 A options. Use when running the camera on local DC instead of PoE, or as a backup supply alongside PoE.
Frequently Asked Questions
Is the Dahua HFW3667E-AS-IL-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
What's the difference between the 2.8 mm and 3.6 mm lens options?
2.8 mm gives a wider 110° horizontal field of view — best for shopfronts, single driveways and small carparks where coverage matters more than range. 3.6 mm narrows the field but pushes more pixels onto distant targets — better for longer driveways and front-fence approaches.
Does this camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR running V5 firmware.
Is this a TiOC camera?
No. TiOC SKUs carry the "PV" infix in the model number. This camera is a Smart Dual Light WizSense 3 model — it can illuminate a target on detection but does not have a red/blue strobe or built-in siren. For TiOC active deterrence, see our HFW3849T1-ZAS-PV-ANZ range instead.
How far can it see at night?
Smart Dual Light gives 30 m on IR and 30 m on warm light. DORI Identify range (where a face is recognisable) is 8.5 m at the 2.8 mm lens. For longer range, the motorised-zoom HFW3667T-ZAS-IL-ANZ variant pushes Identify out to 28 m at its tele setting.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of only 10 W. Any quality 802.3af switch with budget headroom will run it comfortably.
Does it have a microphone?
Yes, the camera has a built-in microphone, plus 1 × RCA audio in and 1 × RCA audio out for connecting an external mic or speaker. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G and T, so it will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR.
What temperature range is it rated for?
–40 °C to +60 °C — a 10 °C wider cold-tolerance window than the motorised-zoom variant. Suitable for Alpine NSW, Tasmanian highland, and any AU site that sees overnight frost.
