Description

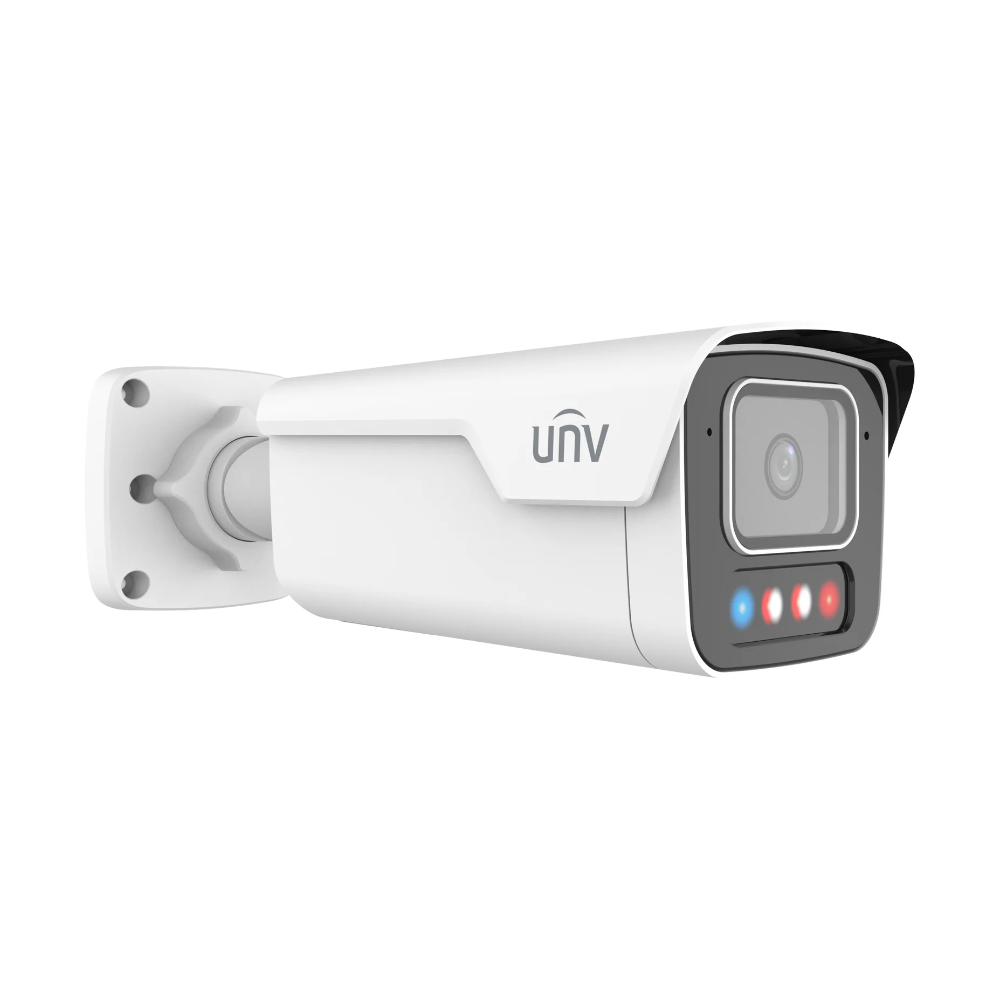

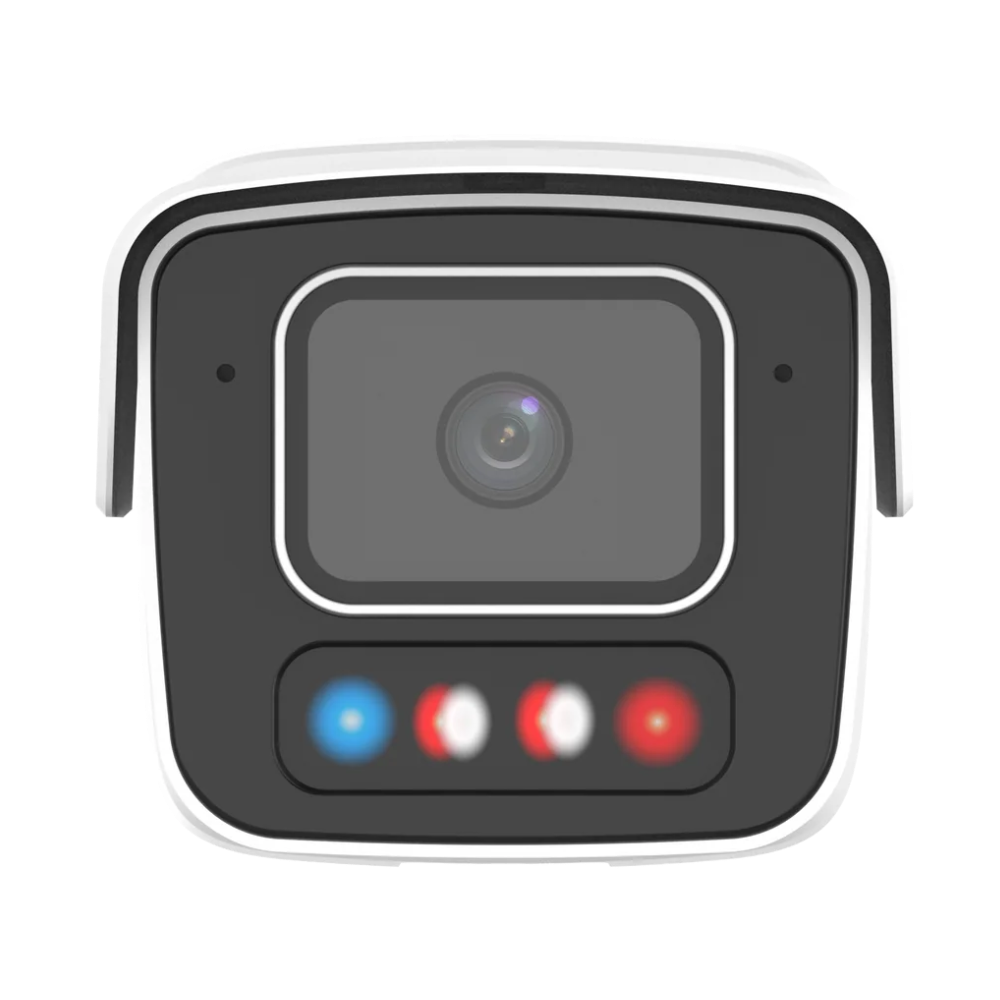

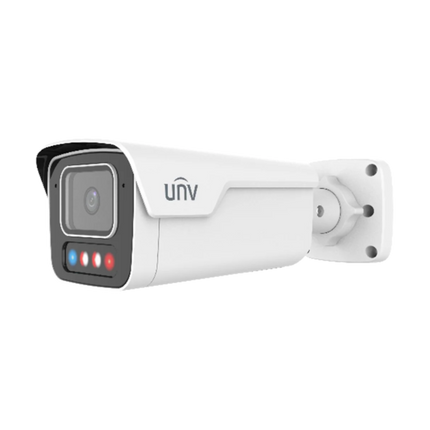

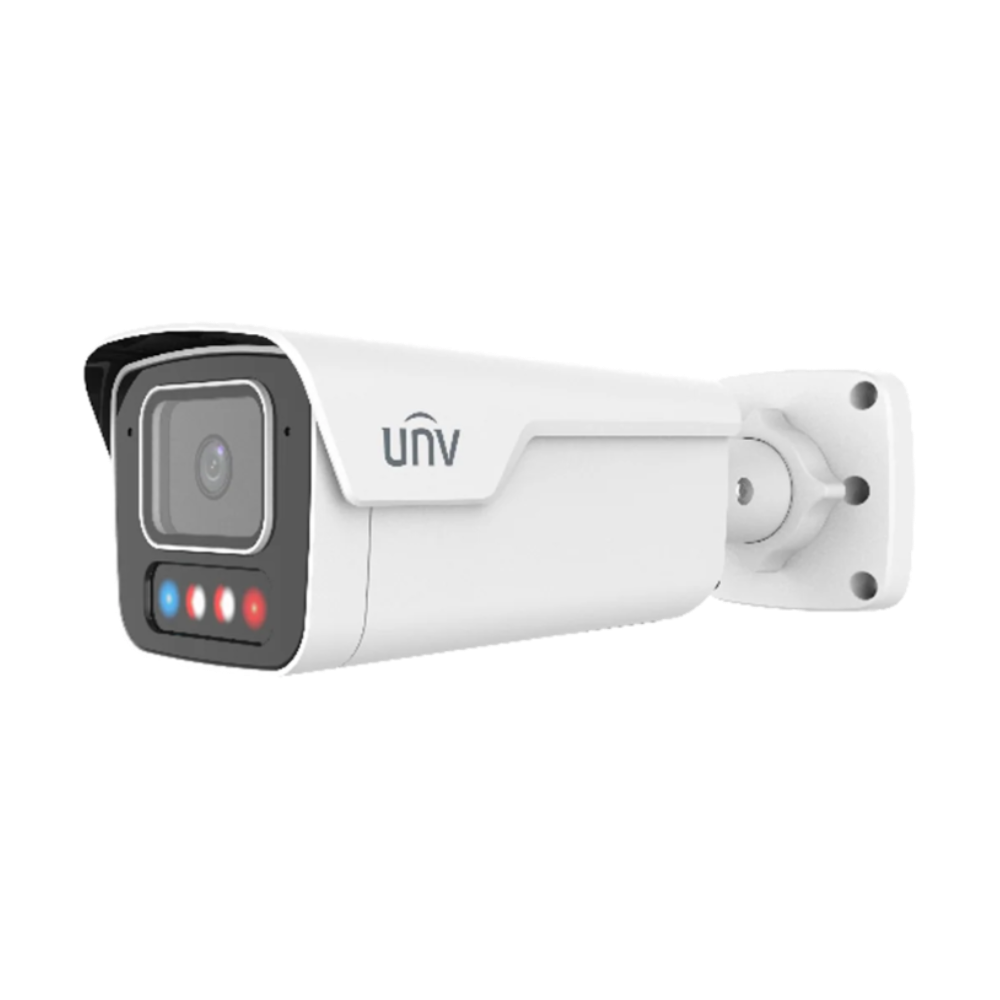

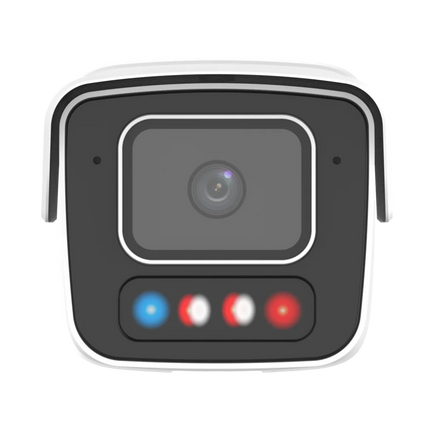

The Uniview UNV IPC2B18SE-ADF28KMC-WP-I1 is a high-performance 8MP OwlView Plus Tri-Guard fixed bullet IP camera engineered for demanding perimeter and long-range surveillance. Powered by a 1/1.8″ CMOS sensorand F1.0 large-aperture 2.8 mm lens, it delivers sharp 4K (3840×2160) images with outstanding low-light colour performance.
With ColorHunter + Wise-ISP, intelligent Tri-Guard dual-light illumination (IR + warm light), and advanced AI target classification, this camera provides accurate intrusion detection while dramatically reducing false alarms. Built-in people flow counting and crowd density monitoring make it ideal for retail, logistics, and commercial environments. Its IK10 vandal resistance, IP67 / NEMA 4X weatherproofing, and NDAA compliance ensure reliability for professional and government-grade deployments.
Key Features & Highlights
-
8MP 4K Resolution – up to 3840 × 2160 @ 30 fps
-
2.8 mm Fixed Lens, F1.0 large aperture (wide-angle)
-
ColorHunter + Wise-ISP for 24/7 full-colour imaging
-

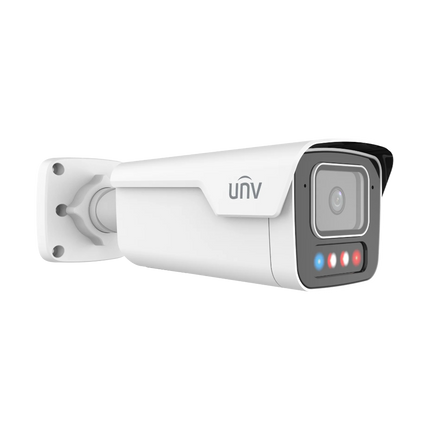

Tri-Guard Dual-Light – IR + warm light, up to 40 m
-
130 dB True WDR for strong backlight scenes
-
AI Smart Intrusion Prevention – human / vehicle / non-motor vehicle classification
-
People Flow Counting & Crowd Density Monitoring
-
Built-in dual microphone & speaker (two-way audio)
-
Alarm I/O 1/1, Audio I/O 1/1
-
microSD edge storage up to 512 GB
-
Ultra 265 / H.265 / H.264 / MJPEG compression
-
IK10, IP67, NEMA 4X, metal + plastic housing
- NDAA Section 889 compliant
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC2B18SE-ADF28KMC-WP-I1 |
| Camera Type |
8MP OwlView Plus Tri-Guard Fixed Dual-light Bullet IP Camera |
| Image Sensor |
1/1.8" Progressive CMOS |
| Max Resolution |
8MP (3840 × 2160) @ 30 fps |
| Lens |
2.8 mm Fixed Lens, F1.0 |
| Field of View |
H 108.1° / V 59.5° / D 130.2° |
| Minimum Illumination |
0.0005 Lux (Colour, F1.0, AGC ON) |
| Illumination |
Dual-light (IR + Warm Light), up to 40 m |
| WDR |
130 dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Analytics |
Line crossing, intrusion, enter/leave area, people counting, crowd density |
| Audio |
Built-in dual mic & speaker, two-way audio |
| Alarm I/O |
1 / 1 |
| Edge Storage |
microSD up to 512 GB |
| Network |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
PoE (IEEE 802.3af) / DC 12 V |
| Power Consumption |
Max. 6.2 W |
| Protection |
IP67, IK10, NEMA 4X |
| Operating Temperature |
-40 °C to 60 °C |
| Compliance |
NDAA Section 889 compliant |
Recommended Applications
- Perimeter & fence-line protection
- Retail stores (people counting & analytics)
- Warehouses & logistics hubs
- Commercial car parks
- NDAA-compliant government projects
