IDIS DIRECTCX · NDAA & TAA COMPLIANT
High-Density Commercial Intelligence with Ultra-HD Clarity

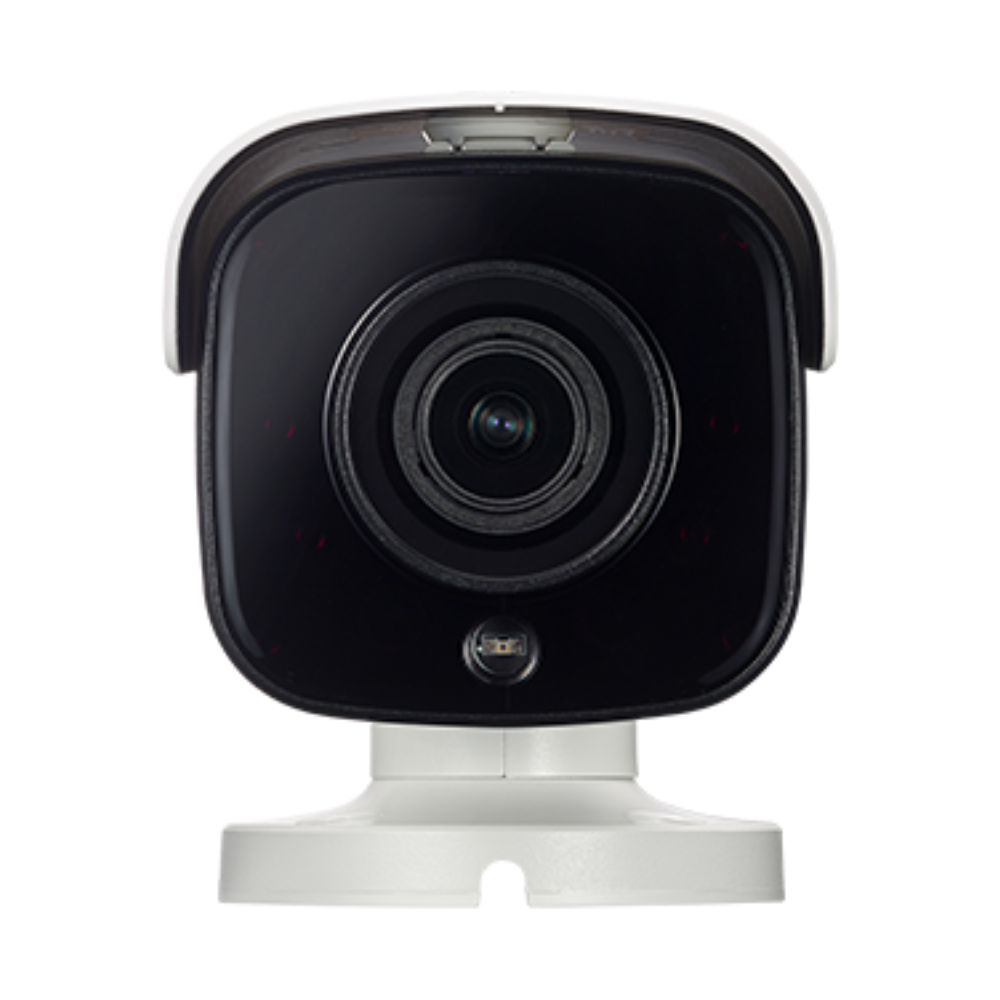

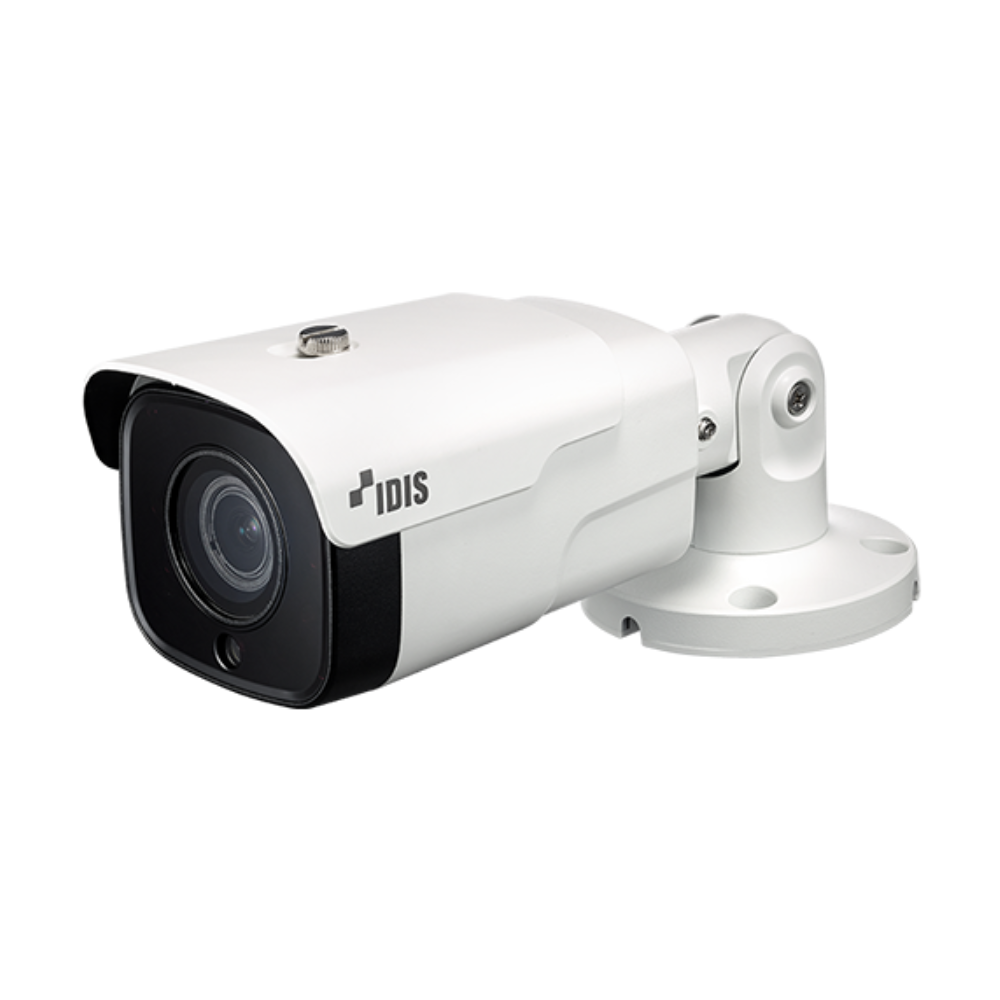

The IDIS TC-T5532WRX is a high-performance DirectCX 5MP IR Bullet Camera engineered to deliver pristine video surveillance for demanding commercial, industrial, and enterprise environments. Combining high-density pixel mapping with high-speed analog infrastructure, this robust surveillance endpoint ensures comprehensive situational awareness across sprawling parking lots, corporate logistics centers, and retail perimeters without the latency risks of traditional networks.
Resolution
5MP (2592 x 1944)
Optics
3.0mm - 13.5mm Motorized
Night Vision
30m Smart IR
Protection
IP66 & IK10 Rated
Advanced Signal Processing & Multi-Signal Flexibility
Equipped with a precision-tuned motorized vari-focal lens, the IDIS TC-T5532WRX allows remote focus adjusting to completely eliminate manual focal calibration issues during deployment. It effortlessly maps to multiple high-definition formats including TVI, AHD, and standard CVBS preview modes. Built-in digital noise reduction, Coaxial OSD control, and robust highlights compensation (HLC) shield the frame against dynamic vehicle headlights and extreme outdoor backlighting, delivering flawless forensic evidence around the clock.
120dB True WDR Contrast Balancing
Avoid dark silhouettes and washed-out backgrounds. By integrating hardware-driven 120dB True Wide Dynamic Range, this camera captures multiple exposures per frame to maximize structural visibility across heavily shaded entryways and brilliant sunlight simultaneously.
Vandal-Proof Armor & Weatherization
Built for harsh environments, the architectural housing features an IP66 weatherproofing rating combined with an IK10 impact-certified structural build. This keeps internal operational components secure against physical tempering attempts, torrential storms, and structural vibration.
Technical Specification Matrix
Camera Model
TC-T5532WRX
Image Sensor
1/2.8" CMOS Sensor
Max. Resolution
2592 x 1944 (5 Megapixel)
Frame Rate
5MP @ 20ips / 4MP @ 30ips (TVI / AHD)
Focal Length
3.0mm ~ 13.5mm Motorized Vari-focal
Angular Field of View
Horizontal: 91° (Wide) ~ 31° (Tele)
Dynamic Range
120dB True WDR
Minimum Illumination
Color: 0.13 Lux @ F1.4 / B&W: 0 Lux (IR LED On)
Ingress & Impact Rating
IP66 Weather Proof & IK10 Vandal Proof
Power Consumption
DC 12V (8W) / AC 24V (8.3W)
Is the IDIS TC-T5532WRX compliant with US federal standards?
Yes, this camera is completely NDAA and TAA compliant, making it suitable for deployment in government installations, defense sectors, and highly regulated enterprise environments that bar restricted tech vendor chips.
Does the motorized lens require manual focus tweaking during setup?
No. The camera features a motorized varifocal lens system with Coaxial OSD control. Users can remotely adjust the wide-to-telephoto view angle and trigger automated precise focus parameters instantly via the recording console backend.
What signals are supported by this camera's multi-video output?
The system natively supports high-definition analog formats via an HD BNC connection, offering signal toggle options between TVI, AHD, and standard CVBS for preview and diagnostic integration with legacy platforms.
How does Smart IR function in complete darkness?
The onboard 4-element Smart IR array automatically shifts output intensity up to a distance of 30 meters. This prevents overexposure on objects moving close to the camera, ensuring clear forensic facial mapping without flash-out distortion.
