Hikvision DeepinView · Ultra-Low Temperature · −60 °C Cold-Rated · 4MP Bullet · 140 dB LightFighter · 12 VDC Only

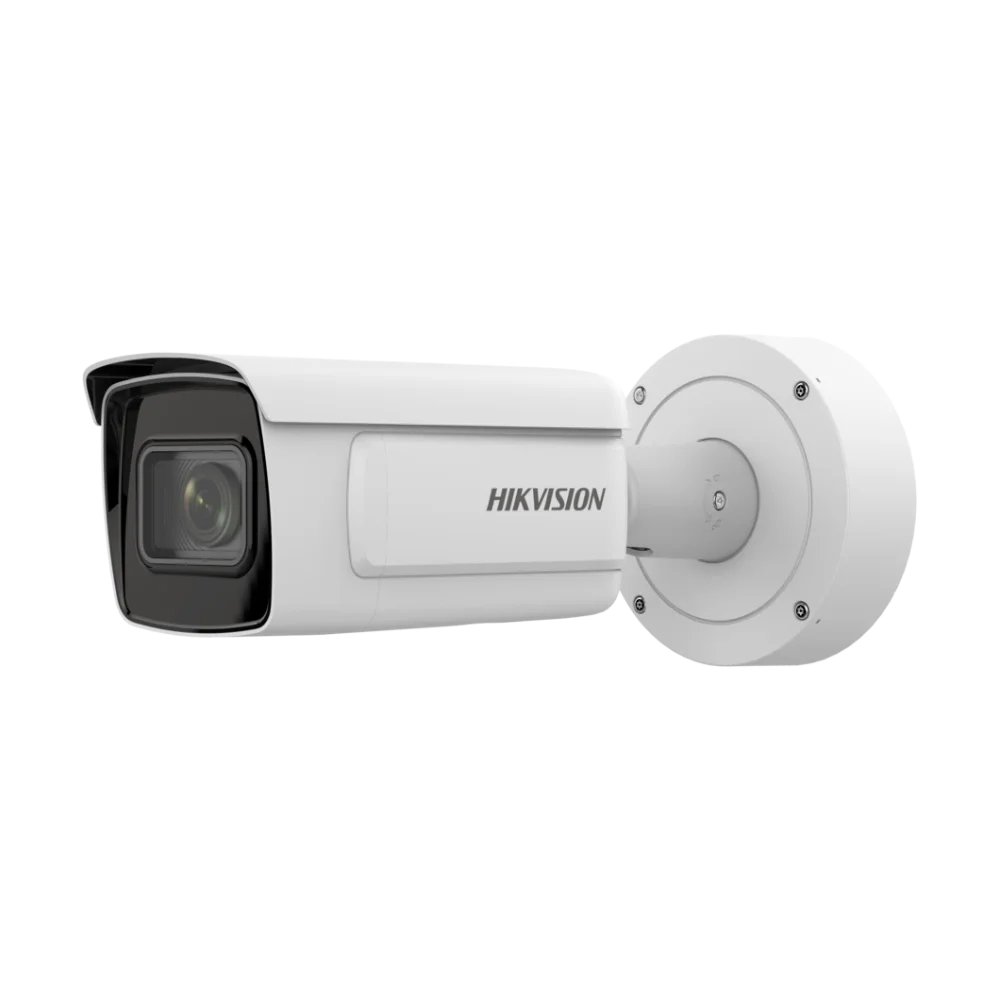

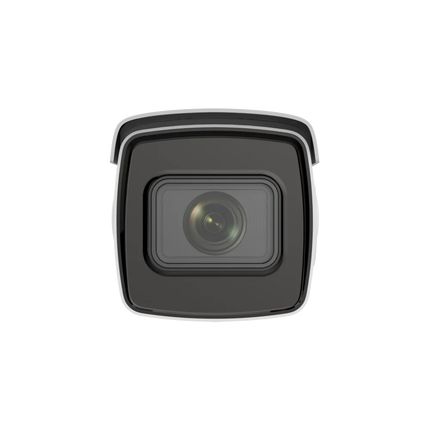

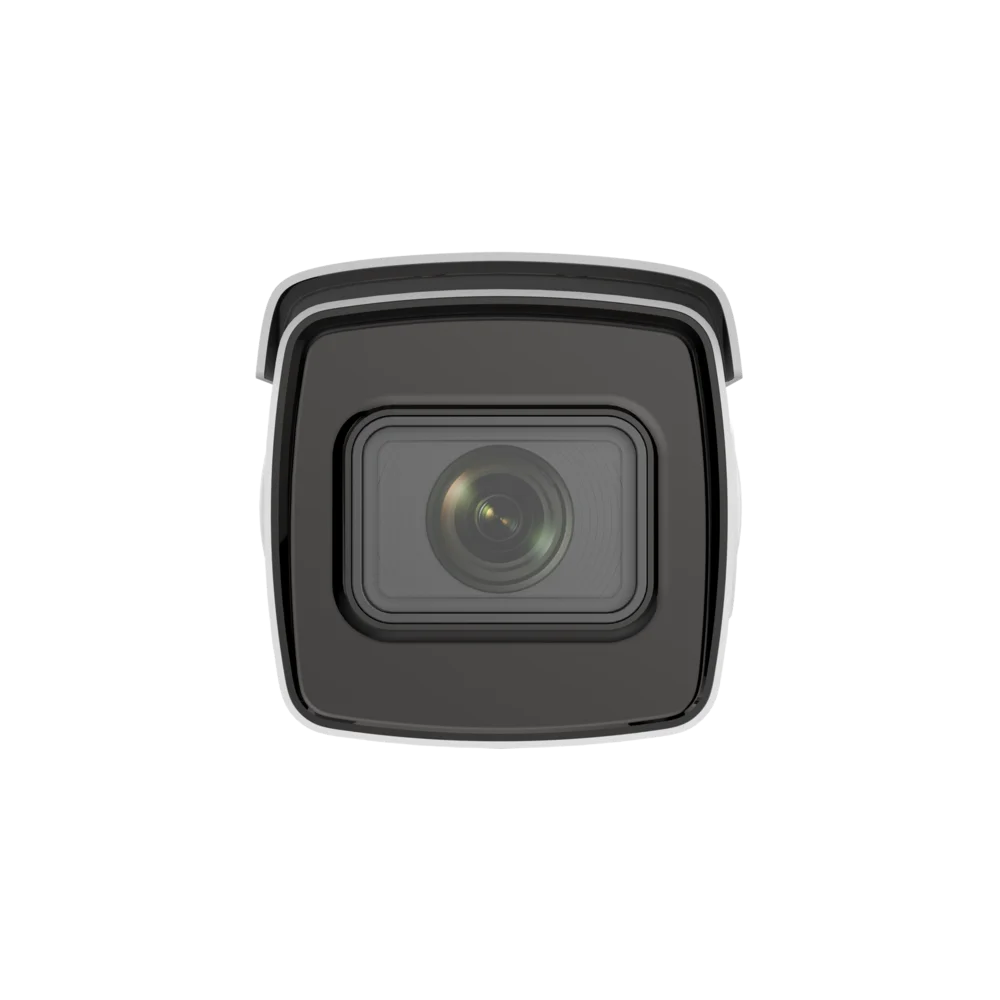

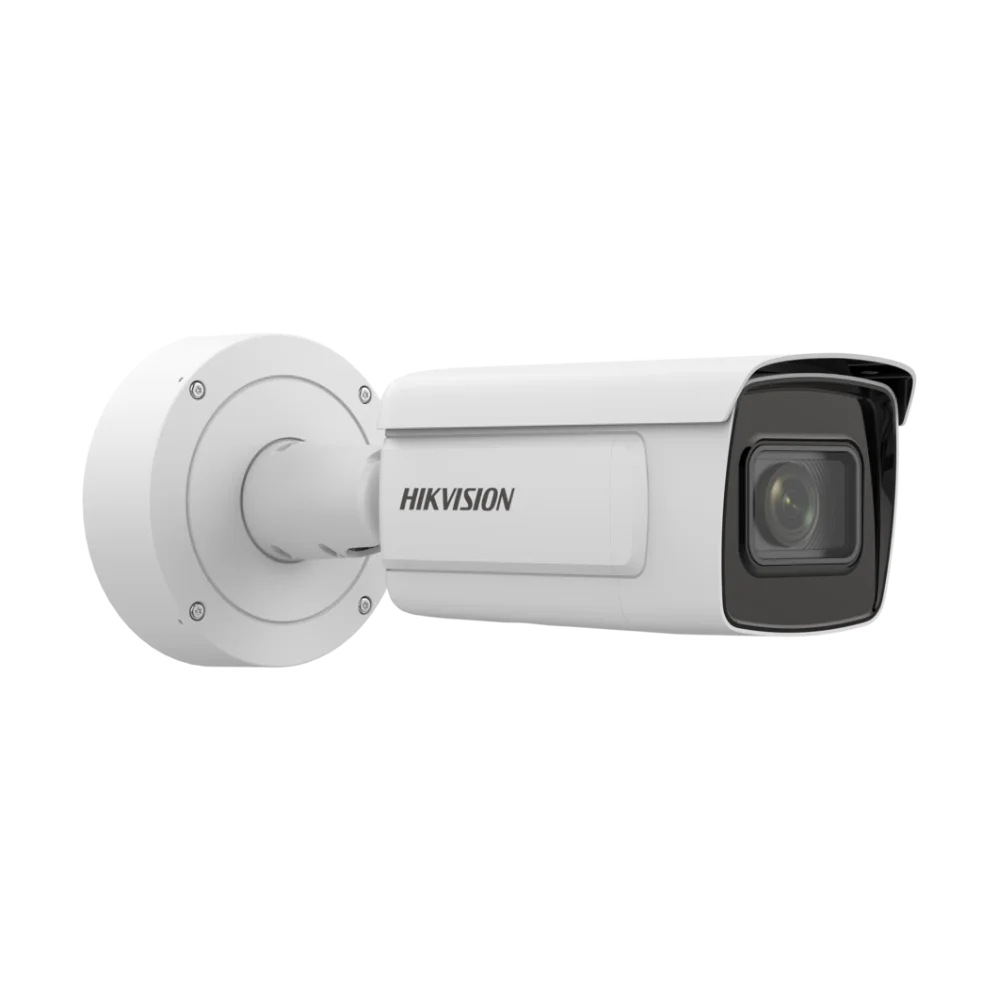

Hikvision iDS-2CD8A46G0-IZ/UH — 4MP Ultra-Low-Temperature DeepinView Moto Varifocal Bullet (Boots and Runs from −60 °C)
The Hikvision iDS-2CD8A46G0-IZ/UH is a specialty 4MP DeepinView bullet camera engineered for one purpose: to start up, run continuously and deliver usable imagery at temperatures down to −60 °C (−76 °F). That places it well beyond the −30 °C / −40 °C floor of conventional Hikvision DeepinView and AcuSense cameras. This is a perimeter-protection specialty camera — not an ANPR camera, not an active-deterrence camera, and not an AcuSeek camera — purpose-built for the cold environments where standard cameras simply refuse to boot.
Typical Australian deployments include commercial cold-storage and freezer warehouses, abattoir chillers, flash-freeze tunnels in food processing, refrigerated logistics, ice rinks, alpine telecom huts and mast cabinets, ski-resort chairlift towers, mining sites in the Snowy Mountains and Tasmanian high country, LNG and industrial-gas plants, and any sub-polar marine or research deployment. The camera pairs a 1/1.8" 4MP DarkFighter CMOS sensor with LightFighter 140 dB WDR, a 2.8–12 mm motorised varifocal lens, smart IR illumination to 50 m, and a built-in front-glass heater plus demist to keep the lens clear of ice, fog and cold-warm condensation cycling. On-camera DeepinView deep-learning drives line crossing, intrusion, region entrance and region exiting alarms with human-and-vehicle classification, and the AI Open Platform accepts one custom detection / classification / mixed model for site-specific analytics. Full metal-bodied construction, IP67 sealed and IK10 vandal-resistant (excluding the glass window). Australian stock, 3-year Australian warranty.
Operating Range
−60 °C to +60 °C · Heater · Demist
Resolution
4MP · 2688 × 1520 · 25/30 fps
Motorised Zoom
2.8–12 mm · F1.9 Motorised
Night Vision
DarkFighter · 50 m Smart IR
AI Engine
DeepinView · AI Open Platform (1)
Power
12 VDC only · 51.4 W peak · No PoE
3-Year Australian Warranty
Fast Australia-Wide Shipping
What This Camera Is — and What It Isn't
It's worth getting the positioning right upfront. The iDS-2CD8A46G0-IZ/UH is a specialty cold-environment perimeter-protection camera. It does one job extraordinarily well, and it deliberately doesn't try to do anything else. Knowing what's not on the spec sheet stops you from spec'ing the wrong camera for the wrong job.
✓ Perimeter Protection at −60 °C
On-camera deep-learning runs line-crossing, intrusion, region-entrance and region-exiting alarms with human-and-vehicle classification — accurate enough for chill-room access compliance, freezer-aisle dwell-time alerts, ski-resort gate counting and alpine-base perimeter watch.
✓ Cold-Soak Cold Start
Rated to start up from −60 °C — not merely operate after being warmed by sun. When power cycles overnight at an alpine site or an unstaffed cold-store, this camera boots immediately. Conventional cameras can refuse to boot until ambient warms past −30 °C.
✓ One-Slot AI Open Platform
One custom deep-learning model can be uploaded directly to the camera (detection, classification or mixed). Useful for PPE-on-personnel detection in cold-rooms, vehicle-type classification on alpine access roads, hi-vis detection at chairlift loading points.
✗ Not an ANPR / Plate-Recognition Camera
This model is not a number-plate camera. There is no LPR engine, no vehicle-attribute capture, no plate blocklist/allowlist, no Road-Traffic-and-Vehicle-Detection feature set. For on-camera ANPR, choose the iDS-2CD7A46G2/P-IZHSY (G2 ANPR bullet) instead.
✗ Not an Active-Deterrence Camera
No strobe, no built-in speaker, no built-in microphone, no two-way audio. For sites where the camera also needs to challenge an intruder with light and voice, pair this perimeter sensor with a separate AcuSense Smart Hybrid Light camera at the entry point.
✗ Not an AcuSeek-Native Camera
The camera predates Hikvision's AcuSeek roll-out and does not feed native AcuSeek metadata (persons / plates / vehicles / animals) into the NVR. It records and streams cleanly over ONVIF and Hikvision ISAPI to any modern Hikvision NVR — you just don't get plain-English natural-language search across this camera's archive.
Important Install Note — 12 VDC Only, No PoE
Unlike most modern Hikvision IP cameras, the iDS-2CD8A46G0-IZ/UH does not support PoE. The peak power draw with the heater on a cold-soaked −60 °C boot is up to 51.4 W, well above what standard 802.3af (15 W) or 802.3at (25.5 W) PoE can deliver at the camera end of a 100 m run. Hikvision standardises the camera on 12 VDC ± 10% direct, on a three-core terminal block, with reverse-polarity protection built in.
Plan for: a dedicated weatherproof 12 V power supply rated at minimum 5 A continuous with 15–20% headroom for the cold-start surge, or a 24 V → 12 V step-down regulator if you're carrying 24 V through a long cable run. For runs over 50 m, step up to 24 V at the supply and buck-convert at the camera to manage voltage drop. For freezer-aisle and alpine installs, choose an industrial DIN-rail supply mounted inside a heated control cabinet.
Technical Specifications
iDS-2CD8A46G0-IZ/UH · Full Specifications
| SKU |
iDS-2CD8A46G0-IZ/UH(2.8-12mm) |
| Camera Type |
4MP Ultra-Low-Temperature DeepinView Moto Varifocal IR Bullet Network Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS · DarkFighter |
| Max Resolution |
2688 × 1520 (4MP) |
| Lens |
Motorised varifocal · 2.8–12 mm · F1.9 · auto / semi-auto / manual focus · integrated mount |
| Field of View |
H 110° → 46.2° · V 59.6° → 26.2° · D 130° → 53° |
| Min. Illumination |
Colour 0.0036 lux @ F1.6 (AGC ON) · 0 lux B/W with IR |
| IR Range |
Up to 50 m · Smart Supplement Light · 850 nm |
| Day & Night |
IR cut filter |
| Wide Dynamic Range |
140 dB · LightFighter pipeline · BLC · HLC · 3D DNR · Defog · Distortion Correction |
| Frame Rate (Main) |
50 Hz: 25 fps @ 4K / 1080p / 720p · 60 Hz: 30 fps @ same |
| Video Compression |
H.265+ · H.265 · H.264+ · H.264 · MJPEG (substreams) |
| Streams |
5 simultaneous streams (main / sub / third / fourth / fifth) |
| Video Bit Rate |
32 Kbps – 8 Mbps · CBR / VBR · SVC · ROI (8 fixed regions per stream) |
| Deep-Learning AI |
DeepinView · line-crossing, intrusion, region-entrance, region-exiting detection (human + vehicle classification) |
| AI Open Platform |
Up to 1 model · model types: detection, classification, mixed (detection + classification) |
| Smart Events |
Scene change detection · defocus detection |
| Basic Events |
Motion detection · video tampering · exception (network down, IP conflict, illegal login, HDD full / error) |
| ANPR / LPR |
Not supported (no /P suffix, no LPR algorithm) |
| Face Capture |
Not supported |
| Active Deterrence |
None — no strobe, no built-in speaker, no built-in microphone, no two-way audio |
| Linkage |
Upload to FTP / NAS / memory card · notify surveillance centre · email · trigger recording · trigger capture |
| Ethernet |
1 × RJ-45 10/100 Mbps self-adaptive (not gigabit) |
| On-Board Storage |
microSD / SDHC / SDXC up to 256 GB · ANR · memory-card encryption supported |
| API & Protocols |
ONVIF (Profile S / G / T) · ISAPI · SDK · 20 concurrent live-view sessions |
| Cyber Security |
TLS 1.2 · HTTPS · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · IP filter · watermark · security audit log |
| Client Software |
iVMS-4200 · Hik-Connect · HikCentral |
| Power Source |
12 VDC ±10% only — no PoE, no 24 VAC · 4.28 A · max 51.4 W · 3-core terminal block · reverse-polarity protected |
| Built-in Heater |
Yes |
| Demist |
Yes |
| Material |
Metal body |
| Dimensions |
Ø 140 mm × 367.8 mm (Ø 5.51" × 14.48") |
| Weight |
Approx. 1.82 kg |
| Weatherproof Rating |
IP67 (IEC 60529-2013) |
| Vandal Resistance |
IK10 (IEC 62262:2002) — excluding glass window |
| Operating Temperature |
−60 °C to +60 °C · ≤95% humidity (non-condensing) — startup & continuous run |
| Storage Temperature |
−30 °C to +65 °C · ≤95% humidity (non-condensing) |
| Approvals |
CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · IC ICES-003 · CB · RoHS · WEEE · REACH |
| Warranty |
3-Year Australian Warranty (back-to-base) |
iDS-2CD8A46G0-IZ/UH vs iDS-2CD7A46G2/P-IZHSY — Which DeepinView Bullet?
Both are 4MP DeepinView bullets, but they're built for entirely different jobs. The iDS-2CD8A46G0-IZ/UH is the cold-environment specialty — it boots and runs at −60 °C, but it doesn't do plate recognition, face capture or active deterrence, and it needs a local 12 VDC supply because it can't be PoE-powered. The iDS-2CD7A46G2/P-IZHSY is the newer-generation G2 ANPR bullet — runs in standard climate ranges, supports on-camera number-plate recognition with ≥98% accuracy across 124+ countries, has the newer TPM 2.0 cyber-security baseline, and runs on standard PoE+ alongside 12 VDC / 24 VAC options.
iDS-2CD8A46G0-IZ/UH (Ultra-Low Temp Perimeter) vs iDS-2CD7A46G2/P-IZHSY (Standard G2 ANPR)
For the standard-temperature G2 ANPR bullet referenced in the comparison, see: iDS-2CD7A46G2/P-IZHSY (2.8–12 mm / 8–32 mm) →
Recording NVRs — Any Modern Hikvision NVR Works
The iDS-2CD8A46G0-IZ/UH streams to any modern Hikvision NVR over ONVIF Profile S/G/T and Hikvision ISAPI — there are no AcuSeek-specific or DeepinMind-specific requirements on the recorder side because this camera does not produce AcuSeek metadata. For multi-site cold-supply-chain, abattoir or alpine rollouts that also include AcuSeek-capable cameras elsewhere on the site, the VPro AcuSeek and DeepinMind NVRs are excellent platforms — they record the cold-temp camera normally and unlock natural-language search for the rest of the fleet.
DS-7608NXI-I2/8P/VPro — 8CH · AcuSeek AI
Eight-channel VPro AcuSeek AI NVR with 8 built-in PoE ports — typical platform for a single cold-storage facility, ski-resort top station or alpine telecom site. View DS-7608NXI-I2/8P/VPro →
DS-7616NXI-I2/16P/VPro — 16CH · AcuSeek AI
Sixteen channels at full PoE — typical scale for a mid-size cold-storage warehouse, abattoir chill-room cluster or a multi-tower alpine site. View DS-7616NXI-I2/16P/VPro →
DS-7732NXI-I4/16P/VPro — 32CH · AcuSeek AI
Thirty-two channels with 16 PoE and 4 HDD bays — the typical VPro AcuSeek platform for industrial cold-supply-chain campuses, LNG plants and large ski-resort multi-station rollouts. View DS-7732NXI-I4/16P/VPro →
iDS-7716NXI-M4/16P/X — 16CH · DeepinMind
DeepinMind X-Series — the most powerful 16-channel AI NVR for sites running mixed cold-temp and standard-temp camera fleets, with AcuSearch natural-language search applied across the AcuSearch-capable cameras in the fleet. View iDS-7716NXI-M4/16P/X →
Note: the camera does not draw PoE from any of the above NVRs — its data goes over the PoE port's Ethernet but power must come from a separate local 12 VDC supply. Browse the full Hikvision NVR range: Hikvision Network Video Recorders →.
Compatible Mounts & Accessories
Hikvision DS-1475ZJ-SUS — Stainless Vertical Pole Mount
316-grade stainless vertical pole bracket — the typical install partner for cold-room ceiling penetrations, alpine pole-top installs and ski-resort tower mounts where the bracket itself must survive freeze-thaw cycling.
Hikvision DS-1476ZJ-SUS — Stainless Corner Mount
316-grade stainless corner-mount bracket for situating the bullet at the corner of a chiller-room, abattoir cold-aisle or alpine mast cabinet, looking down a perimeter line or processing aisle.
Hikvision DS-1275ZJ-S-SUS — Stainless Pendant Wall Mount
316-grade stainless pendant wall mount — for hanging the bullet from a chill-room ceiling, freezer-aisle joist, alpine eaves or telecom-hut soffit. Pairs cleanly with cable-gland penetrations from above.
Dedicated 12 VDC Power Supply (Sized for Cold-Start)
Plan for a weatherproof 12 VDC supply rated at minimum 5 A continuous with 15–20% headroom for the cold-boot heater surge. We recommend industrial-grade DIN-rail supplies for refrigerated and alpine sites — contact our Australian team for the right model.
WD Purple 256 GB Surveillance microSD
WD Purple — built for 24/7 surveillance write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for the iDS-2CD8A46G0-IZ/UH (256 GB is this camera's maximum). View WD Purple 256 GB →
Cold-Rated Outdoor Ethernet (UV / Gel-Filled)
For freezer-room and alpine sites, pair the camera with UV-stable, gel-filled Cat 6 outdoor cable — standard indoor cable jackets crack and PVC insulation goes brittle at low temperatures.
Frequently Asked Questions
Is this an ANPR camera?
No. The iDS-2CD8A46G0-IZ/UH is a perimeter-protection DeepinView camera — line crossing, intrusion, region entrance and region exiting with human/vehicle classification. There is no LPR engine, no vehicle-attribute capture and no plate database. For on-camera number-plate recognition, choose the iDS-2CD7A46G2/P-IZHSY instead — the "/P" suffix is Hikvision's ANPR indicator.
Where would I actually use a −60 °C camera in Australia?
Far more sites than you'd expect. The most common Australian deployments are commercial cold-storage warehouses (typically held at −22 °C to −30 °C), flash-freeze tunnels in food processing (−35 °C to −40 °C), abattoir chillers and quarters-rooms, ice rinks, ski-resort chairlift top stations (often −15 °C ambient with sub-−30 °C wind chill at altitude), alpine telecom huts and mast cabinets in the Snowy Mountains and Tasmanian high country, LNG and cryogenic-gas plants, and Antarctic and sub-Antarctic research bases.
Why doesn't it support PoE?
The camera's cold-boot heater + sensor warm-up can draw up to 51.4 W, which is above what 802.3af (15 W) or even 802.3at (25.5 W) PoE can reliably deliver to the camera end of a 100 m run, especially at low temperature where cable resistance rises. Hikvision elected to drop PoE entirely on this model and standardise on 12 VDC direct so installers can spec a properly-sized cold-start supply.
What 12 VDC supply should I use?
Minimum 12 VDC ±10% at 5 A continuous, with 15–20% headroom for the cold-start surge — realistically a 12 V / 6 A or 8 A industrial DIN-rail supply. For cold-storage and alpine sites, choose an industrial-grade supply rated for the ambient where the supply itself is installed (typically inside a heated control cabinet). Reverse-polarity protection is built into the camera, but always check polarity at the terminal block before final commissioning.
Does the heater run continuously?
No. The camera's heater management is internal: the camera senses front-window and sensor temperatures and runs the heater only when needed to keep the imaging path clear. Steady-state power in a benign 0 °C ambient is much lower than the 51.4 W peak — the peak is reserved for cold-soak boot and active demist cycles. Plan supply capacity for the worst case.
Can I use it as an active-deterrence camera (strobe / speaker)?
No. There is no strobe, no built-in speaker, no built-in microphone and no two-way audio on this model. For active deterrence at a cold-environment site, install this camera as the perimeter sensor and pair it with a separate AcuSense Smart Hybrid Light camera (with strobe + speaker) at the entry door or gate.
Does it support AcuSeek natural-language search?
Not natively. AcuSeek requires camera-side metadata generation that this G0-architecture model predates. The camera records cleanly to any modern Hikvision NVR over ONVIF/ISAPI, but you don't get plain-English natural-language search across this camera's archive. AcuSeek-capable cameras elsewhere on the same NVR work normally.
Is the AI Open Platform the same as HEOP 2.0?
It's the earlier generation of Hikvision's open AI platform — supports one model slot (detection, classification, or mixed). The newer G2-generation cameras run HEOP 2.0 with more on-camera compute and multiple concurrent models. For most cold-storage and alpine deployments, one model — typically a PPE-on-personnel detector or stock-presence detector — is sufficient.
Is this NDAA Section 889 compliant?
No. Hikvision is subject to NDAA Section 889 restrictions in the United States. For NDAA-compliant cold-storage, mining or research projects (typically US federally-funded), we stock alternative brands — please contact our team for a cold-rated NDAA recommendation. For Australian commercial, council, private and most state-government projects without an NDAA contractual requirement, this camera is freely usable.
Does it record locally if the network drops?
Yes. microSD up to 256 GB with ANR (Auto Network Replenishment) — when the network link to the NVR drops, the camera continues writing locally and automatically backfills missed footage to the NVR drive once the link returns.
What's the maximum cable run from the 12 V supply?
That depends on cable gauge. As a rough rule, for the 51.4 W peak (~4.3 A at 12 V) you'll see ~3% voltage drop over 30 m of 18 AWG, ~3% over 50 m of 16 AWG, and ~3% over 80 m of 14 AWG. For runs over 50 m we recommend stepping up to 24 V at the supply and using a 24 V → 12 V buck converter at the camera, or installing the supply closer to the camera.
What's the warranty and where is it serviced?
This camera ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia. CCTV Guru manages the entire RA process from our Sydney office and provides Australian-based pre-sales and technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Hikvision Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
Order the Hikvision iDS-2CD8A46G0-IZ/UH from CCTV Guru
CCTV Guru is an authorised Australian reseller of Hikvision DeepinView network cameras. Order the iDS-2CD8A46G0-IZ/UH 4MP ultra-low-temperature DeepinView bullet for fast Australia-wide dispatch, expert pre-sales advice, project pricing for cold-storage, abattoir, alpine, ski-resort and industrial cold-chain rollouts, and full local warranty support. Designing a freezer-aisle, chill-room or alpine surveillance project? Request a free quote or contact our Australian team for tailored camera-and-NVR sizing — we'll spec the right 12 VDC supply at the same time.
