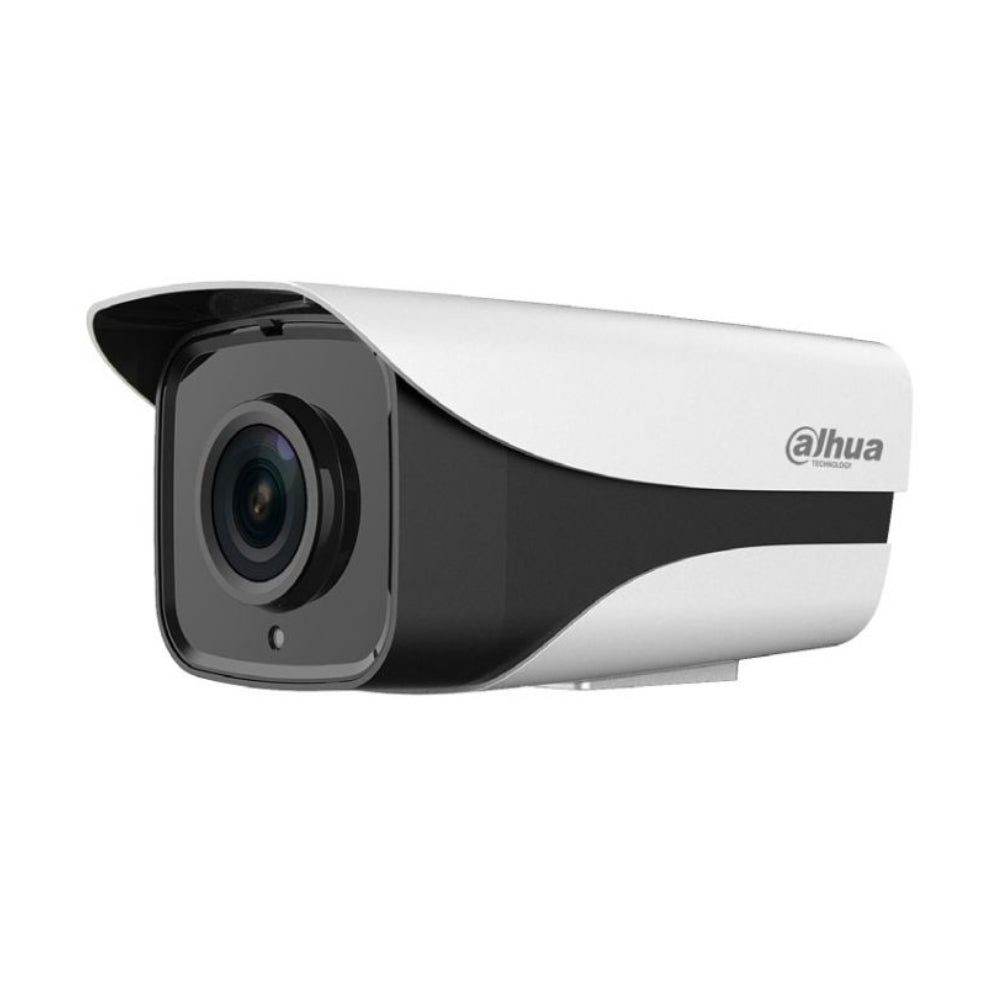

Dahua 4-Series · 2 MP · 4G LTE Cellular · 80 m IRDahua 2 MP 4G LTE BulletDahua DH-IPC-HFW4230MP-4G-AS-I2-0360B — 2 MP 4G LTE Fixed-Focal IR Bullet Network Camera (4230 Series, 3.6 mm)
The Dahua DH-IPC-HFW4230MP-4G-AS-I2-0360B is a 4-Series 2 MP 4G LTE cellular bullet — the older-generation Dahua cellular bullet, ideal where lower resolution is acceptable and cost is the driver. Built around a 1/2.8" CMOS sensor capturing 1920 × 1080 (Full HD 1080p) at 25/30 fps. The 3.6 mm fixed lens delivers a ~85° field of view; built-in IR reaches up to 80 m — long-range night surveillance from a 2 MP camera; the metal bullet housing is IP67 sealed. Australian-band support across Telstra, Optus and Vodafone networks. Built-in microphone, 1/1 audio I/O, 2/1 alarm wet-contact. Cloud backup via DMSS app. Built for older 4G LTE installs and cost-sensitive remote-site applications — rural property gates, small construction sites, marina docks, water tank monitoring and remote sheds where the higher-resolution HFW3441DG-AS-4G WizSense 3 isn't required. Backed by a 3-year Australian warranty through CCTV Guru. SKU 4230 series.
Why Choose the Dahua HFW4230MP-4G LTE Bullet
4G LTE — No Ethernet Required
Pop in a Telstra, Optus or Vodafone SIM card — the camera operates entirely over the cellular network. No Cat6 cabling, no PoE switch, no fixed-line internet required.
80 m Long-Range IR
Built-in IR array reaches up to 80 m — among the longest IR throws for a 2 MP cellular bullet.
Cost-Effective 2 MP
1080p Full HD at lower cost than the WizSense 3 4 MP HFW3441DG-AS-4G — right for installs where higher resolution is overkill.
Telstra/Optus/Vodafone Support
Australian-band LTE coverage across the major carriers.
IP67 Metal Housing
Outdoor-rated metal housing for Australian conditions.
Built-in Mic + Audio + 2/1 Alarm I/O
Built-in microphone, 1/1 audio I/O and 2/1 alarm I/O for third-party alarm integration.
Important Install Note
This camera requires a 4G LTE SIM card with active data plan. A 10–30 GB/month plan is typically sufficient for motion-triggered cloud uploads. Camera is fixed-focal (3.6 mm) — frame at install time. Powered by 12 VDC — pair with solar + battery for off-grid installs. For the higher-resolution next-generation cellular camera, see HFW3441DG-AS-4G-EAU-B (4 MP WizSense 3).
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HFW4230MP-4G-AS-I2-0360B |
| Form Factor |
Bullet (HFW chassis) |
| Image Sensor |
1/2.8" CMOS |
| Maximum Resolution |
1920 × 1080 (2 MP / 1080p) |
| Frame Rate |
1080p @ 25/30 fps |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Lens Type |
Fixed-focal 3.6 mm |
| Field of View |
H: ~85° |
| IR Illumination |
Up to 80 m |
Cellular & Network
| Cellular Standard |
4G LTE Cat 4 |
| AU Carrier Support |
Telstra · Optus · Vodafone |
| SIM Card |
Micro SIM |
| Built-in Mic |
Yes |
| Audio I/O |
1 in / 1 out |
| Alarm I/O |
2 in / 1 out |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS |
| Cloud Backup |
Yes (DMSS Cloud) |
| Interoperability |
ONVIF |
Power, Environment & Build
| Power Supply |
12 VDC (no PoE) |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 |
| Casing |
Metal |
| Australian Warranty |
3 Years (via CCTV Guru) |
Typical Applications
Rural Property Gates
Front-gate monitoring of rural properties without fixed-line internet.
Construction Sites
Theft monitoring at sites where 2 MP coverage is sufficient.
Water Tanks & Pumping Stations
Remote monitoring of unattended utility sites.
Marina & Boating Sheds
Off-grid remote asset protection.
Frequently Asked Questions
Includes SIM?
No — you supply your own data SIM.
5G compatible?
No — 4G LTE only.
Data plan size?
10–30 GB/month typical for alarm-only operation.
Power?
12 VDC — no PoE. Pair with solar + battery for off-grid.
WizSense AI?
This is an older 4-Series model — not WizSense 3. For full WizSense 3 + AcuPick + 4 MP, see HFW3441DG-AS-4G-EAU-B.
Storage?
Micro SD up to 256 GB onboard.
Cloud backup?
Yes — DMSS cloud backup of alarm clips.
Mobile viewing?
Yes — DMSS app.
Downloads
Order Your Dahua HFW4230MP-4G from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing including solar + battery off-grid kit options. 3-year Australian warranty. cctvguru.com.au/pages/contact.
