Dahua WizSense 3 · 8MP 4K Bullet · Motorised Vari-Focal · 60 m IR

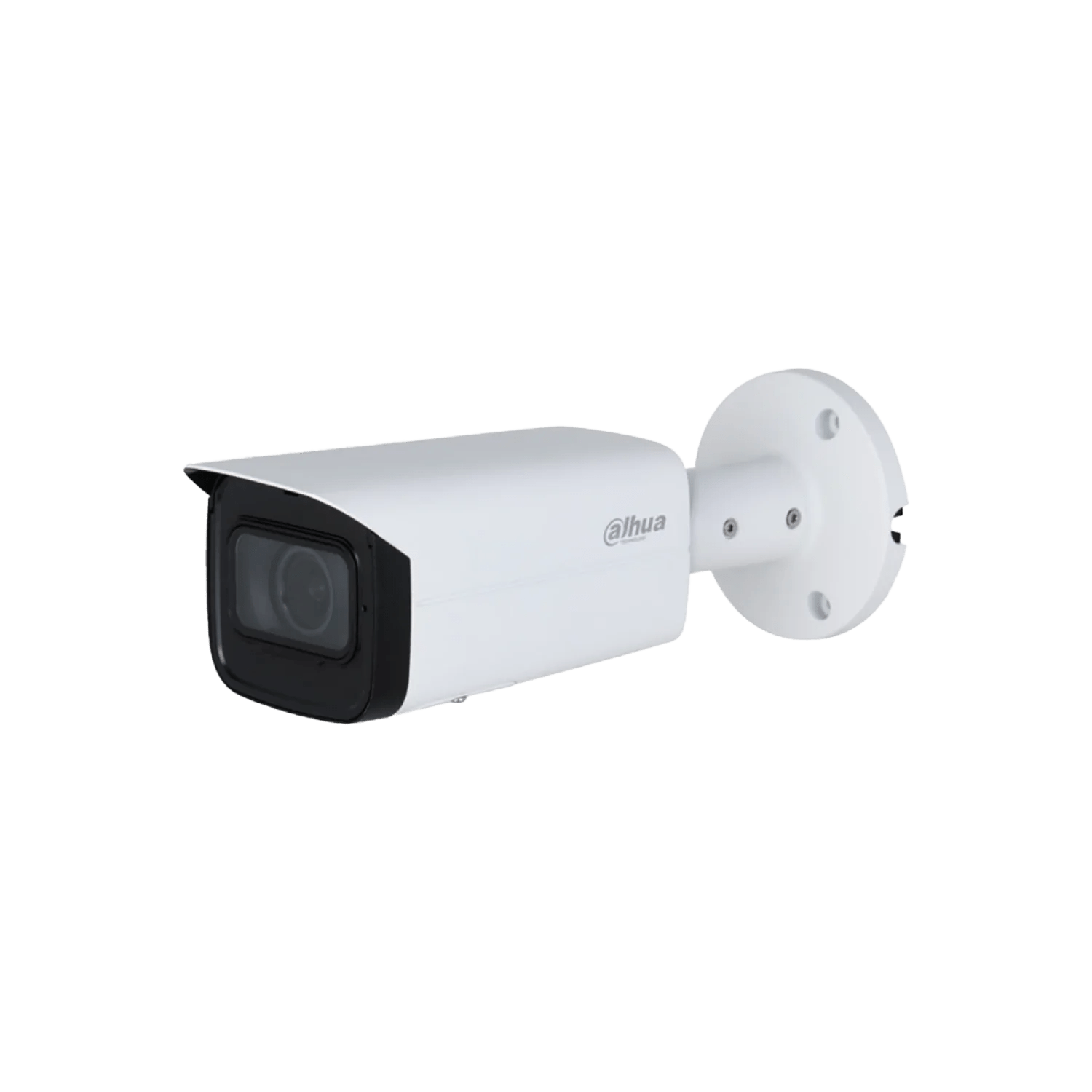

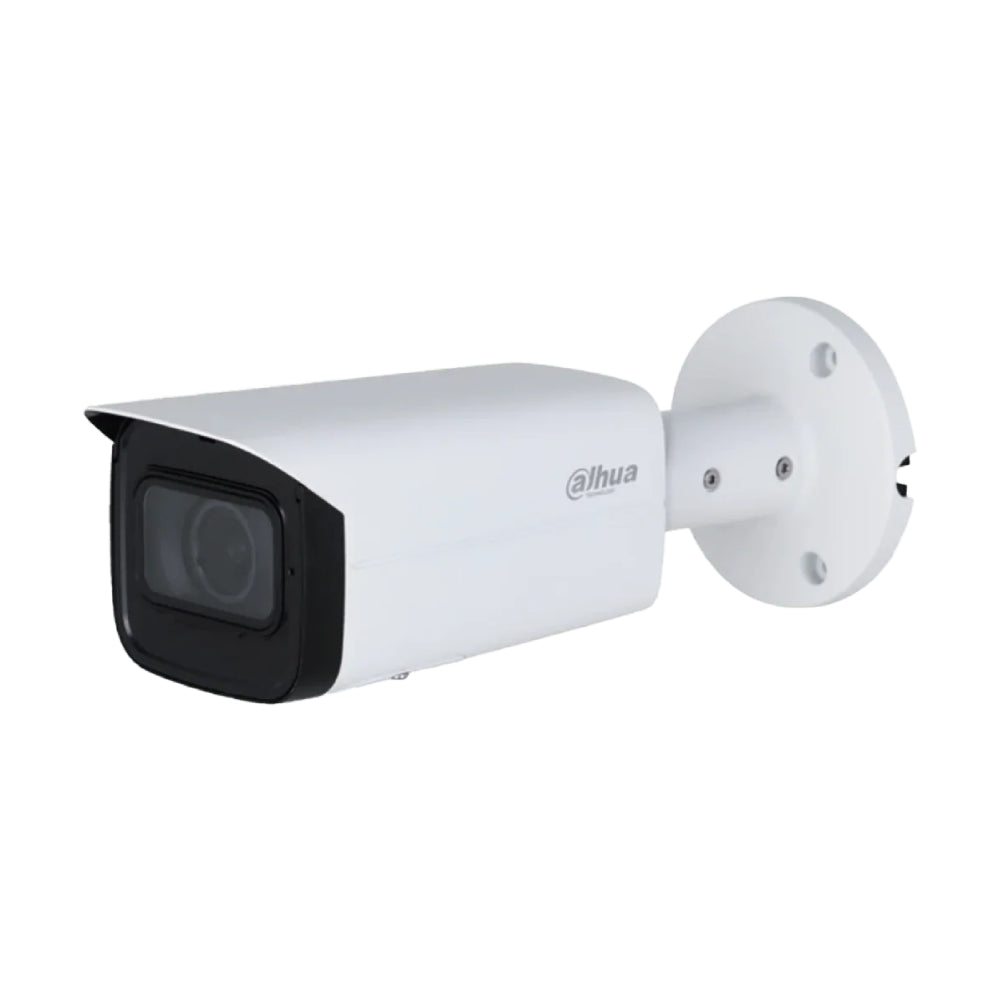

Dahua DH-IPC-HFW3866TP-ZAS-AUS — 8MP 4K IR Motorised Vari-Focal Bullet
The Dahua DH-IPC-HFW3866TP-ZAS-AUS is an 8MP IR vari-focal bullet in Dahua's WizSense 3 Series — a long-range surveillance camera built around a 1/2.8" CMOS sensor, a 2.7–13.5 mm motorised vari-focal lens, four IR LEDs delivering 60 m of night vision, and on-camera SMD 4.0 AI to filter false alarms. This is a focused IR surveillance camera — there are no strobe lights, no siren, no warm-light LED and no active deterrence chain. It's purpose-built for sites that need silent, long-range 4K monitoring rather than visible deterrence.
Powered by Dahua's WizSense AI, the camera supports perimeter protection (tripwire + intrusion with human/vehicle classification), AI SSA scene adaptation, EIS image stabilisation, 120 dB true WDR and AI Coding for reduced bandwidth and storage. Paired with a Dahua AI NVR, Quick Pick surfaces human and vehicle targets straight from SMD events for faster review. The compact metal bullet body is IP67 sealed, with IK10 vandal resistance available as an optional configuration. White only. Australian stock, 3-year Australian warranty.
Resolution
8MP · 4K · 3840 × 2160
Motorised Zoom
2.7–13.5 mm · F1.5
Night Vision
60 m IR (4 LEDs)
AI Engine
WizSense · SMD 4.0 · IVS
Protection
IP67 · IK10 (optional)
Power
PoE 802.3af · Max 10.5 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Why Choose the 8MP IR Motorised Bullet
Not every site wants — or is allowed to have — a camera that flashes red and blue strobes and sounds a siren at every fox or possum. For Australian schools, aged-care facilities, healthcare campuses, residential frontages near neighbours, retail interiors and corporate sites, the right camera is one that watches quietly at 4K, illuminates the scene with invisible IR out to 60 m, and lets the rest of the security stack (NVR alerts, monitored response, mobile push) decide what happens next. The 3866TP-ZAS-AUS is built for exactly that role.
4K Surveillance Without Light Pollution
Invisible IR illumination from four LEDs reaches out to 60 m. No flashing strobes, no warm-light spill into neighbouring properties, no audible alarms — eyes on the scene without announcing it.
60 m IR Range
Four IR LEDs combined with the 5× zoom lens deliver clear night-time monitoring deep into large yards, long driveways and commercial perimeters where shorter-range cameras simply run out of light.

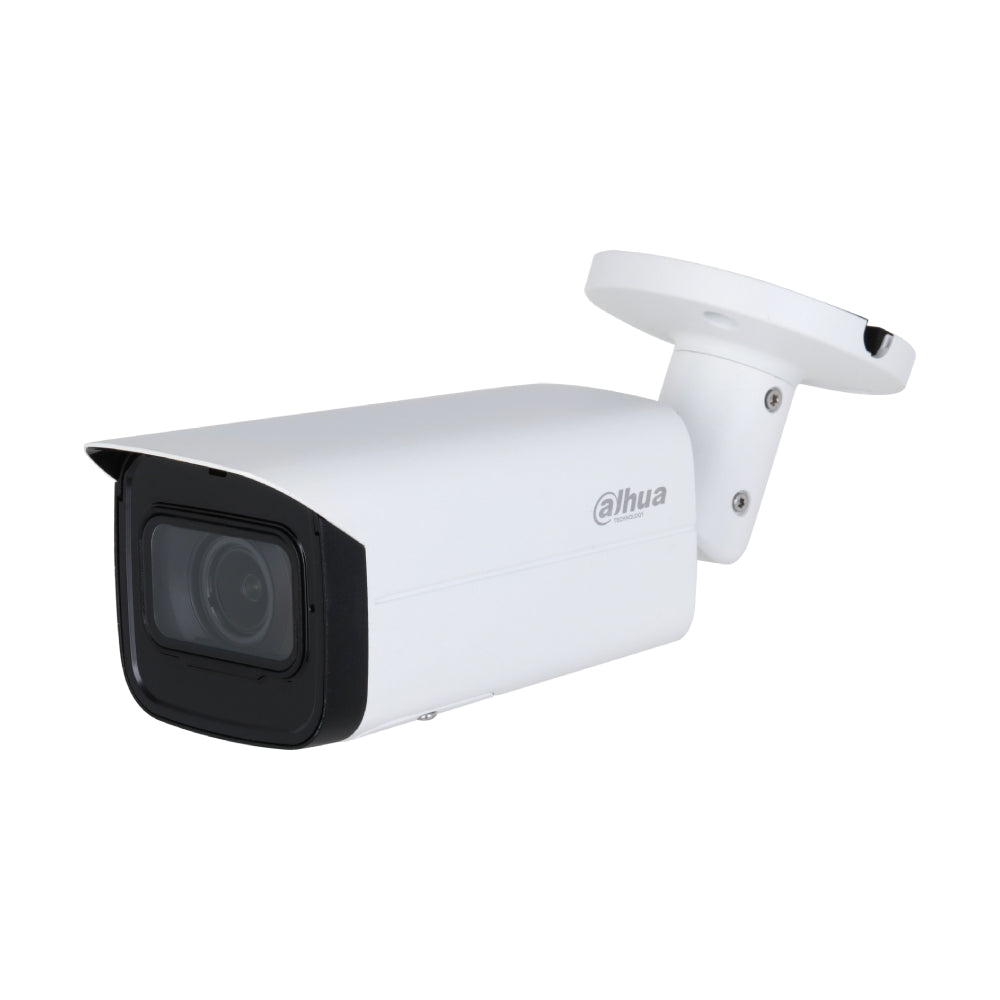

2.7–13.5 mm Motorised Vari-Focal
Five-times optical zoom with remote focus and zoom control via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone whenever the scene changes — no ladder, no re-aiming.
SMD 4.0 — Near-Zero False Alarms
Dahua's Smart Motion Detection 4.0 runs on-camera, classifying humans and vehicles while filtering out animals, foliage and weather. Sleep through the night, not through the alarm.
120 dB WDR + AI SSA
120 dB true WDR balances harsh contrast (sunset doorways, undercover carparks, mixed lighting). AI Scene Self-Adaptation tunes exposure for rain, fog, backlight, low light and flicker automatically.
IP67 Metal Body + IK10 Option
Fully sealed against dust and water in a compact all-metal bullet chassis. IK10 vandal-resistance is available as an optional configuration — engineered for carparks, loading docks, school perimeters and high-traffic environments.
Smart Features for Real-World Australian Sites
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification only when a human or vehicle actually crosses it. No false alarms from leaves blowing in the wind.
EIS Image Stabilisation
Electronic Image Stabilisation corrects subtle vibration on long-zoom shots from a pole, gable or fence — keeping the image steady at 13.5 mm telephoto where small movements are most visible.
AI Coding — Lower Bandwidth & Storage
Dahua's AI Coding (AI H.265 / H.264) analyses the scene and dedicates bitrate only to objects of interest, reducing storage and transmission cost over standard Smart H.265+.
External Audio & Alarm I/O
The ZAS variant supports 1 audio in / 1 audio out (RCA) plus 1 alarm in / 1 alarm out — connect an external speaker, PIR or door contact to extend the camera's capability. Built-in microphone included on-camera.
Edge Recording — MicroSD up to 256 GB
On-camera MicroSD records 4K footage independently of the NVR — a redundancy layer if the network drops or the recorder is offline.
Pair with a Dahua WizSense AI NVR
The 3866TP-ZAS-AUS is a WizSense 3 Series camera. SMD 4.0, IVS rules and human/vehicle classification all run on-camera and work with any Dahua AI NVR — including the value 4-Series WizSense NVRs. With a compatible AI NVR you also unlock Quick Pick — fast human/vehicle target extraction from SMD events. (Note: this camera does not support AcuPick attribute search; if that workflow matters to your site, look at the TiOC AcuPick line instead.)
DHI-NVR4108HS-8P-AI/ANZ — 8 Channel · 8 PoE
Value 4-Series WizSense AI NVR — 8 channels, 8 built-in PoE ports, perfect partner for a small-to-mid 3866 deployment. View NVR4108HS-8P →
DHI-NVR4216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 4-Series WizSense AI NVR — room to grow into 16 cameras at full PoE, with AI smart search and human/vehicle filtering on every channel. View NVR4216-16P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · Premium Performance
Step up to the 5-Series for higher bandwidth, faster playback search and more advanced AI features — ideal if you're building a larger or higher-spec system around the 3866. Fully backward-compatible with this camera. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 4 HDD Bays
32-channel 1.5U NVR with 16 PoE and 4 HDD bays — for larger commercial sites, retail chains and multi-building campuses needing more channels and longer retention. View NVR5432-16P →
Need help sizing? Browse the complete Dahua NVR range → or contact our Australian team for a tailored recommendation based on your camera count and retention requirements.
Technical Specifications
DH-IPC-HFW3866TP-ZAS-AUS · Full Specifications
| SKU |
DH-IPC-HFW3866TP-ZAS-AUS (White only) |
| Camera Type |
8MP IR Vari-focal Bullet · WizSense 3 Series |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max Resolution |
3840 × 2160 (8MP / 4K) @ 25/30 fps |
| Lens Type |
Motorised vari-focal · 2.7–13.5 mm · φ14 mount |
| Maximum Aperture |
F1.5 |
| Field of View |
H: 109°–30° · V: 56°–17° · D: 131°–35° |
| Close Focus Distance |
0.8 m |
| DORI — Wide (2.7 mm) |
Detect 88.3 m · Observe 35.3 m · Recognise 17.7 m · Identify 8.8 m |
| DORI — Tele (13.5 mm) |
Detect 289.7 m · Observe 115.7 m · Recognise 57.9 m · Identify 29.0 m |
| Min. Illumination |
Colour: 0.007 lux @ F1.5 · B/W: 0.0007 lux · 0 lux (Illuminator on) |
| S/N Ratio |
> 56 dB |
| Dynamic Range |
120 dB True WDR |
| Day & Night |
Auto (ICR) / Colour / B&W |
| Illuminators |
4 × IR LED · Up to 60 m (no warm light · no active deterrence) |
| Image Enhancement |
WDR · 3D NR · HLC · BLC · Defog · AFSA · AI SSA · Smart Illumination · EIS · Image Rotation · Digital watermarking |
| Intelligent Video |
WizSense AI · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick (with AI NVR) · Smart Search · AI SSA |
| Active Deterrence |
Not included — silent IR surveillance camera |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub-stream) · Smart H.265+ / H.264+ · AI H.265 / AI H.264 |
| Streaming |
3 streams — Main 3840×2160 · Sub 1 704×576 · Sub 2 1920×1080 (Full HD) |
| Video Bitrate |
H.264 / H.265: 3 kbps – 8,192 kbps |
| Audio |
Built-in microphone · G.711a / G.711Mu / G.726 / G.723 / PCM compression |
| Audio I/O (ZAS only) |
1 audio in (RCA) · 1 audio out (RCA) |
| Alarm I/O (ZAS only) |
1 alarm in (5 mA, 3–5 V DC) · 1 alarm out (300 mA, 12 V DC) |
| IP Camera Protocol |
ONVIF Profile S/G/T · CGI · P2P · Milestone · Genetec |
| Network Protocols |
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · 802.1x |
| Cyber Security |
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Edge Storage |
MicroSD up to 256 GB · NAS · FTP / SFTP |
| Weatherproof Rating |
IP67 |
| Vandal Resistance |
IK10 (optional configuration) |
| Operating Temperature |
−30 °C to +60 °C · < 95% RH |
| Storage Temperature |
−40 °C to +60 °C |
| Power Source |
12 V DC / PoE (IEEE 802.3af) · ±30% wide voltage |
| Power Consumption |
Basic 4 W (12 V DC) / 4.9 W (PoE) · Max 9.2 W (12 V DC) / 10.5 W (PoE) |
| Memory |
ROM 128 MB · RAM 1 GB |
| Pan / Tilt / Rotation |
Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360° |
| Mobile App |
DMSS · Smart PSS · DSS (iOS & Android) |
| Approvals |
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1 |
| Housing |
Metal · White only |
| Dimensions |
244.1 × 79.0 × 75.9 mm (L × W × H) |
| Weight |
820 g (net) · 1090 g (gross) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
3866TP-ZAS-AUS vs 3849T1-ZAS-PV-ANZ-S2 — Silent or Active Deterrence?
Both cameras are 4K motorised vari-focal bullets sharing the same WizSense AI engine, SMD 4.0, IVS perimeter protection and IP67 rating. The deciding question is the deterrence chain: do you want the camera to actively scare off intruders, or quietly record them? The 3866TP-ZAS-AUS is the silent surveillance camera — longer 60 m IR reach, no strobe, no siren, no warm light. The 3849T1-ZAS-PV-ANZ-S2 is the active deterrence camera — adds red/blue strobe, siren, voice broadcast, warm-light LED, on-board speaker, dual MIC and AcuPick AI compatibility, at the cost of slightly shorter 50 m IR.
3866TP-ZAS-AUS (Silent IR) vs 3849T1-ZAS-PV-ANZ-S2 (TiOC Active Deterrence)
Compatible Mounts & Accessories
Dahua PFA135 Junction Box
Bullet-specific junction box for clean cable concealment behind the camera mount. Indoor / sheltered installs. View Dahua accessories →
Dahua PFA130-E Waterproof Junction Box
Waterproof junction box for exposed outdoor bullet mounting on render, brick or weatherboard. View Dahua accessories →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket — the typical install partner for long-range bullet cameras on fence posts, light poles and gate columns. View product →
Dahua PFM900-E Integrated Mount Tester
On-site display + power-test tool for commissioning bullet cameras from the ladder. Especially useful when setting the zoom and focus on the vari-focal lens. View Dahua accessories →
Dahua PFM321D 12 V DC Power Adapter
1A power adapter for sites not running PoE — bench testing, retrofit installs into existing 12 V power runs. View Dahua accessories →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. Maxes out the 3866TP's 256 GB MicroSD ceiling. View WD Purple 256 GB →
Frequently Asked Questions
Does this camera have active deterrence (strobe / siren)?
No. The 3866TP-ZAS-AUS is a silent 4K IR surveillance camera — it does not include red/blue strobe lights, built-in siren or voice broadcast, and it does not include a warm-light LED. If you need active deterrence, look at the Dahua TiOC line-up (HFW3849T1-ZAS-PV-ANZ-S2 is the closest equivalent in the same form factor).
Does it support AcuPick AI search?
No. AcuPick is reserved for Dahua's TiOC AcuPick line-up. This camera is part of the WizSense 3 Series and supports SMD 4.0 human/vehicle classification, IVS tripwire/intrusion, and Quick Pick (with an AI NVR) — all of which work on-camera or with any Dahua AI NVR.
What is Quick Pick and how is it different from AcuPick?
Quick Pick lets you pull human and vehicle targets straight from SMD events when the camera is paired with an AI NVR. AcuPick goes further — it indexes attribute metadata (clothing colour, vehicle type) so you can search live and recorded video by attribute. Quick Pick is "show me the people from this clip"; AcuPick is "show me everyone wearing red across the entire week".
Can the camera pan and tilt remotely?
No. The 3866TP-ZAS is a motorised vari-focal bullet, not a PTZ. The lens supports remote zoom and auto-focus, but the camera body itself does not pan or tilt remotely — the housing is aimed manually at install time. For full remote pan/tilt/zoom, look at a Dahua PTZ.
How much does the 5× motorised zoom cover at full telephoto?
At 13.5 mm telephoto, the camera will detect motion at 289.7 m, recognise a person at 57.9 m, and identify a face at 29.0 m. At the 2.7 mm wide end, it covers a 109° horizontal field of view — a full driveway or carpark from a single mounting point.
What does the camera see at night?
Four IR LEDs deliver 60 m of infrared illumination, producing clear monochrome 4K footage in complete darkness. In low-light colour conditions (e.g. ambient streetlight) the 1/2.8" sensor produces usable colour image at 0.007 lux before the IR cuts in.
Does it have a built-in microphone?
Yes — the camera has a built-in microphone for capturing scene audio. The ZAS variant also adds external audio in / out (RCA) for connecting an external mic or speaker, plus alarm in / out for PIRs or door contacts.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 256 GB and records 4K footage independently of the NVR.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −30 °C to +60 °C — covering every Australian climate from a Hobart winter to a Karratha summer. IK10 vandal resistance is available as an optional configuration. The all-metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Yes — recording, streaming, motion and the WizSense AI metadata work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). For the smartest integration (Quick Pick, push notifications, remote zoom from the app), pair it with a Dahua AI NVR.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
Order the Dahua DH-IPC-HFW3866TP-ZAS-AUS from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua WizSense network cameras. Order the 8MP 4K IR motorised vari-focal bullet today in White for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
