8-Channel XVR · Dahua WizSense · Penta-brid 4K · AI SMD Plus · HDCVI + IP

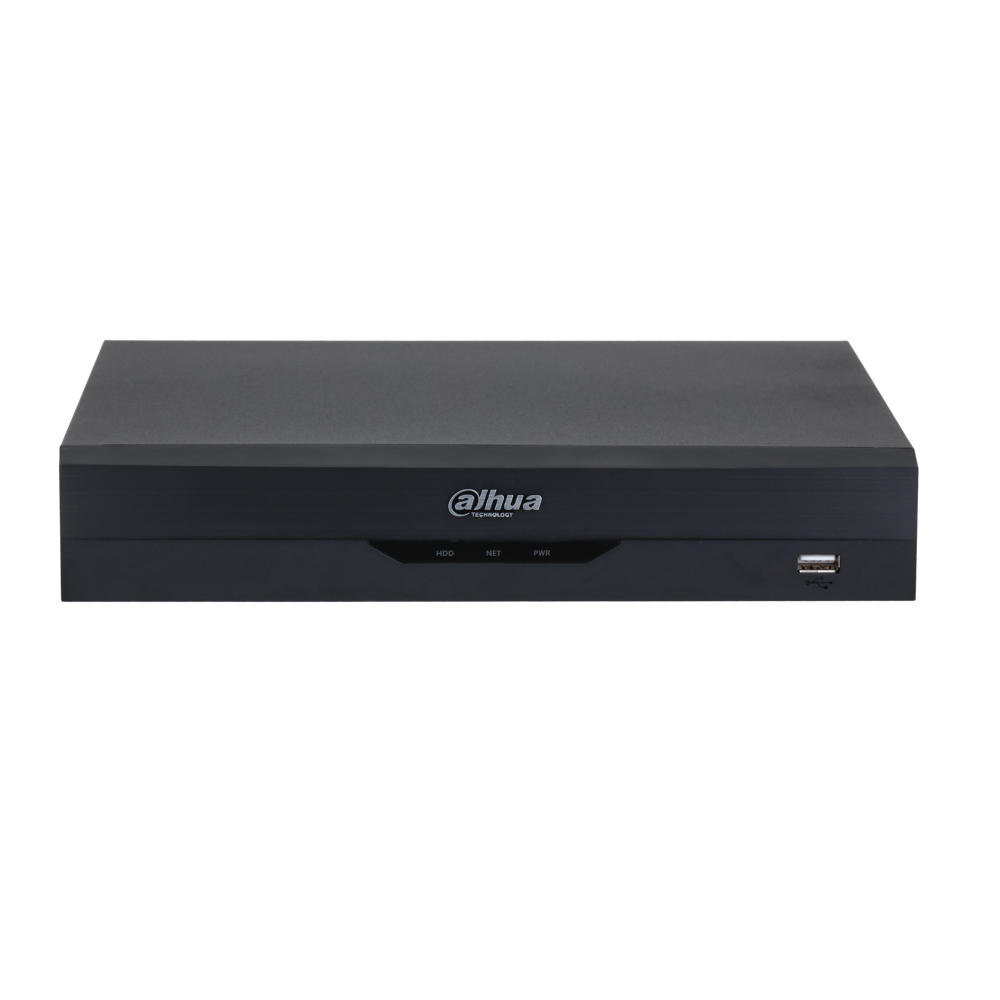

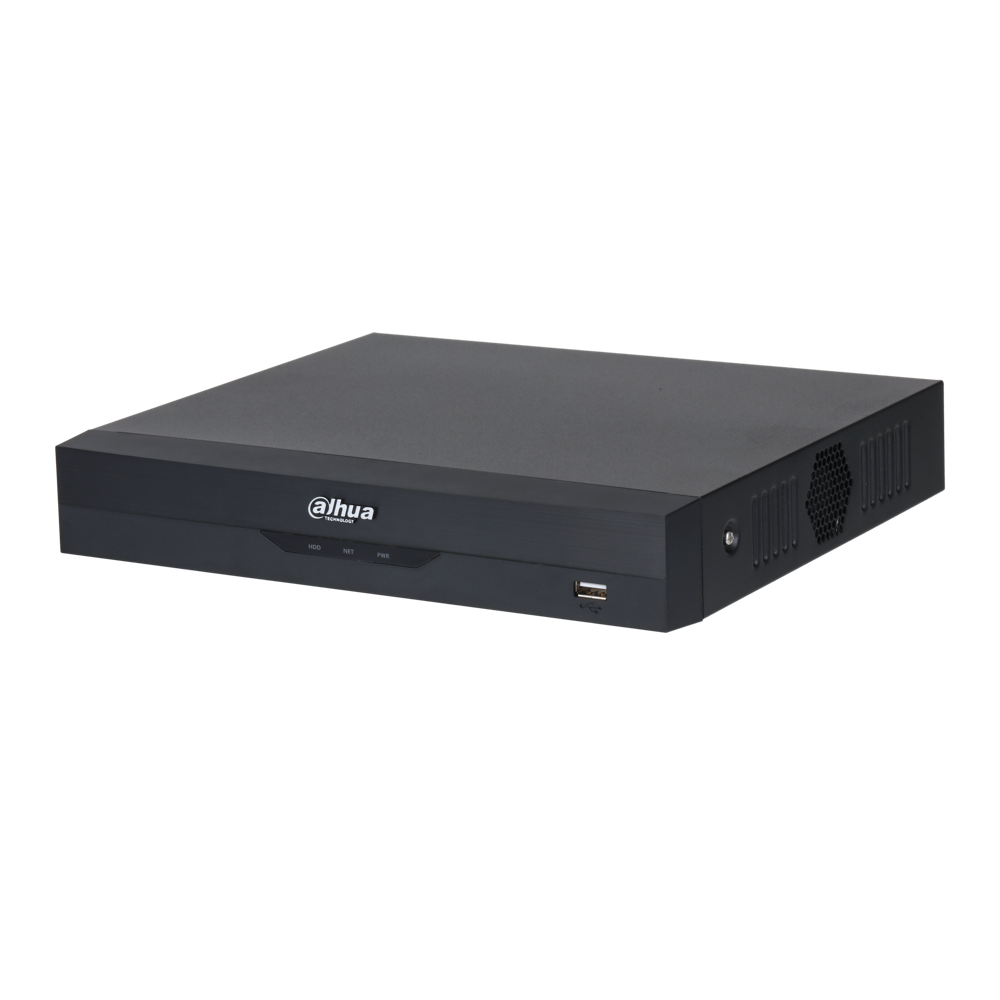

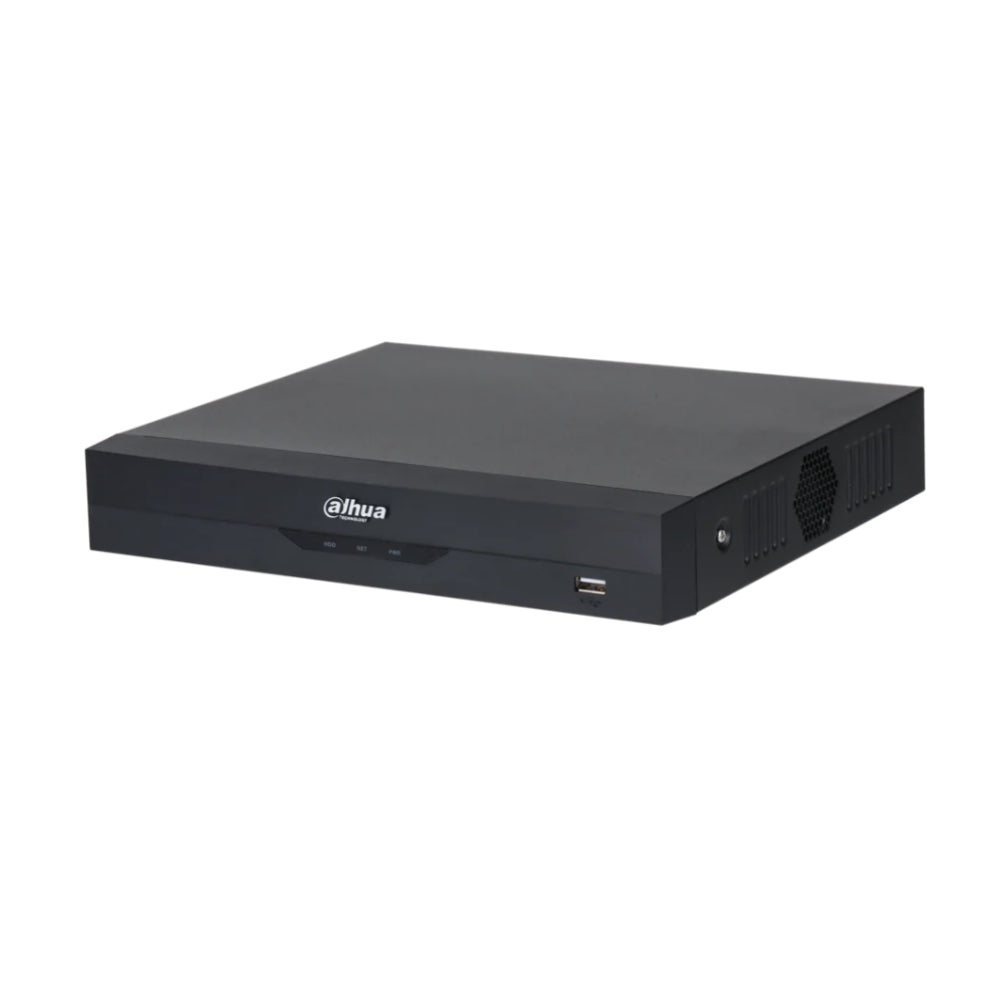

Dahua DH-XVR5108HS-4KL-I3-S3 — 8 Channel Penta-brid 4K WizSense XVR
The Dahua DH-XVR5108HS-4KL-I3-S3 is the definitive 8-channel recorder for Australian installers and integrators who need 4K recording, AI-powered analytics, and maximum camera flexibility in a compact 1U chassis. As a true Penta-brid XVR, it accepts HDCVI, AHD, TVI, CVBS, and IP cameras on the same unit — protecting your existing coaxial cable investment while giving you a clear upgrade path to full IP.
Powered by Dahua's WizSense AI engine, the S3 delivers SMD Plus (Smart Motion Detection) across all 8 channels, Perimeter Protection on 2 channels, and human face recognition on 2 channels — dramatically reducing false alarms and making footage search fast and accurate. HDD not included — add a surveillance-grade drive at checkout.
Channels
8 Analogue + 16 IP
AI
SMD Plus · Face Detection
Inputs
HDCVI / AHD / TVI / IP
Bandwidth
128 Mbps Incoming
Storage
1 × HDD Bay (No HDD)
Australian Stock · Fast Dispatch
Dahua Manufacturer Warranty
Expert Australian Tech Support
Key Features
Penta-brid Flexibility — 5 Camera Types, 1 Recorder
Accepts HDCVI, AHD, TVI, CVBS analogue cameras and IP cameras simultaneously. Reuse existing coaxial cable infrastructure while adding IP cameras on the same NVR. No rip-and-replace required.
4K Recording (8MP)
Records analogue channels at up to 4K resolution via HDCVI, and IP channels at up to 8MP. Capture faces, plates, and fine detail with confidence — even on wide-angle shots.
WizSense AI — SMD Plus on All 8 Channels
Smart Motion Detection Plus uses deep learning to distinguish humans and vehicles from animals, foliage, and environmental noise. Dramatically reduces false alarms and makes event search fast and precise.
Perimeter Protection (2 Channels)
Define virtual tripwires and intrusion zones on up to 2 analogue channels. The XVR triggers alerts only when a human or vehicle crosses the boundary — not every time a leaf blows past.
Face Detection & Recognition (2 Channels)
Detect and log faces on up to 2 channels. Search recorded footage by face attributes in seconds — no more scrubbing through hours of video to find a specific person.
Expandable to 16 IP Channels
The 8 BNC ports handle analogue cameras, but the XVR can simultaneously manage up to 16 IP camera channels at up to 8MP each — giving you a clear upgrade path without replacing the recorder.
H.265+ Compression
H.265+ dual-stream compression reduces storage consumption by up to 75% versus H.264 — meaning your HDD lasts longer and your bandwidth stays manageable.
Remote Access via DMSS & SmartPSS
Monitor live and recorded footage from anywhere via the DMSS mobile app (iOS & Android) or SmartPSS desktop client. P2P connection — no static IP or port forwarding required.
Recommended For
Analogue Camera Upgrades
Already have coaxial cable runs? Keep them. The Penta-brid XVR connects your existing analogue cameras while letting you add IP cameras on the same recorder — a cost-effective upgrade path.
Small Retail & Convenience Stores
8 channels covers entry, POS counter, stockroom, and car park. SMD Plus filters out false alarms from foot traffic — only genuine intrusion events trigger notifications.
Warehouses & Industrial Sites
Perimeter Protection on 2 channels secures loading docks and yard boundaries. Face detection logs who enters the office or server room.
Small Offices & Commercial Premises
Compact 1U chassis fits in a server rack or comms cabinet. Remote access via DMSS keeps management informed without on-site visits.
Residential Homes
8 channels covers every entry point, garage, and outdoor area. H.265+ compression maximises HDD retention time. DMSS app provides instant mobile alerts.
Schools & Childcare Centres
AI-powered SMD Plus reduces nuisance alerts in busy environments. Face detection supports access logging at entry points.
Add a Surveillance HDD
HDD Not Included — Choose Your Capacity
The DH-XVR5108HS-4KL-I3-S3 has 1 × 3.5" SATA HDD bay. We recommend a WD Purple or Seagate SkyHawk surveillance-grade drive — purpose-built for 24/7 DVR workloads. Contact our team for a retention calculation based on your camera count, resolution, and recording schedule.
Estimated Retention (8 × 5MP @ 15 fps)
2TB ≈ 7–10 days · 4TB ≈ 14–20 days · 8TB ≈ 28–40 days of continuous recording. H.265+ compression significantly extends these estimates versus standard H.264 recorders.
Technical Specifications
Video Input

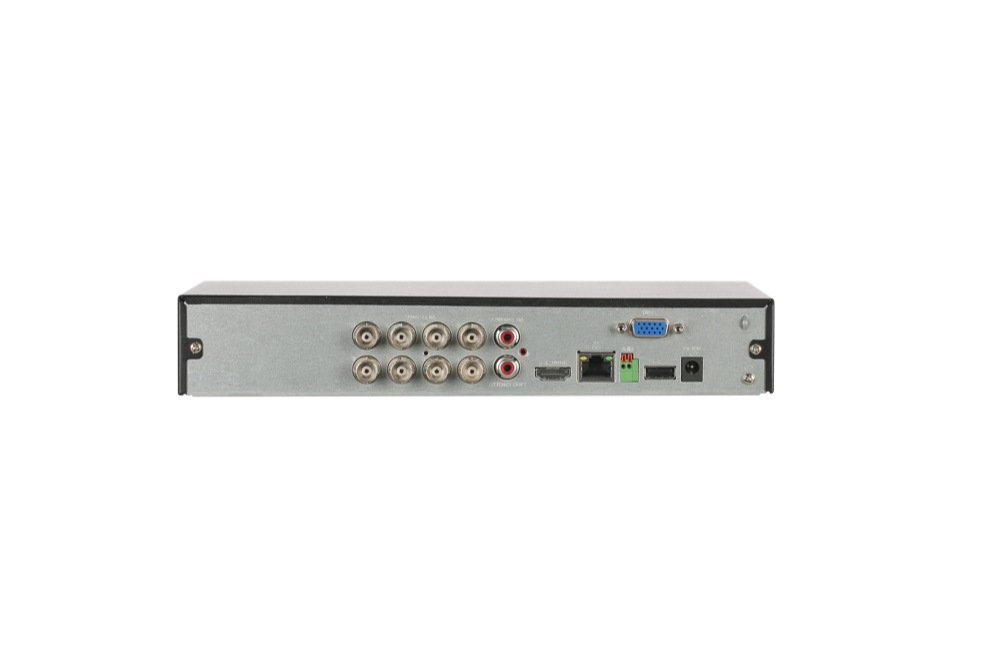

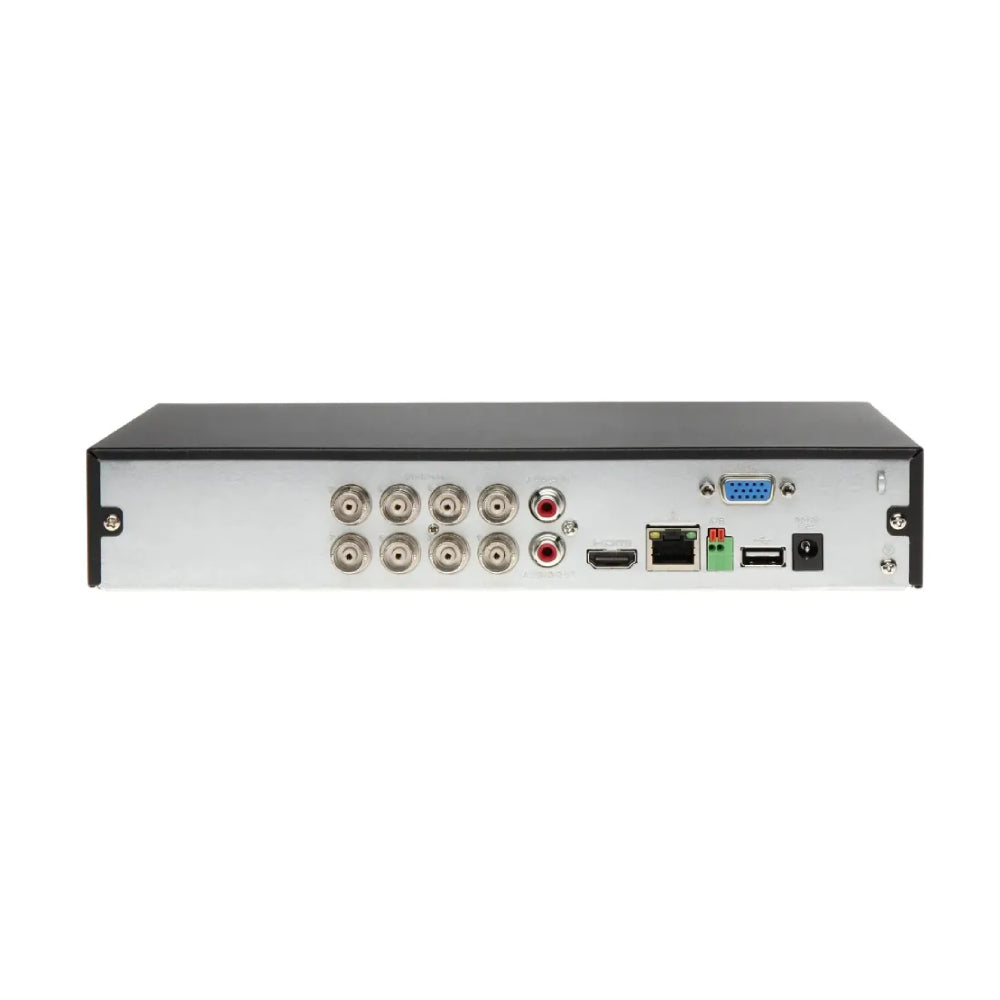

8 × BNC (HDCVI / AHD / TVI / CVBS) · Up to 16 × IP camera channels · Max 8MP per IP channel
Max Recording Resolution
4K (3840 × 2160) via HDCVI · 8MP via IP
Compression
H.265+ / H.265 / H.264+ / H.264 dual-stream · Full-channel AI Coding support
AI Features
SMD Plus (8 channels) · Perimeter Protection (2 channels) · Face Detection & Recognition (2 channels) · IoT & POS integration
Bandwidth & Storage
128 Mbps incoming bandwidth · 1 × SATA HDD bay (up to 20TB) · HDD not included
Network & Remote Access
TCP/IP · P2P · DMSS app (iOS & Android) · SmartPSS desktop · ONVIF · 1 × RJ45 10/100M
Video Output
1 × HDMI (4K) · 1 × VGA · Simultaneous output supported
Form Factor & Power
Compact 1U chassis · Smart Fan (temperature-controlled) · 12V DC · Operating temp: -10°C to +55°C
More Information
Frequently Asked Questions
Does the XVR include an HDD?
No — an HDD is not included. Add a WD Purple or Seagate SkyHawk surveillance-grade drive at checkout. Contact us for a sizing recommendation based on your camera count and recording schedule.
Can I connect IP cameras to this XVR?
Yes — the DH-XVR5108HS-4KL-I3-S3 supports up to 16 IP camera channels at up to 8MP each, in addition to the 8 BNC analogue inputs.
What analogue camera types are supported?
HDCVI, AHD, TVI, and CVBS (standard definition) cameras are all supported on the BNC inputs — mix and match as needed.
What is SMD Plus?
Smart Motion Detection Plus uses deep learning AI to distinguish humans and vehicles from animals, foliage, and other false triggers. It dramatically reduces nuisance alerts and makes footage search faster.
Can I view footage remotely?
Yes — the DMSS app (iOS & Android) and SmartPSS desktop client provide remote access via P2P. No static IP or port forwarding required.
What is the difference between S2 and S3?
The S3 is the updated hardware revision with improved AI processing and compatibility. It uses the same form factor and feature set as the S2 but with enhanced WizSense performance.
How many HDD bays does it have?
One 3.5" SATA HDD bay, supporting drives up to 20TB. Only one HDD can be installed.
Does it support 4K recording?
Yes — up to 4K (3840 × 2160) via HDCVI cameras, and up to 8MP via IP cameras.
What's the warranty?
Dahua manufacturer warranty, supported locally by CCTV Guru's Australian technical team.
Do you ship Australia-wide?
Yes — fast dispatch to every state and territory from Australian stock.
Order the Dahua DH-XVR5108HS-4KL-I3-S3 from CCTV Guru
CCTV Guru is an authorised Australian distributor of Dahua surveillance products. Order the Dahua DH-XVR5108HS-4KL-I3-S3 8-Channel Penta-brid 4K WizSense XVR today for fast Australia-wide dispatch, expert pre-sales advice on HDD sizing and camera compatibility, and full local warranty support. Contact our Australian team to add a surveillance HDD, compatible Dahua cameras, or a complete CCTV system package.
