Dahua · DH-HAC-HDW2501TMQP-A · 5MP HDCVI Turret · 120dB WDR · 60m Smart IR · Built-in Mic
5MP HDCVI Turret

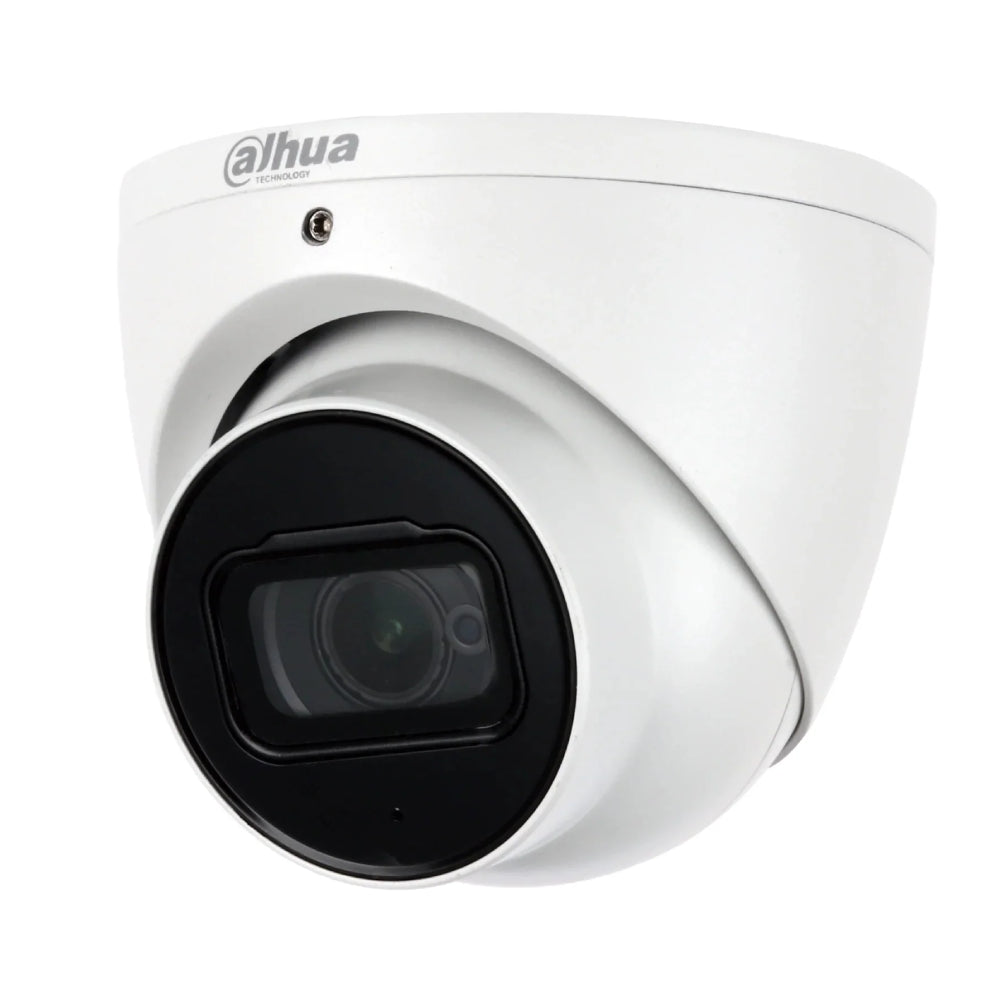

Dahua DH-HAC-HDW2501TMQP-A — 5MP Starlight Pro HDCVI Turret Camera
The Dahua DH-HAC-HDW2501TMQP-A is the go-to 5MP HDCVI turret camera for Australian installers who need exceptional low-light performance, wide dynamic range, and coaxial simplicity in a compact, weatherproof housing. Powered by Dahua's Starlight Pro sensor technology, it delivers clear, detailed colour imagery in near-darkness — without the cost or complexity of IP cameras. With a 2.8mm fixed wide-angle lens, 60m Smart IR, 120dB True WDR, and a built-in microphone, it connects directly to any HDCVI, AHD, TVI or CVBS DVR/XVR over existing coaxial cable.
Resolution
5MP · 2592×1944
Night Vision
60m Smart IR
Technology
HDCVI/AHD/TVI/CVBS
Key Features
5MP Starlight Pro SensorDahua's Starlight Pro technology captures clear, detailed colour imagery in near-zero light conditions — far beyond what standard 5MP HDCVI cameras can achieve. Ideal for dimly lit car parks, corridors and entry points where colour detail matters at night.
120dB True Wide Dynamic Range120dB True WDR balances exposure across extreme lighting contrasts — bright sunlight through a window, headlights at a gate, or a backlit doorway. No more washed-out or silhouetted subjects.
60m Smart IR Night VisionSmart IR automatically adjusts infrared intensity based on subject distance, preventing overexposure at close range and maintaining clarity at up to 60 metres.
Built-in MicrophoneThe integrated microphone captures on-site audio alongside video — useful for retail, reception areas and any site where audio context adds investigative value. No separate audio cable required.
Penta-brid Compatibility (CVI/AHD/TVI/CVBS)Switchable between HDCVI, AHD, TVI and CVBS output modes. Compatible with virtually any modern DVR or XVR — including all Dahua Penta-brid XVRs and Hikvision Turbo HD DVRs.
IP67 WeatherproofFully sealed against dust ingress and water jets — rated for outdoor installation in all Australian weather conditions including coastal salt air, tropical rain and outback dust.
Specifications — DH-HAC-HDW2501TMQP-A
| Sensor & Resolution |
5MP CMOS · 2592 × 1944 · max 25 fps @ 5MP (16:9) · Starlight Pro |
| Lens |
2.8mm fixed · ~103° horizontal field of view |
| Night Vision |
Smart IR · max 60m · auto IR intensity adjustment |
| Image Processing |
120dB True WDR · 3D NR · BLC · HLC · digital defog |
| Video Output |
HDCVI / AHD / TVI / CVBS switchable · coaxial output |
| Audio |
Built-in microphone · audio over coaxial (compatible XVR required) |
| Protection & Build |
IP67 · eyeball turret housing · white finish |
| Power |
DC 12V · max 4.7W · operating temp –40°C to +60°C |
| Cable Distance |
Up to 500m over RG59 coaxial in HDCVI mode |
| XVR Firmware (for 5MP 16:9) |
Dahua XVR firmware V4.001.0000001.0.R.200908 or later |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
Frequently Asked Questions
Does this camera work with my existing DVR?Yes — it is switchable between HDCVI, AHD, TVI and CVBS modes, making it compatible with virtually all modern DVRs and XVRs. For 5MP 16:9 output, your Dahua XVR must be on firmware V4.001.0000001.0.R.200908 or later. Pair it with a
Dahua WizSense XVR for best performance.
Does it need PoE?
No — this is an HDCVI analogue camera powered by DC 12V. A separate power cable is required alongside the coaxial video cable. It does not support PoE.
How far can the IR reach?
Up to 60 metres with Smart IR, which automatically adjusts intensity to prevent overexposure at close range.
Can I run this over long cable distances?
Yes — HDCVI supports up to 500m over RG59 coaxial cable, far exceeding the 100m limit of IP cameras over Cat6.
