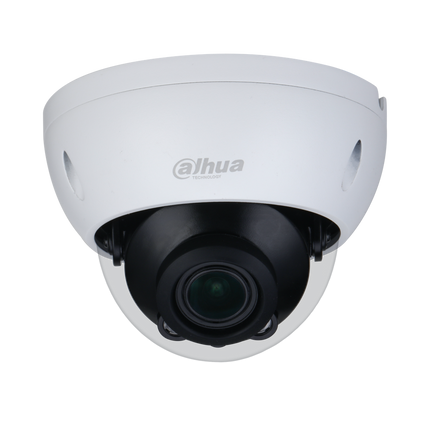

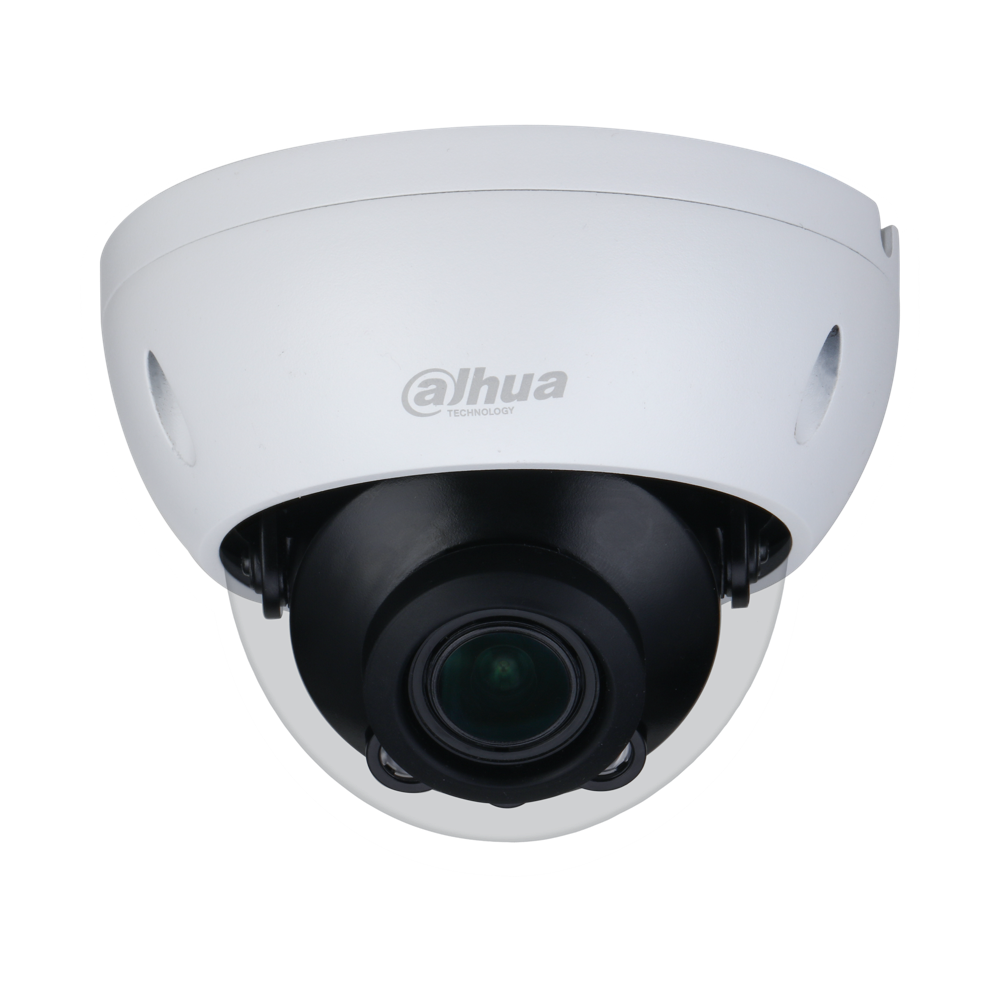

Dahua DH-HAC-HDBW2501RP-Z-DP 5MP HDCVI Motorised Varifocal Dome Camera

Description

Dahua · HDCVI Cameras

5MP HDCVI Motorised Varifocal Dome Camera

DH-HAC-HDBW2501RP-Z-DP — Fine-tune a coaxial CCTV view remotely with a 2.7–13.5 mm motorised lens. This 5MP dome combines 30 m infrared illumination, 120 dB wide dynamic range and a vandal-resistant housing for compatible analogue surveillance systems.

Key features

Motorised framing

Adjust the optical view without physically turning a manual lens.

5MP HDCVI video

Capture higher-resolution footage with a recorder that supports this camera's CVI mode.

Backlit scene control

120 dB WDR helps balance bright backgrounds and darker foreground areas.

Outdoor dome housing

IP67 and IK10 protection help suit exposed or accessible locations.

Applications & installation

Use the wide end for broader coverage or zoom in for a narrower subject area at entrances and access points. Check that the recorder supports the desired resolution and remote lens control. Power the camera from 12 V DC or 24 V AC; it does not accept PoE and does not record to a microSD card.

Technical Specifications
Model DH-HAC-HDBW2501RP-Z-DP
Maximum CVI resolution 5MP, 2880 × 1620 at 25 fps
TVI/AHD output Up to 4MP at 25/30 fps
Lens 2.7–13.5 mm motorised, F1.6
Horizontal view 113° to 31.4°
Night vision IR up to 30 m
Wide dynamic range 120 dB
Video connection BNC, switchable CVI/TVI/AHD/CVBS
Power 12 V DC or 24 V AC
Maximum consumption 8.7 W
Protection IP67 and IK10
Dimensions Ø122 × 88.9 mm
Net weight 0.47 kg
Warranty 36 months — subject to warranty terms

Compatible options & add-ons

Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.

Frequently asked questions

Does this camera have a microphone or SD card slot?

Neither a built-in microphone nor local microSD recording is specified for this model. Record video through a compatible DVR/XVR.

Are the ceiling accessories a complete mounting kit?

PFA106 and PFB220C form a supported ceiling-mount combination. They are optional separate components, not included with the camera.

Downloads

DH-HAC-HDBW2501RP-Z-DP Datasheet (PDF)

Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
