Dahua · 4-Channel Penta-brid 4K XVR · 5-in-1 HDCVI/AHD/TVI/CVBS/IP · Mini 1U
4CH 4K XVR

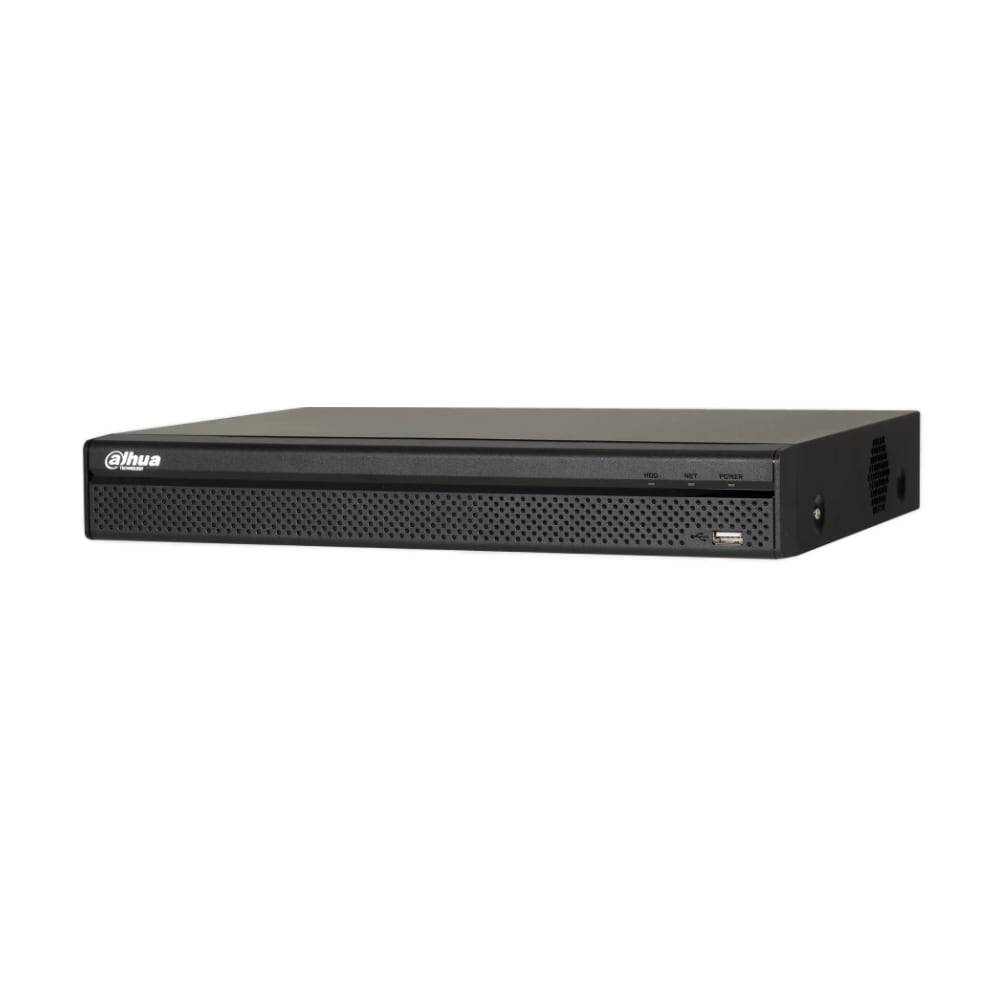

Dahua DH-XVR5104H-4KL-X — 4-Channel Penta-brid 4K XVR (Mini 1U, 1 HDD)
The Dahua DH-XVR5104H-4KL-X is a compact, affordable 4-channel Penta-brid recorder that accepts five signal types — HDCVI, AHD, TVI, CVBS and IP — so it records existing coax cameras and modern IP cameras together, up to 4K. It includes Smart Search and IVS intelligent video for tripwire and intrusion alerts, with Smart H.265+ to keep storage low. A neat mini 1U chassis with one HDD bay makes it an easy, budget-friendly upgrade from an old analogue system.
Penta-brid 5-in-1 — Mix Coax & IP
Every channel accepts HDCVI, AHD, TVI, CVBS or IP — keep your existing coax cameras and add IP cameras over time without rewiring.
Up to 4K · Smart H.265+
Records up to 4K with Smart H.265+ dual-stream compression to keep storage and bandwidth low while preserving detail.
IVS Smart Detection
Intelligent Video System adds tripwire and intrusion detection, plus Smart Search to jump straight to events instead of scrubbing the timeline.
Mini 1U · 1 HDD
A compact, quiet chassis with one SATA bay, up to 6 IP channels and 24 Mbps incoming. P2P remote access via the free DMSS app and SmartPSS.
Specifications — DH-XVR5104H-4KL-X
| Recorder Type |
4-Channel Penta-brid 4K XVR (Mini 1U) |
| Signal Inputs |
HDCVI · AHD · TVI · CVBS · IP (5-in-1) |
| BNC Ports |
4 × BNC |
| IP Channels |
Up to 6 IP cameras (each up to 8MP) |
| Max. Resolution |
4K |
| Incoming Bandwidth |
24 Mbps |
| Smart Detection |
IVS (tripwire, intrusion) · Smart Search |
| Compression |
Smart H.265+ / H.265 · dual-stream |
| HDD Bays |
1 × SATA (HDD not included) |
| Remote |
P2P · DMSS app · SmartPSS · ONVIF |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
What does Penta-brid mean?
The XVR accepts five signal types on each channel — HDCVI, AHD, TVI, CVBS and IP — so you can run existing coax cameras and modern IP cameras on the same recorder.
Can I connect IP cameras too?
Yes — up to 6 IP channels (each up to 8MP) in addition to the 4 BNC inputs.
Does it include a hard drive?
No — it has one SATA bay but ships without storage. Add a surveillance-grade WD Purple or Seagate SkyHawk drive.
Can I view it remotely?
Yes — free DMSS app (iOS/Android) and SmartPSS via P2P, no static IP or port forwarding required.
